Delta ECM-B3M-J20807RS1 ECM-B3M Series AC Servo Motor
750W | 400V Class | 3000rpm Rated | 24-bit Incremental Encoder | Without Brake
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ECM-B3M-J20807RS1 |
| Motor Series |
ECM-B3M Series |
| Servo System Family |
ASDA-B3 |
| Product Type |
AC Servo Motor |
| Inertia Type |
Medium Inertia |
| Voltage Class |
400 V |
| Motor Nameplate Input |
220 VAC, 2.15 A (Actual Nameplate) |
| Rated Power |
0.75 kW (750 W) |
| Rated Speed |
3000 rpm |
| Maximum Speed (Catalog) |
6000 rpm |
| Rated Torque |
2.4 Nm |
| Maximum Torque |
8.4 Nm |
| Rated Current |
2.15 Arms |
| Maximum Instantaneous Current |
7.9 Arms |
| Encoder Type |
24-bit Incremental Optical Encoder |
| Motor Frame Size |
80 mm |
| Shaft Diameter |
19 mm |
| Mounting Hole PCD |
90 mm |
| Mounting Hole Diameter |
6.6 mm |
| Motor Body Length (Without Brake) |
105.2 mm (LL Dimension) |
| Shaft Configuration |
Keyway with Fixing Screw Hole |
| Shaft / Connector Configuration |
Standard |
| Motor Brake |
Without Brake |
| Oil Seal |
Equipped |
| Rotor Inertia (Without Brake) |
1.07 x 10^-4 kg.m2 |
| Weight (Without Brake) |
2.34 kg |
| Rated Power Rate |
53.83 kW/s |
| Mechanical Time Constant |
0.55 ms |
| Torque Constant |
1.12 Nm/A |
| Voltage Constant |
40.34 mV/rpm |
| Armature Resistance |
2.2 ohm |
| Armature Inductance |
11.2 mH |
| Electrical Time Constant |
5.09 ms |
| Maximum Radial Load |
392 N |
| Maximum Axial Load |
147 N |
| Oil Seal Derating |
5% under Manufacturer Conditions |
| Insulation Class |
Class A (UL), Class B (CE) |
| Insulation Resistance |
Greater than 100 Mohm at 500 VDC |
| Insulation Strength |
2.3 kVAC for 1 Second |
| Vibration Grade |
V15 |
| Vibration Resistance |
2.5 G |
| Protection Rating |
IP67 under Specified Waterproof Sealing Conditions |
| Operating Temperature |
-20 to 60 degrees C (Derating Above 40 degrees C) |
| Storage Temperature |
-20 to 80 degrees C |
| Operating / Storage Humidity |
20 to 90% RH, Non-condensing |
Product Overview
The Delta ECM-B3M-J20807RS1 is a
0.75 kW (750 W) AC servo motor from Delta's
ECM-B3M Series for compatible
ASDA-B3 servo systems.
This medium-inertia motor belongs to the
400V class and provides
3000 rpm rated speed with
2.4 Nm rated torque.
It features a 24-bit incremental optical encoder,
an 80 mm motor frame, and a
19 mm keyed shaft with oil seal,
without holding brake.
Key Product Features
-
0.75 kW (750 W) rated motor output
-
Medium-inertia ECM-B3M motor design
-
3000 rpm rated rotational speed
-
2.4 Nm rated torque
-
24-bit incremental optical encoder
for position feedback
-
80 mm motor frame
with standard 19 mm shaft diameter
-
Without holding brake
for non-braked motor configurations
-
Keyed shaft with oil seal
and fixing screw hole
Actual Product Verification
✓

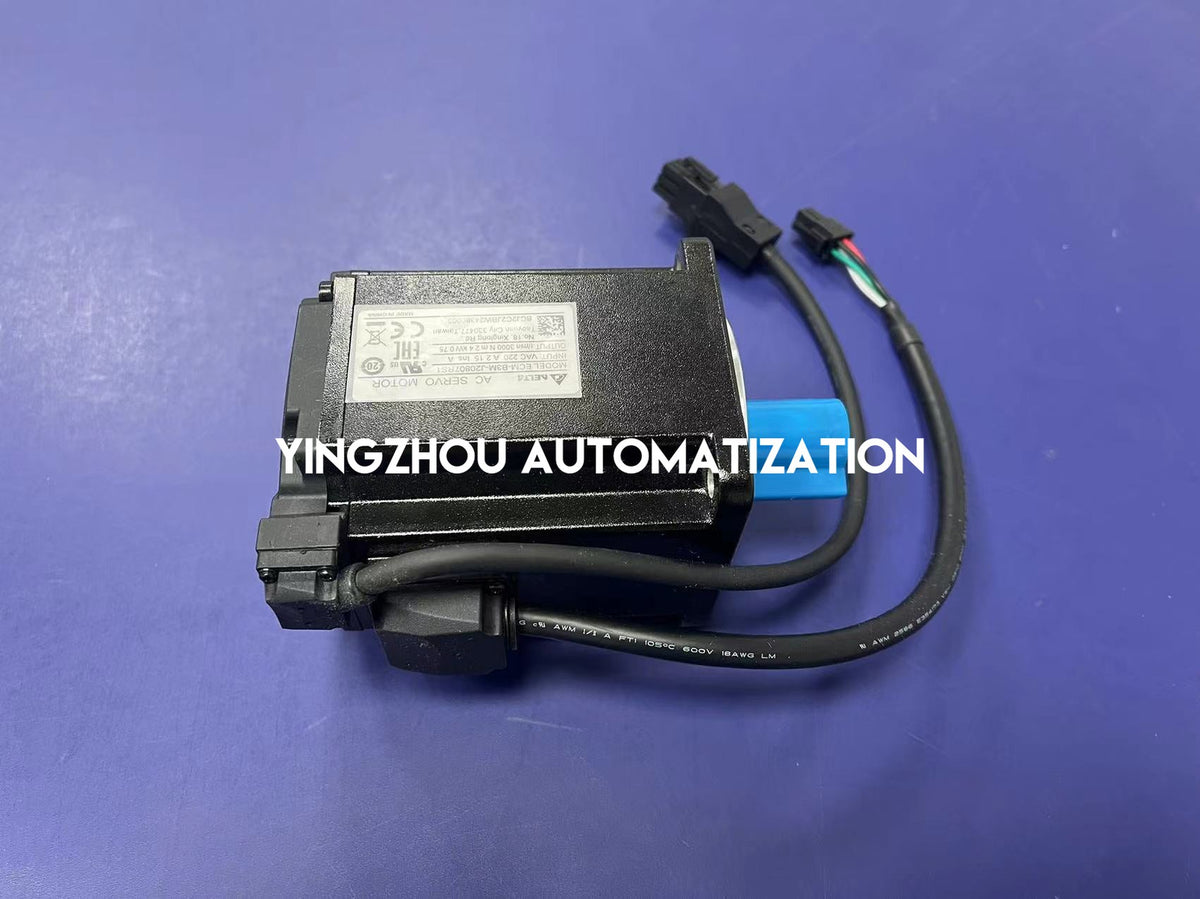

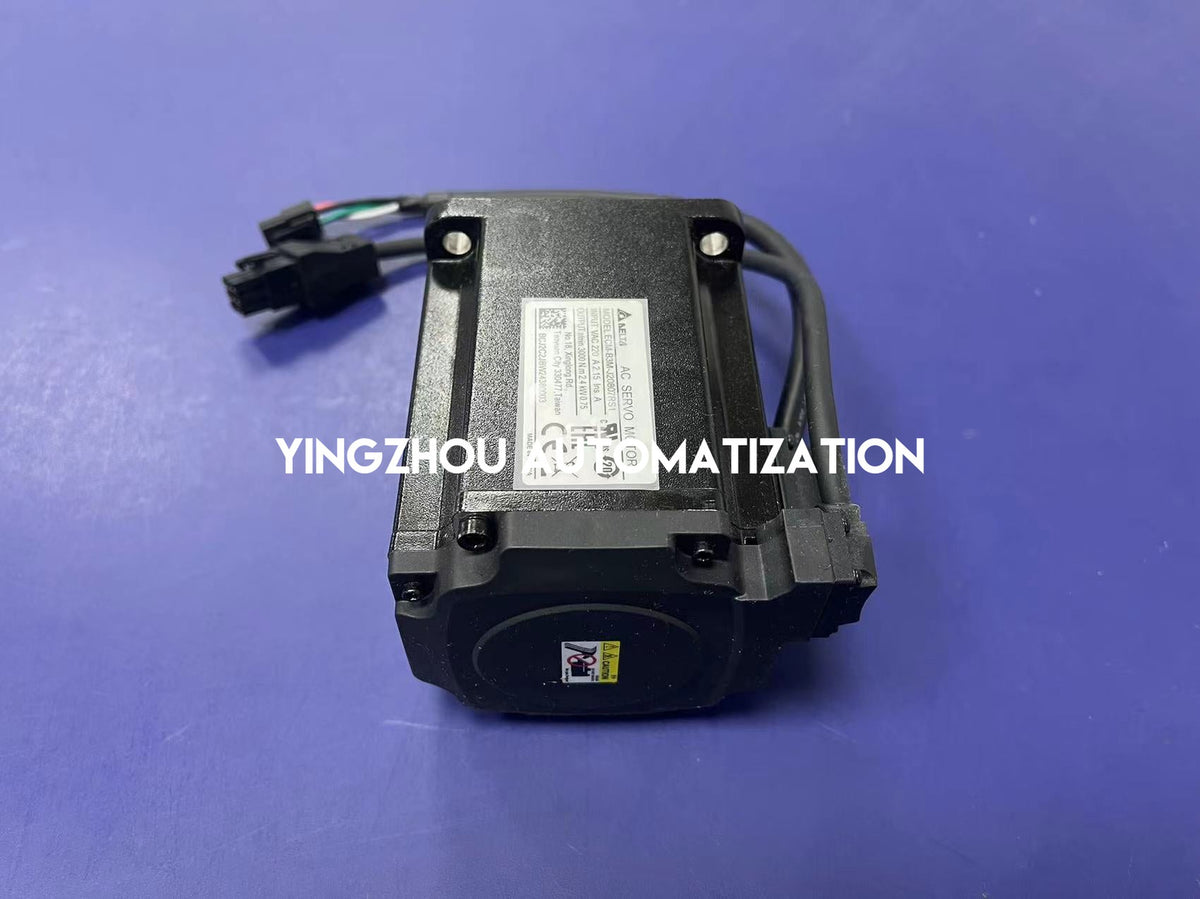

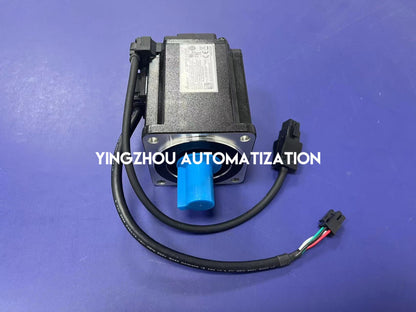

Actual product photo
✓

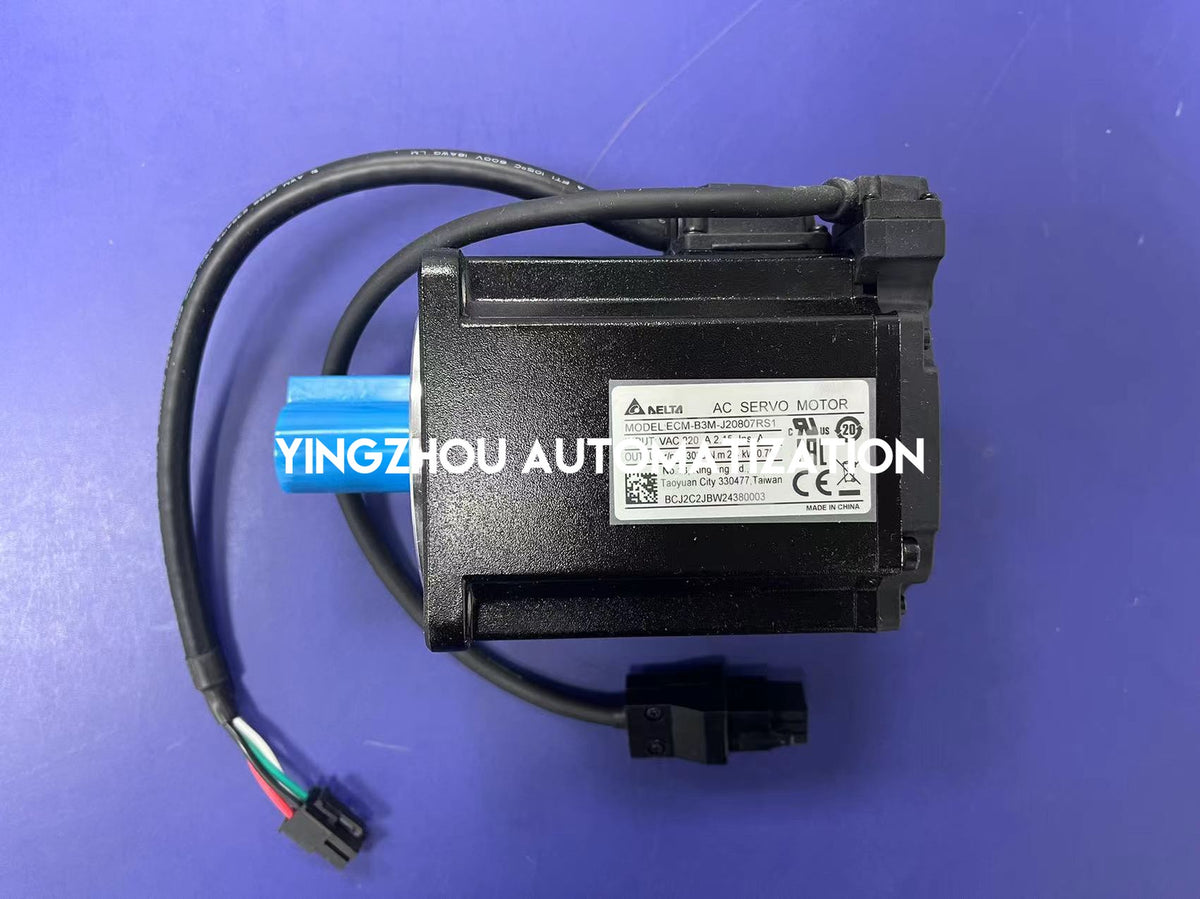

Exact model/nameplate visible
✓
Packaging with exact model label shown
✓

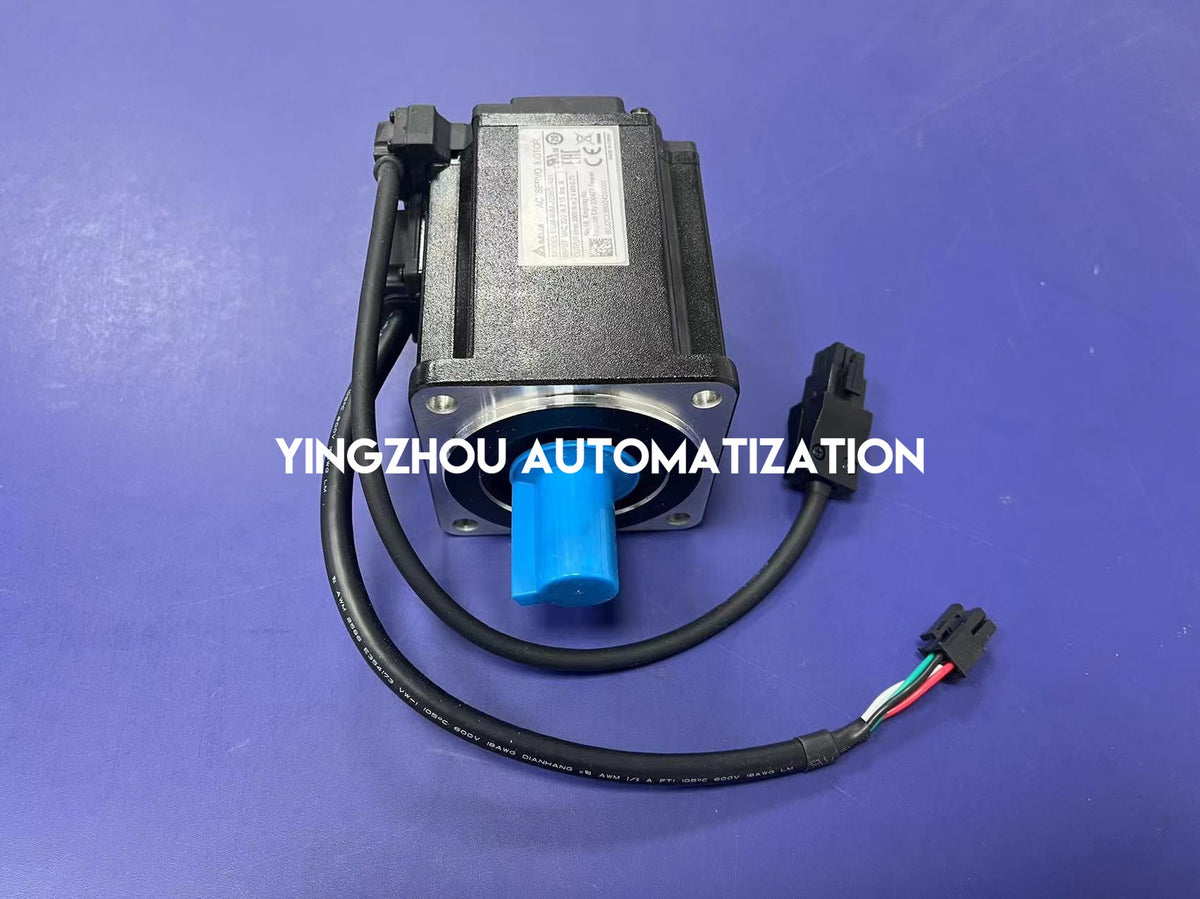

Motor housing, cable connectors and shaft protection shown
✓
Verify exact model ECM-B3M-J20807RS1 before ordering
