Delta ECM-B3M-C20604RS1 B3 Series AC Servo Motor
400W | 220V Class | 3000 RPM | 24-bit Incremental Encoder | Medium Inertia
Product Overview
The Delta ECM-B3M-C20604RS1 is a
400W medium-inertia AC servo motor from
Delta's ECM-B3M Series for the ASDA-B3 servo platform.
It provides 3000 RPM rated speed,
1.27 N-m rated torque, and
4.45 N-m maximum torque.
The motor features a 24-bit incremental encoder
for high-resolution feedback and an
RS shaft configuration with an oil seal
and no integrated holding brake.
Key Product Features
-
400W medium-inertia AC servo motor
-
220V-class ASDA-B3 servo system configuration
-
3000 RPM rated speed and 6000 RPM maximum speed
-
1.27 N-m rated torque and 4.45 N-m maximum torque
-
24-bit incremental encoder for position feedback
-
Without brake and with oil seal
-
60 mm frame with 14 mm standard keyway shaft
Actual Product Verification
✓

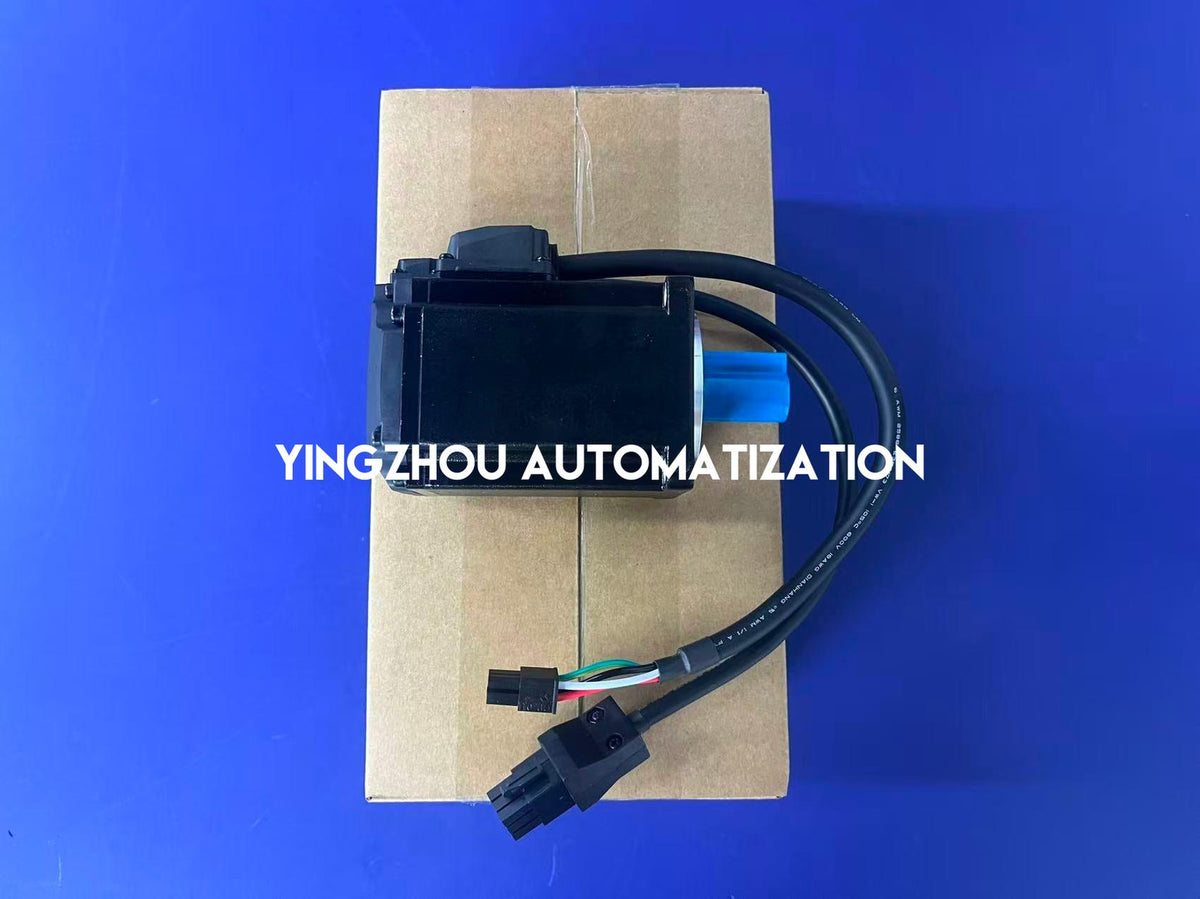

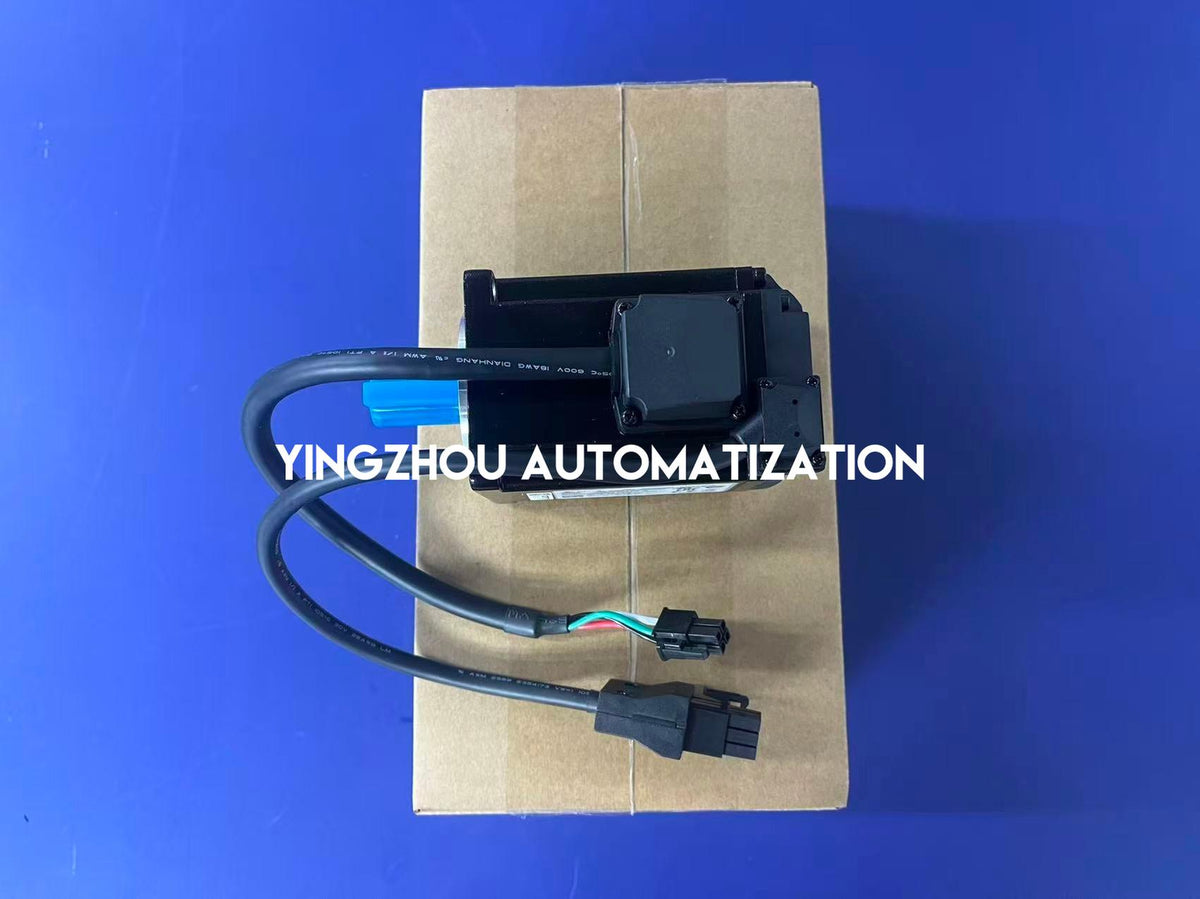

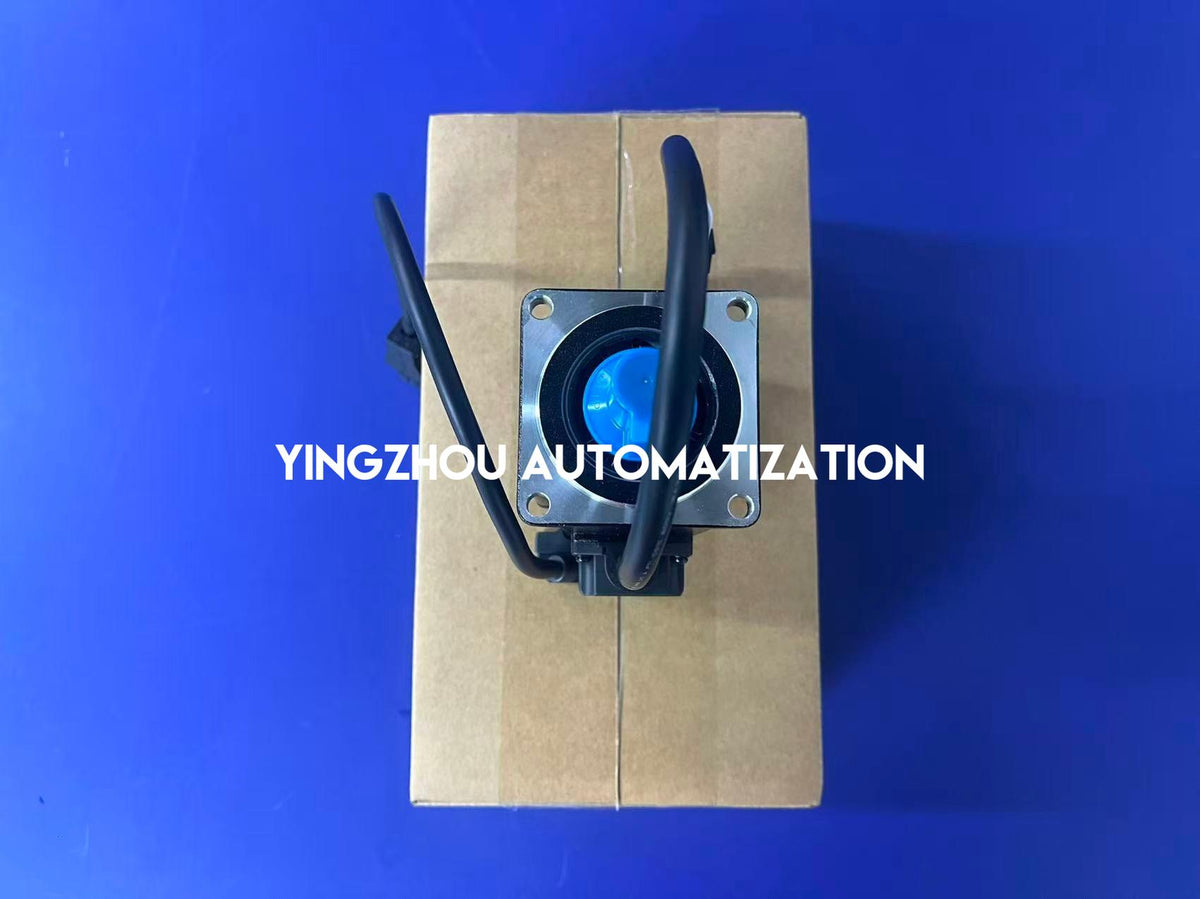

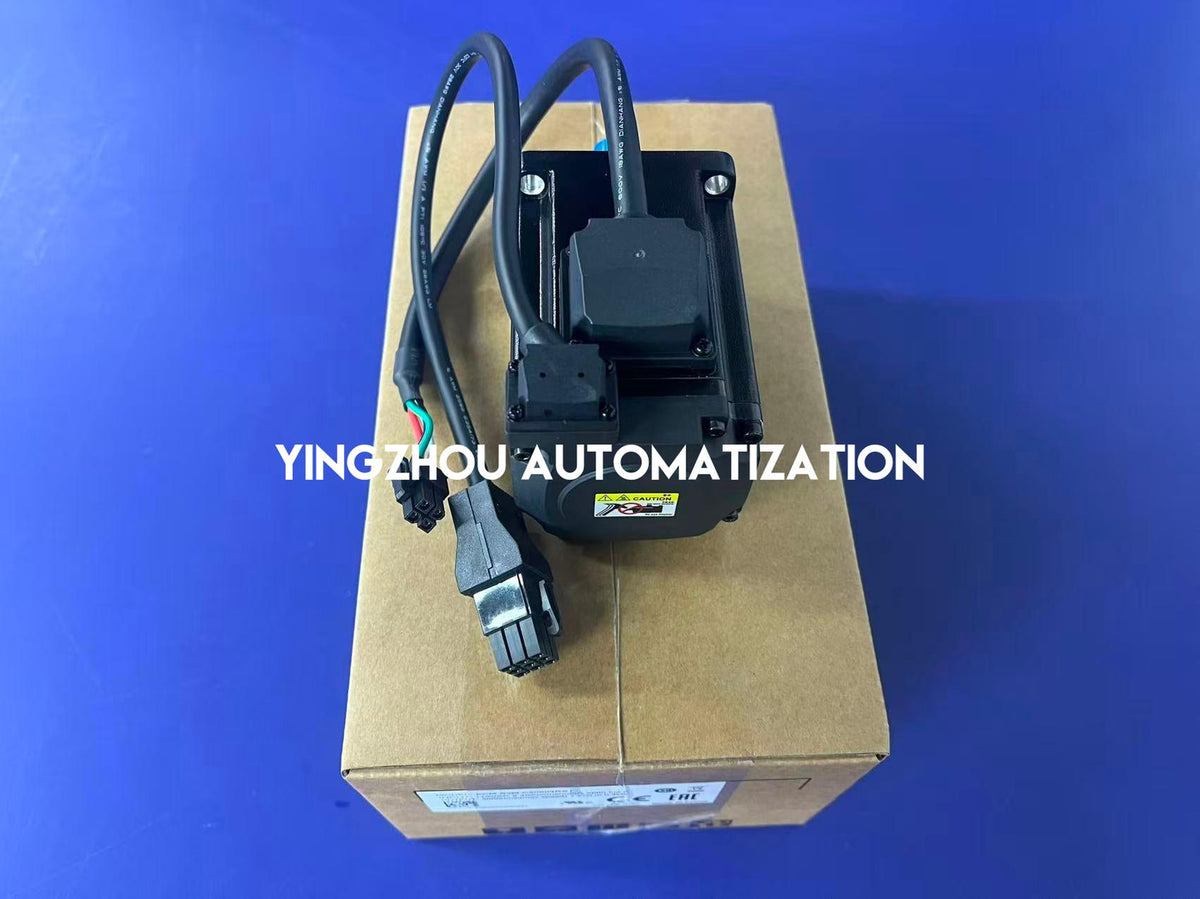

Actual product photos
✓

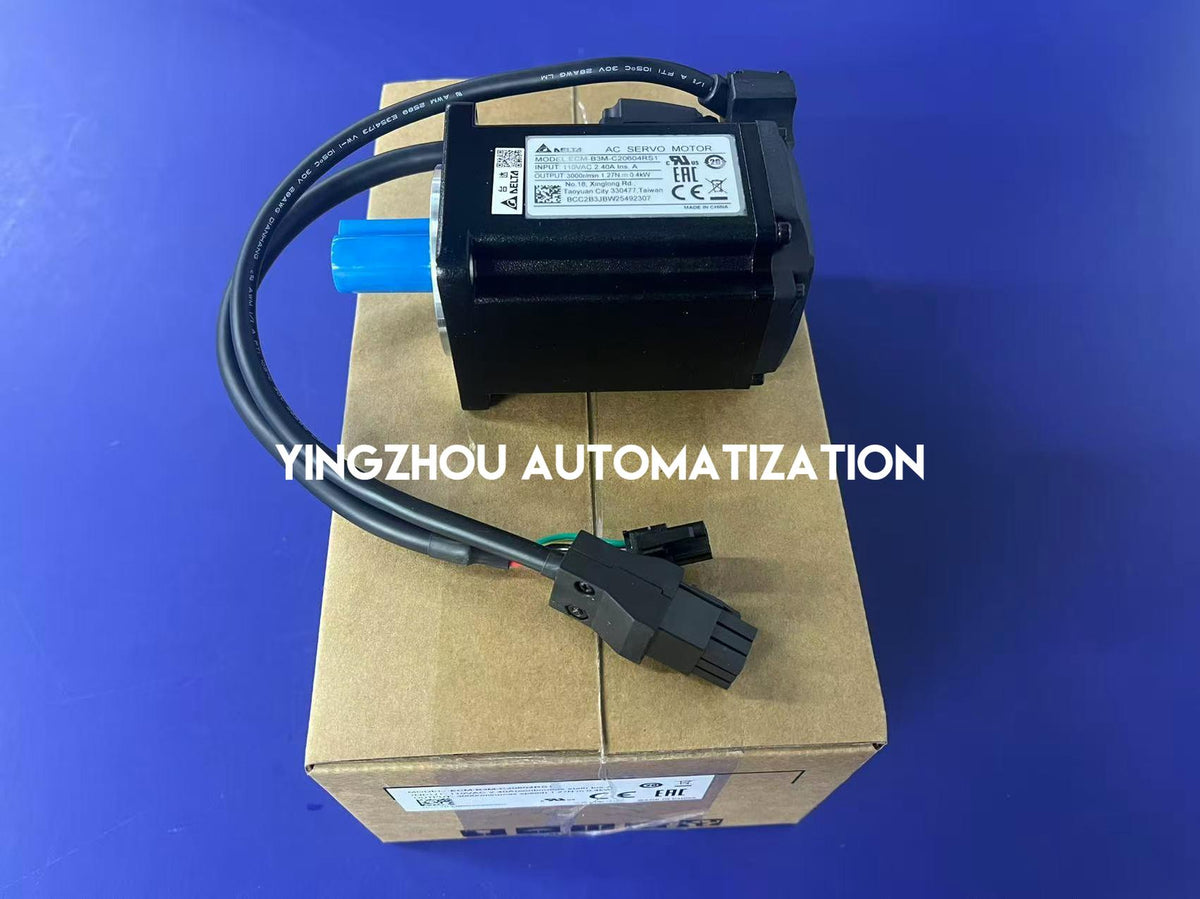

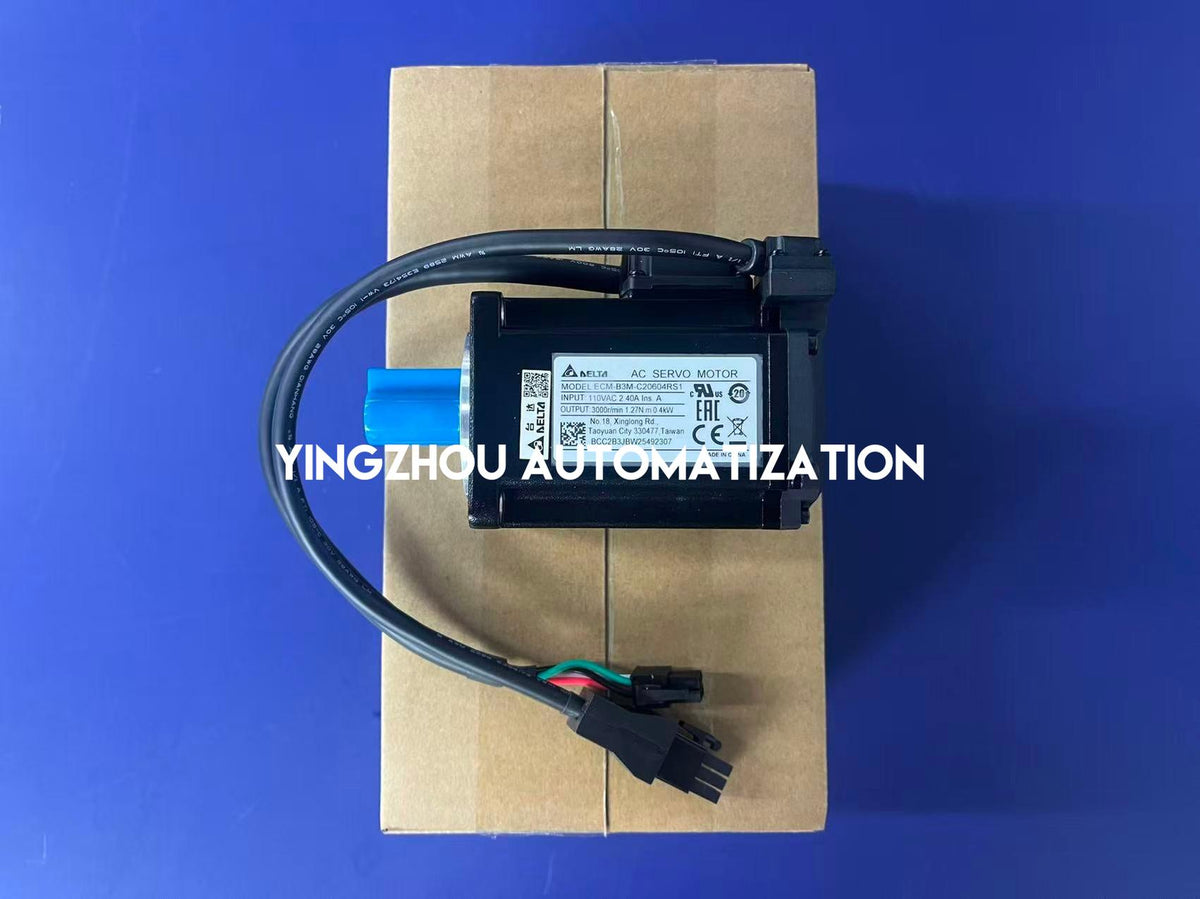

Model/nameplate visible
✓

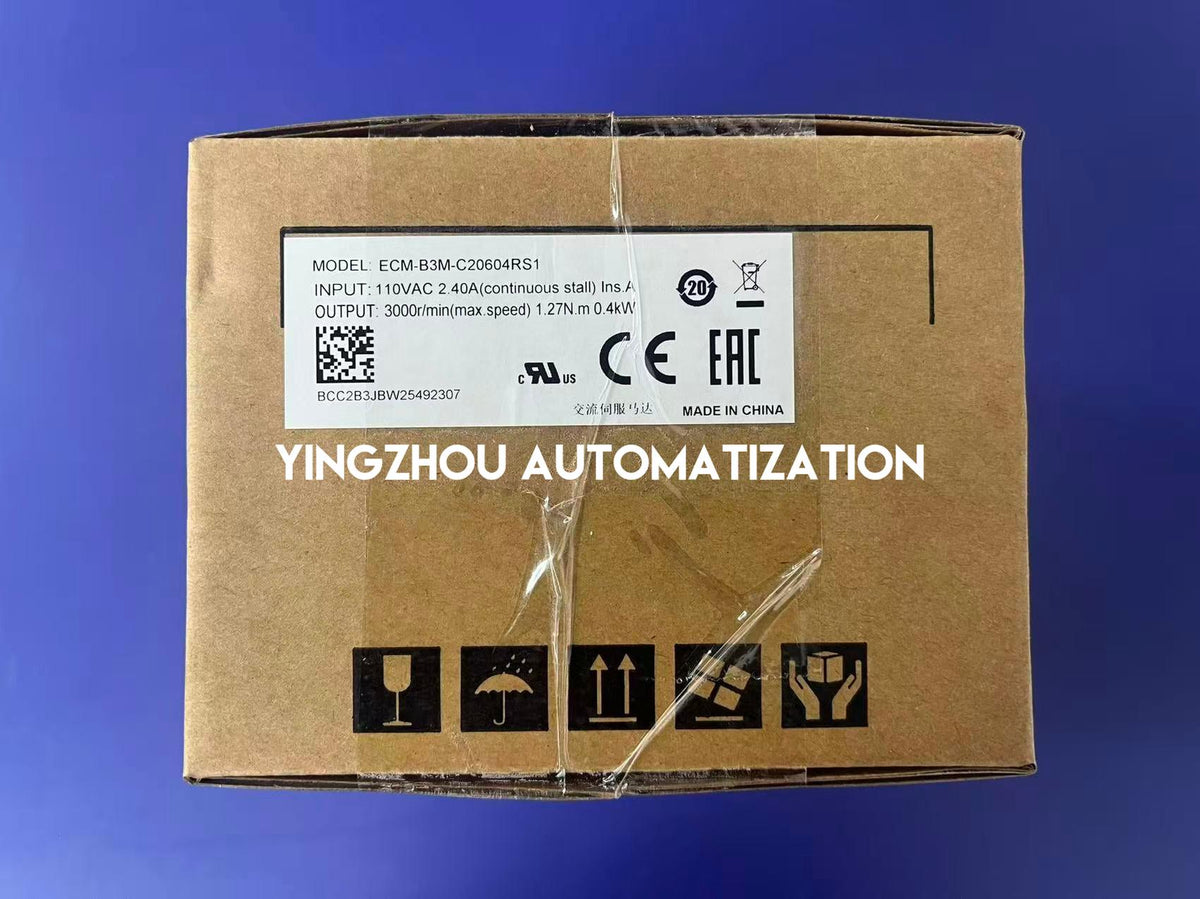

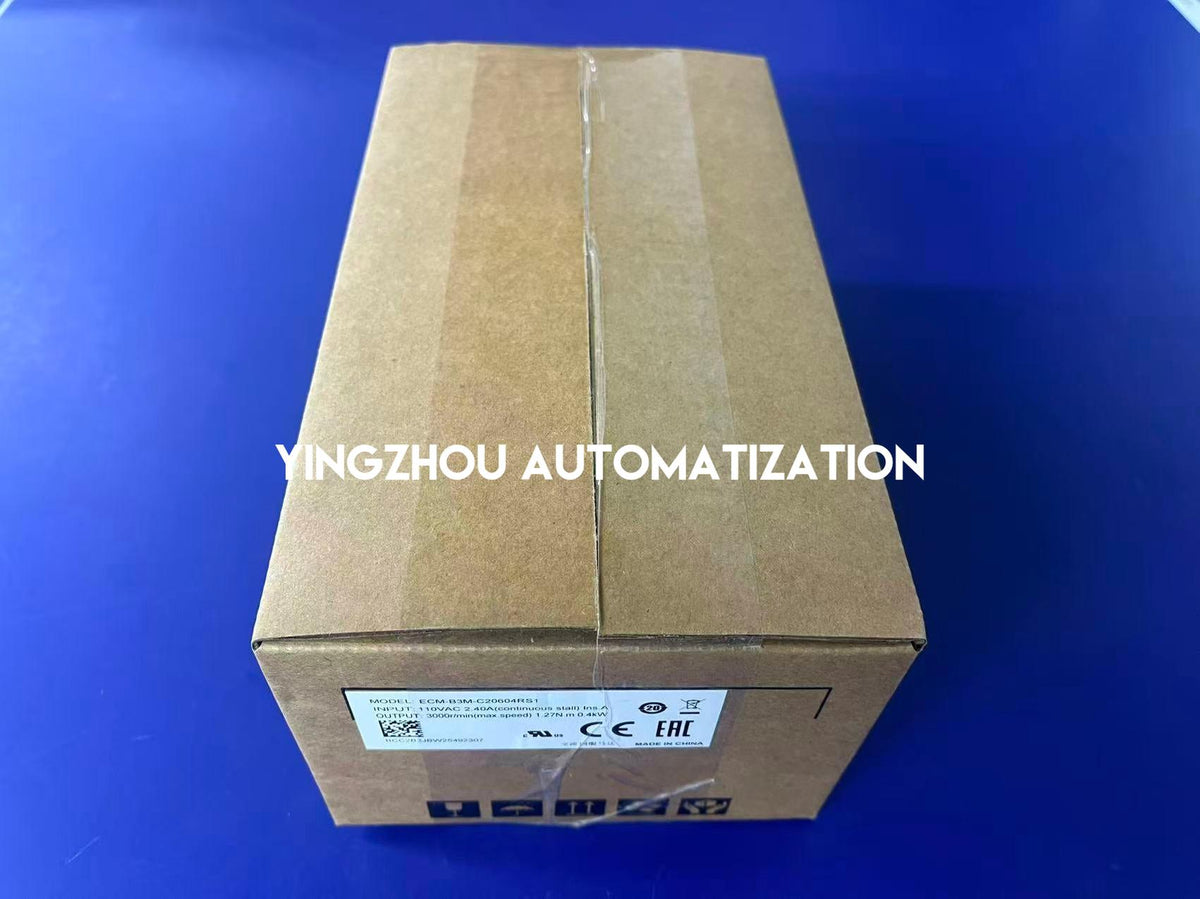

Packaging shown
✓
Verify exact model ECM-B3M-C20604RS1 before ordering
In Stock & Ready to Order
Delta ECM-B3M-C20604RS1 is currently in stock.
Actual motor photographs, visible model/nameplate,
and matching packaging are available for
pre-purchase model verification.
IN STOCK
Delta ECM-B3M-C20604RS1
Order online or contact us for project and quantity pricing.
Request Project Pricing
