YINGZHOU INDUSTRIAL AUTOMATION | PRODUCT INFORMATION
Delta ASD-B3-2043-E ASDA-B3 EtherCAT AC Servo Drive
2 kW | 400 V Class | Three-Phase | EtherCAT CN6 | 5.96 A
|
Specification
|
Product Data
|
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-2043-E |
| Product Series |
ASDA-B3 |
| Product Type |
AC Servo Drive |
| Rated Power |
2 kW / 2000 W |
| Voltage Class |
400 V Class |
| Input Phase |
Three-Phase |
| Main Circuit Input Voltage |
380-440 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current (3PH) |
5.06 Arms |
| Continuous Output Current |
5.96 Arms |
| Maximum Instantaneous Output Current |
18.98 Arms |
| Nameplate Output |
220 V, 0-125 Hz, 5.96 A |
| Primary Motion Communication |
EtherCAT |
| EtherCAT Bus Connector |
CN6 |
| CANopen Communication |
Not Supported on B3-E |
| DMCNET Communication |
Not Supported on B3-E |
| RS-485 Communication |
Not Supported on B3-E |
| PC Communication |
Mini USB (CN4) |
| External Pulse Command Input |
Not Supported on B3-E |
| Encoder Pulse Output |
Supported |
| Internal Positioning |
PR Mode Supported |
| EtherCAT Touch Probe Inputs |
DI1 / DI2 |
| Digital Inputs |
4 |
| Digital Outputs |
2 |
| Analog Voltage Inputs / Outputs |
2 / 2 |
| Compatible Encoder Platform |
24-bit Absolute Encoder |
| Main Circuit Control |
SVPWM |
| Tuning Mode |
Auto / Manual |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Built-In Regenerative Resistor |
50 Ohm, 80 W |
| Cooling Method |
Fan Cooling |
| IP Rating |
IP20 |
| Operating Temperature |
0 to 55 deg C; forced cooling above 45 deg C |
| Actual Product Photos |
Available |
Product Overview
The Delta ASD-B3-2043-E is a
2 kW industrial AC servo drive
from the ASDA-B3 Series.
Designed for
400 V class, three-phase power systems,
it operates with a 380-440 VAC input supply
and delivers
5.96 A continuous output current.
The B3-E model features EtherCAT communication
through its CN6 bus interface for compatible
industrial motion-control networks.
Additional functions include internal PR positioning,
encoder pulse output, EtherCAT touch-probe inputs
and high-response servo control.
Its compatible servo motor platform supports
24-bit absolute encoder feedback.
CANopen, DMCNET, RS-485 and external pulse-command
input should not be specified for this B3-E variant.
Key Product Features
-
2 kW Rated Servo Power
for compatible industrial motion-control applications
-
400 V Class Three-Phase Input
with a 380-440 VAC rated supply
-
EtherCAT Communication
for compatible high-speed motion networks
-
5.96 A Continuous Output Current
confirmed by the actual device nameplate
-
PR Positioning Mode
for supported internal positioning functions
-
EtherCAT Touch Probe Inputs
for supported motion-control applications
-
4 Digital Inputs and 2 Digital Outputs
for machine integration
-
24-bit Absolute Encoder Platform
for compatible high-resolution servo feedback
-
High-Response Servo Control
with speed-loop bandwidth up to 3.1 kHz
-
Built-In Regenerative Resistor
rated at 50 Ohm and 80 W
Actual Product Verification
✓

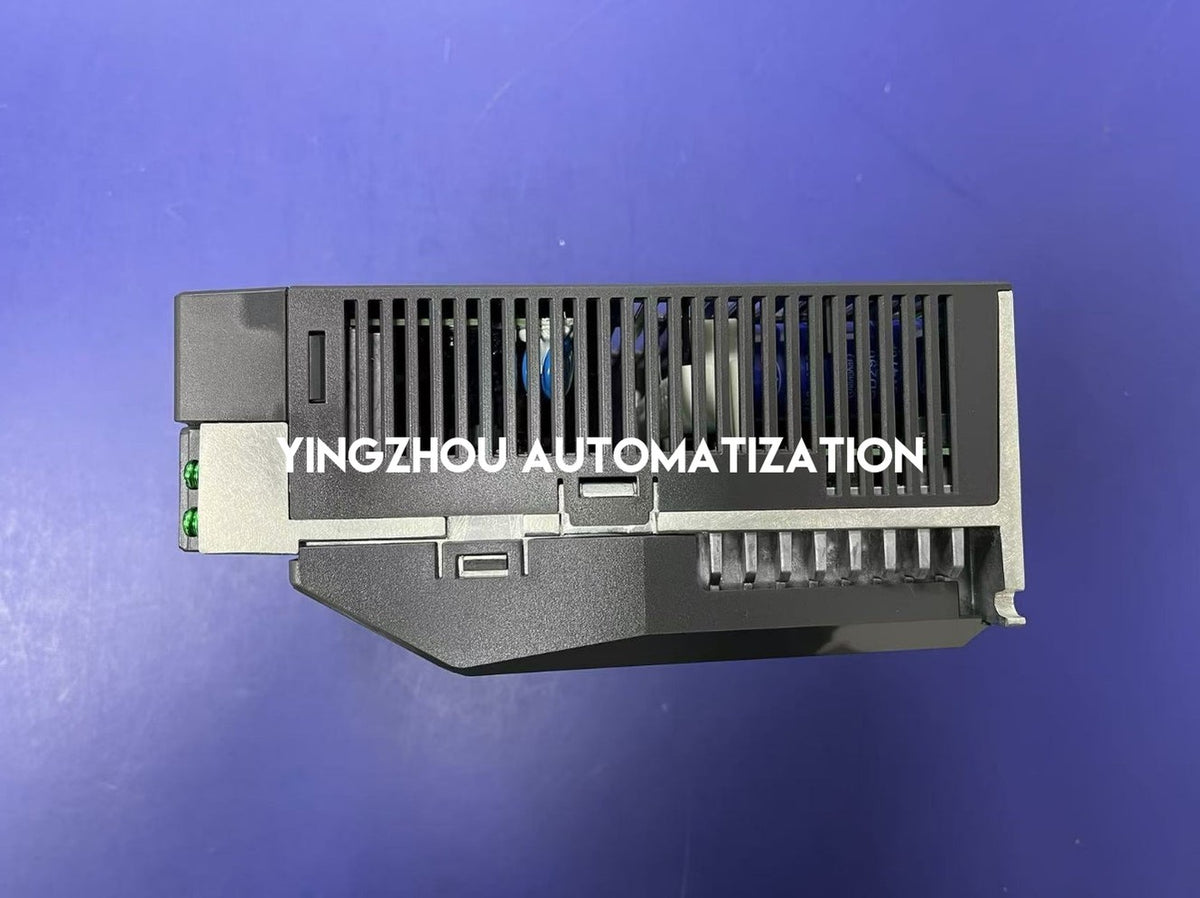

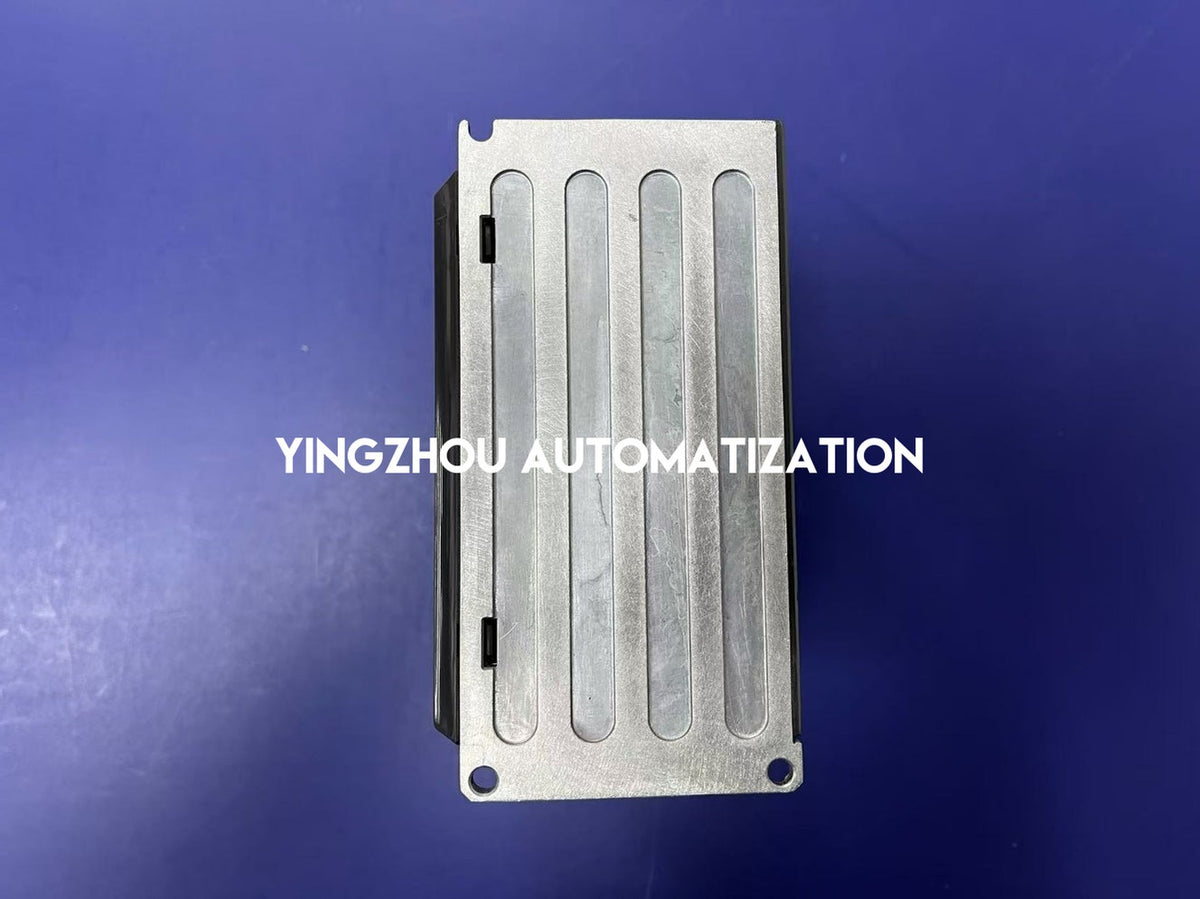

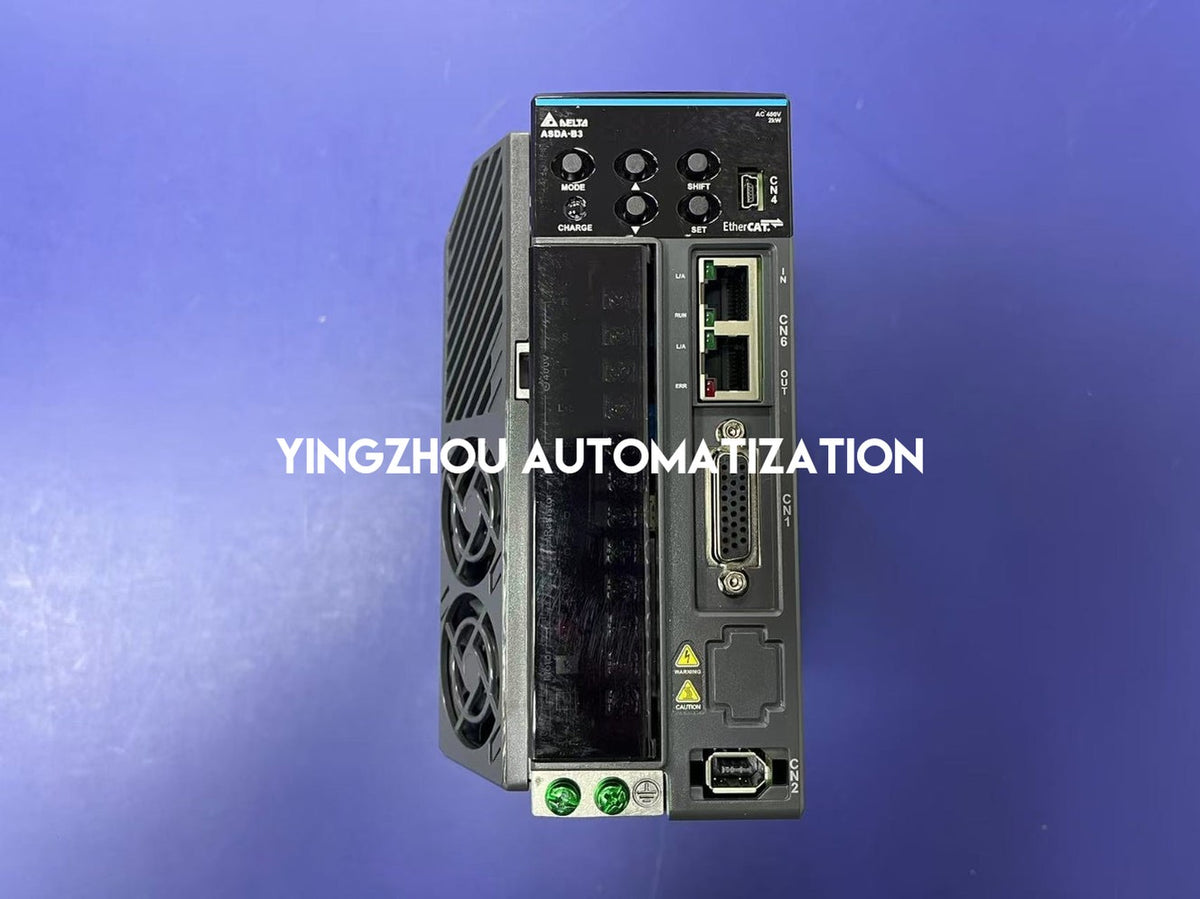

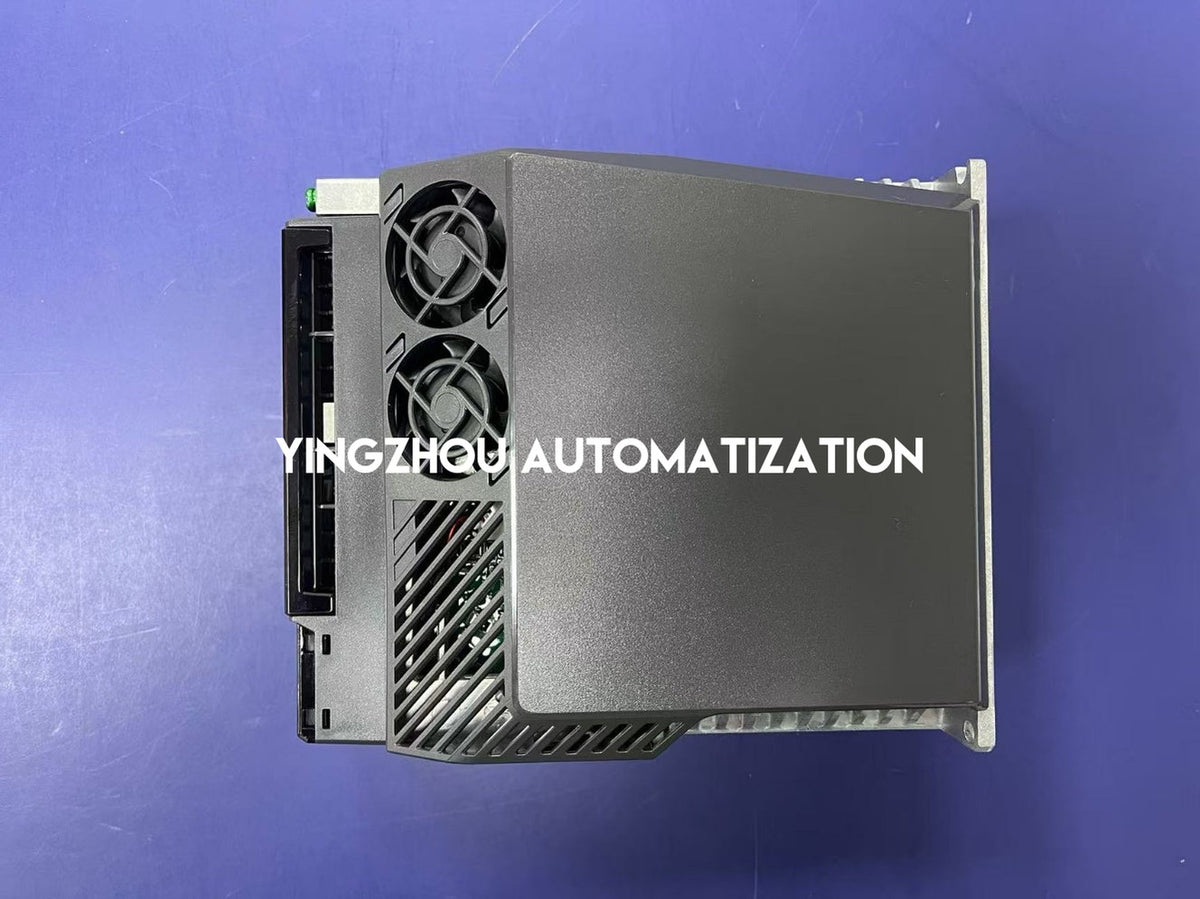

Actual product photos
✓
Model/nameplate visible
✓

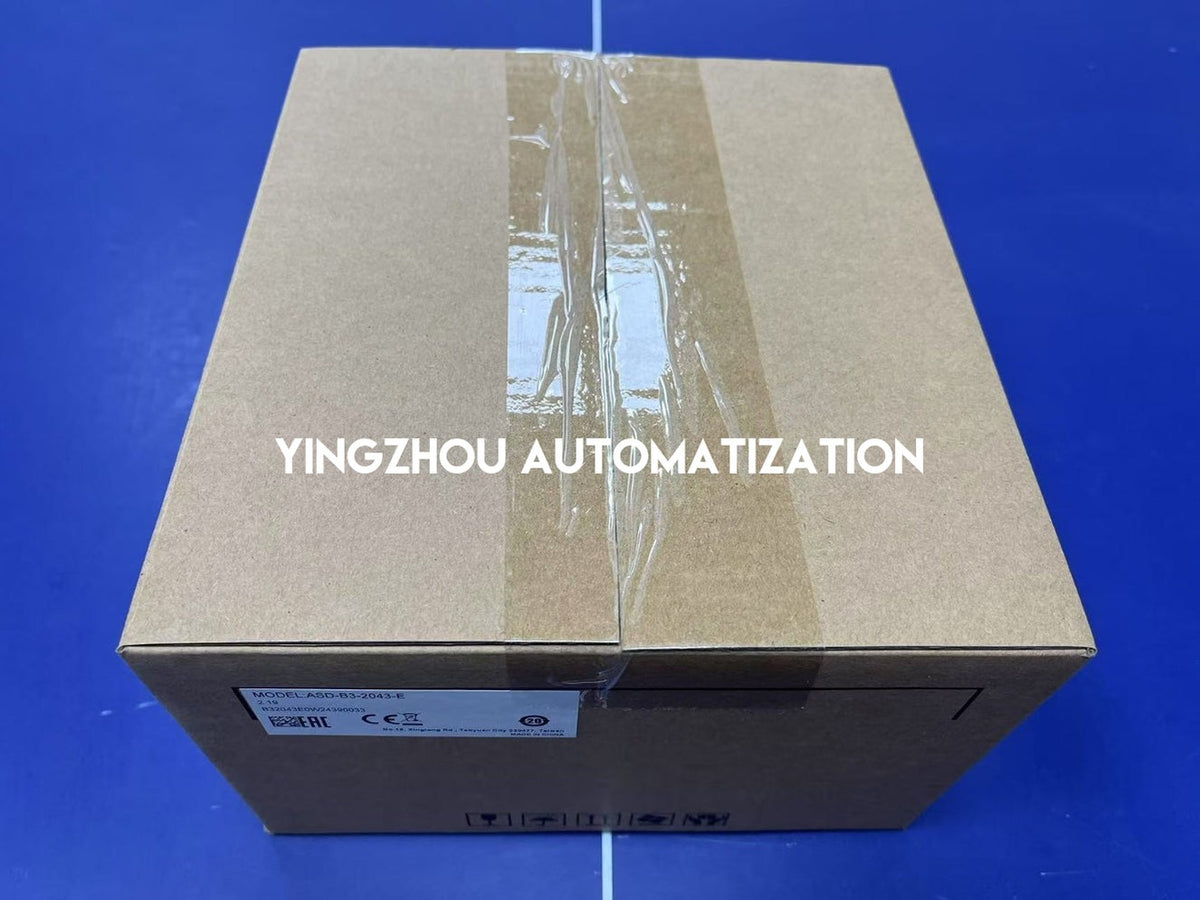

Packaging shown
✓
Device and carton labels match
ASD-B3-2043-E
✓

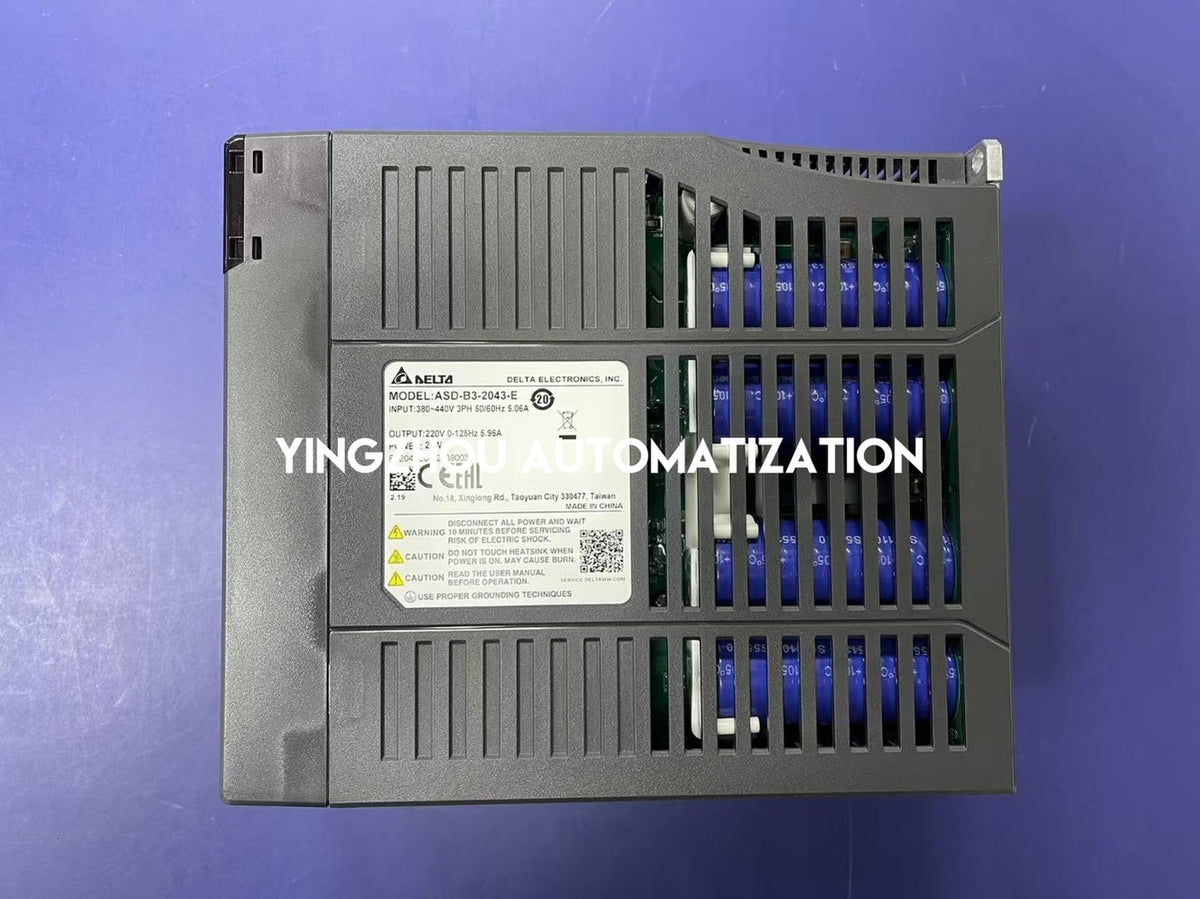

Actual nameplate confirms 2 kW rated power,
380-440 VAC three-phase input,
5.06 A input current
and 5.96 A output current
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-2043-E is currently
in stock.
Actual product photos include the servo drive
nameplate and matching carton label.
For project purchasing, quantity requirements
or shipping arrangements, contact our team
for quotation support.
IN STOCK
Delta ASD-B3-2043-E
Order using the Shopify Add to Cart / Buy Now controls,
or request project and quantity pricing.
Request Project Pricing
