Delta ASD-B3-3043-E ASDA-B3 AC Servo Drive
3 kW | 400 V Class | 3-Phase 380-440 VAC | EtherCAT
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-3043-E |
| Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
3 kW / 3000 W |
| Voltage Class |
400 V Class |
| Main Circuit Input Phase |
Three-Phase |
| Main Circuit Input Voltage |
380-440 VAC |
| Nominal Input Voltage |
400 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
6.14 A |
| Main Circuit Inrush Current |
5.66 Arms |
| Continuous Output Current |
9.11 A |
| Maximum Instantaneous Output Current |
27.33 A |
| Communication |
EtherCAT |
| EtherCAT Connector |
CN6 |
| EtherCAT Ports |
IN / OUT |
| EtherCAT Synchronization Cycle |
Down to 125 us |
| EtherCAT Touch Probe Inputs |
DI1 / DI2 |
| PC Communication |
Mini USB (CN4) |
| RS-485 Communication |
Not Provided on B3-E |
| CANopen Communication |
Not Provided on B3-E |
| DMCNET Communication |
Not Provided on B3-E |
| External Pulse Train Input |
Not Supported on B3-E |
| Internal Positioning |
PR Mode Supported |
| Control Modes |
Position / Speed / Torque |
| Analog Voltage Input / Output |
2 / 2 |
| Digital Inputs |
4 |
| Digital Outputs |
2 |
| Encoder Pulse Output |
A / B / Z |
| Encoder Resolution |
24-bit with Compatible Motors |
| Motor Feedback |
Compatible Incremental / Absolute ECM-B3 Motor Encoders |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Main Circuit Control |
SVPWM |
| Tuning Methods |
Automatic / Manual |
| Built-In Regenerative Resistor |
50 Ohm, 80 W |
| Minimum External Regenerative Resistance |
40 Ohm |
| Cooling Method |
Fan Cooling |
| Operating Temperature |
0 to +55 degrees C |
| Enclosure Protection |
IP20 |
| Hardware Safe Torque Off |
Not Provided on B3-E |
Product Overview
The Delta ASD-B3-3043-E is a
3 kW single-axis AC servo drive
from Delta's ASDA-B3 Series.
Designed for 400 V class, three-phase 380-440 VAC
main circuit power, this model provides
EtherCAT industrial Ethernet communication
through dual IN / OUT ports on the CN6 interface.
The B3-E configuration supports internal PR positioning,
EtherCAT touch probe functionality and high-resolution
encoder feedback for industrial motion systems using
compatible Delta ECM-B3 servo motors.
Key Product Features
-
3 kW Rated Servo Capacity for compatible industrial servo motor systems
-
400 V Class Three-Phase Input for 380-440 VAC industrial power systems
-
EtherCAT Communication for high-speed industrial Ethernet motion control
-
Dual EtherCAT Ports for streamlined multi-axis network connections
-
Fast Network Synchronization with EtherCAT cycles down to 125 us
-
Internal PR Positioning for supported programmable position commands
-
EtherCAT Touch Probe with DI1 and DI2 capture inputs
-
High-Resolution Encoder Feedback with compatible 24-bit Delta servo motor encoders
-
4 Digital Inputs and 2 Digital Outputs for supported drive control signals
-
Built-In Regenerative Resistor and Fan Cooling for the 3 kW, 400 V configuration
Actual Product Verification
✓

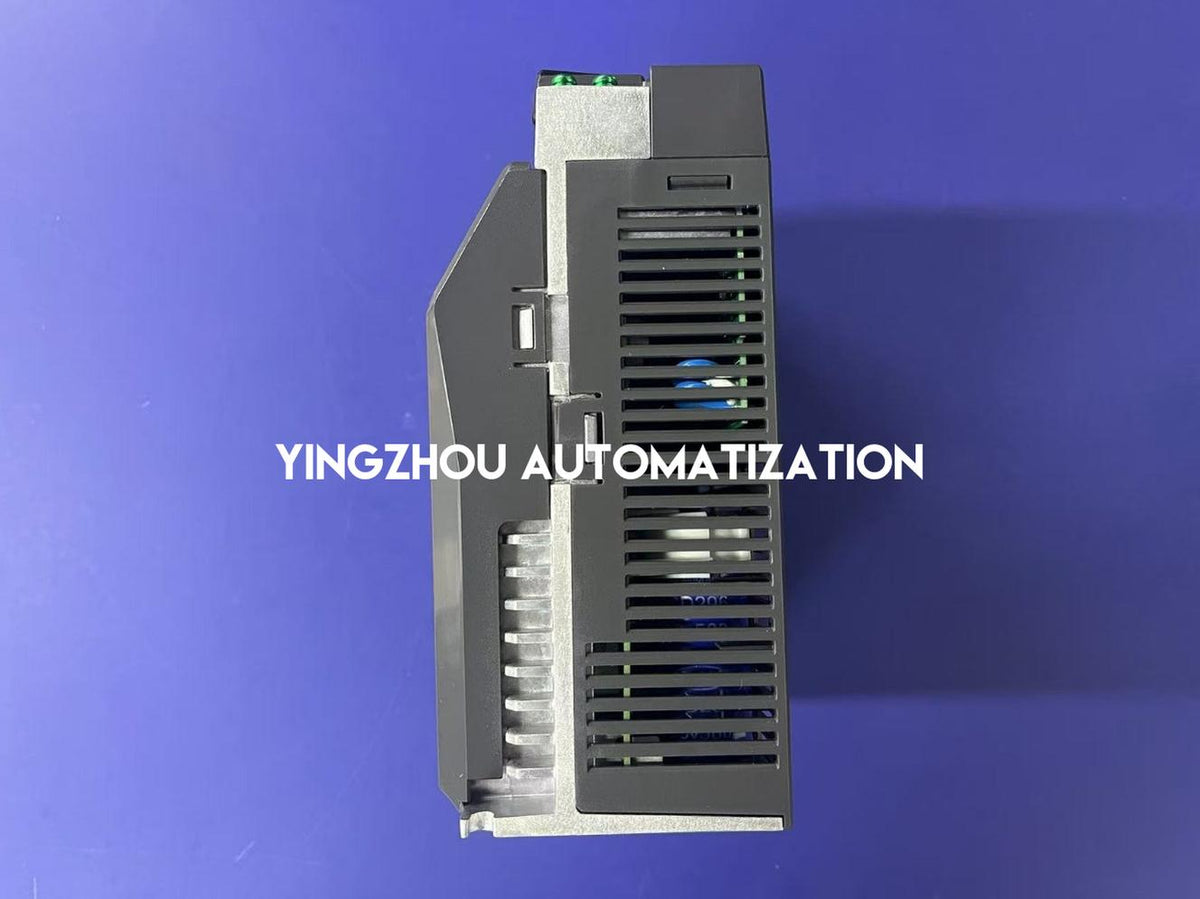

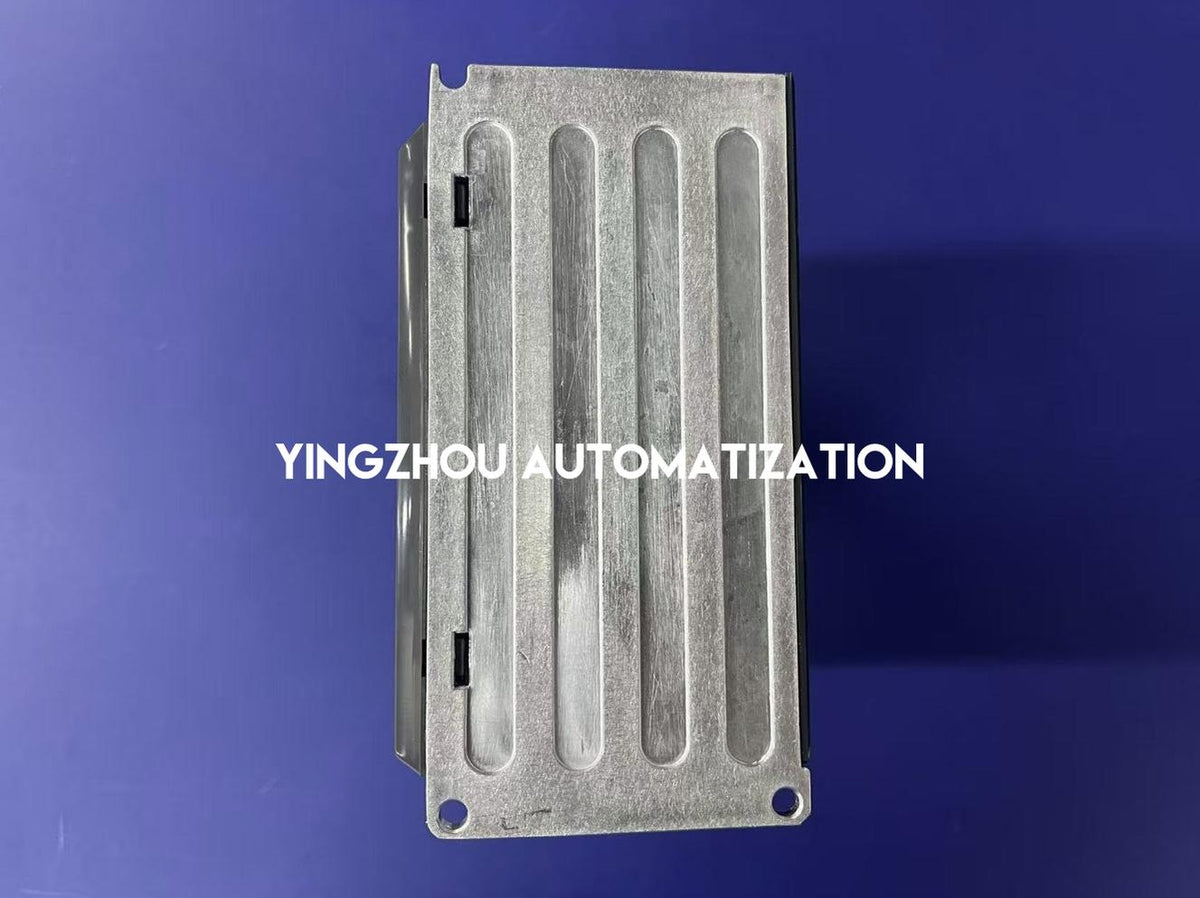

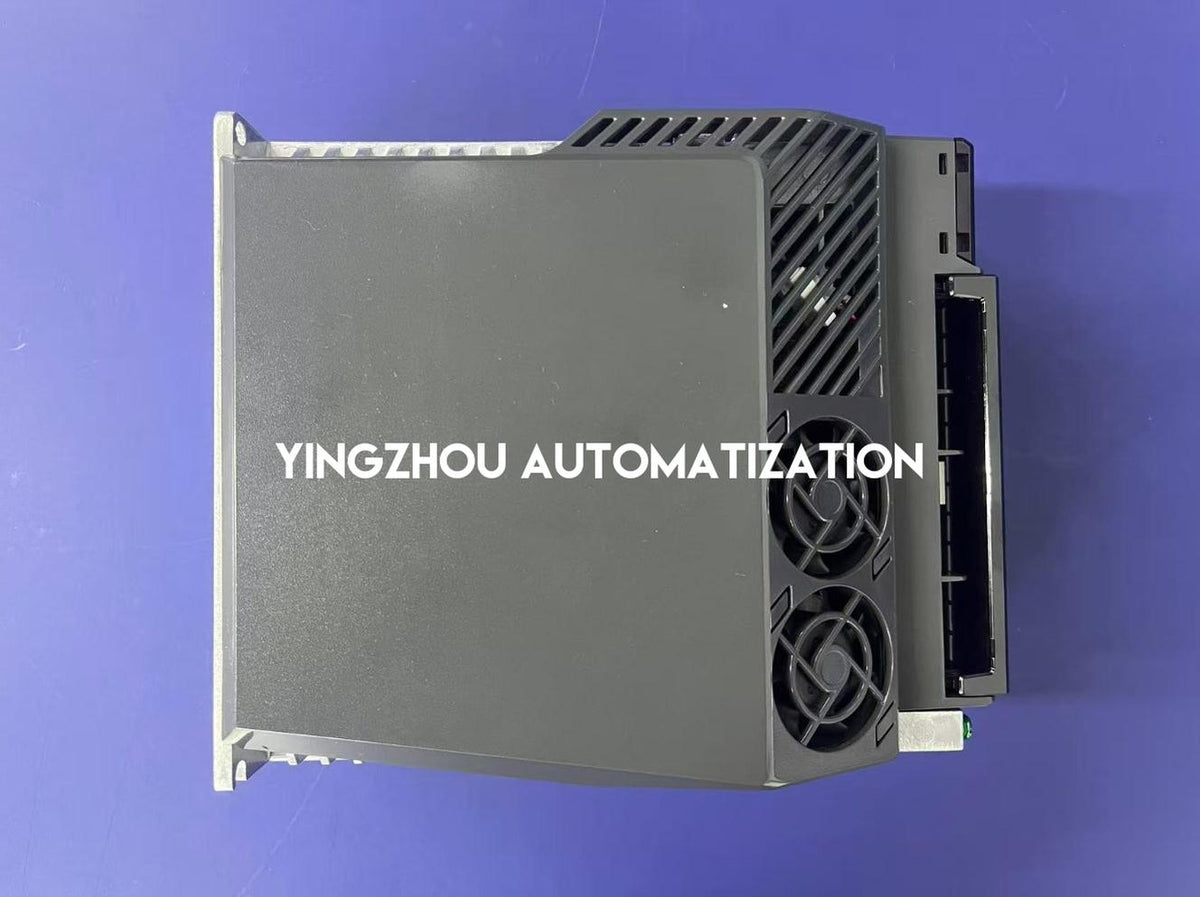

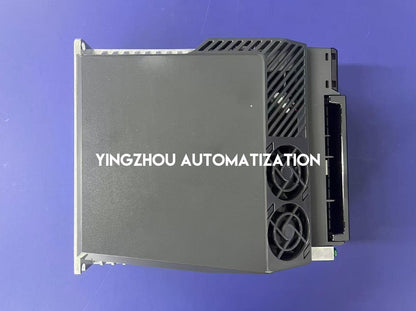

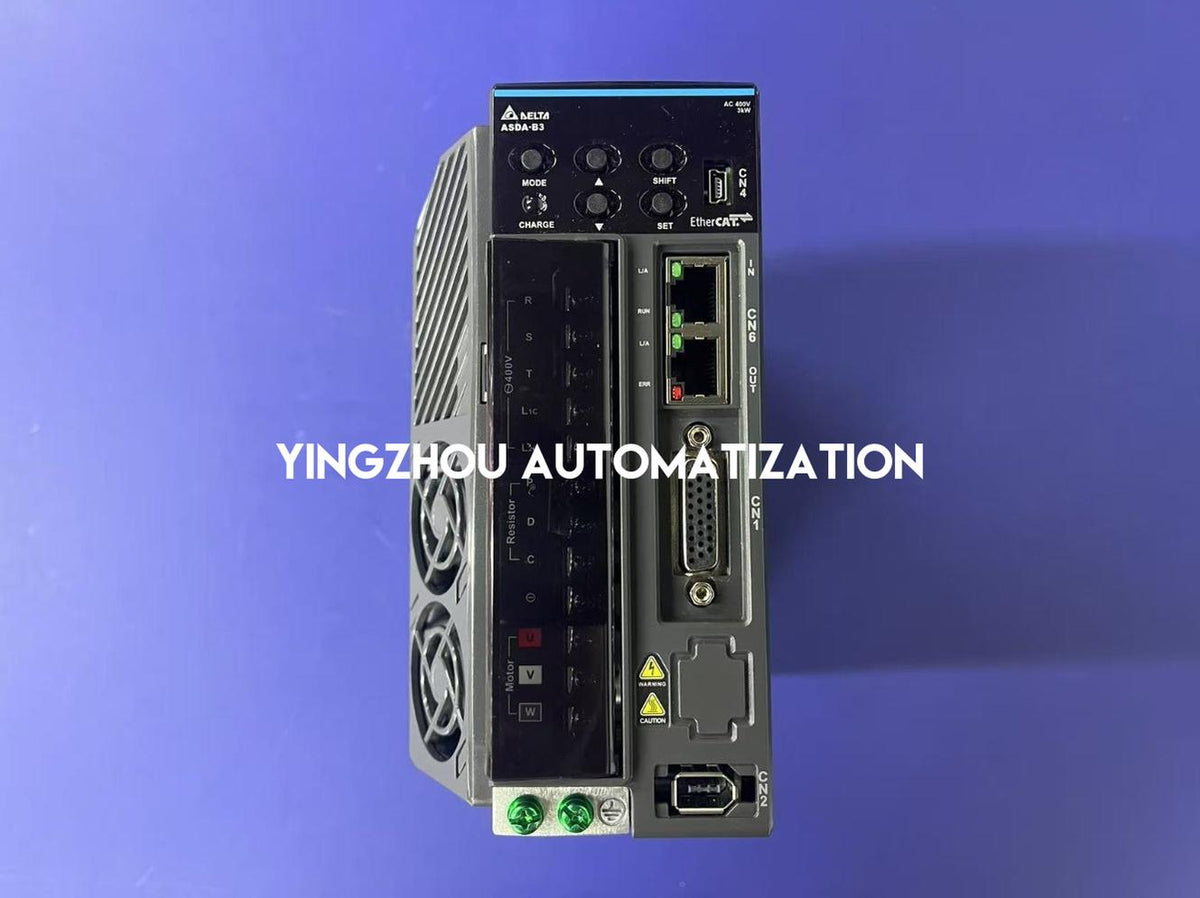

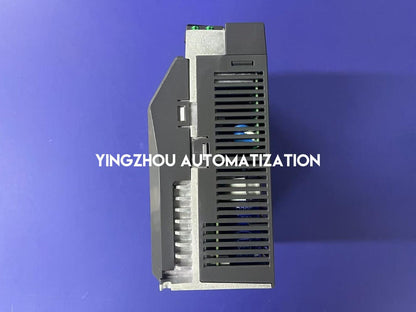

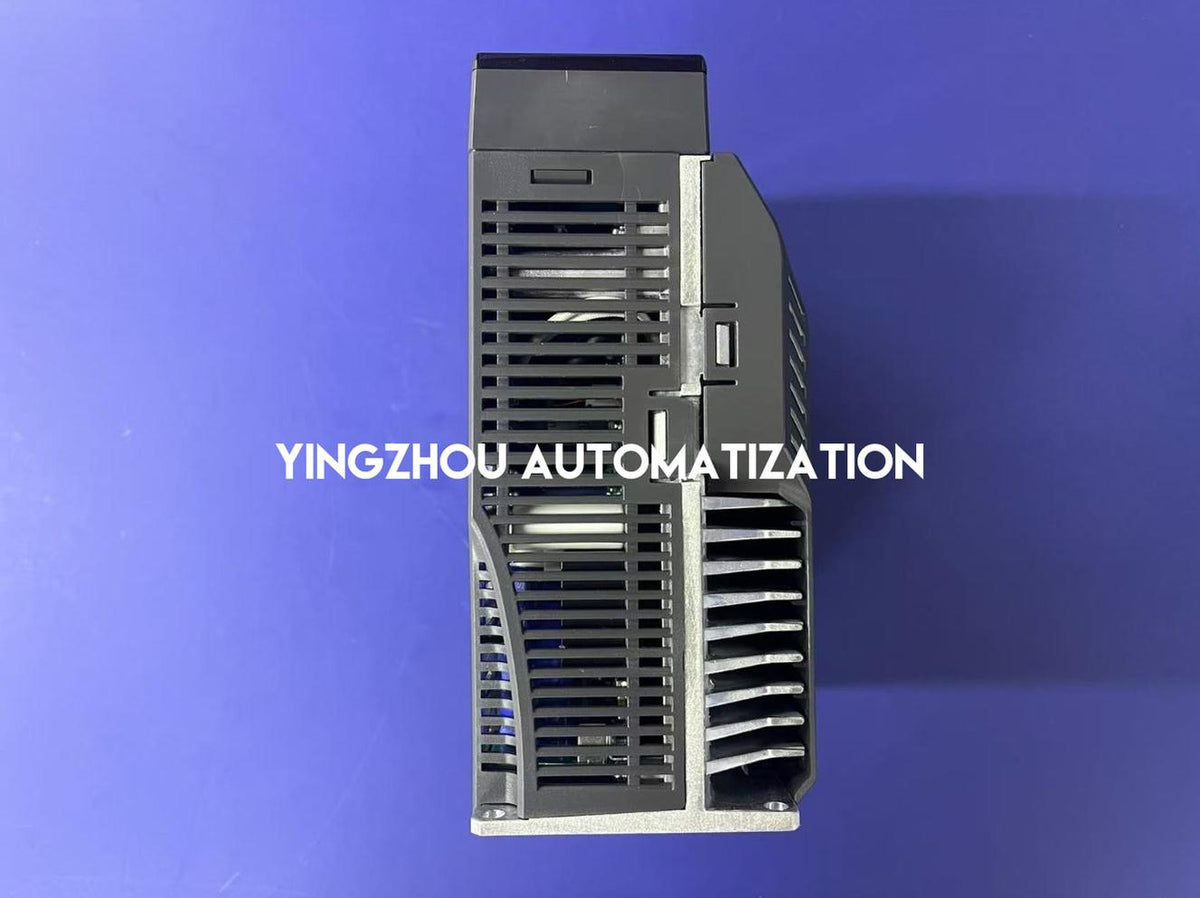

Actual product photos
✓
Model/nameplate visible
✓

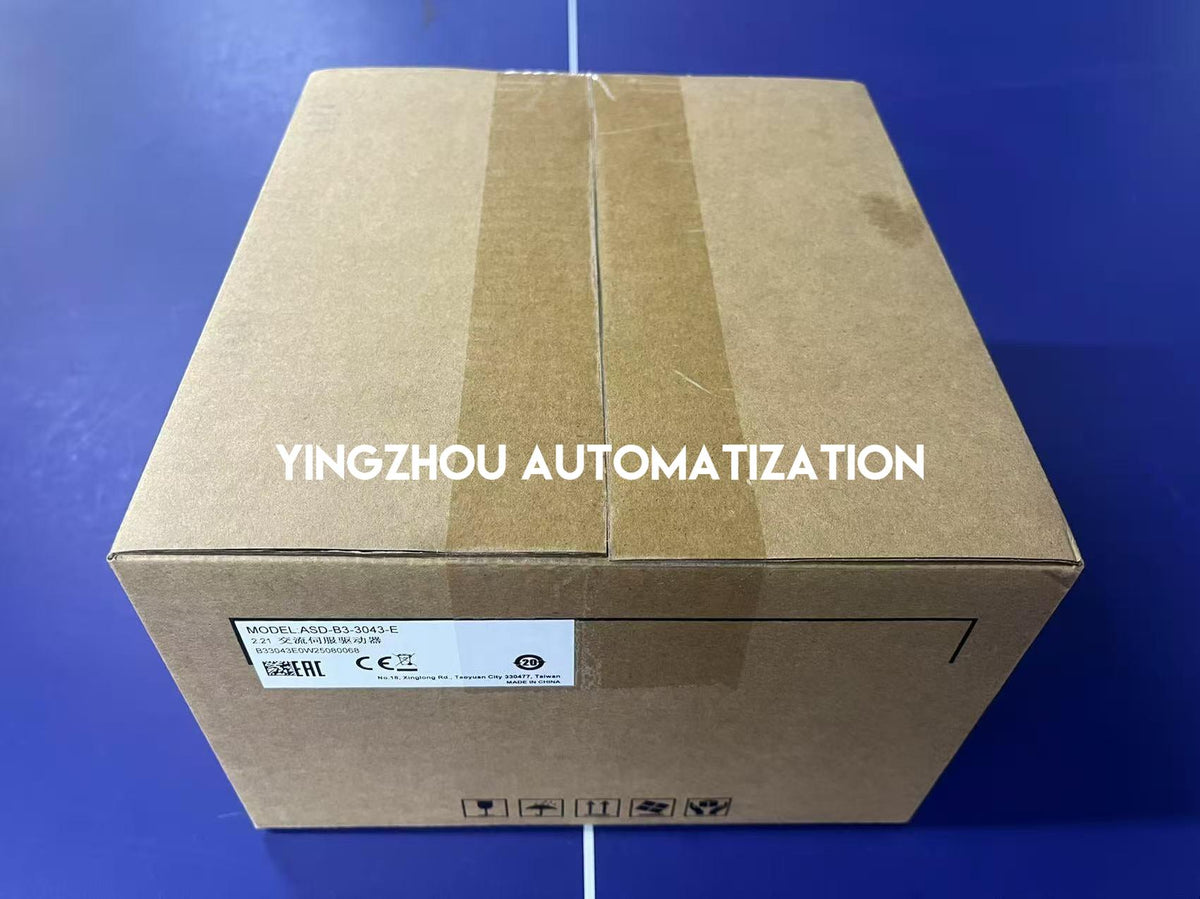

Packaging shown
✓
Device and carton labels match model ASD-B3-3043-E
✓

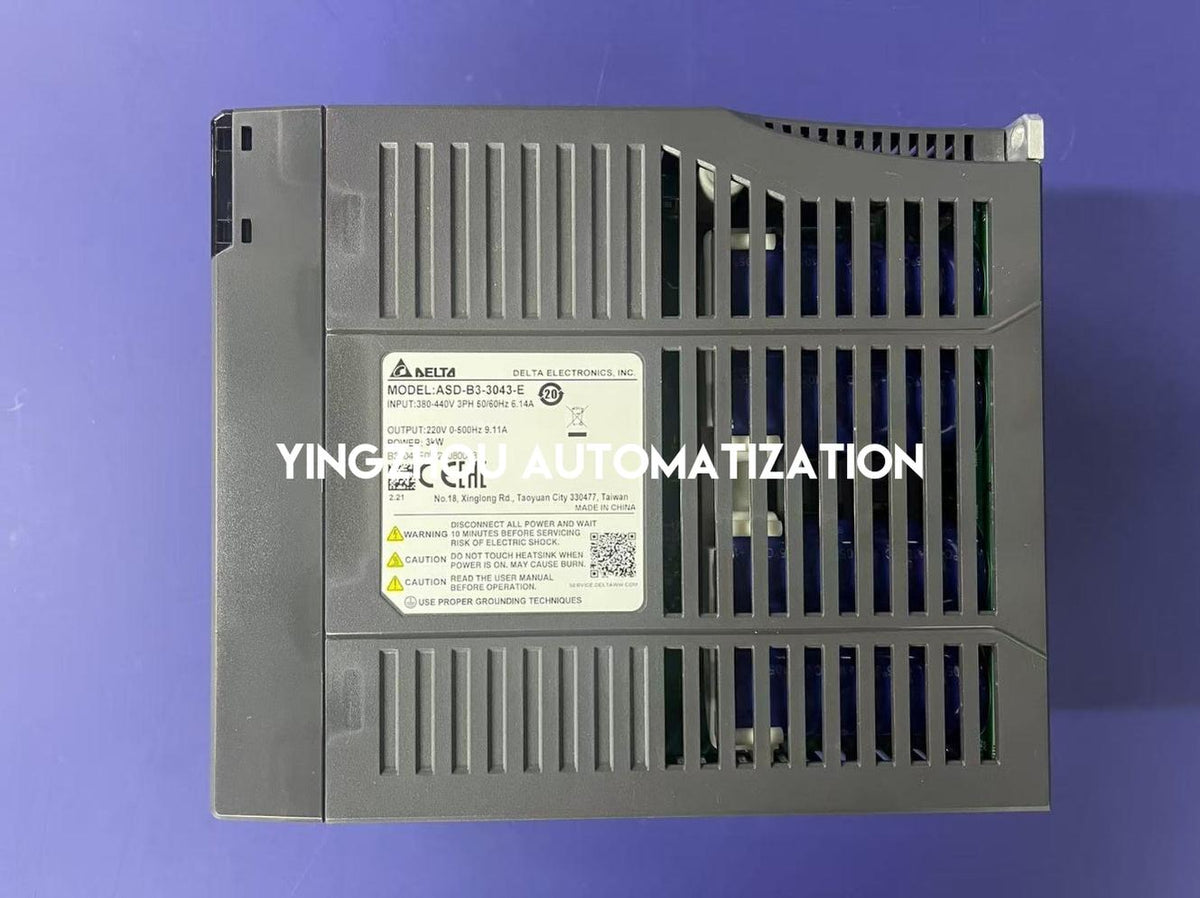

Actual device nameplate confirms 3 kW, 6.14 A input and 9.11 A output
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-3043-E is currently
in stock.
Actual product photos, the exact model nameplate
and matching carton label are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
