Delta ASD-B3-3023-E ASDA-B3 EtherCAT AC Servo Drive
3 kW | 220 V Class | Three-Phase 200-230 VAC | EtherCAT CN6 | 19.4 A
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-3023-E |
| Product Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
3 kW / 3000 W |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Permissible Input Voltage Variation |
-15% to +10% |
| Input Frequency |
50/60 Hz |
| Rated Input Current |
10.3 A |
| Continuous Output Current |
19.4 A |
| Maximum Instantaneous Output Current |
53.03 Arms |
| Nameplate Motor Output |
110 V, 0-500 Hz, 19.4 A |
| Communication |
EtherCAT CoE / CiA402 |
| EtherCAT Communication Connector |
CN6 |
| EtherCAT Physical Layer |
100BASE-TX |
| EtherCAT Communication Ports |
2 x RJ45 |
| EtherCAT Network Topology |
Line |
| EtherCAT Control Profile |
CiA402 / DS402 |
| EtherCAT Profile Position Mode |
Supported |
| EtherCAT Profile Velocity Mode |
Supported |
| EtherCAT Profile Torque Mode |
Supported |
| EtherCAT Homing Mode |
Supported |
| Cyclic Synchronous Position |
Supported |
| Cyclic Synchronous Velocity |
Supported |
| Cyclic Synchronous Torque |
Supported |
| EtherCAT Touch Probe Inputs |
DI1 / DI2 |
| PC Communication |
Mini USB, CN4 |
| RS-485 Modbus |
Not Supported on B3-E |
| CANopen Fieldbus |
Not Supported on B3-E |
| DMCNET Communication |
Not Supported on B3-E |
| PROFINET Communication |
Not Supported on B3-E |
| External Pulse Train Input |
Not Supported |
| Encoder Pulse Output |
OA / OB / OZ |
| Analog Voltage Input / Output |
2 / 2 |
| Internal Positioning |
PR Mode Supported |
| Digital Inputs |
4 |
| Digital Outputs |
2 |
| CN1 Connector |
26 Pins |
| Motor Encoder Connector |
CN2 |
| Drive Resolution |
24-bit |
| Main Circuit Control |
SVPWM |
| Tuning Modes |
Auto / Manual |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Built-In Regenerative Resistor |
20 Ohm, 80 W |
| Minimum Allowable External Resistance |
15 Ohm |
| Cooling Method |
Fan Cooling |
| Hardware Safe Torque Off |
Not Supported on B3-E |
| Hardware Dynamic Brake |
Not Supported on B3-E |
| Operating Temperature |
0 to +55 degrees C |
| Storage Temperature |
-20 to +65 degrees C |
| Operating Humidity |
0-90% RH, Non-Condensing |
| Enclosure Protection |
IP20 |
Product Overview
The Delta ASD-B3-3023-E is a
3 kW single-axis AC servo drive
from Delta's ASDA-B3 Series.
Designed for 220 V class, three-phase
200-230 VAC industrial power systems,
this model provides EtherCAT communication
through the CN6 interface for networked
motion control applications.
The B3-E configuration supports EtherCAT
CoE / CiA402 operation, internal PR positioning,
analog voltage control, 4 digital inputs
and 2 digital outputs.
The drive uses a 24-bit resolution control system
and includes a 20 Ohm, 80 W regenerative resistor.
External pulse train input, hardware STO
and hardware dynamic brake functions are
not supported on this B3-E model.
Key Product Features
-
3 kW Rated Servo Capacity for compatible industrial AC servo motor systems
-
220 V Class Three-Phase Input with 200-230 VAC power supply
-
EtherCAT Communication through the CN6 industrial Ethernet interface
-
EtherCAT CoE / CiA402 for standardized drive and motion control
-
Cyclic Synchronous Operation supporting CSP, CSV and CST control modes
-
Internal PR Positioning for supported programmable motion sequences
-
Analog Voltage Control with 2 analog inputs and 2 analog outputs
-
4 Digital Inputs and 2 Digital Outputs through the 26-pin CN1 connector
-
24-bit Drive Resolution for high-resolution servo control
-
Speed Loop Bandwidth Up to 3.1 kHz for high-response motion control
-
Fan Cooling for the 3 kW drive configuration
-
Built-In Regenerative Resistor rated at 20 Ohm and 80 W
Actual Product Verification
✓

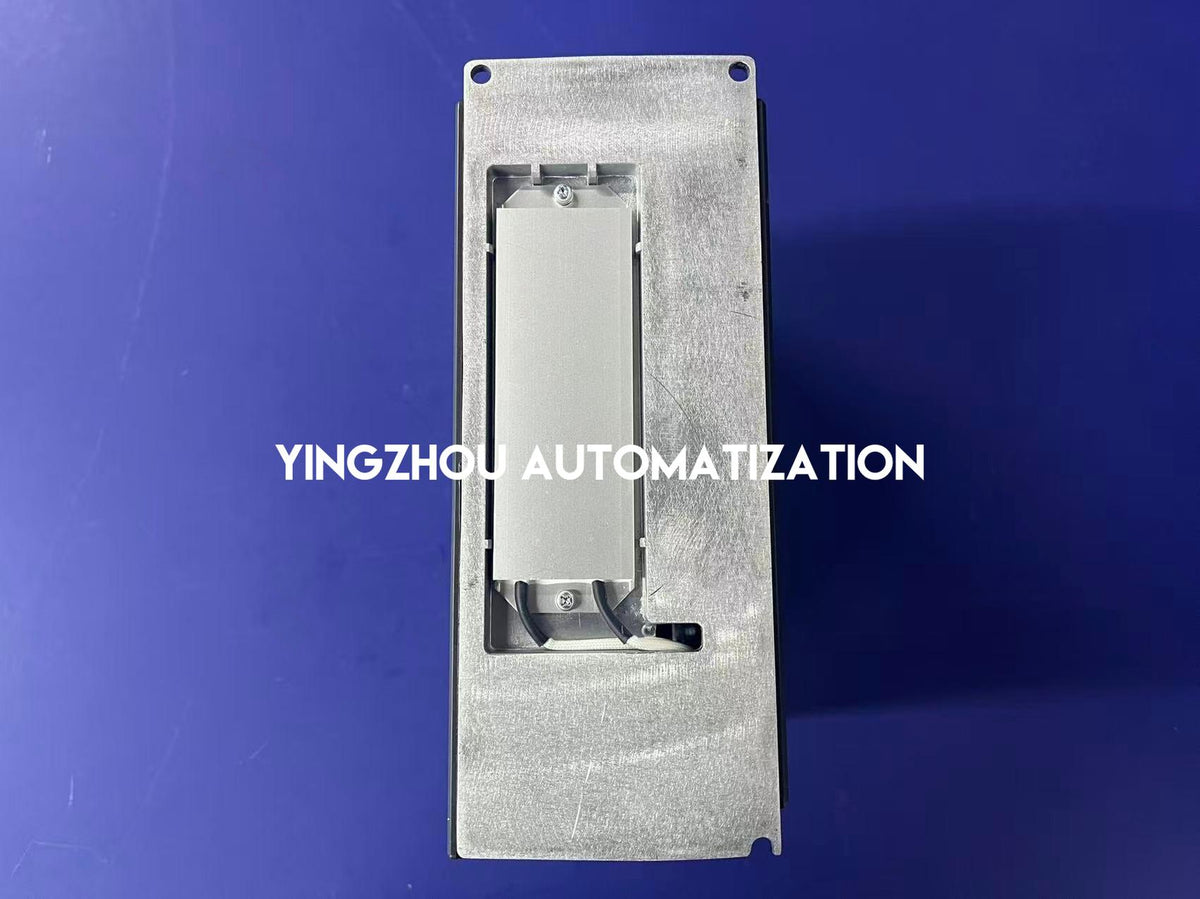

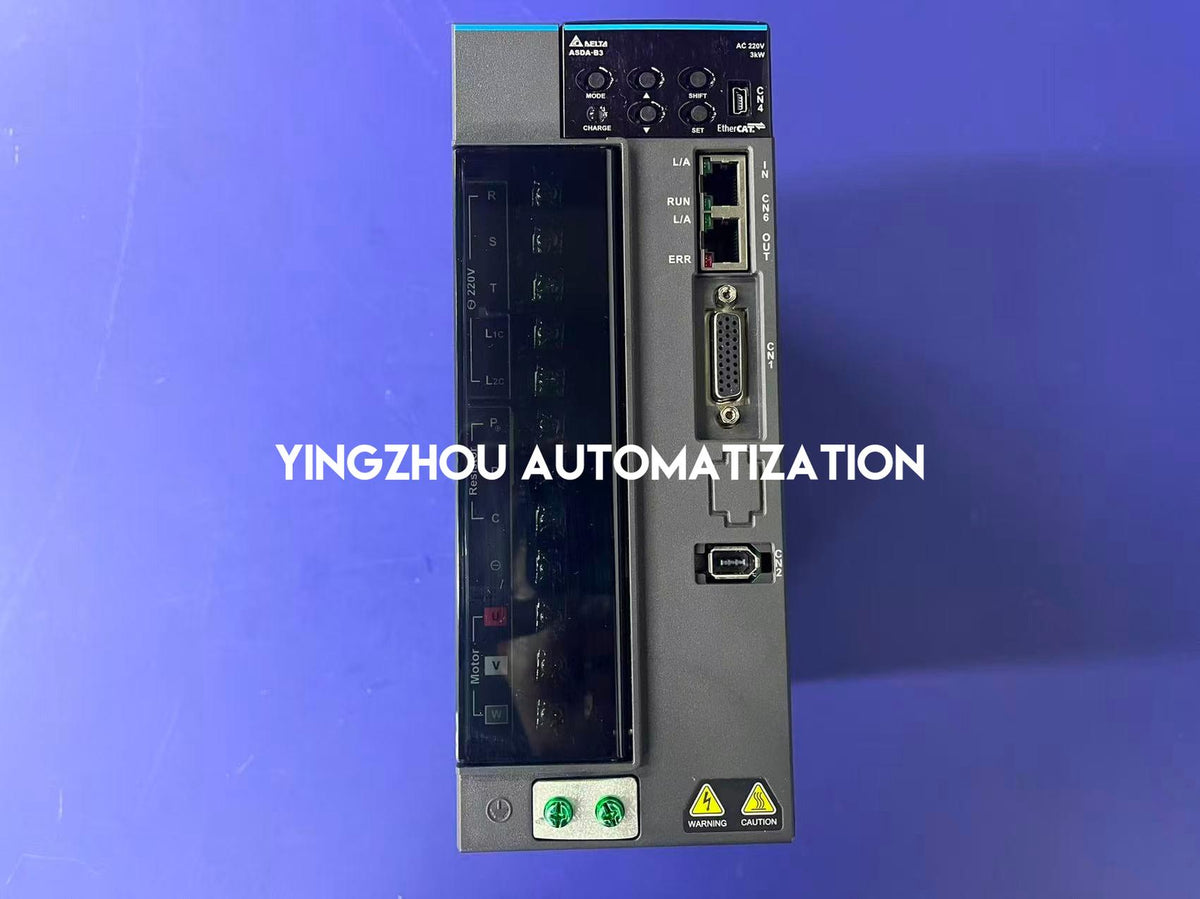

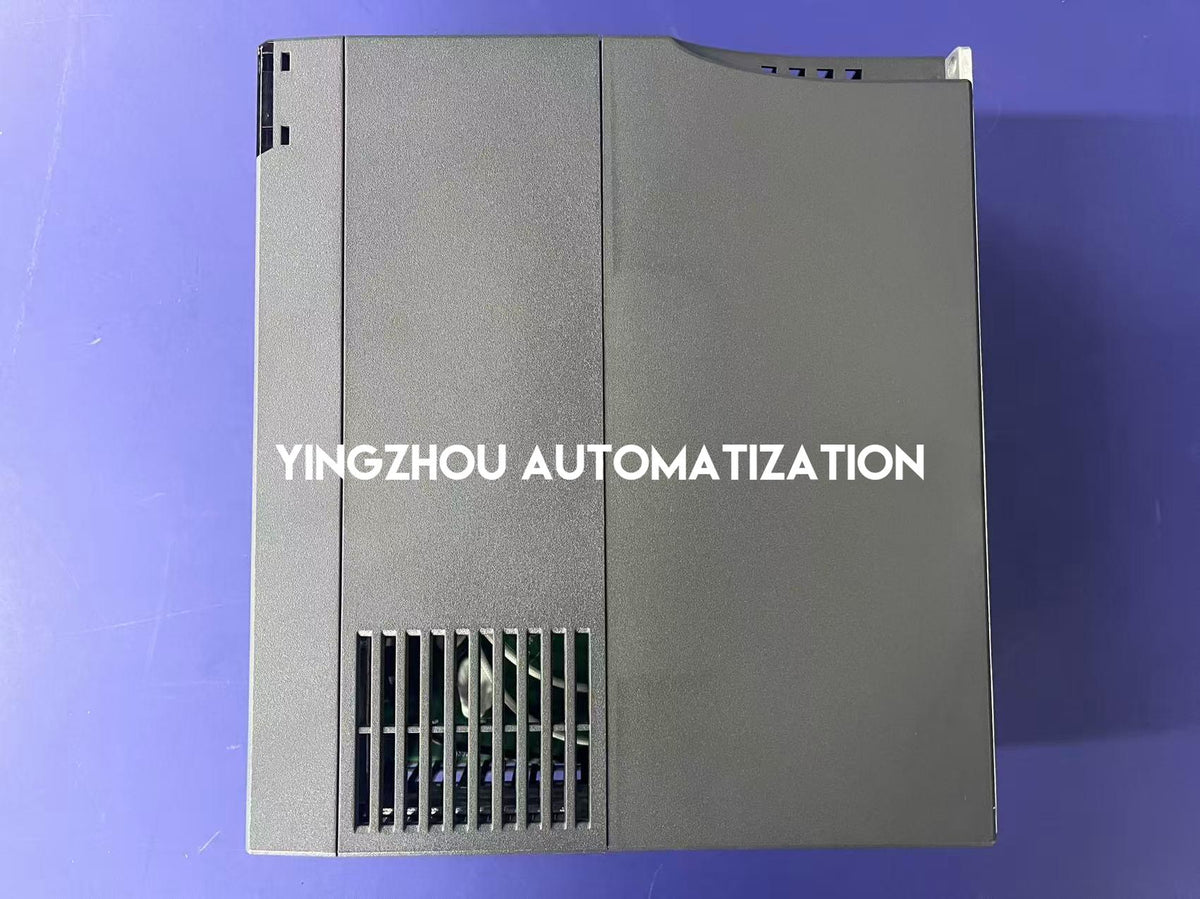

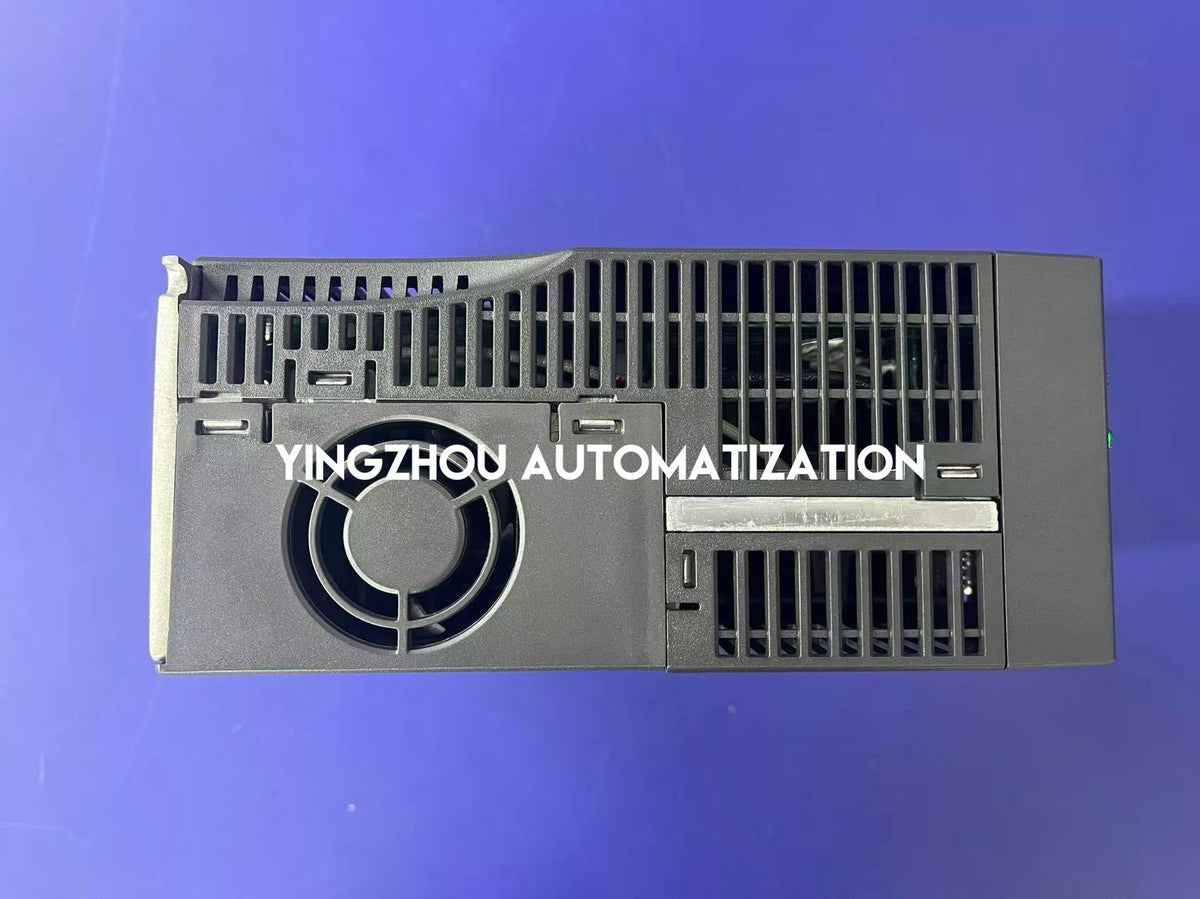

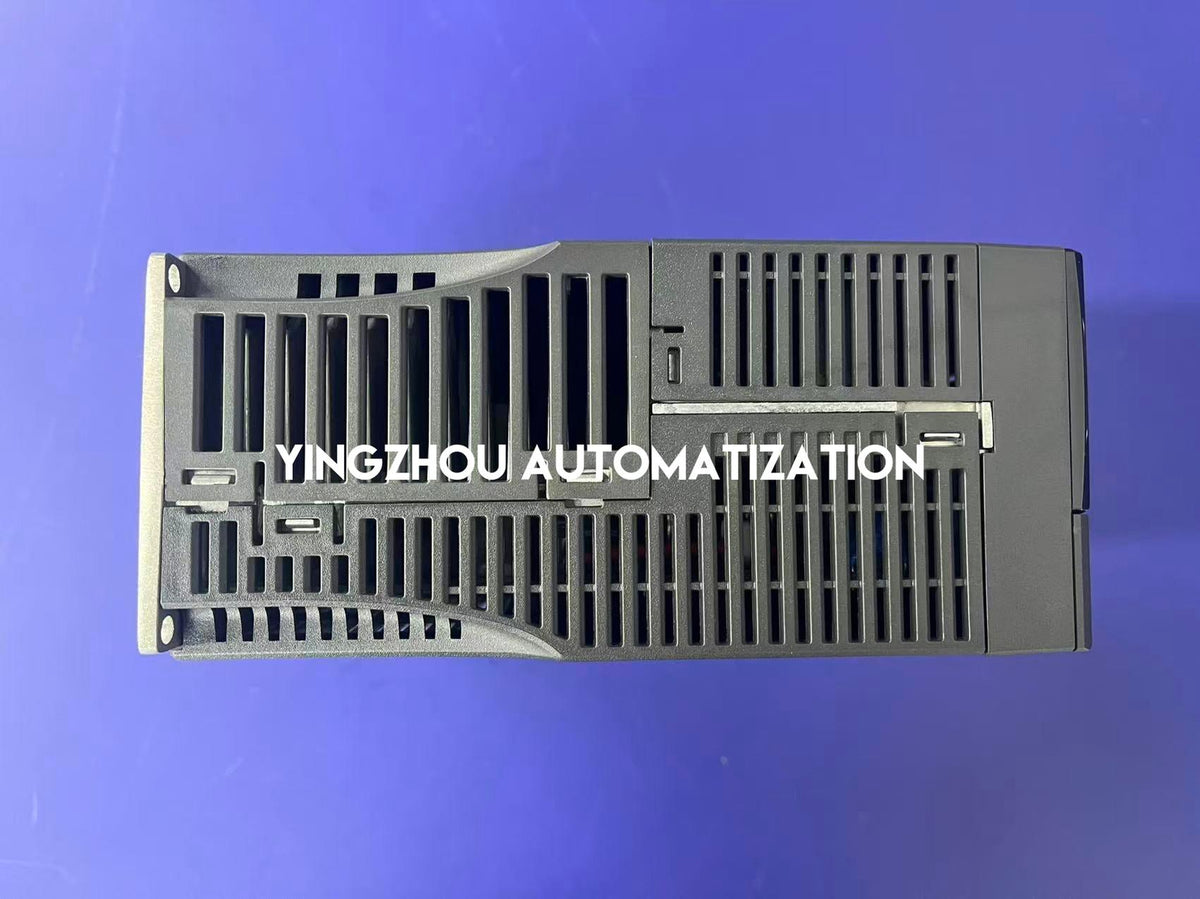

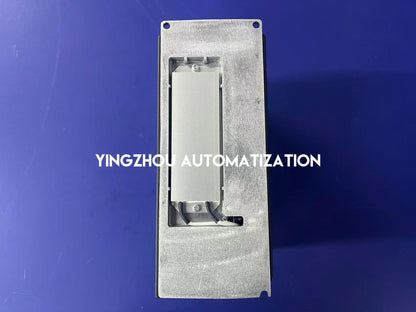

Actual product photos
✓

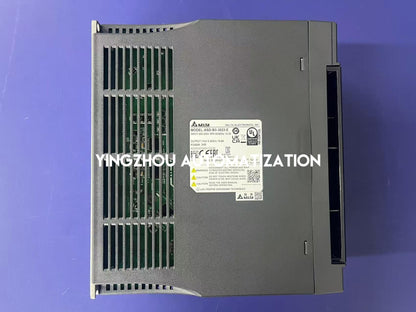

Model/nameplate visible
✓

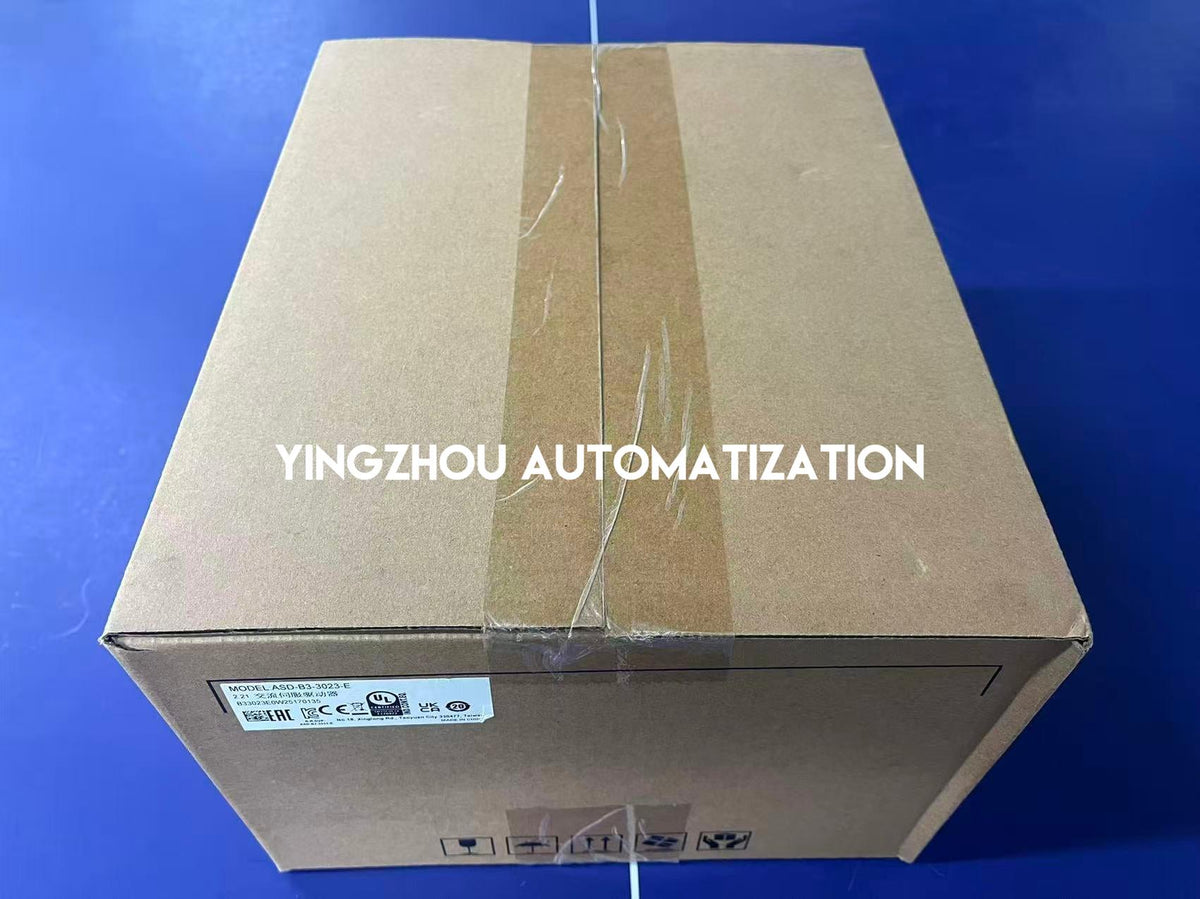

Packaging shown
✓

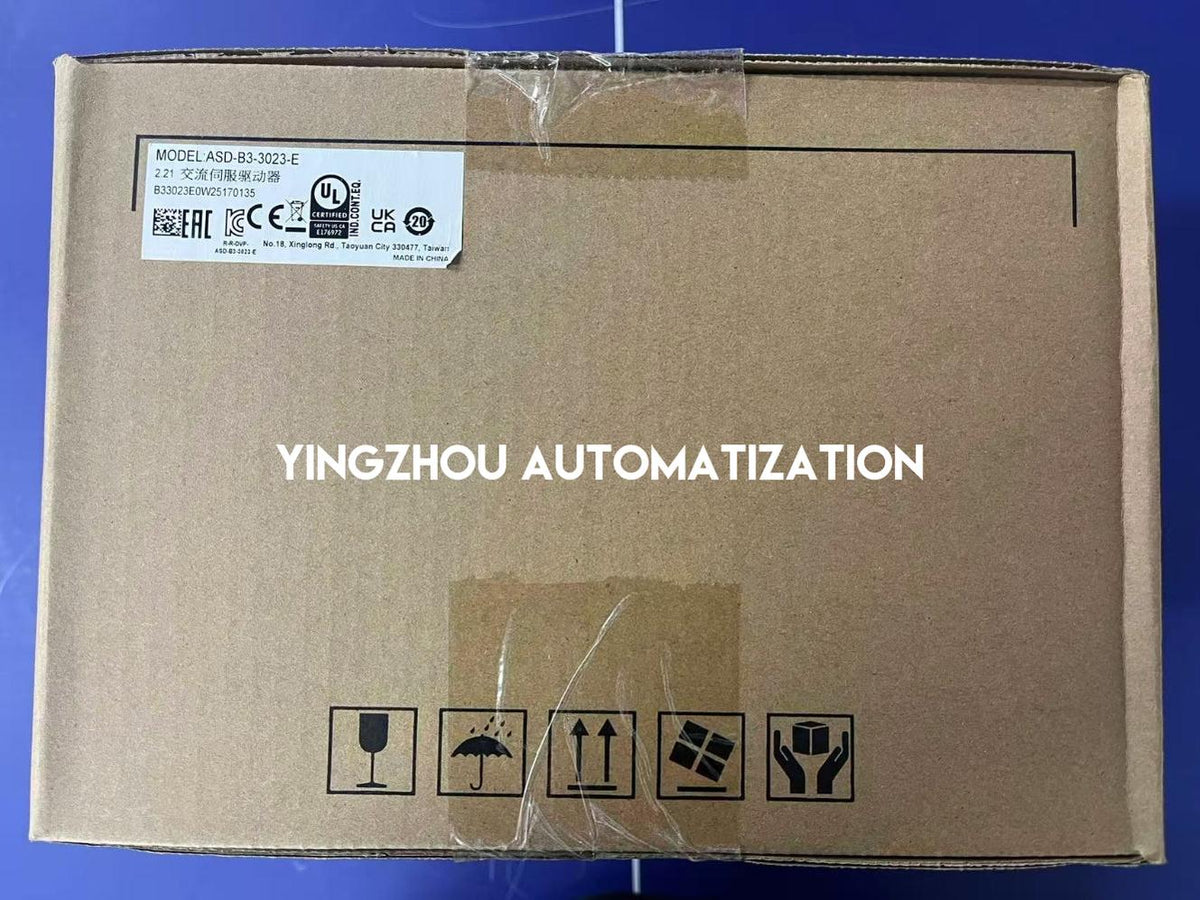

Device and carton labels match model
ASD-B3-3023-E
✓

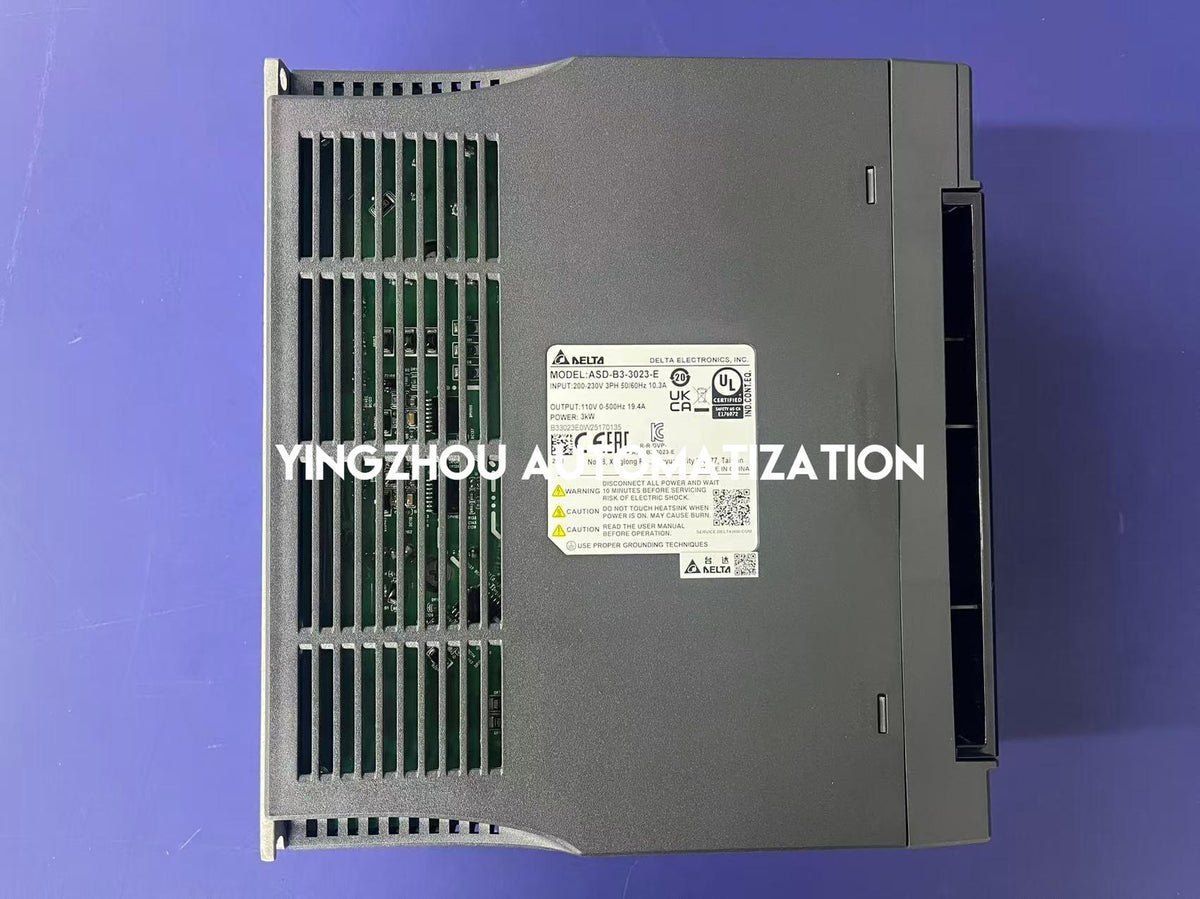

Actual product nameplate confirms
3 kW, three-phase 200-230 VAC,
10.3 A input and 19.4 A output
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-3023-E is currently
in stock.
Actual product photos, the exact model nameplate
and matching carton label are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
IN STOCK
Delta ASD-B3-3023-E
Add to Cart / Buy Now on this product page,
or contact us for project and quantity pricing.
Request Project Pricing
