Delta ASD-B3-0421-M ASDA-B3 AC Servo Drive
400 W | 220 V Class | 1/3-Phase 200-230 VAC | CANopen CN3 | 4 DI / 2 DO
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-0421-M |
| Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
400 W / 0.4 kW |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Permissible Voltage Variation |
-15% to +10% |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
2.04 A |
| Rated Input Current, Single-Phase |
3.74 A |
| Continuous Output Current |
2.65 A |
| Maximum Instantaneous Output Current |
10.6 A |
| Nameplate Motor Output |
110 V, 0-500 Hz, 2.65 A |
| Communication |
CANopen |
| CANopen Connector |
CN3 |
| CANopen Profiles |
DS301 / DS402 |
| RS-485 Modbus Communication |
Not Supported on B3-M |
| EtherCAT Communication |
Not Supported on B3-M |
| DMCNET Communication |
Not Supported on B3-M |
| PC Communication |
Mini USB (CN4) |
| External Pulse Train Input |
Not Supported on B3-M |
| Encoder Pulse Output |
OA / OB / OZ |
| Internal Positioning |
PR Mode Supported |
| High-Speed Position Capture |
DI3 |
| Control Modes |
Position / Speed / Torque |
| Analog Voltage Input / Output |
2 / 2 |
| Digital Inputs |
4 |
| Digital Outputs |
2 |
| CN1 Connector Pins |
26 |
| Drive Resolution |
24-bit |
| Main Circuit Control |
SVPWM |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Tuning Methods |
Automatic / Manual |
| Built-In Regenerative Resistor |
100 Ohm, 40 W |
| Minimum External Regenerative Resistance |
60 Ohm |
| Cooling Method |
Natural Cooling |
| Operating Temperature |
0 to +55 degrees C |
| Operating Humidity |
0-90% RH, Non-Condensing |
| Enclosure Protection |
IP20 |
| Hardware Safe Torque Off |
Not Provided on B3-M |
Product Overview
The Delta ASD-B3-0421-M is a
400 W single-axis AC servo drive
from Delta's ASDA-B3 Series.
Designed for 220 V class, single-phase or three-phase
200-230 VAC power systems, this drive provides
CANopen communication through the CN3 interface
and supports CANopen DS301 and DS402 profiles.
The B3-M configuration provides internal PR positioning,
position, speed and torque control, and 4 digital inputs
with 2 digital outputs for supported industrial motion systems.
External Pulse Train Input, RS-485 Modbus and EtherCAT
are not supported on this B3-M variant.
Key Product Features
-
400 W Rated Servo Capacity for compatible industrial servo motor applications
-
220 V Class Input with single-phase or three-phase 200-230 VAC supply
-
CANopen Communication through the CN3 industrial communication interface
-
CANopen DS301 and DS402 Profiles for supported servo network control
-
Internal PR Positioning for supported programmable positioning operations
-
Position, Speed and Torque Control for flexible motion system integration
-
4 Digital Inputs and 2 Digital Outputs specific to the B3-M configuration
-
High-Speed Position Capture available through DI3
-
Encoder Pulse Output with OA, OB and OZ signals
-
24-bit Drive Resolution for supported high-resolution motion systems
-
Built-In Regenerative Resistor rated at 100 Ohm and 40 W

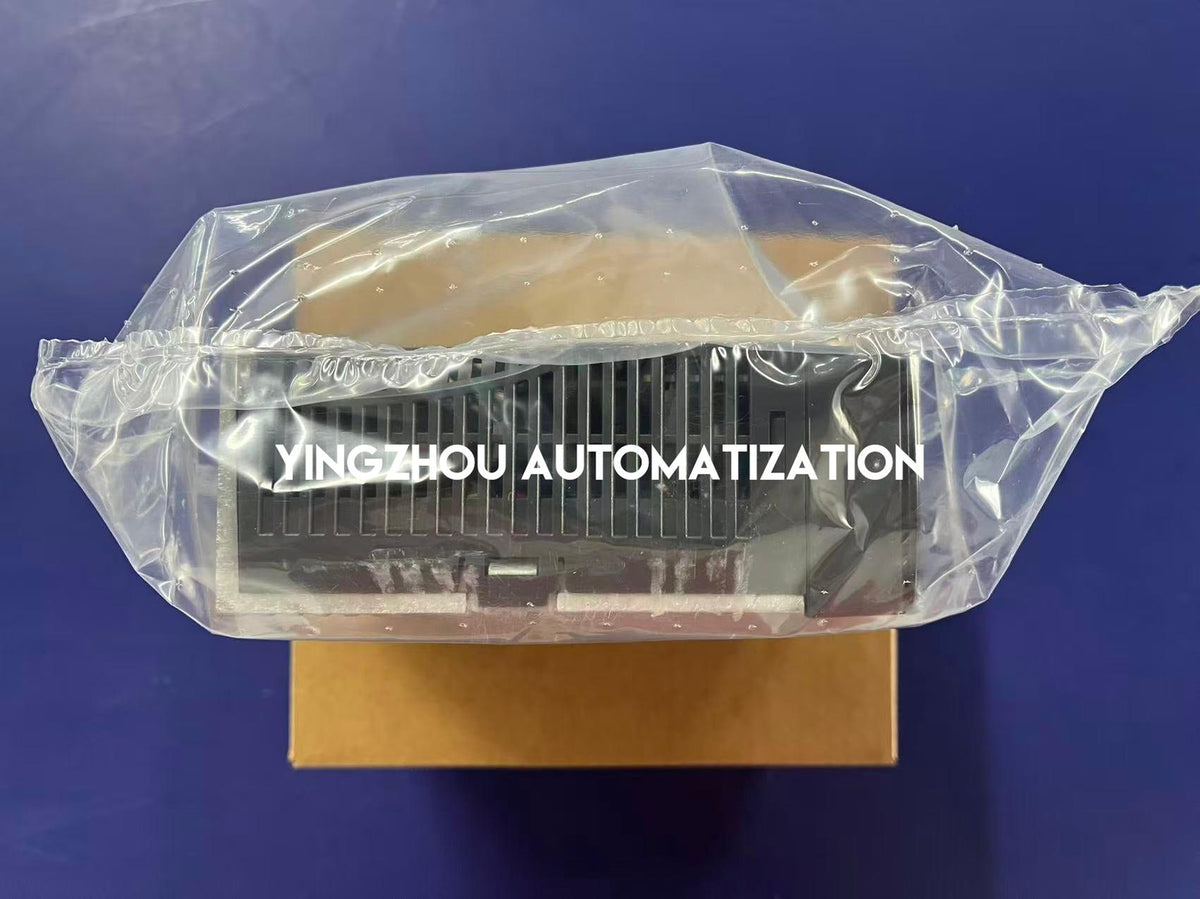

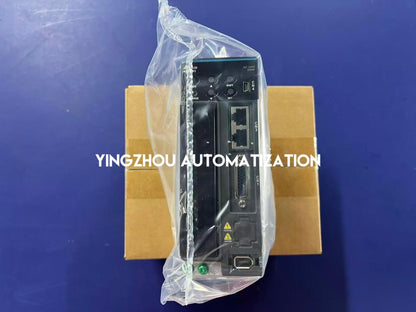

Actual Product Verification
✓

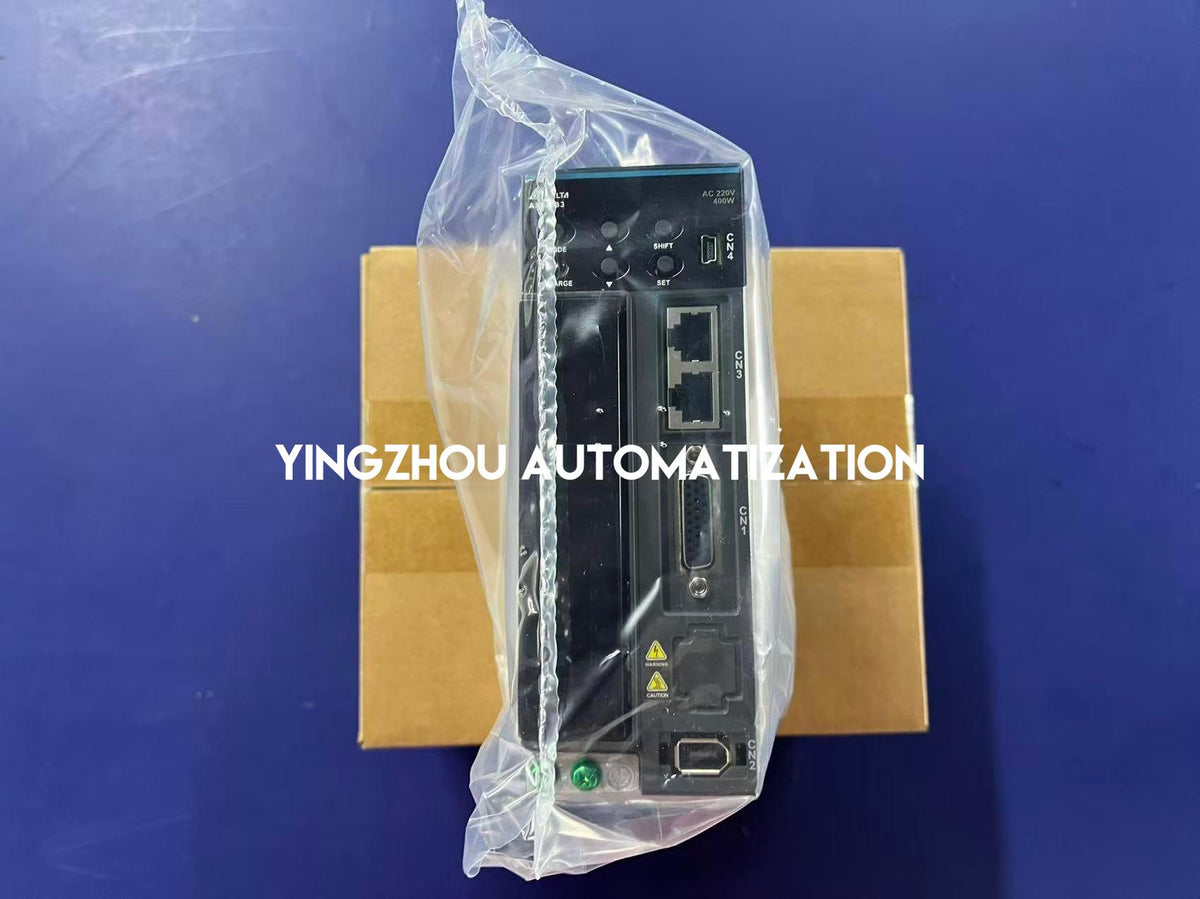

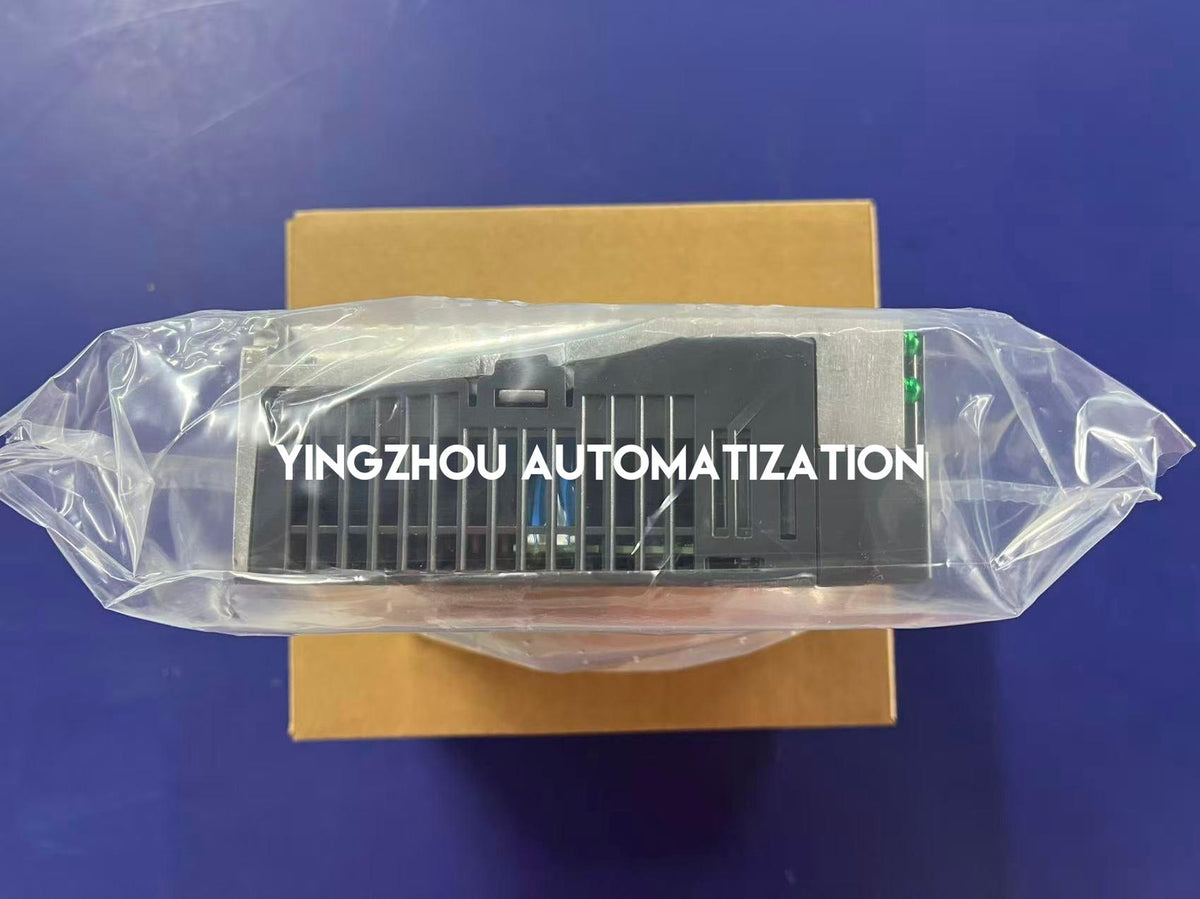

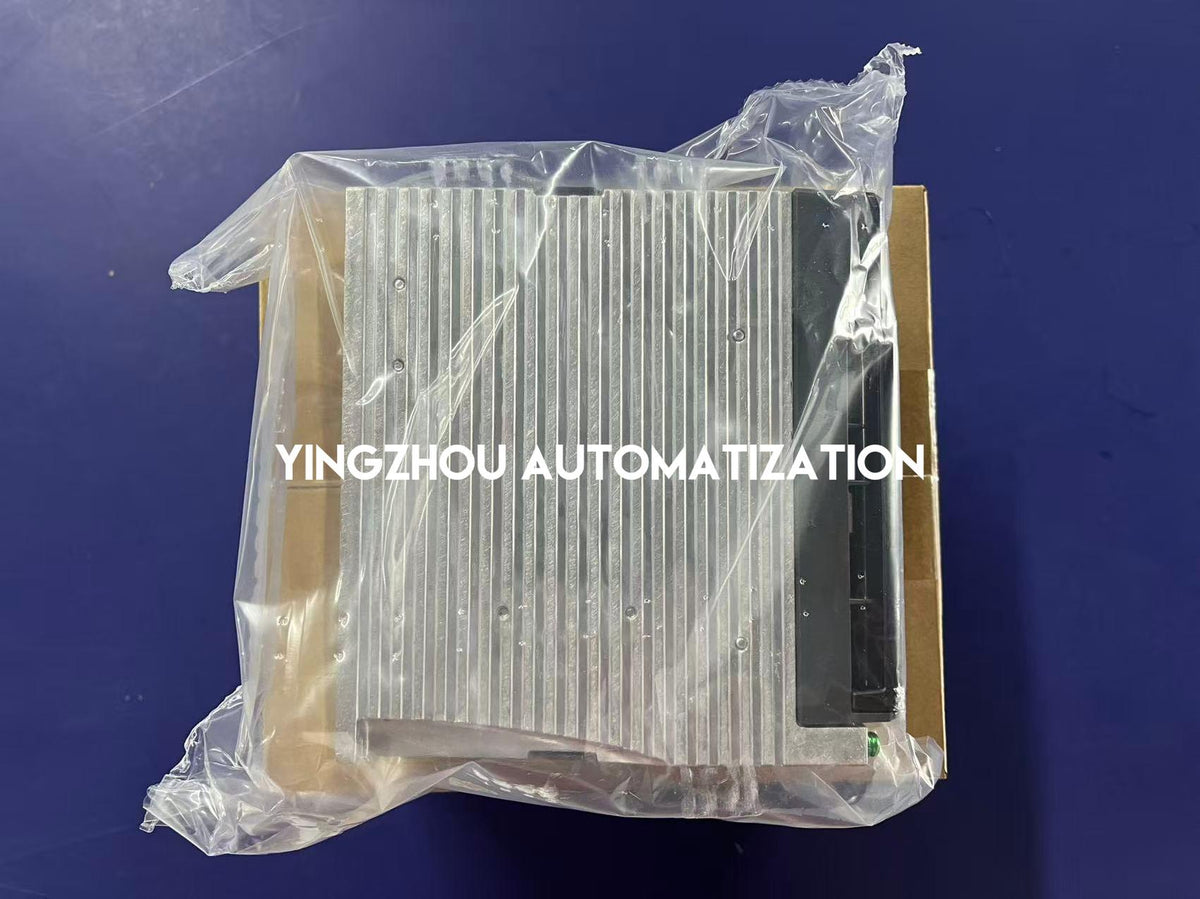

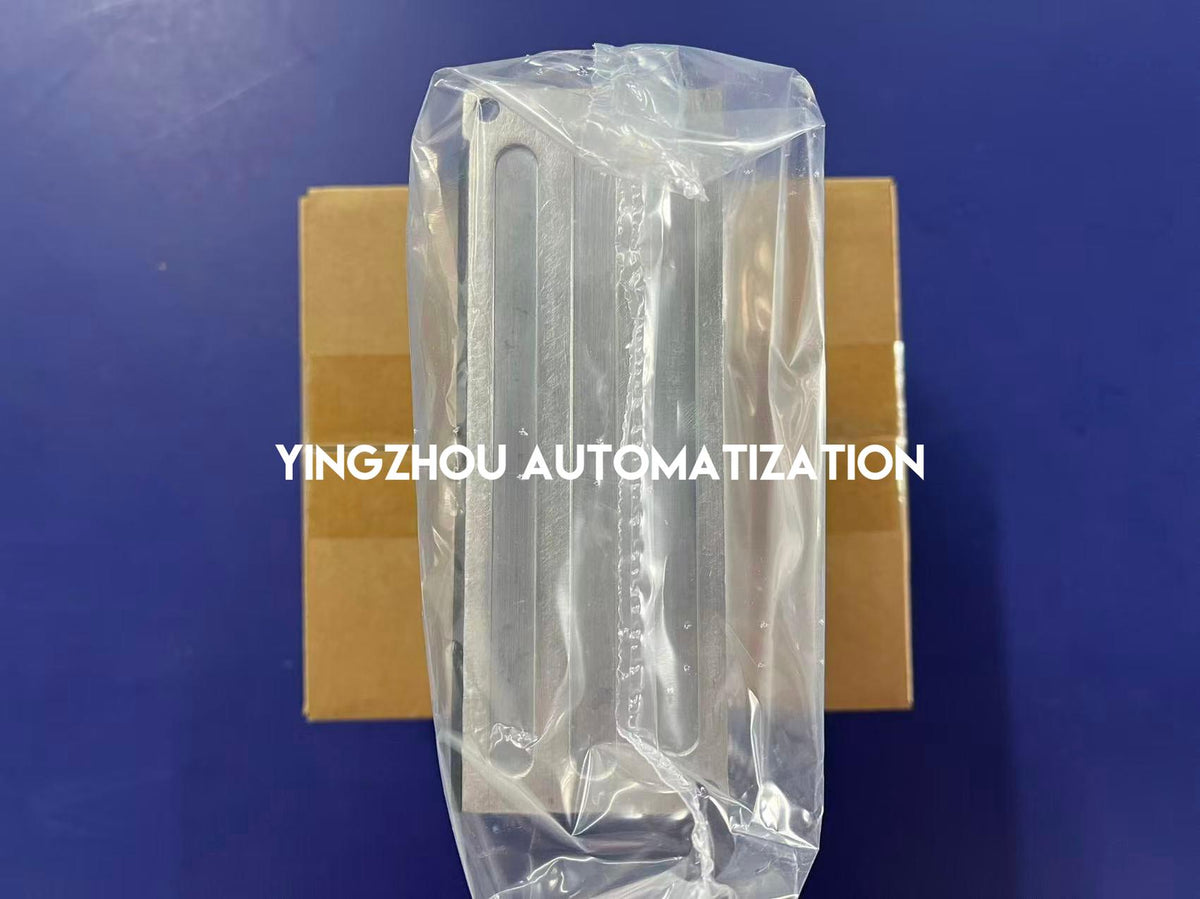

Actual product photos
✓

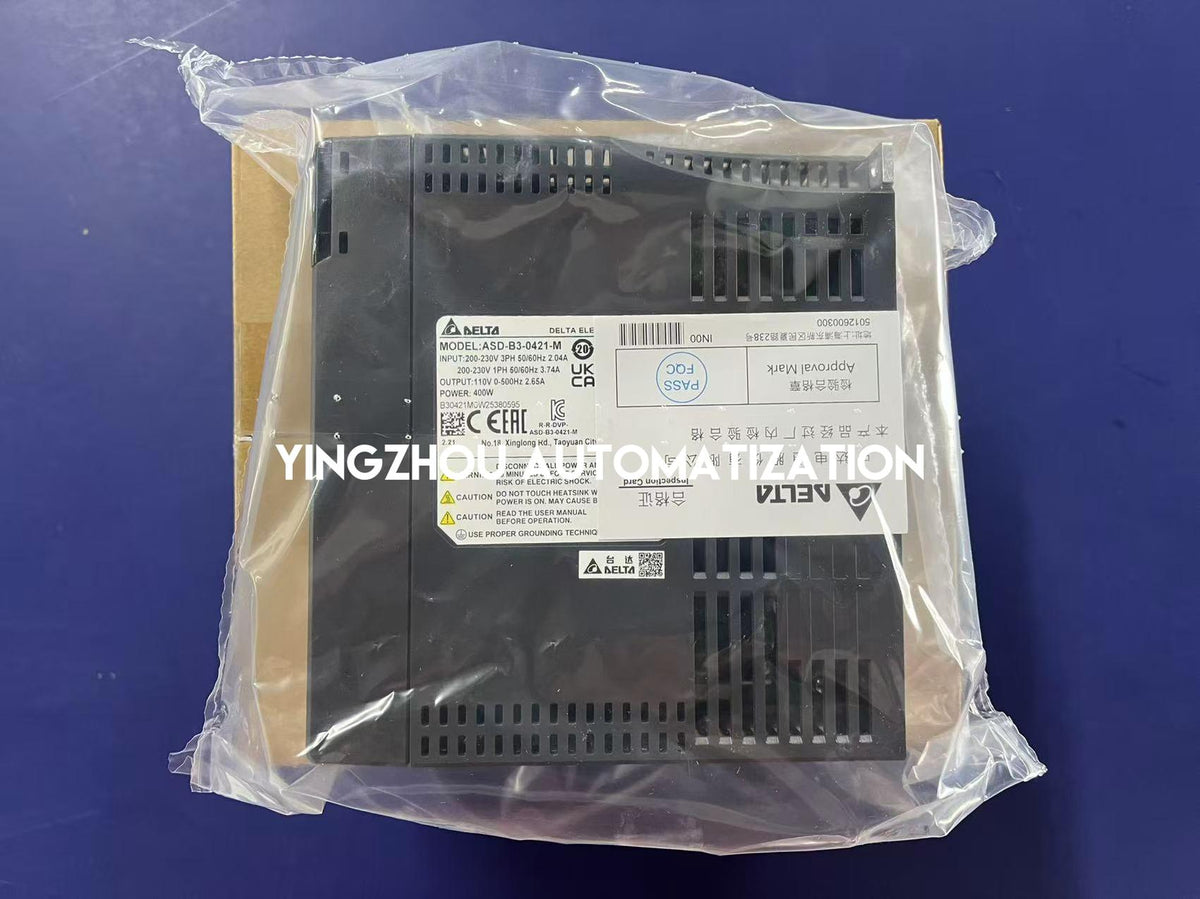

Model/nameplate visible
✓
Packaging shown
✓
Device and carton labels match model ASD-B3-0421-M
✓
Actual nameplate confirms 400 W, 2.04 A three-phase input,
3.74 A single-phase input and 2.65 A output
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-0421-M is currently
in stock.
Actual product photos, the exact model nameplate
and matching carton label are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
IN STOCK
Delta ASD-B3-0421-M
Add to Cart / Buy Now on this product page,
or contact us for project and quantity pricing.
Request Project Pricing
