Delta ASD-B3-0221-L ASDA-B3 AC Servo Drive
200 W | 220 V Class | 1/3-Phase 200-230 VAC | RS-485 Modbus
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-B3-0221-L |
| Series |
ASDA-B3 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
200 W / 0.2 kW |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
1.29 A |
| Rated Input Current, Single-Phase |
2.35 A |
| Continuous Output Current |
1.55 A |
| Maximum Instantaneous Output Current |
7.07 A |
| Communication |
RS-485 Modbus |
| Communication Interface |
RS-485 |
| Communication Protocol |
Modbus ASCII / RTU |
| Communication Connector |
CN3 |
| PC Communication |
Mini USB (CN4) |
| CANopen Communication |
Not Supported on B3-L |
| EtherCAT Communication |
Not Supported |
| External Pulse Train Input |
Supported |
| Pulse Input Type |
Pulse + Direction / A-B Phase / CW-CCW |
| Maximum Pulse Input Frequency |
Up to 4 Mpps |
| Open Collector Pulse Input |
Up to 200 Kpps |
| Internal Positioning |
PR Mode |
| Control Modes |
Position / Speed / Torque |
| Analog Voltage Control |
Supported |
| Analog Voltage Inputs / Outputs |
2 / 2 |
| Digital Inputs |
9 |
| Digital Outputs |
6 |
| Encoder Support |
Compatible Incremental / Absolute ECM-A3 and ECM-B3 Motors |
| Drive Resolution |
24-bit with Compatible Motors |
| Main Circuit Control |
SVPWM |
| Speed Loop Bandwidth |
Up to 3.1 kHz |
| Tuning Methods |
Automatic / Manual |
| Built-In Regenerative Resistor |
Not Equipped |
| Cooling Method |
Natural Cooling |
| Operating Temperature |
0°C to +55°C |
| Enclosure Protection |
IP20 |
Product Overview
The Delta ASD-B3-0221-L is a
200 W single-axis AC servo drive from
Delta's ASDA-B3 Series.
This 220 V class drive supports
single-phase or three-phase 200-230 VAC
main circuit input and provides
RS-485 Modbus communication
through the CN3 interface.
The B3-L configuration supports external pulse position
commands, internal PR positioning and analog voltage
control for industrial motion systems using compatible
Delta ECM-A3 and ECM-B3 servo motors.
Key Product Features
-
200 W Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Power Input with single-phase or three-phase 200-230 VAC supply
-
RS-485 Modbus Communication through the CN3 interface
-
External Pulse Position Control and built-in PR positioning functions
-
Position, Speed and Torque Control with analog command support
-
9 Digital Inputs and 6 Digital Outputs for supported servo control functions
-
High-Resolution Encoder Support with compatible 24-bit incremental and absolute feedback
-
Natural Cooling Design without a built-in regenerative resistor
Actual Product Verification
✓

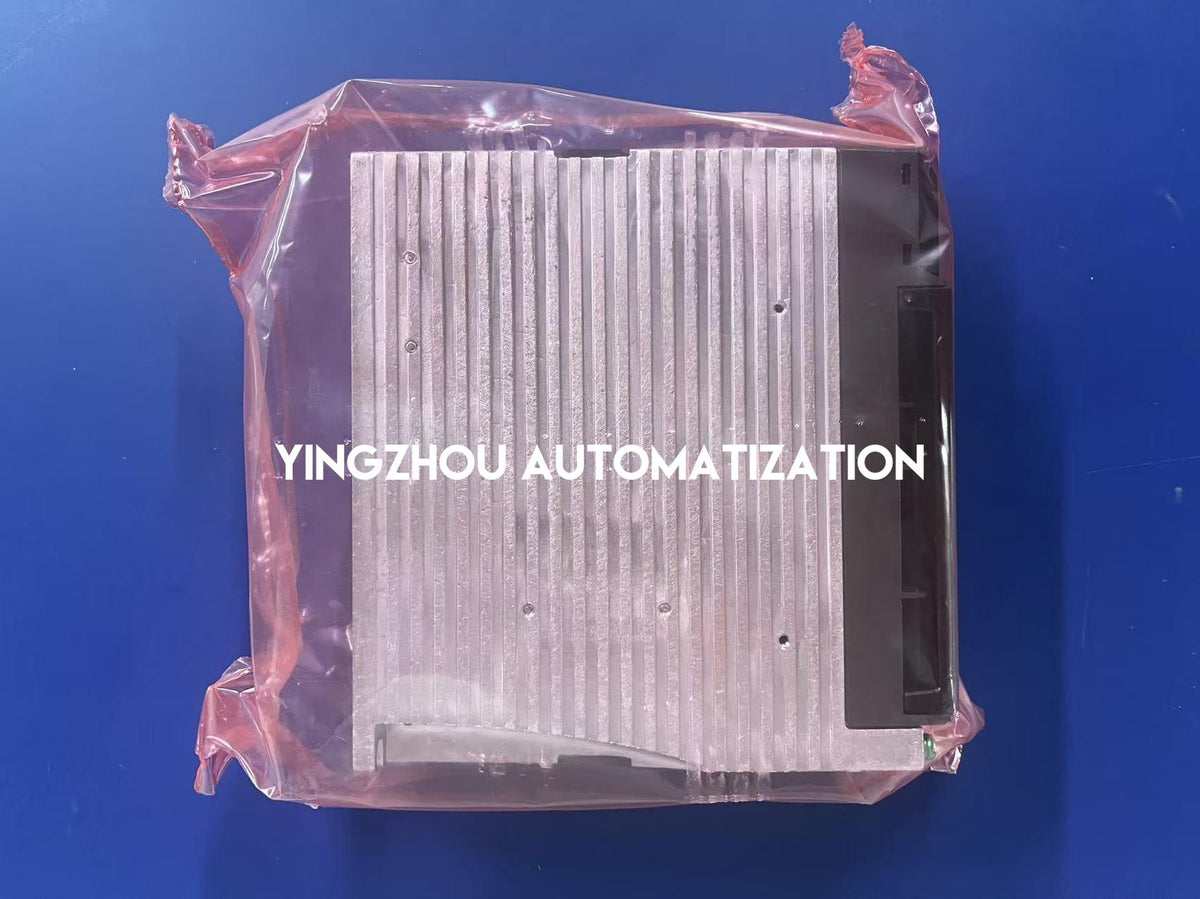

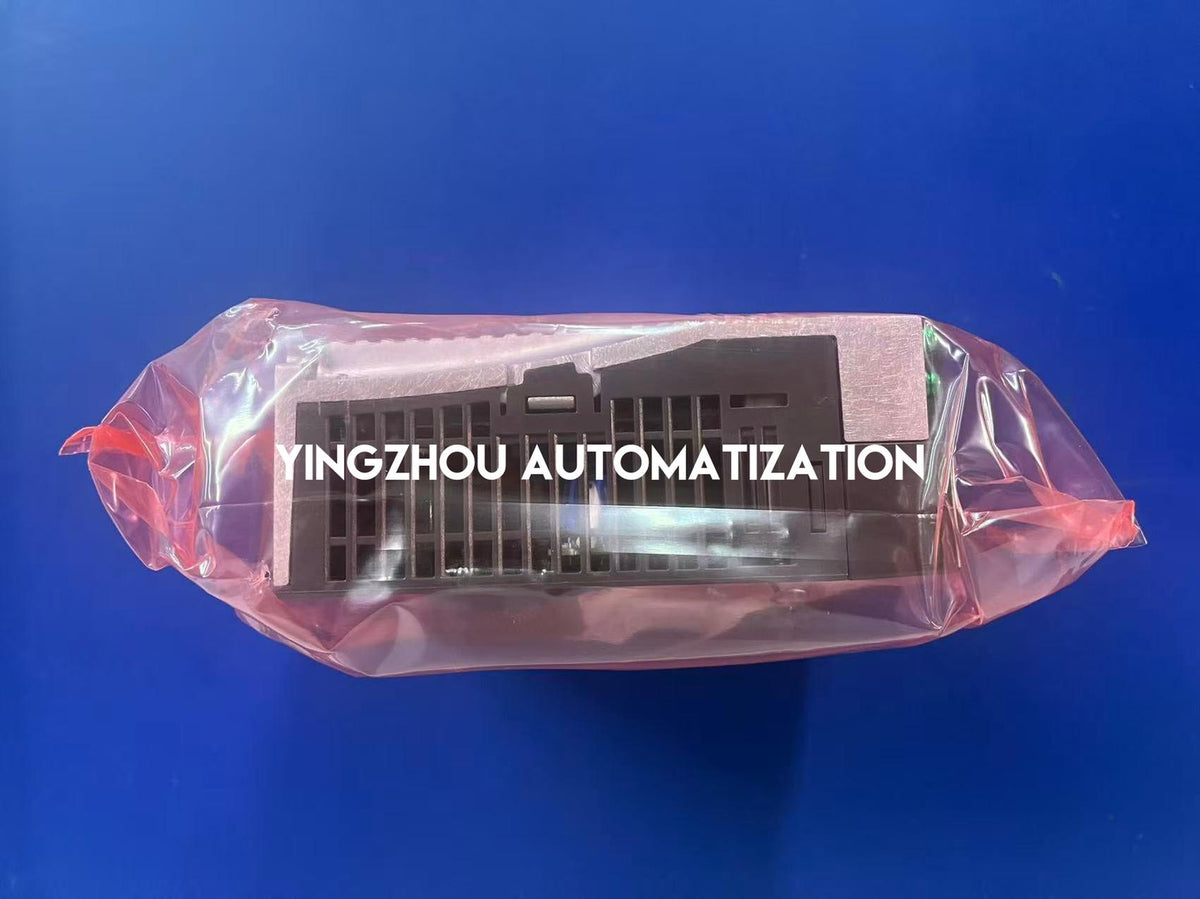

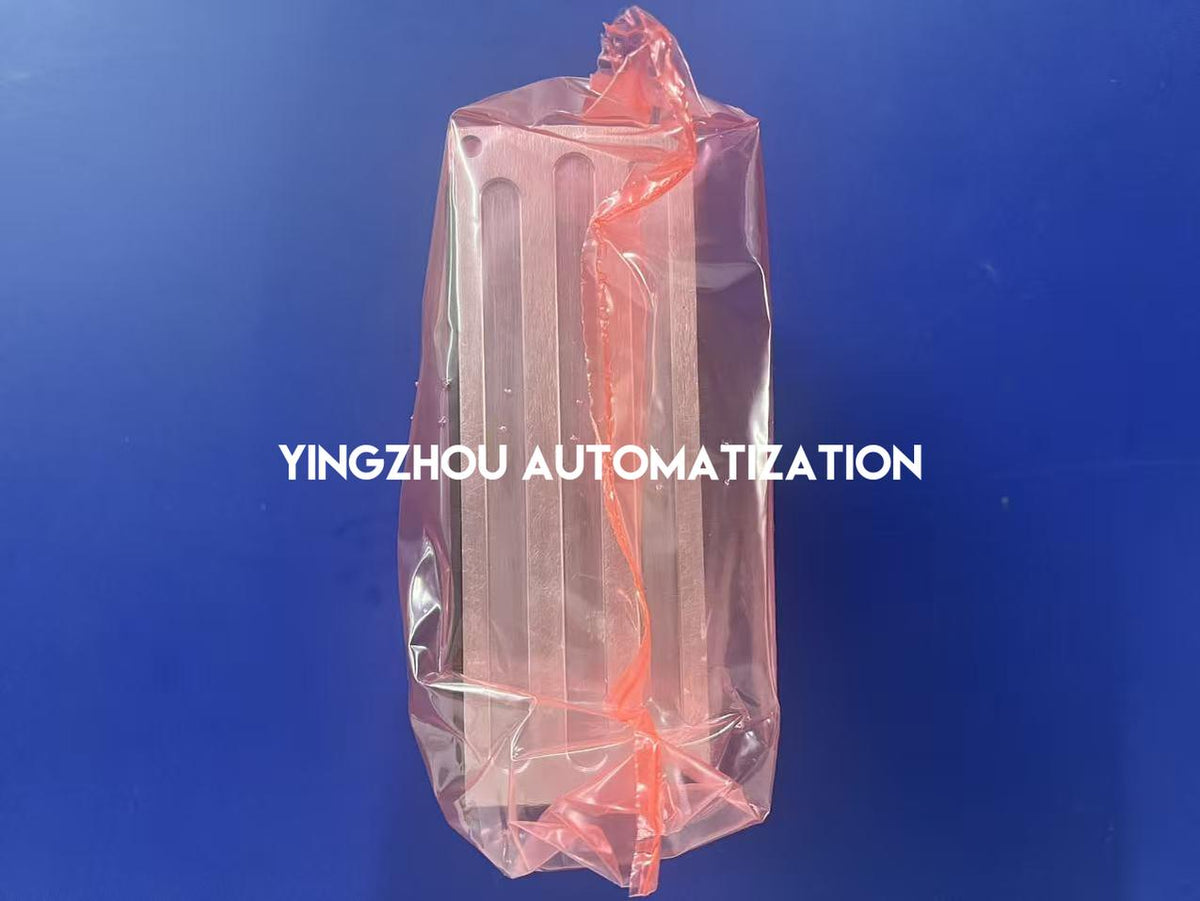

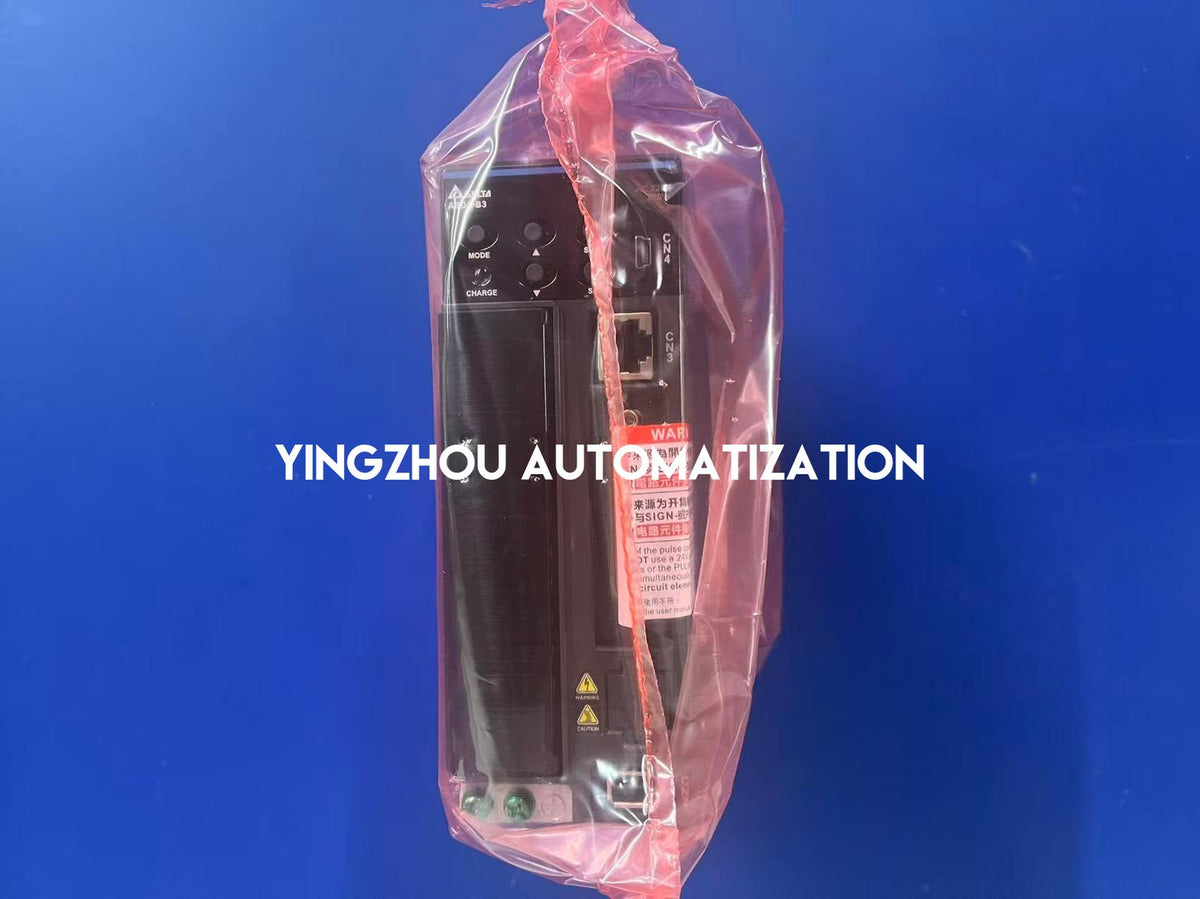

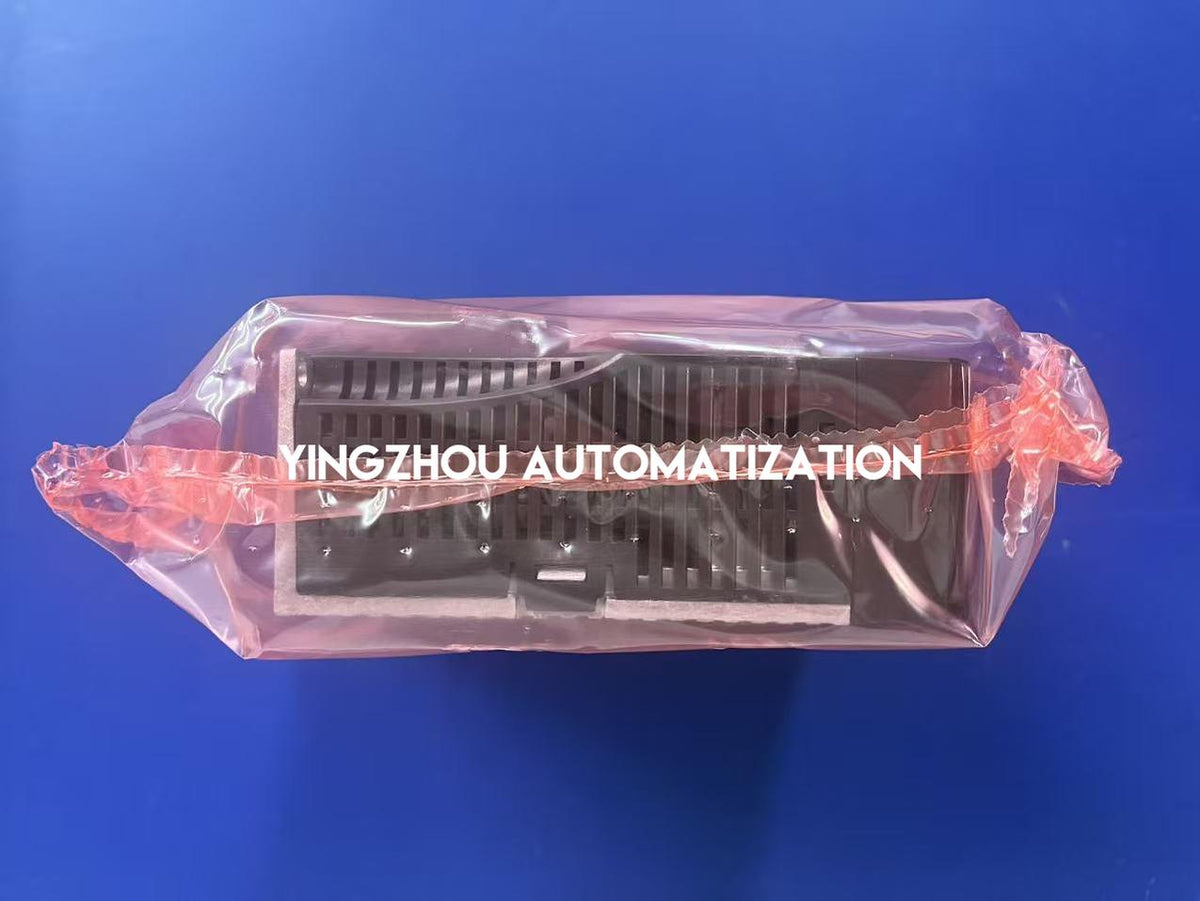

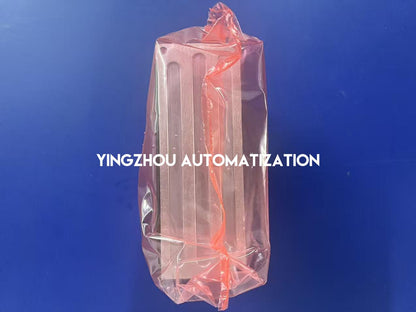

Actual product photos
✓

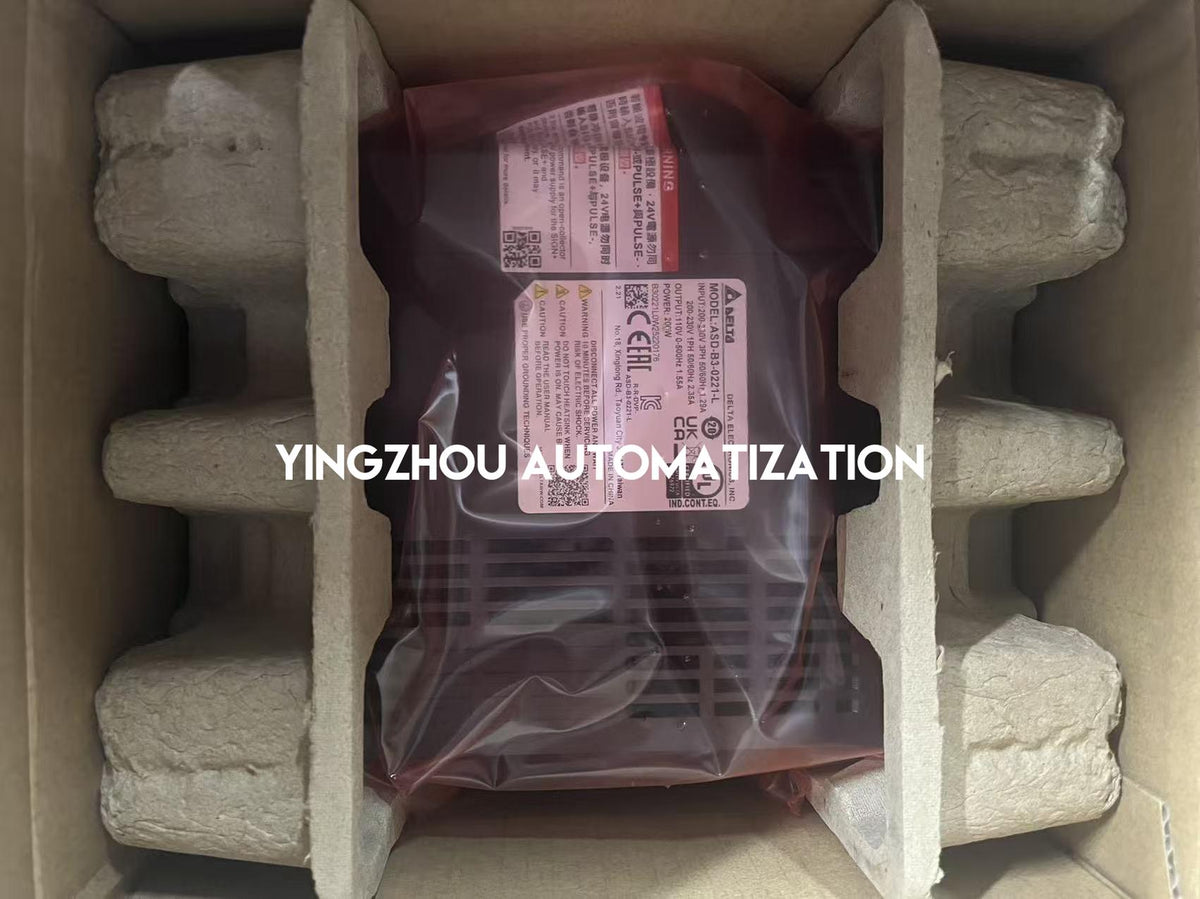

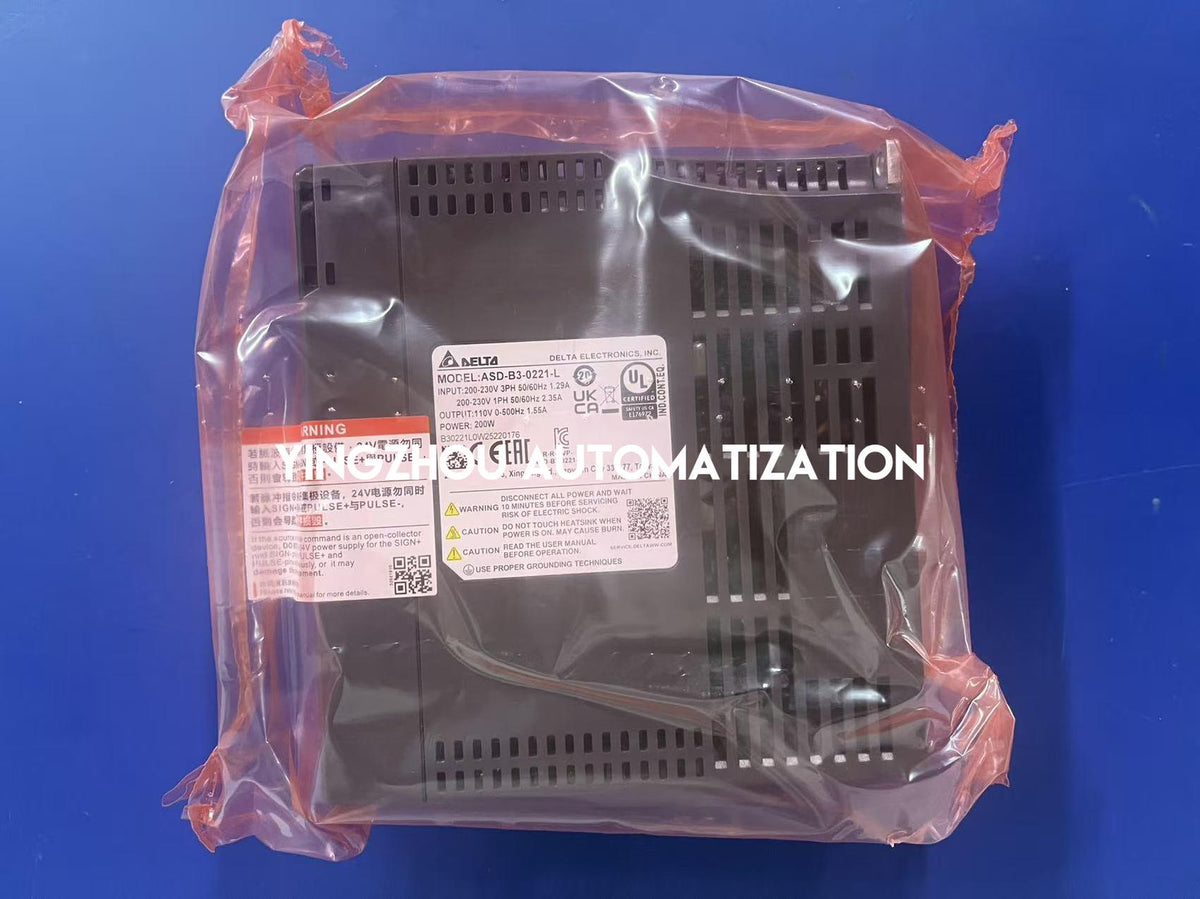

Model/nameplate visible
✓

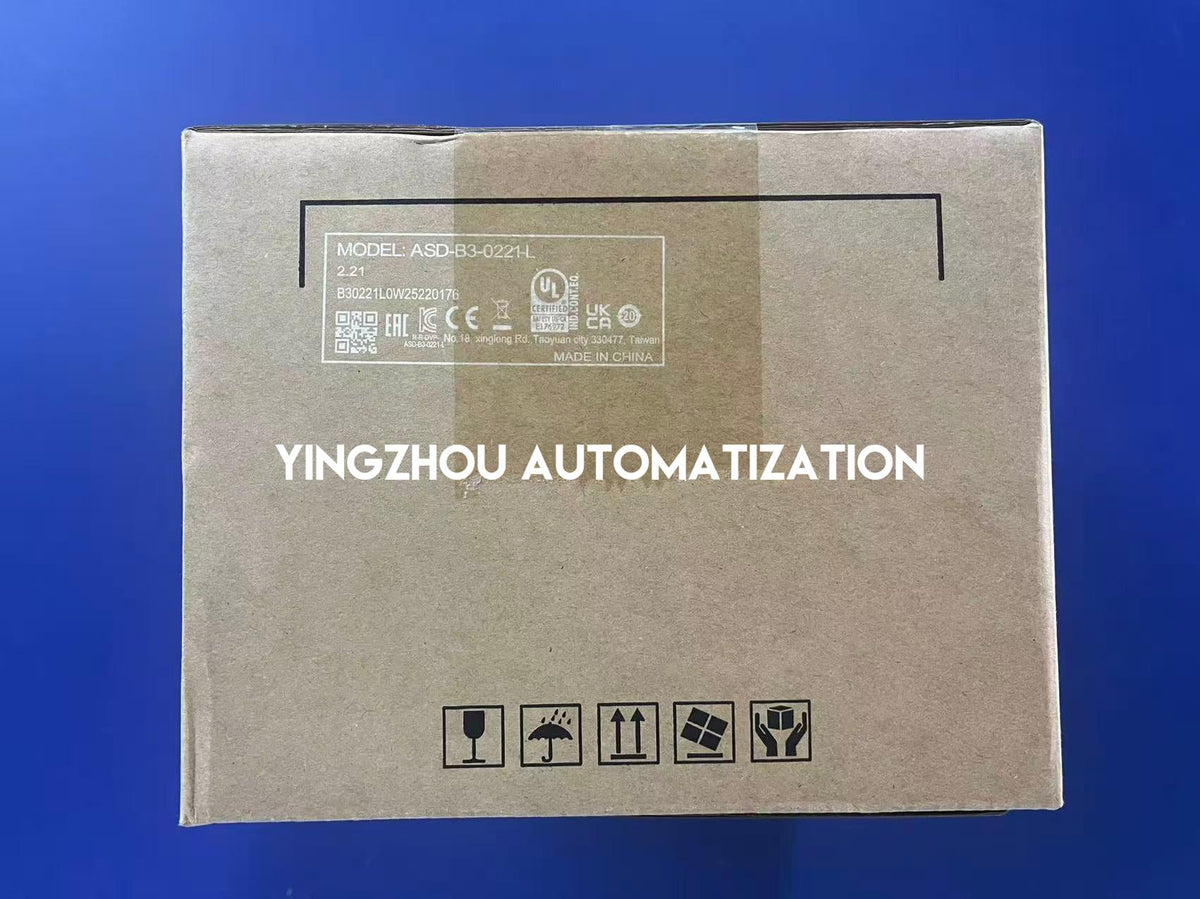

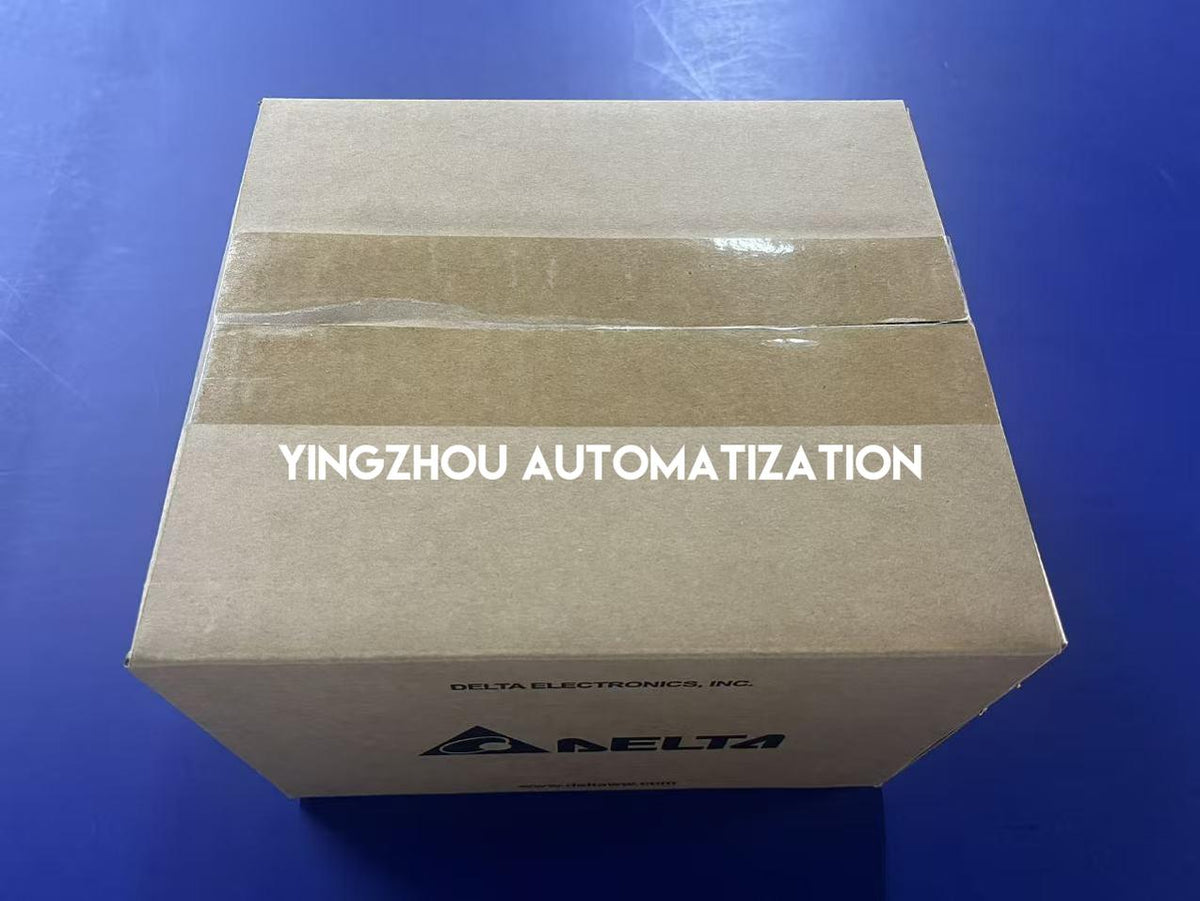

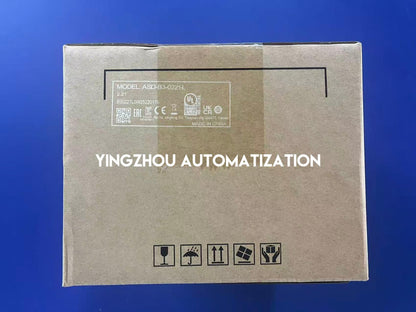

Packaging shown
✓
Device and carton labels match model ASD-B3-0221-L
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-B3-0221-L is currently
in stock. Actual product photos,
the exact model nameplate and matching carton label
are available for verification.
Contact us for project pricing, quantity requirements
and shipping arrangements.
