| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-A2-1543-M |
| Series |
ASDA-A2 Series |
| Product Type |
AC Servo Drive |
| Rated Power |
1.5 kW (1500 W) |
| Voltage Class |
400 V |
| Main Circuit Input Phase |
Three-phase |
| Main Circuit Input Voltage |
380-480 VAC, +/-10% |
| Main Circuit Input Current |
4.24 Arms |
| Control Circuit Supply |
24 VDC, +/-10% |
| Continuous Output Current |
5.02 Arms |
| Max. Instantaneous Output Current |
10.04 A |
| Main Circuit Control |
SVPWM |
| Model Type |
M - CANopen Network Model |
| CANopen Interface |
Supported (CN6) |
| CANopen Standard |
DS301 / DS402 |
| CANopen Data Rate |
Up to 1 Mbps |
| Control Modes |
Position / Speed / Torque |
| Full-Closed-Loop Control |
Supported (CN5) |
| Encoder Support |
20-bit Incremental / 17-bit Absolute ECMA Motor |
| Position Command |
External Pulse / Internal Parameters |
| Max. High-Speed Differential Pulse Input |
4 Mpps |
| Max. Open-Collector Pulse Input |
200 Kpps |
| Analog Command Input |
0 to +/-10 VDC |
| RS-485 Communication |
Supported (CN3) |
| PR Mode |
Supported |
| Electronic CAM |
Supported in PR Mode |
| Built-in Regenerative Resistor |
80 ohm / 100 W |
| Cooling Method |
Fan Cooling |
| Tuning Modes |
Auto / Manual |
| IP Rating |
IP20 |
| Operating Temperature |
0 to 55 degrees C (Forced cooling above 45 degrees C) |
Product Overview

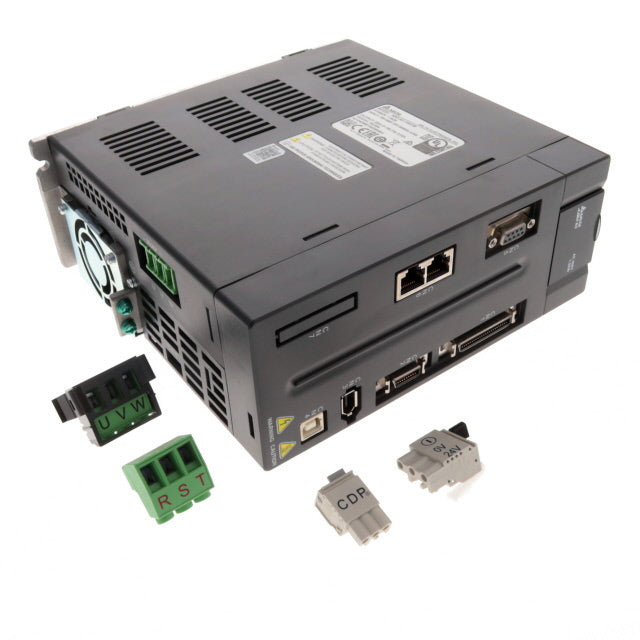

The Delta ASD-A2-1543-M is a
1.5kW AC servo drive from Delta's
ASDA-A2 Series. Designed for
three-phase 380-480 VAC main circuit power systems,
this 400V class CANopen network model
supports position, speed and torque control.
Full-closed-loop feedback, high-speed pulse commands
and electronic CAM functions provide flexible
configuration options for industrial motion control.
Key Product Features
-
1.5kW (1500 W) rated servo drive power
-
400V class with three-phase 380-480 VAC main circuit input
-
CANopen DS301 / DS402 network communication up to 1 Mbps
-
Full-closed-loop control with external encoder feedback support
-
5.02 Arms continuous output with 10.04 A maximum instantaneous output current
-
Position, speed and torque control modes
-
Built-in regenerative resistor rated at 80 ohm / 100 W
In Stock & Ready to Order
Delta ASD-A2-1543-M is currently
in stock. Brand new original unit with a
1-year seller warranty.
Order online or contact us for project and
quantity-based purchasing assistance.
