Delta ASD-A2-0721-L ASDA-A2 AC Servo Drive
750 W | 220 V Class | 1/3-Phase 200-230 VAC | RS-485 Modbus CN3 | Pulse Control
| Specification |
Product Data |
| Brand |
Delta Electronics |
| Exact Model |
ASD-A2-0721-L |
| Product Series |
ASDA-A2 |
| Product Type |
Single-Axis AC Servo Drive |
| Rated Motor Capacity |
750 W / 0.75 kW |
| Voltage Class |
220 V Class |
| Main Circuit Input Phase |
Single-Phase / Three-Phase |
| Main Circuit Input Voltage |
200-230 VAC |
| Permissible Input Voltage Variation |
-15% to +10% |
| Input Frequency |
50/60 Hz |
| Rated Input Current, Three-Phase |
3.66 A |
| Rated Input Current, Single-Phase |
6.78 A |
| Continuous Output Current |
5.1 A |
| Nameplate Motor Output |
110 V, 0-250 Hz, 5.1 A |
| Communication |
RS-485 Modbus |
| RS-485 Communication Connector |
CN3 |
| RS-232 Interface |
CN3 |
| PC Communication |
USB (CN4) |
| CANopen Communication |
Not Supported on A2-L |
| DMCNET Communication |
Not Supported on A2-L |
| EtherCAT Communication |
Not Supported on A2-L |
| External Pulse Train Input |
Supported |
| Pulse Input Methods |
Line Driver / Open Collector |
| Line Driver Pulse Input Frequency |
Up to 500 Kpps / 4 Mpps |
| Open Collector Pulse Input Frequency |
Up to 200 Kpps |
| Pulse Command Types |
Pulse + Direction / A-B Phase / CW-CCW |
| Internal Positioning |
PR Mode Supported |
| Full Closed-Loop Control |
Supported through CN5 |
| Full Closed-Loop in PR Mode |
Not Supported on A2-L |
| E-CAM |
Not Supported on A2-L |
| Analog Voltage Control |
Supported |
| Control Modes |
Position / Speed / Torque |
| Digital Inputs |
8 |
| Digital Outputs |
5 |
| CN1 Connector |
50 Pins |
| Encoder Pulse Output |
OA / OB / OZ |
| Motor Encoder Connector |
CN2 |
| Secondary Feedback Connector |
CN5 |
| Encoder Resolution |
20-bit Incremental / 17-bit Absolute |
| Main Circuit Control |
SVPWM |
| Tuning Methods |
Automatic / Manual |
| Speed Loop Bandwidth |
Up to 1 kHz |
| Built-In Regenerative Resistor |
40 Ohm, 60 W |
| Minimum Allowable External Resistance |
20 Ohm |
| Hardware Safe Torque Off |
Not Supported on A2-L |
Product Overview
The Delta ASD-A2-0721-L is a
750 W single-axis AC servo drive
from Delta's ASDA-A2 Series.
Designed for 220 V class, single-phase or three-phase
200-230 VAC power systems, the drive provides
RS-485 Modbus communication through CN3
and supports external pulse train commands for position control.
The ASDA-A2-L configuration also offers
full closed-loop feedback through CN5,
analog voltage control, and internal PR positioning.
Full closed-loop control in PR Mode is not supported
on this A2-L variant. CANopen, DMCNET, EtherCAT,
E-CAM and hardware STO are not provided on this model.
Key Product Features
-
750 W Rated Servo Capacity for compatible industrial servo motor systems
-
220 V Class Power Input supporting single-phase or three-phase 200-230 VAC supply
-
RS-485 Modbus Communication through the CN3 serial interface
-
External Pulse Train Control for position commands from compatible controllers
-
Full Closed-Loop Feedback through the CN5 secondary feedback interface
-
Internal PR Positioning for supported programmable position sequences
-
Analog Voltage Control for supported speed and torque command applications
-
8 Digital Inputs and 5 Digital Outputs through the 50-pin CN1 connector
-
Position, Speed and Torque Modes for flexible industrial motion control
-
High-Resolution Encoder Feedback for compatible Delta servo motor systems
-
Built-In Regenerative Resistor rated at 40 Ohm and 60 W
Actual Product Verification
✓

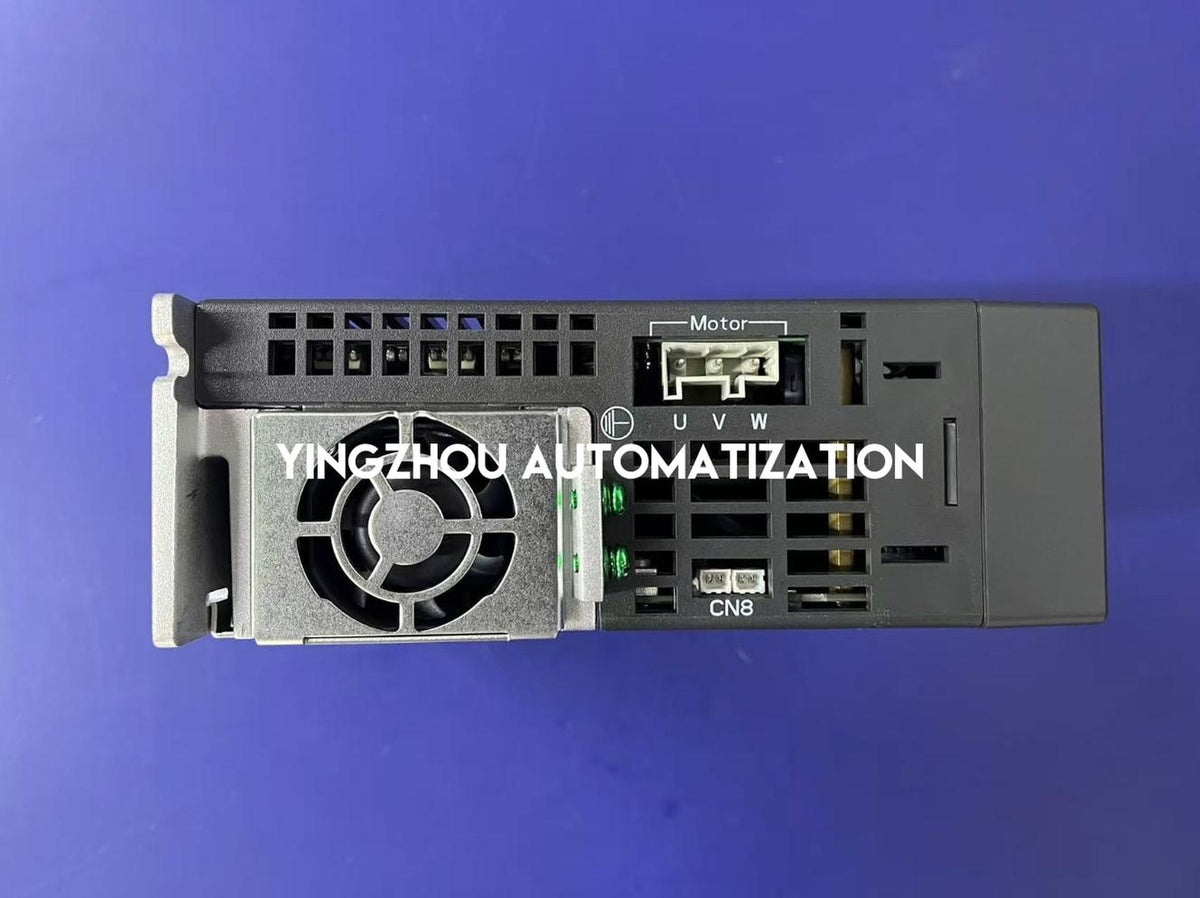

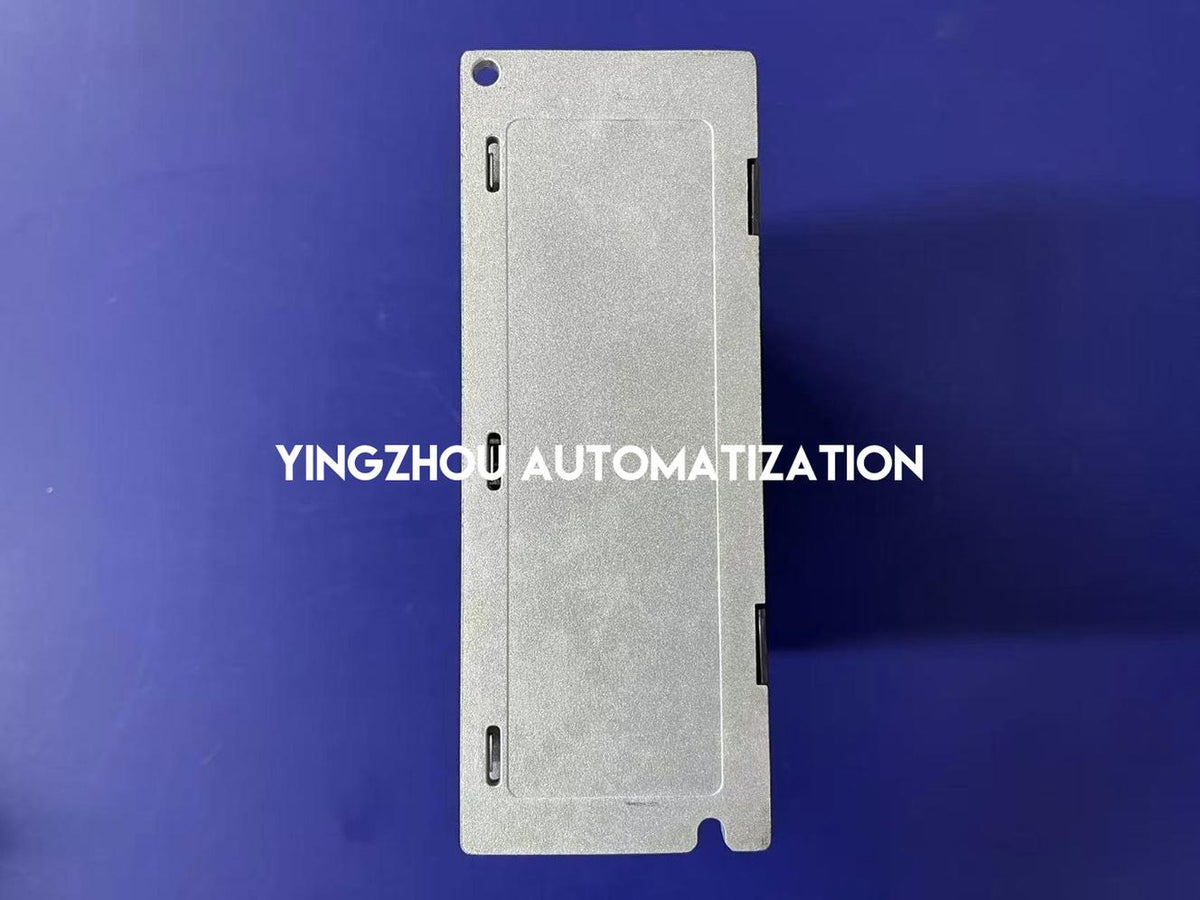

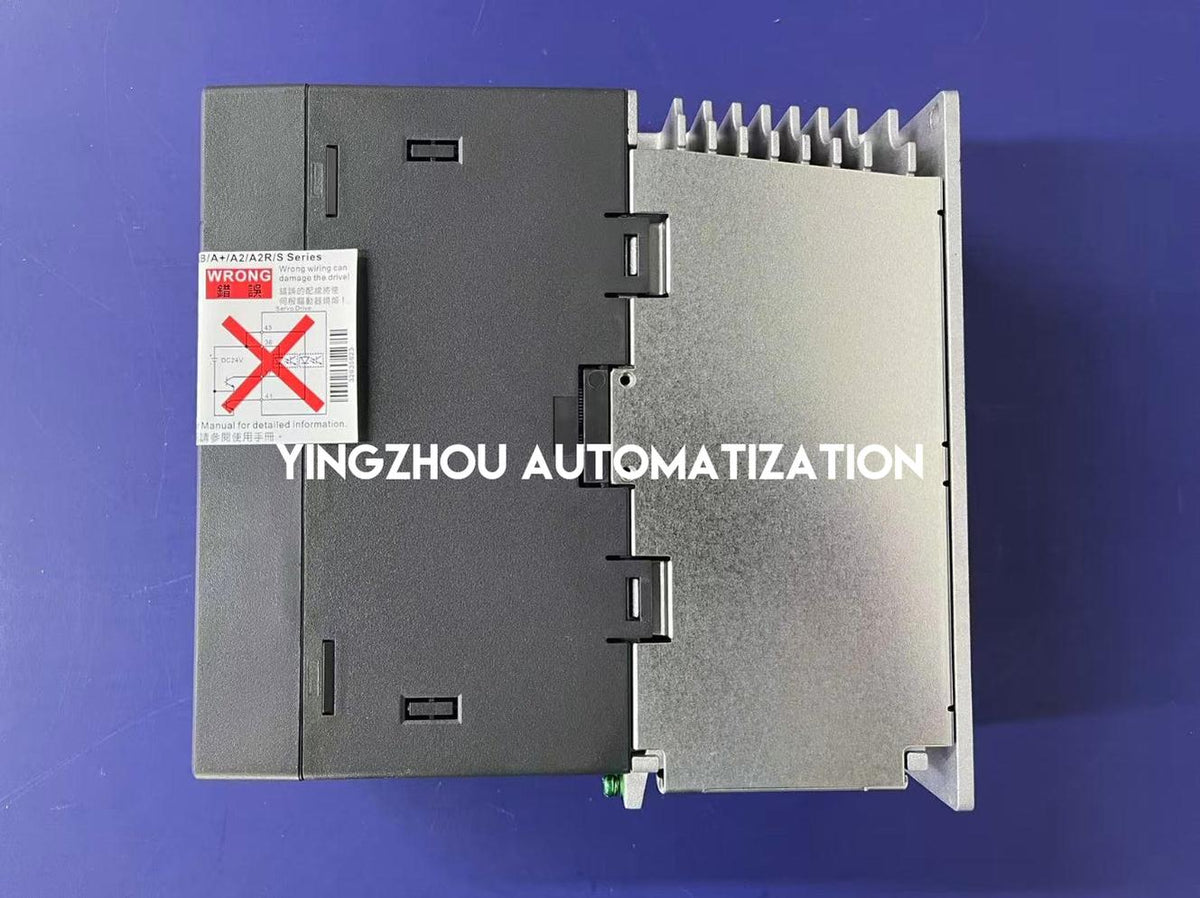

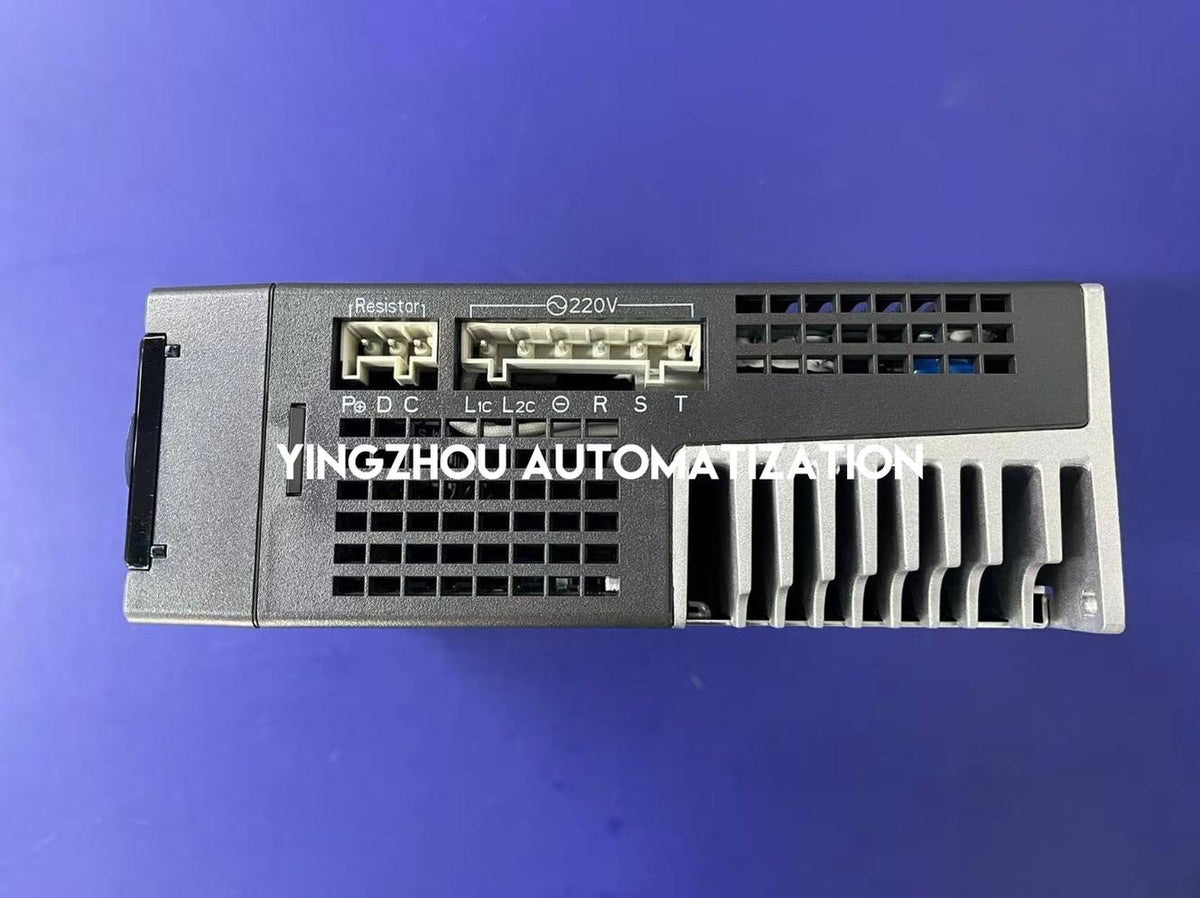

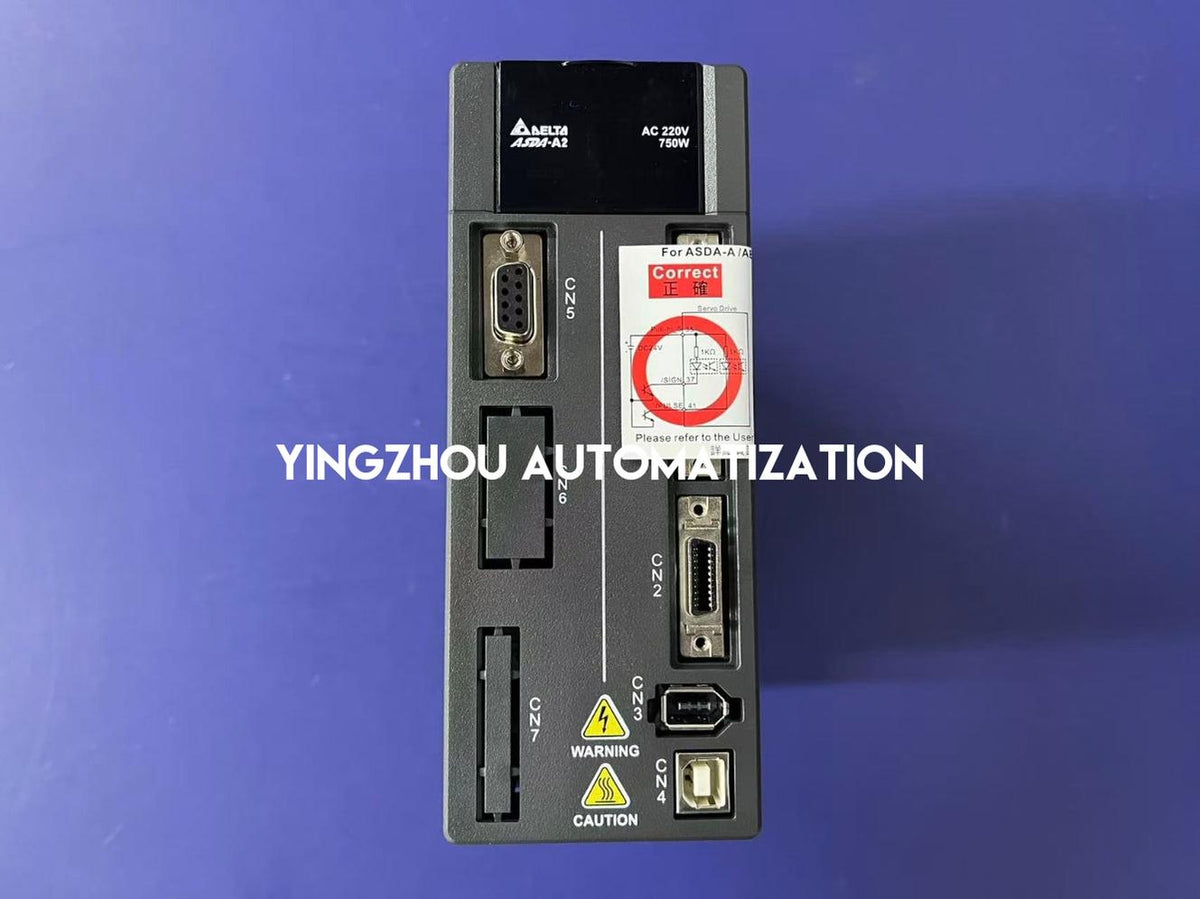

Actual product photos
✓
Model/nameplate visible
✓

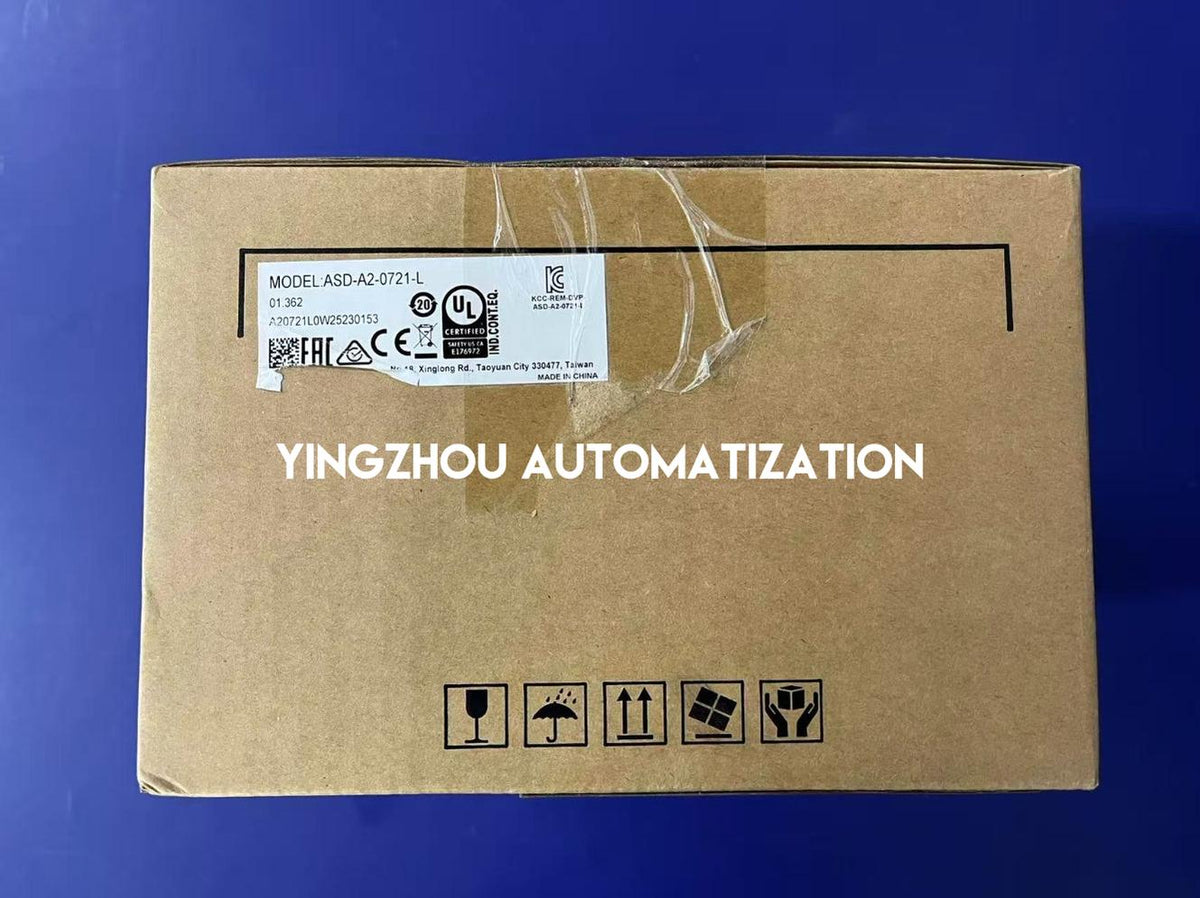

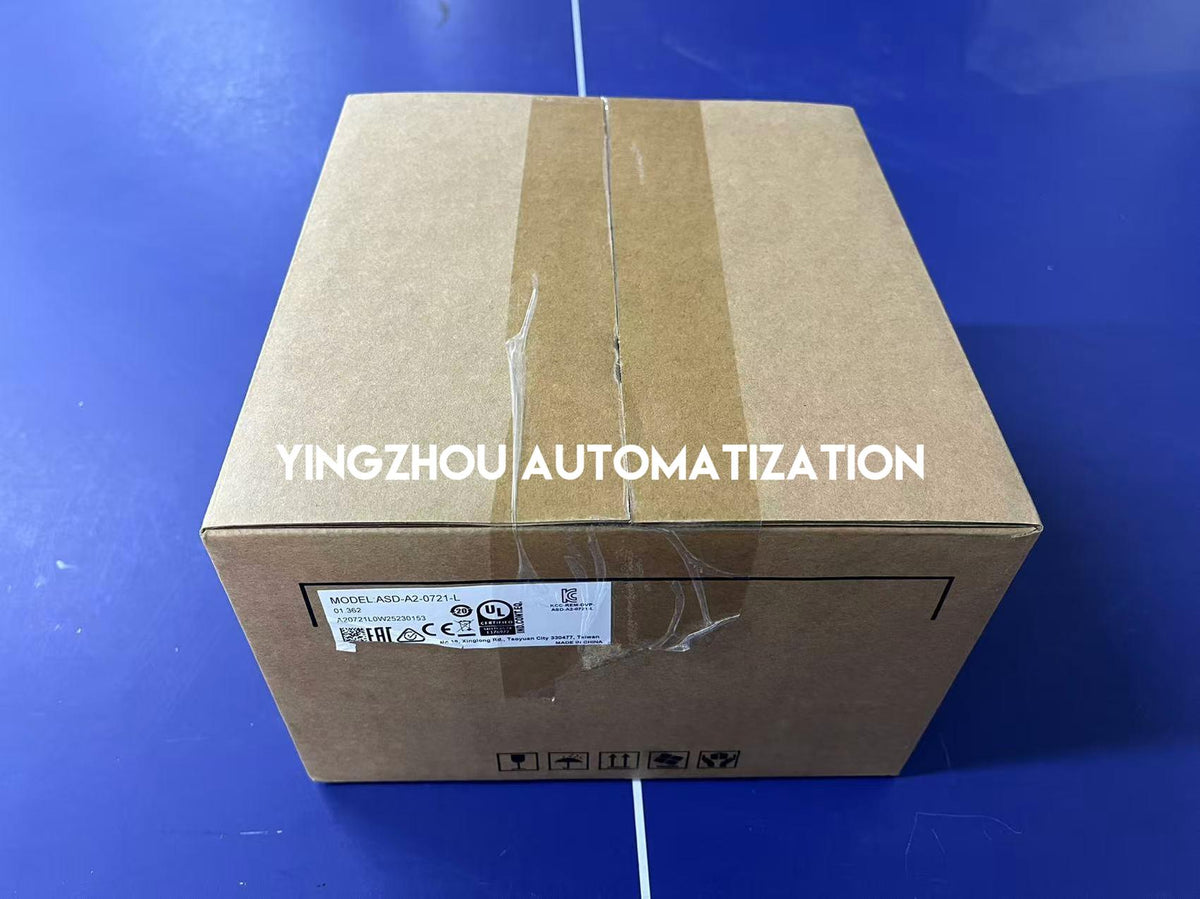

Packaging shown
✓
Device and carton labels match model
ASD-A2-0721-L
✓

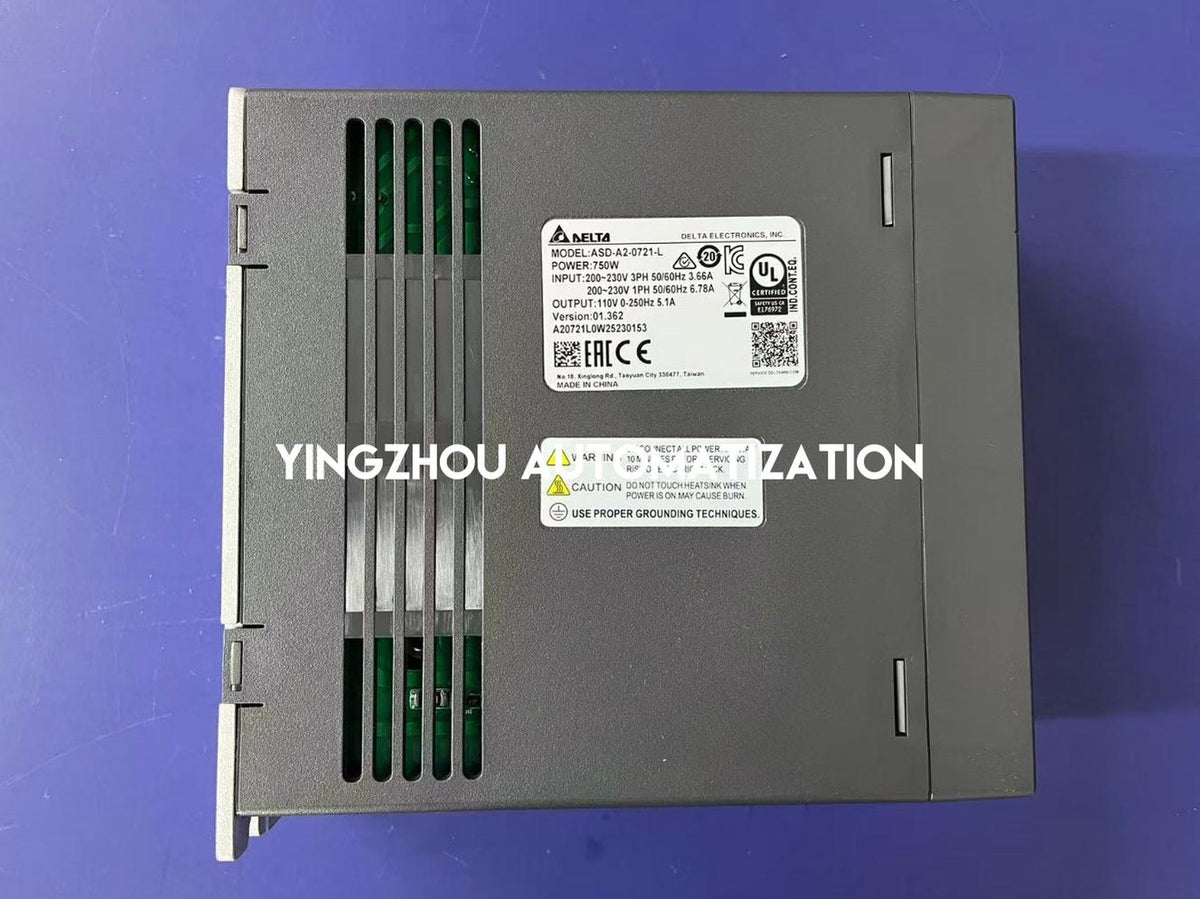

Actual nameplate confirms 750 W,
3.66 A three-phase input,
6.78 A single-phase input,
and 5.1 A output
✓
Verify exact model before ordering
In Stock & Ready to Order
Delta ASD-A2-0721-L is currently
in stock.
Actual product photos, the exact model nameplate,
and matching carton label are available for verification.
