Danfoss 134U2982 VLT® Midi Drive FC 280 2.2kW VFD
2.2 kW | 3 HP | 3-Phase 380–480 VAC | Modbus RTU | IP20 / K1 Frame
| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
134U2982 |
| Exact Type Code |
FC-280P2K2T4E20H1BXCXXXSXXXXAX |
| Series |
VLT® Midi Drive FC 280 |
| Product Type |
Variable Frequency Drive (VFD) |
| Rated Motor Power |
2.2 kW / 3 HP |
| Overload Capability |
Maximum 160% nominal overload torque for 60 seconds (FC 280 Operating Guide; P2K2) |
| Input Phase |
3-Phase AC (Three-Phase Input) |
| Input Voltage |
3 × 380–480 VAC |
| Input Frequency |
50/60 Hz |
| Maximum Continuous Input Current — 380–440 V |
4.7 A (Danfoss FC 280 Operating Guide) |
| Maximum Continuous Input Current — 441–480 V |
3.9 A (Danfoss FC 280 Operating Guide) |
| Output Phase |
3-Phase AC (Three-Phase Output) |
| Output Voltage |
3 × 0–Vin |
| Output Frequency |
0–500 Hz (unit label and Danfoss Operating Guide) |
| Continuous Output Current — 380–440 V |
5.3 A |
| Continuous Output Current — 441–480 V |
4.8 A |
| Intermittent Output Current — 60 s |
8.5 A (P2K2 official specification table, 380–440 V) |
| Enclosure Protection |
IP20 / Chassis |
| Frame Size |
K1 (Danfoss FC 280 Operating Guide) |
| RFI Filter |
H1 — 3-phase Class A1 (IEC 61800-3 Category C2) |
| Brake IGBT / Chopper |
B — Built-in brake chopper; external braking resistor not confirmed |
| Local Control Panel |
X — Not installed / no LCP included |
| PCB Coating |
C — Coated PCB, Class 3C3 |
| Mains Option |
X — No mains option |
| Adaptation A |
X — Standard cable entries |
| Adaptation B |
X — No adaptation |
| Software Release Code |
SXXX — Standard software release designation |
| Software Language Pack |
X — Standard language pack |
| Integrated Fieldbus |
AX — Modbus RTU (FC 280 model-code table) |
| Software Version on Packaging Label |
03.30 |
| Discharge Warning on Unit |
Wait 4 minutes after disconnecting mains before service |
| Country of Manufacture on Label |
China |
Product Overview
The Danfoss 134U2982 is a VLT® Midi Drive FC 280 frequency converter with exact type code FC-280P2K2T4E20H1BXCXXXSXXXXAX. Actual drive and protective-packaging labels identify 2.2 kW / 3 HP rated power, 3-phase 380–480 VAC, 50/60 Hz input, and 3-phase 0–Vin, 0–500 Hz output. The nameplates state 4.7/3.9 A input current and 5.3/4.8 A continuous output current at the lower/higher voltage bands (380–440 V and 441–480 V). Danfoss official FC 280 specifications confirm the same ratings and K1 frame, IP20/chassis construction, with up to 160% overload torque for 60 seconds at nominal torque, as specified for this power range. The exact FC 280 ordering code specifies H1 RFI filtering (3-phase Category C2), B built-in brake chopper, X no LCP installed, C Class 3C3 coated PCB, and AX integrated Modbus RTU. The AX code must not be interpreted using FC 301/302 ordering conventions. No external braking resistor or control panel is confirmed as supplied. Confirm motor current, installation requirements, accessories, and final lead time before ordering.
Key Product Features
-
2.2 kW / 3 HP — FC 280 P2K2 rating on Danfoss nameplates and official documentation
-
3 × 380–480 VAC three-phase input with 3-phase 0–500 Hz motor output
-
5.3 A / 4.8 A continuous output current at 380–440 V / 441–480 V
-
Up to 160% Overload Torque for 60 Seconds — nominal overload torque rating for the P2K2 drive
-
IP20 / Chassis, K1 Frame — confirmed by the Danfoss FC 280 operating guide
-
H1 EMC Category C2 (three-phase) and built-in brake chopper (B)
-
Modbus RTU (AX), Class 3C3 Coated PCB (C), No LCP (X) — exact factory code
Actual Product Verification
✓

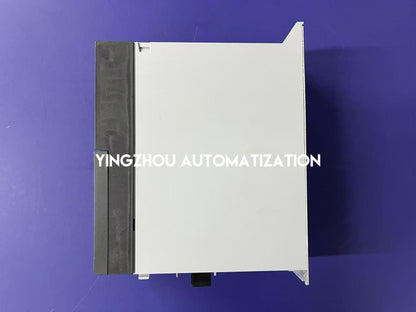

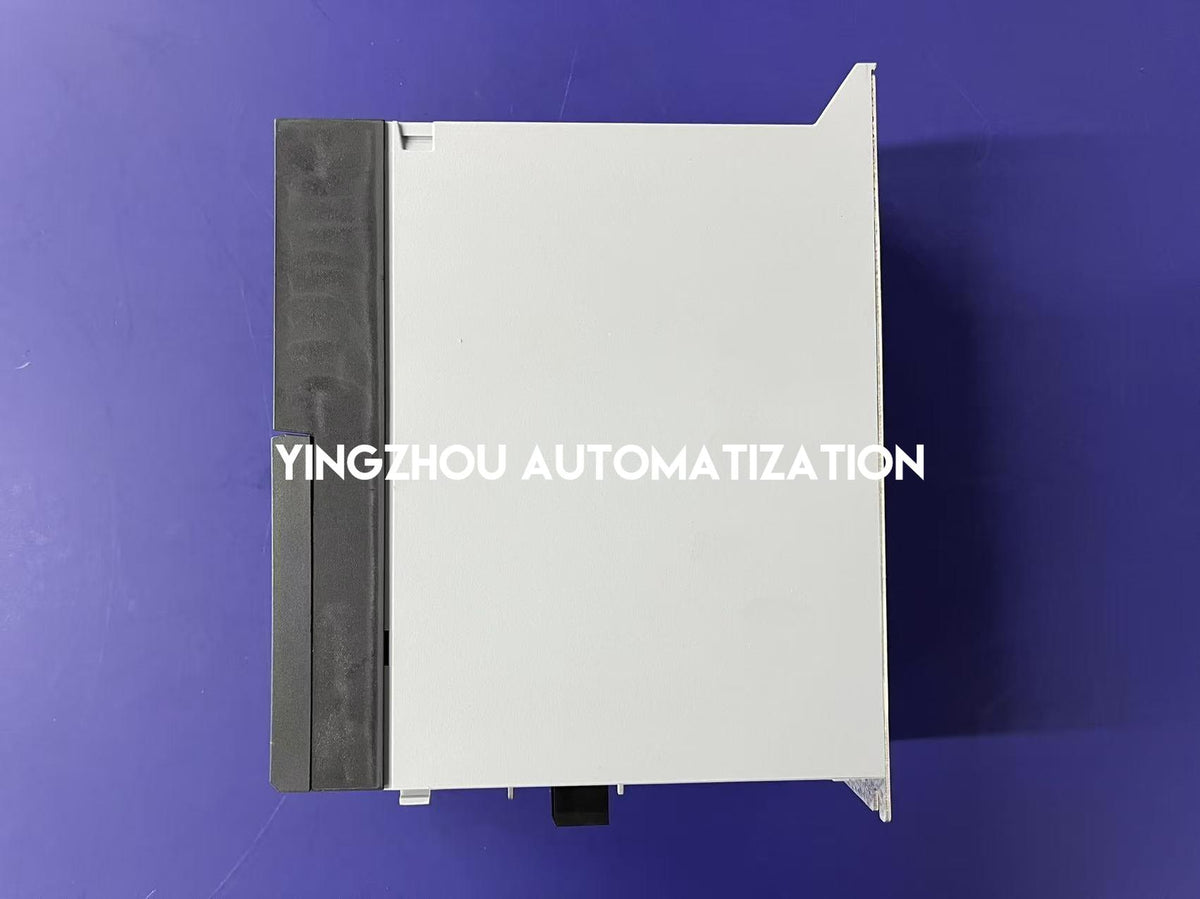

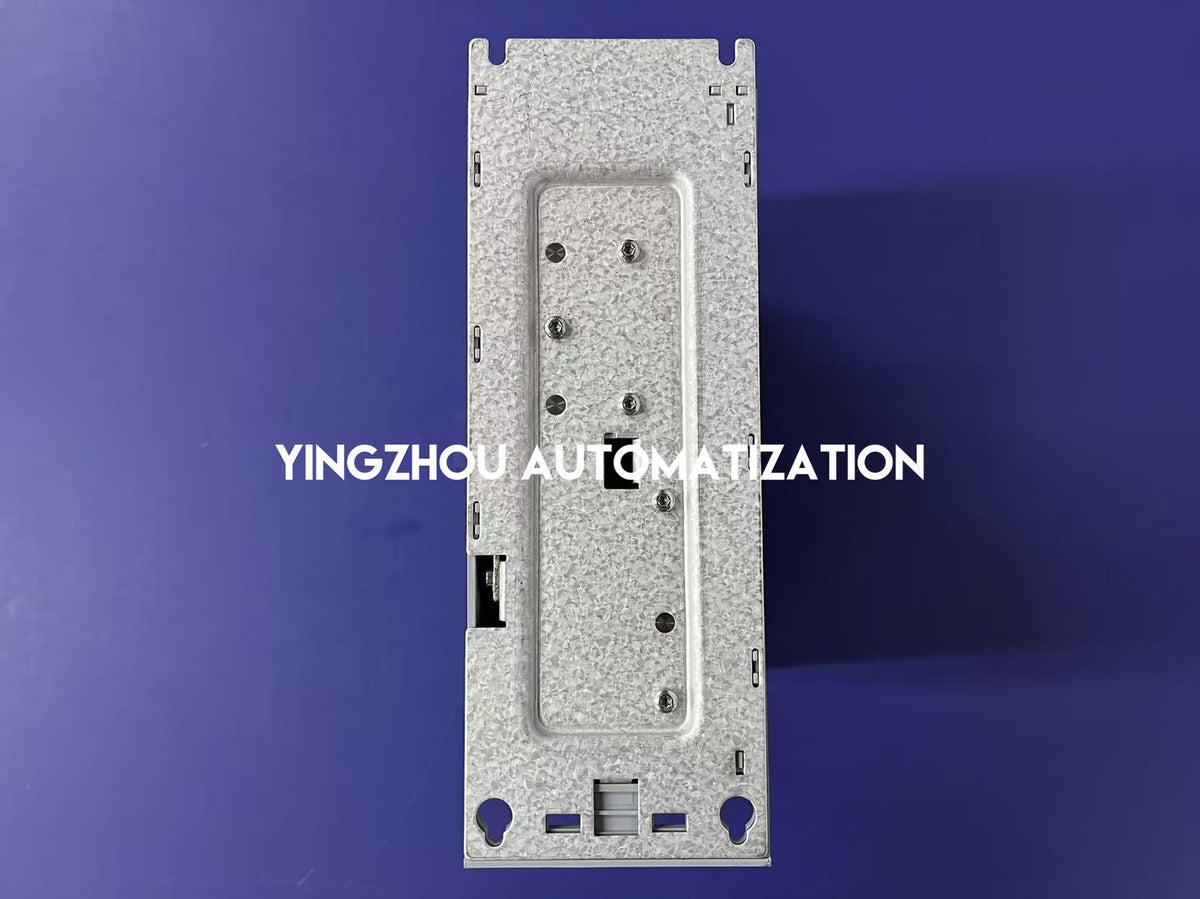

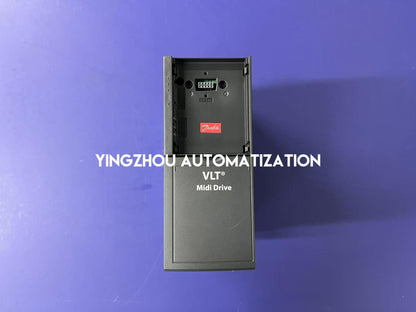

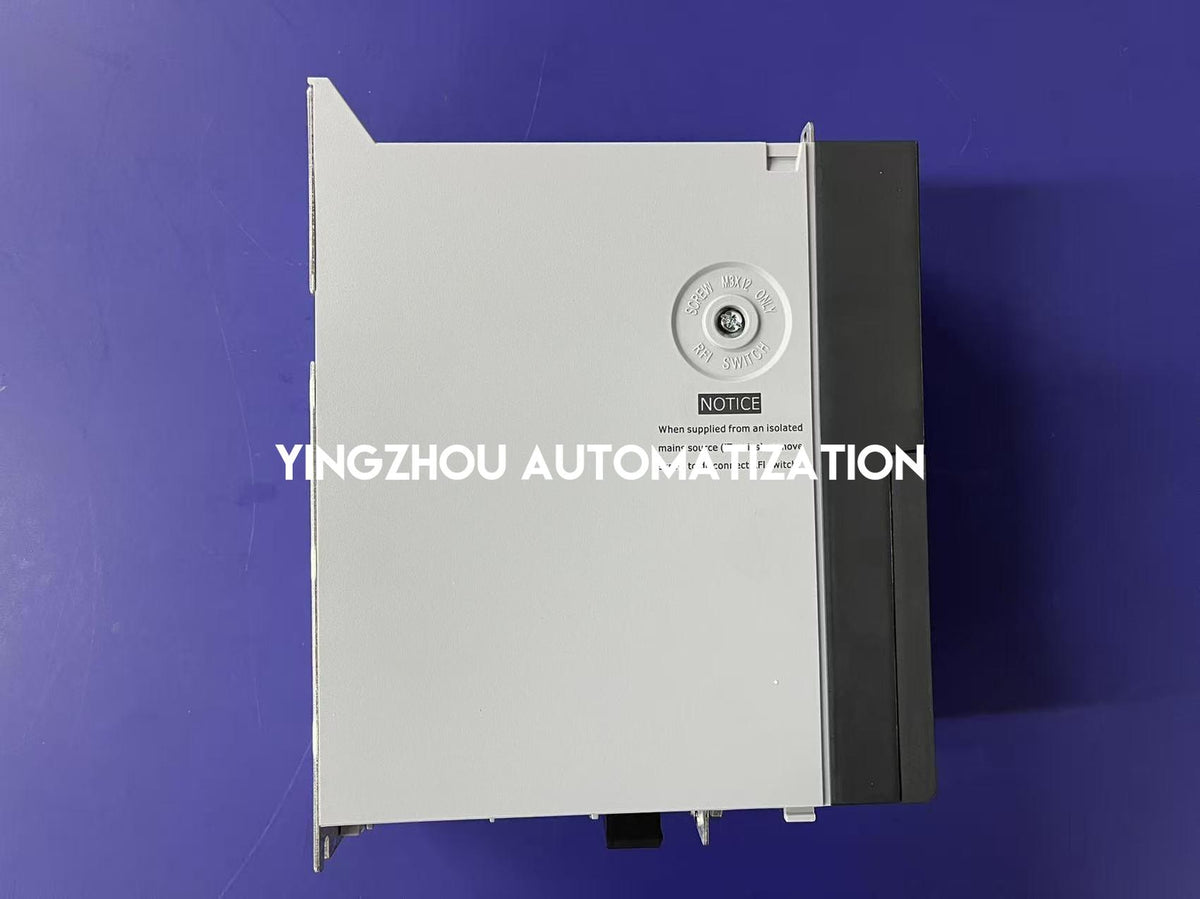

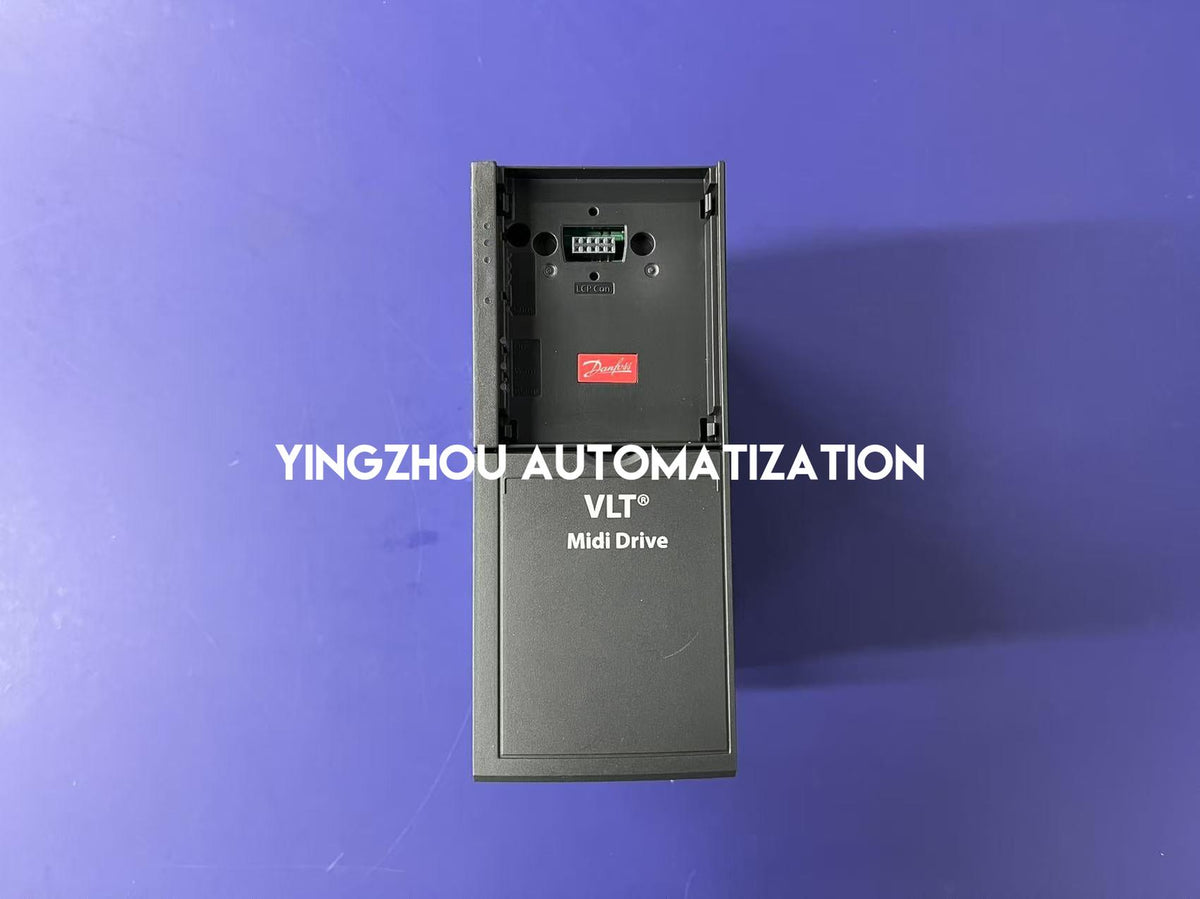

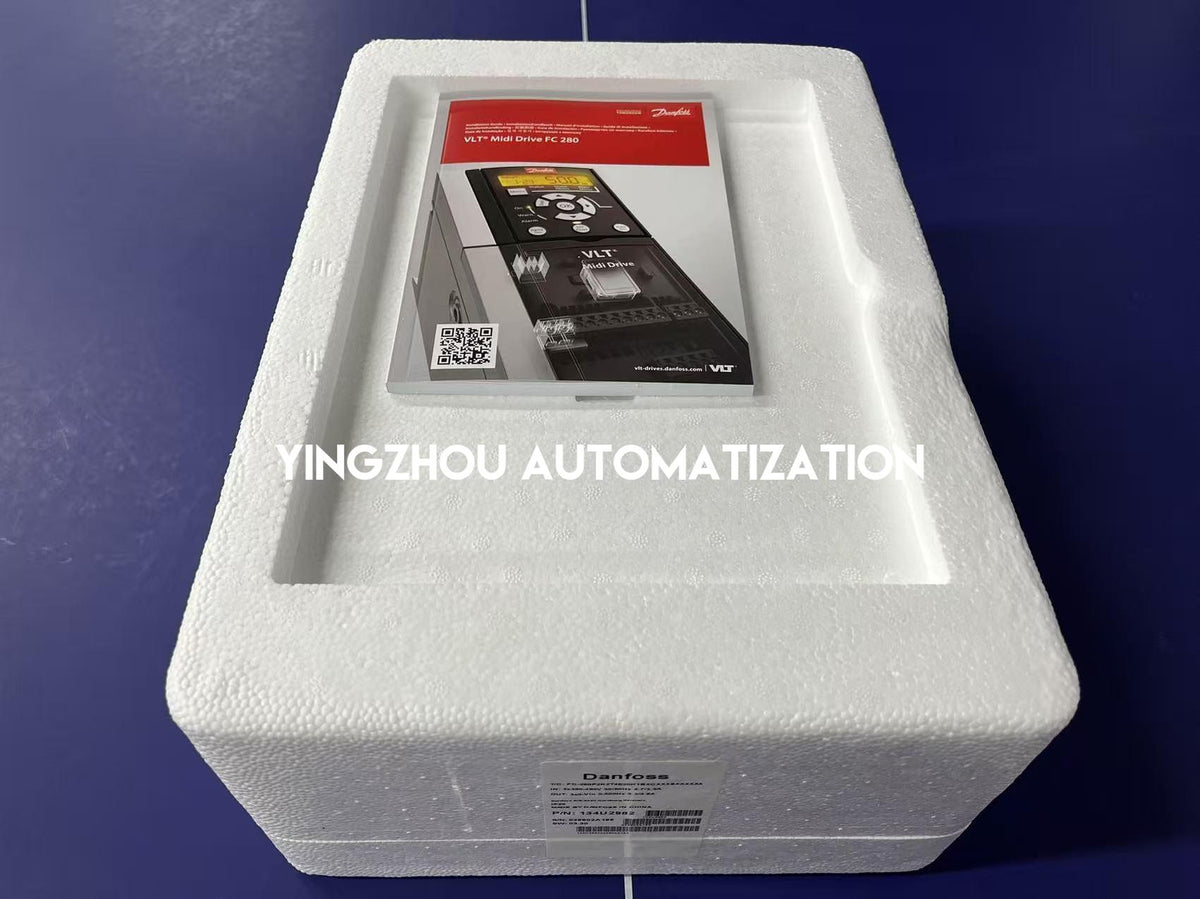

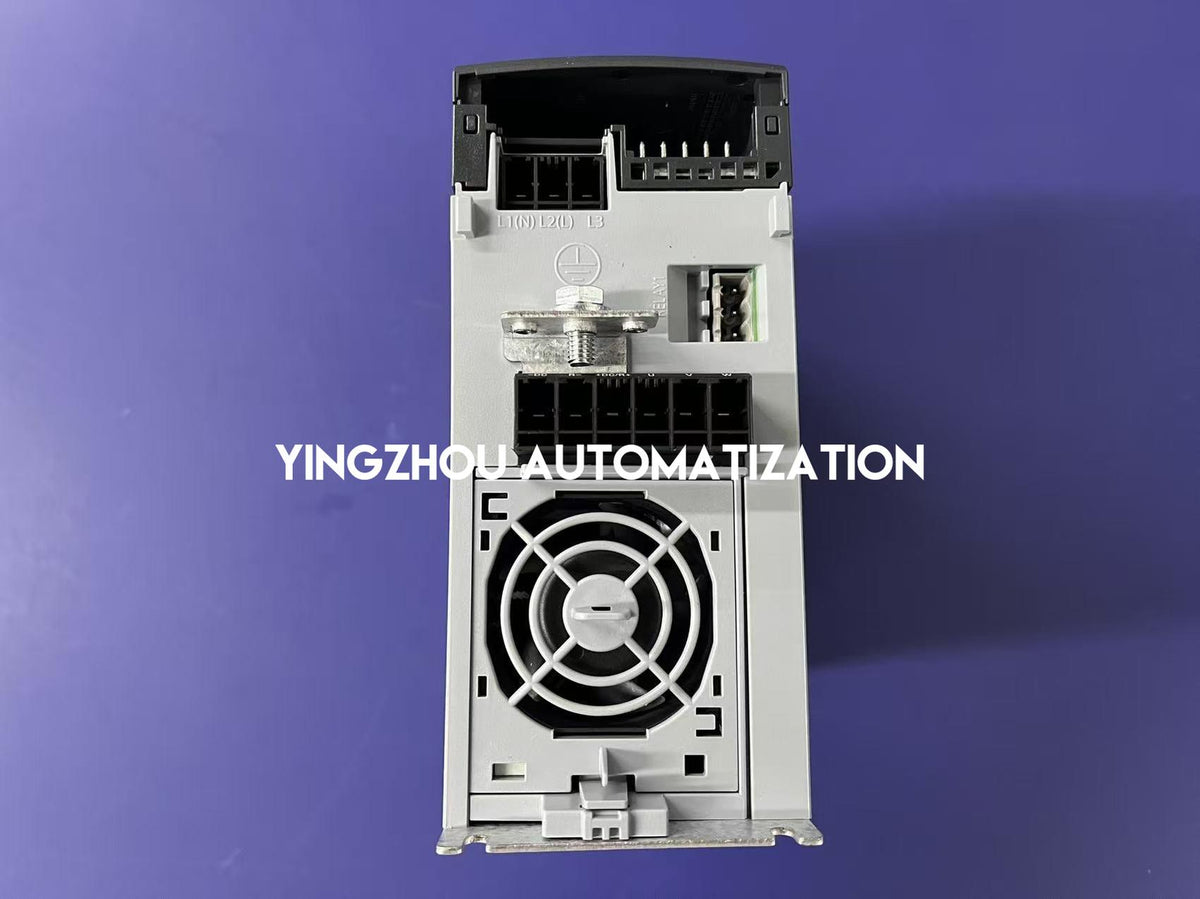

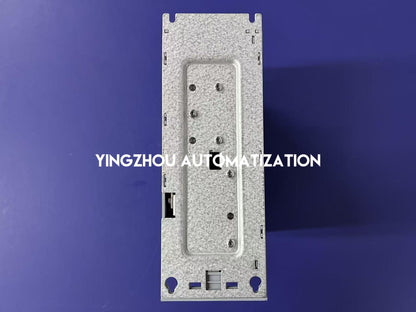

Actual drive and protective-packaging photographs provided
✓

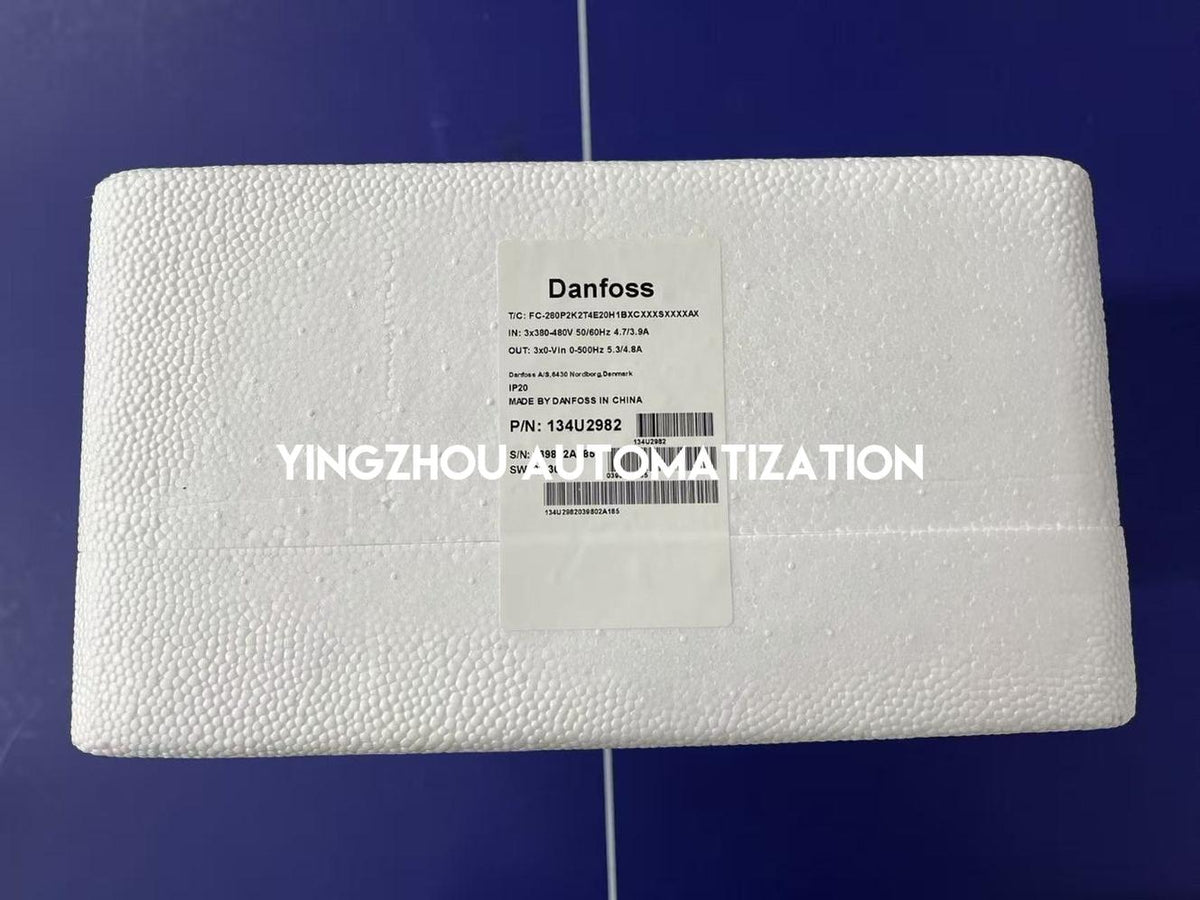

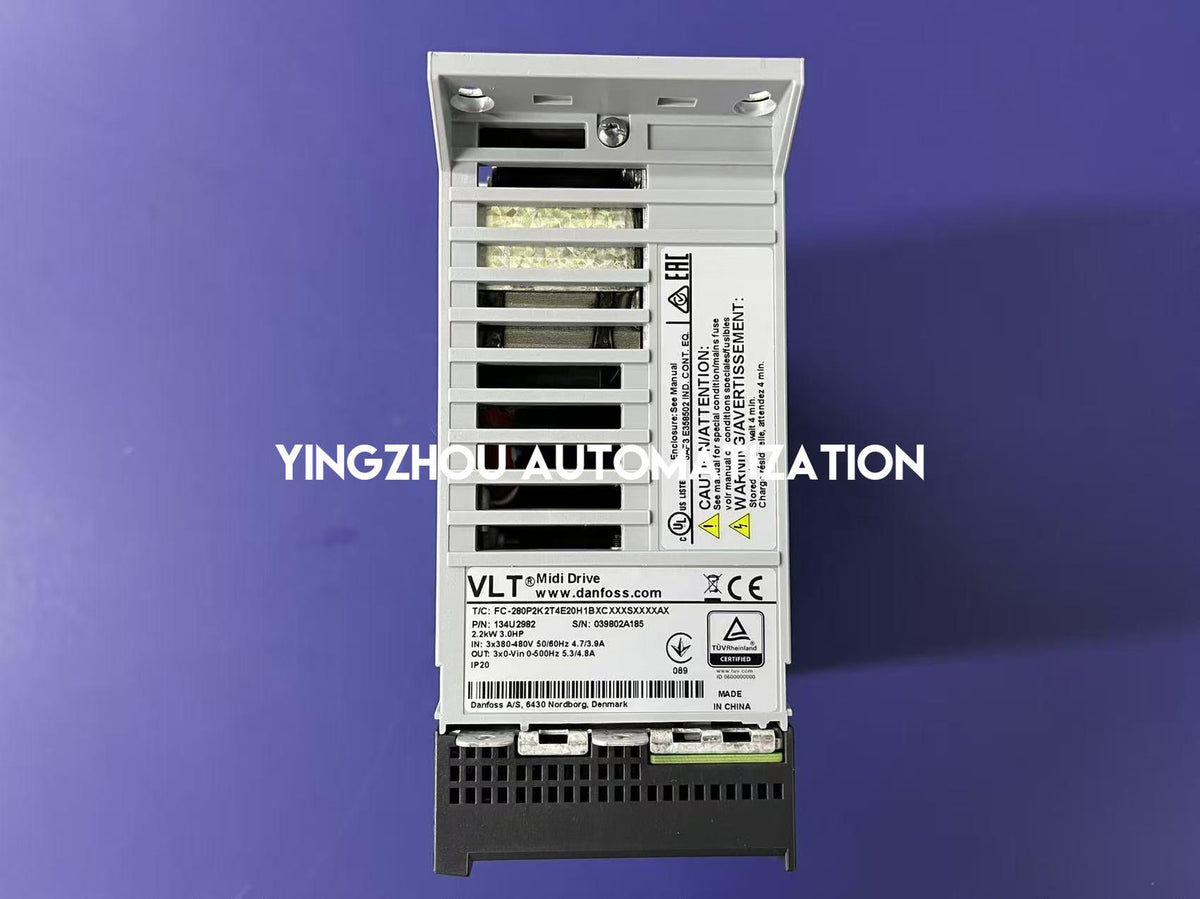

Unit nameplate and protective-packaging label show part number 134U2982
✓
Matching type code and input/output ratings visible on the supplied product and protective-packaging labels
✓
Verify exact part number 134U2982 before ordering
Available to Order — Estimated Delivery 3–4 Weeks
Danfoss 134U2982 is available to order with an estimated delivery time of 3–4 weeks, based on the supplied commercial information. Please reconfirm the final delivery schedule when placing the order.
ESTIMATED DELIVERY 3–4 WEEKS
Danfoss 134U2982 VLT® Midi Drive FC 280
Contact us for project and quantity pricing. Confirm the exact model, required accessories and 3–4 week lead time.
