Danfoss 134F3003 VLT® AutomationDrive FC 360 30kW VFD
30 kW | 40 HP | 3-Phase 380–480 VAC | IP20 / J6 | Embedded PROFIBUS
| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
134F3003 |
| Exact Type Code |
FC-360H30KT4E20H2XXCDXXSXXXXA0BX |
| Series |
VLT® AutomationDrive FC 360 |
| Product Type |
Variable Frequency Drive (VFD) |
| Rated Motor Power |
30 kW / 40 HP — High Overload (HO) |
| High Overload Capability |
150% rated output current for 60 seconds (Danfoss FC 360 Design Guide, H30K) |
| Input Phase |
3-Phase AC (Three-Phase Input) |
| Input Voltage |
3 × 380–480 VAC |
| Input Frequency |
50/60 Hz |
| Input Current — 380–440 V |
57.0 A (actual unit nameplate) |
| Input Current — 441–480 V |
49.2 A (actual unit nameplate; newer guide lists 49.3 A) |
| Output Phase |
3-Phase AC (Three-Phase Output) |
| Output Voltage |
3 × 0–Vin |
| Output Frequency |
0–500 Hz (actual unit nameplate) |
| Continuous Output Current — 380–440 V |
61.0 A |
| Continuous Output Current — 441–480 V |
52.0 A |
| Intermittent Output Current — 60 s |
91.5 A (150% overload at 380–440 V, manufacturer guide) |
| Enclosure Protection |
IP20 / Chassis (E20) |
| Frame Size |
J6 (official FC 360 H30K frame designation) |
| RFI / EMC Filter |
H2 — Class C3 |
| Brake Chopper |
X — No internal brake chopper; external braking arrangements require separate confirmation |
| Local Control Panel |
X — No LCP installed |
| PCB Coating |
C — Coated PCB, Class 3C3 |
| Mains Terminals |
D — Load-sharing terminals |
| Embedded Fieldbus |
A0 — PROFIBUS |
| B-Option |
BX — No B-Option |
| Software Release Code |
SXXX — Standard release designation |
| Estimated Power Loss |
630 W (Danfoss H30K reference at rated maximum load) |
| Reference Drive Weight |
22.4 kg (J6 / IP20, Danfoss design guide) |
| Rated Ambient Temperature on Unit |
45°C (actual unit nameplate) |
| Discharge Warning on Unit |
15 minutes after disconnection; follow unit safety instructions |
| Country of Manufacture on Label |
China (Made by Danfoss in China) |
Product Overview
The Danfoss 134F3003 is a VLT® AutomationDrive FC 360 three-phase variable frequency drive with the exact type code FC-360H30KT4E20H2XXCDXXSXXXXA0BX. The actual unit photograph confirms part number 134F3003, serial number 126203A015, and a 30 kW / 40 HP high-overload (HO) rating. The nameplate specifies 3-phase 380–480 VAC, 50/60 Hz input, 3-phase 0–Vin, 0–500 Hz output, 57.0/49.2 A input current, and 61.0/52.0 A continuous output current for the lower/higher voltage bands. Danfoss FC 360 official specifications confirm J6 frame, IP20 / Chassis, and 150% high overload for 60 seconds (91.5 A intermittent output at the 380–440 V rating). The exact manufacturer type code specifies H2 RFI filter, Category C3, X no internal brake chopper, X no installed local control panel, C coated PCB Class 3C3, D load-sharing terminals, and A0 embedded PROFIBUS with BX no B-option. The nameplate states 45°C ambient and a 15-minute capacitor-discharge safety wait after power disconnection. The unit is available to order, estimated delivery 3–4 weeks according to the supplied commercial information. The photo provides nameplate evidence only; physical authenticity, electrical testing, included accessories, and stock quantity are not independently verified. Confirm the exact configuration, installation conditions, and delivery arrangements before ordering.
Key Product Features
-
30 kW / 40 HP — FC 360 H30K high-overload power rating verified by the actual unit nameplate
-
Three-Phase 380–480 VAC Input — 50/60 Hz mains with three-phase 0–500 Hz output
-
61.0 A / 52.0 A Continuous Output Current — manufacturer-confirmed lower/higher voltage-band ratings
-
150% High Overload for 60 Seconds — 91.5 A intermittent output at 380–440 V in the Danfoss design guide
-
IP20 / J6 Frame — verified H30K enclosure and frame designation; not J5
-
H2 RFI Filter, Category C3 and Class 3C3 Coated PCB — plus load-sharing terminals (D)
-
Embedded PROFIBUS (A0), BX No B-Option — no factory-installed LCP or internal brake chopper
Actual Product Verification
✓

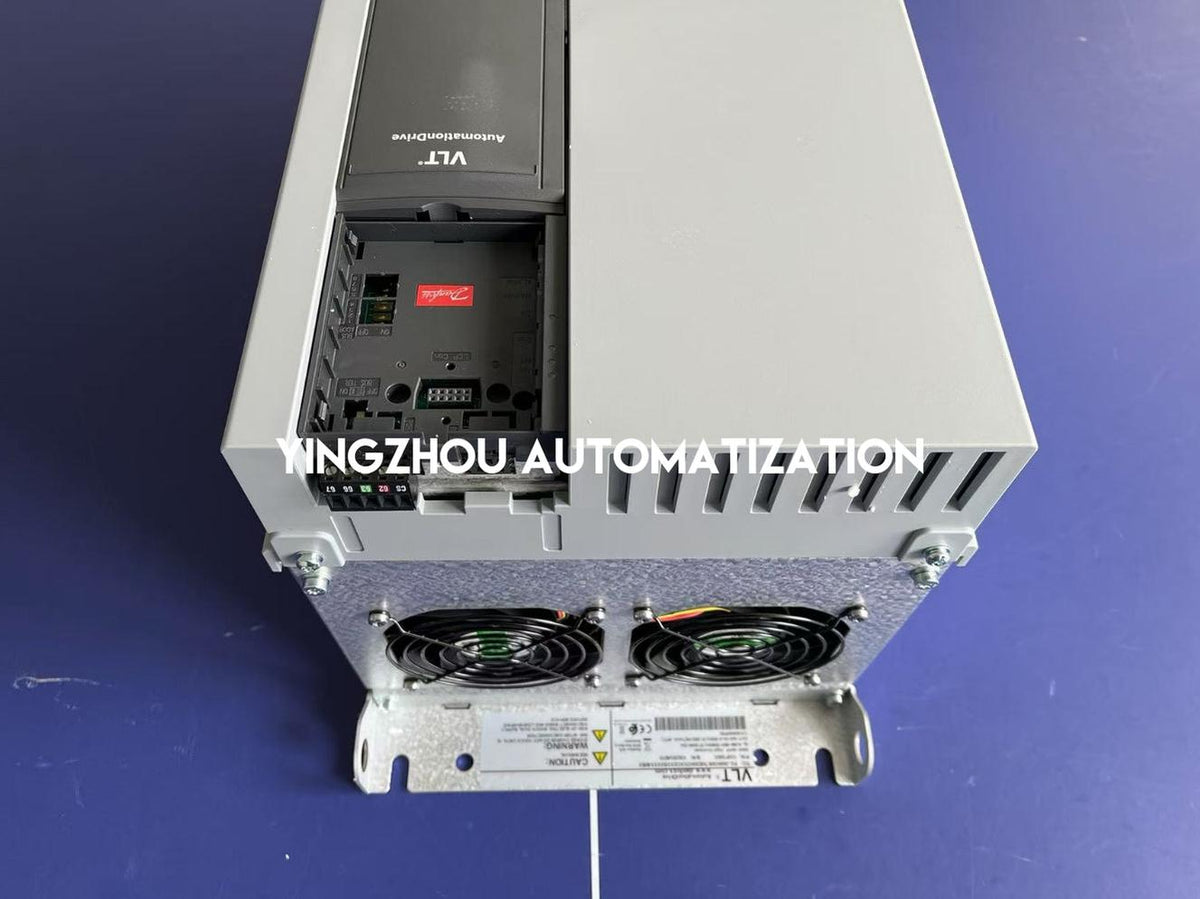

Actual product photo shows the drive nameplate and physical cooling-fan assembly
✓

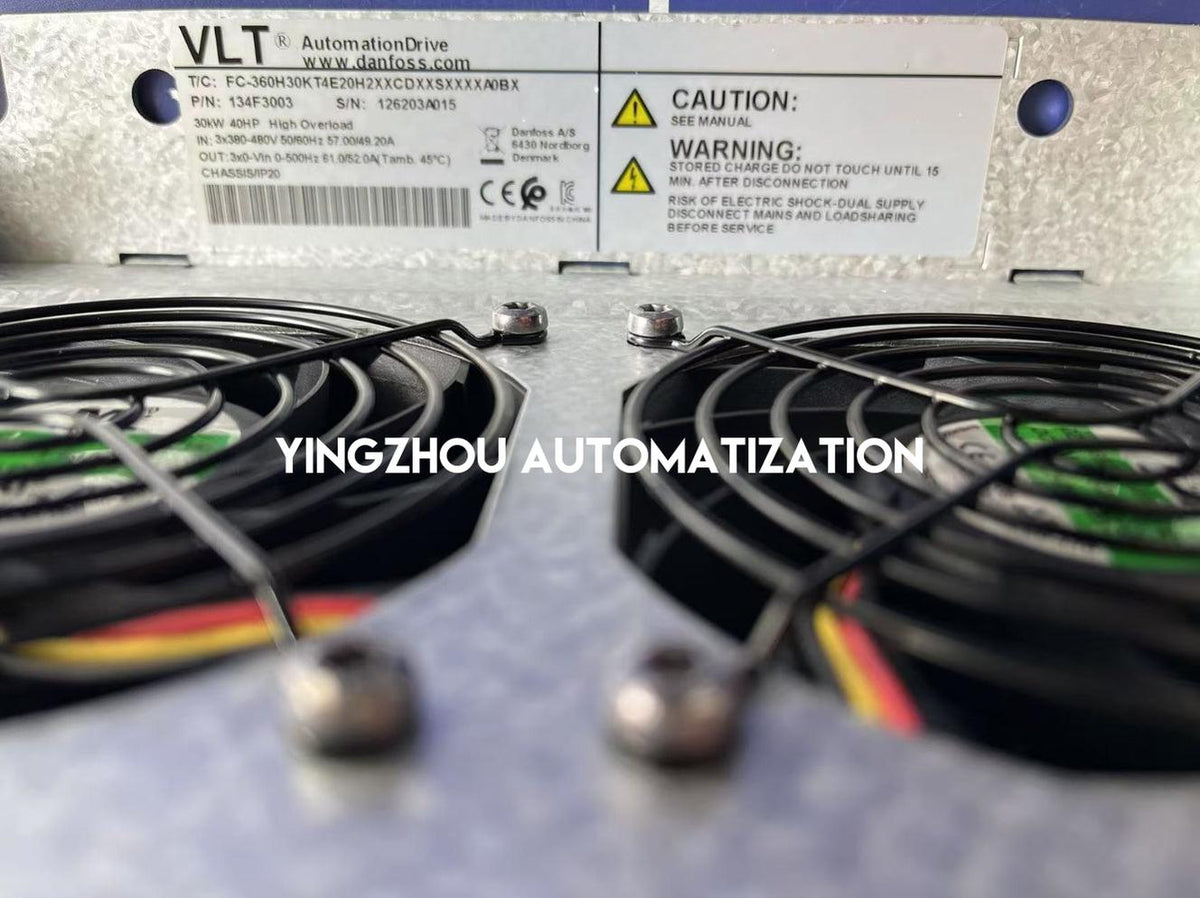

Unit nameplate shows part number 134F3003, serial number 126203A015, and full type code
✓
Actual label confirms 30 kW / 40 HP, three-phase 380–480 V and 61.0/52.0 A output
✓
Verify exact part number 134F3003 and configuration before ordering
Available to Order — Estimated Delivery 3–4 Weeks
Danfoss 134F3003 is available to order with an estimated delivery time of 3–4 weeks, based on the supplied commercial information. Please reconfirm the final delivery schedule when placing the order.
ESTIMATED DELIVERY 3–4 WEEKS
Danfoss 134F3003 VLT® AutomationDrive FC 360
Contact us for project and quantity pricing. Confirm the exact model, embedded PROFIBUS, required accessories and 3–4 week lead time.
