Danfoss 132L6120 iC2-Micro 3.0kW 4HP VFD
3.0 kW | 4 HP | 3-Phase 380–480 VAC | IP20 | C4 | Integrated Brake Chopper
| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
132L6120 |
| Exact Model Code |
IC2-30FA3N04-07A2E20F4+ACBC |
| Series |
iC2-Micro |
| Product Type |
Frequency Converter / Variable Frequency Drive (VFD) |
| Rated Motor Power |
3.0 kW / 4.0 HP |
| Overload Capability |
150% for 60 seconds (normal overload, Danfoss iC2-Micro design guide) |
| Input Phase |
3-Phase AC (Three-Phase Input) |
| Input Voltage |
3 × 380–480 VAC |
| Input Frequency |
50/60 Hz |
| Maximum Continuous Input Current — 380–440 V |
11.5 A |
| Maximum Continuous Input Current — 440–480 V |
9.9 A |
| Output Phase |
3-Phase AC (Three-Phase Output) |
| Output Voltage |
3 × 0–Vin |
| Output Frequency |
0–500 Hz (actual unit and packaging labels) |
| Continuous Output Current — 380–440 V |
7.2 A |
| Continuous Output Current — 440–480 V |
6.3 A |
| Intermittent Output Current — 380–440 V (60 s) |
10.8 A |
| Intermittent Output Current — 440–480 V (60 s) |
9.5 A |
| Enclosure Protection |
IP20 / Open Type (E20) |
| Frame Size |
MA02a (3-phase 380–480 VAC, 3.0 kW) |
| Cooling Type |
FA — Air-cooled frequency converter |
| EMC Configuration |
F4 — EMC Category C4 |
| Integrated EMC Filter |
Not included (F4 variant; verify installation EMC measures) |
| Brake Chopper |
+ACBC — Integrated brake chopper; external resistor not included unless separately confirmed |
| Communication |
Built-in RS485 / Modbus RTU (Danfoss iC2-Micro application guide) |
| Local Control Panel |

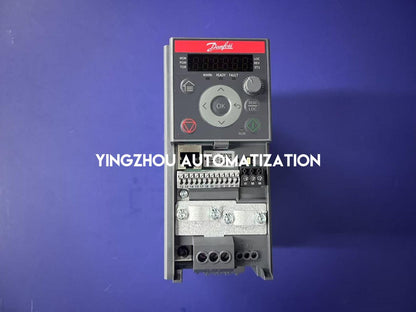

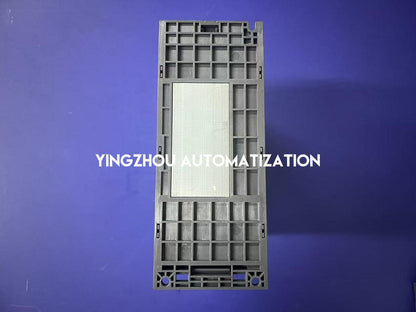

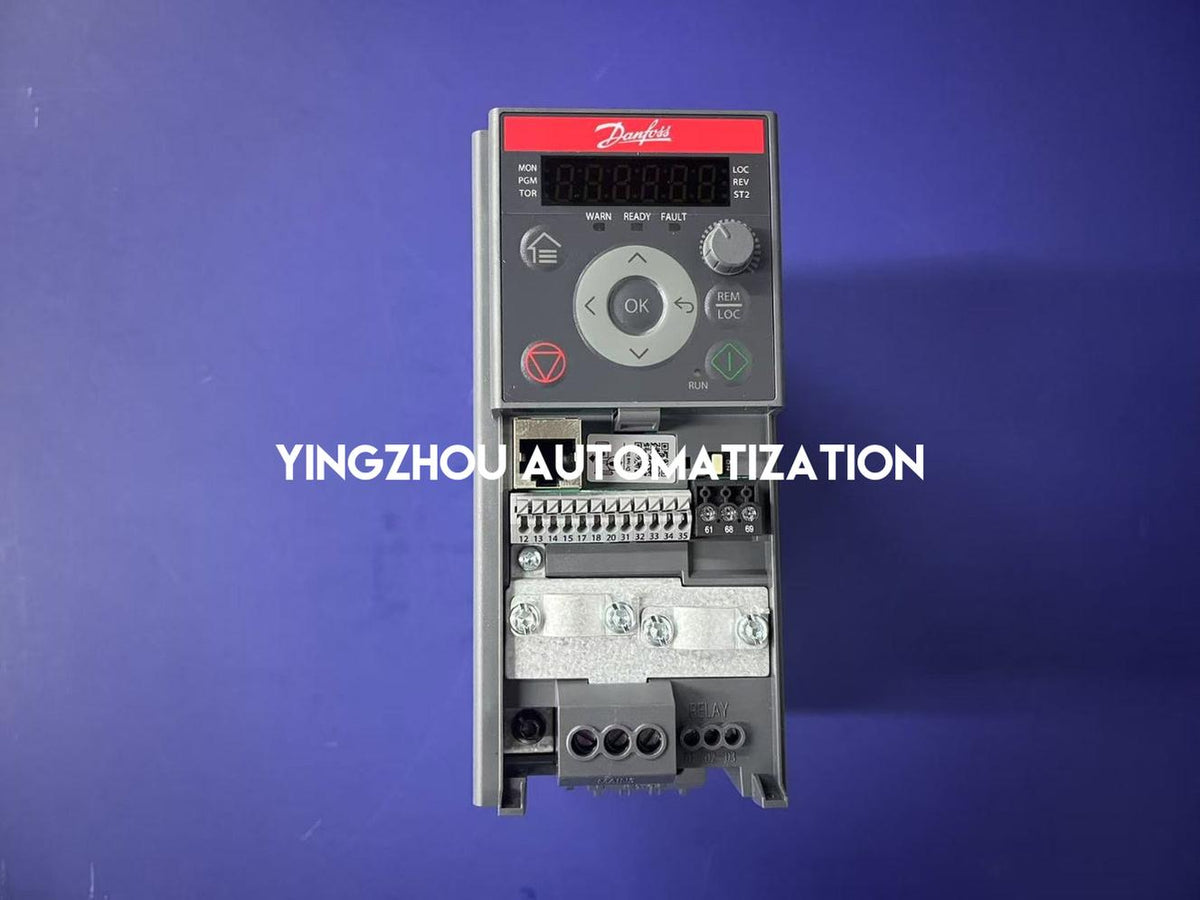

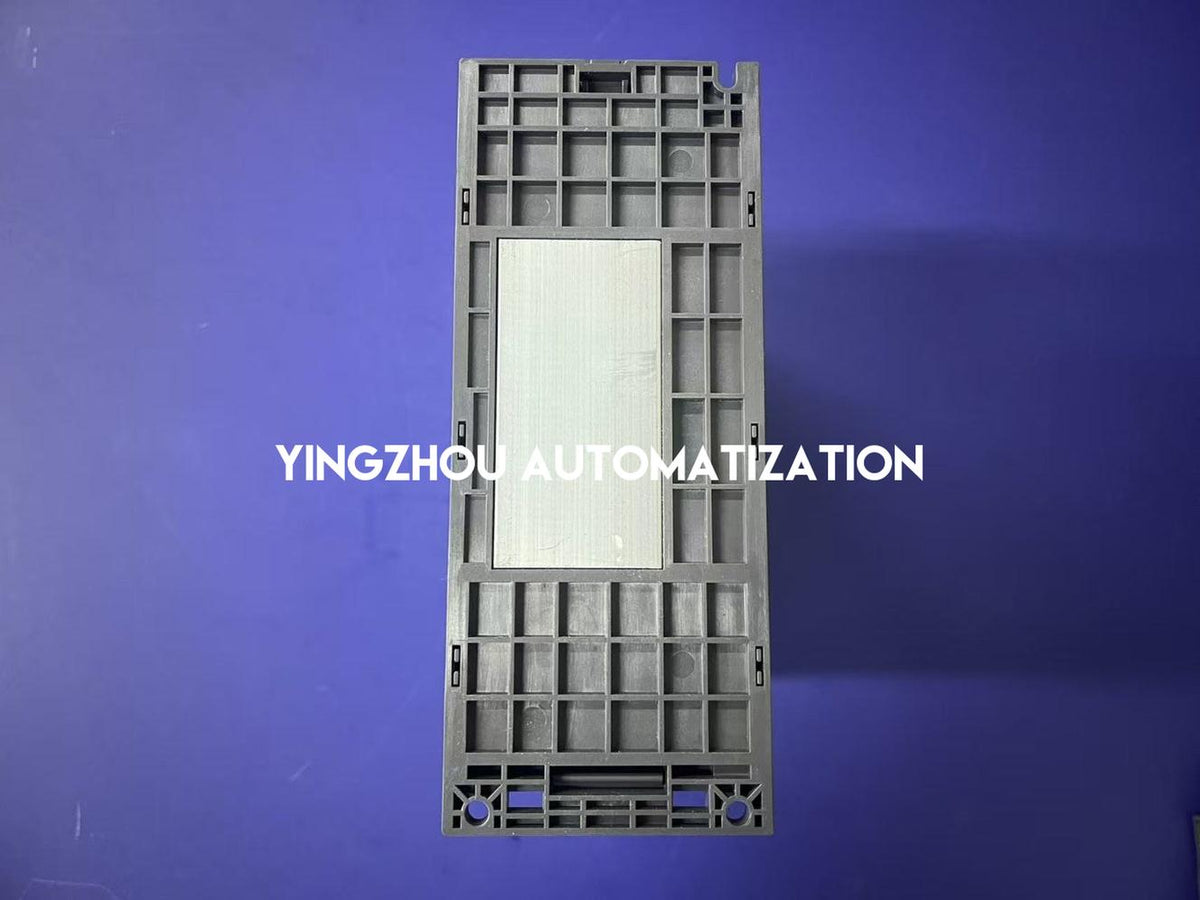

Integrated control panel (iC2-Micro series; not visible in supplied rear-view photo) |
| Maximum Rated Ambient Temperature |
50°C / 122°F (unit label; rated operation per selection guide) |
| Typical Power Loss |
58 W (Danfoss 07A2 standard test condition) |
| Typical Efficiency |
98.5% (Danfoss 07A2 standard test condition) |
| Reference Weight |
1.6 kg (MA02a, Danfoss specification) |
| Serial Number on Labels |
516301A215 |
| Country of Manufacture on Label |
China |
Product Overview
The Danfoss 132L6120 is an iC2-Micro frequency converter with exact model code IC2-30FA3N04-07A2E20F4+ACBC. Both the actual-drive nameplate and protective-packaging label show the same part number 132L6120 and serial number 516301A215. The labels state 3.0 kW / 4.0 HP, 3-phase 380–480 VAC, 50/60 Hz input, and 3-phase 0–Vin, 0–500 Hz output. Continuous input current is 11.5 A / 9.9 A and continuous output current is 7.2 A / 6.3 A for the 380–440 V / 440–480 V voltage bands, respectively. Danfoss official iC2-Micro documentation identifies this power rating as MA02a frame, IP20 / Open Type, with normal-overload performance of 150% for 60 seconds. The exact model code specifies FA air cooling, 3N three-phase supply, F4 EMC Category C4 without an integrated EMC filter, and +ACBC integrated brake chopper. The series supports Modbus RTU via built-in RS485 as described in the Danfoss application guide. The 50°C / 122°F temperature is visible on the product label. This unit is in stock according to the supplied commercial information. An external brake resistor is not confirmed as included. Confirm the exact model and any required external EMC measures or accessories before ordering.
Key Product Features
-
3.0 kW / 4.0 HP — Danfoss iC2-Micro 07A2 frequency converter; matched unit and packaging labels
-
3 × 380–480 VAC three-phase supply with 3-phase 0–500 Hz motor output
-
7.2 A / 6.3 A rated continuous output current for 380–440 V / 440–480 V operation
-
150% Normal Overload for 60 Seconds — 10.8 A / 9.5 A intermittent output current
-
IP20 / Open Type, MA02a Frame — official 3.0 kW three-phase enclosure designation
-
F4 EMC Category C4 — no integrated EMC filter; installation requirements to be assessed
-
Integrated Brake Chopper (+ACBC) and RS485 Modbus RTU — factory code and documented iC2-Micro communication
Actual Product Verification
✓

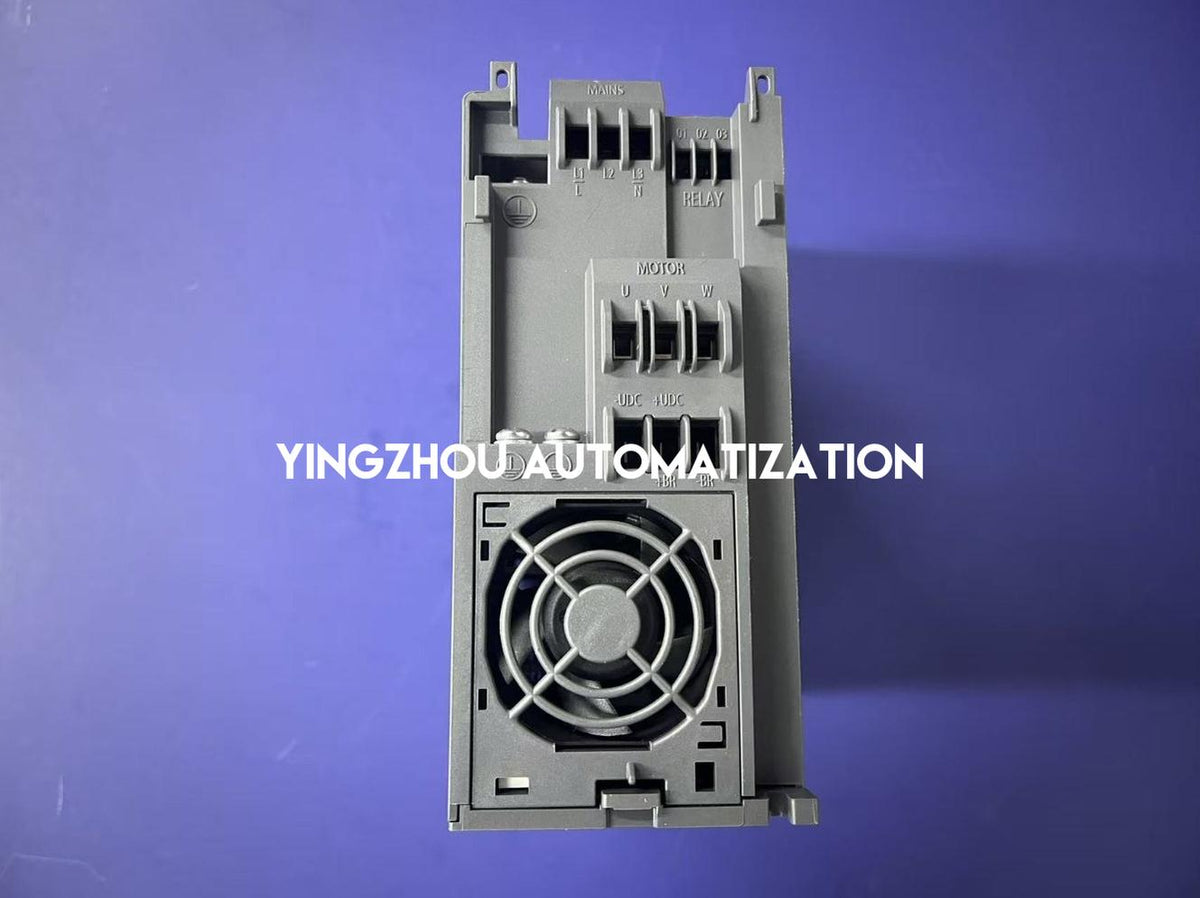

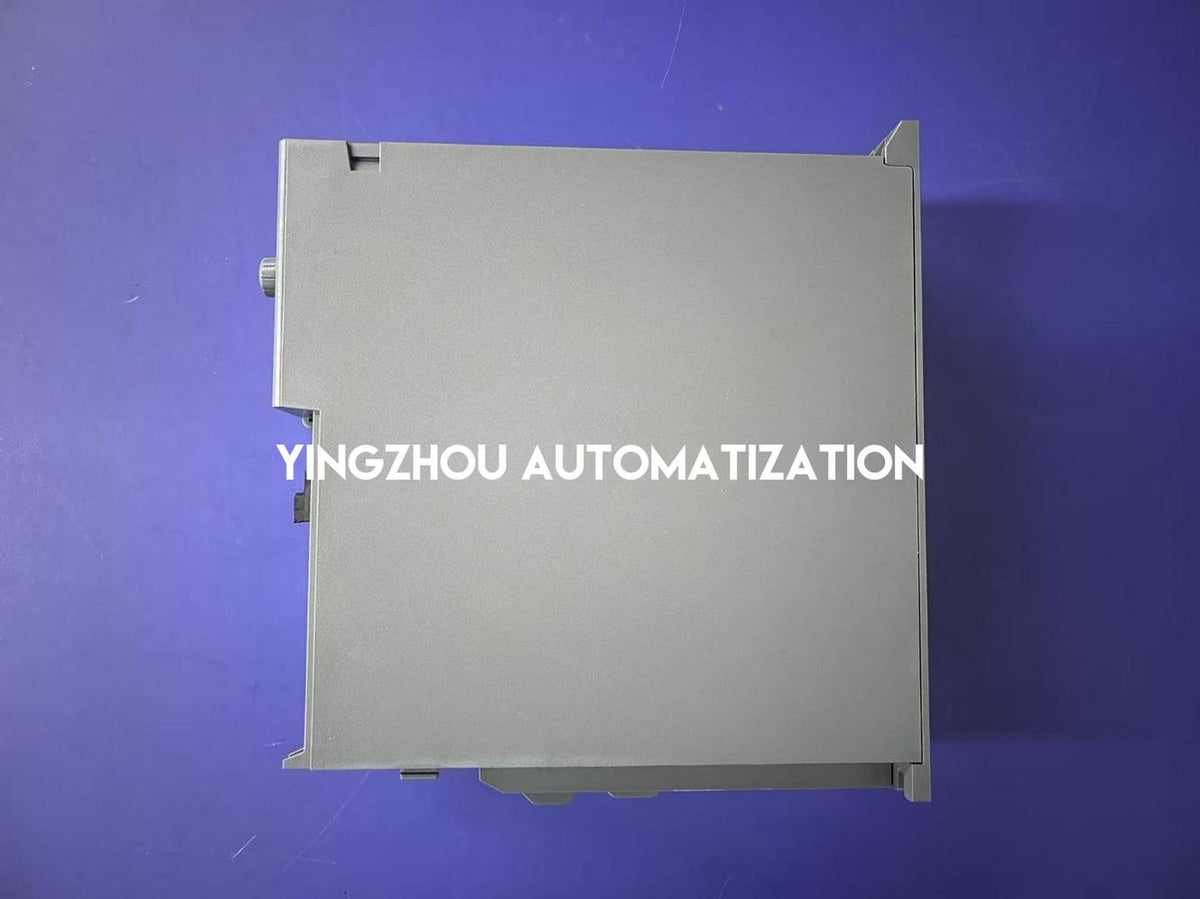

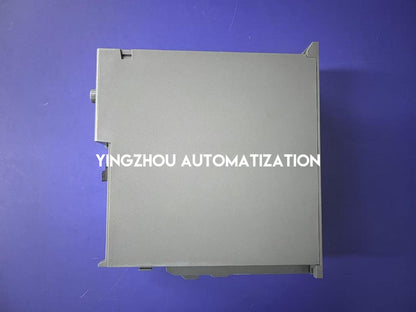

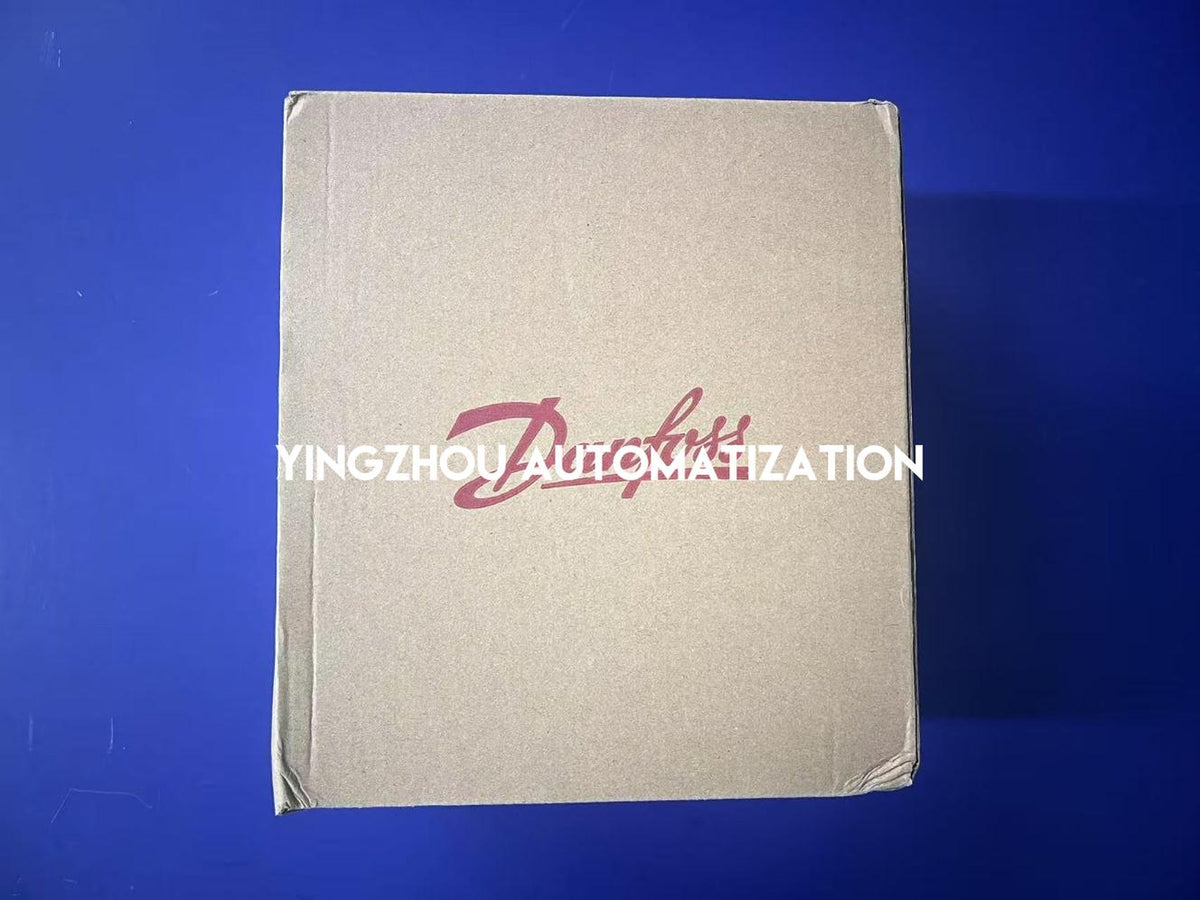

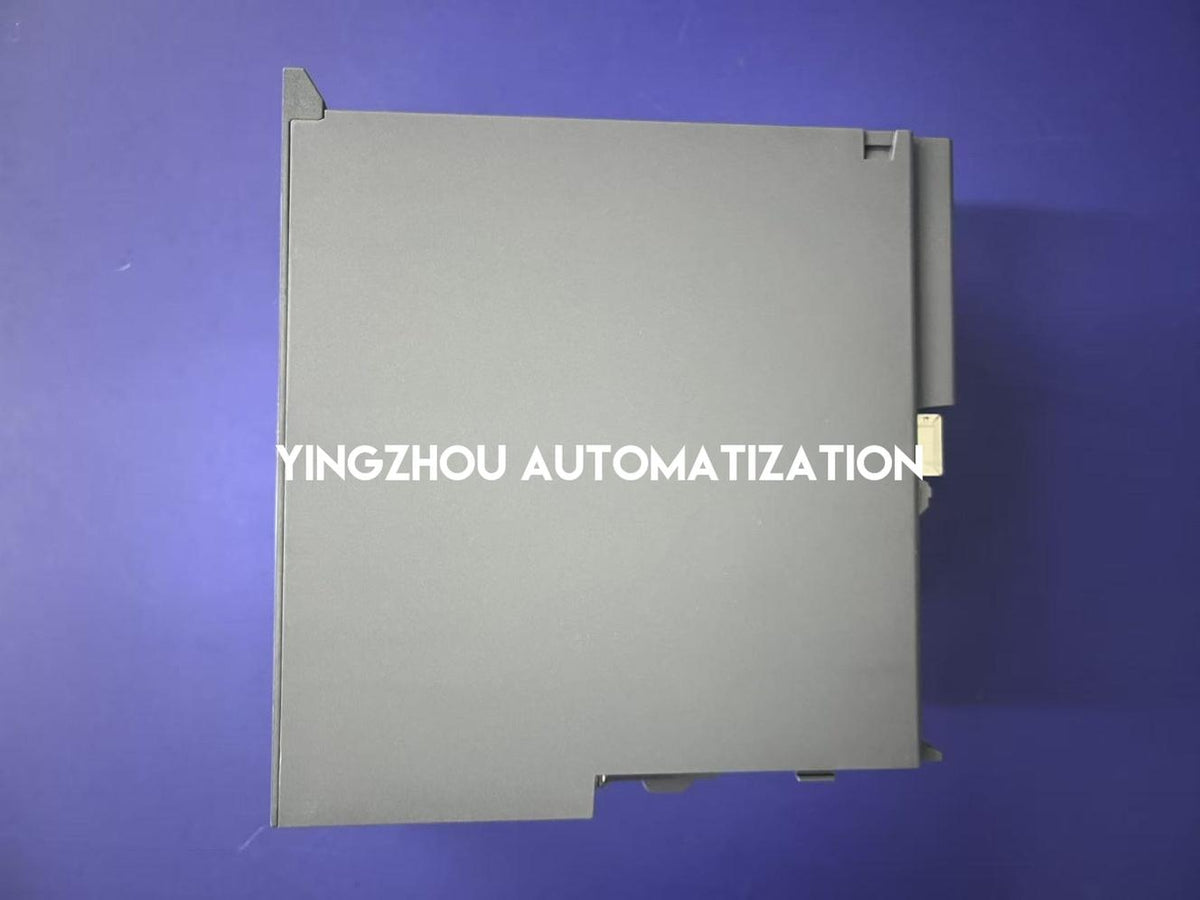

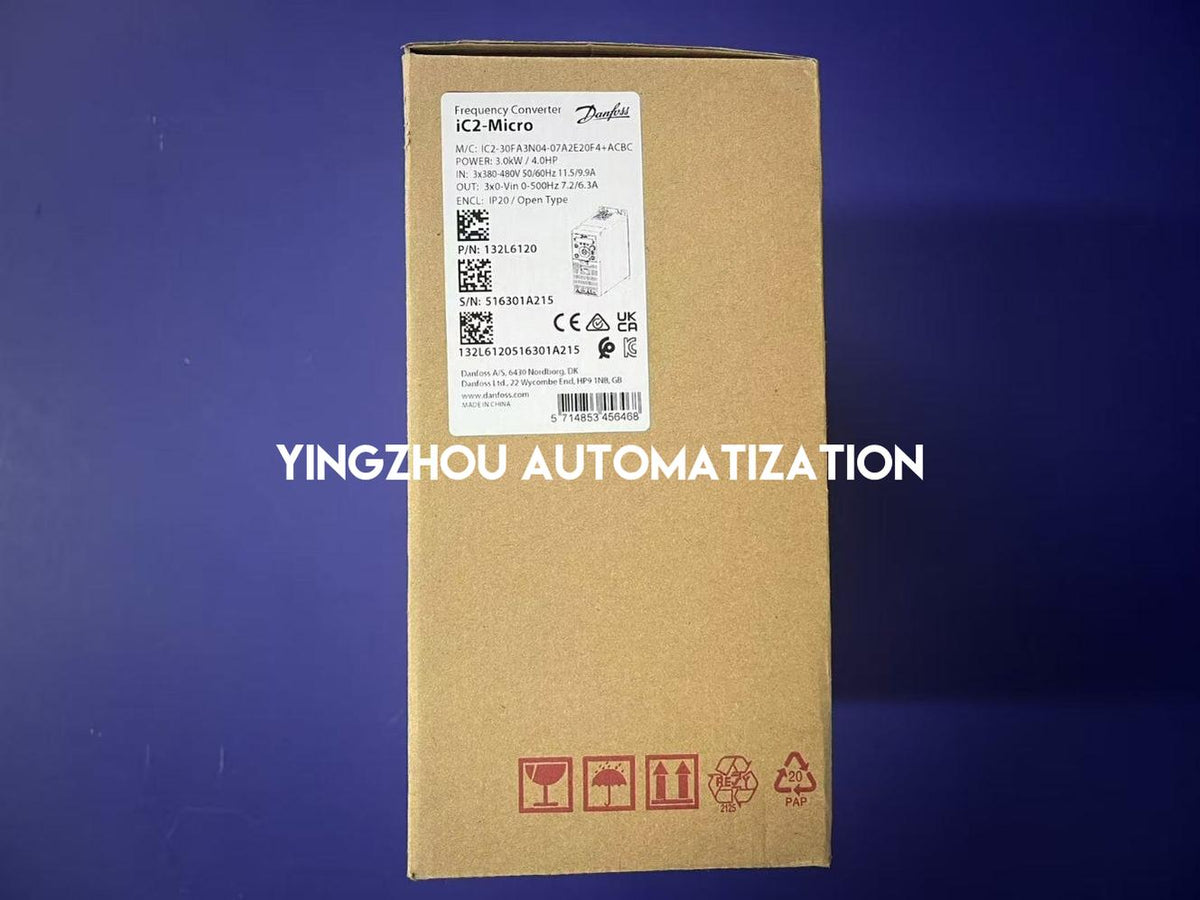

Actual iC2-Micro drive and protective-packaging photographs provided
✓

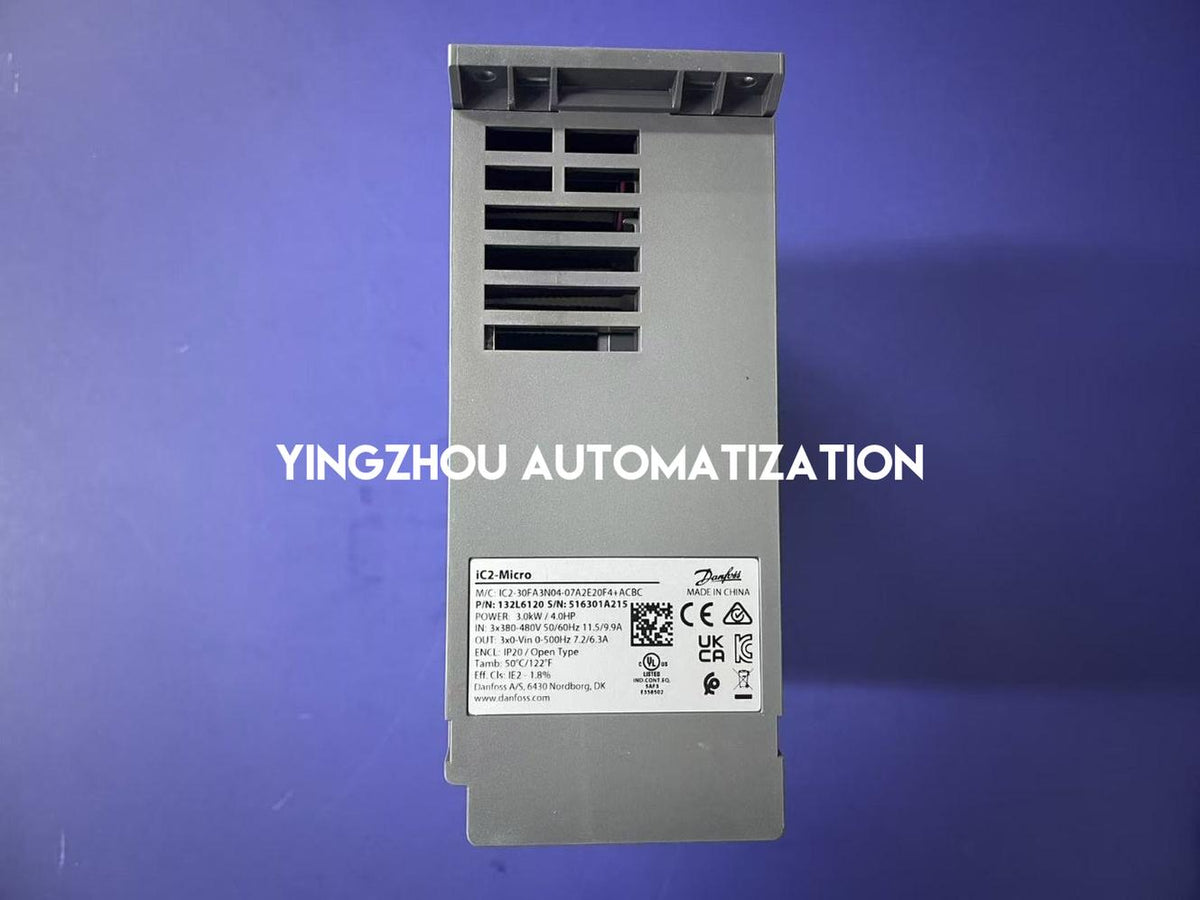

Actual drive nameplate and packaging label both show part number 132L6120
✓
Both supplied labels show matching model code, serial number 516301A215, and electrical ratings
✓
Verify exact part number 132L6120 before ordering
In Stock — Ready to Order
Danfoss 132L6120 is marked IN STOCK based on the supplied commercial information. Please reconfirm available quantity and dispatch arrangements when placing the order.
