Danfoss 132F0002 VLT® Micro Drive FC 51 0.37kW VFD
0.37 kW | 0.5 HP | 1-Phase 200–240 VAC Input | 3-Phase Output | IP20 / M1
| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
132F0002 |
| Exact Type Code |
FC-051PK37S2E20H3XXCXXXSXXX |
| Series |
VLT® Micro Drive FC 51 |
| Product Type |
Variable Frequency Drive (VFD) |
| Rated Motor Power |
0.37 kW / 0.5 HP |
| Normal Overload Capability |
150% rated output current for 60 seconds (FC 51 Design Guide, PK37/S2) |
| Input Phase |
1-Phase AC (Single-Phase Input) |
| Input Voltage |
1 × 200–240 VAC |
| Input Frequency |
50/60 Hz |
| Maximum Continuous Input Current |
6.1 A (1 × 200–240 VAC) |
| Output Phase |
3-Phase AC (Three-Phase Output) |
| Output Voltage |
3 × 0–Vin |
| Output Frequency |
0–400 Hz (actual unit nameplate) |
| Continuous Output Current |
2.2 A (PK37 / S2) |
| Intermittent Output Current — 60 s |
3.3 A (150% overload, PK37 / S2) |
| Enclosure Protection |
IP20 / Chassis (E20) |
| Frame Size |
M1 (FC 51 Design Guide, single-phase 0.37 kW) |
| RFI Filter |
H3 — RFI Filter A1/B (reduced cable length) |
| Brake IGBT / Chopper |
X — Not Included (0.37 kW version) |
| Local Control Panel |
X — No local control panel installed (optional accessory) |
| PCB Coating |
C — Coated PCB |
| Mains Option |
X — No mains option |
| Adaptation A |
X — No adaptation |
| Adaptation B |
X — No adaptation |
| Software Release Code |
SXXX — Standard software release designation |
| Communication |
Built-in RS485 / Modbus RTU (FC 51 Design Guide) |
| Rated Ambient Temperature on Label |
40°C / 104°F |
| Estimated Power Loss |
20.0 W best case / 25.0 W typical (Danfoss PK37 / S2 reference) |
| Efficiency at Rated Current |
96.5% best case / 95.6% typical (Danfoss PK37 / S2 reference) |
| Reference Weight |
1.1 kg (M1 IP20) |
| Serial Number on Unit Label |
827325A444 |
| Country of Manufacture on Label |
China |
Product Overview
The Danfoss 132F0002 is a VLT® Micro Drive FC 51 variable frequency drive with exact type code FC-051PK37S2E20H3XXCXXXSXXX. The actual-unit nameplate and protective-packaging label identify 0.37 kW / 0.5 HP, single-phase 200–240 VAC, 50/60 Hz input, and three-phase 0–Vin, 0–400 Hz motor output. This is a single-phase-input drive and should not be confused with 3-phase 380–480 V FC 51 variants. The actual-unit nameplate shows 6.1 A maximum continuous input current and 2.2 A continuous output current. Danfoss official FC 51 specifications confirm the PK37 / S2 / M1 rating, IP20 / Chassis enclosure and 150% normal overload for 60 seconds (3.3 A intermittent output current). The exact ordering code specifies H3 RFI filter A1/B with reduced cable length, X no brake chopper, X no installed local control panel, C coated PCB, and SXXX standard software. The FC 51 series supports RS485 / Modbus RTU through its built-in interface, subject to correct parameter setup. The unit label states a 40°C / 104°F rated ambient temperature and 4-minute discharge waiting period. The supplied photos confirm the product identification, not functional testing or additional accessories. This unit is in stock according to the supplied commercial information. Confirm the exact part number, motor specifications, EMC installation requirements, and any required optional LCP before ordering.
Key Product Features
-
0.37 kW / 0.5 HP — FC 51 PK37 rating, part number 132F0002 confirmed by official Danfoss ordering table
-
Single-Phase 200–240 VAC Input — 50/60 Hz mains with three-phase 0–400 Hz motor output
-
2.2 A Continuous Output Current — matched actual-unit nameplate and Danfoss PK37 / S2 rating
-
150% Normal Overload for 60 Seconds — 3.3 A intermittent output current in the official design guide
-
IP20 / Chassis, M1 Frame — compact enclosure configuration for the 0.37 kW single-phase unit
-
H3 RFI Filter A1/B, Coated PCB — reduced permitted motor-cable length; no brake chopper included
-
Built-in RS485 / Modbus RTU; No Installed LCP — manufacturer-documented interface and exact type-code options
Actual Product Verification
✓

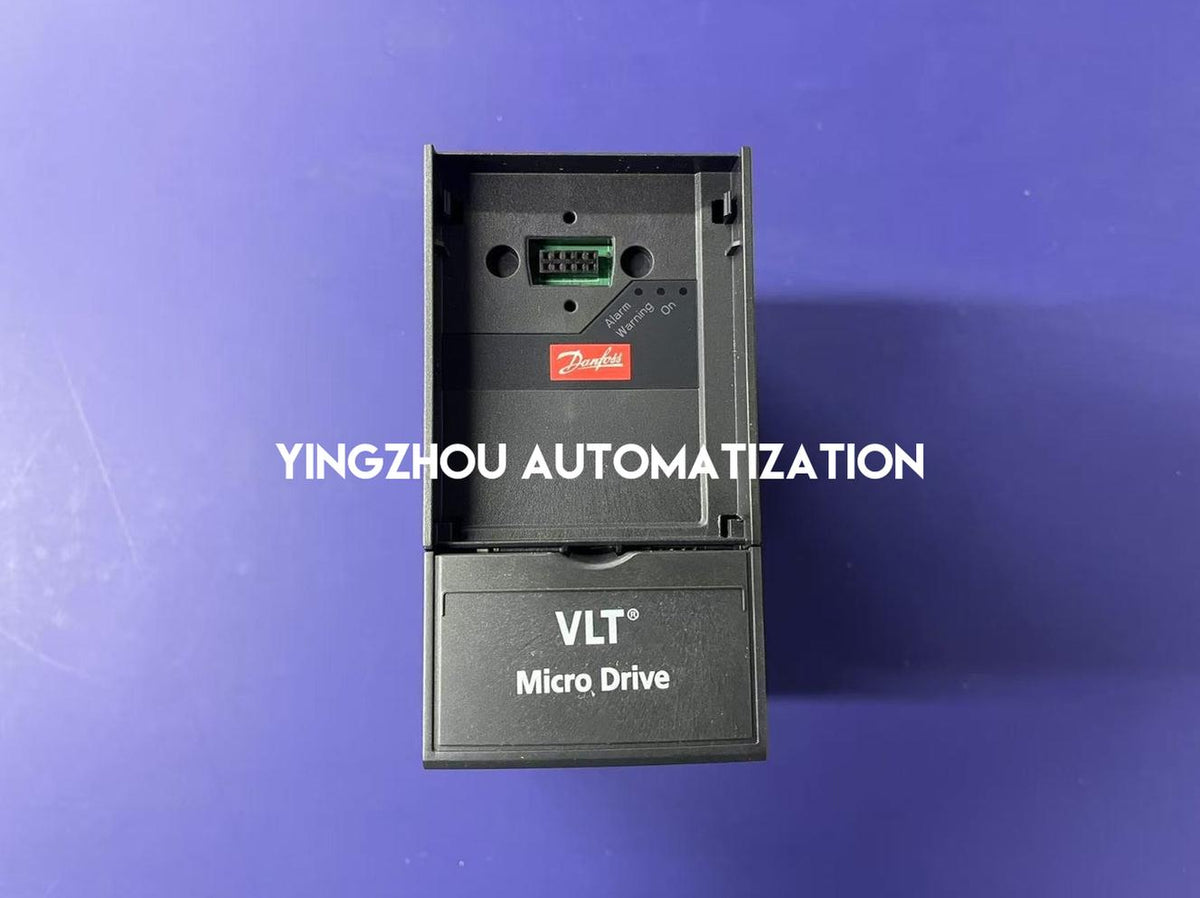

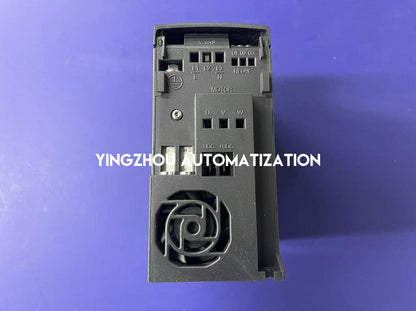

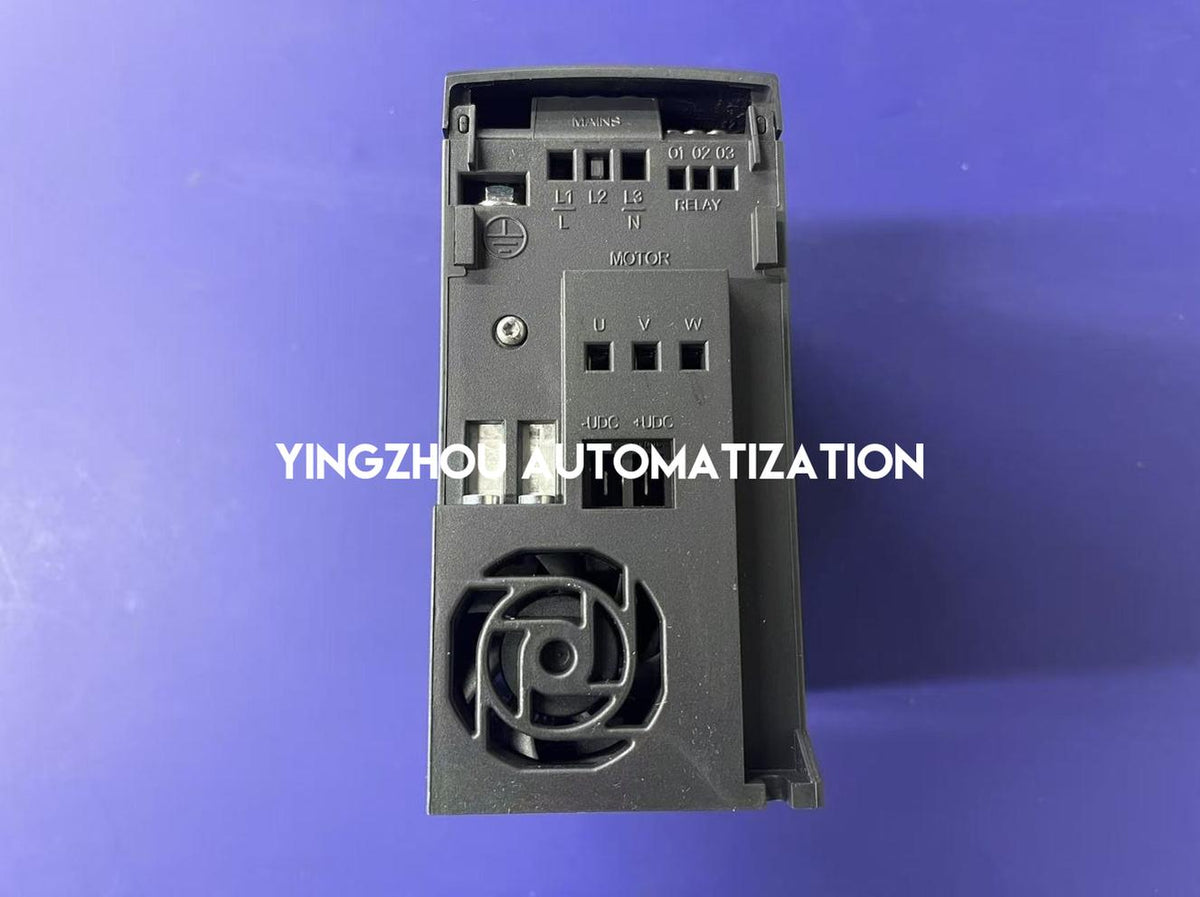

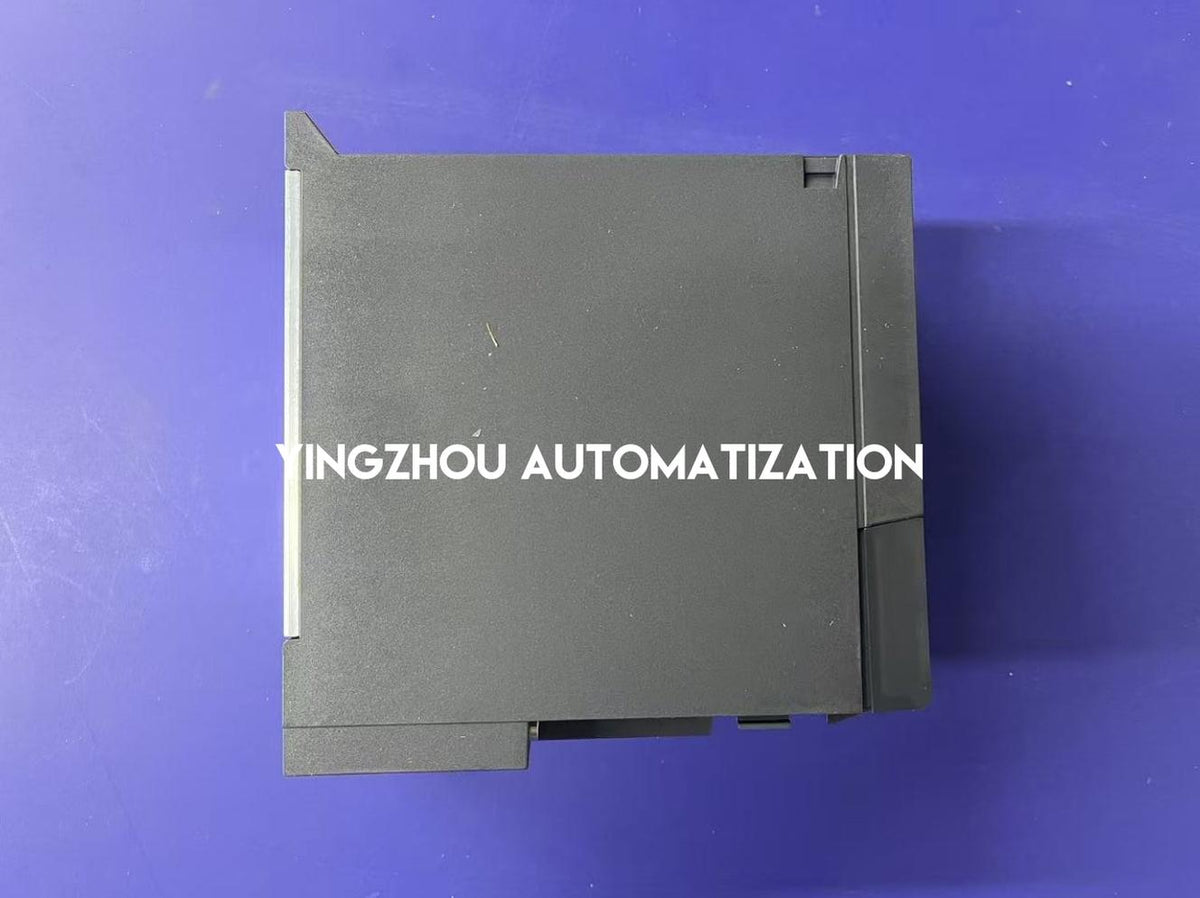

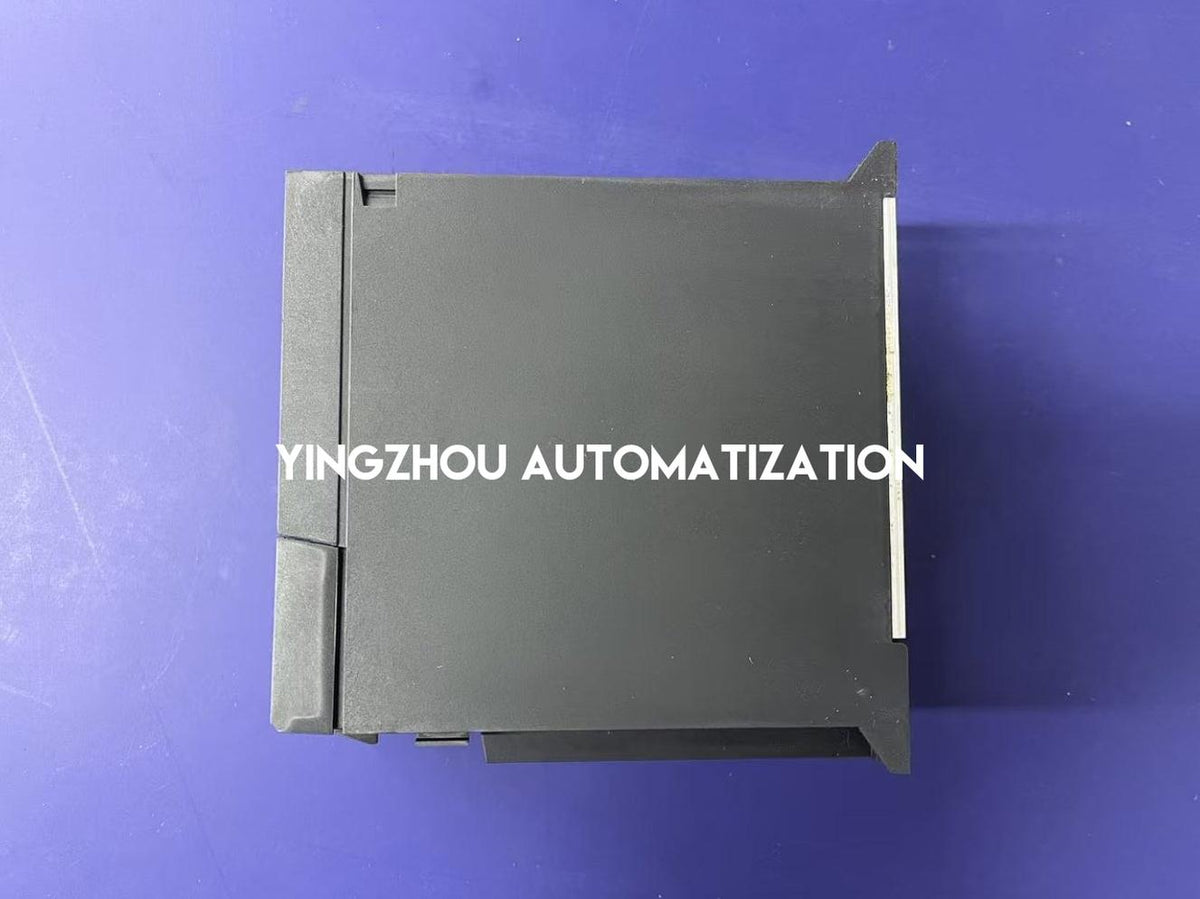

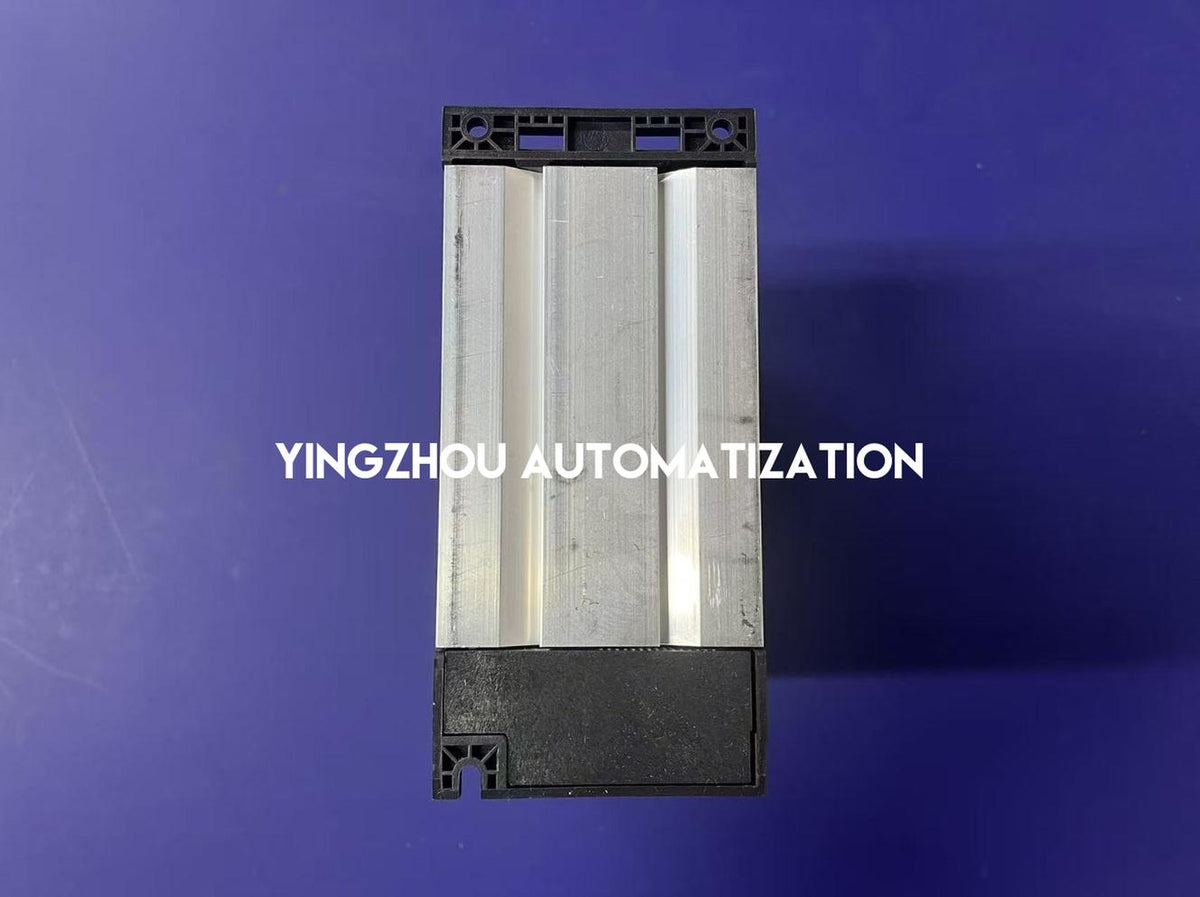

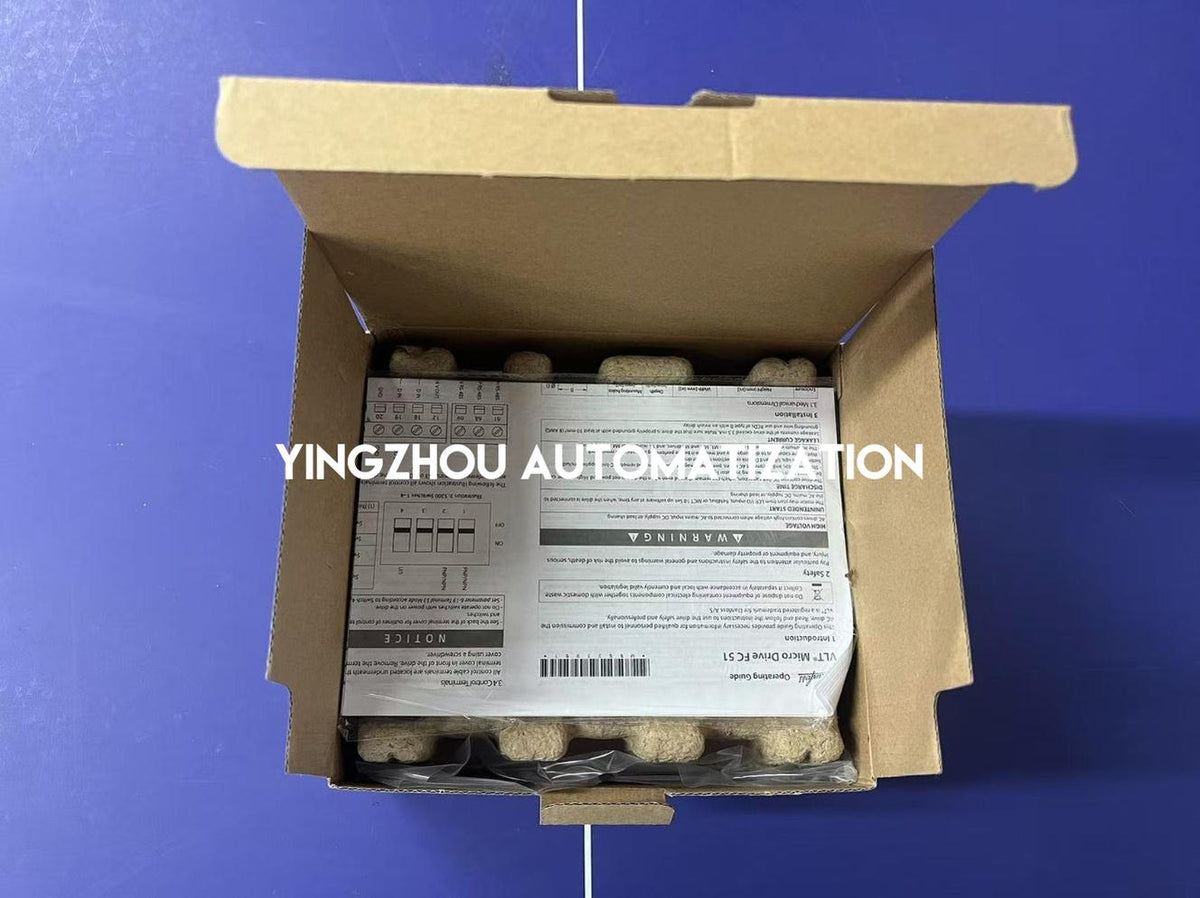

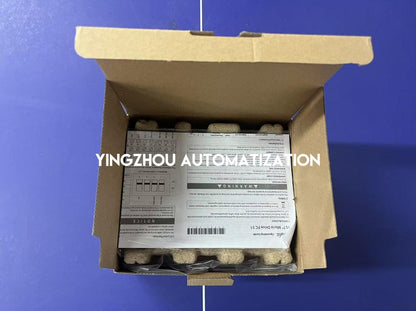

Actual drive and Danfoss protective-packaging photographs provided
✓

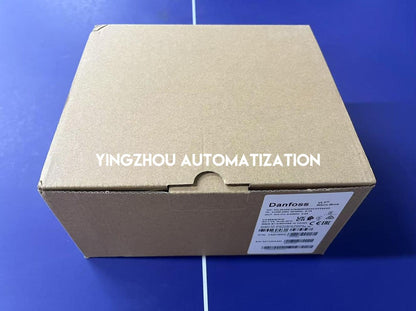

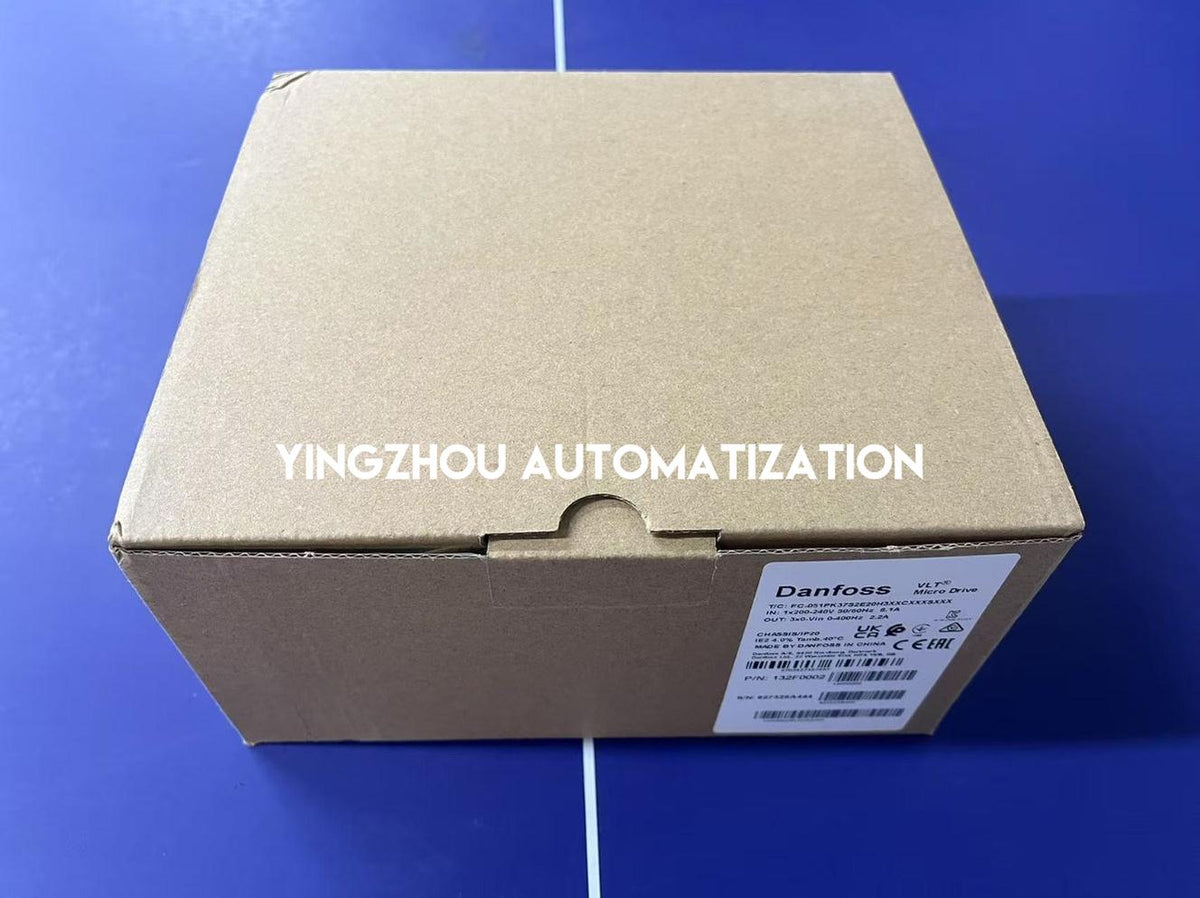

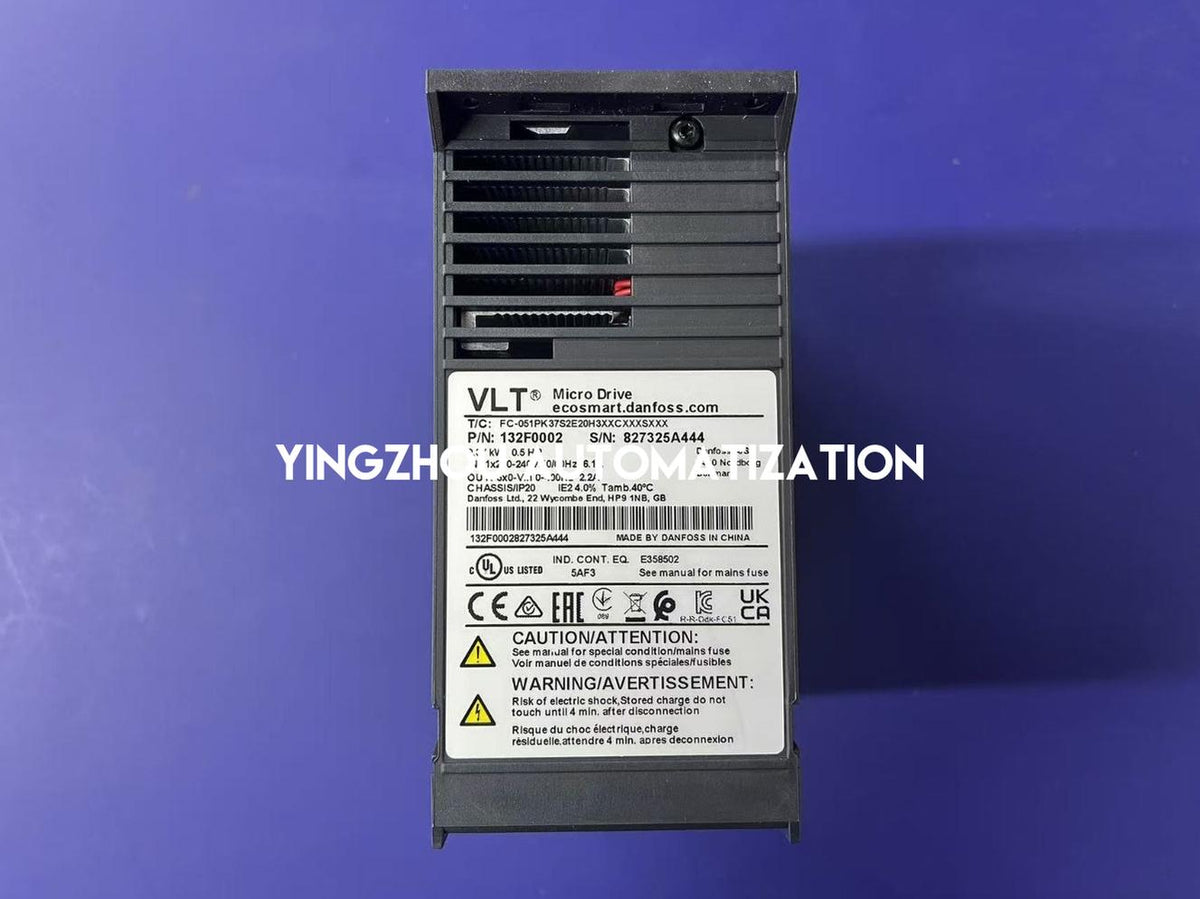

Actual unit nameplate and carton label both show part number 132F0002
✓
Unit label confirms exact model, single-phase 200–240 V input and 2.2 A three-phase output
✓
Verify exact part number 132F0002 before ordering
