Danfoss 131B0149 VLT® AutomationDrive FC 302 3.0kW VFD
3.0 kW | 4 HP | 3-Phase 380–500 VAC | IP20 / A2 Frame
| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
131B0149 |
| Exact Type Code |
FC-302P3K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX |
| Series |
VLT® AutomationDrive FC 302 |
| Product Type |
Variable Frequency Drive (VFD) |
| Rated Motor Power |
3.0 kW / 4 HP (HO and NO) |
| High Overload Capability |
160% rated output current for 60 seconds (Danfoss FC 301/302 Selection Guide) |
| Input Phase |
3-Phase AC (Three-Phase Input) |
| Input Voltage |
3 × 380–500 VAC |
| Input Frequency |
50/60 Hz |
| Input Current — 380–440 V |
6.5 A (HO / NO; actual product nameplate) |
| Input Current — 441–500 V |
5.7 A (HO / NO; actual product nameplate) |
| Output Phase |
3-Phase AC (Three-Phase Output) |
| Output Voltage |
3 × 0–Vin |
| Output Frequency |
0–590 Hz (actual product nameplate) |
| Continuous Output Current — 380–440 V |
7.2 A (HO / NO; nameplate) |
| Continuous Output Current — 441–500 V |
6.3 A (HO / NO; nameplate) |
| Intermittent Output Current — 60 s |
11.5 A (380–440 V) / 10.1 A (441–500 V); Danfoss Selection Guide |
| Enclosure Protection |
IP20 / Open Type (E20) |
| Frame Size |
A2 (actual unit and carton labels) |
| RFI / EMC Filter |
H2 — EMC Class A2 / Category C3; installation-dependent EMC limits |
| Brake IGBT / Chopper |
X — No brake IGBT / brake chopper |
| Local Control Panel |
G — Graphical LCP 102 configuration; physical inclusion to confirm |
| PCB Coating |
C — Coated PCB |
| Mains Option |
X — No mains option specified |
| Adaptation A |
X — Standard / no adaptation |
| Adaptation B |
X — No adaptation |
| Software Release Code |
SXXX — exact type-code field; detailed option meaning not independently confirmed |
| Software Language Pack |
X — exact type-code field; package details not independently confirmed |
| A-Option / Fieldbus Card |
AX — No optional fieldbus card |
| Software Version on Unit and Carton Labels |
09.41 — Language 1 |
| Discharge Warning on Unit |
Wait 4 minutes after disconnecting mains before servicing |
| Country of Manufacture on Label |
China (Made in China) |
Product Overview
The Danfoss 131B0149 is a VLT® AutomationDrive FC 302 variable frequency drive with exact type code FC-302P3K0T5E20H2XGCXXXSXXXXAXBXCXXXXDX. The actual drive and packaging labels identify the same part number 131B0149 and serial number 012126A484. Both nameplates specify 3.0 kW / 4 HP motor power for the high-overload (HO) and normal-overload (NO) configurations, 3-phase 380–500 VAC, 50/60 Hz input and 3-phase 0–Vin, 0–590 Hz output. The nameplate gives input current 6.5 A / 5.7 A and continuous output current 7.2 A / 6.3 A for the applicable lower/higher voltage bands. The Danfoss official FC 301/302 Selection Guide confirms the P3K0/T5 rating, 160% high overload for 60 seconds, corresponding to 11.5 A / 10.1 A intermittent output current, and A2 frame for IP20 installation. The exact manufacturer type code specifies E20 IP20 / Open Type, H2 RFI filter — Class A2 / EMC Category C3, X without brake IGBT, G graphical local control panel configuration, C coated PCB and AX no optional A-option fieldbus card. The nameplate shows 09.41 — Language 1, 50°C / 122°F ambient temperature, and a 4-minute discharge waiting period following mains disconnection. The photographs support unit/packaging identification; electrical testing, authenticity and physical inclusion of the graphical LCP or other accessories have not been independently confirmed. The item is available to order with estimated delivery of 3–4 weeks based on the supplied commercial information. Confirm exact model configuration, required accessories and lead time before ordering.
Key Product Features
-
3.0 kW / 4 HP — FC 302 P3K0 power rating verified on both the drive and carton labels
-
Three-Phase 380–500 VAC Input — 50/60 Hz mains with three-phase 0–590 Hz motor output
-
7.2 A / 6.3 A Continuous Output Current — nameplate ratings for the lower/higher voltage bands
-
160% High Overload for 60 Seconds — 11.5 A / 10.1 A intermittent output ratings in the Danfoss Selection Guide
-
IP20 / A2 Frame — matching product and packaging labels; confirmed by the manufacturer P3K0 table
-
H2 RFI Filter, EMC Category C3 and Coated PCB — X type code without an internal brake IGBT
-
Graphical LCP (G) Configuration; AX No Optional Fieldbus Card — physical accessory inclusion requires confirmation
Actual Product Verification
✓

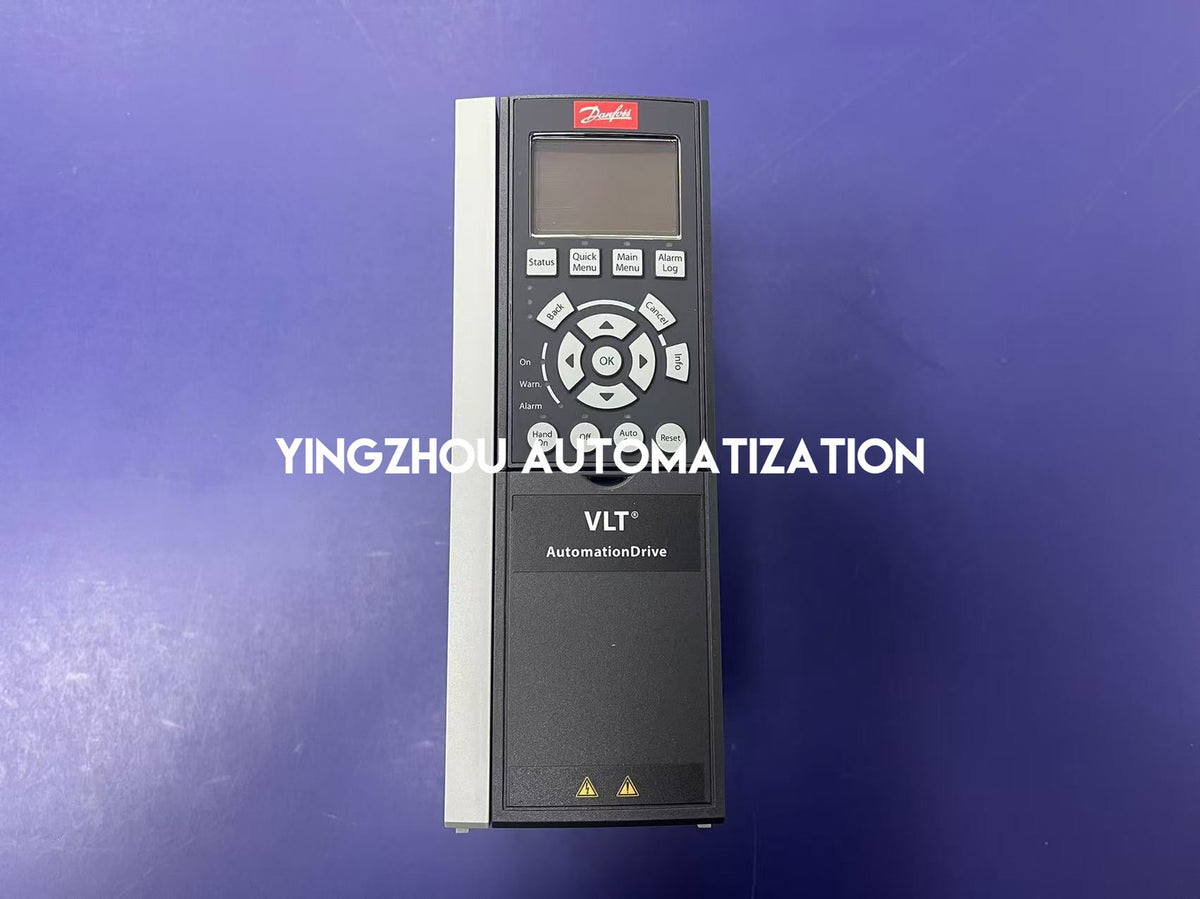

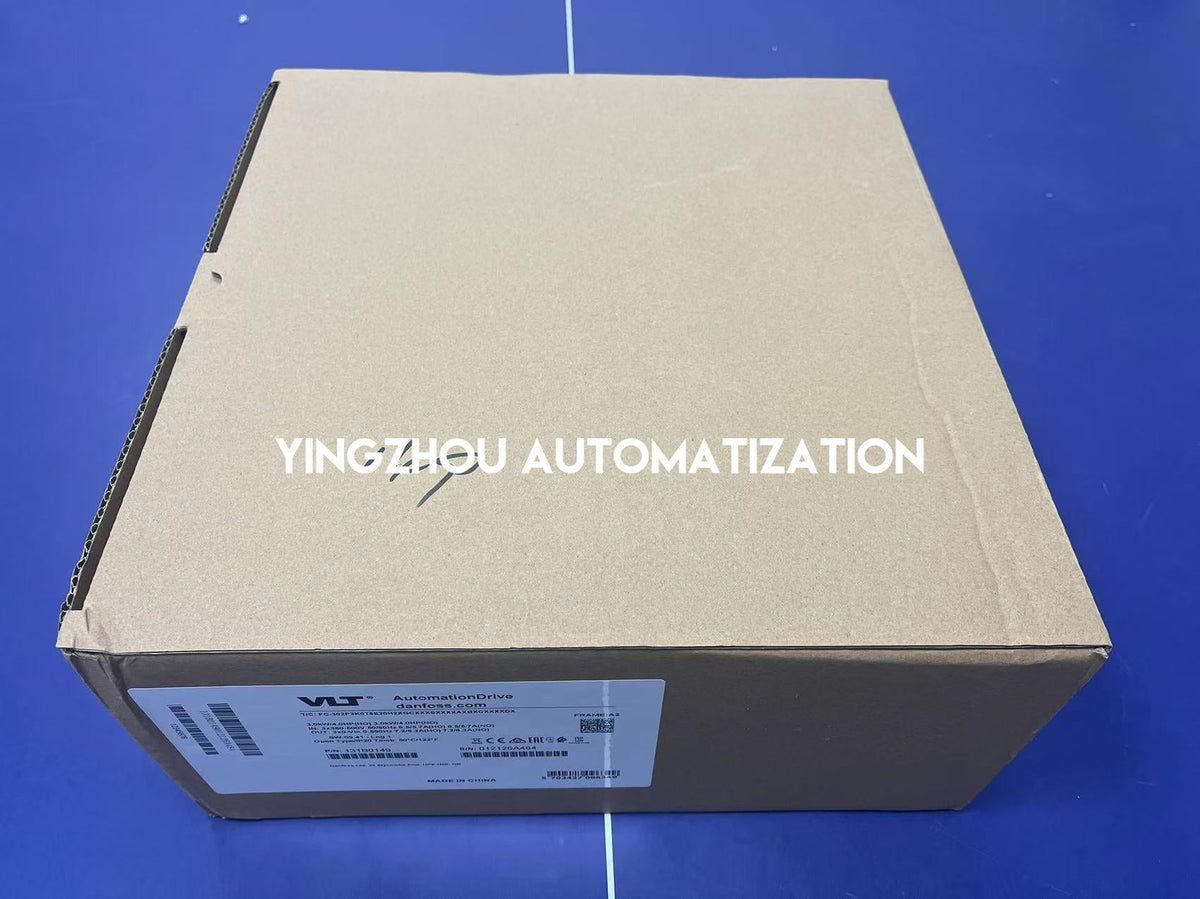

Actual drive and cardboard-box packaging-label photographs provided
✓

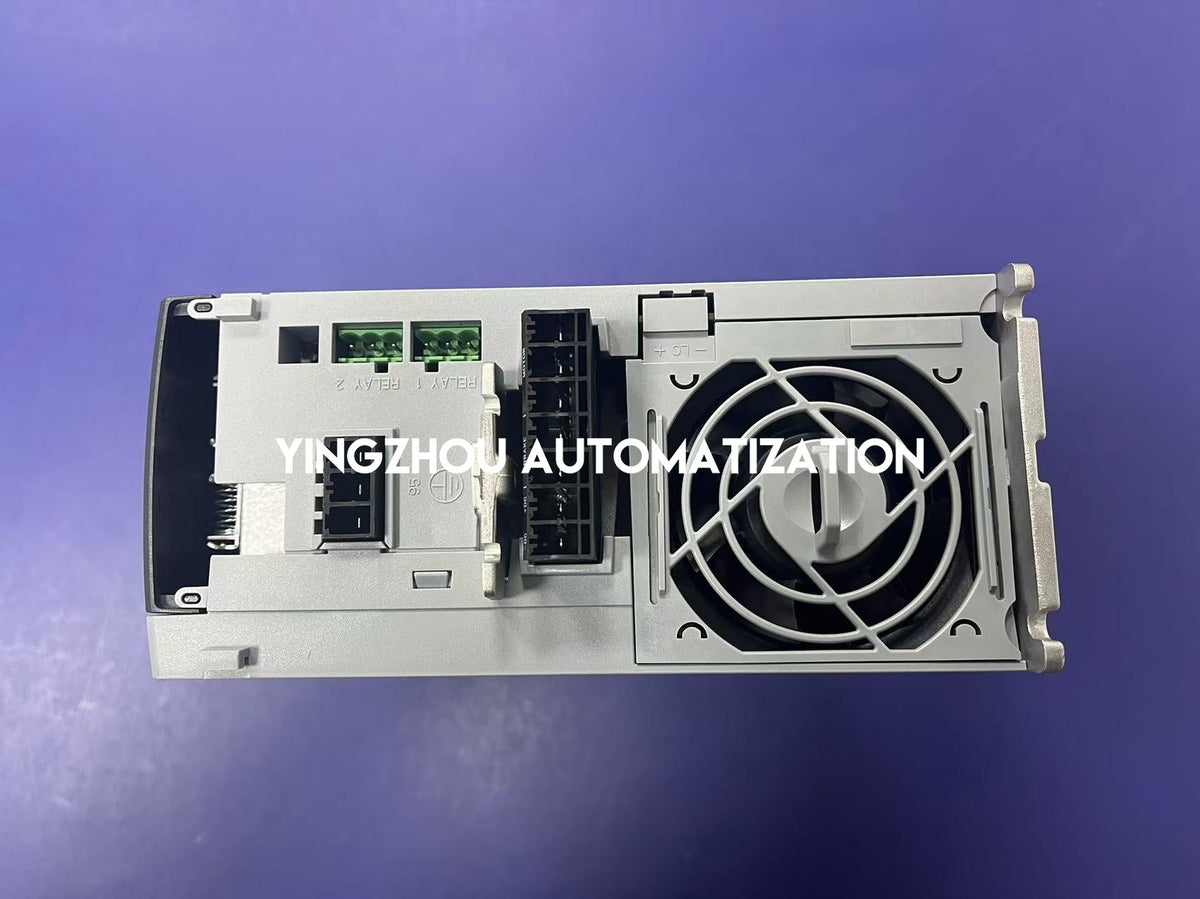

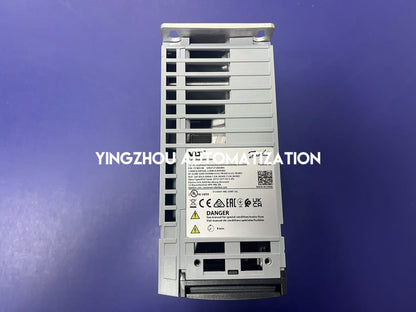

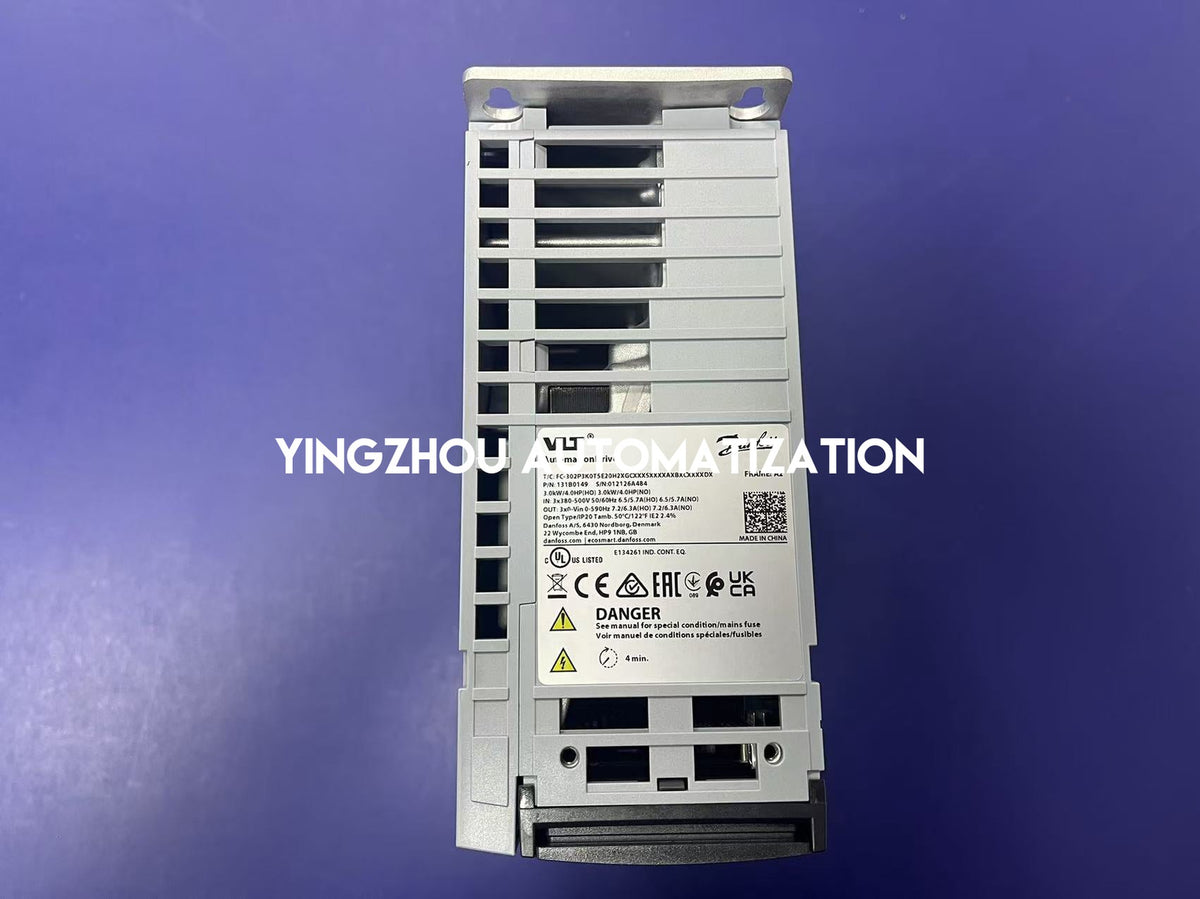

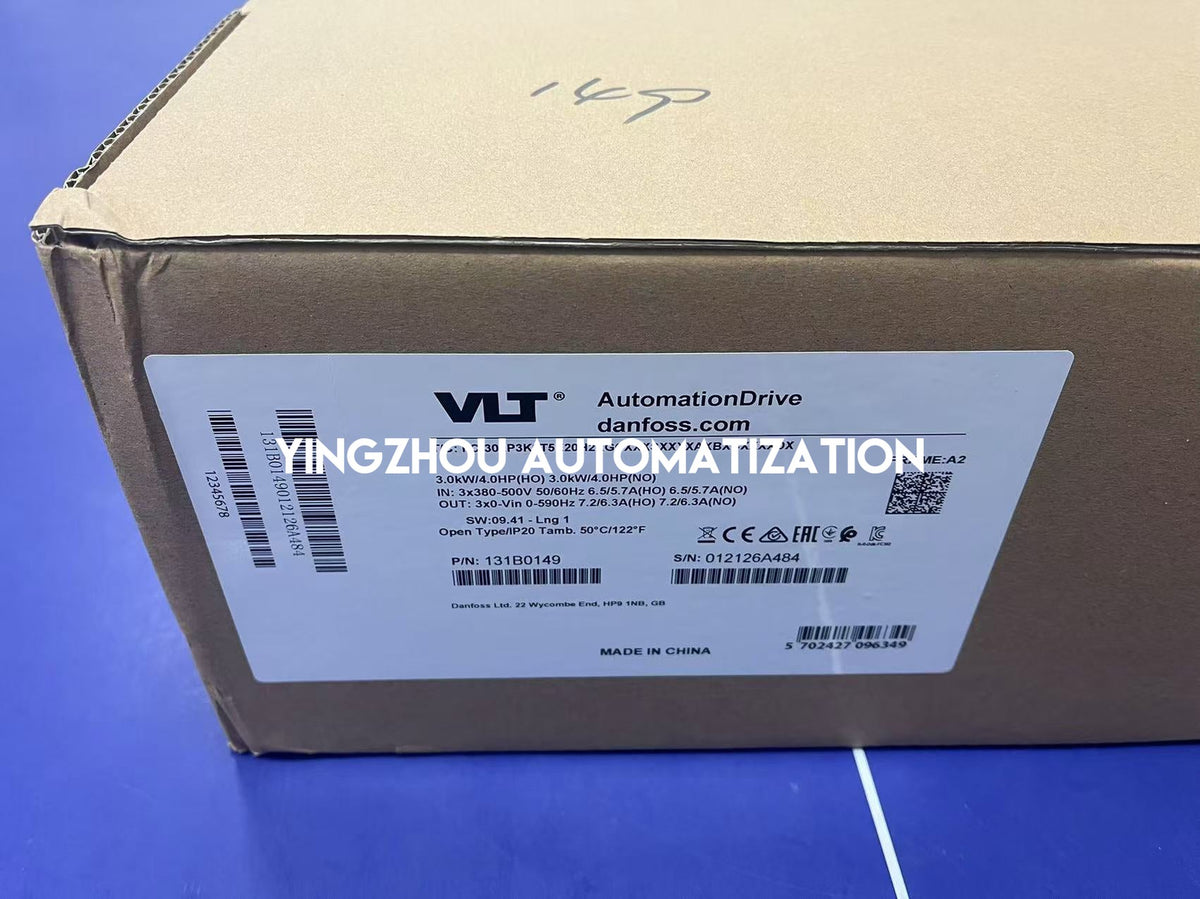

Unit nameplate and carton label both show part number 131B0149
✓
Both labels show matching part number, exact type code, serial number 012126A484 and 3.0 kW power rating
✓
Verify exact part number 131B0149 before ordering
Available to Order — Estimated Delivery 3–4 Weeks
Danfoss 131B0149 is available to order with an estimated delivery time of 3–4 weeks, based on the supplied commercial information. Please reconfirm the final delivery schedule when placing the order.
ESTIMATED DELIVERY 3–4 WEEKS
Danfoss 131B0149 VLT® AutomationDrive FC 302
Contact us for project and quantity pricing. Confirm the exact model, graphical LCP inclusion and 3–4 week lead time.
Request Project Pricing
