Danfoss 131B0148 VLT® AutomationDrive FC 302 2.2kW VFD
2.2 kW | 3.0 HP | 3-Phase 380–500 VAC | IP20 / A2 Frame
| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
131B0148 |
| Exact Type Code |
FC-302P2K2T5E20H2XGCXXXSXXXXAXBXCXXXXDX |
| Series |
VLT® AutomationDrive FC 302 |
| Product Type |
Variable Frequency Drive (VFD) |
| Rated Motor Power |
2.2 kW / 3.0 HP (HO and NO) |
| High Overload Capability |
160% rated output current for 60 seconds (Danfoss FC 301/302 selection guide) |
| Input Phase |
3-Phase AC (Three-Phase Input) |
| Input Voltage |
3 × 380–500 VAC |
| Input Frequency |
50/60 Hz |
| Input Current — 380–440 V |
5.0 A (HO / NO; actual product nameplate) |
| Input Current — 441–500 V |
4.3 A (HO / NO; actual product nameplate) |
| Output Phase |
3-Phase AC (Three-Phase Output) |
| Output Voltage |
3 × 0–Vin |
| Output Frequency |
0–590 Hz (actual product nameplate) |
| Continuous Output Current — 380–440 V |
5.6 A (HO / NO; nameplate) |
| Continuous Output Current — 441–500 V |
4.8 A (HO / NO; nameplate) |
| Intermittent Output Current — 60 s |
9.0 A (380–440 V) / 7.7 A (441–500 V); Danfoss selection guide |
| Enclosure Protection |
IP20 / Open Type (E20) |
| Frame Size |
A2 (actual unit and carton labels) |
| RFI / EMC Filter |
H2 — EMC Class A2 / Category C3; installation-dependent EMC limits |
| Brake IGBT / Chopper |
X — No brake IGBT / brake chopper |
| Local Control Panel |
G — Graphical LCP 102 configuration; physical inclusion to confirm |
| PCB Coating |
C — Coated PCB |
| Mains Option |
X — No mains option specified |
| Adaptation A |
X — Standard / no adaptation |
| Adaptation B |
X — No adaptation |
| Software Release Code |
SXXX — Standard software release designation |
| Software Language Pack |
X — Standard language package |
| A-Option / Fieldbus Card |
AX — No optional fieldbus card |
| Software Version on Unit and Carton Labels |
09.61 — Language 1 |
| Discharge Warning on Unit |
Wait 4 minutes after disconnecting mains before servicing |
| Country of Manufacture on Label |
China (Made in China) |
Product Overview
The Danfoss 131B0148 is a VLT® AutomationDrive FC 302 variable frequency drive with exact type code FC-302P2K2T5E20H2XGCXXXSXXXXAXBXCXXXXDX. The actual unit and packaging labels match on part number 131B0148, serial number 015226A504, and 2.2 kW / 3.0 HP motor rating in both high-overload (HO) and normal-overload (NO) nameplate modes. The labels identify 3-phase 380–500 VAC, 50/60 Hz input and 3-phase 0–Vin, 0–590 Hz output. Continuous input current is 5.0 A / 4.3 A and continuous output current is 5.6 A / 4.8 A for the 380–440 V / 441–500 V voltage bands. The Danfoss FC 301/302 official selection guide lists 160% high overload for 60 seconds, equivalent to 9.0 A / 7.7 A intermittent output current in the two voltage bands. Both actual labels confirm A2 frame with IP20 / Open Type protection and 50°C / 122°F nameplate ambient rating. The manufacturer type code specifies H2 EMC filter, Class A2 (Category C3), X without brake IGBT, G graphical LCP 102 configuration, C coated PCB and AX without an optional fieldbus card. The nameplate states software 09.61 — Language 1 and a 4-minute discharge waiting period. The photos verify the product and carton identification, but do not confirm operational testing, product authenticity or supplied accessories. The item is available to order with estimated delivery of 3–4 weeks, according to the supplied commercial information. Confirm the exact full configuration, physical LCP inclusion, installation requirements and delivery schedule before ordering.
Key Product Features
-
2.2 kW / 3.0 HP — FC 302 P2K2 rating verified on both the drive and carton labels
-
Three-Phase 380–500 VAC Input — 50/60 Hz mains with three-phase 0–590 Hz motor output
-
5.6 A / 4.8 A Continuous Output Current — lower/higher voltage-band nameplate ratings
-
160% High Overload for 60 Seconds — 9.0 A / 7.7 A intermittent output ratings in the Danfoss selection guide
-
IP20 / A2 Frame — actual unit and carton labels identify frame and enclosure protection
-
H2 RFI Filter, EMC Category C3 and Coated PCB — no brake IGBT under the X code
-
Graphical LCP 102 (G) Configuration; AX No Optional Fieldbus Card — physical accessories require confirmation
Actual Product Verification
✓

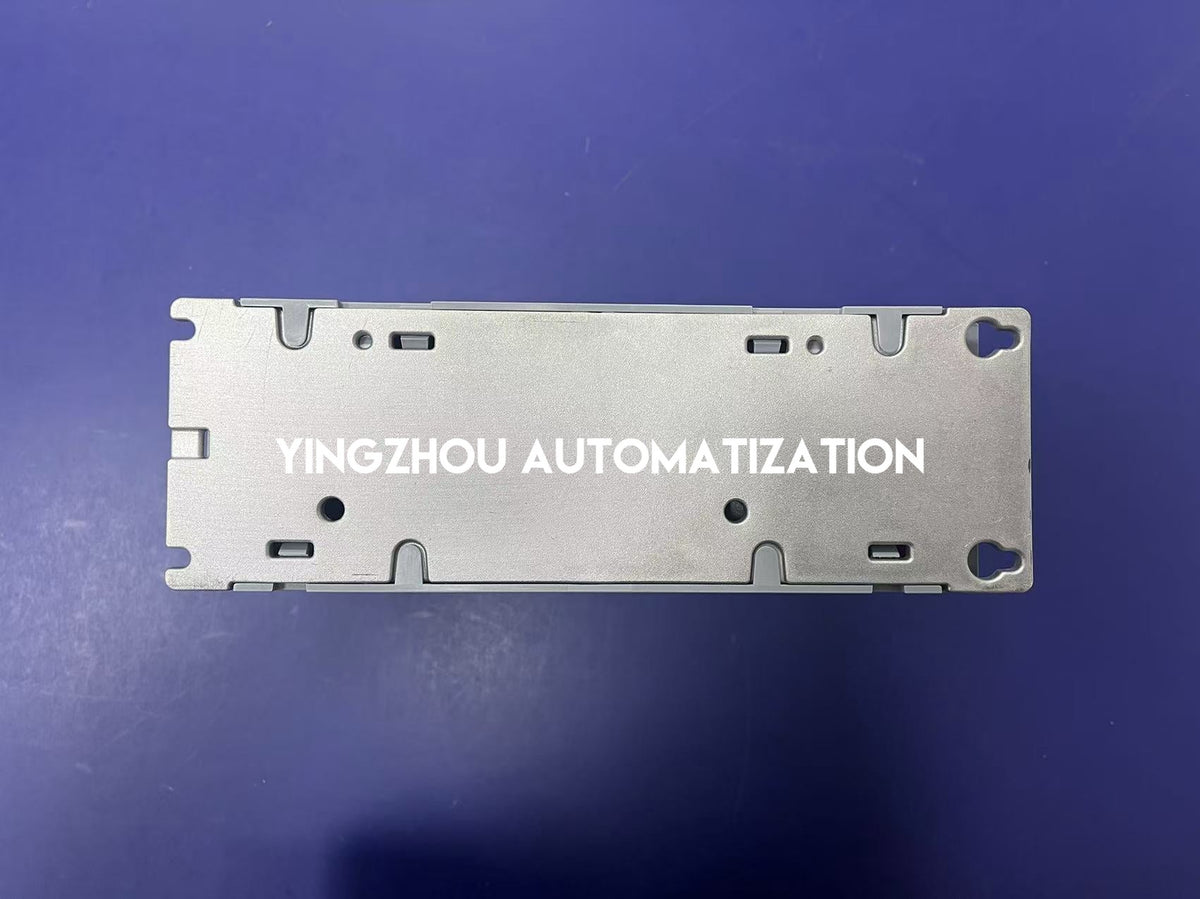

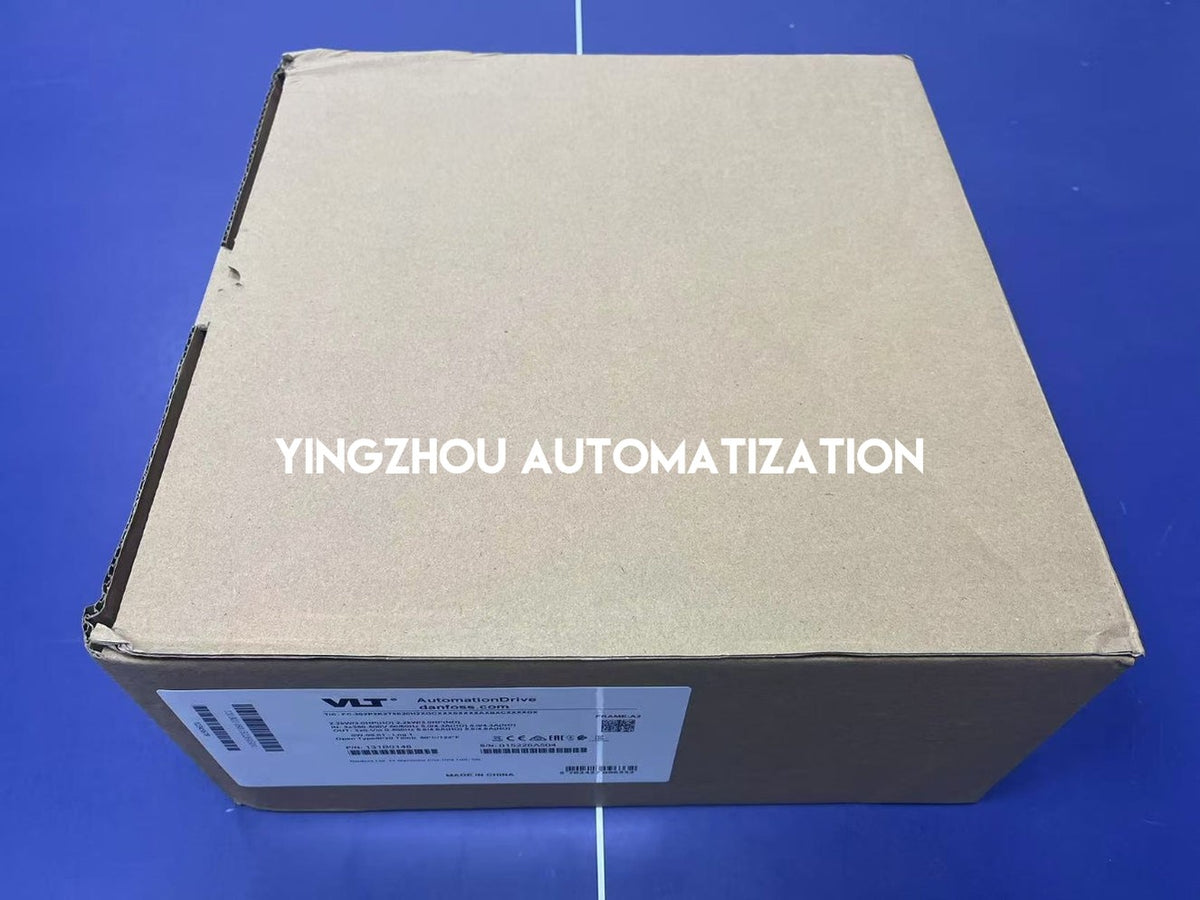

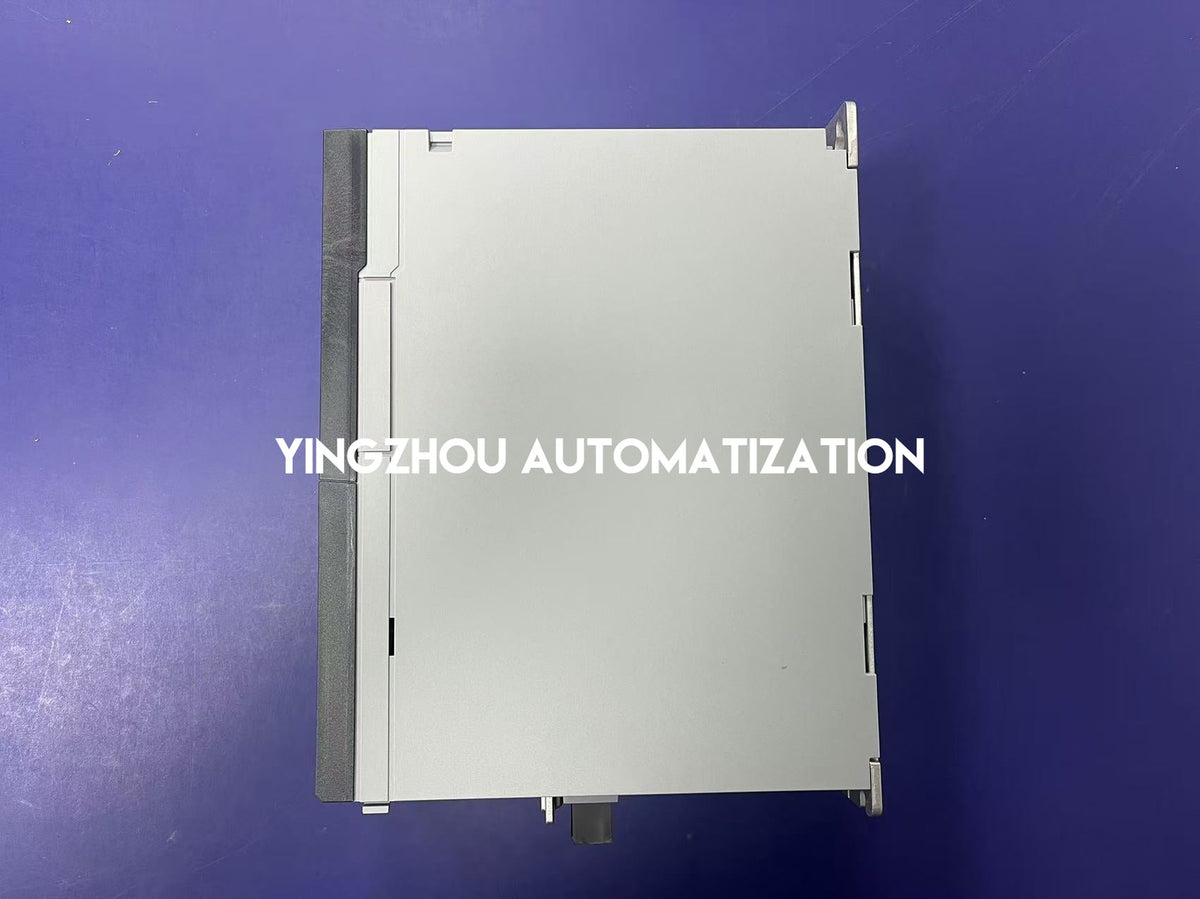

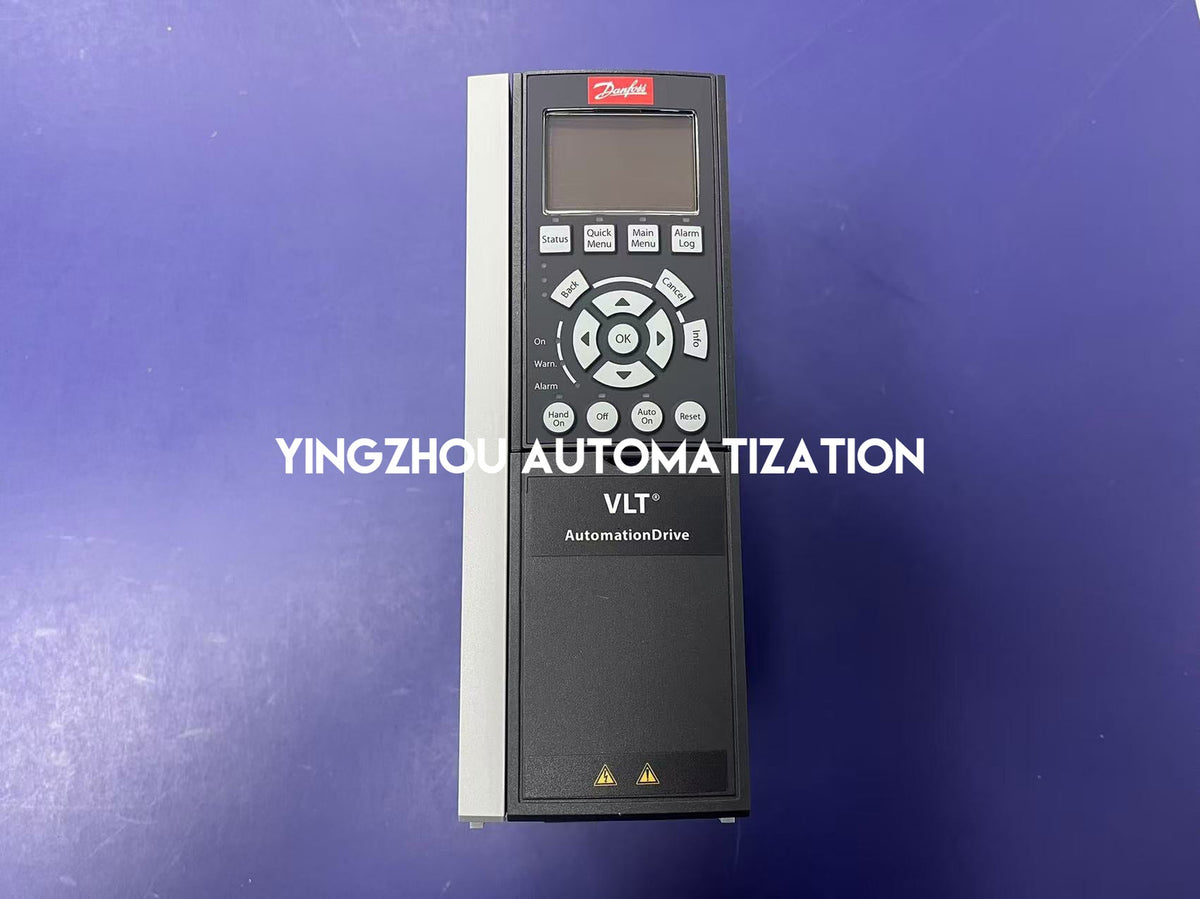

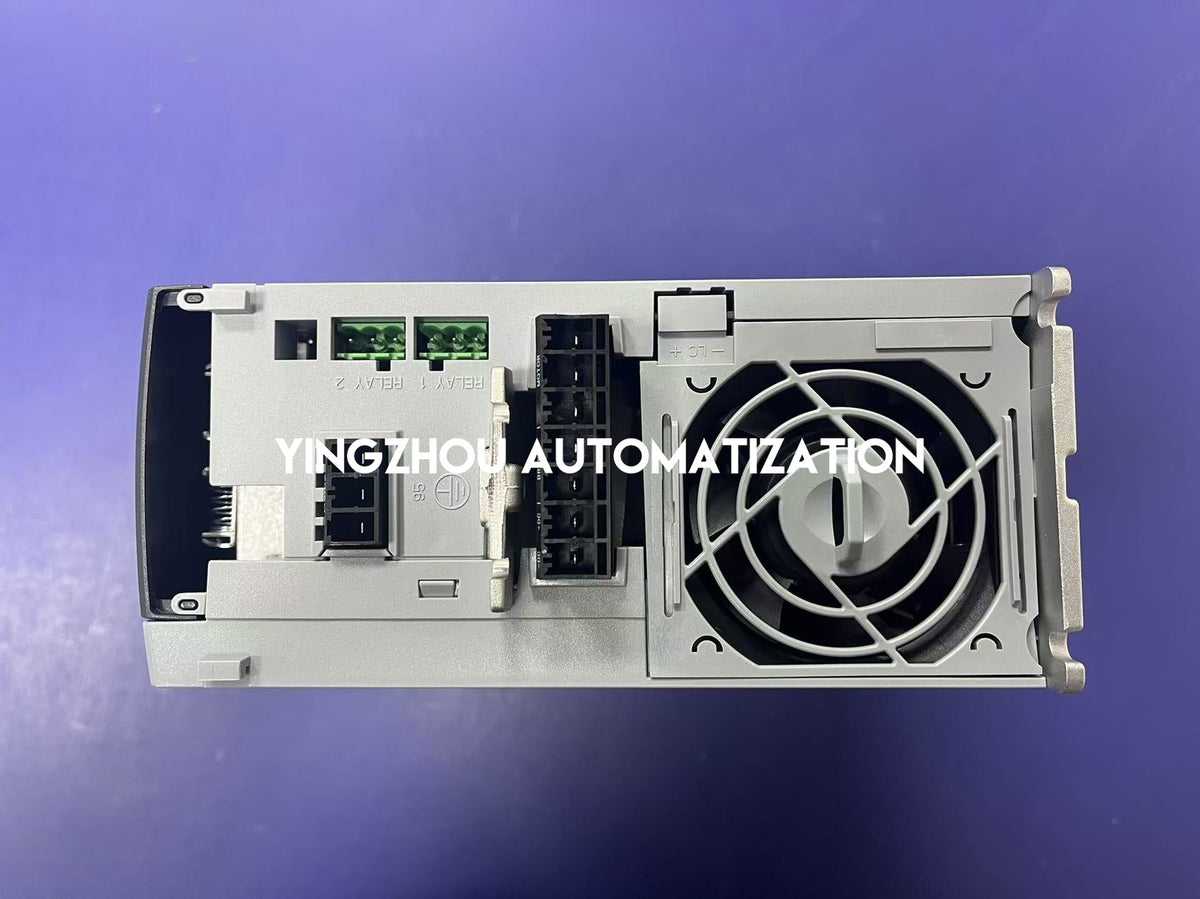

Actual drive and cardboard-box packaging-label photographs provided
✓

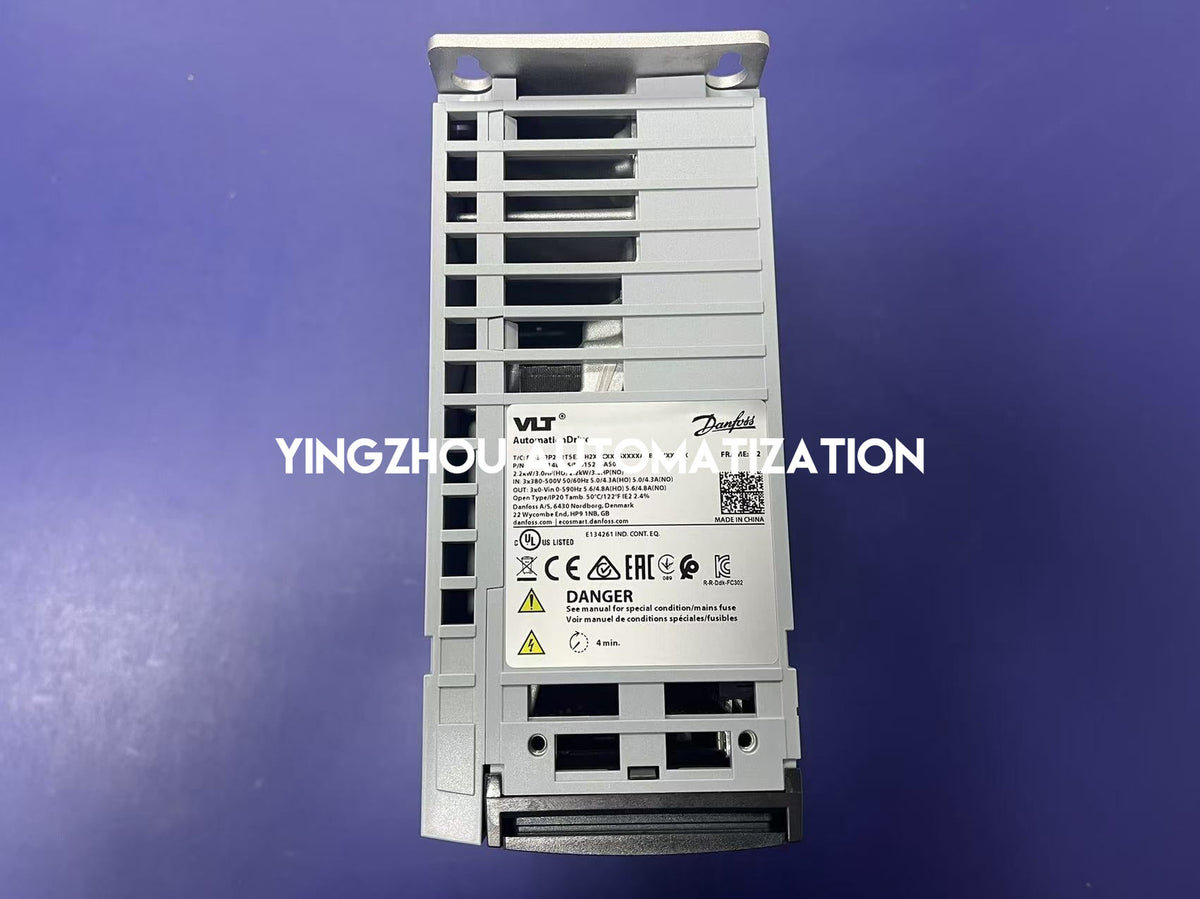

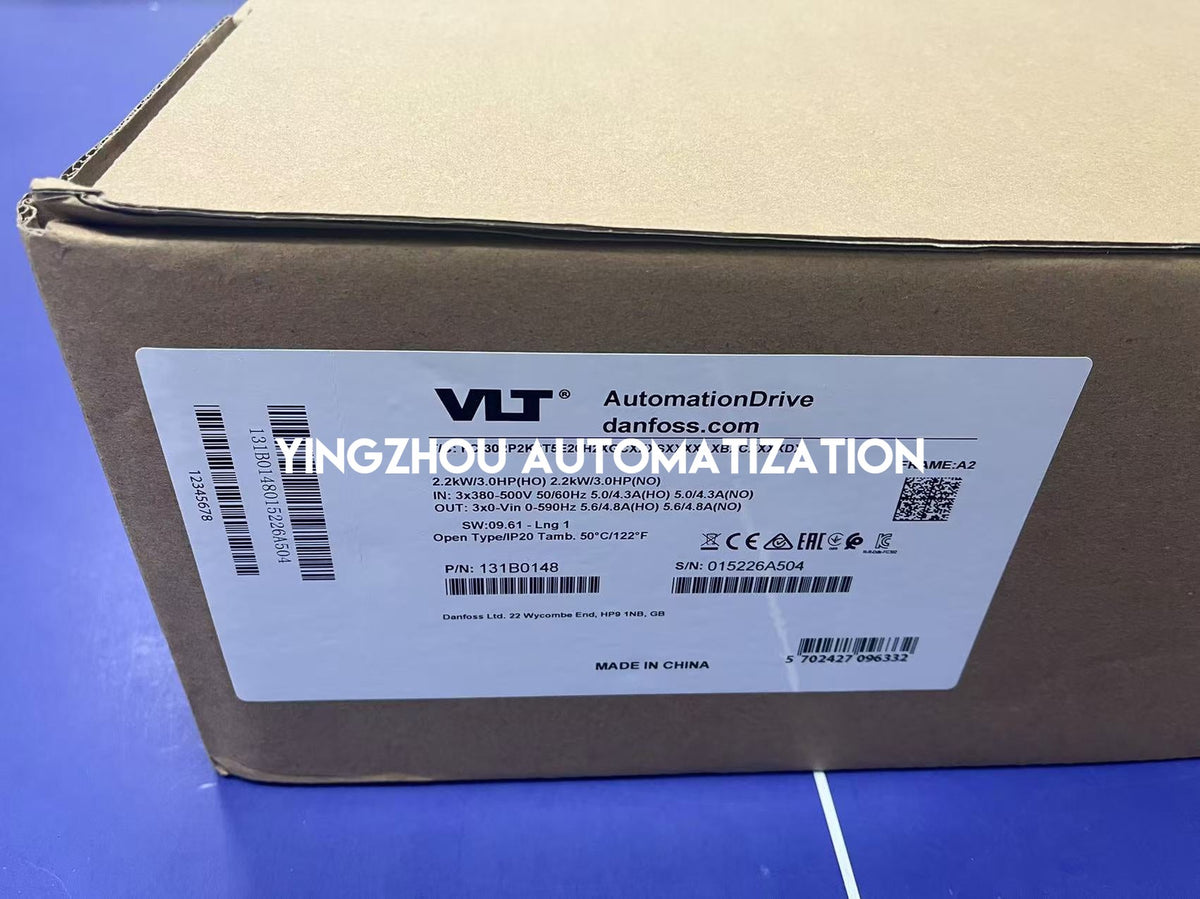

Unit nameplate and carton label both show part number 131B0148
✓
Both labels show the same exact type code, serial number 015226A504, 2.2 kW and three-phase ratings
✓
Verify exact part number 131B0148 before ordering
Available to Order — Estimated Delivery 3–4 Weeks
Danfoss 131B0148 is available to order with an estimated delivery time of 3–4 weeks, based on the supplied commercial information. Please reconfirm the final delivery schedule when placing the order.
ESTIMATED DELIVERY 3–4 WEEKS
Danfoss 131B0148 VLT® AutomationDrive FC 302
Contact us for project and quantity pricing. Confirm the exact model, graphical LCP accessories and 3–4 week lead time.
Request Project Pricing
