AVENTICS

Aventics R412006225 AS2-LBS G1/4 Oil-Mist Lubricator 2800 L/min 0.5–16 Bar

Aventics R412006225 AS2-LBS G1/4 Oil-Mist Lubricator 2800 L/min 0.5–16 Bar

$42.99 USD
$42.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Aventics R412006225 AS2-LBS Oil-Mist Lubricator

G1/4 | 2800 L/min | 0.5-16 Bar | 40 cm³ Reservoir
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Part Number Verified
Specification Verified Product Data
Manufacturer AVENTICS / Emerson
Part Number R412006225
Product Series AS2-LBS
Product Type Standard Oil-Mist Lubricator
Full Type Code AS2-LBS-G014-PBP-LA
Pneumatic Connection G 1/4
Nominal Flow Qn 2800 L/min
Working Pressure 0.5-16 bar
Ambient Temperature -10°C to +50°C
Medium Temperature -10°C to +50°C
Operating Medium Compressed Air / Neutral Gases
Lubricator Reservoir Volume 40 cm³
Oil Dosing at 1000 L/min 1-2 drops
Filling Method Semi-Automatic During Operation / Manual
Reservoir Material Polycarbonate
Protective Guard Polyamide
Housing Material Polyamide
Seal Material NBR
Mounting Orientation Vertical
Modular Assembly Can Be Assembled into Blocks
ATEX Suitability Ex Zones 1, 2, 21, 22
Product Weight 0.229 kg
Availability IN STOCK

Product Overview

The AVENTICS R412006225 is a standard pneumatic oil-mist lubricator from the AS2-LBS series, designed for lubricating compatible compressed air systems. Its full manufacturer configuration is AS2-LBS-G014-PBP-LA. The unit features a G1/4 pneumatic connection, a 2800 L/min nominal flow rating and a 0.5-16 bar working pressure range. The lubricator incorporates a 40 cm³ polycarbonate oil reservoir with a protective guard and supports both semi-automatic oil filling during operation and manual filling. The manufacturer specifies an oil dosing rate of 1-2 drops at 1000 L/min. Its modular construction allows assembly into compatible air preparation systems. The product is designed for vertical installation, and the AS2-LBS configuration is suitable for the specified ATEX zones subject to application requirements. Actual product photography confirms the equipment nameplate R412006225, matching the listed part number.

Key Product Features

  • AVENTICS AS2-LBS Series — Standard oil-mist lubricator for compressed air preparation.
  • Exact Part Number R412006225 — Manufacturer configuration AS2-LBS-G014-PBP-LA.
  • G1/4 Pneumatic Connection — Threaded port for compatible compressed air installations.
  • 2800 L/min Nominal Flow — Manufacturer-specified airflow capacity.
  • 0.5-16 Bar Working Pressure — Wide operating pressure range.
  • 40 cm³ Oil Reservoir — Polycarbonate reservoir with a polyamide protective guard.
  • Oil-Mist Lubrication — Dosing rate of 1-2 drops at 1000 L/min.
  • Flexible Oil Filling — Semi-automatic filling during operation and manual filling.
  • Modular AS2 Design — Can be assembled into compatible air preparation blocks.
  • Vertical Mounting — Designed for vertical installation.
  • ATEX Suitability — Listed for Ex zones 1, 2, 21 and 22 in manufacturer documentation.
  • Actual Product Photography — Equipment nameplate identifies R412006225.

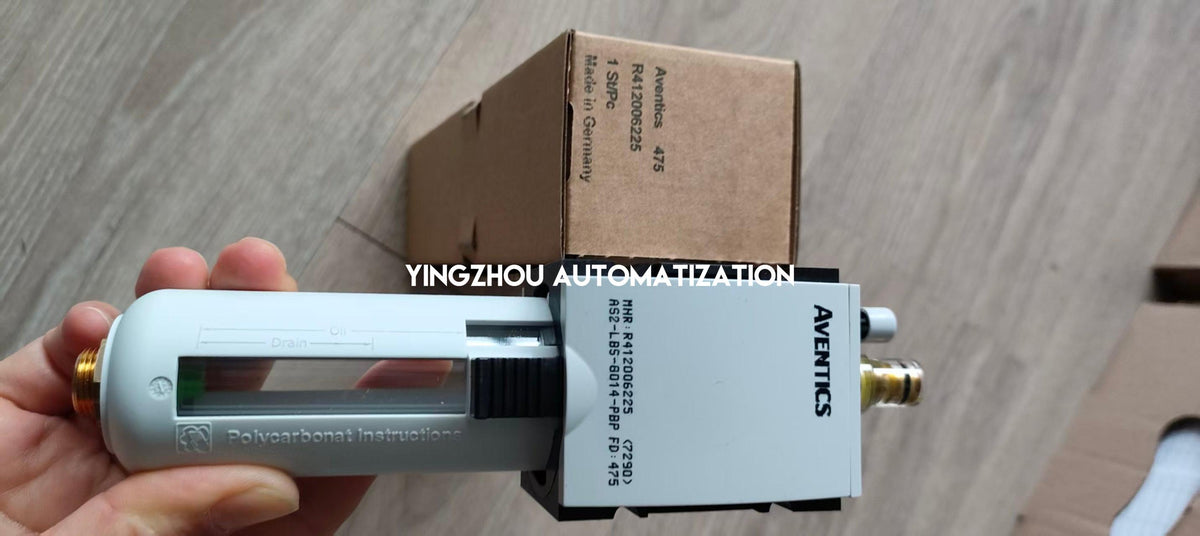

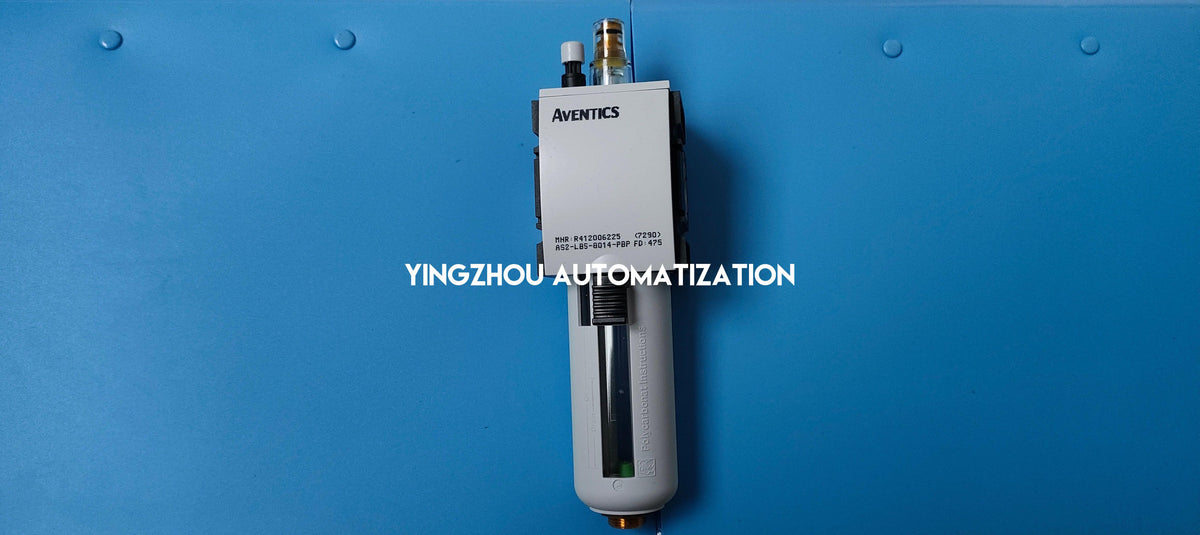

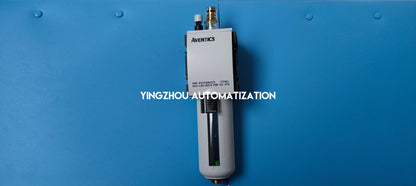

Actual Product Verification

✓ Actual equipment photograph supplied
✓ Manufacturer marking: AVENTICS
✓ Equipment nameplate: MHR R412006225
✓ Visible model code: AS2-LBS-G014-PBP
✓ Manufacturer full type code: AS2-LBS-G014-PBP-LA
✓ Product series: AS2-LBS
✓ Visible oil reservoir, protective structure and filling components
✓ Exact equipment part number matches the listed model
✓ Oil dosing and functional condition to be confirmed before dispatch

In Stock & Available to Order

Aventics R412006225 AS2-LBS Standard Oil-Mist Lubricator is marked IN STOCK based on the supplied inventory information. Actual equipment photography shows the manufacturer's part number R412006225. The lubricator features a G1/4 connection, 2800 L/min nominal flow and a 40 cm³ oil reservoir for industrial compressed air applications. Please confirm connection requirements, pressure conditions, lubricator configuration, available quantity and shipment arrangements before ordering. YINGZHOU supports industrial replacement purchases and multi-brand pneumatic component sourcing.

IN STOCK

Aventics R412006225 AS2-LBS

Contact us for exact-model verification, quantity quotations and industrial procurement. Please confirm the G1/4 connection, 0.5-16 bar working pressure, oil filling requirements and equipment compatibility before purchasing.
