Allen-Bradley 20BD040A3AYNACC1 PowerFlex 700 30HP 480V 40A AC Drive

Allen-Bradley 20BD040A3AYNACC1 PowerFlex 700 30HP 480V 40A AC Drive

$8,599.99 USD
$8,599.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Allen-Bradley 20BD040A3AYNACC1 PowerFlex 700 AC Drive

22kW @ 400V | 30HP @ 480V | 40A | ControlNet | Frame 3
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Product-Unit Configuration Verification Required
Specification Verified Product Data
Manufacturer Allen-Bradley / Rockwell Automation
Catalog Number 20BD040A3AYNACC1
Product Family PowerFlex 700
Product Type AC Variable Frequency Drive
Normal Duty Power @ 400V 22 kW
Heavy Duty Power @ 400V 18.5 kW
Normal Duty Power @ 480V 30 HP
Heavy Duty Power @ 480V 25 HP
Nominal Input Voltage 480V AC, 3-Phase
Voltage Class 380–480V AC
Manufacturer Operating Voltage Range 342–528V AC
Continuous Output Current @ 480V 40 A
1-Minute Overload Current 51 A
3-Second Overload Current 68 A
Rated Motor Voltage 460V AC at 480V Input
Maximum Output Frequency 420 Hz
Frame Size 3
Enclosure Rating IP20 / NEMA/UL Type 1
Enclosure Configuration Conformal Coated
Control Configuration Vector Control with 24V DC I/O
Operator Interface LCD Display, Full Numeric Keypad
HIM Model 20-HIM-A3 (Catalog Configuration)
Brake IGBT Installed
Internal Brake Resistor Not Included
EMC Filter Included with Common-Mode Choke
Internal Communication Module ControlNet Coaxial
Feedback Option Standard Encoder
Analog Inputs 2
Analog Outputs 2
Digital Inputs 6
Digital Outputs 3
Carrier Frequency 2 / 4 / 8 / 10 kHz Configurable
Rated Efficiency 97.5% at Rated Current
Displacement Power Factor 0.98
Approximate Height 517.5 mm
Approximate Width 222 mm
Approximate Depth 200 mm
Approximate Shipping Weight 22.68 kg
Photographed Packaging Series Series B
Photographed Packaging Firmware 10.004
Photographed Packaging Origin Mexico
Packaging Manufacturing Date 2023/04/22
Manufacturer Lifecycle Discontinued June 01, 2023

Product Overview

The Allen-Bradley 20BD040A3AYNACC1 is a PowerFlex 700 adjustable-frequency AC drive manufactured by Rockwell Automation. It is rated for 30 HP normal duty and 25 HP heavy duty at 480V, with 40 A continuous output current. At the 400V operating class, this drive provides 22 kW normal-duty and 18.5 kW heavy-duty ratings. This Frame 3 drive features an IP20 / NEMA/UL Type 1 enclosure, vector control with 24V DC I/O, an installed brake IGBT and an integrated EMC filter with common-mode choke. The exact 20BD040A3AYNACC1 catalog configuration specifies an LCD display with full numeric keypad, ControlNet coaxial communication module and standard encoder feedback option. These features distinguish it from similar PowerFlex 700 catalog numbers with blank operator covers, different communication modules or no feedback option. Rockwell Automation lists this exact catalog number as discontinued on June 1, 2023. The supplied actual packaging photographs show catalog number 20BD040A3AYNACC1, Series B, firmware marking 10.004 and manufacturing date 2023/04/22. The drive-unit nameplate and physically installed options have not been independently verified. Please confirm the exact catalog configuration, included HIM, communication module, feedback hardware and installation requirements before ordering.

Key Product Features

  • PowerFlex 700 AC Drive — Allen-Bradley Bulletin 20B adjustable-frequency drive.
  • 30 HP Normal Duty @ 480V — Rated for 30 HP normal-duty and 25 HP heavy-duty operation.
  • 22 kW Normal Duty @ 400V — Rated for 22 kW normal-duty and 18.5 kW heavy-duty operation.
  • 40 A Continuous Output @ 480V — With 51 A one-minute and 68 A three-second overload ratings.
  • Frame 3 IP20 Enclosure — NEMA/UL Type 1 construction with a conformal-coated configuration.
  • ControlNet Communication and Encoder Feedback — Catalog configuration includes ControlNet coaxial connectivity and standard encoder feedback.
  • LCD HIM and Integrated Brake IGBT — Full numeric LCD keypad and internal brake transistor without an internal brake resistor.

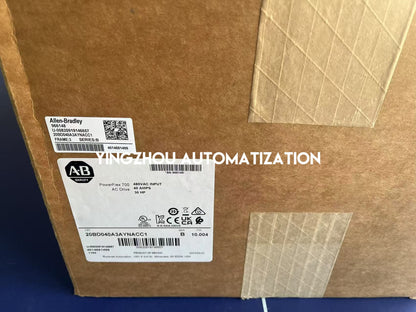

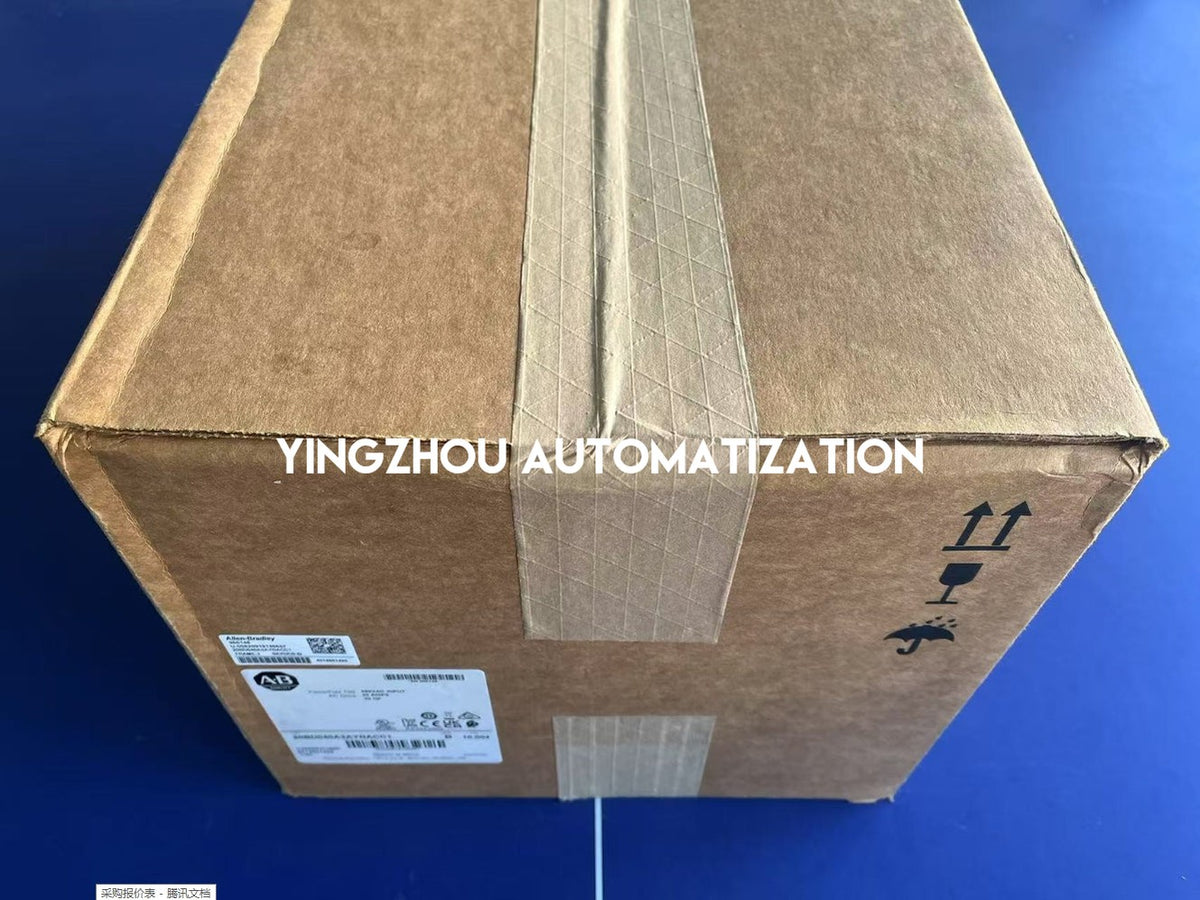

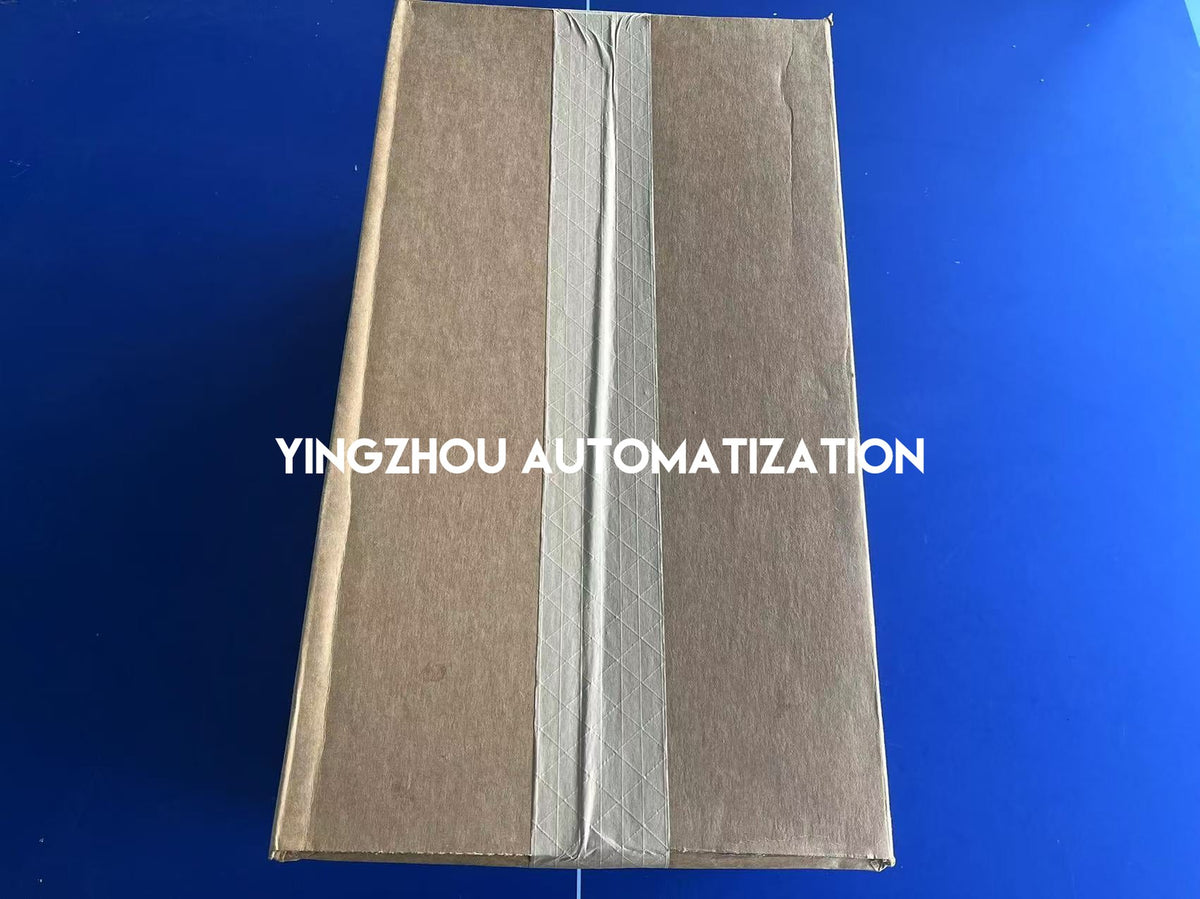

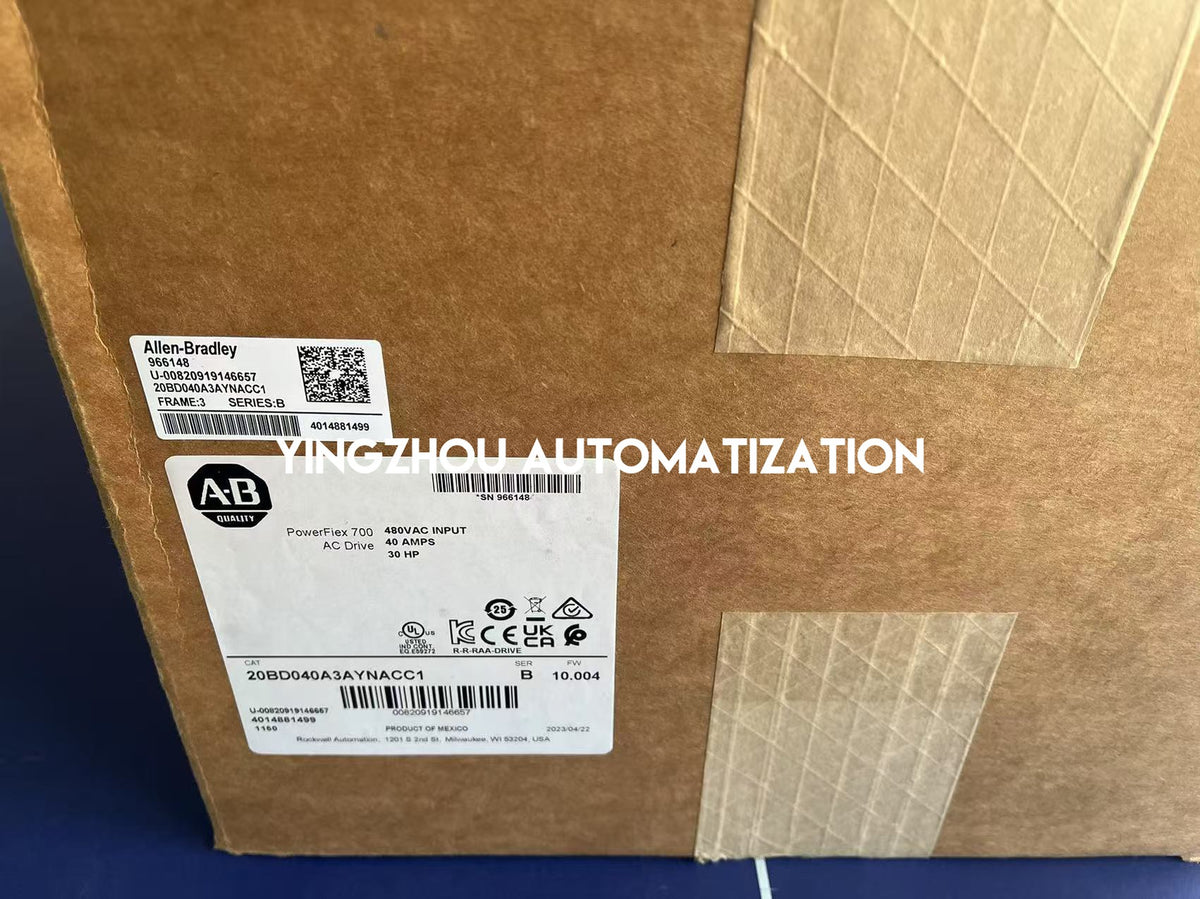

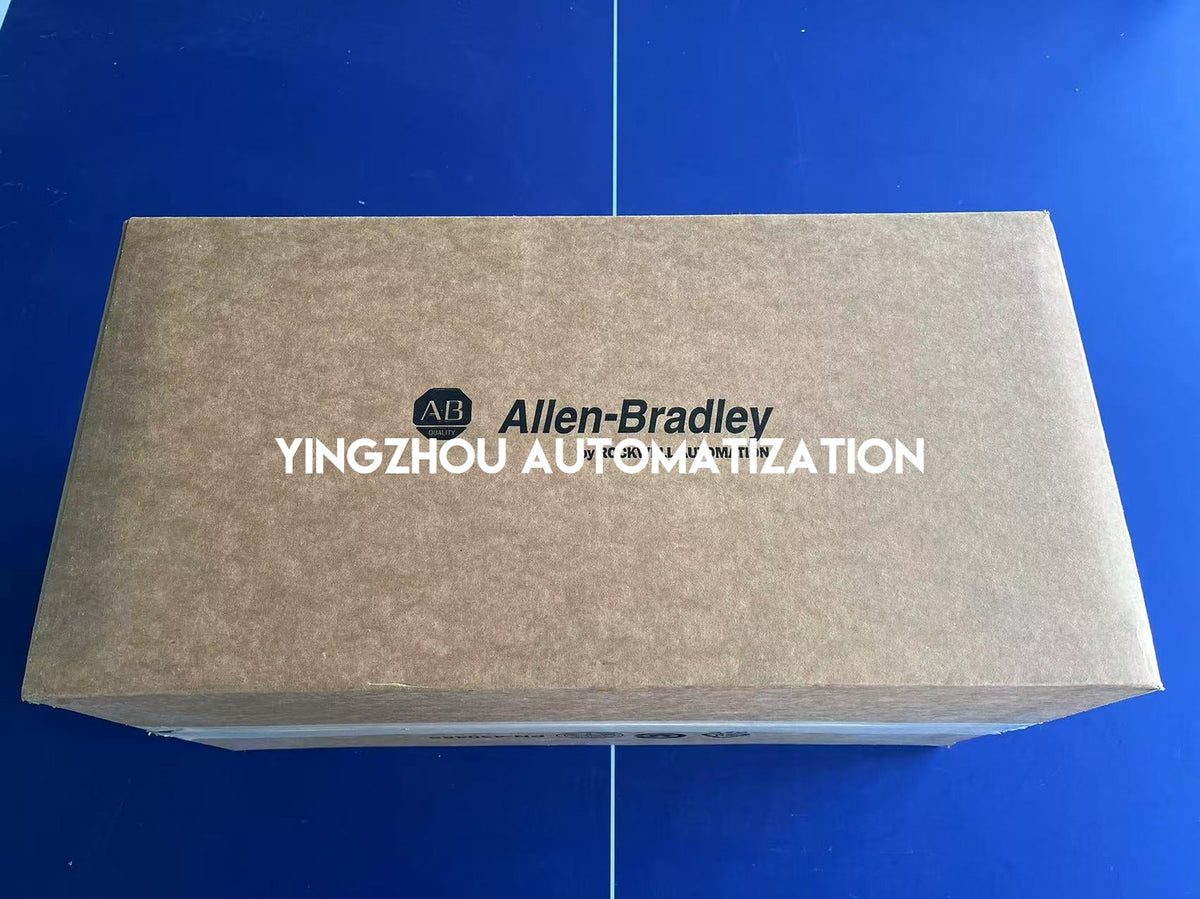

Actual Product Verification

✓ Actual product packaging photograph supplied
✓ Packaging catalog number 20BD040A3AYNACC1 matches the requested model
✓ Both visible carton labels identify the same catalog number
✓ Packaging identifies PowerFlex 700, 480V AC, 40 A and 30 HP
✓ Packaging label shows Series B and firmware 10.004
✓ Manufacturing date 2023/04/22 visible on the packaging
✓ Packaging label marked PRODUCT OF MEXICO
✓ Rockwell Automation lists this model as discontinued on June 1, 2023
✓ Catalog configuration specifies an LCD HIM, ControlNet coaxial module and standard encoder feedback
✓ Physical drive nameplate, installed option cards and functional testing are not confirmed by the supplied photograph
✓ Confirm the exact drive, HIM, communication module, encoder option and included accessories before ordering

In Stock & Available to Order

Allen-Bradley 20BD040A3AYNACC1 is marked in stock based on the supplied inventory information. This manufacturer-discontinued PowerFlex 700 drive is offered for exact-model industrial replacement and procurement requirements. The supplied actual photograph verifies the carton identification label, but the physical drive nameplate, installed LCD HIM, ControlNet communication module, encoder feedback option and functional testing have not been independently verified. Please confirm the supplied unit, options, quantity and dispatch arrangements before completing an order.

IN STOCK

Allen-Bradley 20BD040A3AYNACC1

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 480V three-phase supply, 40A rating, LCD HIM, ControlNet communication, encoder feedback and installation requirements before ordering.
