Allen-Bradley 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module

Allen-Bradley 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module

$161.99 USD
$161.99 USD
In offerta Esaurito
Model Number
YingZhou Industrial Automation | Product Information

Allen-Bradley 1734-OE2V POINT I/O Analog Voltage Output Module

2 Analog Voltage Outputs | 0–10V / ±10V DC | 14-Bit | 24V DC | Series C
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Carton and Module Model Match Verified
Specification Verified Product Data
Manufacturer Allen-Bradley / Rockwell Automation
Catalog Number 1734-OE2V
Product Family POINT I/O / Bulletin 1734
Product Type Analog Voltage Output Module
Number of Output Channels 2
Output Configuration Single-Ended, Non-Isolated
Output Signal Type Analog Voltage
Unipolar Voltage Range 0–10V DC, User Configurable
Bipolar Voltage Range ±10V DC, User Configurable
Output Before Communication 0V until Communication Established
Unipolar Output Overrange Up to +0.5V Beyond Nominal Maximum
Bipolar Output Overrange Up to ±0.5V Beyond Nominal Limits
Output Resolution 14 Bits (13 Bits + Sign)
Resolution per Count 1.28 mV/count
Absolute Accuracy at 25°C 0.1% Full Scale
Accuracy Drift with Temperature 5 ppm/°C
Maximum Voltage Output Load Current 3 mA
Digital-to-Analog Conversion Rate 20 µs
Output Data Format Signed Integer
Calibration Factory-Calibrated Design
POINTBus Current 75 mA Maximum at 5V DC
Maximum Power Dissipation 1.0 W
Maximum Thermal Dissipation 3.4 BTU/hr
Isolation Voltage 50V Continuous
Isolation Type Test 2200V DC for 60 Seconds
Isolation Between Output Channels None
Nominal External Power Supply 24V DC
External Supply Voltage Range 10–28.8V DC
External Supply Current 35 mA at 24V DC, Including Outputs at 3 mA
Compatible Terminal Bases 1734-TB / TBS / TB3 / TB3S / TOP / TOPS / TOP3 / TOP3S
Terminal Base Keyswitch Position 4
Terminal Base Screw Torque 0.6 N.m
Enclosure Type Open-Style
Mounting DIN Rail with Compatible Terminal Base
Approximate Dimensions (H x W x D) 56.6 x 12.1 x 77.5 mm
Approximate Weight 36 g
Operating Temperature -20°C to +55°C
Storage Temperature -40°C to +85°C
Relative Humidity 5–95%, Non-Condensing
Photographed Module Series Series C
Photographed Firmware Marking 3.008
Photographed Serial Number 3010785
Photographed Module Date 2022/06/03
Photographed Carton Date 2022/06/05
Photographed Country Marking Singapore
Manufacturer Lifecycle Active

Product Overview

The Allen-Bradley 1734-OE2V is a POINT I/O two-channel analog voltage output module manufactured by Rockwell Automation. It provides two single-ended, non-isolated analog voltage output channels for supported industrial automation and distributed I/O systems. The module offers configurable 0–10V DC and ±10V DC output ranges with 14-bit resolution (13 bits plus sign) and a manufacturer-specified output resolution of 1.28mV per count. The 1734-OE2V has a specified absolute accuracy of 0.1% full scale at 25°C and a maximum voltage output load current of 3mA. The output voltage remains at 0V until communication is established. This module uses a nominal 24V DC external supply, with an operating voltage range of 10–28.8V DC, and draws a maximum of 75mA at 5V DC from the POINTBus. It is designed for installation with a compatible POINT I/O terminal base, which must be confirmed separately for the supplied unit. The 1734-OE2V is an analog voltage output module, not an analog current output or voltage input module. Its two output channels are not individually electrically isolated. Rockwell Automation currently lists the exact catalog number as Active. The supplied actual product photographs show matching carton and module labels identifying 1734-OE2V, Series C, serial number 3010785 and Singapore as the country of origin. The module label indicates FW 3.008 and date 2022/06/03; the carton shows a separate date of 2022/06/05. These dates are recorded separately. Model and serial number identification match between the carton and module. Functional testing, manufacturer authentication and terminal base inclusion have not been independently verified. Please confirm the exact supplied module, voltage output configuration and installation requirements before ordering.

Key Product Features

  • POINT I/O Analog Voltage Output Module — Allen-Bradley Bulletin 1734 module for analog voltage signal control.
  • Two Analog Voltage Outputs — Two single-ended, non-isolated channels.
  • 0–10V and ±10V DC Ranges — Supports configurable unipolar and bipolar voltage outputs.
  • 14-Bit Output Resolution — 13 bits plus sign, with 1.28mV per count.
  • Factory-Calibrated Voltage Output — Manufacturer-specified 0.1% full-scale accuracy at 25°C.
  • 24V DC Field Supply — External DC supply with 75mA maximum POINTBus current at 5V DC.
  • Compact POINT I/O Design — Open-style construction for DIN-rail installation with a compatible terminal base.

Actual Product Verification

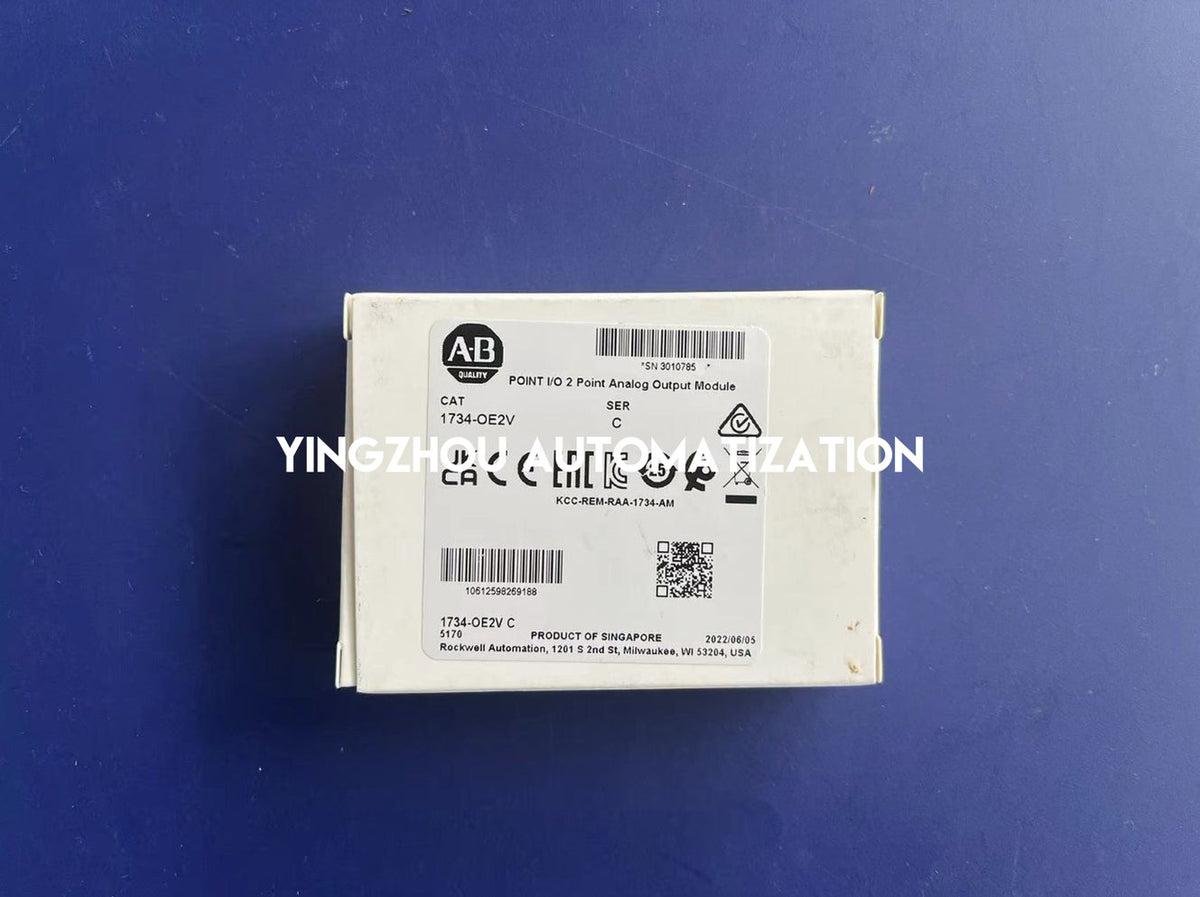

✓ Actual product carton and module nameplate photographs supplied
✓ Carton catalog number 1734-OE2V matches the requested model

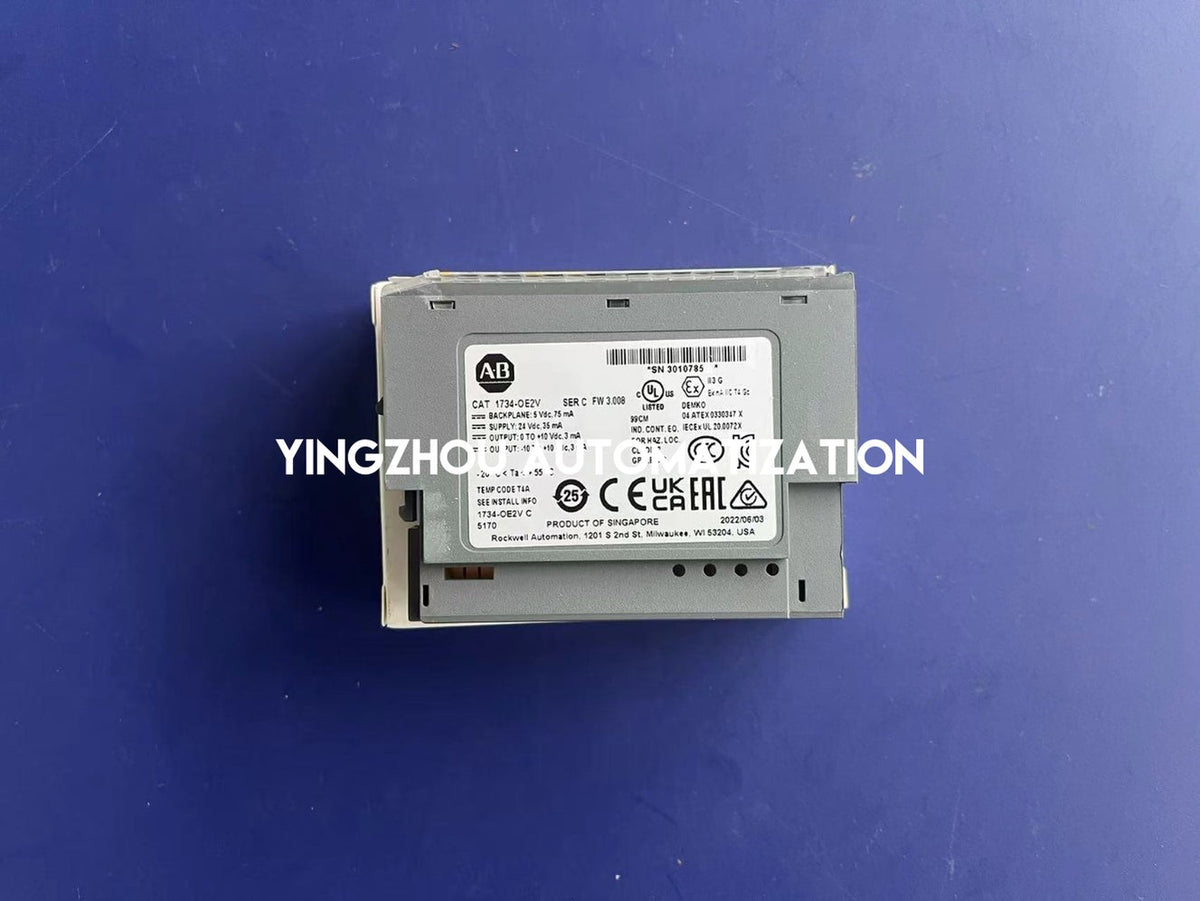

✓ Physical module nameplate also identifies 1734-OE2V
✓ Both labels show Series C
✓ Carton and module serial numbers both show 3010785
✓ Module nameplate shows firmware marking 3.008
✓ Module date 2022/06/03 is visible
✓ Carton date 2022/06/05 is visible and recorded separately
✓ Both labels identify PRODUCT OF SINGAPORE
✓ Module nameplate specifies BACKPLANE: 5V DC, 75mA
✓ Module nameplate specifies SUPPLY: 24V DC, 35mA
✓ Module nameplate specifies 0 to +10V DC and -10 to +10V DC voltage output ratings
✓ Module nameplate identifies 3mA output load current
✓ Rockwell Automation confirms the exact model as a two-channel analog voltage output module
✓ Manufacturer documentation confirms 14-bit output resolution
✓ Rockwell Automation currently lists the catalog number as Active
✓ Carton and module model, Series and serial number markings are consistent
✓ Functional testing, manufacturer authentication and terminal base inclusion have not been independently verified
✓ Confirm the required terminal base, output signal configuration and supplied accessories before ordering

In Stock & Available to Order

Allen-Bradley 1734-OE2V is marked in stock based on the supplied inventory information. This POINT I/O module provides two analog voltage outputs with configurable 0–10V DC and ±10V DC signal ranges, 14-bit resolution and a nominal 24V DC external supply. The actual carton and physical module photographs show matching catalog number, Series C and serial number 3010785. Module and carton dates differ by two days and are recorded separately. Functional testing and manufacturer authentication have not been independently verified. A compatible terminal base is required for installation, and its inclusion must be confirmed separately. Please confirm the exact supplied unit, order quantity, accessories and dispatch arrangements before completing an order.

IN STOCK

Allen-Bradley 1734-OE2V

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the POINT I/O system, 0–10V or ±10V output configuration, 24V DC supply, 3mA output load limit, compatible terminal base and installation requirements before ordering.
