Siemens 6ES7231-5QF32-0XB0 S7-1200 SM1231 8AI TC Module

Siemens 6ES7231-5QF32-0XB0 S7-1200 SM1231 8AI TC Module

$457.99 USD
$457.99 USD
Obral Habis
Model Number
YingZhou Industrial Automation | Product Information

Siemens 6ES7231-5QF32-0XB0 SIMATIC S7-1200 SM1231 TC Module

8 Thermocouple Inputs | 16 Bit | 24V DC | SIMATIC S7-1200
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Device Nameplate Verification Pending
Specification Verified Product Data
Manufacturer Siemens
Catalog Number 6ES7231-5QF32-0XB0
Product Family SIMATIC S7-1200
Product Series SM 1231 TC
Product Type Thermocouple Analog Input Module
Module Designation AI 8 x 16 Bit TC
Number of Analog Inputs 8
Analog Input Type Thermocouple / Millivolt
Resolution 16 Bit
Rated Supply Voltage 24 V DC
Typical Supply Current 40 mA
Backplane Bus Current 80 mA at 5 V DC (typical)
Typical Power Loss 1.5 W
Thermocouple Types B, C, E, J, K, N, R, S, T, TXK/TXK(L)
Millivolt Input Range -80 mV to +80 mV
Input Resistance ≥1 MΩ for ±80 mV range
Temperature Units °C / °F
Measurement Principle Integrating
Current Input Not Supported
RTD Input Not Supported
Operating Temperature -20°C to +60°C
Module Dimensions 45 x 100 x 75 mm (W x H x D)
Net Weight 0.191 kg
Packaging Quantity 1 Piece
Country of Origin China
Manufacturer Lifecycle PM300 - Active Product

Product Overview

The Siemens 6ES7231-5QF32-0XB0 is a SIMATIC S7-1200 SM 1231 thermocouple analog input module designed for industrial temperature signal acquisition. The module provides 8 thermocouple analog input channels with 16-bit resolution and operates with a 24 V DC rated supply. It supports multiple thermocouple types including B, C, E, J, K, N, R, S, T and TXK/TXK(L), along with a -80 mV to +80 mV input range. Temperature measurement units can be configured in Celsius or Fahrenheit. The module is designed for SIMATIC S7-1200 expansion systems and has a compact 45 mm width. Supplied actual packaging photographs show the exact catalog number 6ES7231-5QF32-0XB0. The physical module nameplate has not yet been photographed. Confirm exact model identity, supported sensor type and configuration requirements before installation.

Key Product Features

  • SIMATIC S7-1200 Expansion Module — SM 1231 TC analog input module.
  • 8 Thermocouple Inputs — Eight temperature measurement input channels.
  • 16-Bit Resolution — High-resolution analog measurement.
  • 24 V DC Supply — Rated module supply voltage.
  • Multiple Thermocouple Types — Supports B, C, E, J, K, N, R, S, T and TXK/TXK(L).
  • Millivolt Measurement — Input range from -80 mV to +80 mV.
  • Temperature Units — Configurable °C and °F measurement units.
  • Compact Design — 45 mm wide SIMATIC module.
  • Industrial Operating Range — Ambient operating temperature -20°C to +60°C.
  • Manufacturer Active Product — PM300 product lifecycle status.
  • Actual Packaging Photography — Exact Siemens catalog number visible on original packaging.

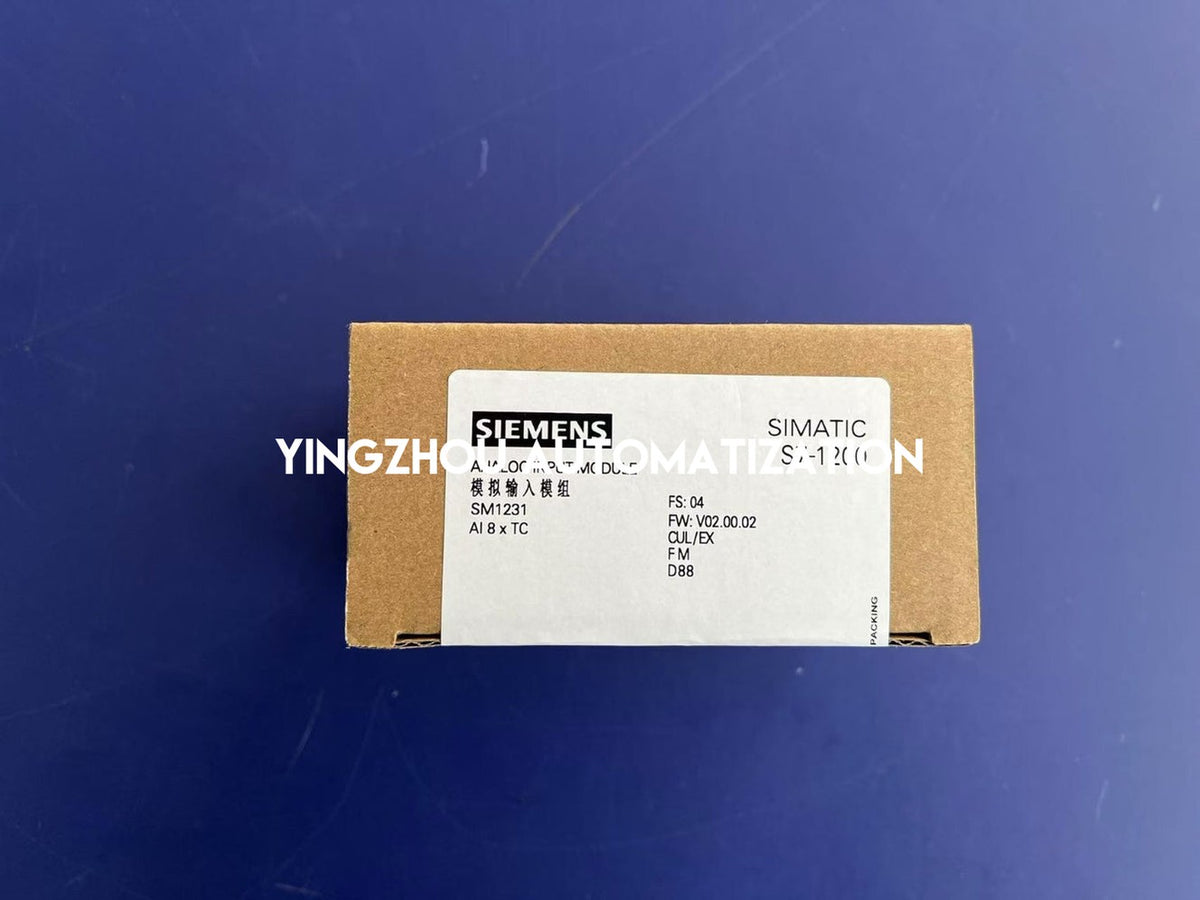

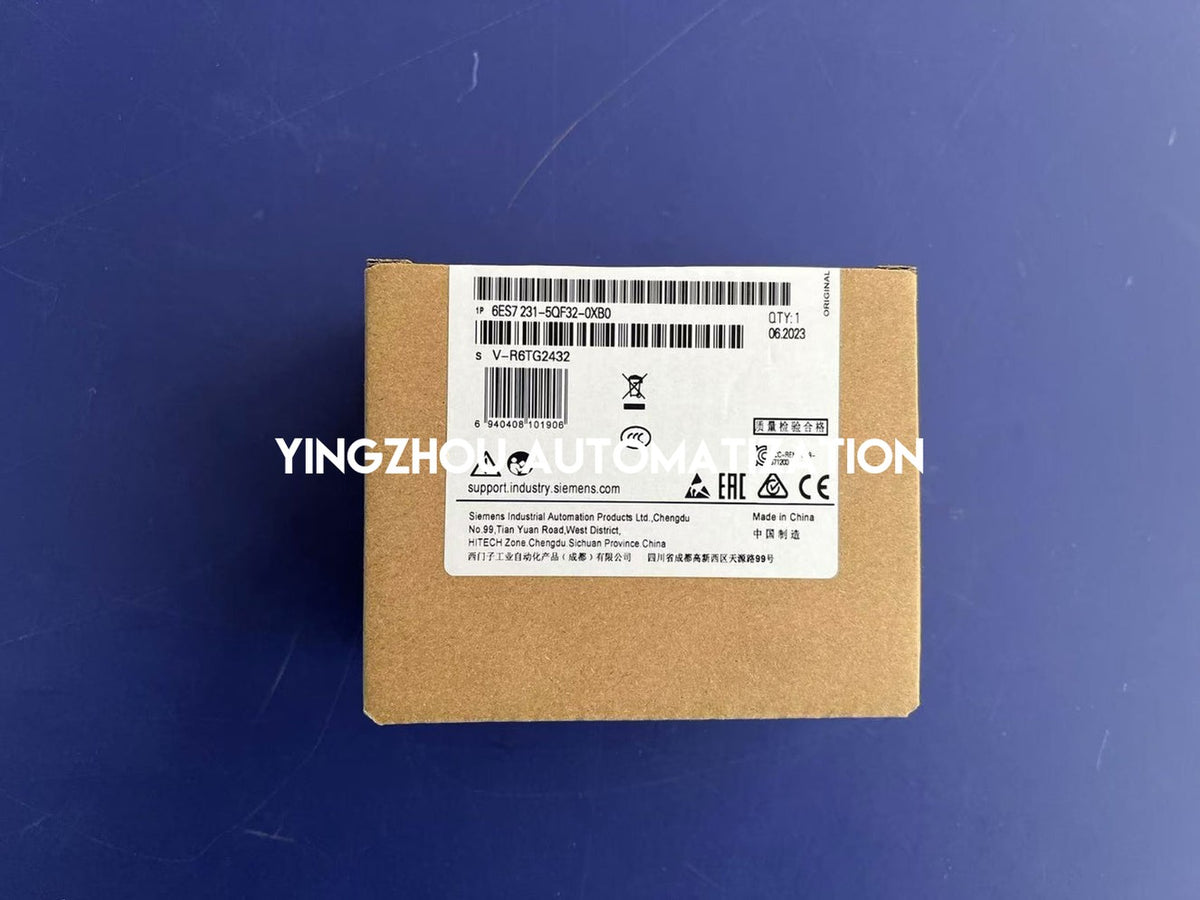

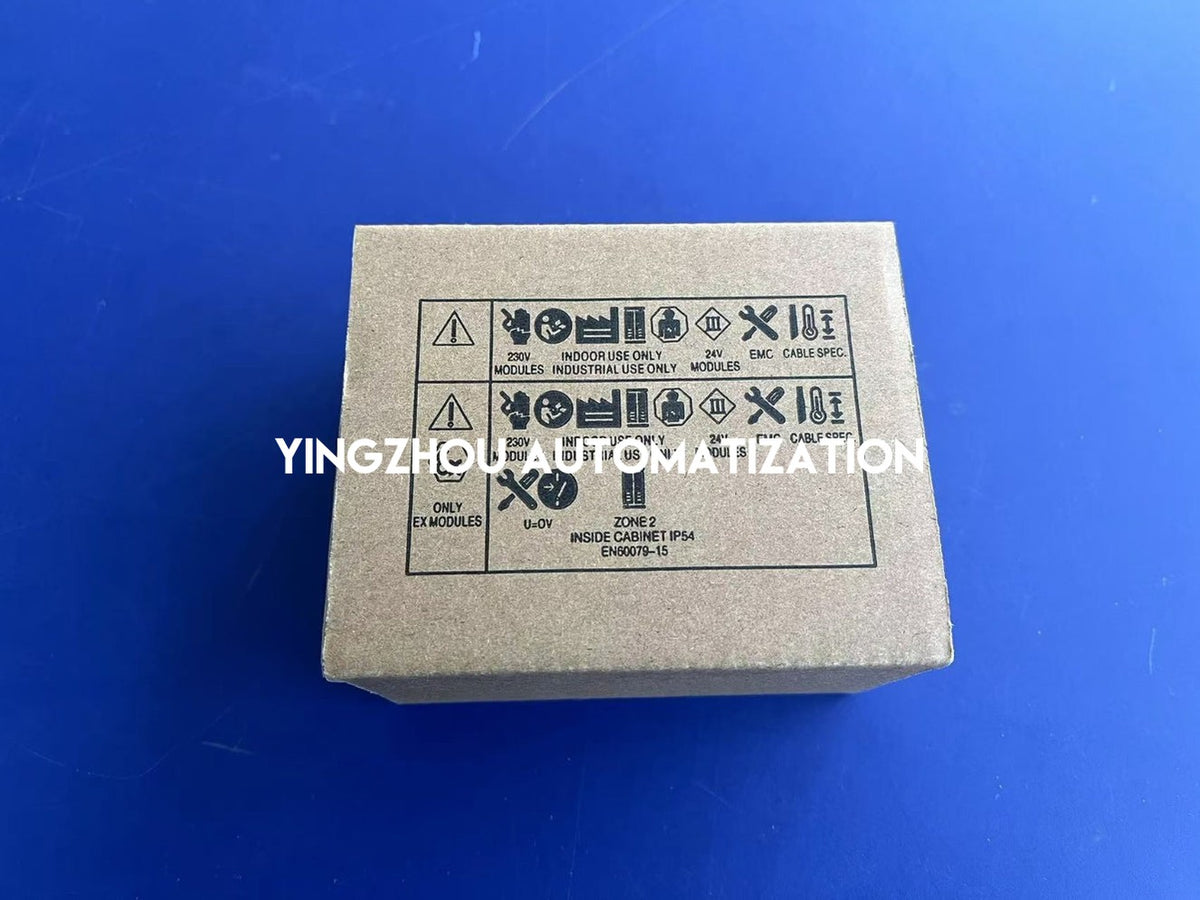

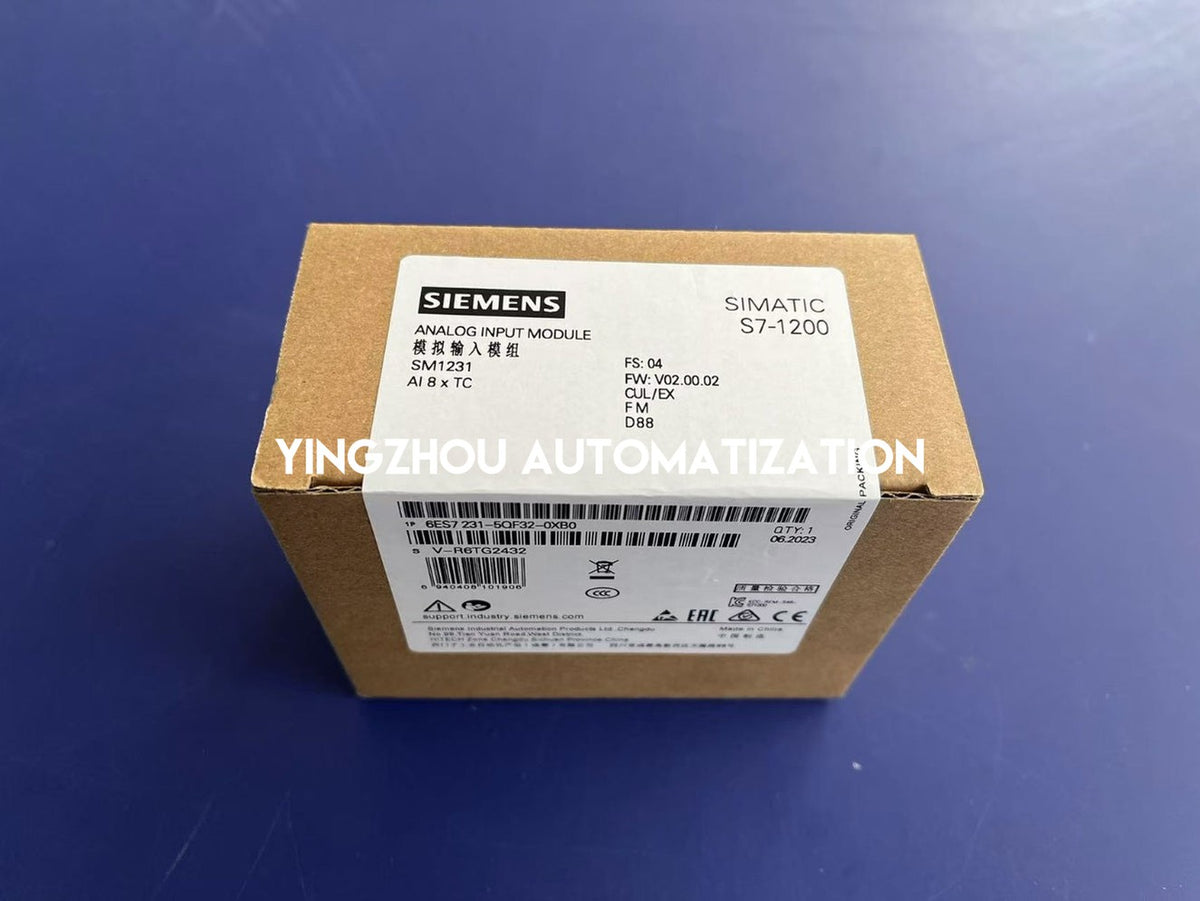

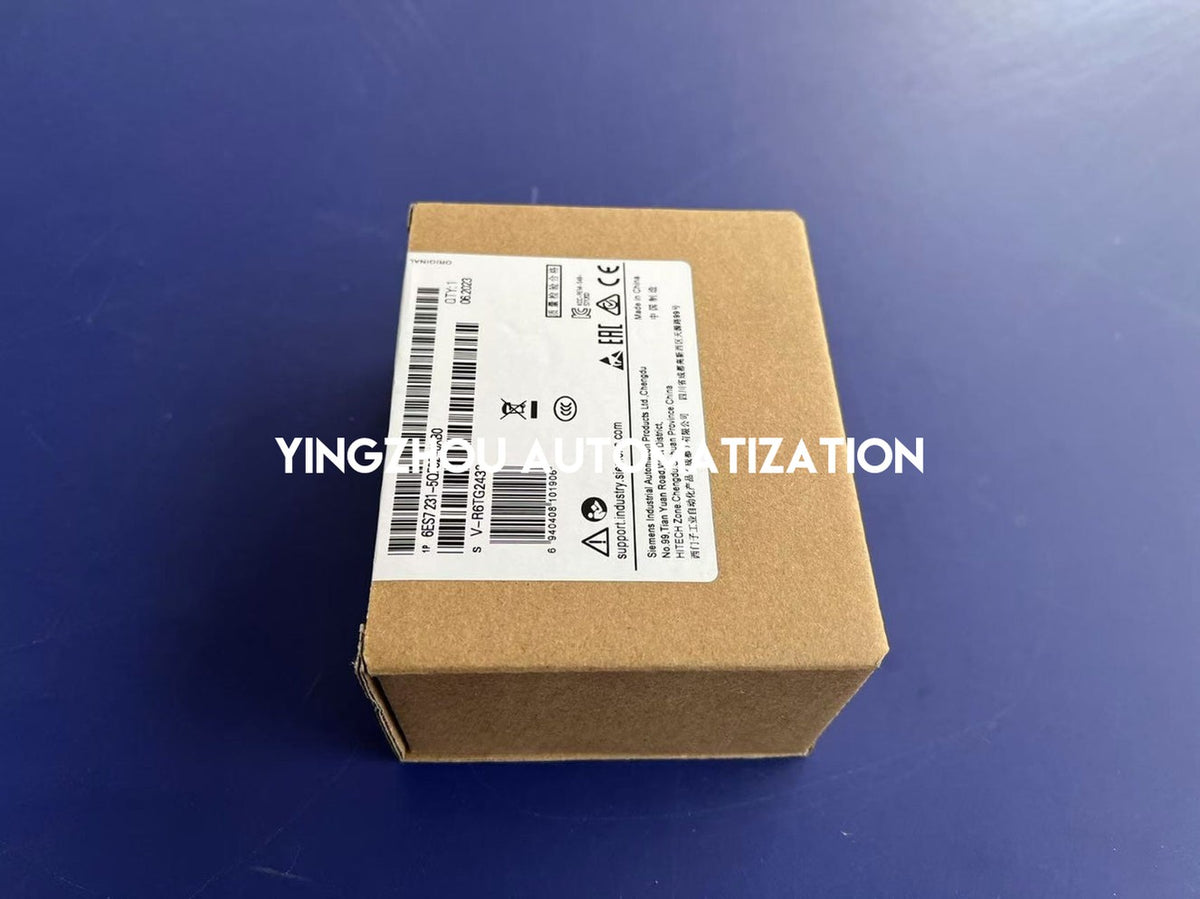

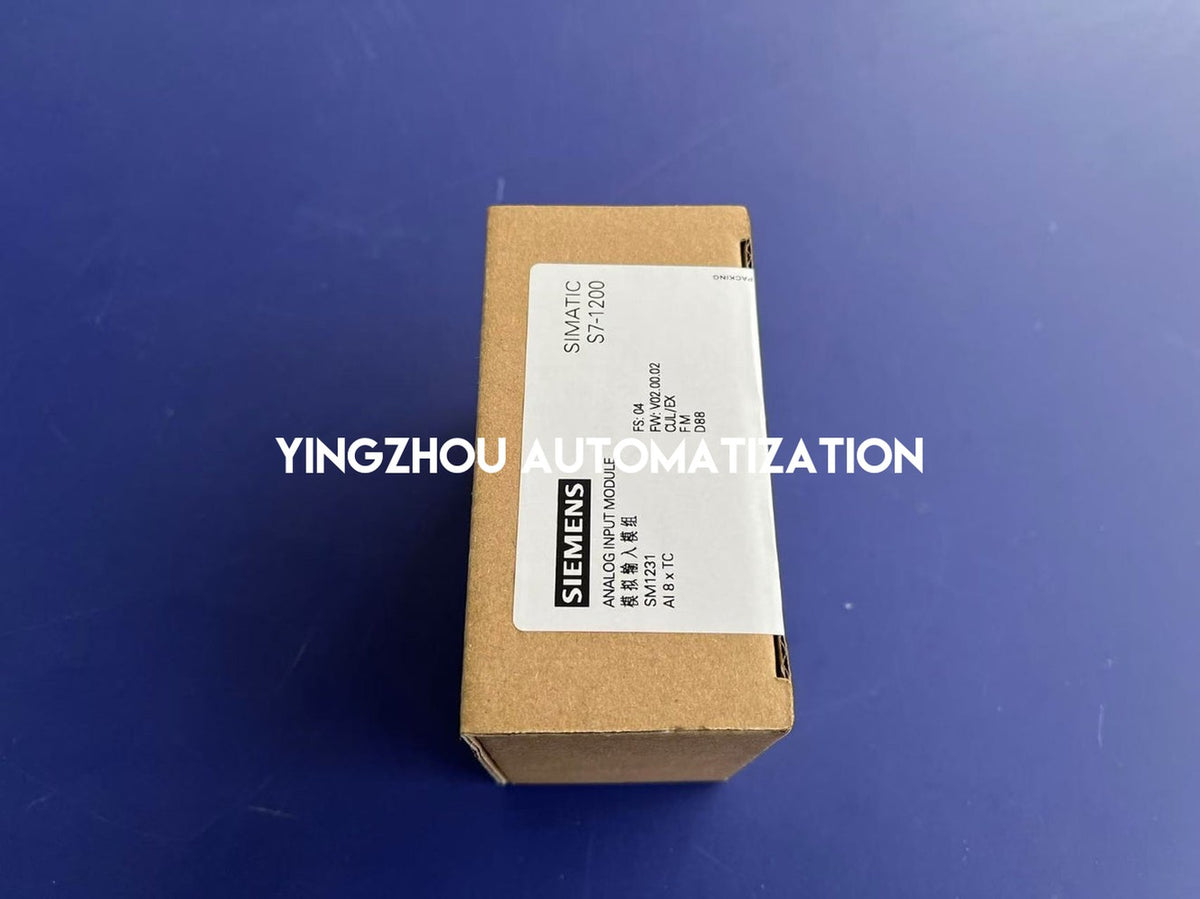

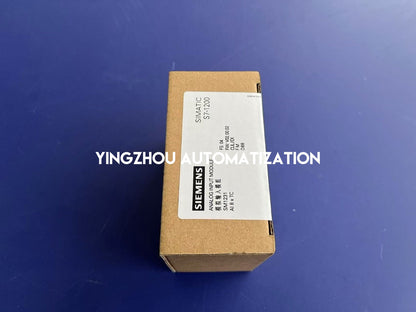

Actual Product Verification

✓ Actual Siemens packaging photographs supplied
✓ Packaging catalog number: 6ES7231-5QF32-0XB0
✓ Packaging description: SIMATIC S7-1200 SM1231
✓ Packaging module type: AI 8 x TC
✓ Packaging hardware marking: FS: 04
✓ Packaging firmware marking: FW: V02.00.02
✓ Packaging date marking: 06.2023
✓ Packaging quantity: 1 piece
✓ Packaging origin: Made in China
✓ Physical module nameplate not shown in supplied photos
✓ Verify the exact module identification and required sensor configuration before ordering

In Stock & Available to Order

Siemens 6ES7231-5QF32-0XB0 is in stock according to the supplied inventory information. This SIMATIC S7-1200 SM 1231 module provides 8 thermocouple analog inputs with 16-bit resolution. Actual packaging photographs are available for catalog-number checking. Please confirm the exact module, thermocouple sensor type, required quantity and installation requirements before ordering. Contact YINGZHOU for bulk purchasing and multi-brand industrial automation sourcing.

IN STOCK

Siemens 6ES7231-5QF32-0XB0

Contact us for exact-model verification, available quantities and bulk pricing. Please confirm the SIMATIC S7-1200 system, eight thermocouple inputs, 24 V DC supply and sensor requirements before ordering.
