Schneider Electric ZB4BVB1 Harmony XB4 24V AC/DC White Integral LED Body/Light Block Assembly with Fixing Collar

Name: Schneider Electric ZB4BVB1 Harmony XB4 24V AC/DC White Integral LED Body/Light Block Assembly with Fixing Collar
Brand: Schneider
SKU: ZB4BVB1
Price: 11.99 USD
Availability: InStock

Schneider Electric ZB4BVB1 Harmony XB4 24V AC/DC White Integral LED Body/Light Block Assembly with Fixing Collar

$11.99 USD

Obral Habis

Model Number ZB4BVB1

Varian produk

Jumlah

YingZhou Industrial Automation | Product Information

Schneider Electric ZB4BVB1 Harmony XB4 24V AC/DC White LED Light Block Assembly

24V AC/DC | White Integral LED | Body/Fixing Collar | Screw Clamp Terminals

✓ IN STOCK & READY TO ORDER | Actual Packaging Photos | Exact Model Verified

Specification	Product Data
Brand	Schneider Electric
Exact Model	ZB4BVB1
Series	Harmony XB4
Device Short Name	ZB4
Product Type	Complete Body/Light Block Assembly
Light Source	Universal LED
Bulb Base	Integral LED
Light Source Colour	White
Rated Supply Voltage	24V AC/DC, 50/60Hz
DC Supply Voltage Limits	19.2–30V DC
AC Supply Voltage Limits	21.6–26.4V AC
Signalling Type	Steady
Current Consumption	18mA
Connections / Terminals	Screw Clamp Terminals
Terminal Identification	(X1–X2)PL
Fixing Collar Material	Zamak
CAD Overall Width	30mm
CAD Overall Height	47mm
CAD Overall Depth	37mm
Net Weight	0.054kg
Tightening Torque	0.8–1.2N·m, IEC 60947-1
Rated Insulation Voltage	600V, Pollution Degree 3
Rated Impulse Withstand Voltage	6kV
LED Service Life	100,000h at Rated Voltage and 25°C
Ambient Operating Temperature	−40 to +70°C
Ambient Storage Temperature	−40 to +70°C
IP Degree of Protection	IP20 (IEC 60529)
EAN	3389110892383

Product Overview

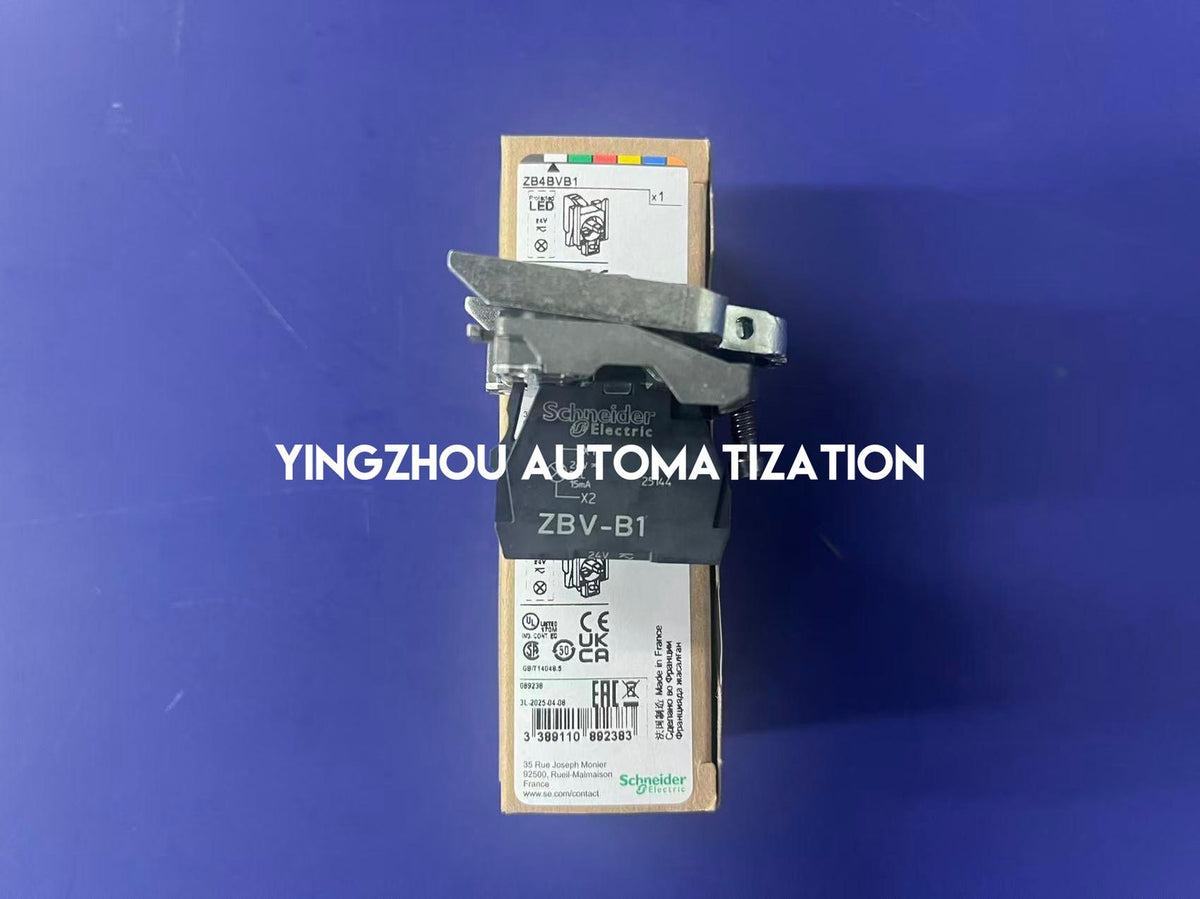

The Schneider Electric ZB4BVB1 is a complete body/light block assembly from the Harmony XB4 modular control and signalling range. This model features a white integral universal LED rated for 24V AC/DC, 50/60Hz and provides steady signalling. The assembly includes a Zamak fixing collar and uses screw clamp terminals for electrical connections. It is intended for integration with compatible Harmony XB4 illuminated control and signalling heads. The manufacturer's specified current consumption is 18mA, while the LED service life is 100,000 hours at rated voltage and 25°C. The module has a specified IP20 protection rating and is supplied as a body/light block sub-assembly. This is not a complete front-mounted pilot light. The required front indicator head must be selected separately according to the application.

Key Product Features

Schneider Harmony XB4 body/light block assembly for modular industrial signalling equipment
White integral universal LED for steady light indication
24V AC/DC rated supply at 50/60Hz

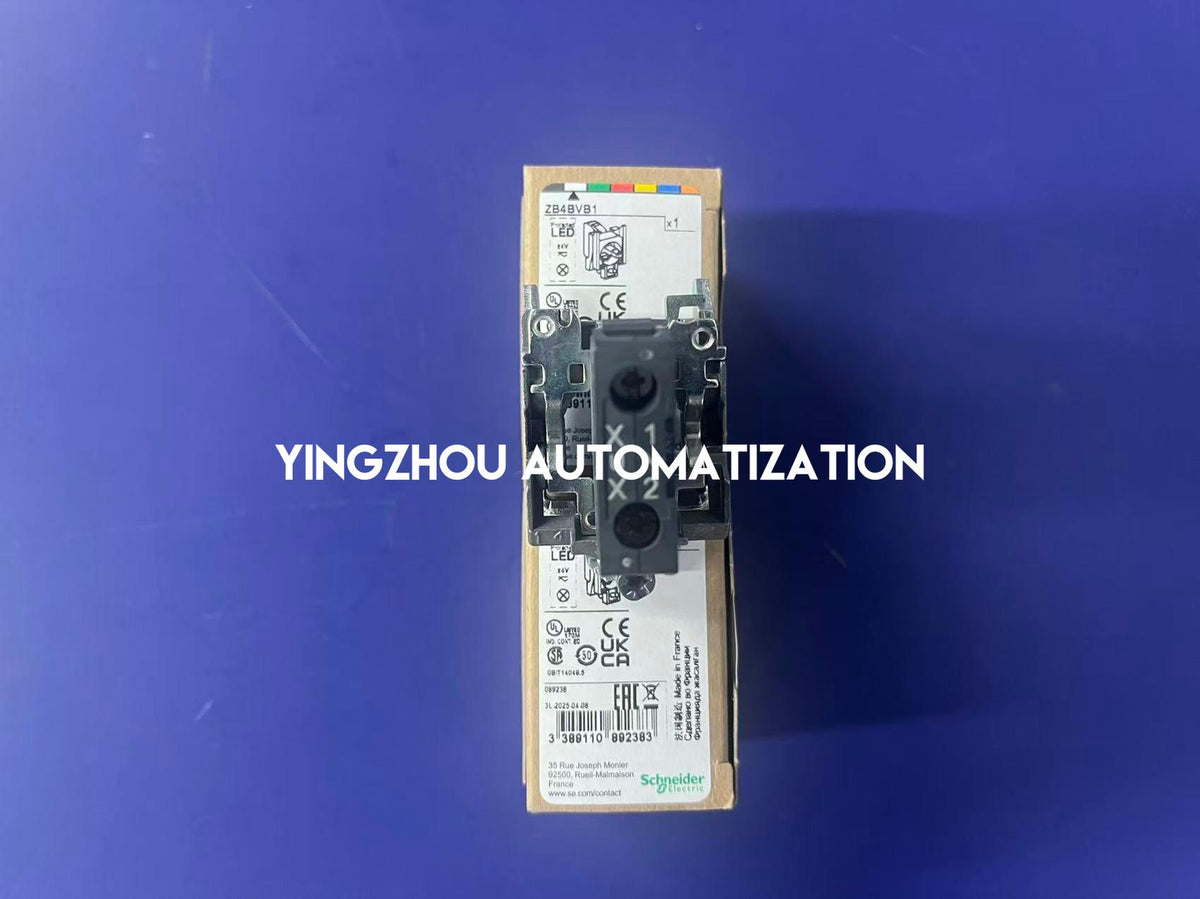

Screw clamp terminals with X1–X2 terminal identification

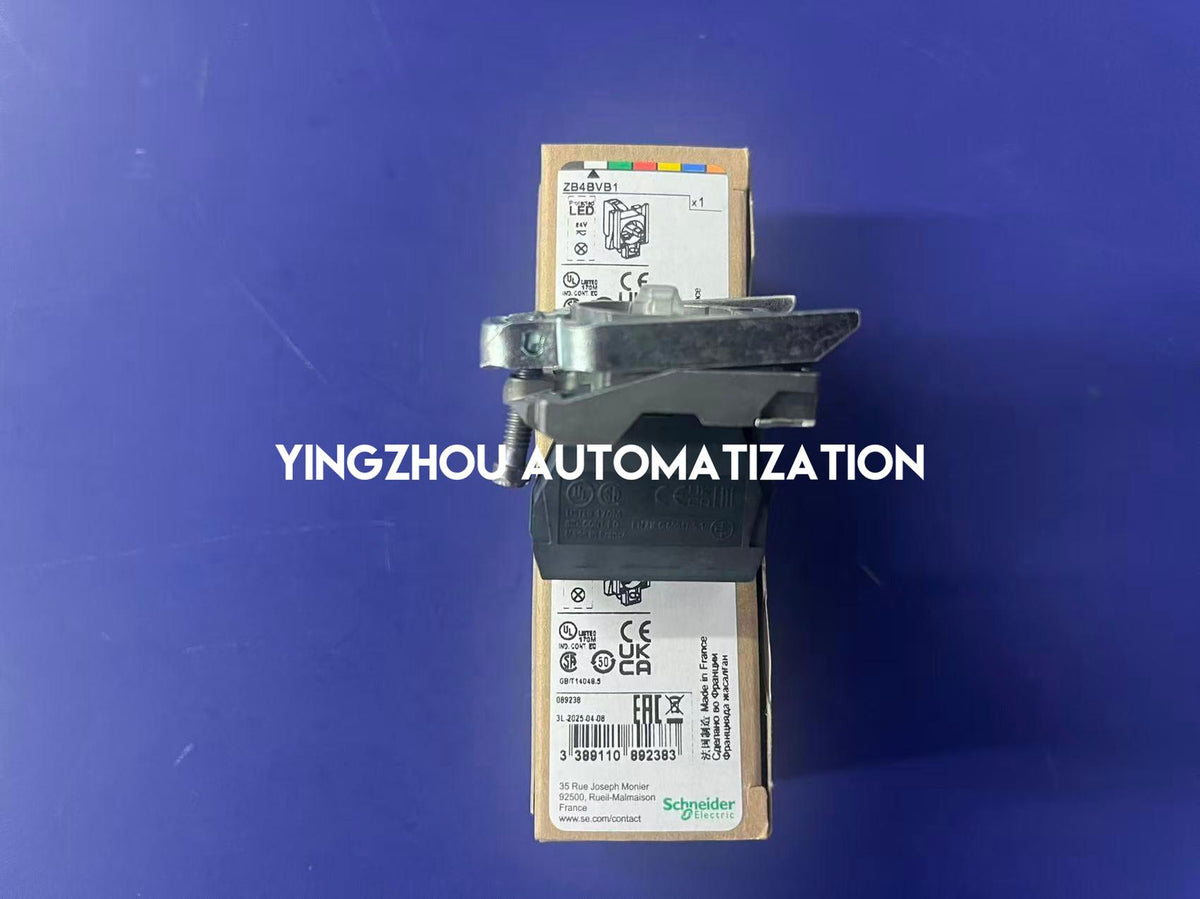

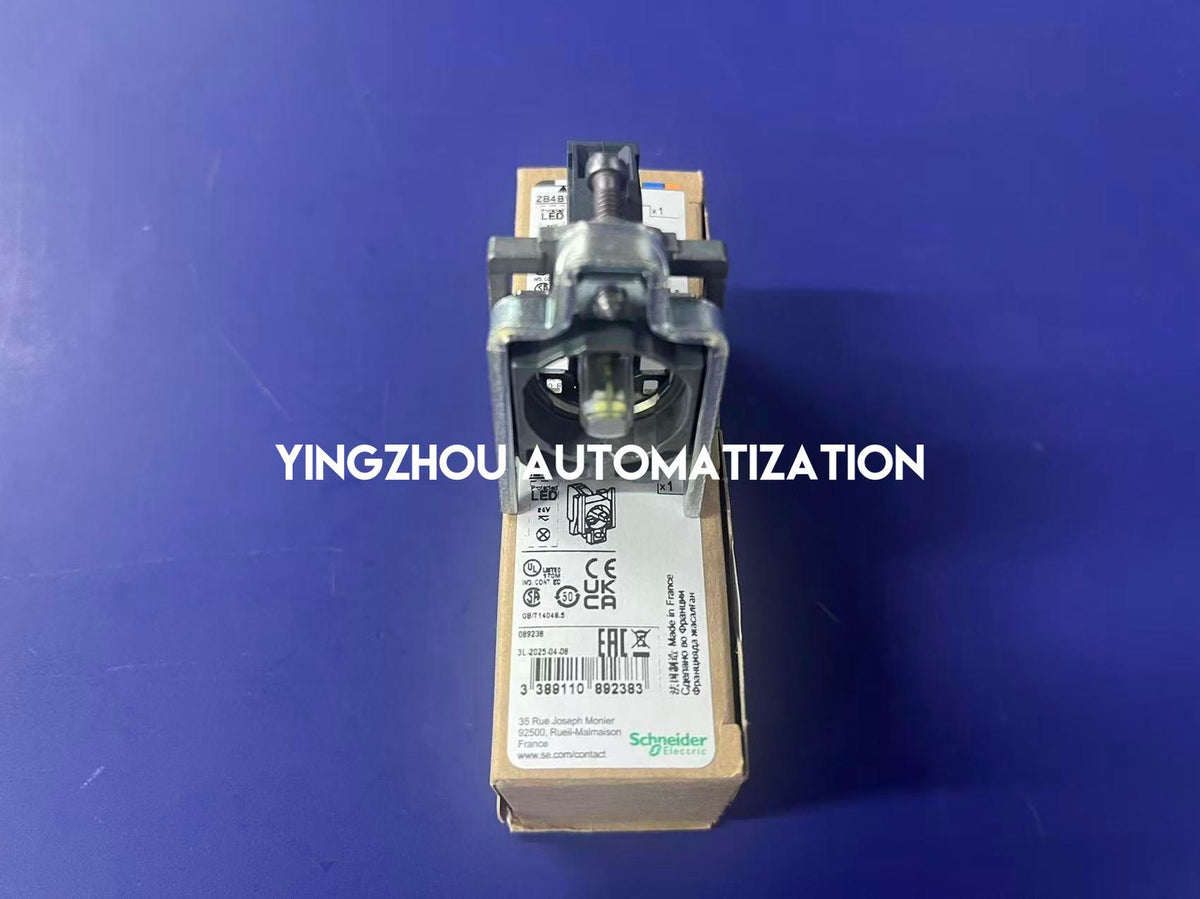

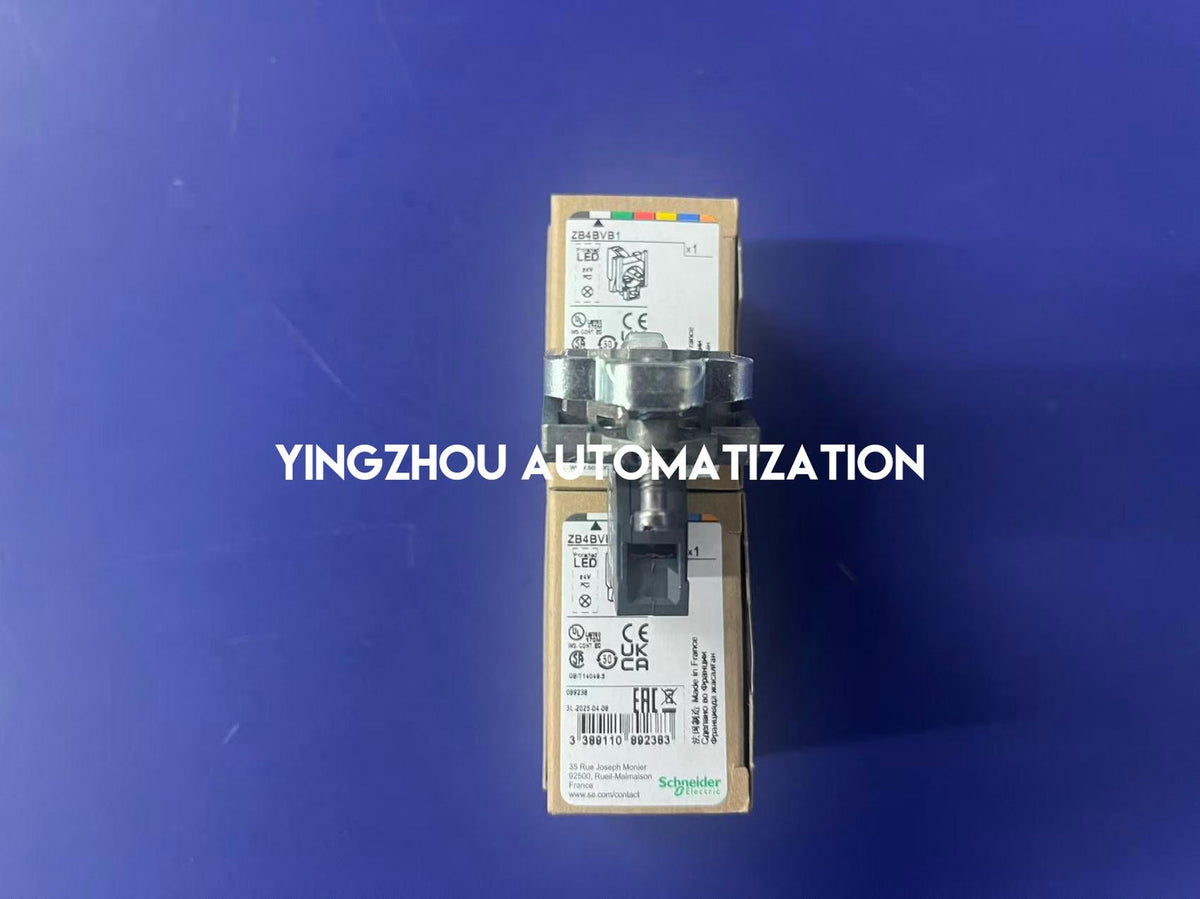

Zamak fixing collar for compatible Harmony XB4 heads
100,000-hour LED service life specified at rated voltage and 25°C
IP20 module protection according to the manufacturer specification

Actual Product Verification

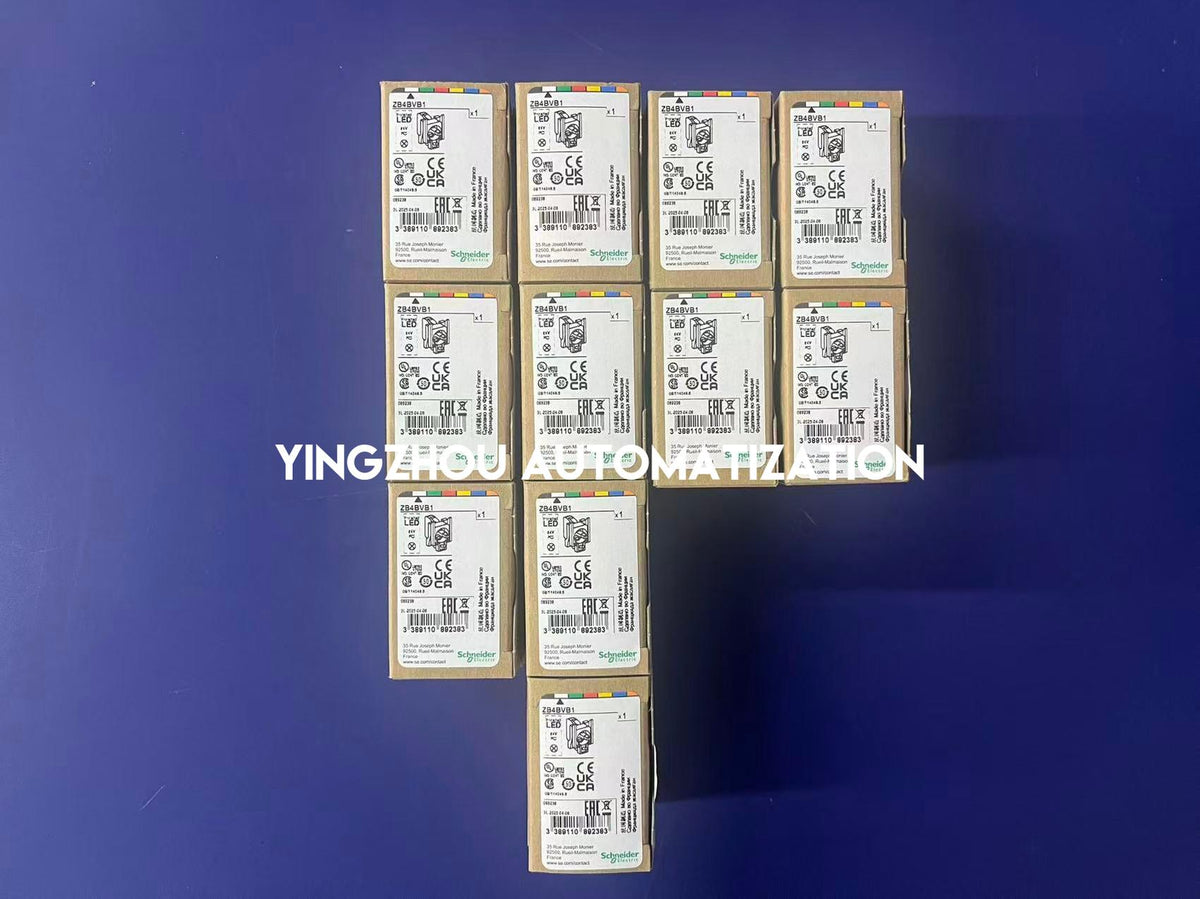

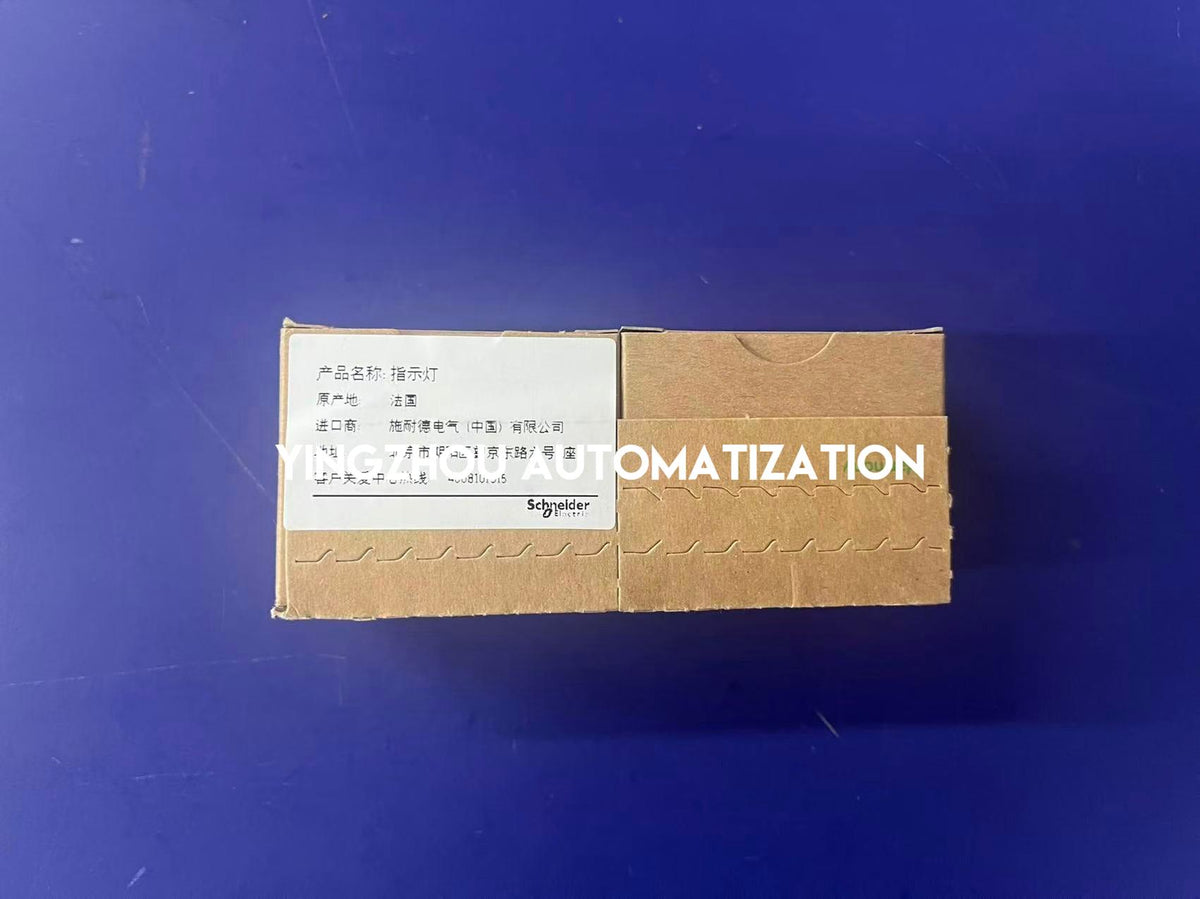

✓ Actual Schneider Electric product packaging photograph supplied

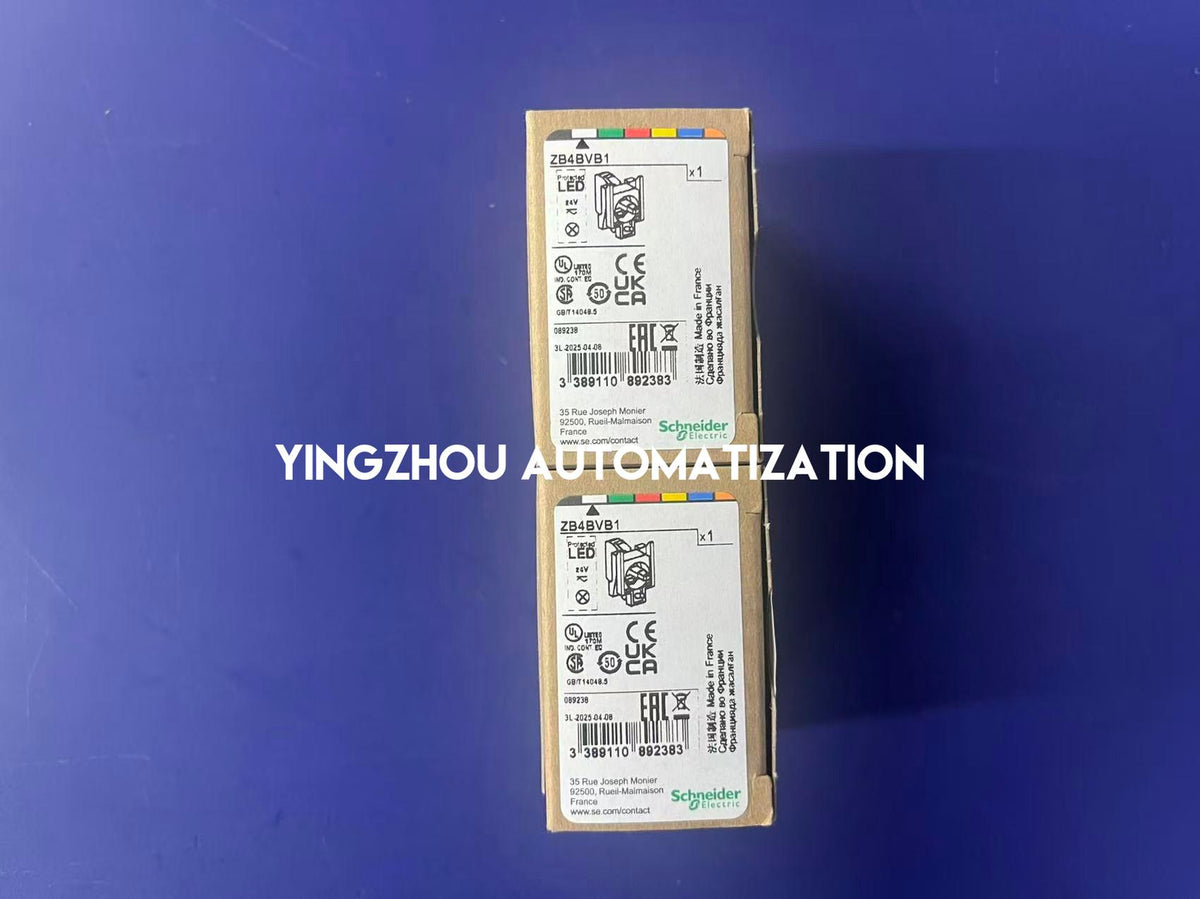

✓ Exact model ZB4BVB1 clearly visible on both packaging labels

✓ Protected LED and 24V markings visible on packaging

✓ Barcode, package quantity x1 per box and Made in France markings visible

✓ Verify exact model, rated voltage, fixing collar and front indicator head requirements before ordering

In Stock & Ready to Order

Schneider Electric ZB4BVB1 is in stock and ready to order. Actual product packaging photographs are available for model verification. This Harmony XB4 body/light block assembly features a white integral LED, 24V AC/DC rated supply, screw clamp terminals and a Zamak fixing collar. The module supports steady signalling and has a manufacturer-specified IP20 protection rating. It is intended for use with separately selected compatible Harmony XB4 front indicator heads. Please verify the exact model, quantity, electrical supply and assembly requirements before purchasing. Contact our team for international shipping and order assistance.
