Schneider Electric LC1N1810M5N Easy TeSys AC Contactor
3P | 18A AC-3 | 220V AC 50Hz Coil | 7.5kW at 380V
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
LC1N1810M5N |
| Series |
Easy TeSys Control |
| Product Type |
AC Contactor |
| Device Short Name |
LC1N |
| Number of Poles |
3P |
| Main Contacts |
3 Normally Open (3NO) |
| Auxiliary Contacts |
1NO |
| Rated Operational Current |
18A AC-3 at up to 440V AC (≤60°C) |
| AC-1 Rated Current |
32A at up to 440V AC (≤60°C) |
| Rated Operational Voltage |
Power Circuit ≤690V AC, 50/60Hz |
| Control Coil Voltage |
220V AC |
| Coil Frequency |
50Hz |
| Control Coil Type |
AC Electromagnetic Coil |
| Motor Power at 220/230V |
4kW, AC-3 |
| Motor Power at 380/400V |
7.5kW, AC-3 |
| Motor Power at 415/440V |
9kW, AC-3 |
| Insulation Voltage |
690V |
| Impulse Withstand Voltage |
6kV |
| Conventional Thermal Current |
32A (Ith, ≤60°C) |
| Mounting |
DIN Rail / Plate Mounting |
| Terminal Connection |
Screw-Clamp |
| Protection Rating |
IP20 |
| Dimensions |
74 × 45 × 80mm (H × W × D) |
| Net Weight |
0.3kg |
| Applicable Standard |
IEC/EN 60947-4-1 |
| Manufacturing Origin |
China |
Product Overview
The Schneider Electric LC1N1810M5N is an
Easy TeSys Control AC contactor
designed for three-phase motor control and
low-voltage switching applications.
This exact model features a
3-pole main contact configuration,
an 18A AC-3 rated operational current,
and a 220V AC 50Hz electromagnetic control coil.
According to the manufacturer product data,
the LC1N1810M5N configuration supports an
AC-3 motor power rating of 7.5kW
at 380/400V AC.
The contactor also provides
one normally open auxiliary contact
for control and status circuits.
Its mounting options include
DIN rail or plate mounting,
with the manufacturer's specified
installation arrangements.
The exact ordering reference
LC1N1810M5N identifies
the 220V AC 50Hz coil configuration.

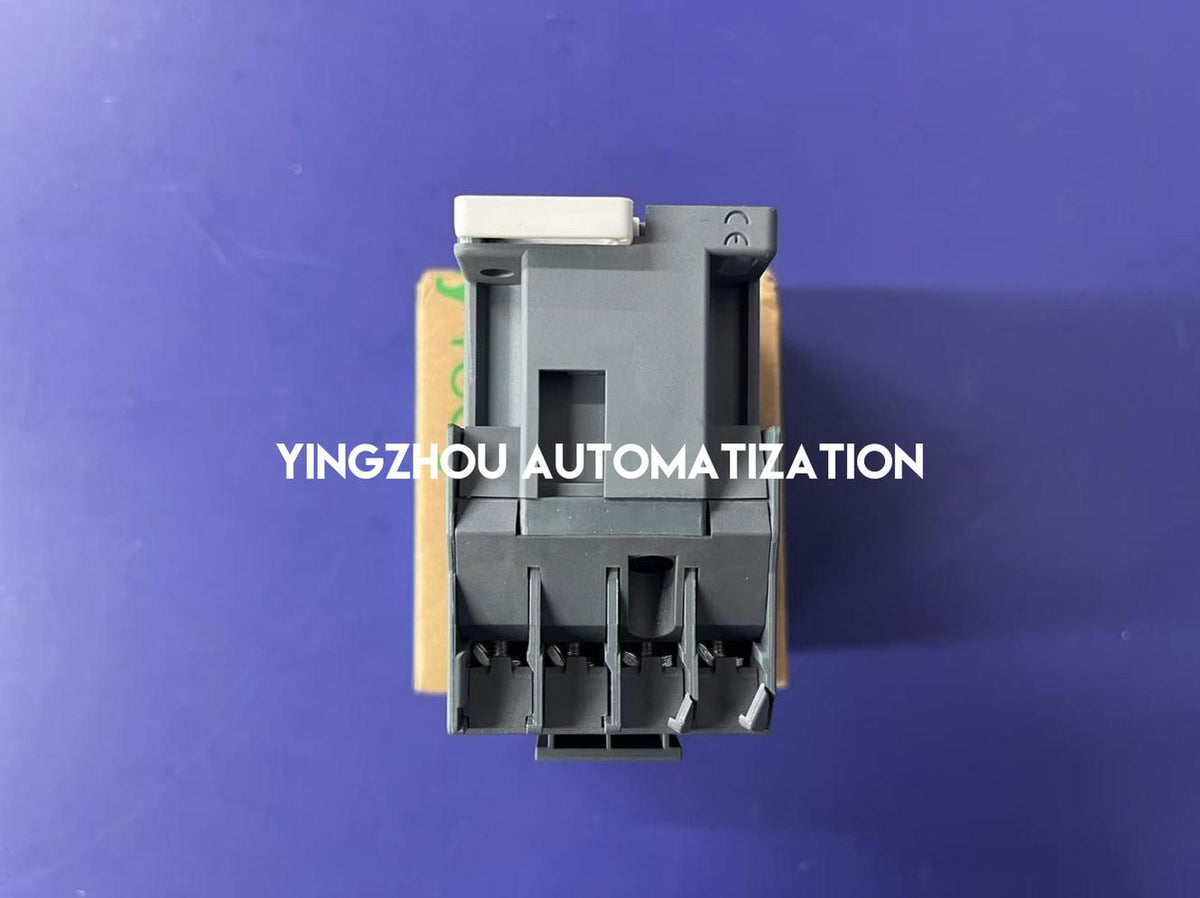

Actual product photographs are provided,

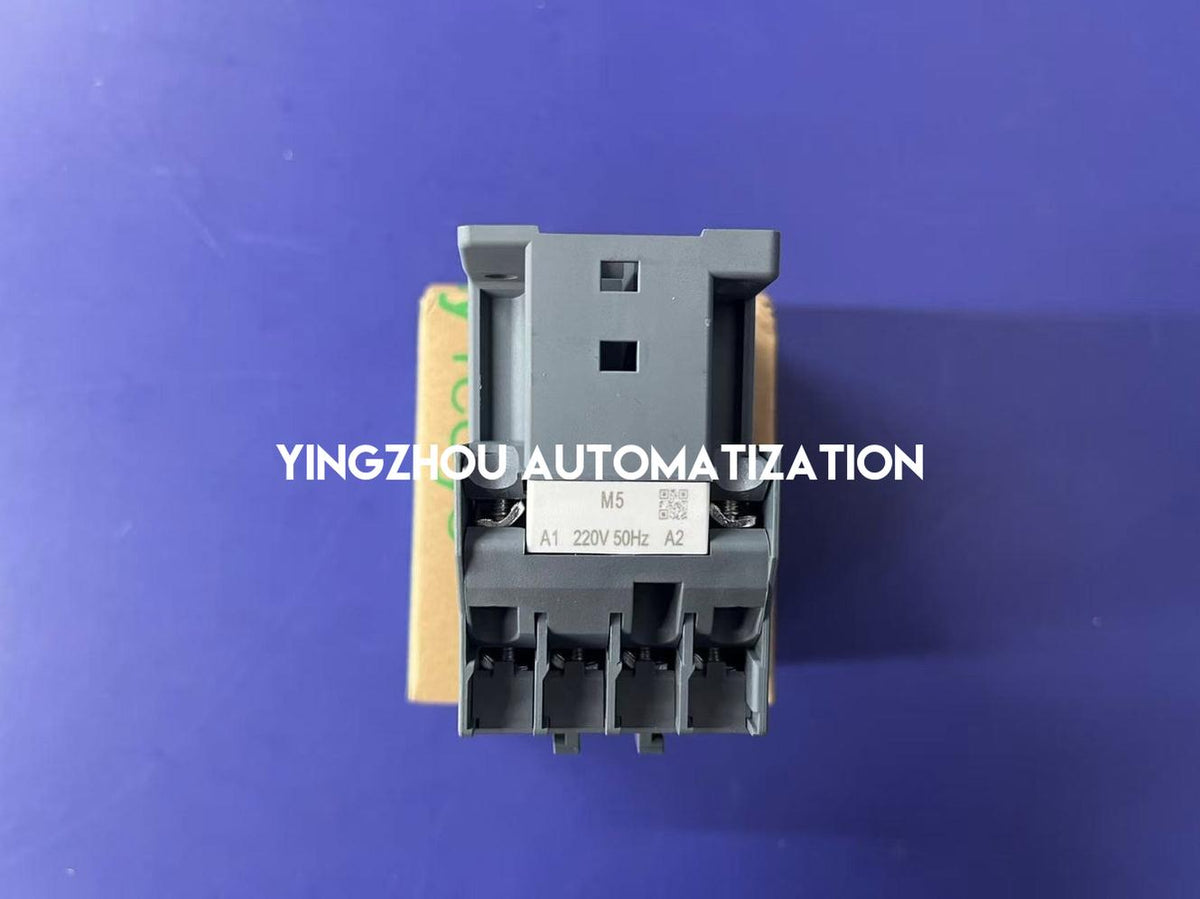

showing the LC1N1810 product nameplate,

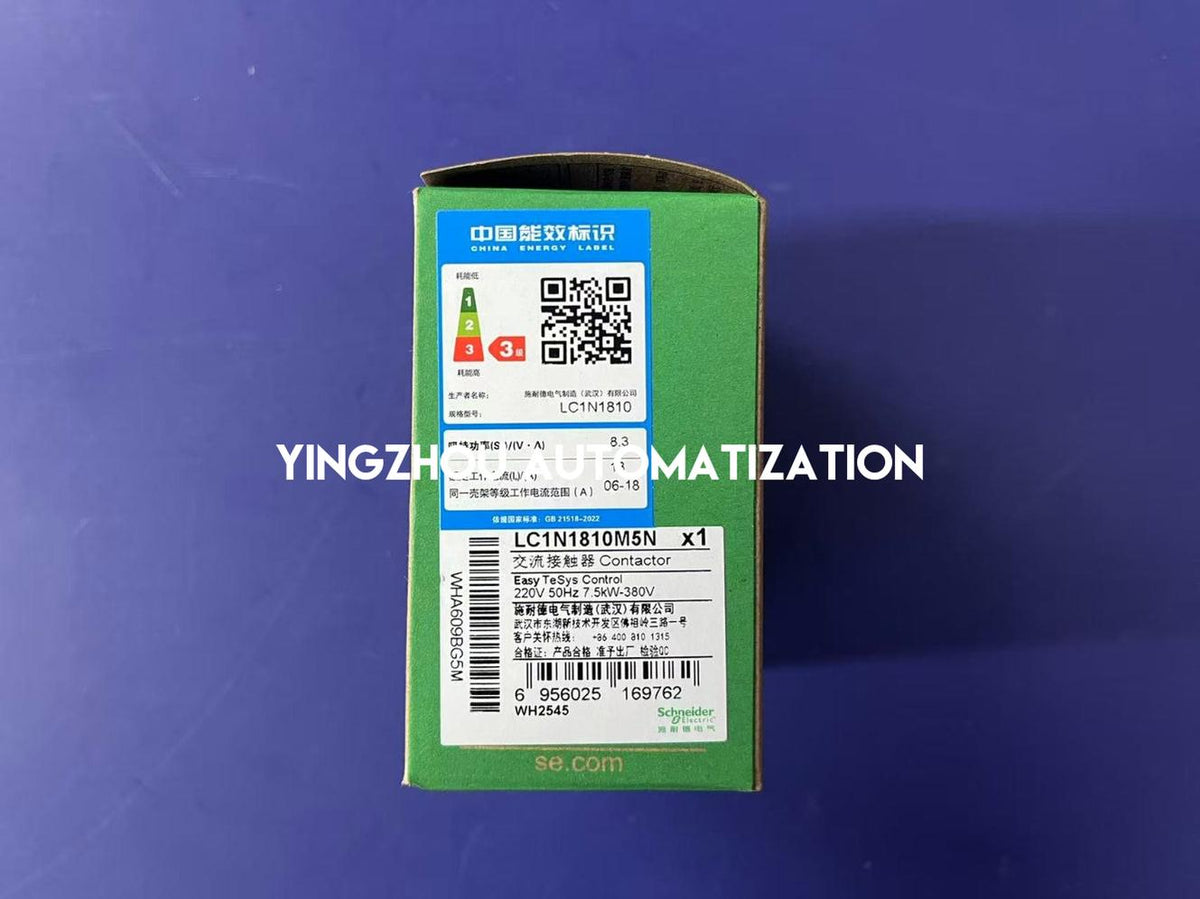

Schneider Electric packaging and the complete
LC1N1810M5N order reference on the box.
Please confirm the exact model,
control coil voltage and frequency,
rated operational current,
main contact configuration and
auxiliary contact requirements before ordering.
Key Product Features
-
18A AC-3 Rated Current
for three-phase motor switching applications
-
3-Pole Main Contact Configuration
with three normally open main contacts
-
220V AC 50Hz Control Coil
for the exact M5N configuration
-
7.5kW Motor Rating at 380/400V AC
under AC-3 utilisation conditions
-
1NO Auxiliary Contact
for control circuit functions
-
DIN Rail or Plate Mounting
for control cabinet installation
-
Schneider Easy TeSys Control Series
for industrial motor control
Actual Product Verification
✓
Actual product photos
✓
LC1N1810 product nameplate visible
✓
Exact model LC1N1810M5N visible on packaging
✓
Packaging shown in actual photos
✓
Verify exact model before ordering
In Stock & Ready to Order
Schneider Electric LC1N1810M5N
is currently in stock.
Actual product and packaging photographs
are provided for buyer verification.
Please confirm the exact
18A AC-3 rating,
3-pole contact configuration,
220V AC 50Hz coil
and required auxiliary contacts
before ordering.
