Schneider Electric LC1D40ABDC TeSys Deca AC Contactor
3-Pole | 24V DC Coil | 18.5kW at 380/400V | EverLink
Product Overview
The Schneider Electric LC1D40ABDC
is a three-pole AC magnetic contactor
from the TeSys Deca range,
designed for industrial motor control
and electrical switching applications.
It features three normally open
main contacts (3P / 3NO)
and a 24V DC control coil
for compatible industrial control circuits.
The product is rated for
18.5kW three-phase motor applications
at 380/400V AC under AC-3 conditions.
The actual product nameplate identifies
a 41A operational current at
380/400V AC-3/AC-3e.

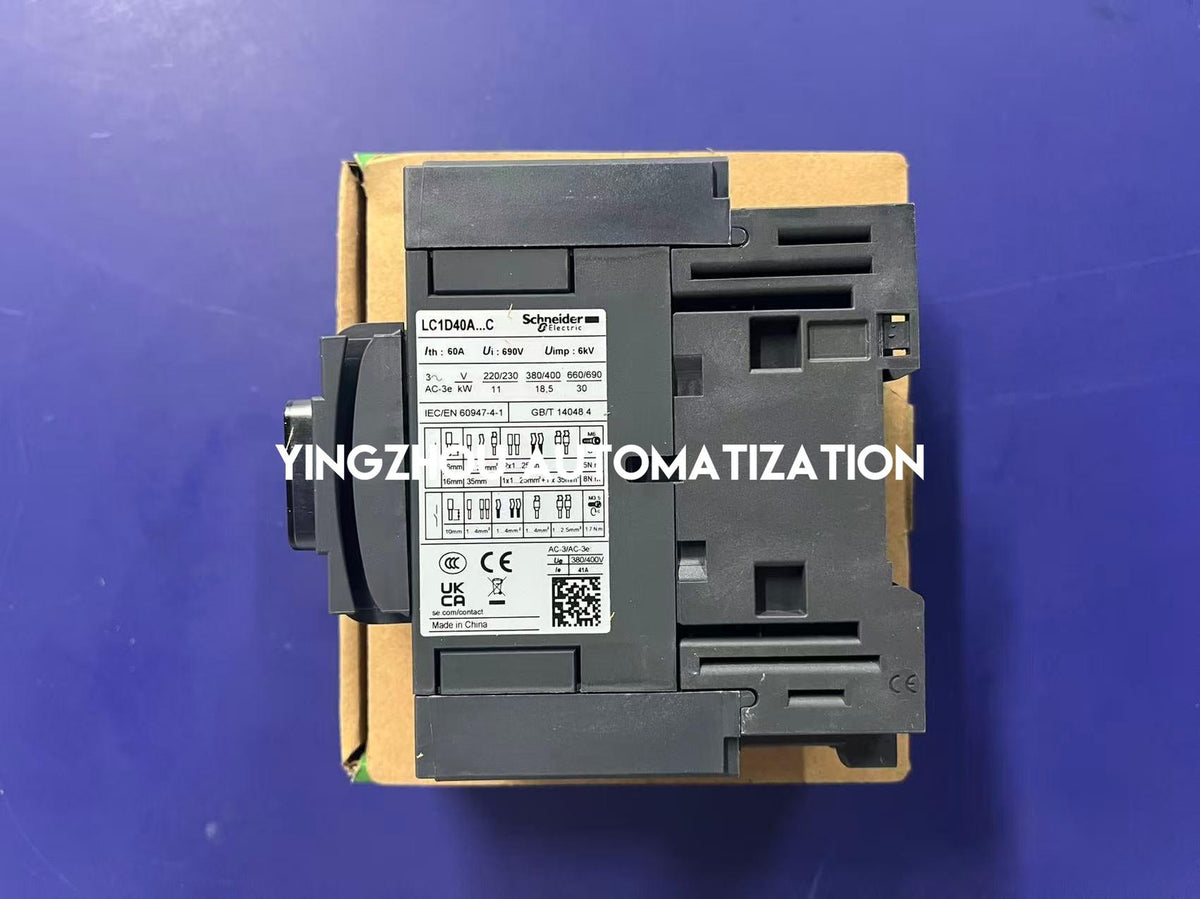

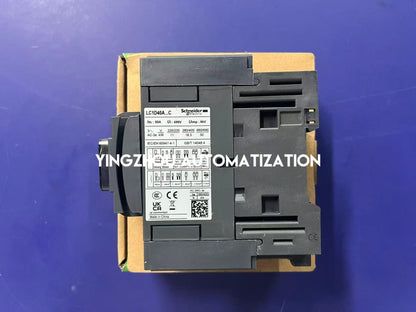

The electrical nameplate also specifies
a 60A conventional thermal current
(Ith), a 690V rated
insulation voltage (Ui),
and a 6kV rated impulse
withstand voltage (Uimp).

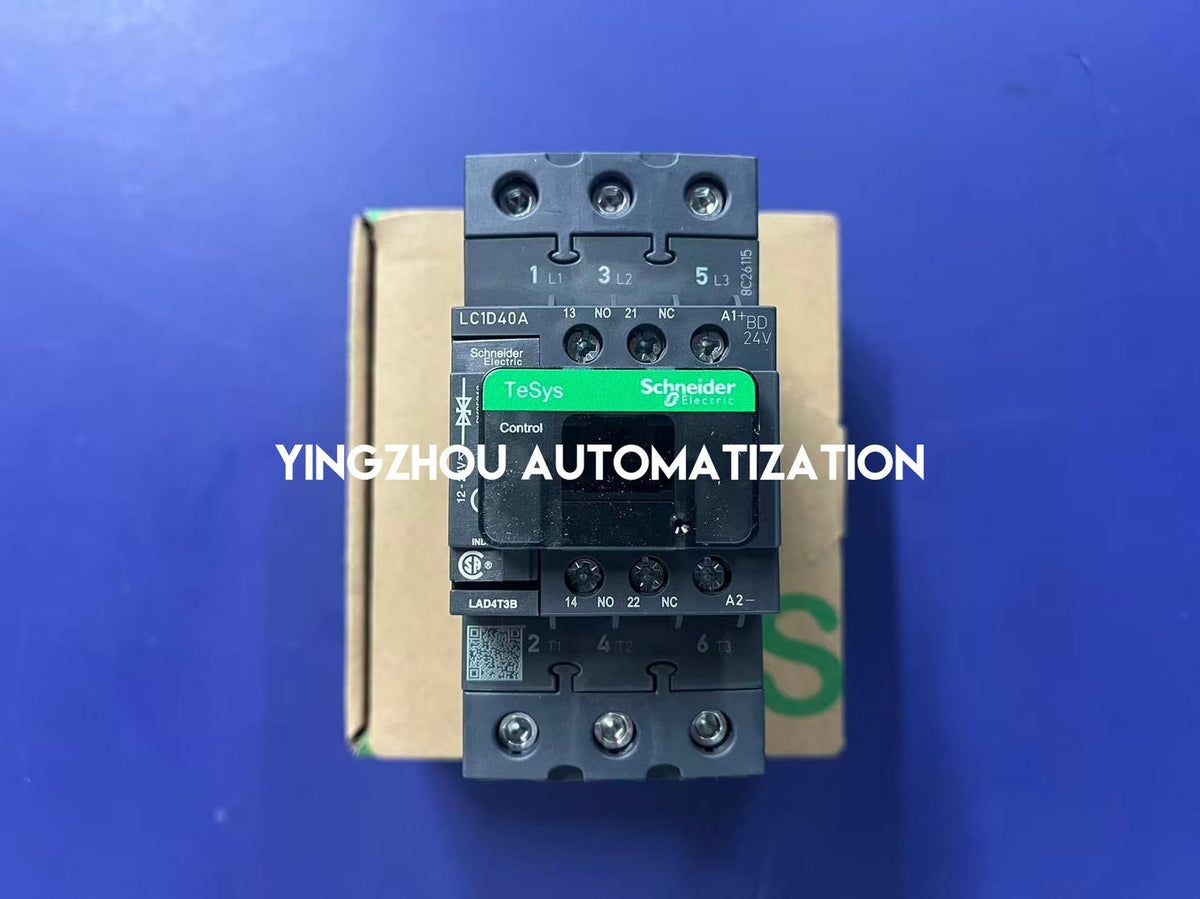

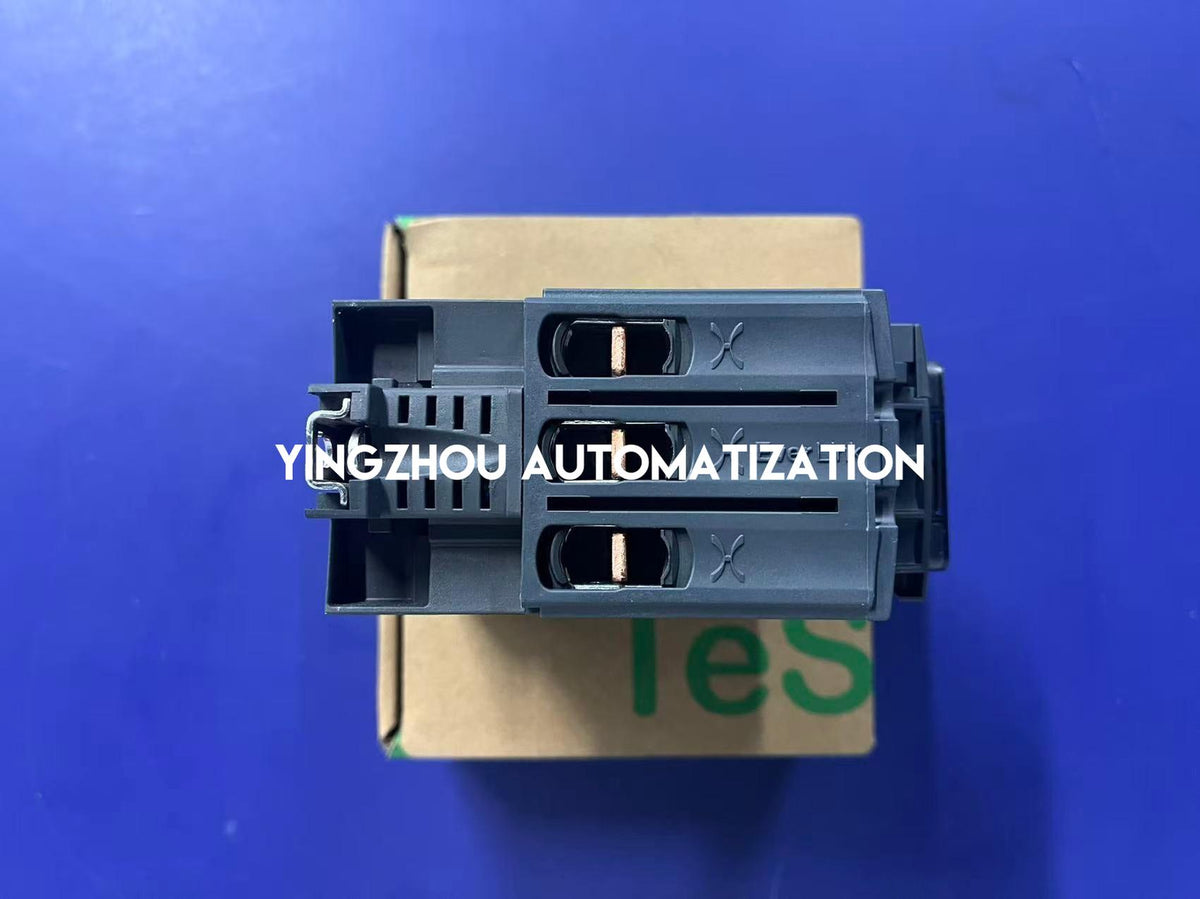

The TeSys Deca contactor configuration
uses EverLink BTR power
terminals and screw-type
control circuit connections.
Actual product and packaging photographs
are available to support exact-model
identification and buyer verification.
Key Product Features
-
3-pole (3NO) main contact configuration
-
24V DC control coil
-
18.5kW at 380/400V AC-3 motor rating
-
41A at 380/400V AC-3/AC-3e actual nameplate rating
-
60A Ith conventional thermal current
-
690V Ui rated insulation voltage
-
6kV Uimp rated impulse withstand voltage
-
EverLink BTR power terminal technology
-
TeSys Deca LC1D industrial contactor
Actual Product Verification
✓

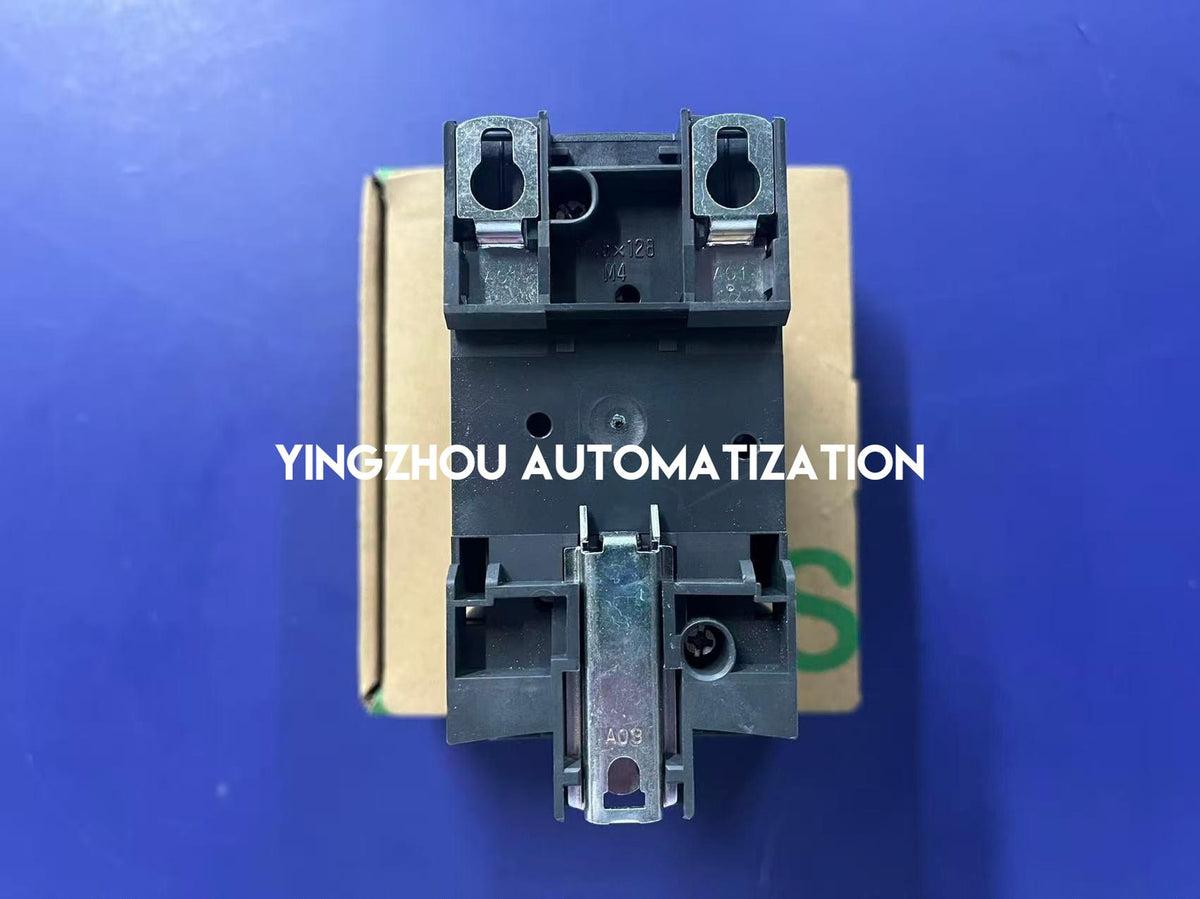

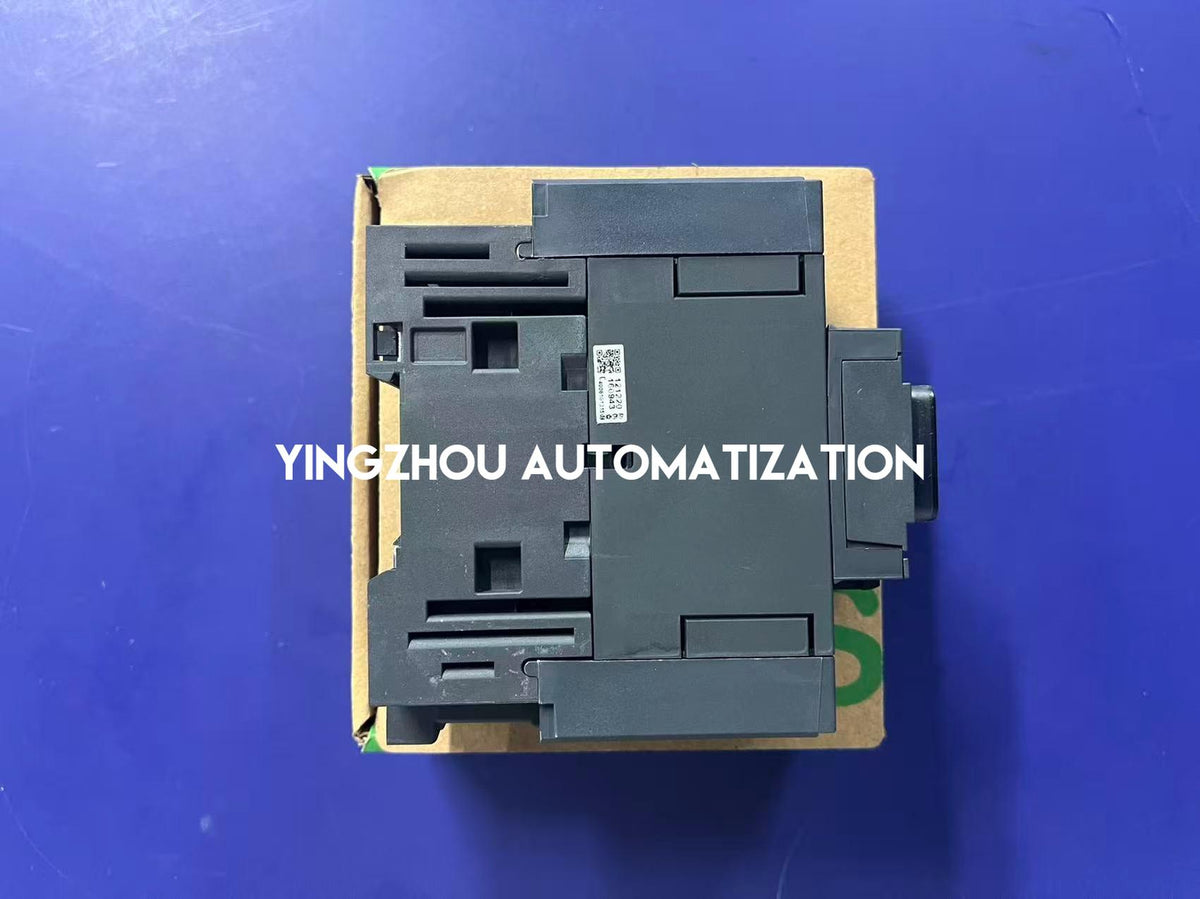

Actual product photos
✓
Electrical nameplate visible
✓

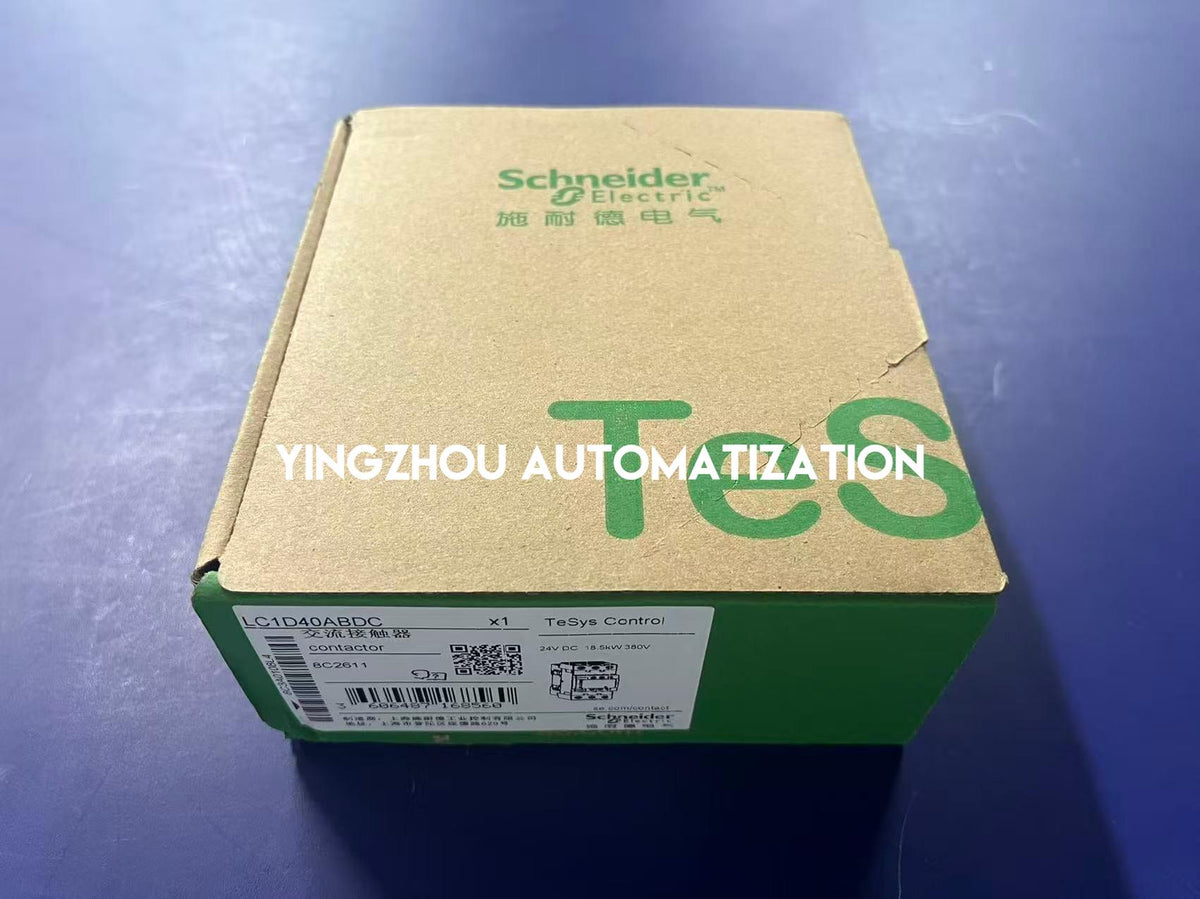

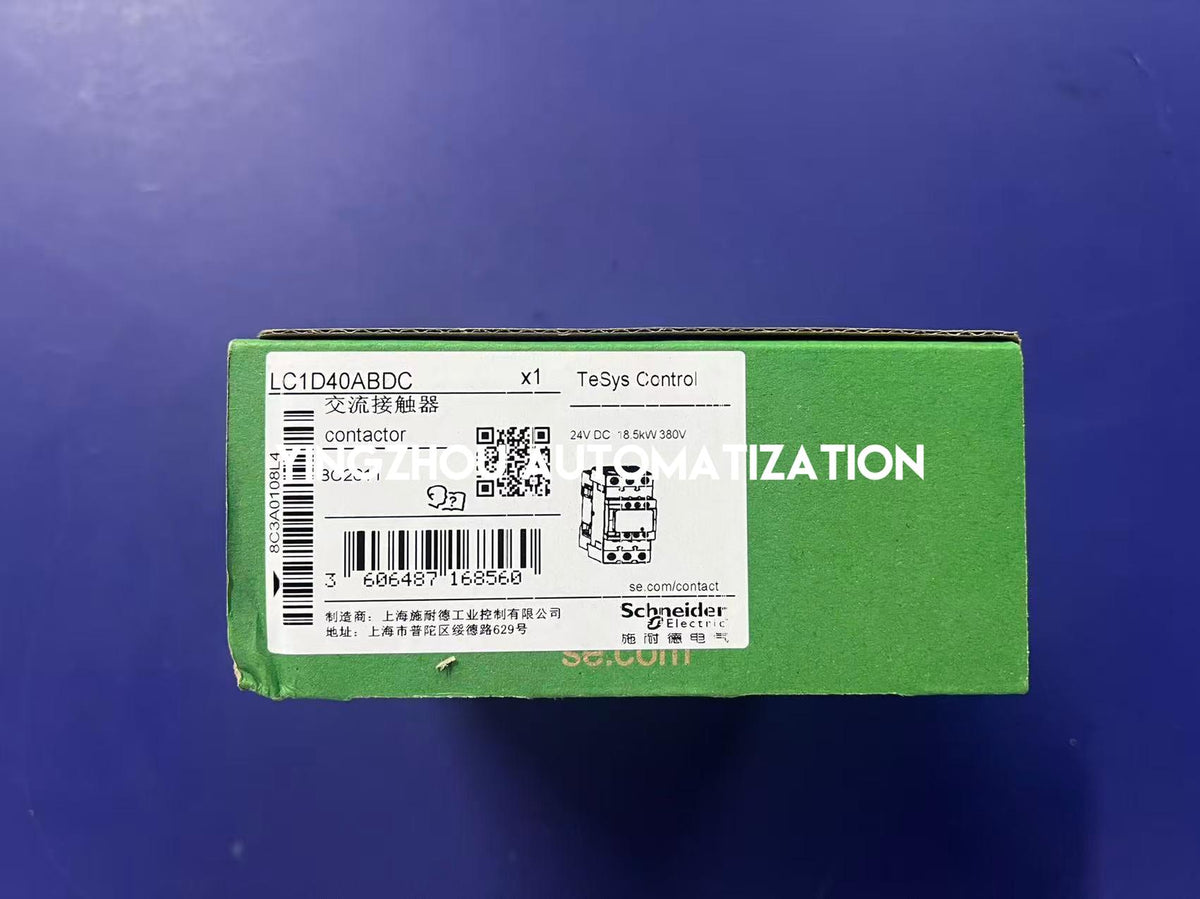

Packaging shown with exact model LC1D40ABDC
✓
Verify exact model LC1D40ABDC before ordering
In Stock & Ready to Order
Schneider Electric LC1D40ABDC
is currently in stock according
to our inventory information.
Actual product, electrical nameplate
and packaging photographs are provided
for buyer verification.
Please confirm the required quantity,
exact model, 24V DC control coil,
motor electrical ratings and installation
requirements before ordering.
Verify the exact model suffix and
electrical characteristics against
the intended control system.
