Schneider Electric LC1D18BDC TeSys Deca AC Contactor
18A AC-3 | 3-Pole (3NO) | 24V DC Coil | 7.5kW at 380/400V
Product Overview
The Schneider Electric LC1D18BDC is
a three-pole AC magnetic contactor from the
TeSys Deca range, designed for
industrial motor-control and electrical
switching applications.
It features 3 normally open main contacts,
an 18A AC-3 rated operational current at up to
440V AC, and a 24V DC
control coil.
The contactor is rated for
7.5kW motor applications at 380/400V AC
under AC-3 operating conditions.

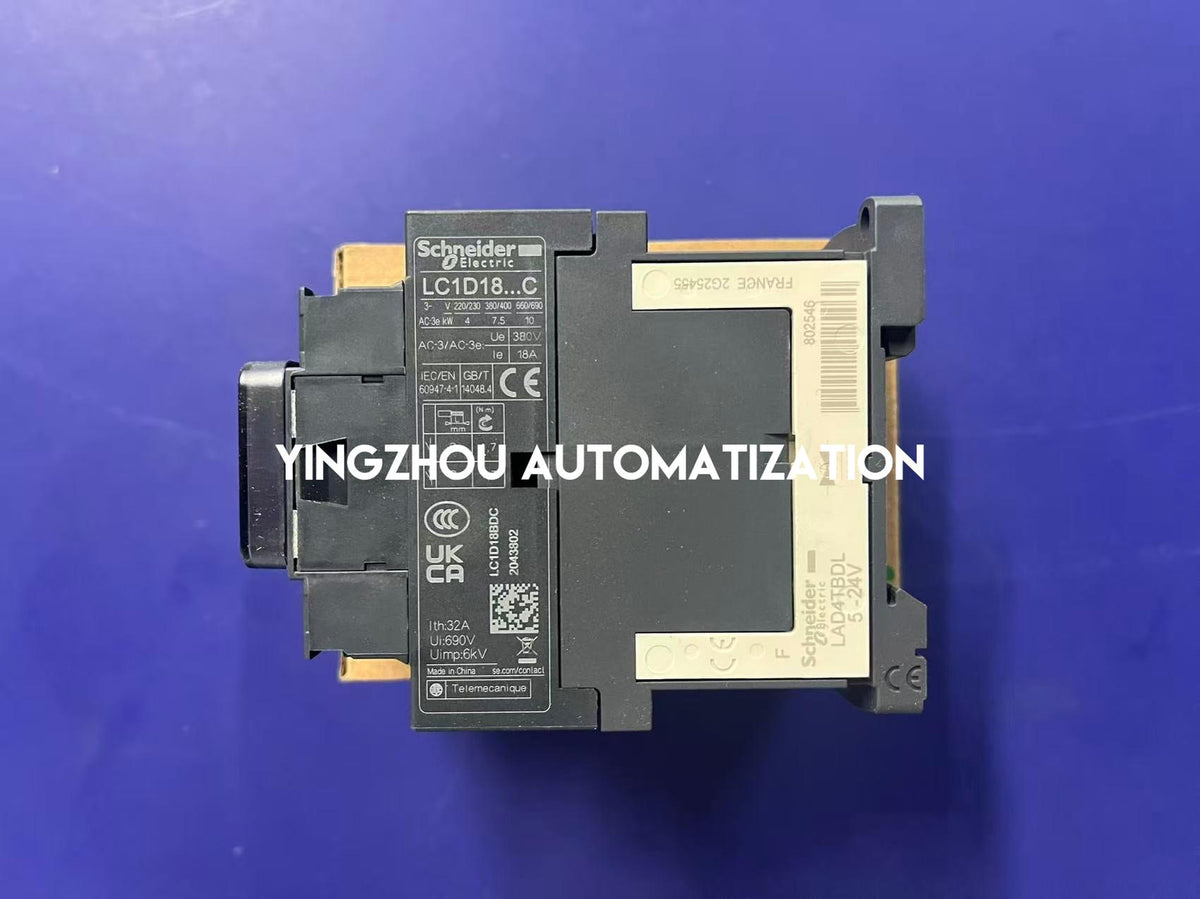

The actual product electrical nameplate identifies
a 32A conventional thermal current (Ith),
a 690V rated insulation voltage (Ui)
and a 6kV rated impulse withstand
voltage (Uimp).
The exact product model and DC control-coil
configuration are identified on the actual
Schneider Electric packaging.
Key Product Features
-
18A AC-3 rated operational current at up to 440V AC
-
3-pole (3NO) main contact configuration
-
24V DC control coil
-
7.5kW at 380/400V AC-3 motor rating
-
32A Ith conventional thermal current
-
690V Ui rated insulation voltage
-
6kV Uimp rated impulse withstand voltage
-
TeSys Deca LC1D series magnetic contactor
Actual Product Verification
✓

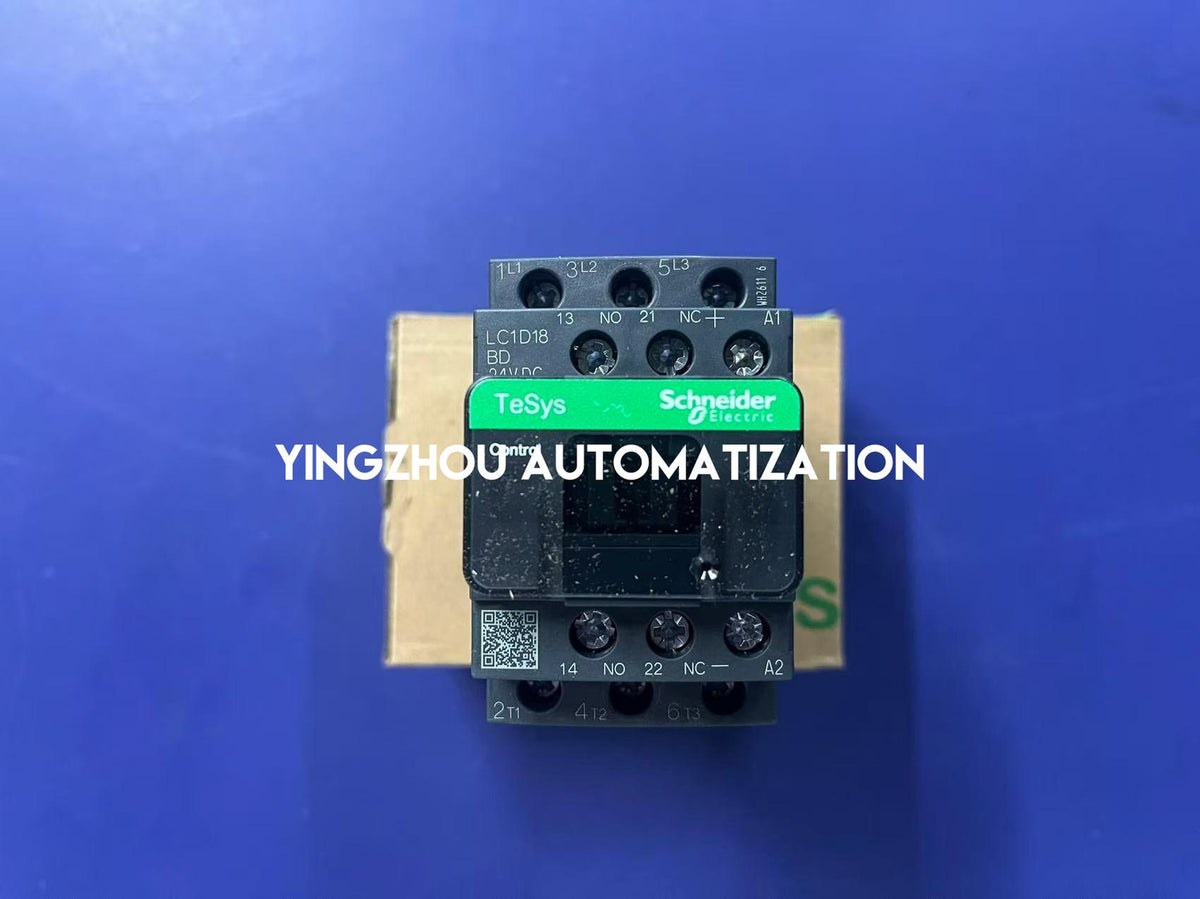

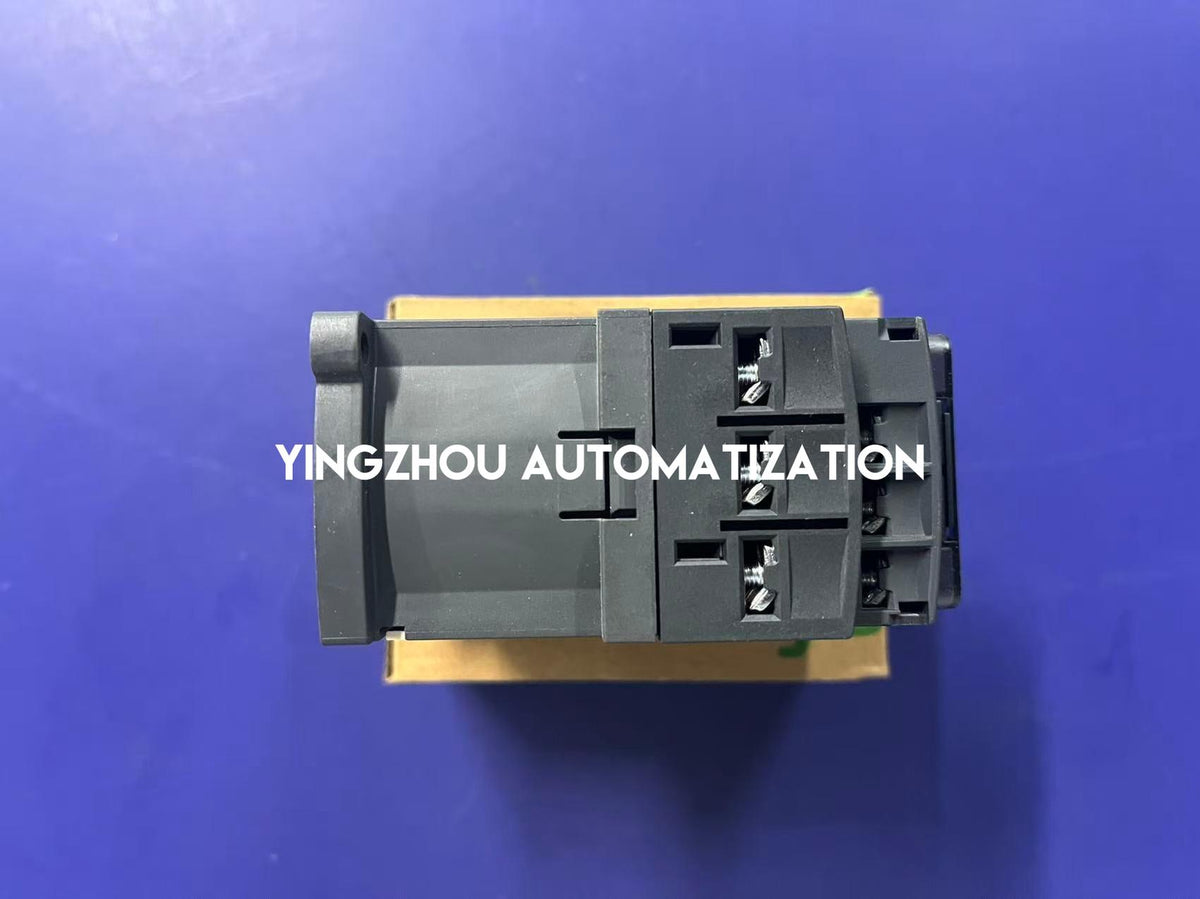

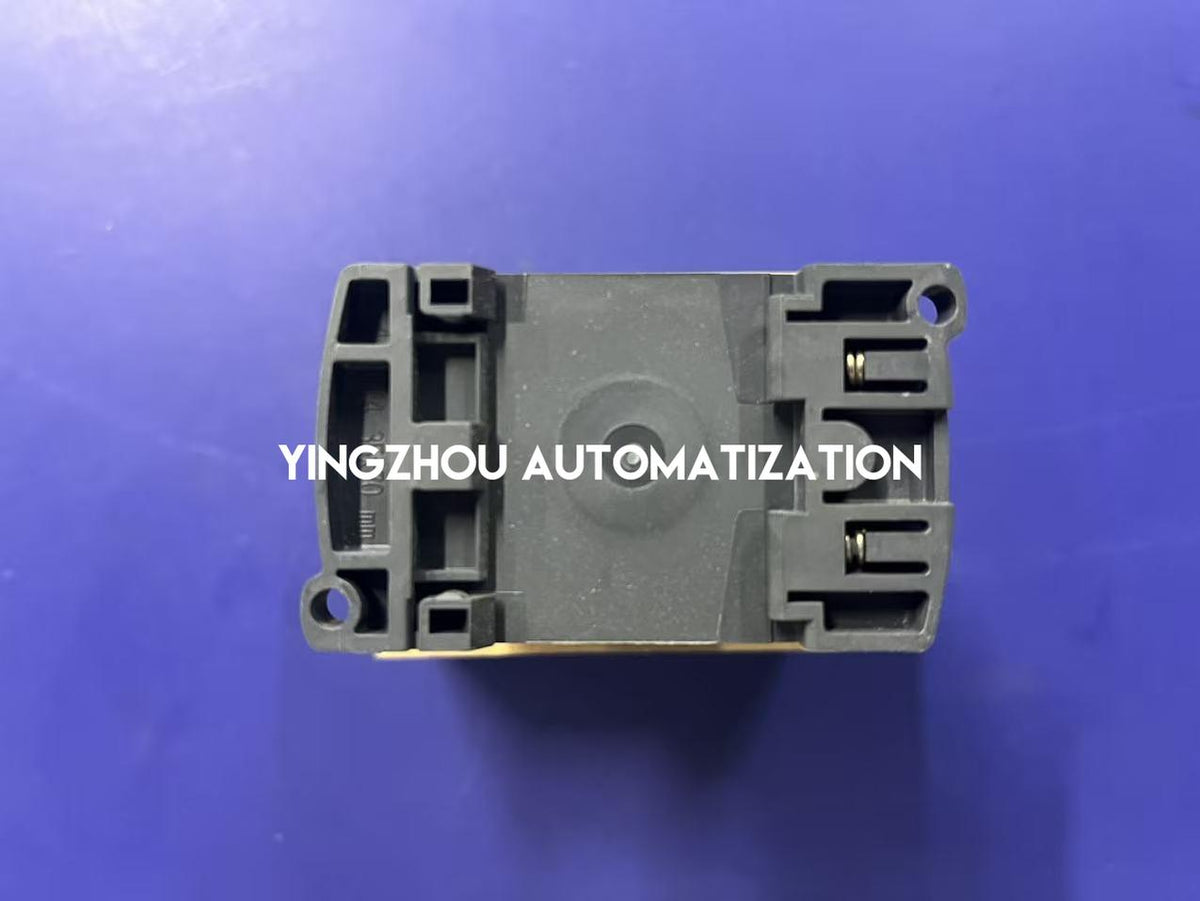

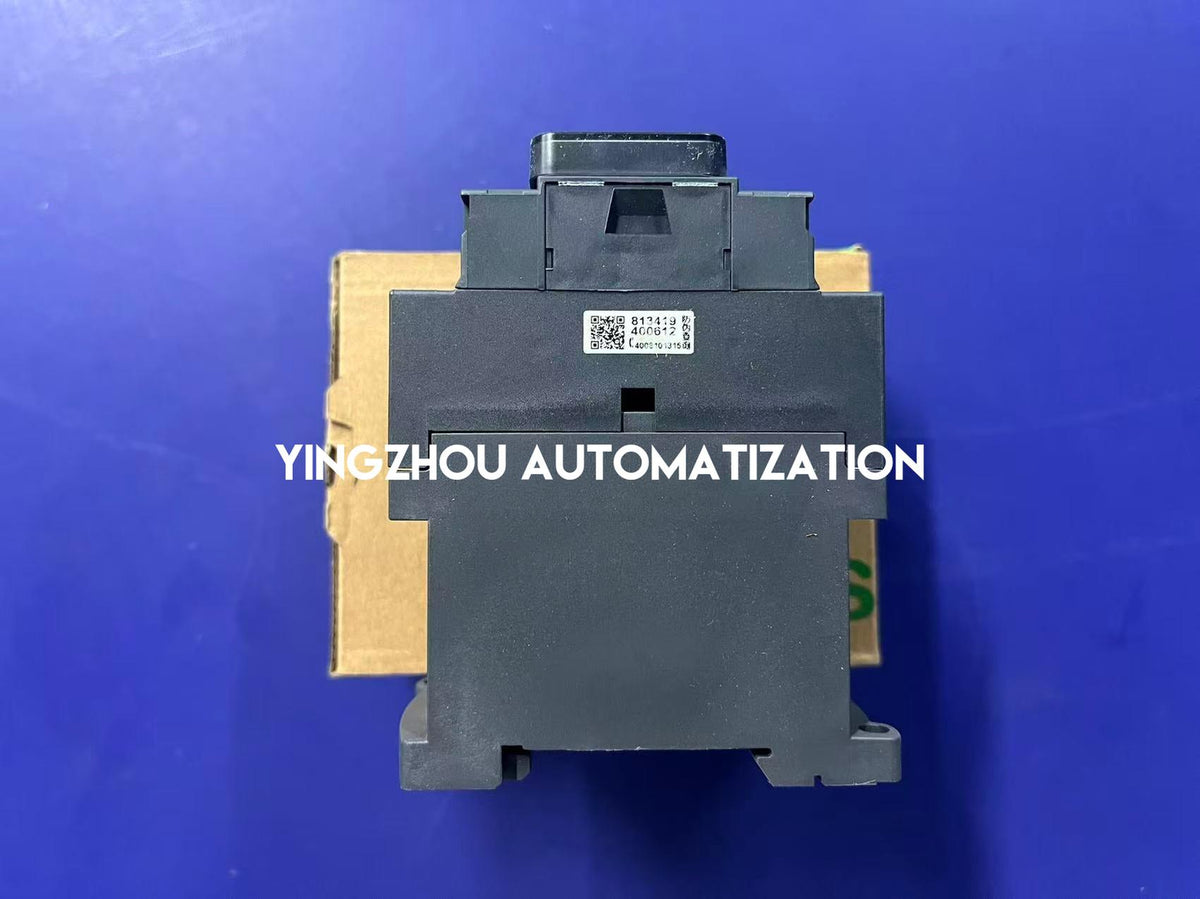

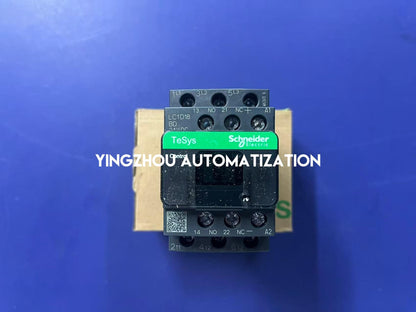

Actual product photos
✓
Product electrical nameplate visible
✓

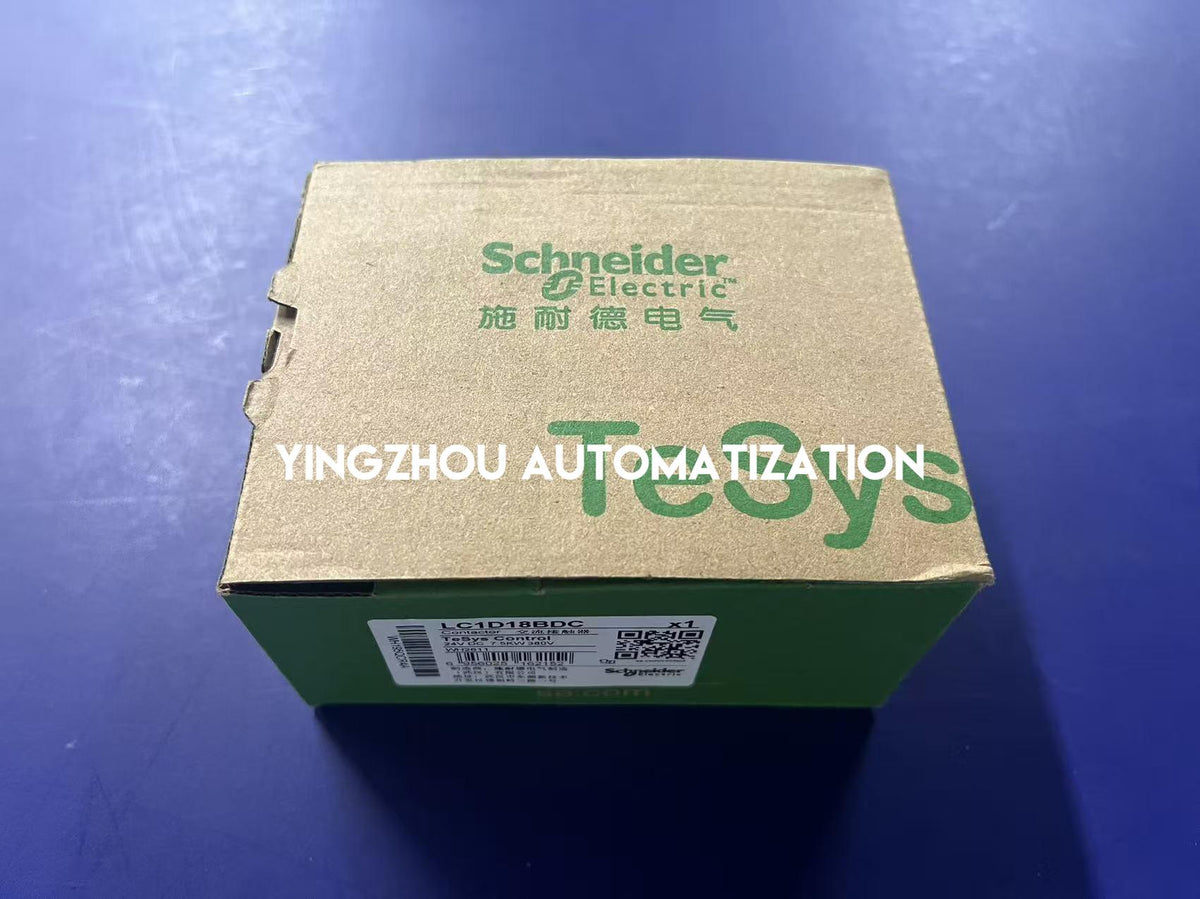

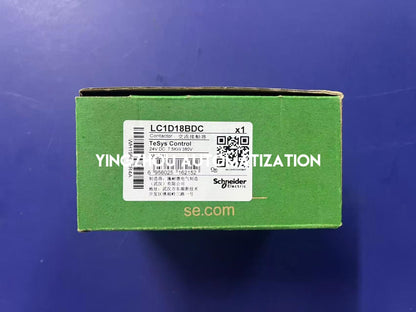

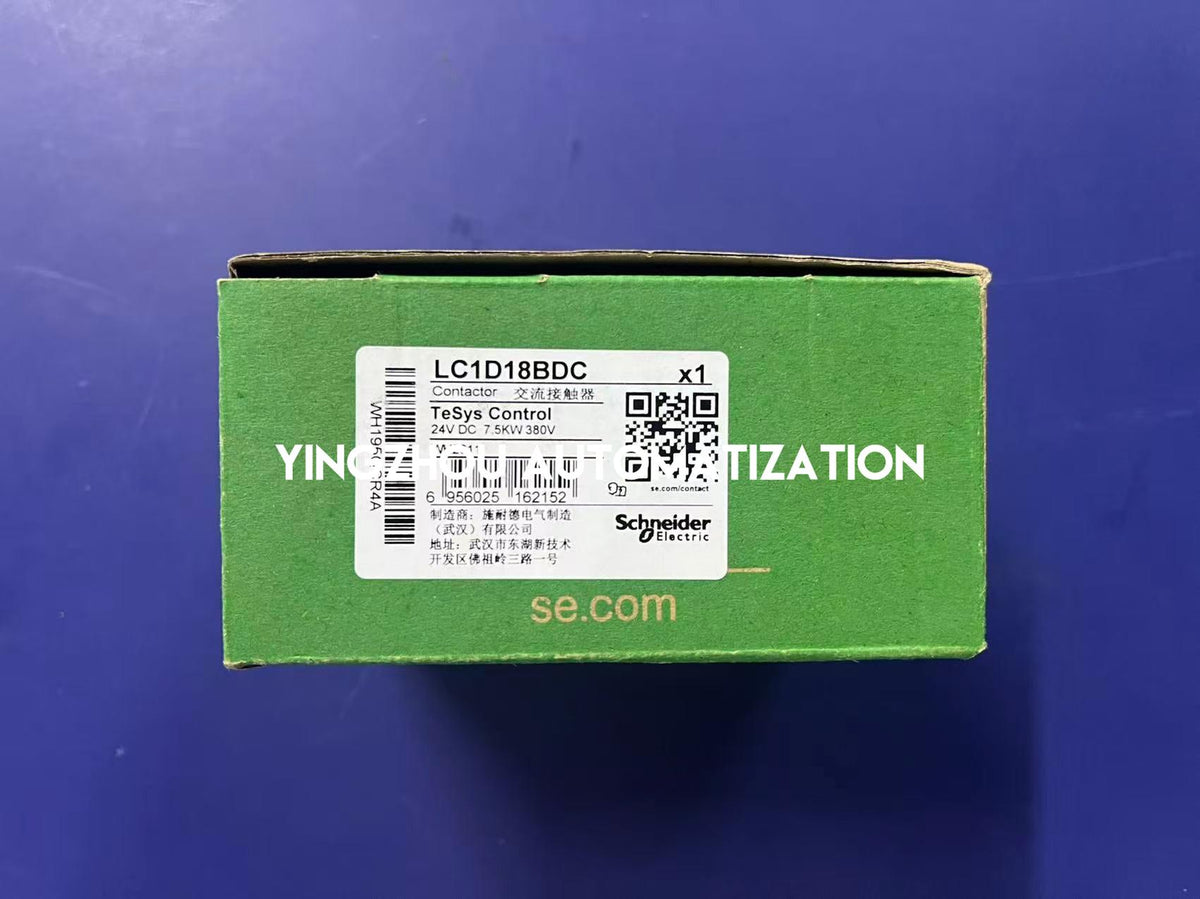

Packaging shown with exact model label
✓
Verify exact model LC1D18BDC before ordering
In Stock & Ready to Order
Schneider Electric LC1D18BDC
is currently in stock according to our
inventory information.
Actual product, electrical nameplate and
packaging photographs are provided
for buyer verification.
Please confirm the required quantity,
exact model, 24V DC control coil,
motor electrical ratings and product
configuration before ordering.
