Schneider Electric LC1D09BDC TeSys Deca AC Contactor
9A AC-3 | 3-Pole (3NO) | 24V DC Coil | 4kW at 380/400V
Product Overview
The Schneider Electric LC1D09BDC
is a three-pole AC magnetic contactor from the
TeSys Deca range, designed
for industrial motor control and electrical
switching applications.
The contactor features
three normally open main contacts
(3P / 3NO) and a
9A AC-3 rated operational current
at up to 440V AC.
It is equipped with a
24V DC control coil
for compatible industrial control circuits.
The contactor is rated for
4kW three-phase motor applications
at 380/400V AC under AC-3 conditions.

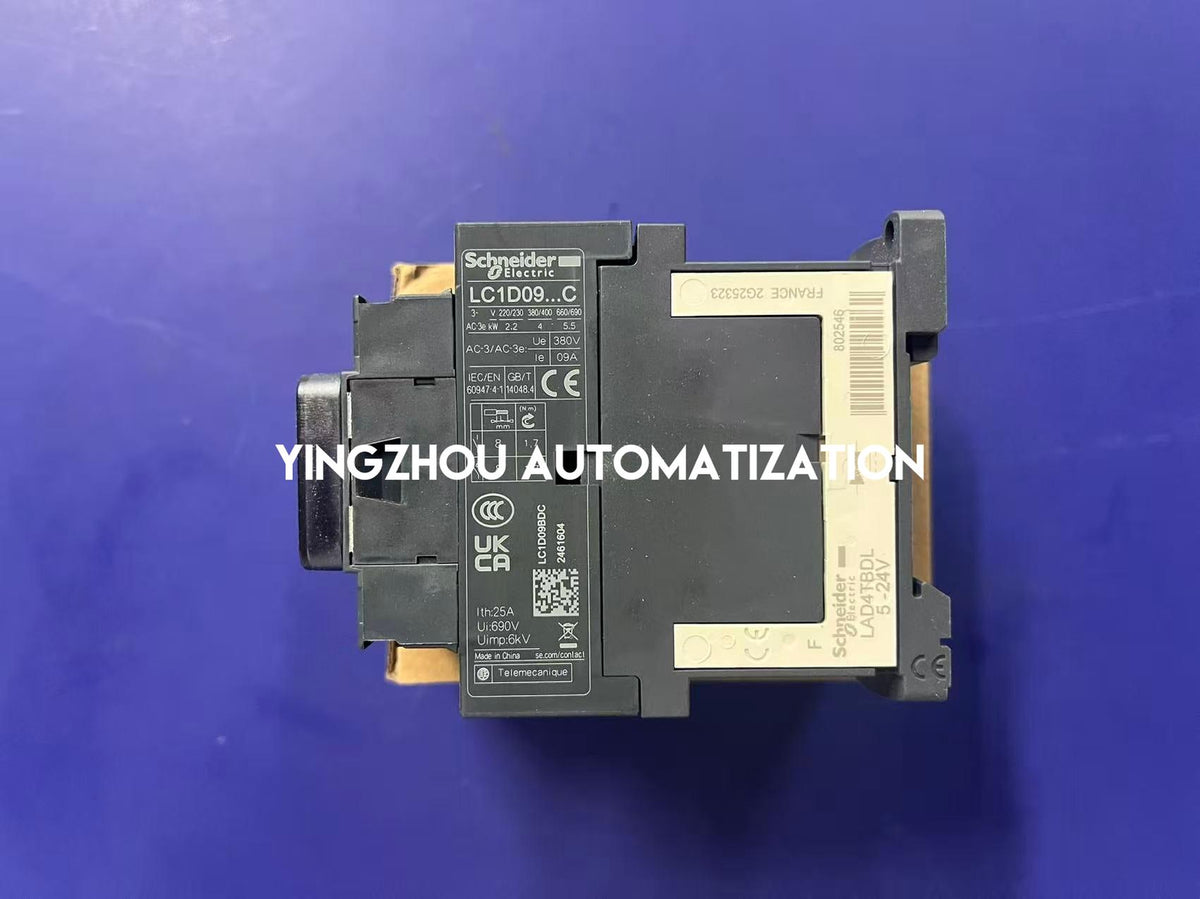

The actual electrical nameplate identifies
a 25A conventional thermal current
(Ith), a 690V rated
insulation voltage (Ui) and a
6kV rated impulse withstand
voltage (Uimp).
The manufacturer specifies
screw-clamp terminals
for electrical connections.
The exact model number,
24V DC coil specification and
motor power rating are visible
on the actual Schneider Electric
product and packaging labels.
Key Product Features
-
9A AC-3 rated operational current at up to 440V AC
-
3-pole (3NO) main contact configuration
-
24V DC control coil
-
4kW at 380/400V AC-3 motor rating
-
25A Ith conventional thermal current
-
690V Ui rated insulation voltage
-
6kV Uimp rated impulse withstand voltage
-
Screw clamp electrical terminals
-
TeSys Deca LC1D series magnetic contactor
Actual Product Verification
✓

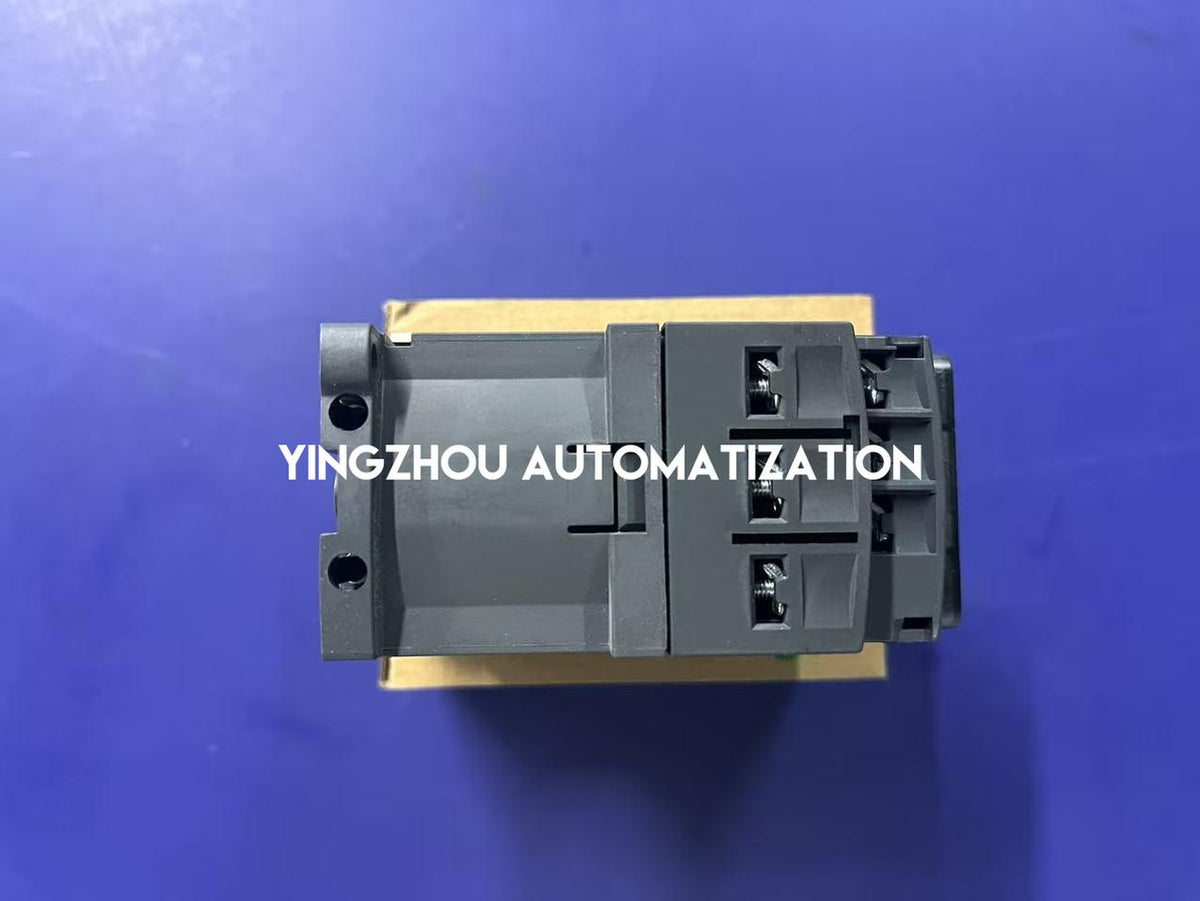

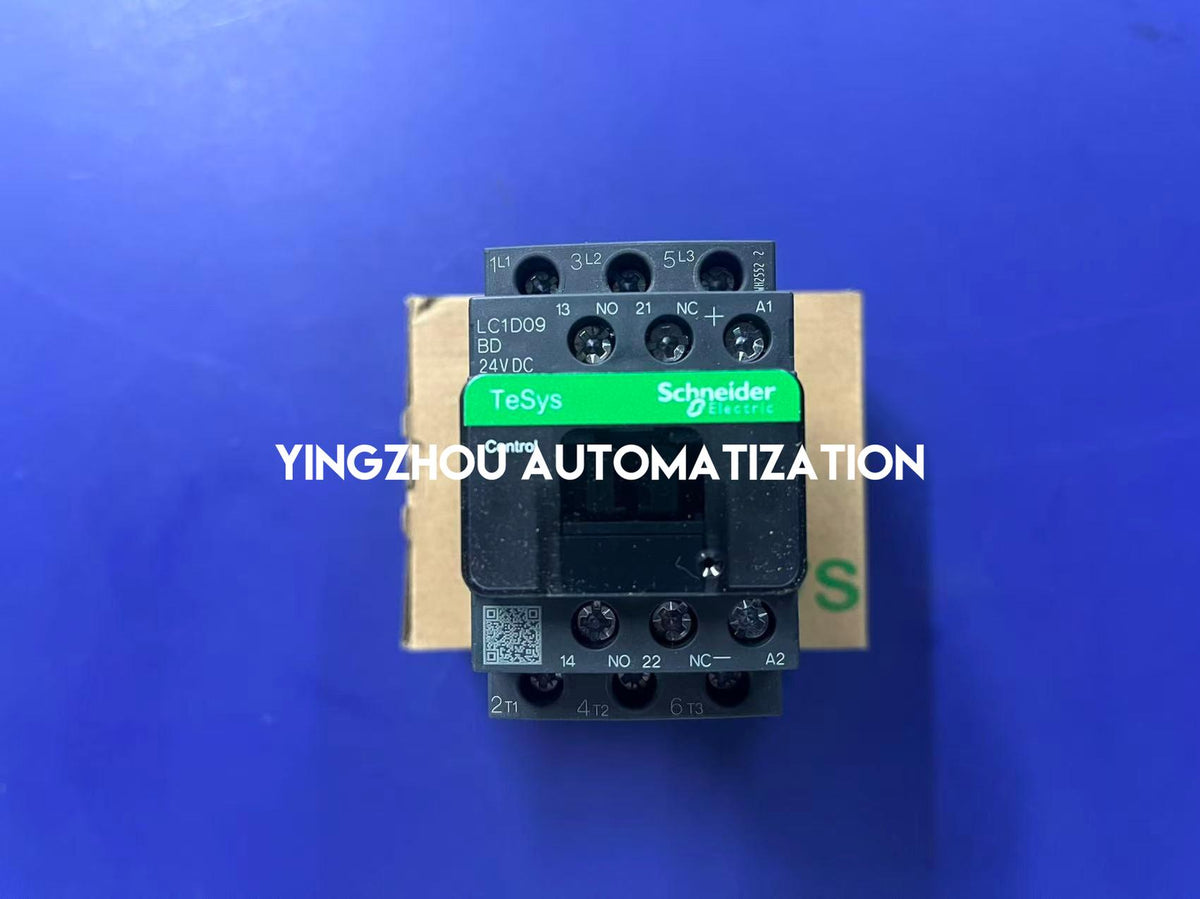

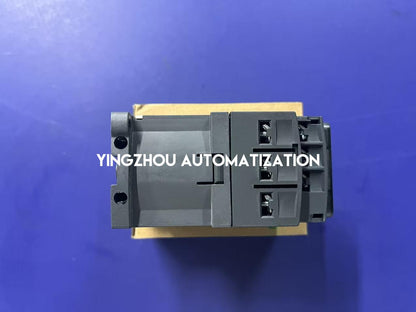

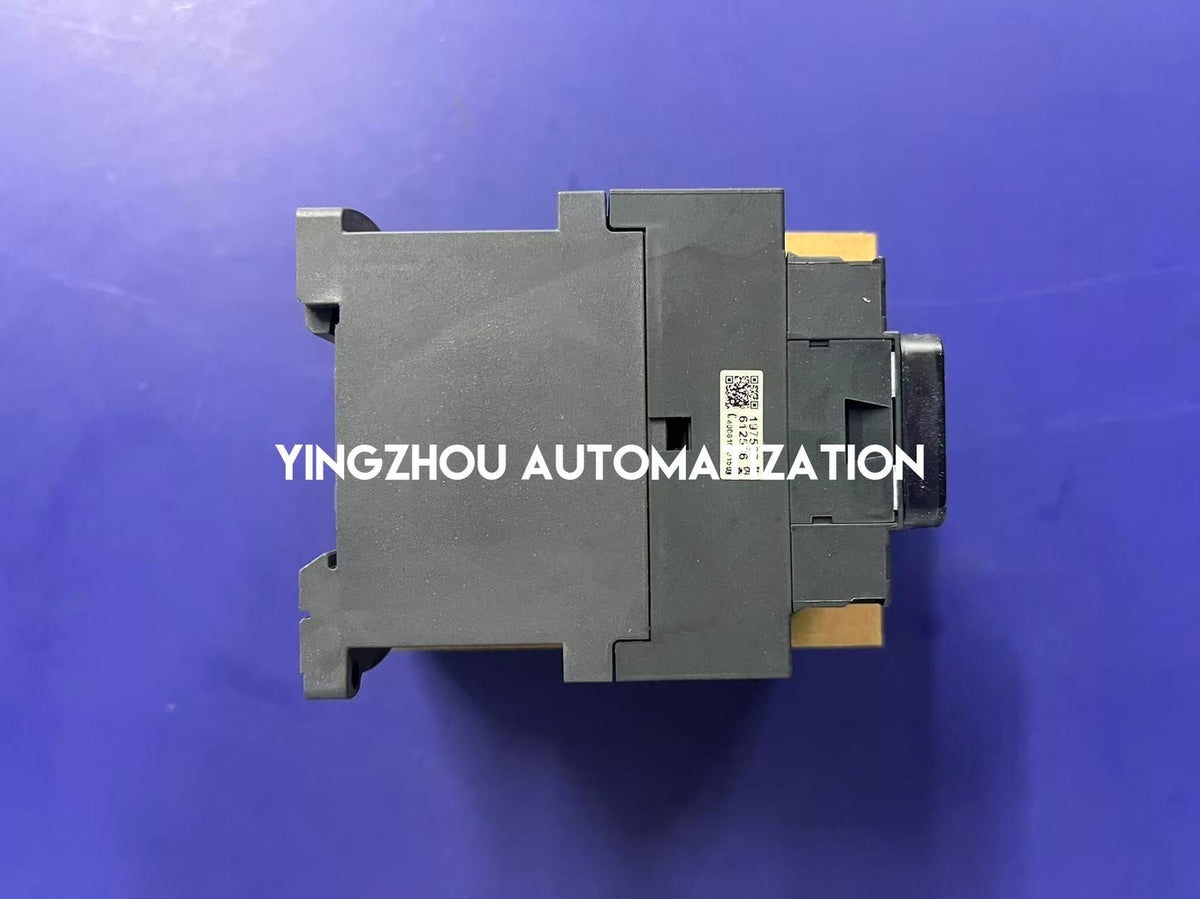

Actual product photos
✓
Exact model and electrical nameplate visible
✓

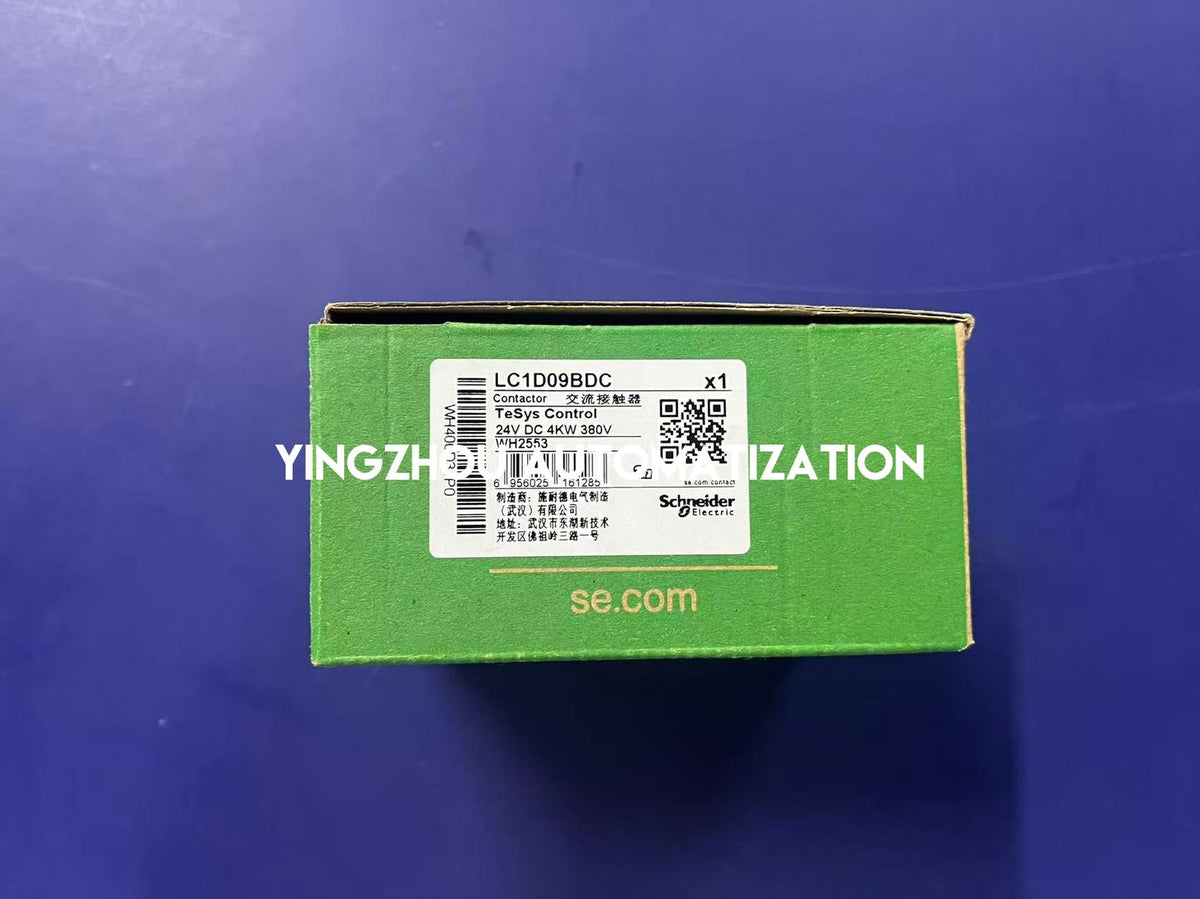

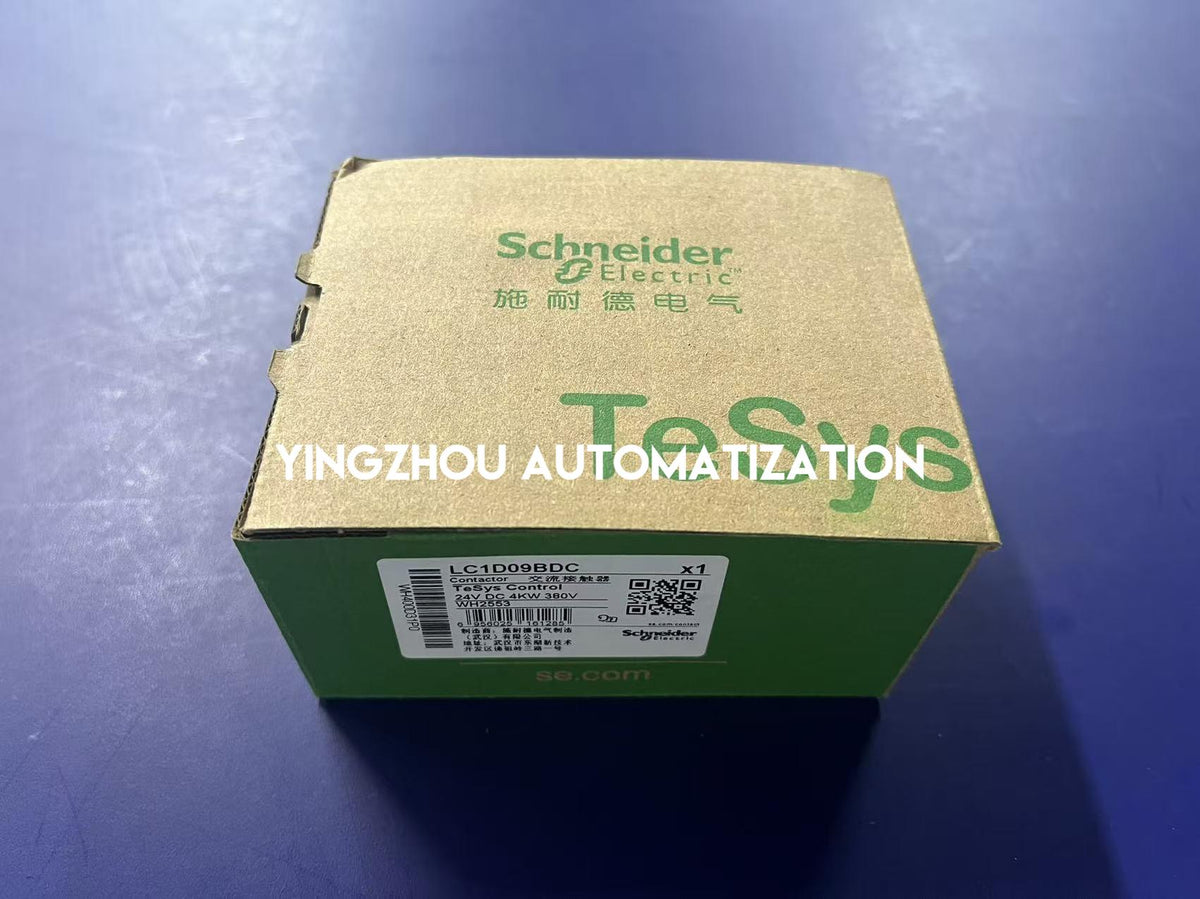

Packaging shown with exact model label
✓
Verify exact model LC1D09BDC before ordering
In Stock & Ready to Order
Schneider Electric LC1D09BDC
is currently in stock according to
our inventory information.
Actual product, electrical nameplate
and packaging photographs are provided
for buyer verification.
Please confirm the required quantity,
exact model, 24V DC control coil,
motor electrical ratings and product
configuration before ordering.
Confirm the supplied configuration
of any coil suppression accessory
shown in the product photographs.
