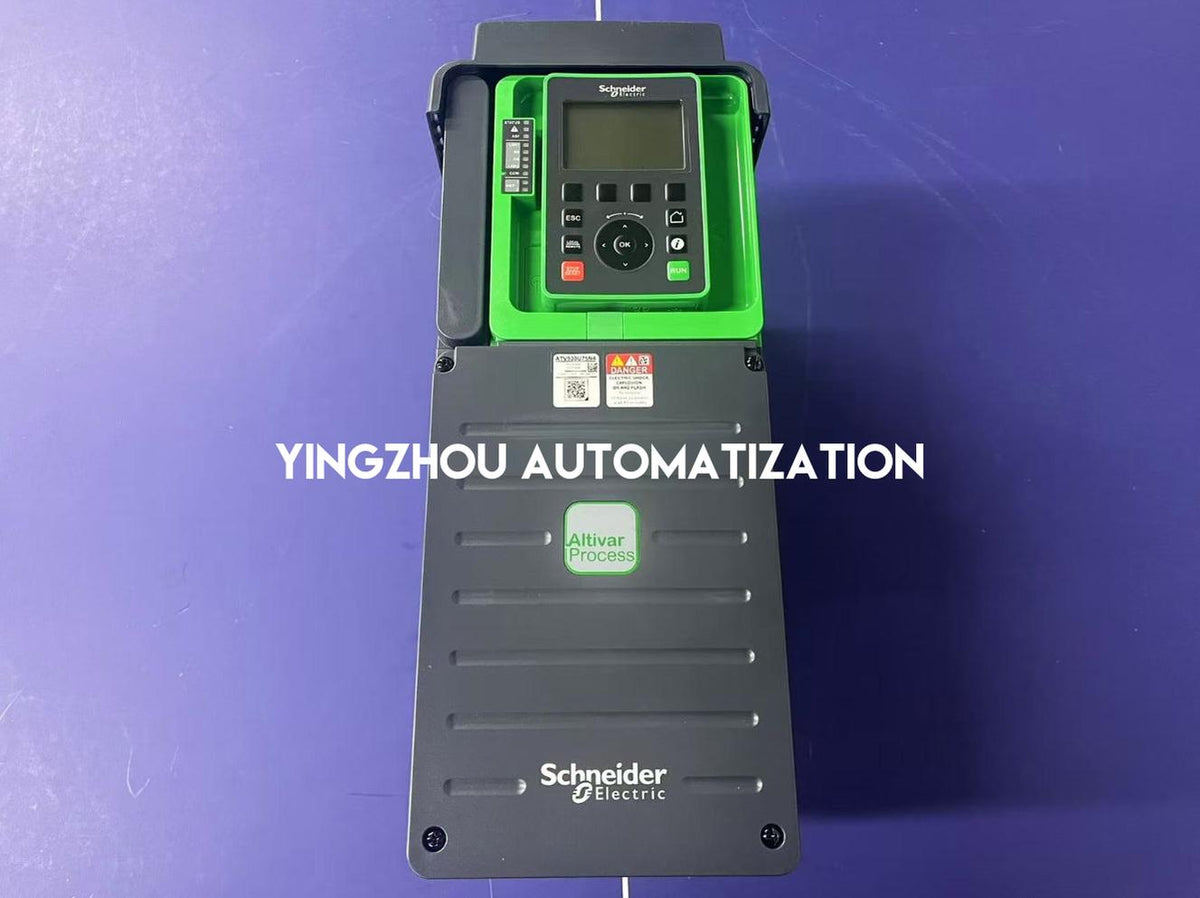

Schneider ATV930U75N4 Altivar Process ATV930 Variable Speed Drive
7.5kW / 10HP (ND) | 5.5kW / 7.5HP (HD) | 380–480VAC | Modbus TCP / EtherNet/IP
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATV930U75N4 |
| Series |
Altivar Process ATV900 |
| Device Short Name |
ATV930 |
| Product Type |
Variable Speed Drive |
| Product Application |
Industrial Applications |
| Variant |
Standard Version |
| Normal Duty Power |
7.5 kW / 10 HP |
| Heavy Duty Power |
5.5 kW / 7.5 HP |
| Rated Supply Voltage |
380–480 VAC, 3-Phase |
| Output Phases |
3-Phase |
| Supply Frequency |
50–60 Hz |
| Heavy Duty Output Current |
12.7 A at 4 kHz (HD) |
| Line Current at 380 V |
13.8 A (ND) / 10.5 A (HD) |
| Line Current at 480 V |
11.9 A (ND) / 9.2 A (HD) |
| Maximum Transient Current |
19.8 A (ND) / 19.1 A (HD), for 60 s |
| Output Voltage |
Up to Supply Voltage, 3-Phase |
| Output Frequency |
0.1–599 Hz |
| Nominal Switching Frequency |
4 kHz |
| Adjustable Switching Frequency |
2–16 kHz, subject to derating |
| Communication |
EtherNet/IP / Modbus TCP / Modbus Serial |
| Modbus Serial Interface |
2-Wire RS-485 / RTU |
| Ethernet Connector |
2 × RJ45 on Control Block |
| Integrated EMC Filter |
C2 at 50 m / C3 at 150 m under specified conditions |
| Braking Chopper |
Integrated |
| Safety Function |
STO (Safe Torque Off), SIL 3 |
| Motor Control |
Synchronous / Asynchronous Motors |
| Protection Rating |
IP21 / UL Type 1 |
| Cooling Type |
Forced Convection |
| Dimensions |
171 × 409 × 236 mm (W × H × D) |
| Net Weight |
7.7 kg |
Product Overview
The Schneider Electric ATV930U75N4 is a
variable speed drive from the
Altivar Process ATV900 series.
It provides 7.5 kW / 10 HP normal-duty
and 5.5 kW / 7.5 HP heavy-duty
motor ratings with a 380–480 VAC three-phase
supply for industrial motor control.
The drive supports EtherNet/IP, Modbus TCP
and Modbus Serial communication.
It features an integrated braking chopper,
STO safety function,
integrated EMC filtering,
IP21 protection and
forced-convection cooling.
Key Product Features
-
7.5 kW / 10 HP normal-duty motor power rating
-
5.5 kW / 7.5 HP heavy-duty motor power rating
-
380–480 VAC three-phase supply
-
Modbus TCP / EtherNet/IP industrial Ethernet communication
-
Modbus Serial / RS-485 communication
-
Integrated braking chopper for compatible braking arrangements
-
STO safety function and integrated EMC filtering
-
IP21 / UL Type 1 protection and forced-convection cooling
Actual Product Verification
✓

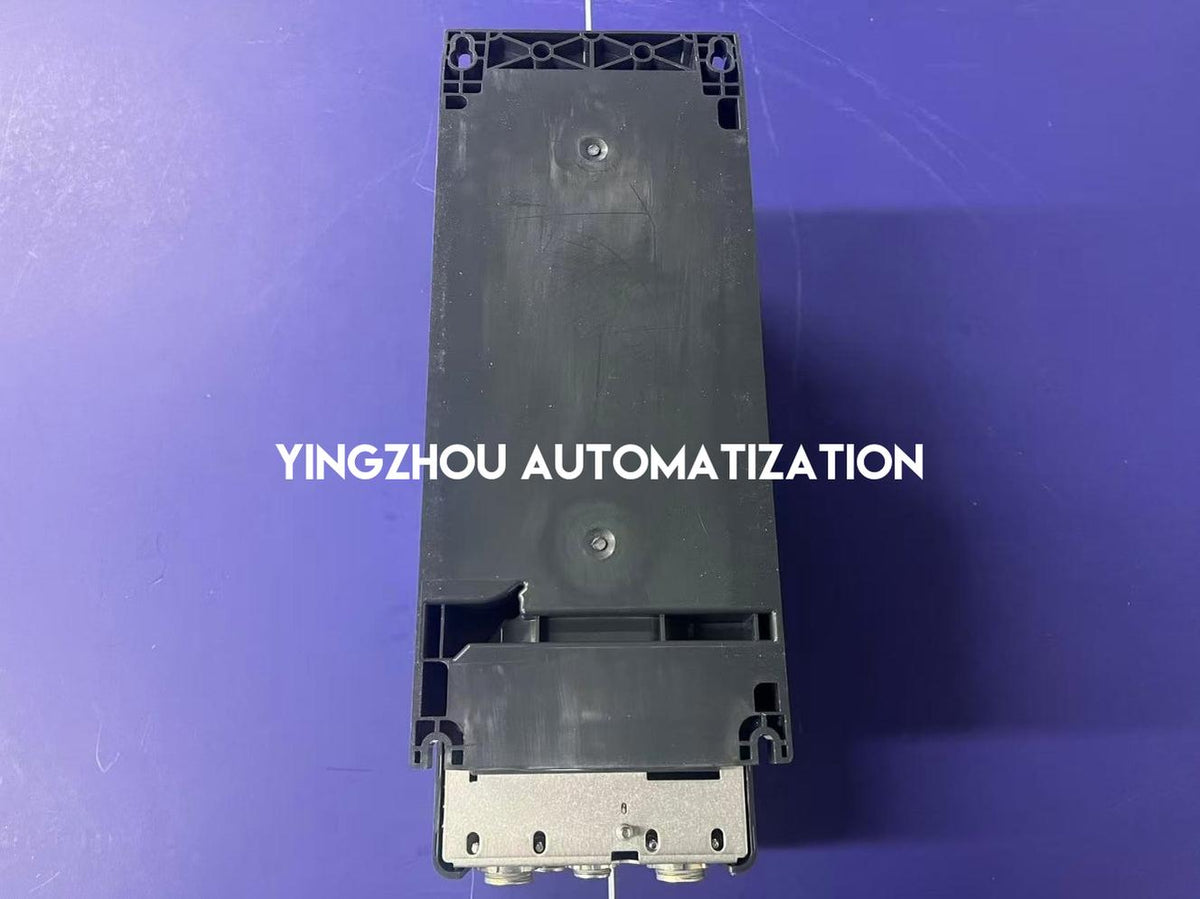

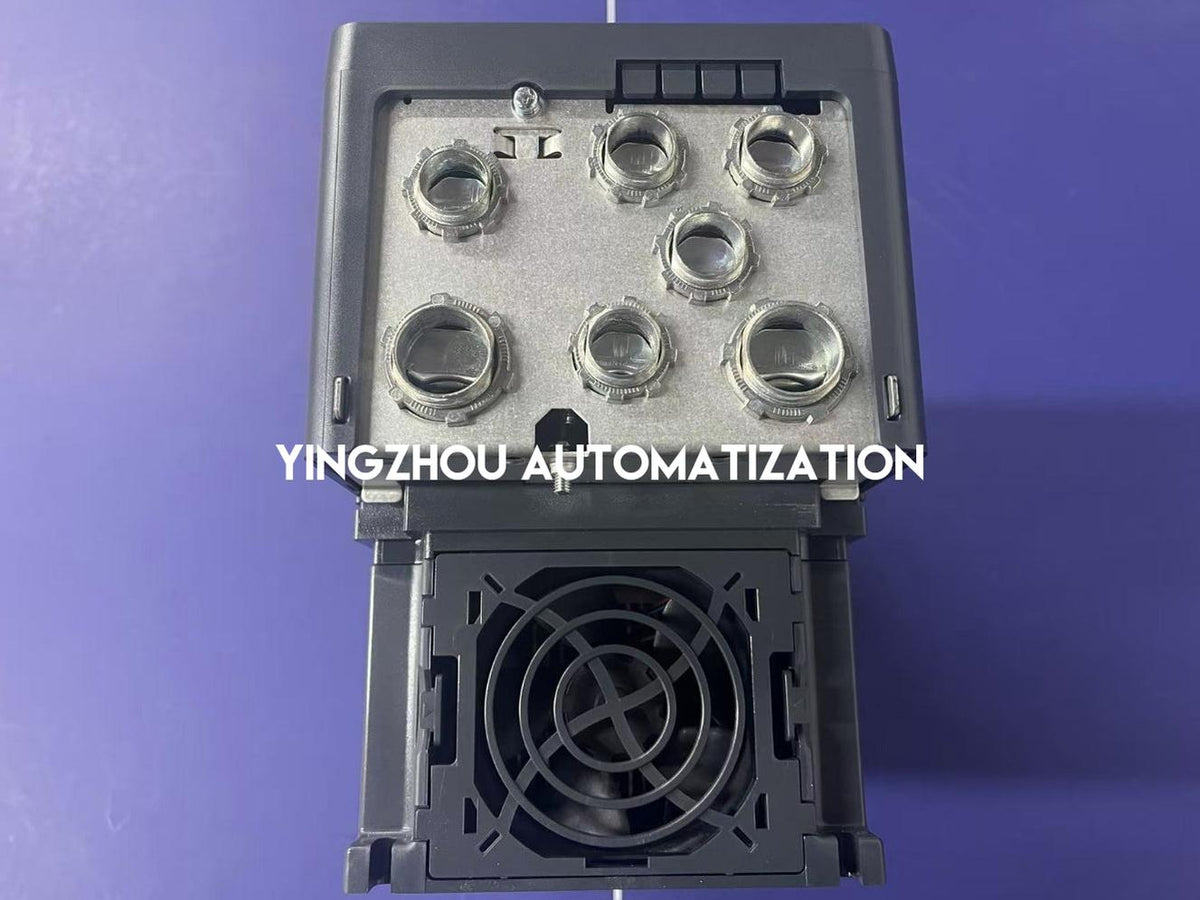

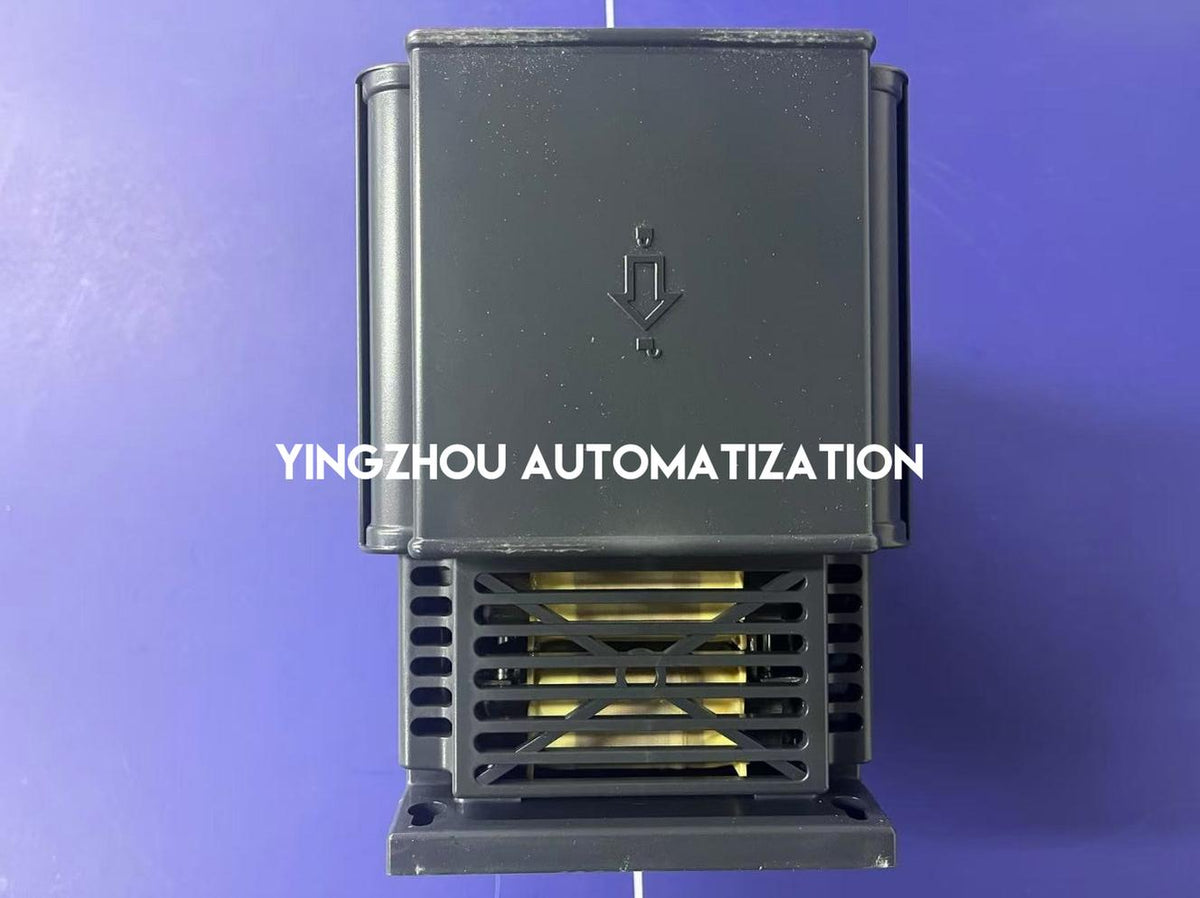

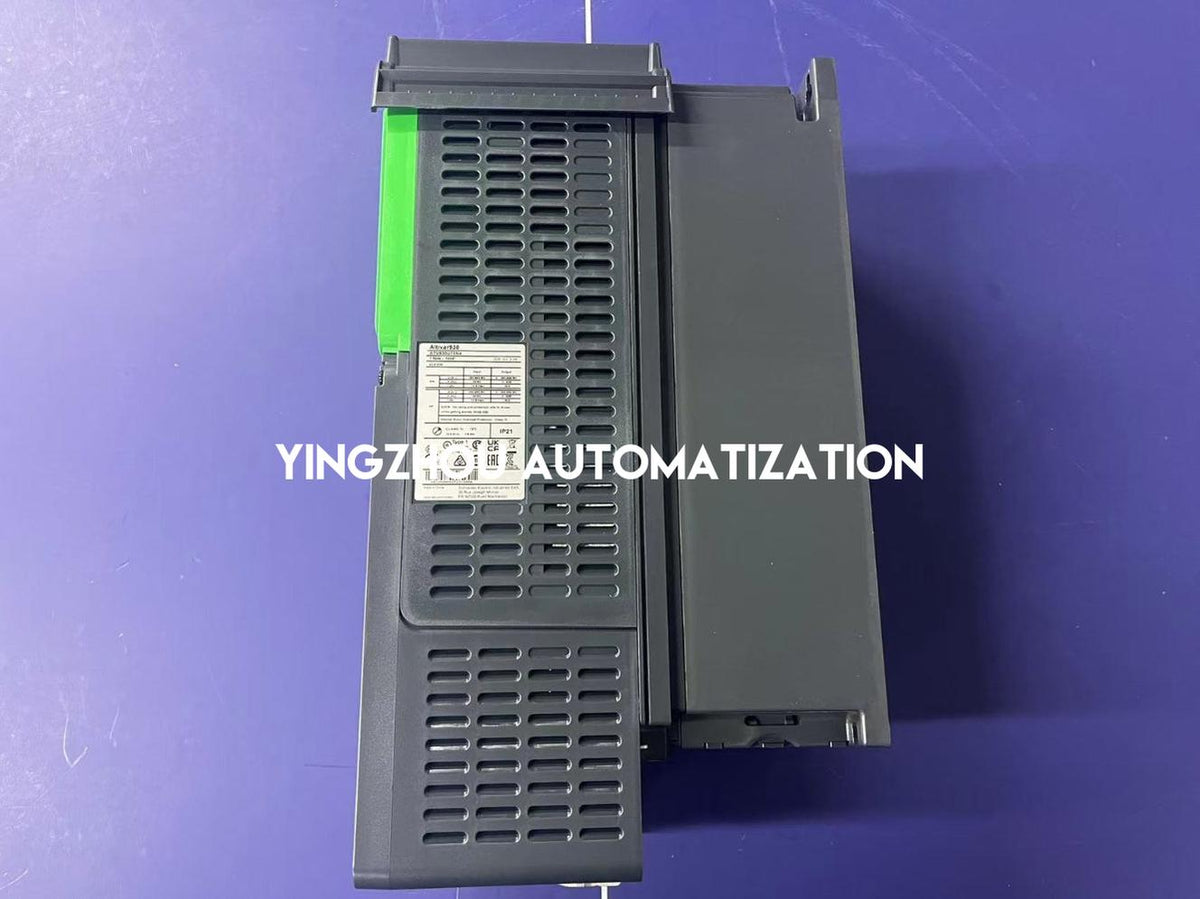

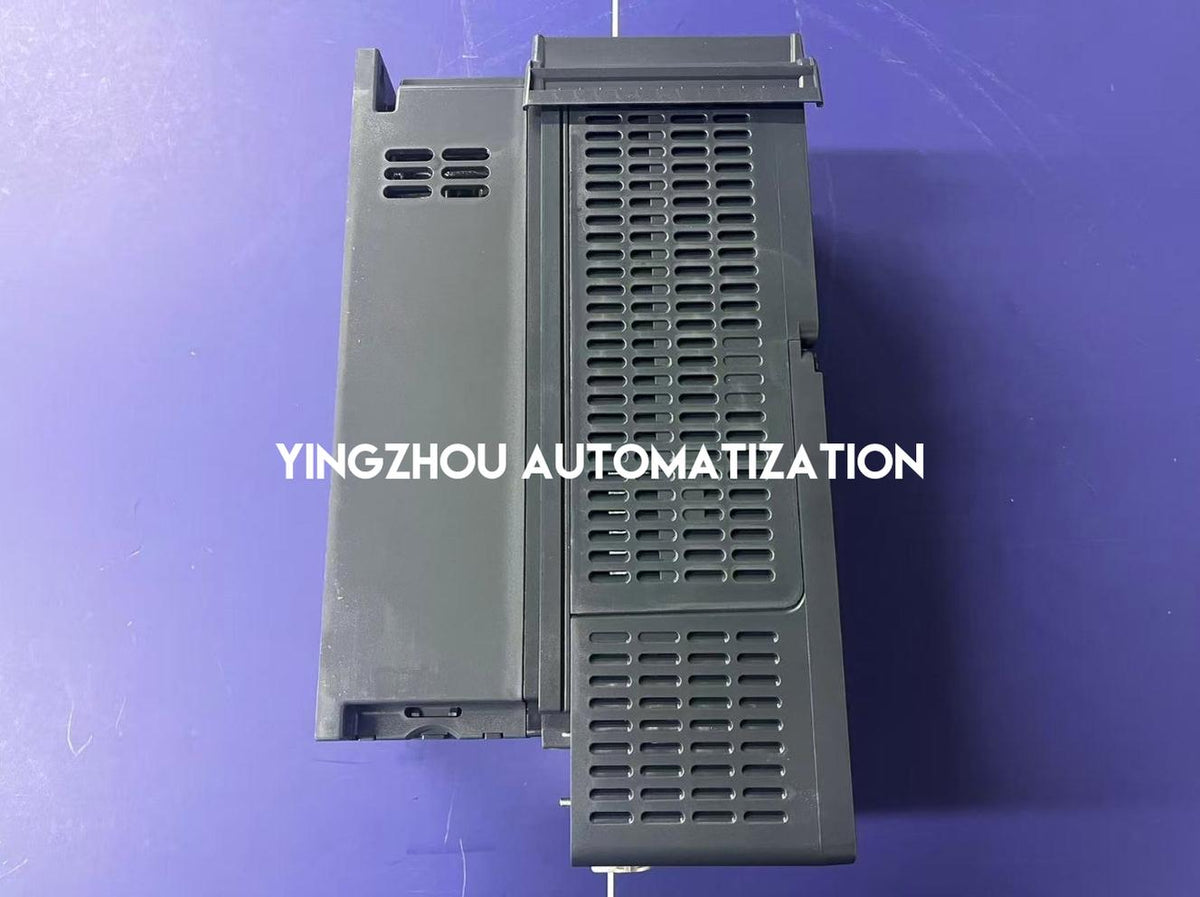

Actual product photos
✓

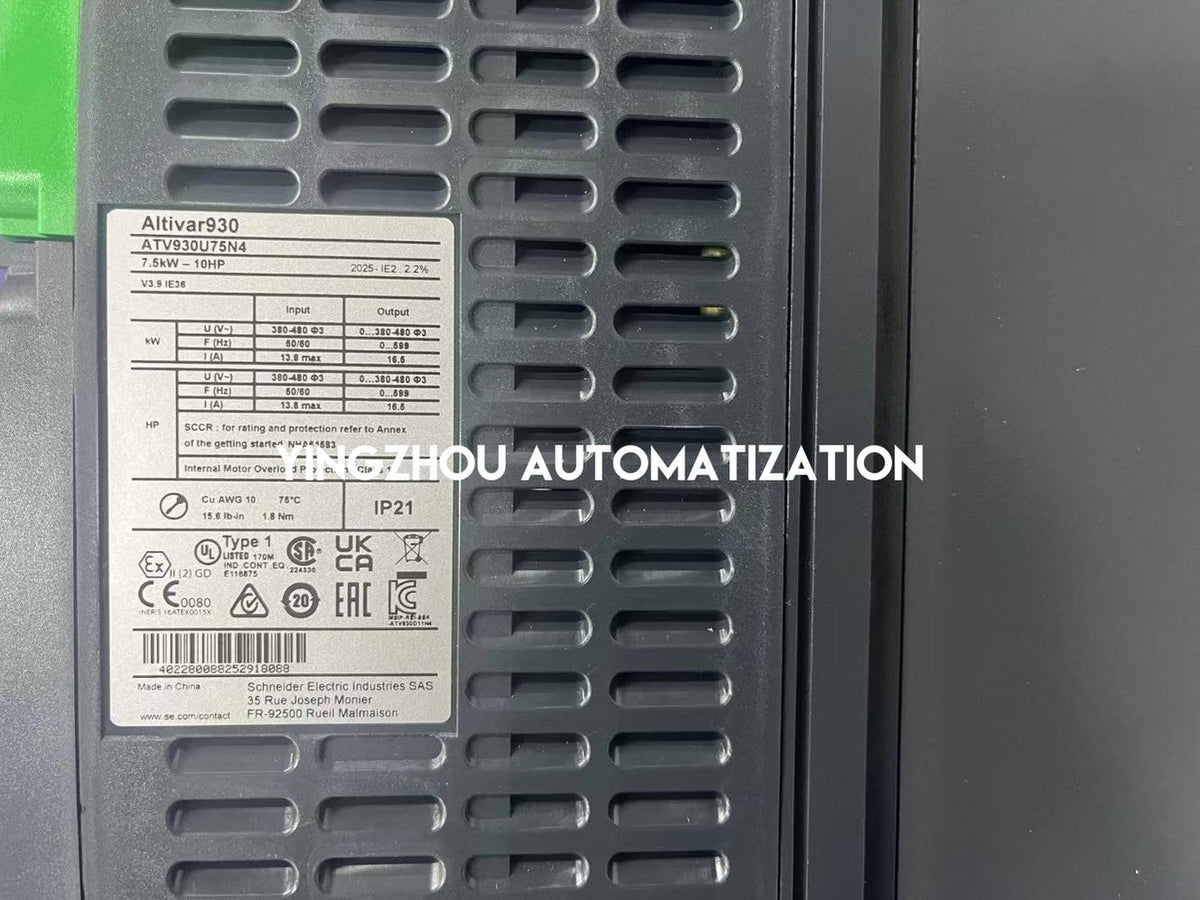

Model/nameplate visible
✓
Packaging shown
✓
Verify exact model ATV930U75N4 before ordering
In Stock & Ready to Order
Schneider Electric ATV930U75N4 is currently
in stock. Actual product nameplate and packaging photos
are provided for exact-model verification.
