Schneider ATV930D11N4 Altivar Process ATV930 Variable Speed Drive
11kW / 15HP (ND) | 380–480VAC | 3-Phase | Modbus TCP / EtherNet/IP
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATV930D11N4 |
| Series |
Altivar Process ATV900 |
| Device Short Name |
ATV930 |
| Product Type |
Variable Speed Drive |
| Product Application |
Industrial / Process Applications |
| Variant |
Standard Version |
| Motor Power |
11 kW / 15 HP (Normal Duty) |
| Rated Supply Voltage |
380–480 VAC, 3-Phase |
| Output Phases |
3-Phase |
| Supply Frequency |
50–60 Hz |
| Continuous Output Current |
23.5 A at 4 kHz (ND) |
| Line Current at 380 V |
19.8 A (ND) |
| Maximum Transient Current |
28.2 A for 60 s (ND) |
| Output Voltage |
Up to Supply Voltage, 3-Phase |
| Output Frequency |
0.1–599 Hz |
| Nominal Switching Frequency |
4 kHz |
| Adjustable Switching Frequency |
2–16 kHz |
| Communication |
Modbus TCP / Modbus Serial / EtherNet/IP |
| Modbus Serial Interface |
2-Wire RS-485 / RTU |
| Ethernet Connector |
2 × RJ45 on Control Block |
| Integrated EMC Filter |
IEC 61800-3 Category C3 |
| Braking Chopper |
Integrated |
| Safety Function |
STO (Safe Torque Off), SIL 3 |
| Motor Control |
Synchronous / Asynchronous Motors |
| Protection Rating |
IP21 / UL Type 1 |
| Cooling Type |
Forced Convection |
| Dimensions |
171 × 409 × 236 mm (W × H × D) |
| Product Weight |
7.7 kg |
Product Overview
The Schneider Electric ATV930D11N4 is a
variable speed drive from the
Altivar Process ATV900 series.
It provides an 11 kW / 15 HP normal-duty
motor rating with a 380–480 VAC three-phase
supply for industrial process motor control.
The drive supports Modbus TCP, Modbus Serial
and EtherNet/IP communication, with a
23.5 A normal-duty continuous output current
at 4 kHz.
It features an integrated braking chopper,
STO safety function,
Category C3 EMC filter,
IP21 protection and forced-convection cooling.
Key Product Features
-
11 kW / 15 HP normal-duty motor power rating
-
380–480 VAC three-phase supply
-
23.5 A continuous output current at 4 kHz (ND)
-
Modbus TCP / EtherNet/IP industrial Ethernet communication
-
Modbus Serial / RS-485 communication
-
Integrated braking chopper for compatible braking arrangements
-
STO safety function and Category C3 EMC filter
-
IP21 / UL Type 1 protection and forced-convection cooling
Actual Product Verification
✓

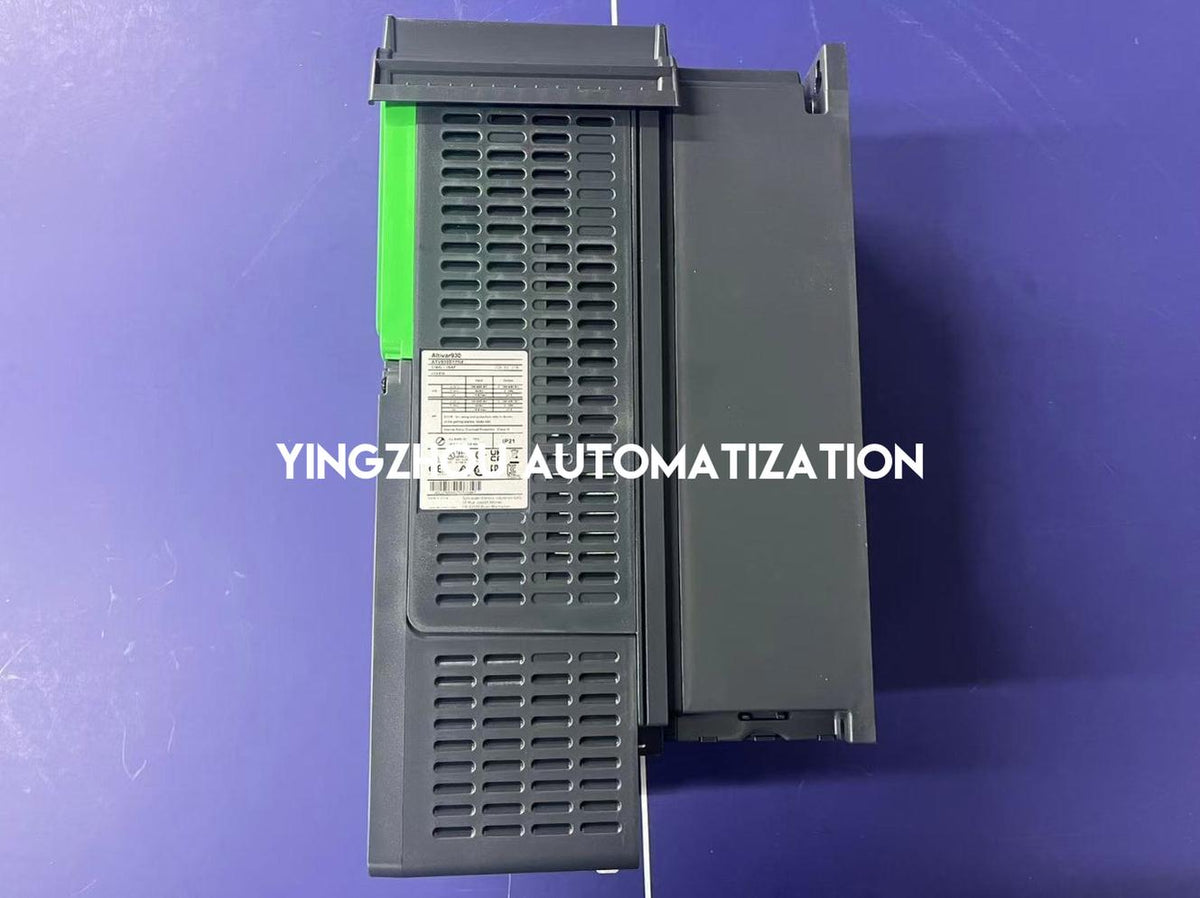

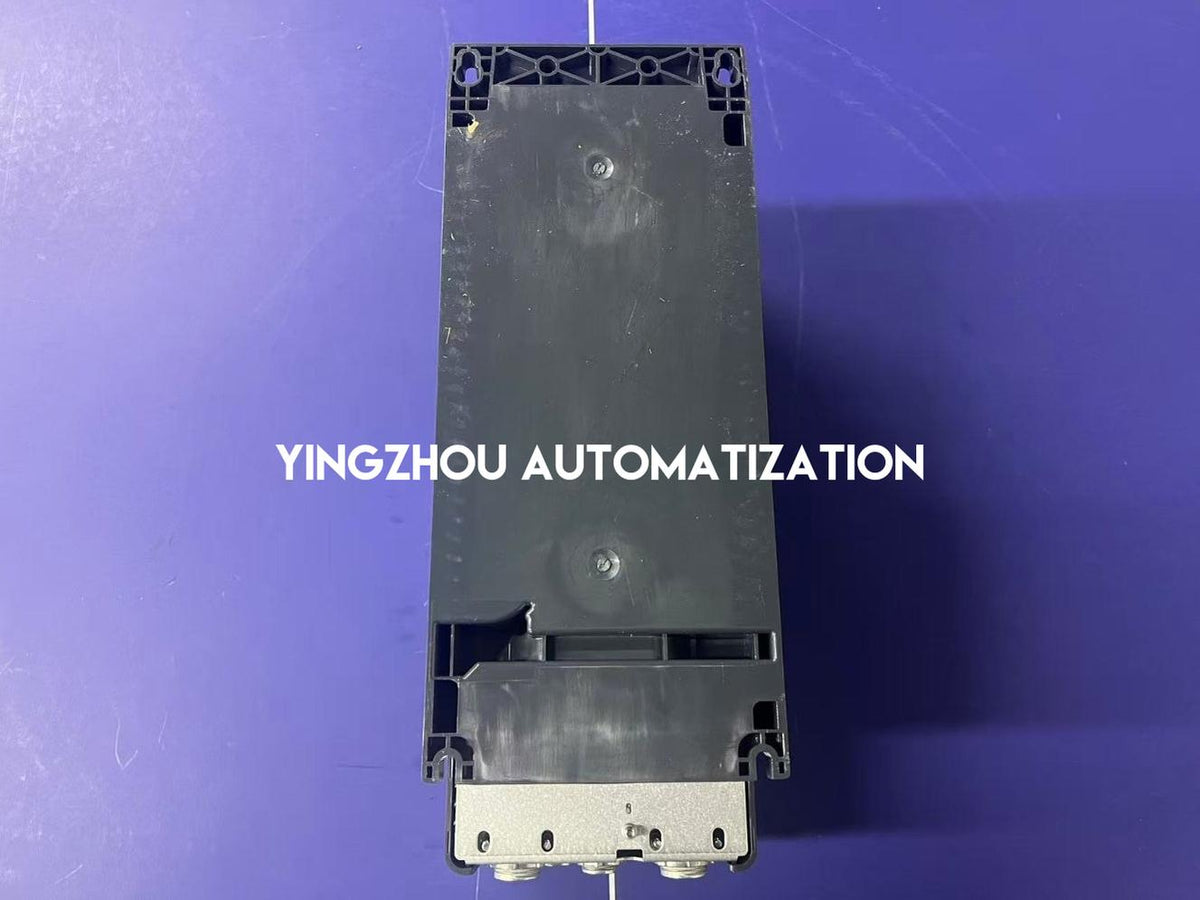

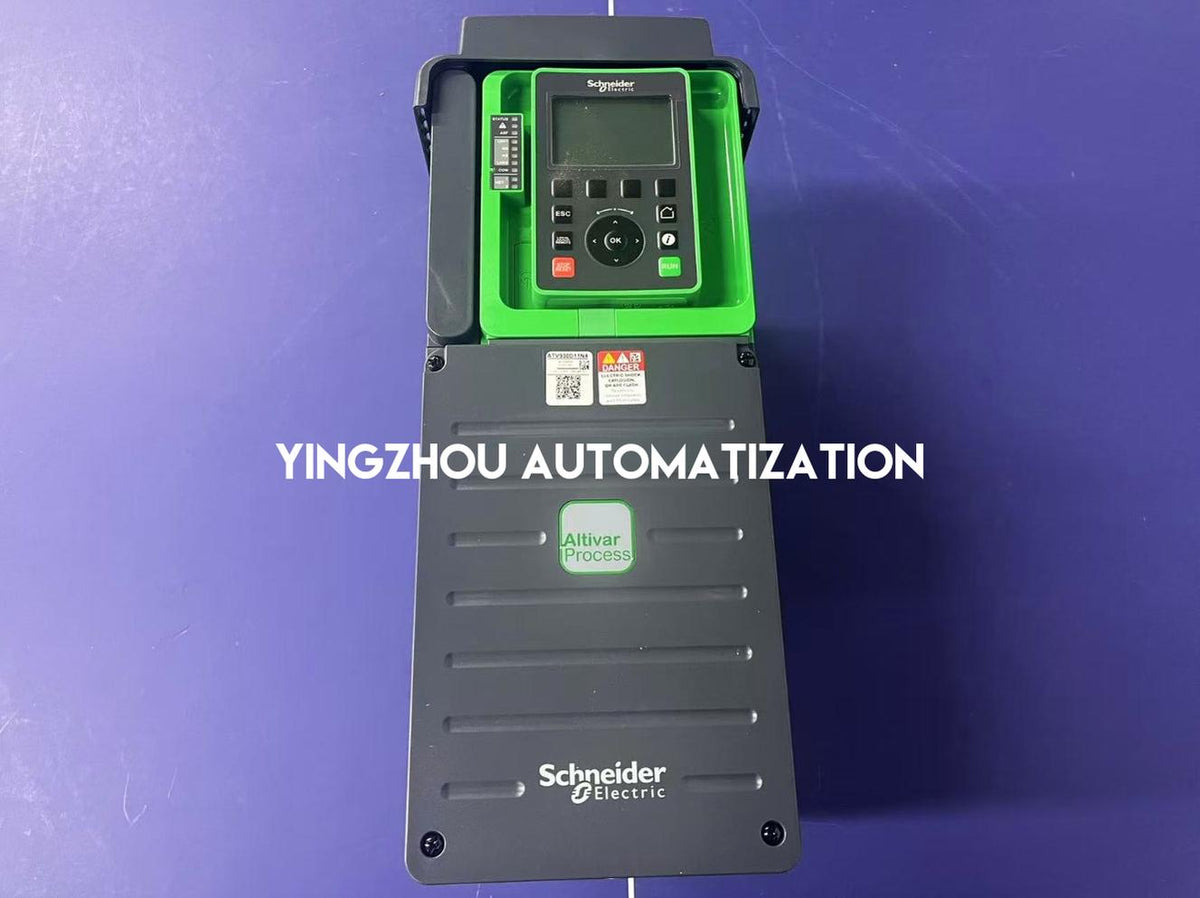

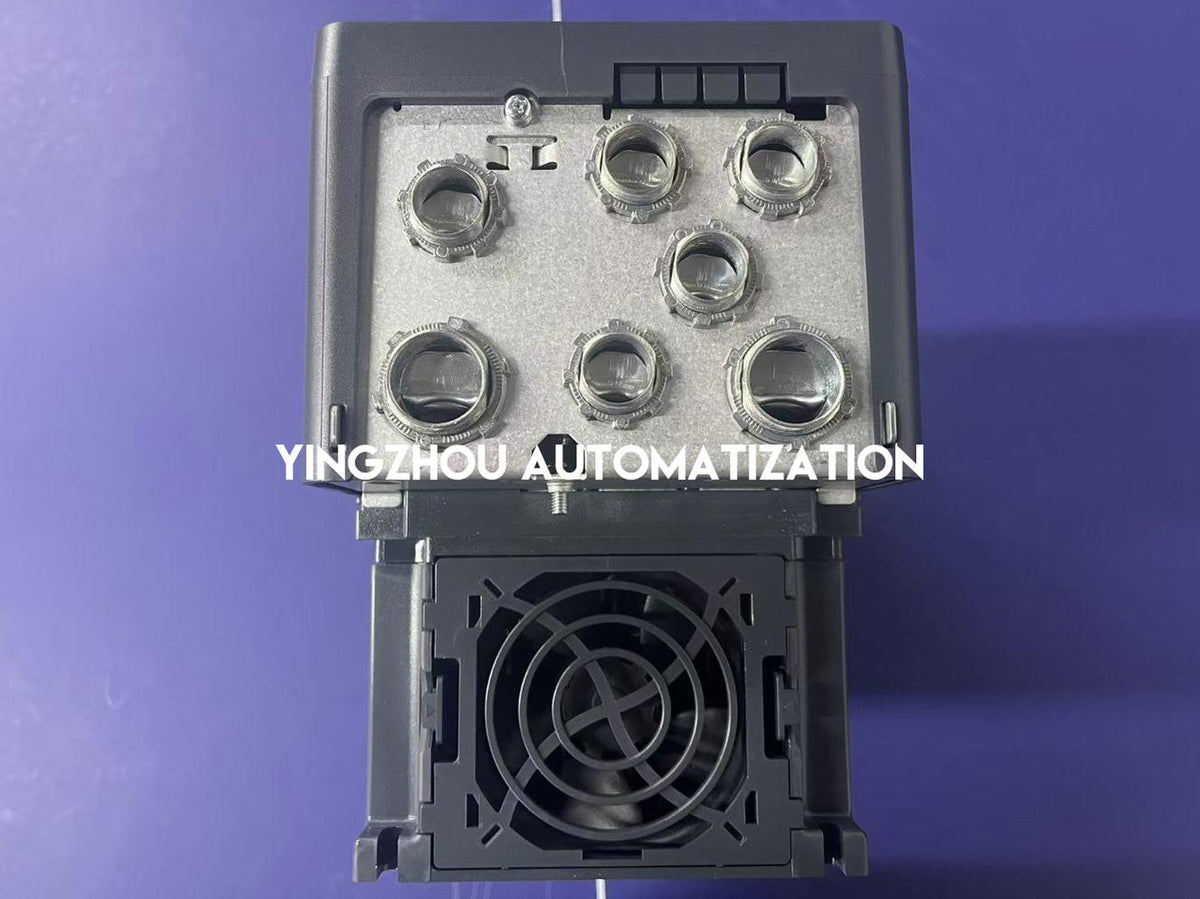

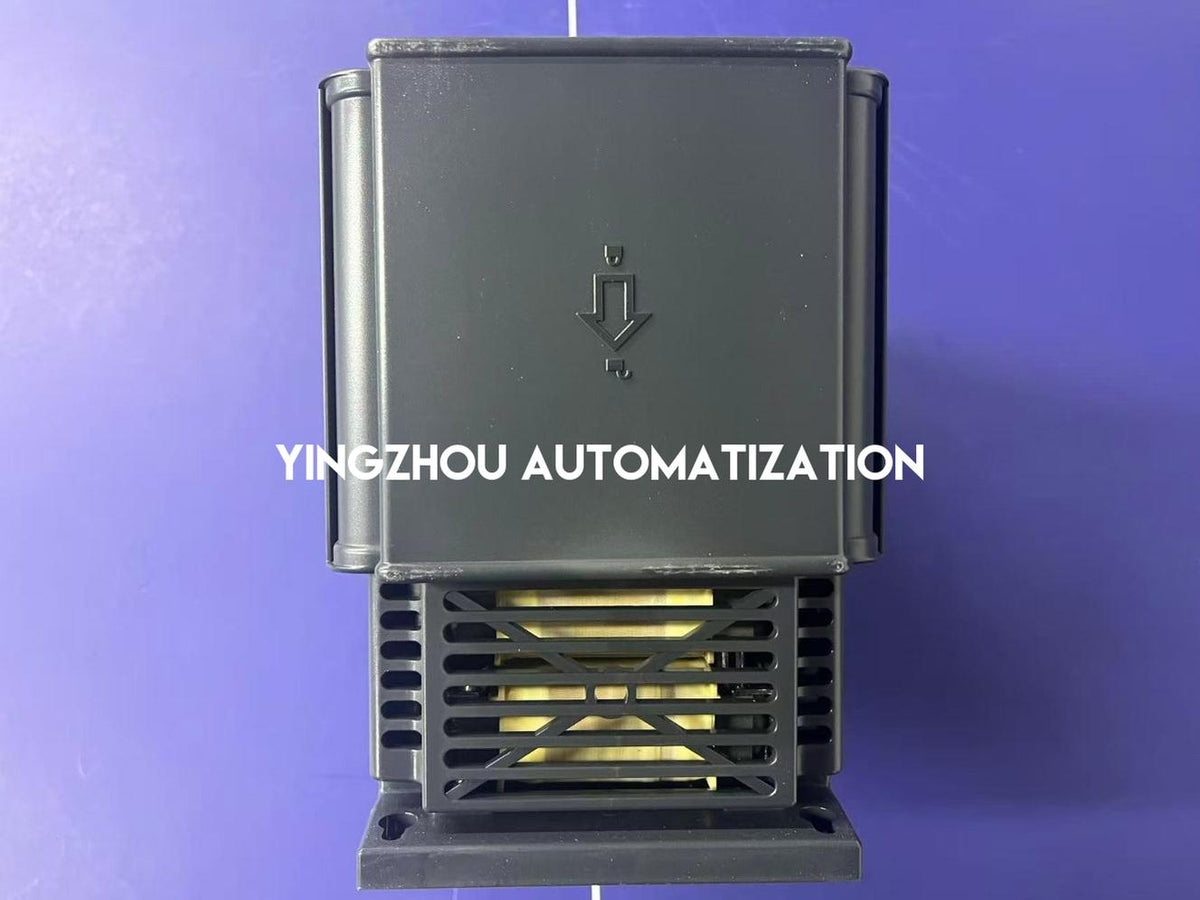

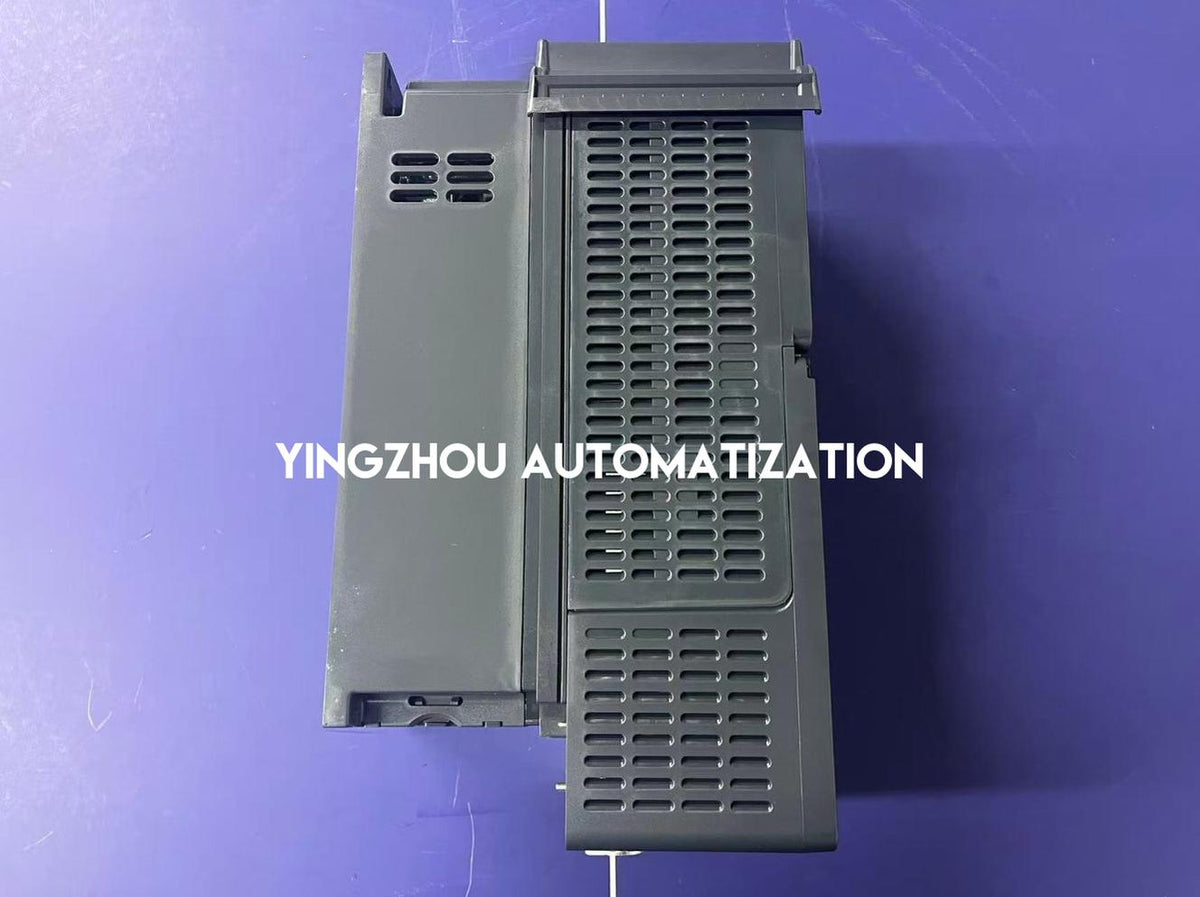

Actual product photos
✓

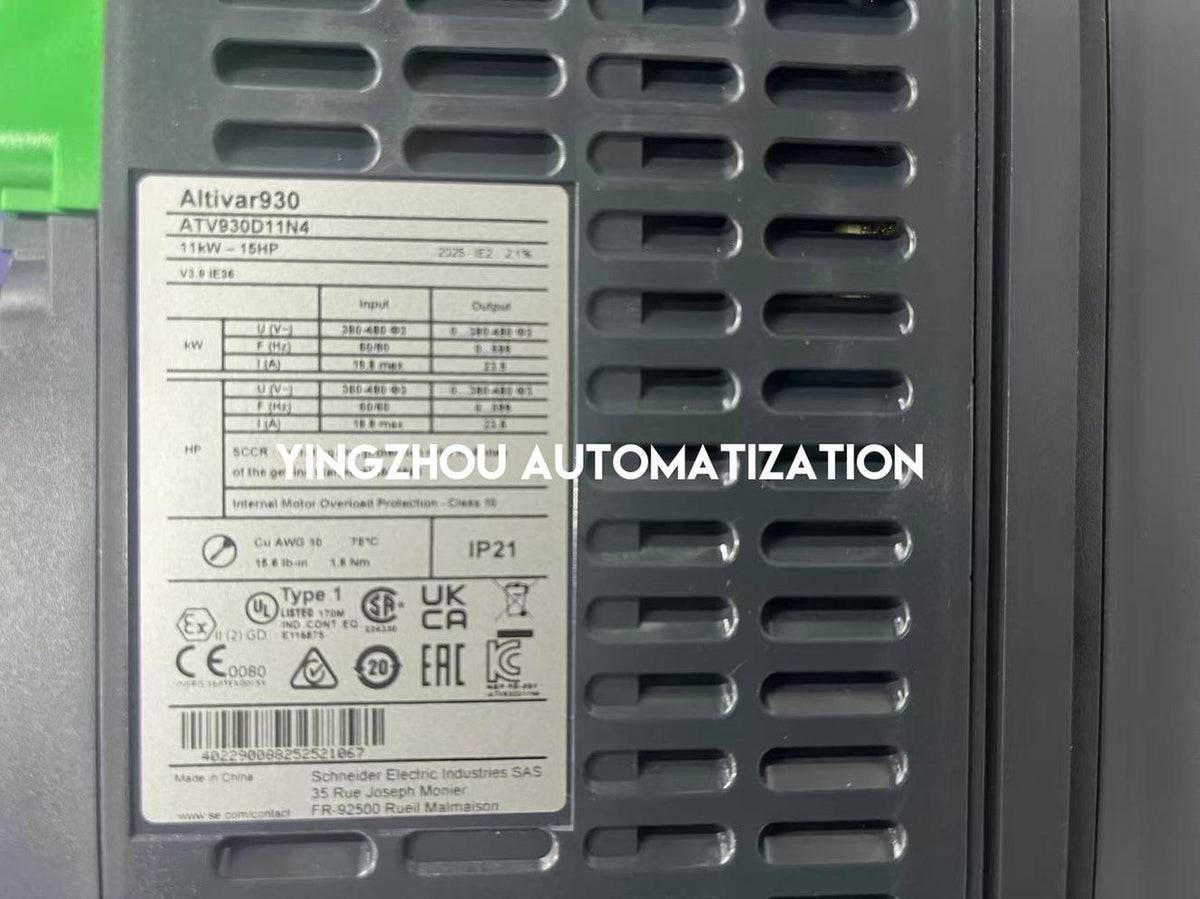

Model/nameplate visible
✓

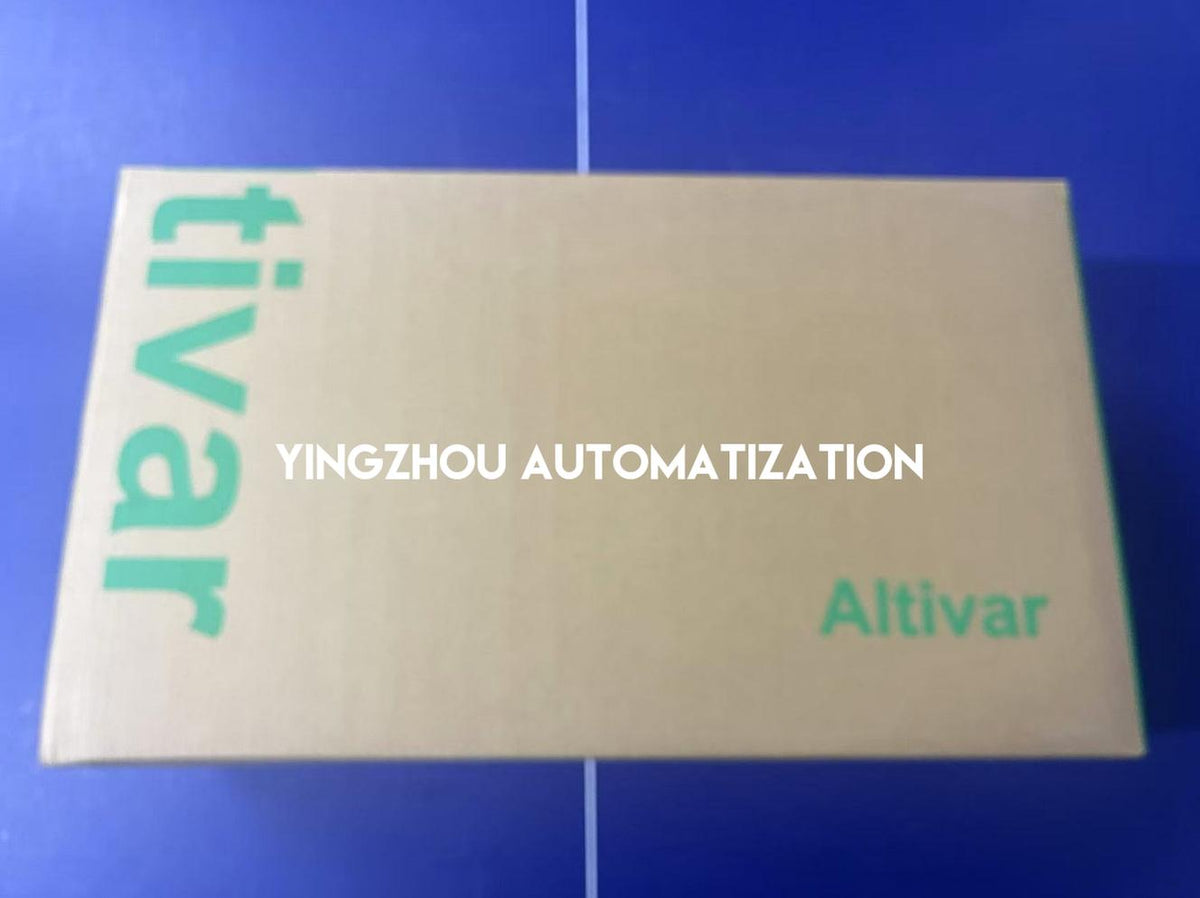

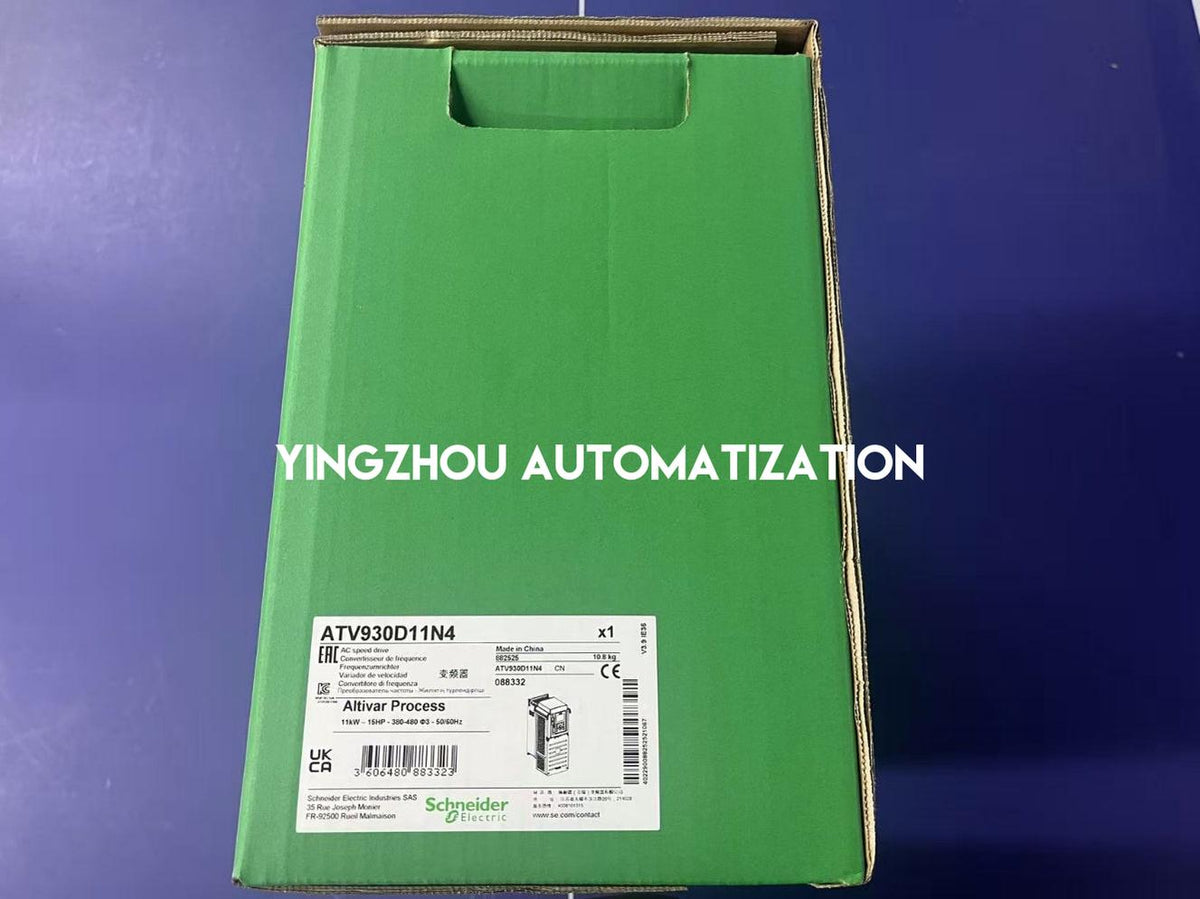

Packaging shown
✓
Verify exact model ATV930D11N4 before ordering
In Stock & Ready to Order
Schneider Electric ATV930D11N4 is currently
in stock. Actual product nameplate and packaging photos
are provided for exact-model verification.
IN STOCK
Schneider ATV930D11N4
Order online or contact us for project and quantity pricing.
