Omron S8VK-T48024 480W Switching Power Supply
480W | 24VDC | 20A | 380-480VAC 3-Phase / 2-Phase | DIN Rail
| Specification |
Verified Product Data |
| Manufacturer |
OMRON Corporation |
| Catalog Number |
S8VK-T48024 |
| Product Family |
S8VK-T Series |
| Product Type |
Industrial Switching Power Supply |
| Rated Output Power |
480 W |
| Rated Output Voltage |
24 VDC |
| Rated Output Current |
20 A |
| Rated AC Input |
380-480 VAC |
| AC Input Phase |
Three-Phase / Two-Phase |
| Allowable 3-Phase AC Input |
320-576 VAC |
| Allowable 2-Phase AC Input |
340-576 VAC |
| Rated DC Input |
450-600 VDC |
| Allowable DC Input Range |
450-810 VDC |
| Input Frequency |
50/60 Hz (47-63 Hz) |
| Typical Input Current |
0.80 A at 3-Phase 400 VAC |
| Maximum Boost Current |
24 A |
| Power Boost Ratio |
120% |
| Output Voltage Adjustment |
24-29.5 VDC |
| Power Factor |
0.9 min. at 3-Phase 400 VAC |
| Protection Functions |
Overload and Overvoltage Protection |
| Mounting Method |
DIN Rail |
| Terminal Type |
Screw |
| PCB Coating |
Coated |
| Operating Temperature |
-40 to +70°C (Derating Applies) |
| Protection Rating |
IP20 |
| Dimensions (W x H x D) |
95 x 125 x 140 mm |
| Country of Origin |
China (Photographed Unit) |
Product Overview
The Omron S8VK-T48024 is a 480W industrial switching power supply from the Omron S8VK-T Series, designed to provide regulated 24VDC output at 20A for industrial automation and electrical control systems. It supports three-phase and two-phase 380-480VAC input, as well as a manufacturer-specified rated DC input of 450-600VDC.
The S8VK-T48024 features DIN rail mounting, screw terminals, power factor correction, and a compact industrial construction. Its 120% power boost function provides up to 24A of output current under manufacturer-specified conditions. Overload and overvoltage protection help support reliable industrial DC power distribution.
Key Product Features
-
480W Rated Power — Regulated power for correctly sized industrial control loads.
-
24VDC 20A Output — Industrial DC output for automation equipment and control panels.
-
Three-Phase / Two-Phase Input — Rated 380-480VAC, 50/60Hz.
-
DC Input Support — Rated 450-600VDC under manufacturer-specified conditions.
-
120% Power Boost — Up to 24A maximum boost output current.
-
Power Factor Correction — Designed for improved input power performance.
-

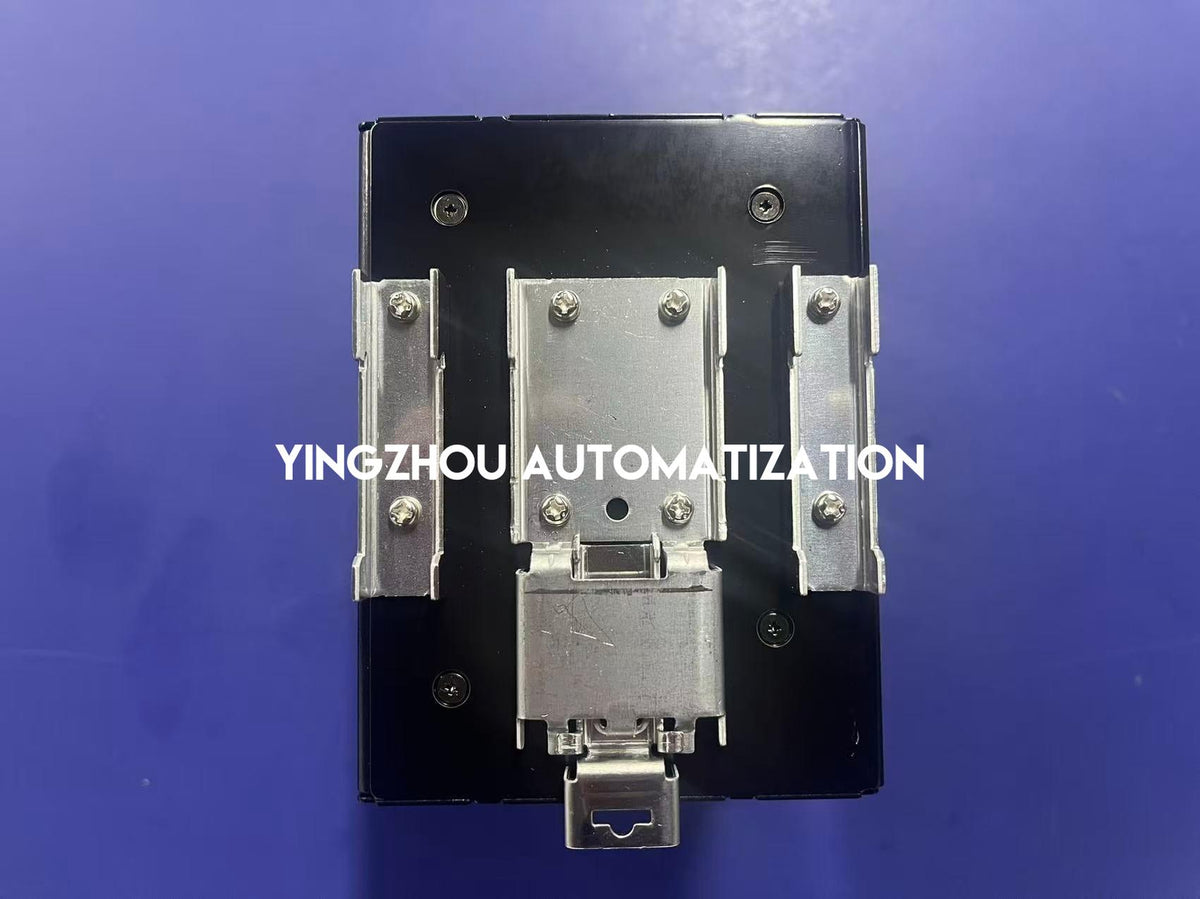

DIN Rail Installation — Industrial cabinet mounting design.
-
Screw Terminals — Secure industrial wiring connections.
-
Protective Functions — Overload and overvoltage protection.
-
Wide Temperature Range — -40°C to +70°C with required load derating.
-
Industrial Construction — Coated circuit board design.
Actual Product Verification

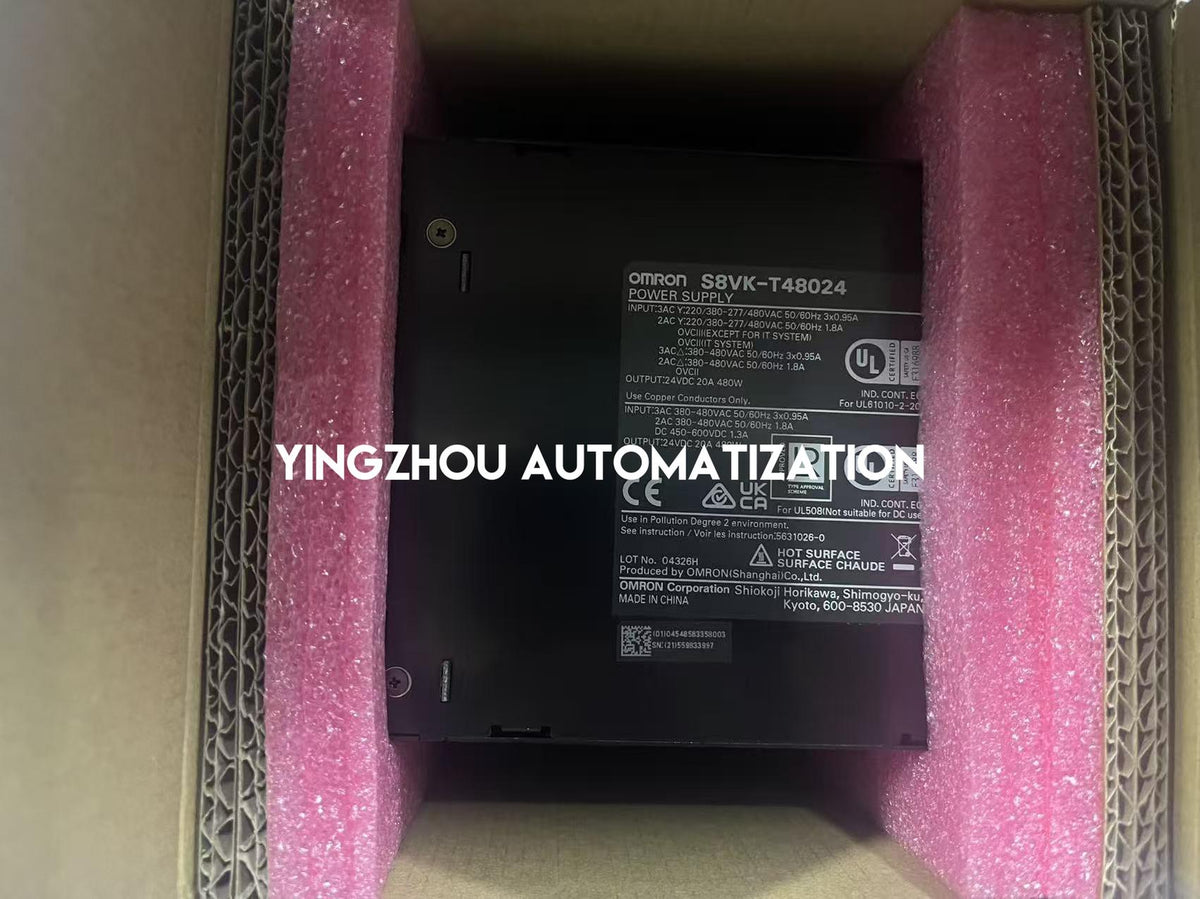

✓ Actual product and packaging photographs supplied

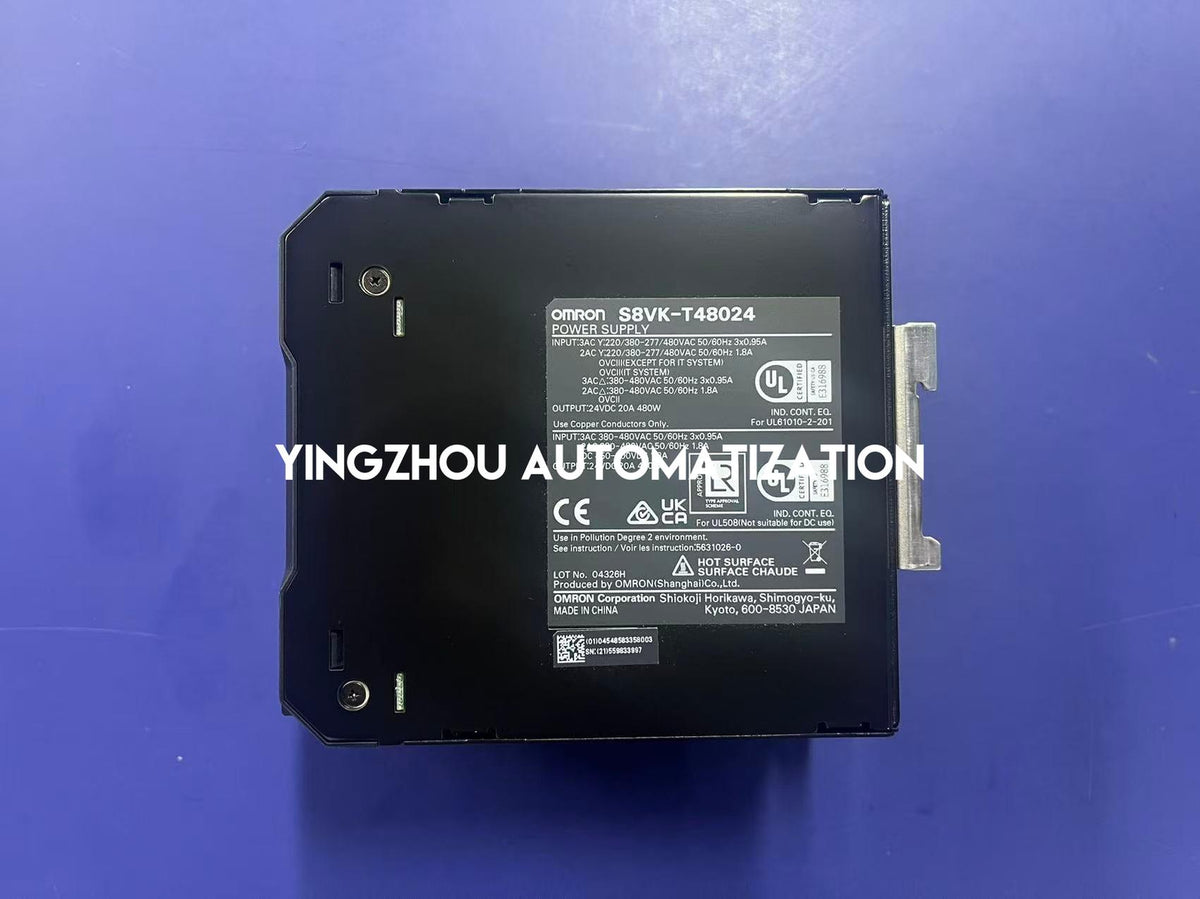

✓ Product nameplate model: S8VK-T48024

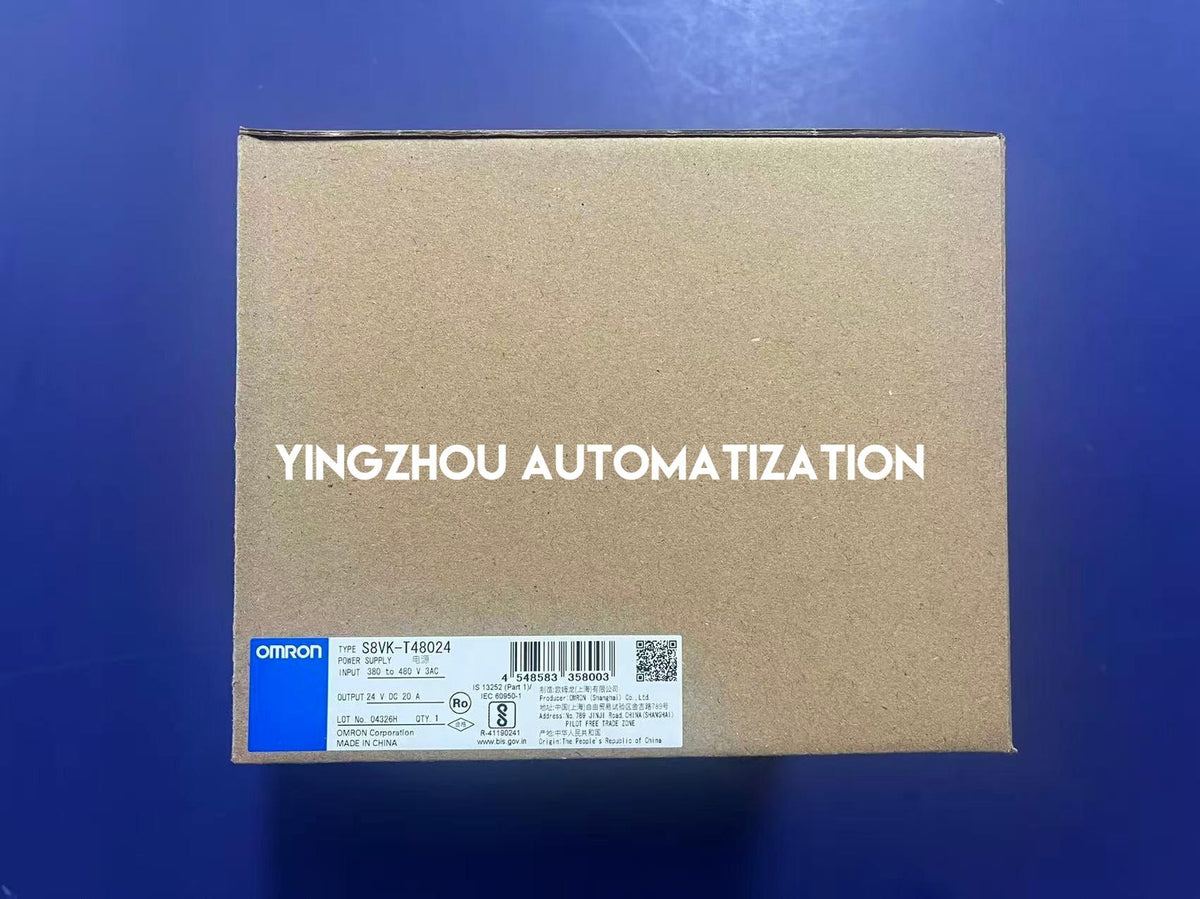

✓ Packaging label model: S8VK-T48024
✓ Product and packaging model numbers match
✓ Nameplate output: 24VDC, 20A, 480W
✓ Nameplate AC input: 3-Phase / 2-Phase 380-480VAC
✓ Nameplate DC input: 450-600VDC
✓ Lot number: 04326H
✓ Marked country of manufacture: China
In Stock & Available to Order
Omron S8VK-T48024 is listed as in stock by YINGZHOU. Actual product and packaging photographs are available for exact-model confirmation. Suitable for qualified industrial control projects, equipment maintenance, and replacement power supply sourcing where the required input voltage, phase configuration, DC output current, and installation conditions have been verified.
IN STOCK
Omron S8VK-T48024
Contact us for model verification, bulk quantity quotations, and industrial power supply sourcing. Please confirm your AC input voltage and phase configuration, 24VDC load current, installation space, and delivery requirements.
