Omron S8VK-G12024 24VDC 5A 120W DIN Rail Power Supply

Omron S8VK-G12024 24VDC 5A 120W DIN Rail Power Supply

$94.99 USD
$94.99 USD
Obral Habis
Model Number
YingZhou Industrial Automation | Product Information

Omron S8VK-G12024 Switching Power Supply

120W | 24VDC | 5A | Single-Phase Input | DIN Rail Mounting
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer OMRON Corporation
Catalog Number S8VK-G12024
Product Family S8VK-G
Product Type Switching Power Supply
Rated Output Power 120W
Input Phase Single-phase
Rated AC Input 100–240V AC
Allowable AC Input 85–264V AC
Allowable DC Input 90–350V DC
Input Frequency 50/60Hz (47–63Hz)
AC Input Current 1.6A as marked on supplied product label
Rated DC Output 24V DC
Rated Output Current 5A
Maximum Boost Current 6A under specified conditions
Output Voltage Adjustment −10% to +15% using V.ADJ
Efficiency 86% typical at 200V AC input
Ripple 150mV peak-to-peak maximum
Operating Temperature −40°C to +70°C, subject to derating conditions
Mounting DIN rail
Connection Screw terminals
Cooling Natural convection, fanless
Protection Overvoltage and overload protection
Protection Rating IP20
Dimensions (W × H × D) Approx. 40 × 125 × 122mm
Country of Origin China, as marked on supplied product and carton labels
Lot Number 21425H

Product Overview

The Omron S8VK-G12024 is a compact 120W industrial switching power supply designed for industrial control panels and automation equipment. It provides a regulated 24V DC output at 5A and accepts a rated single-phase AC input of 100–240V AC. The manufacturer also specifies allowable input ranges of 85–264V AC and 90–350V DC. The power supply features DIN rail mounting, screw terminals, natural convection cooling and built-in overvoltage and overload protection. Its specified boost capability supports a maximum output current of 6A under the manufacturer's stated conditions; this is not the continuous rated current. The S8VK-G series is designed for compact industrial installations with a wide operating temperature range, subject to applicable derating and installation requirements. The supplied product and carton photographs both identify the model as S8VK-G12024. The photographed labels also identify a 24V DC, 5A output and Made in China marking.

Key Product Features

  • 120W Rated Output — Delivers 24V DC at 5A for compatible industrial loads.
  • Single-Phase Universal AC Input — Rated for 100–240V AC.
  • Wide Input Capability — Manufacturer-specified allowable ranges of 85–264V AC and 90–350V DC.
  • 6A Boost Capability — Supports a temporary boost current under specified operating conditions.
  • DIN Rail Installation — Suitable for industrial control panel mounting.
  • Fanless Cooling — Uses natural convection without a cooling fan.
  • Built-in Protection — Overvoltage and overload protection.
  • Wide Operating Temperature Range — −40°C to +70°C, subject to installation and derating requirements.

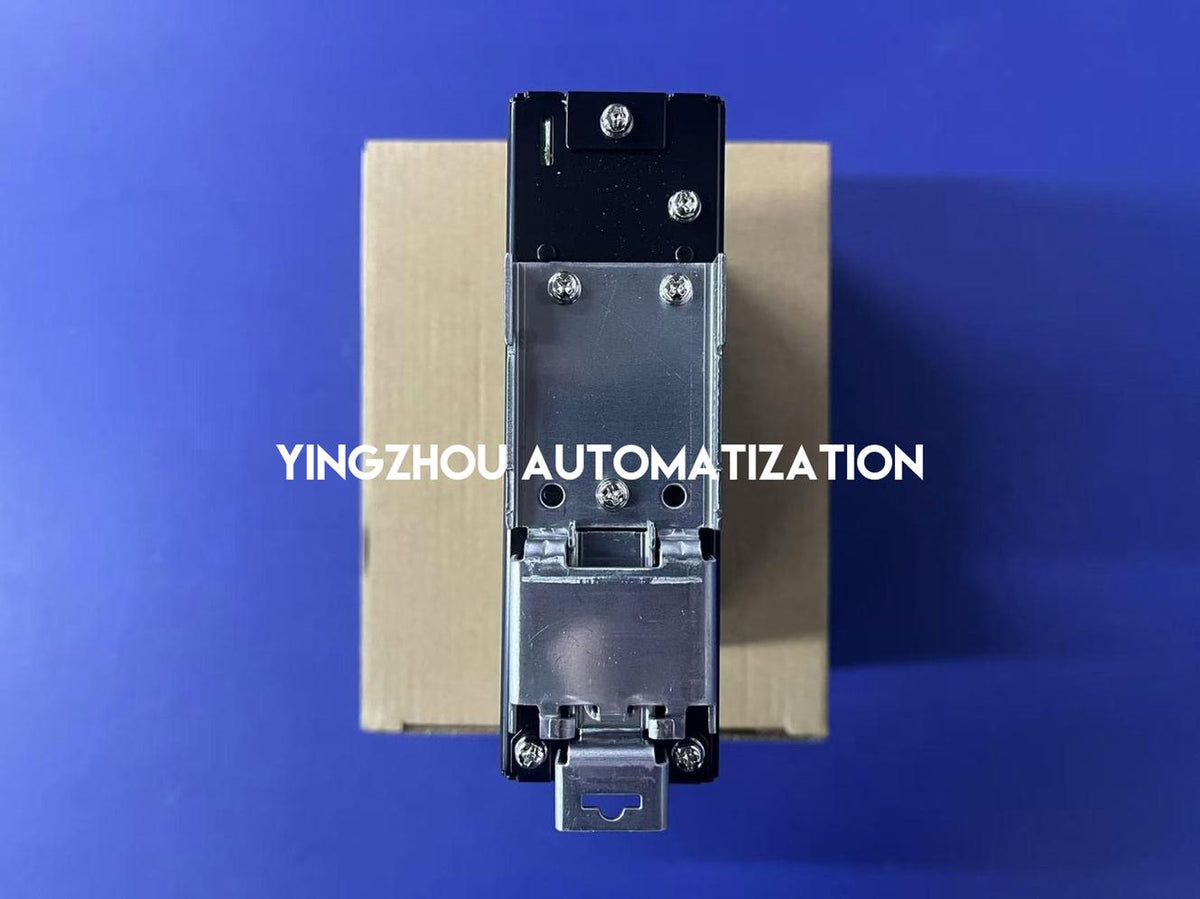

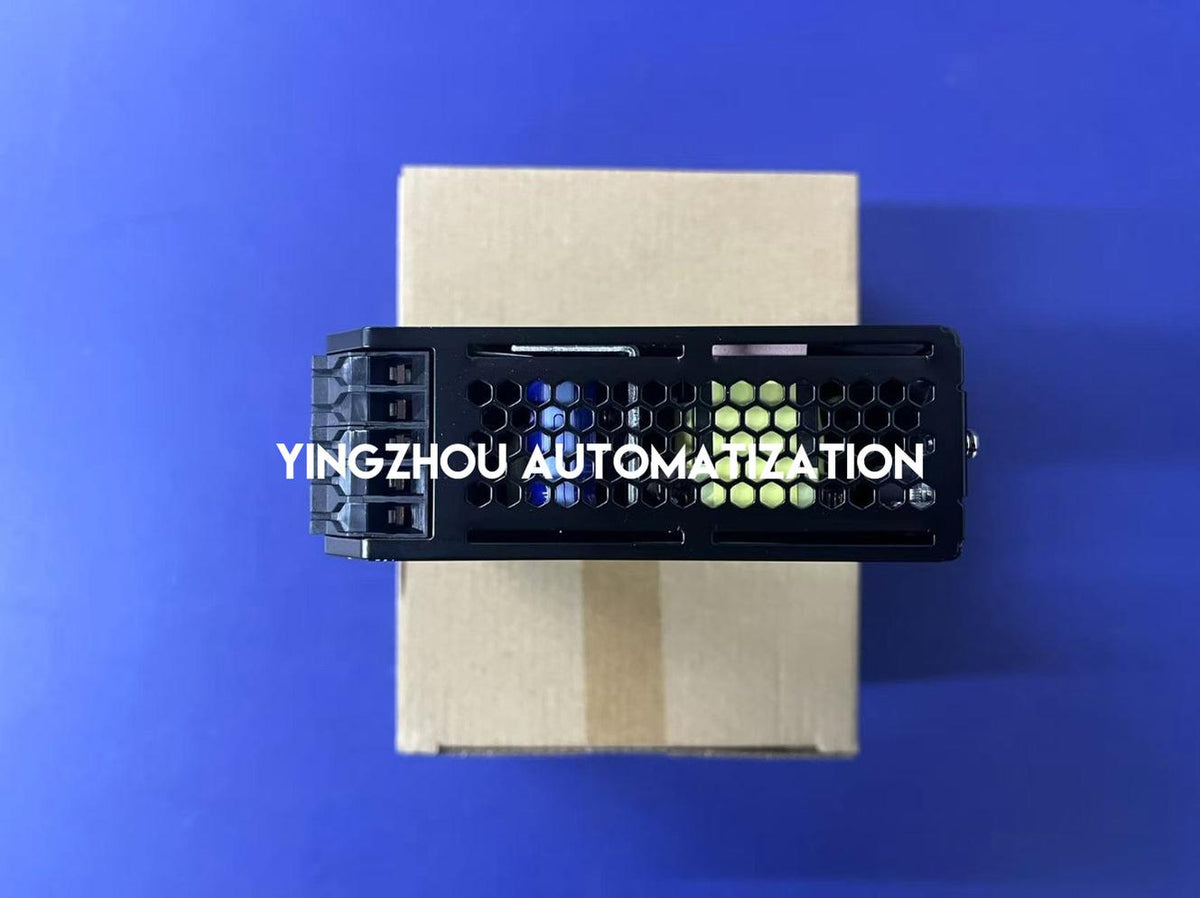

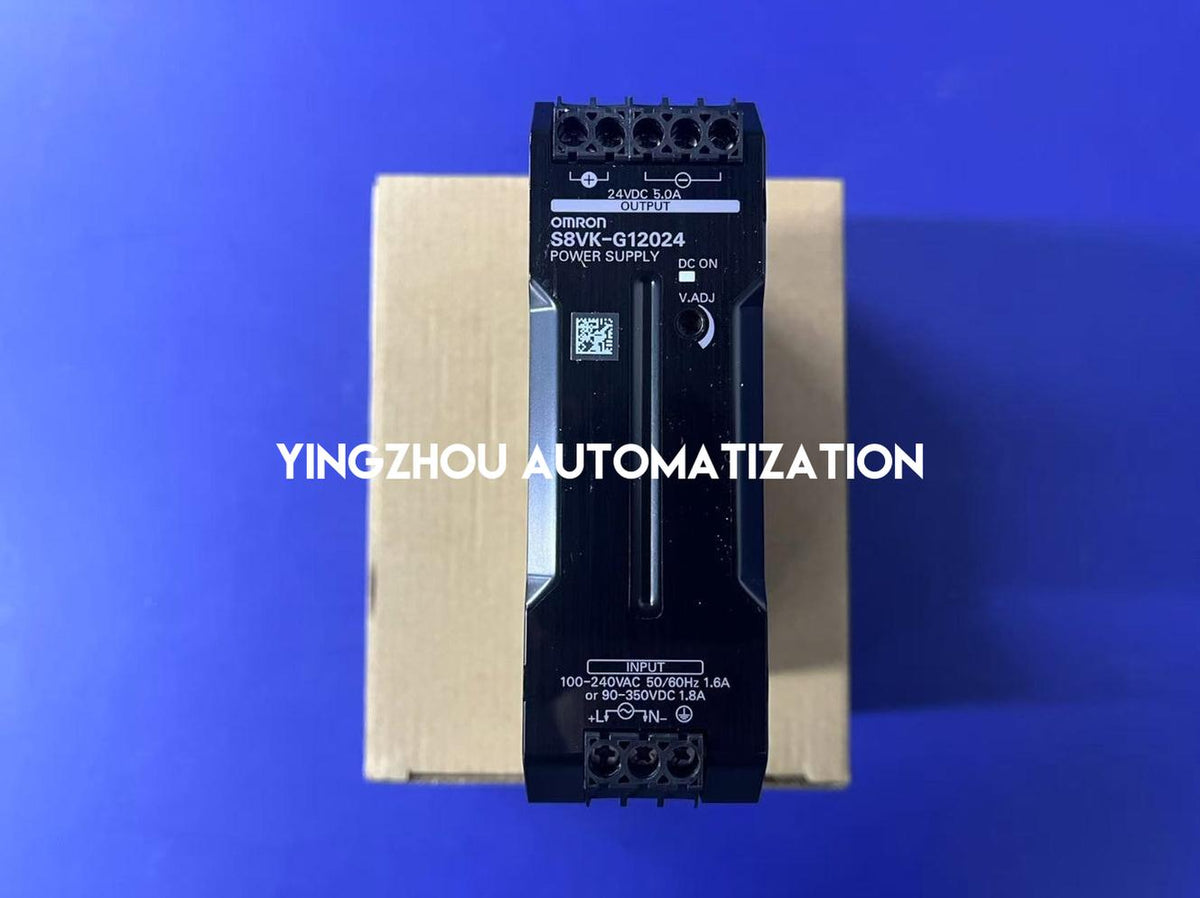

Actual Product Verification

✓ Actual product label and original carton photographs supplied

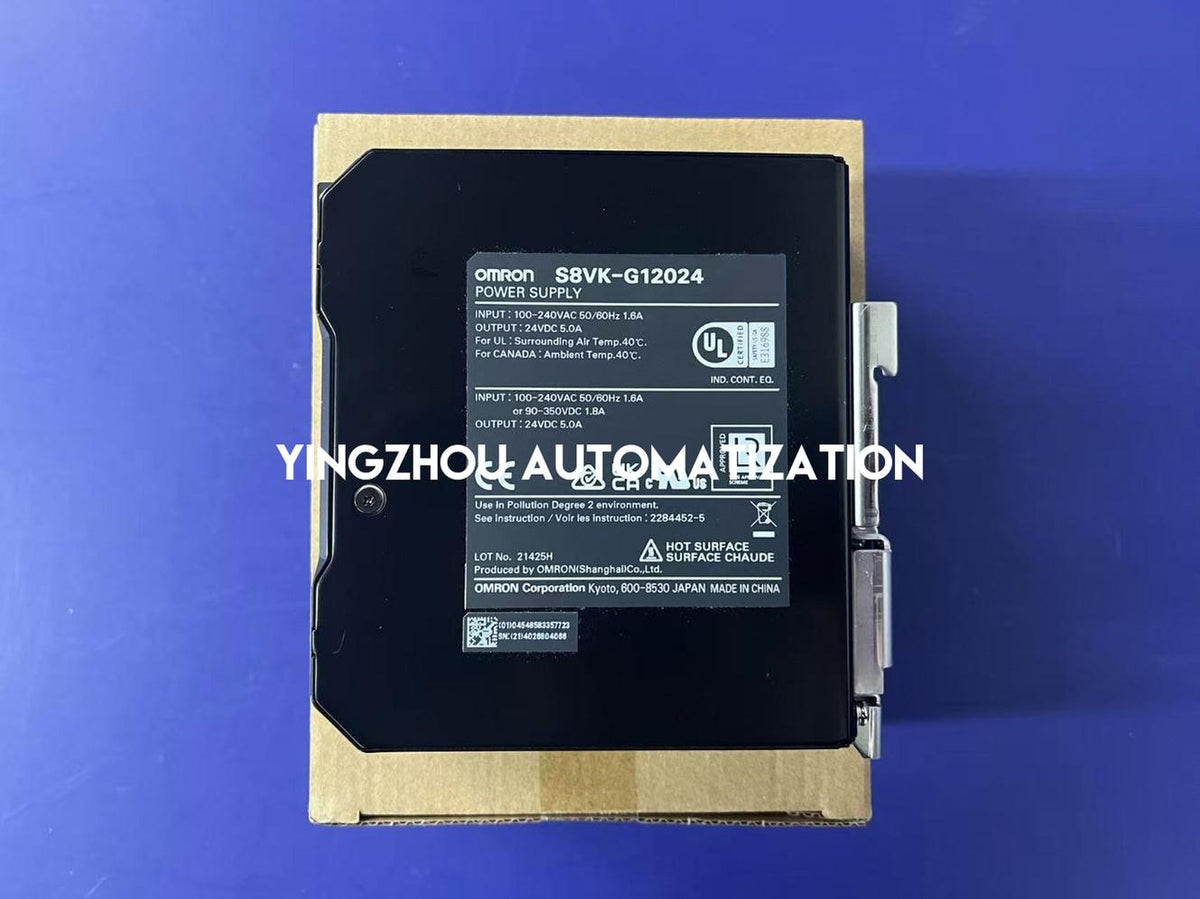

✓ Product nameplate model: S8VK-G12024

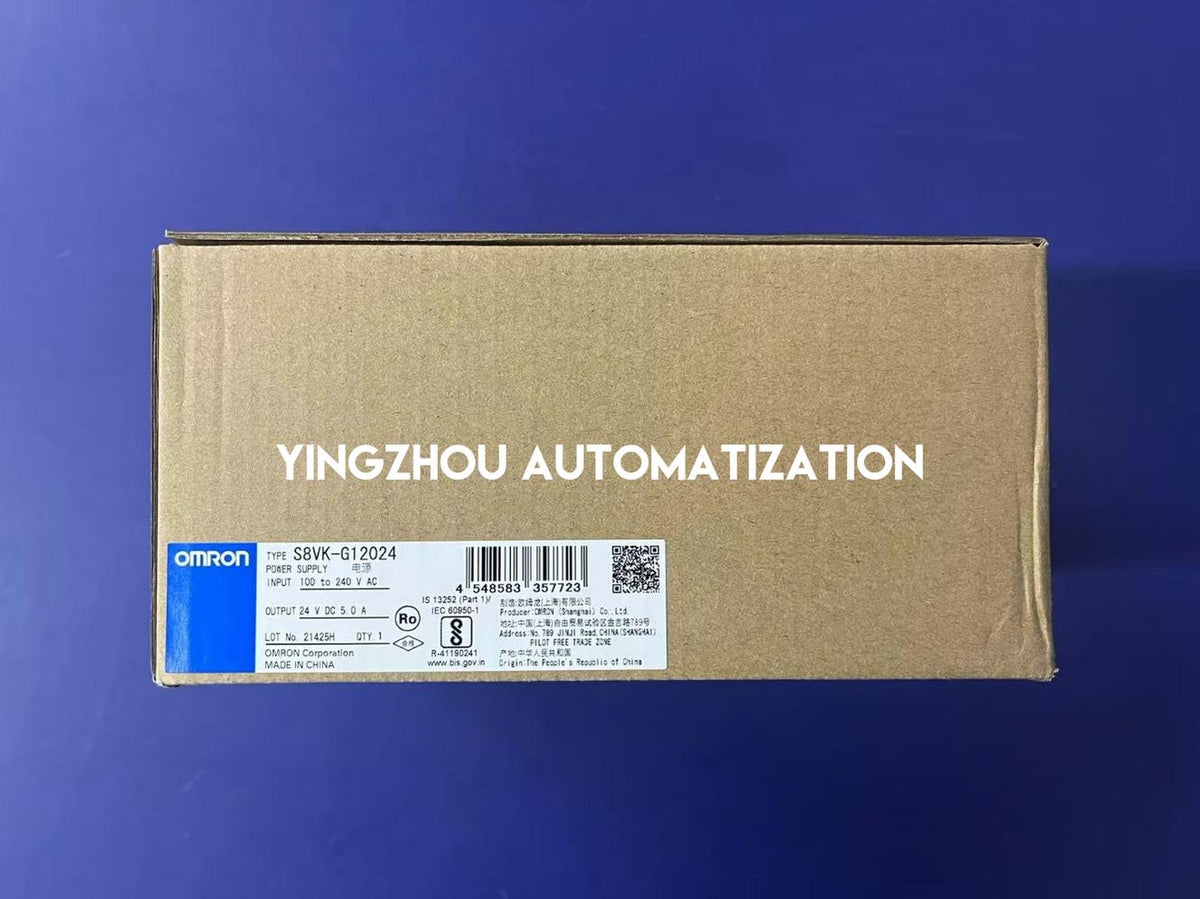

✓ Carton model: S8VK-G12024
✓ Product and carton model identification match
✓ Rated output: 24V DC, 5.0A
✓ Rated power: 120W
✓ Input marking: 100–240V AC, 50/60Hz
✓ Lot number shown: 21425H
✓ Origin marking: Made in China

In Stock & Available to Order

Omron S8VK-G12024 is listed as IN STOCK based on the supplied inventory information. It is suitable for sourcing when a 24V DC, 5A industrial power supply is required. Before ordering, please confirm the input supply, continuous load requirement, installation clearance, wiring arrangement and applicable operating-temperature derating. The 6A boost capability is subject to the manufacturer's specified conditions and should not be treated as a continuous 6A rating.

IN STOCK

Omron S8VK-G12024 Power Supply

Contact YINGZHOU for S8VK-G12024 availability, quantity pricing and industrial replacement sourcing. Confirm the 24V DC output, 5A continuous load requirement and installation conditions before ordering.
