Omron CS1W-ID211 CS1 Series 16-Point DC Input Module
Omron CS1W-ID211 CS1 Series 16-Point DC Input Module
Tidak dapat memuat ketersediaan pengambilan
Omron CS1W-ID211 CS1 Series Digital Input Module
| Specification | Verified Product Data |
|---|---|
| Manufacturer | OMRON Corporation |
| Exact Model | CS1W-ID211 |
| Product Family | SYSMAC CS1 Series |
| Module Classification | CS1 Basic I/O Unit |
| Product Designation | DC Input Unit |
| Product Type | PLC Digital Input Module |
| Digital Input Channels | 16 |
| Digital Output Channels | 0 |
| Rated Input Voltage | 24V DC |
| Rated Input Current | 7mA |
| Input Impedance | 3.3kΩ |
| Digital Input Configuration | NPN / PNP Input Signals |
| Input Connection | Terminal Block |
| I/O Memory Allocation | 1 Word |
| Internal 5V DC Current Consumption | 100mA |
| Compatible PLC Architecture | Supported SYSMAC CS1 Systems |
| CS1 CPU Rack Installation | Supported |
| CS1 Expansion Rack Installation | Supported |
| C200HX/HG/HE Expansion Rack | Not Supported in Manufacturer Selection Table |
| Installation Type | Rack-Mounted PLC I/O Unit |
| Input Response Time | Refer to Exact OMRON CS1 Technical Manual |
| Operating Temperature | Refer to Manufacturer System Specifications |
| Country of Origin | Made in China - Actual Product Marking |
| Packaging Quantity | 1 Piece - Actual Carton |
| Manufacturer Lifecycle | Current Status Not Independently Reconfirmed |
Product Overview
The Omron CS1W-ID211 is a SYSMAC CS1 Series digital input module designed for industrial programmable controller systems. This CS1 Basic I/O Unit provides 16 digital input channels for acquiring discrete signals from compatible industrial field devices and control circuits. Each input is rated for 24V DC, with a manufacturer-specified input current of 7mA and input impedance of 3.3kΩ. The unit occupies one I/O word in the PLC configuration and requires approximately 100mA from the internal 5V DC system. According to the OMRON CS1 selection documentation, this unit is supported in compatible CS1 CPU and expansion rack configurations. The module is intended for digital input acquisition only and does not provide relay, transistor or analog output channels. Actual product and packaging photographs show the exact catalog number CS1W-ID211 and identify the module as an INPUT UNIT. The physical product marking identifies Made in China. This product should not be confused with the similarly named CJ1W-ID211, which belongs to a different PLC hardware family. Functional input testing has not been independently verified from the supplied photographs.
Key Product Features
- OMRON SYSMAC CS1 Input Unit — Basic digital input module for supported CS1 programmable controller systems.
- 16 Digital Input Channels — Provides sixteen channels for discrete signal acquisition.
- 24V DC Rated Inputs — Designed for industrial 24V DC input signals.
- 7mA Input Current — Manufacturer-specified rated input current.
- 3.3kΩ Input Impedance — Input circuit impedance specified for the CS1W-ID211.
- 100mA Internal 5V Consumption — Manufacturer-listed current requirement for system power budgeting.
- One-Word I/O Allocation — Allocates one word within the supported PLC I/O configuration.
- CS1 Rack Compatibility — Intended for compatible CS1 CPU and expansion rack installations.

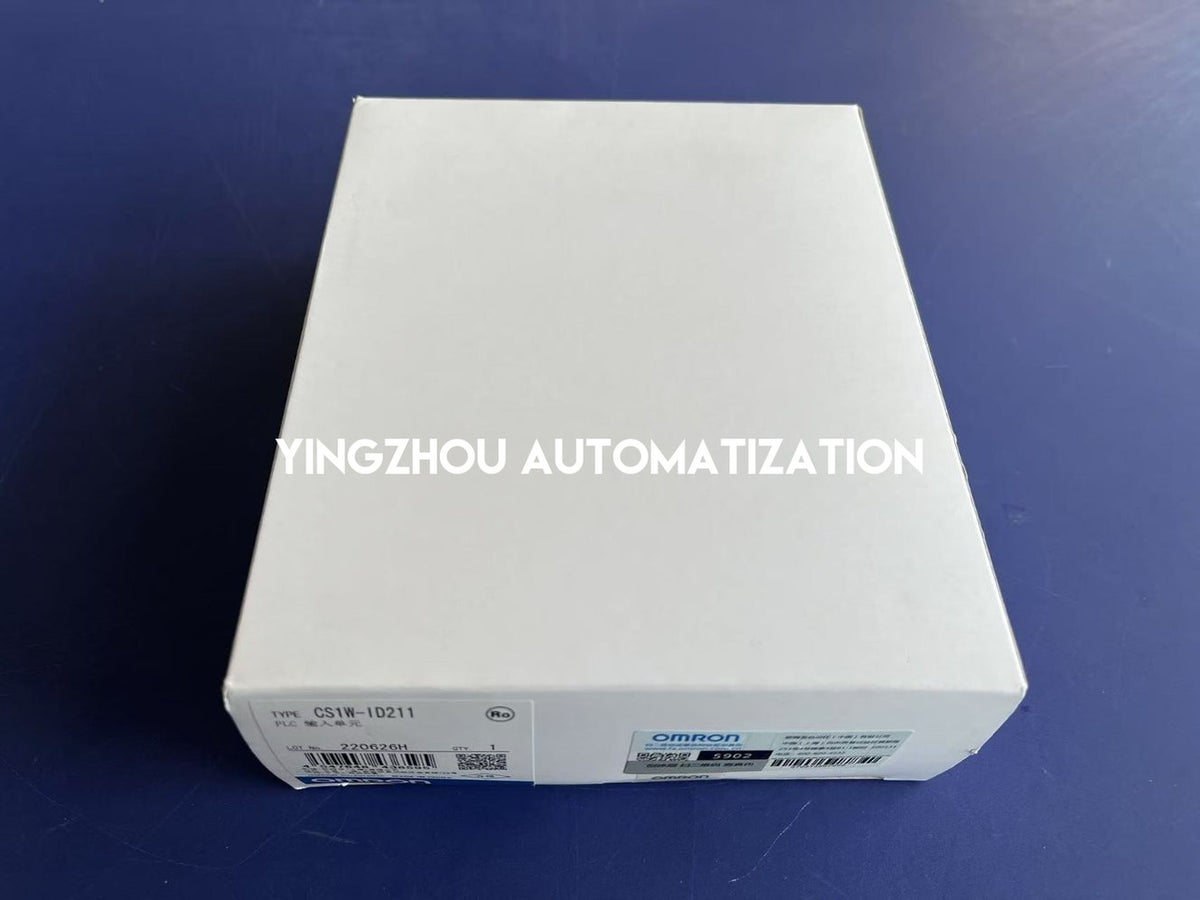

Actual Product Verification
In Stock & Available to Order
Omron CS1W-ID211 is marked in stock based on the supplied inventory information. Actual product and packaging photographs show the matching CS1W-ID211 catalog number and digital input module identification. This 16-point, 24V DC PLC input unit is offered for industrial equipment maintenance, supported CS1 PLC system expansion and exact-model replacement procurement. Please confirm the required quantity, 16 input channels, 24V DC input voltage, 7mA input current and the existing OMRON CPU and rack configuration before ordering. The CS1W-ID211 must not be confused with the CJ1W-ID211 or other CS1 input module variants with different channel counts. Actual terminal accessories, hardware condition and functional testing requirements should be confirmed before shipment.
Omron CS1W-ID211
Contact us for exact-model verification, multiple units and industrial PLC module sourcing. Please confirm your CS1 PLC system, rack type, input voltage and I/O configuration before ordering.
