YingZhou Industrial Automation | Product Information

Fluke 566-2 Infrared & Contact Thermometer

-35°C to 750°C | 35:1 Distance-to-Spot | Type K Input | 50-Point Memory
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer Fluke Corporation
Exact Model 566-2
Product Family 566-2 / 568-2 Series
Product Type Infrared & Contact Thermometer
Infrared Temperature Range -35°C to 750°C
IR Accuracy Above 0°C ±1% or ±1°C, Whichever Is Greater
Distance-to-Spot Ratio 35:1
Minimum Spot Size 19 mm (0.75 in)
IR Spectral Response 8–14 µm
Infrared Response Time Less Than 500 ms (95%)
Display Resolution 0.1°C / 0.1°F
Contact Temperature Input Type K Thermocouple
Type K Input Temperature Range -270°C to 1372°C
Emissivity Adjustment 0.10 to 1.00 in 0.01 Increments
Data Storage 50 Points with Date/Time Stamp
Laser Sighting Single-Point Class 2 Laser
Laser Wavelength 630–670 nm
Display 98 × 96 Pixel Dot-Matrix Display
Backlight Two Brightness Levels
Alarm Functions High/Low Audible and Visual Alarms
Measurement Functions MIN / MAX / AVG / DIF
Temperature Units Celsius / Fahrenheit
Trigger Lock Supported
Power Supply 2 × AA/LR6 Batteries
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
PC Interface None
Availability IN STOCK

Product Overview

The Fluke 566-2 is an infrared and contact thermometer designed for industrial temperature measurement and equipment maintenance. It combines non-contact infrared temperature measurement with a Type K thermocouple input for contact temperature measurement when an appropriate compatible probe is used. The instrument provides an infrared measurement range of -35°C to 750°C and a 35:1 distance-to-spot ratio to support accurate targeting of smaller surfaces from a greater distance. Its adjustable emissivity from 0.10 to 1.00 supports measurements across different surface materials. The thermometer features a 98 × 96 pixel graphical display, two backlight levels, 50-point data storage, audible and visual high/low temperature alarms and MIN, MAX, AVG and DIF measurement functions. The rugged handheld design is suited to industrial maintenance and troubleshooting. The supplied actual photographs show the Fluke 566-2 instrument and packaging marked for the 566-2 model. Function testing, calibration status and the complete accessory configuration should be confirmed separately before ordering.

Key Product Features

  • Infrared & Contact Measurement — Combines non-contact infrared readings with Type K thermocouple input.
  • -35°C to 750°C Infrared Range — Supports a broad range of industrial temperature measurements.
  • 35:1 Distance-to-Spot Ratio — Helps measure smaller targets from greater distances.
  • Adjustable Emissivity — Digital adjustment from 0.10 to 1.00 in 0.01 increments.
  • 50-Point Measurement Memory — Stores readings with date and time information.
  • Graphical Dot-Matrix Display — Provides menu navigation and two backlight levels.
  • High/Low Temperature Alarms — Audible and visual indications when thresholds are exceeded.
  • MIN/MAX/AVG/DIF Functions — Supports analysis and comparison of temperature readings.

Actual Product Verification

✓ Actual handheld thermometer and retail packaging photographs supplied

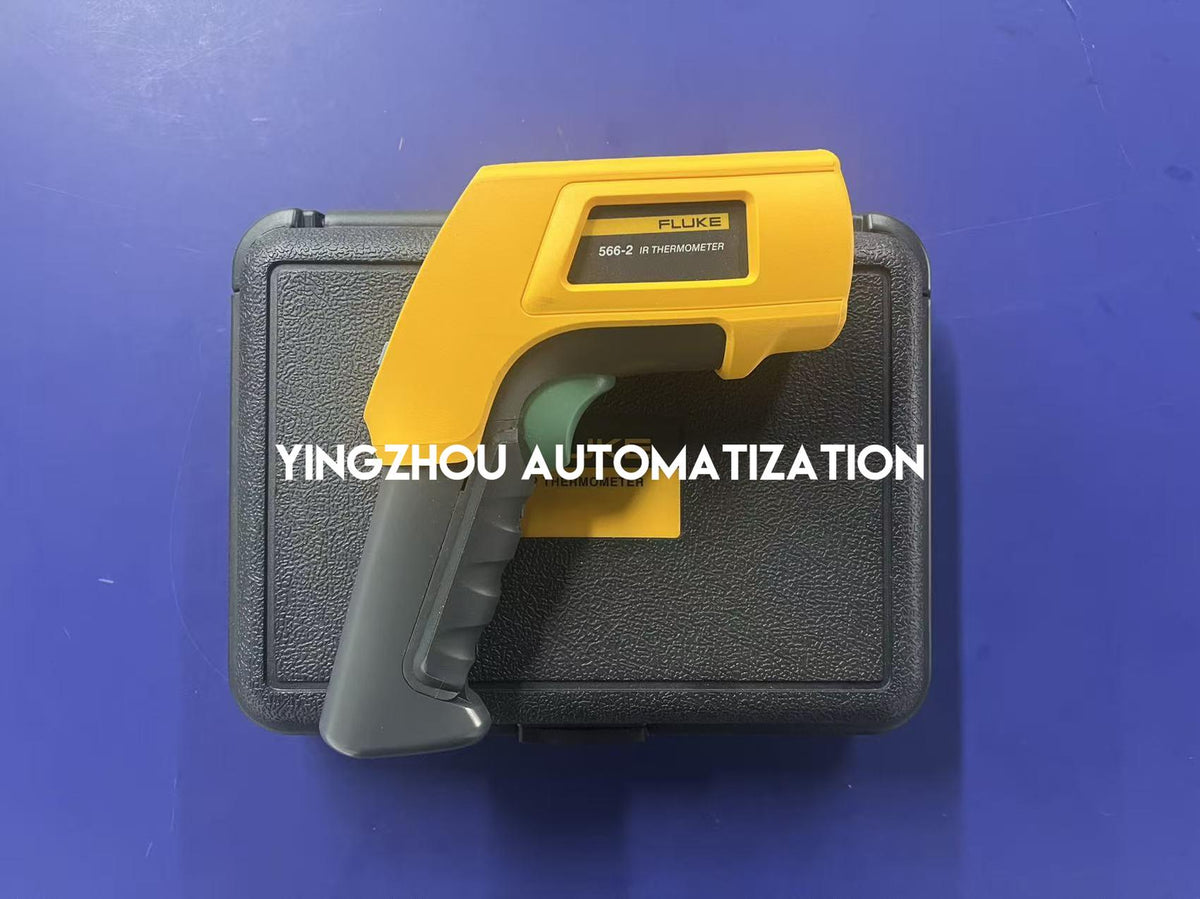

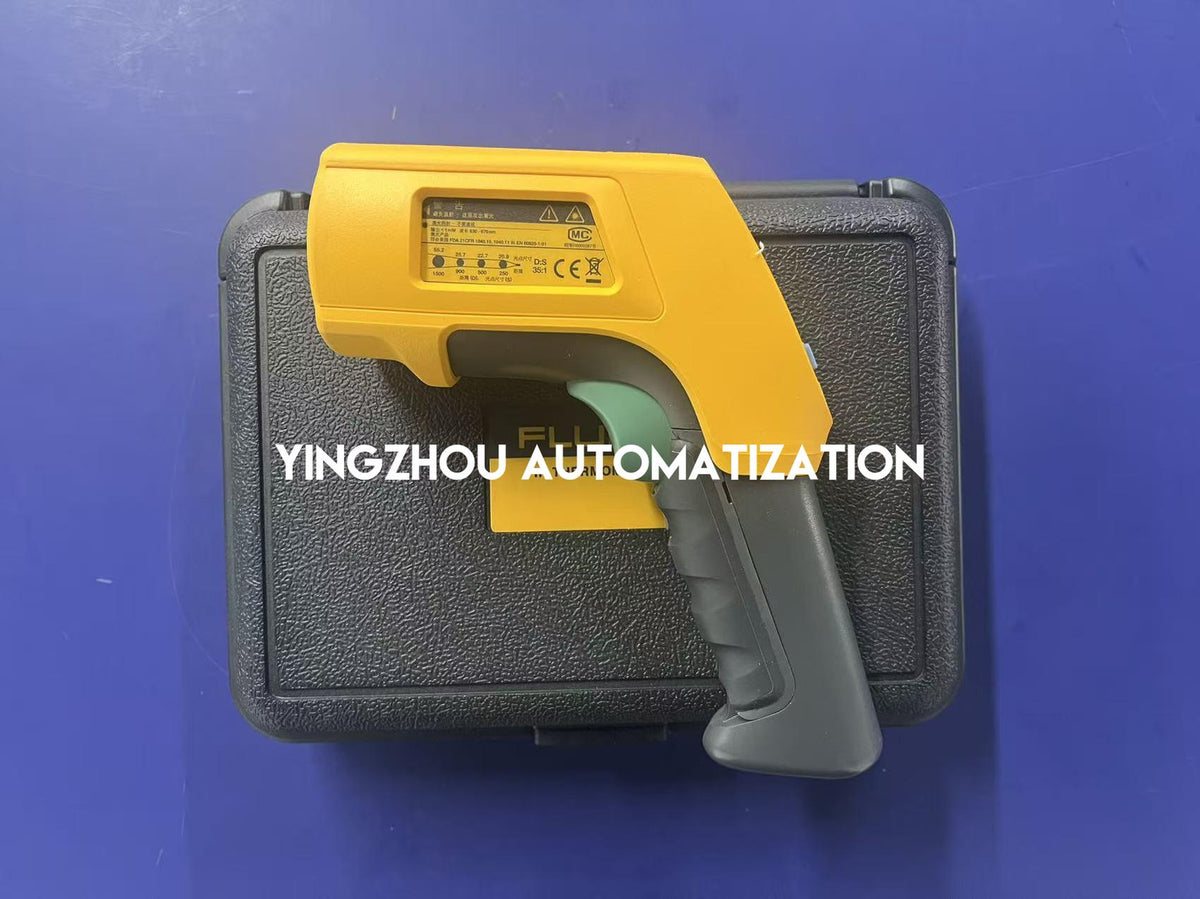

✓ Instrument side label identifies Fluke 566-2 IR THERMOMETER

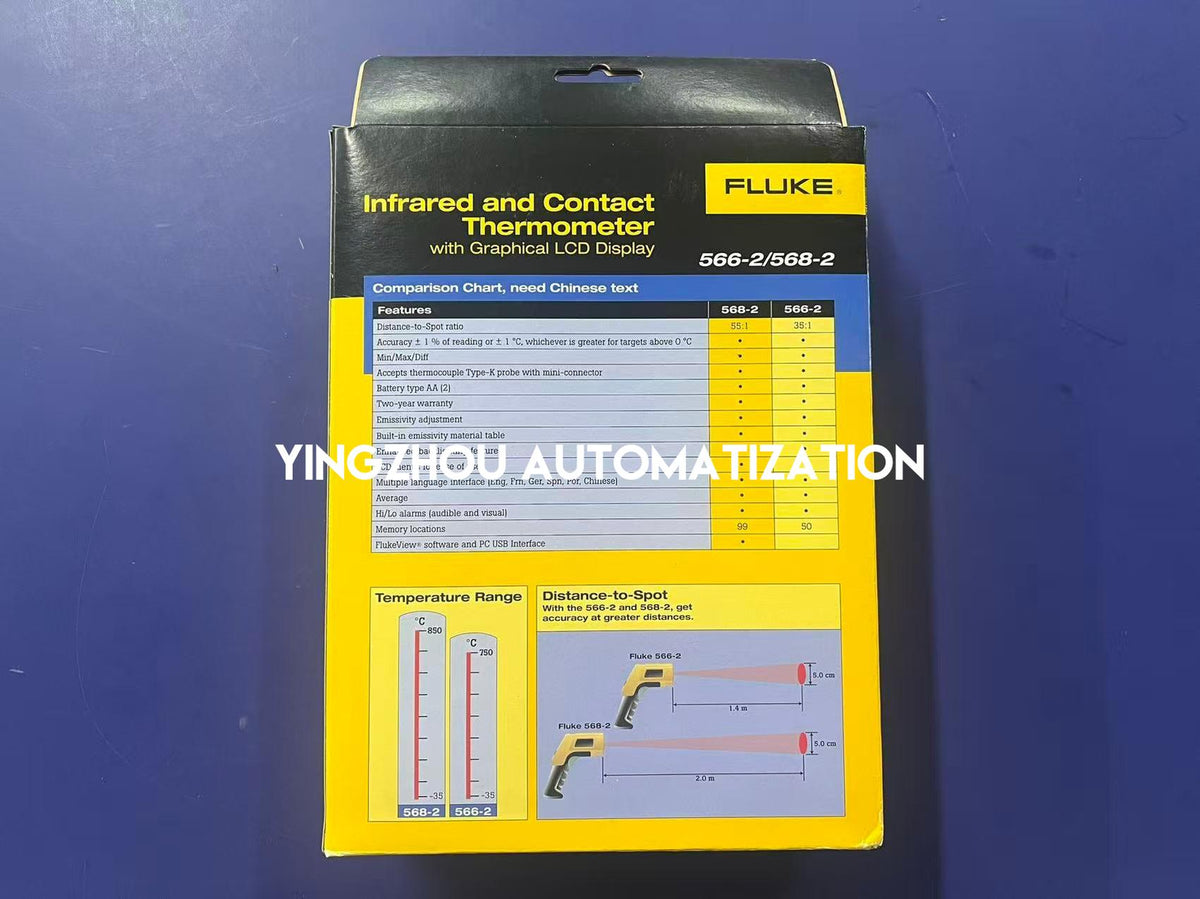

✓ Packaging identifies the 566-2 / 568-2 product family

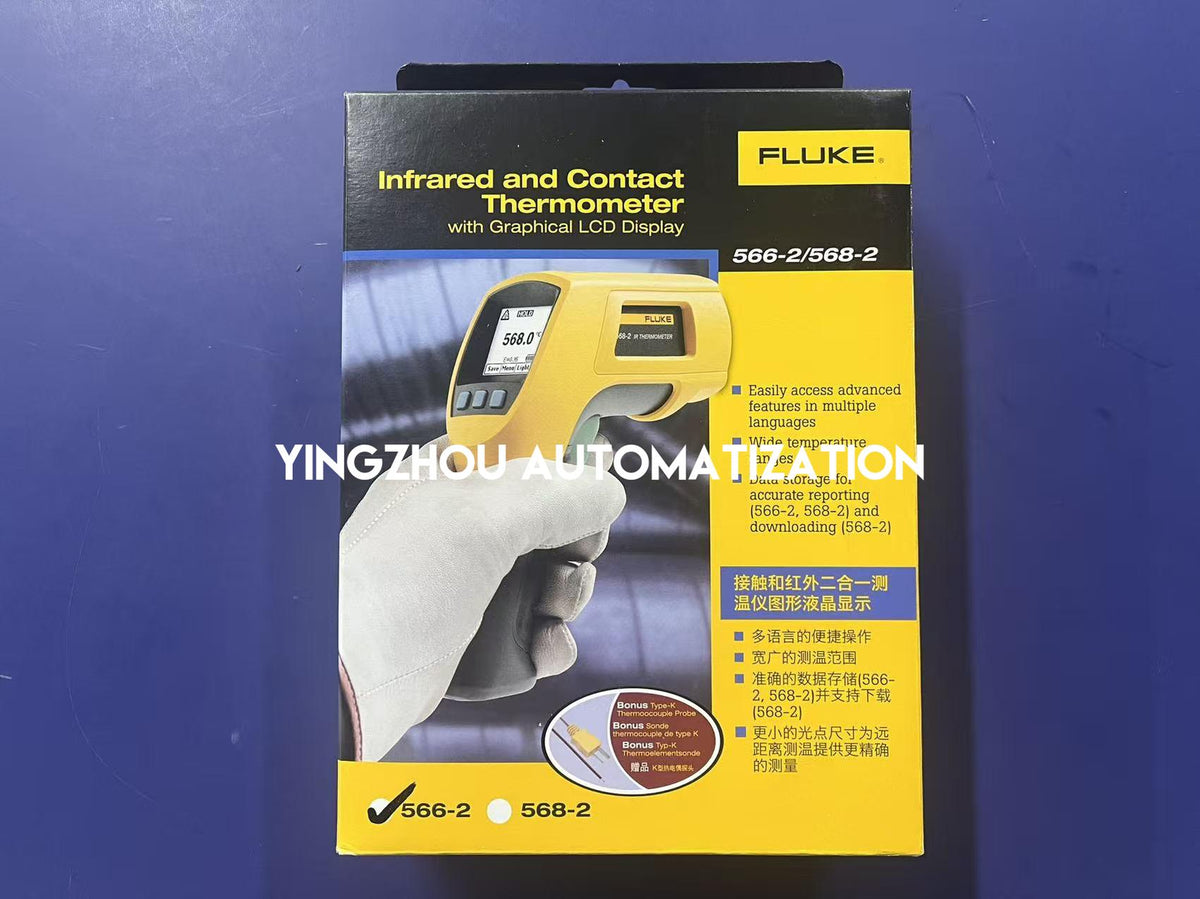

✓ The packaging model-selection mark indicates 566-2
✓ Exact model identity is consistent between the instrument and supplied packaging

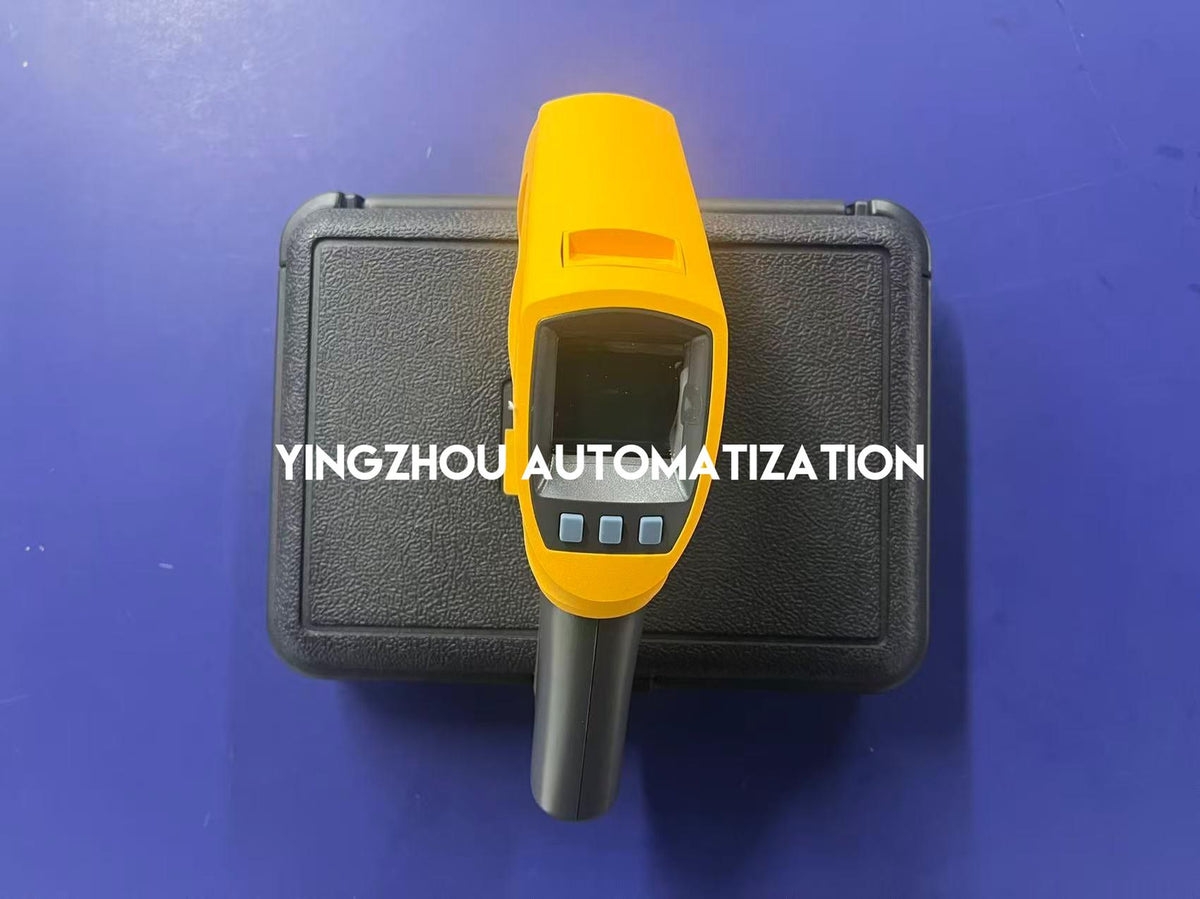

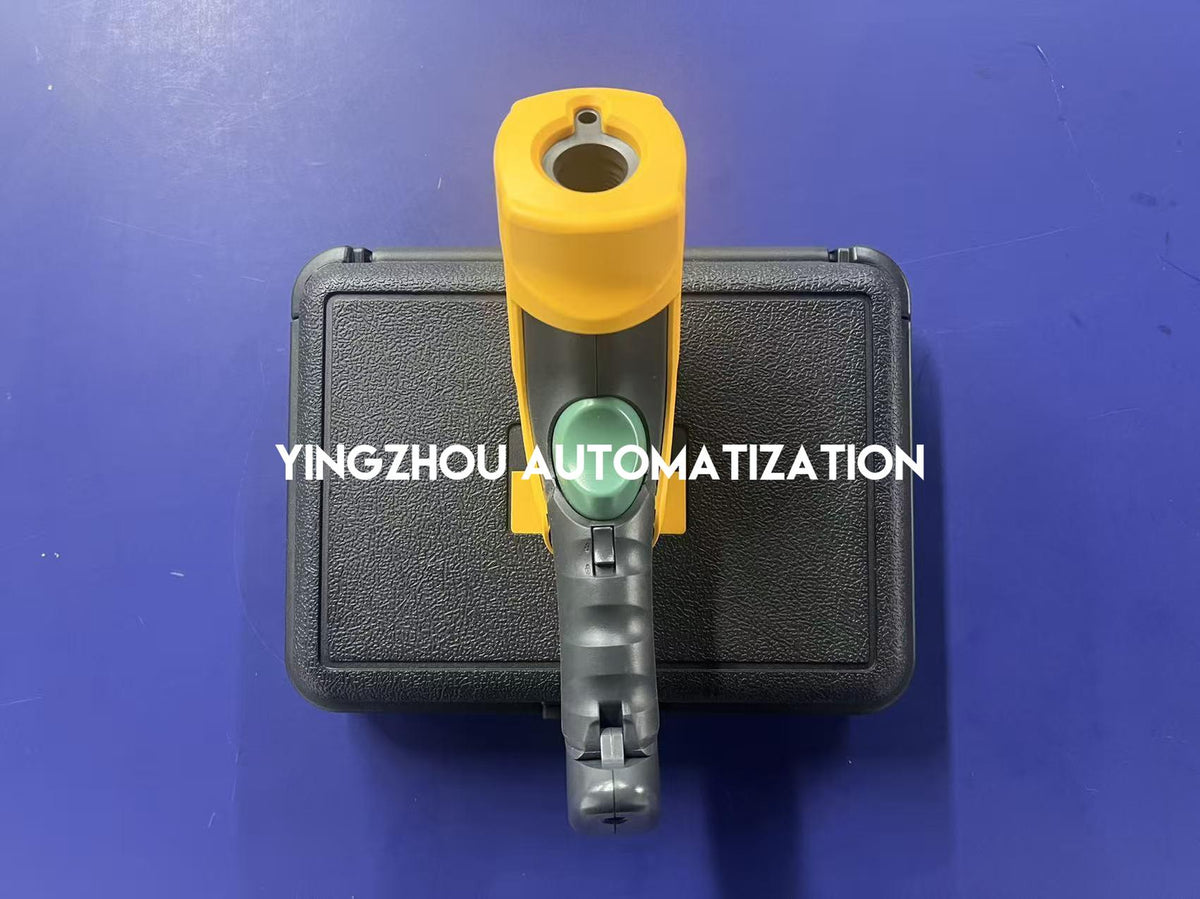

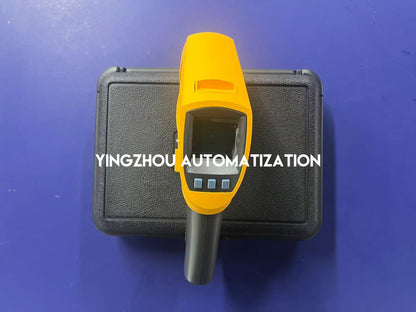

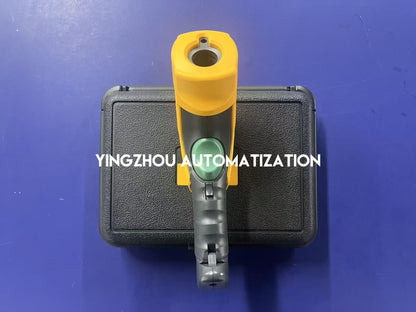

✓ Yellow and gray handheld thermometer body visible in actual photographs

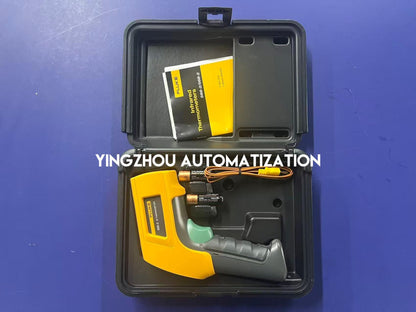

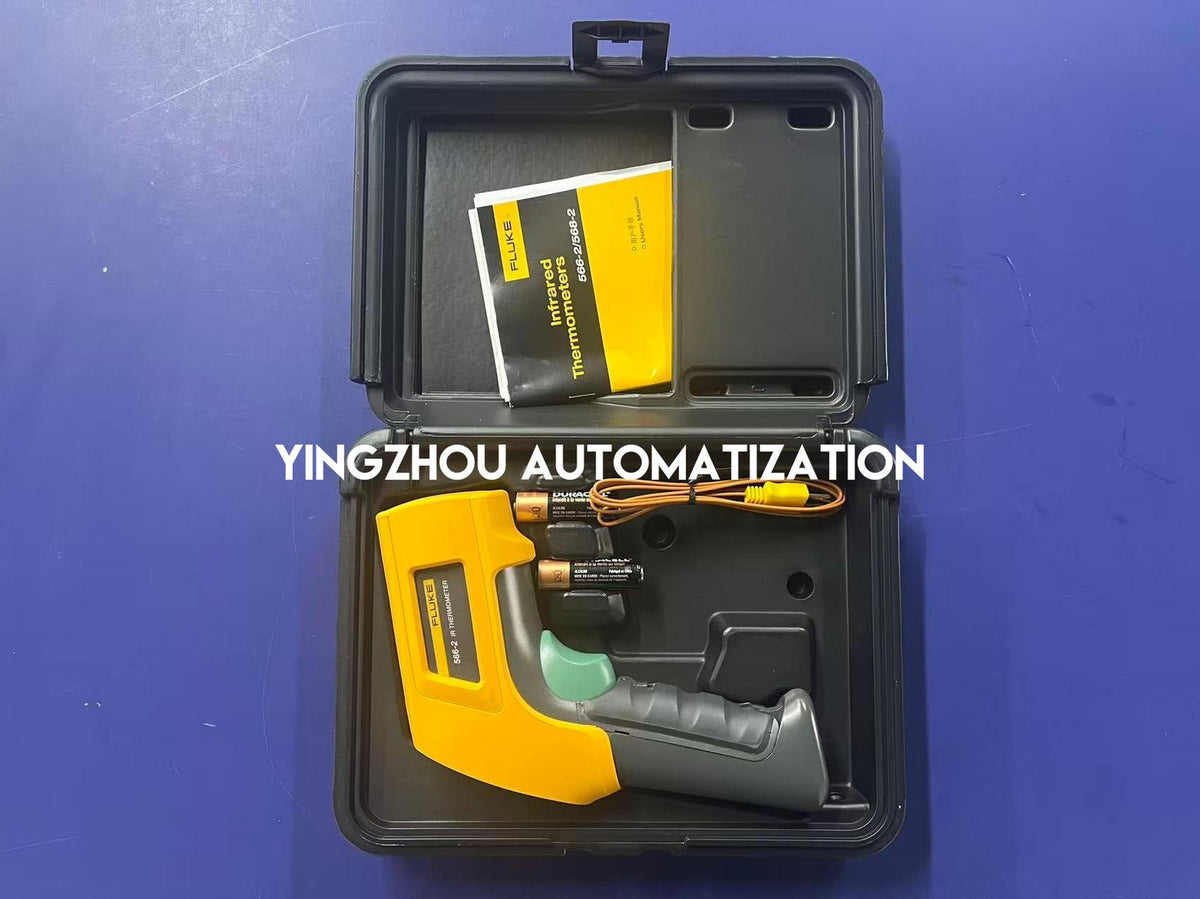

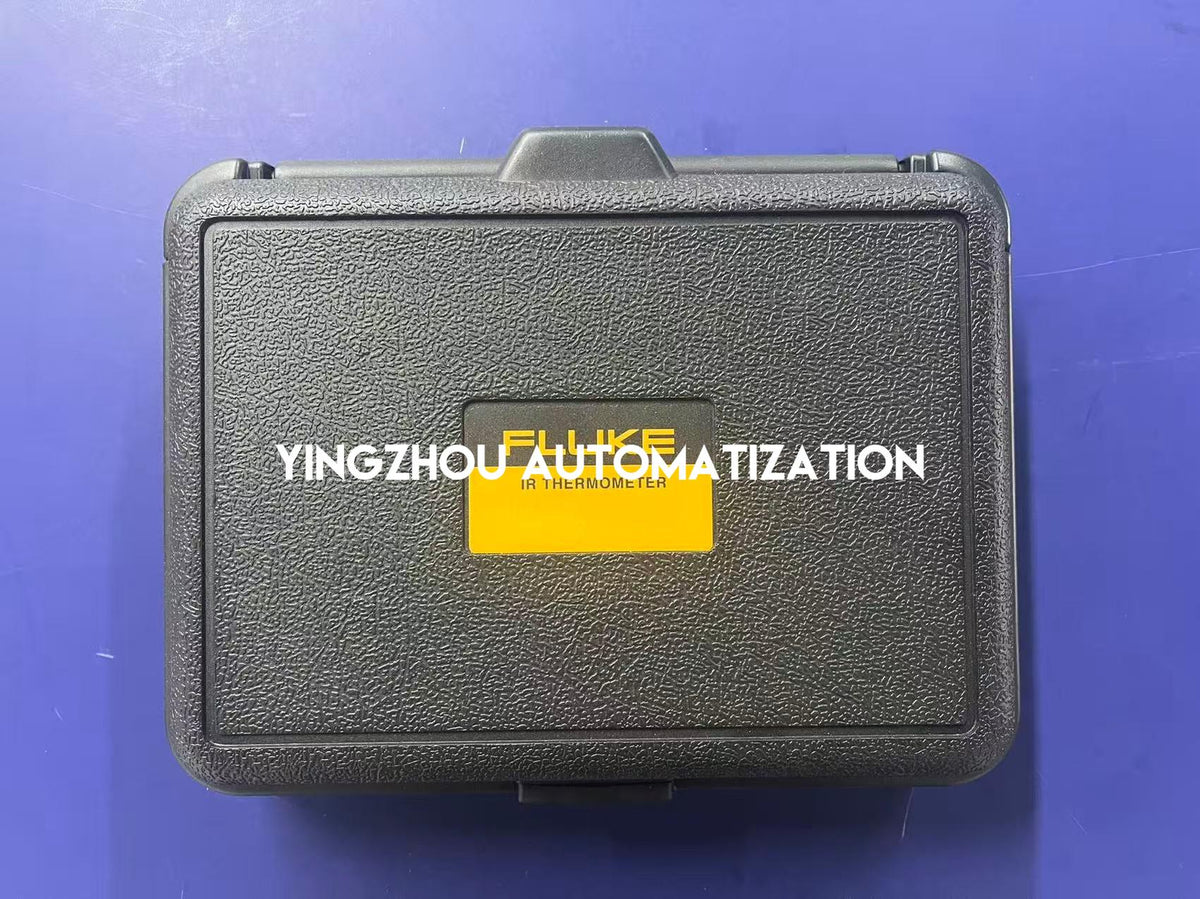

✓ Black carrying case visible in the supplied product photograph
✓ Instrument operating condition and calibration status not independently tested
✓ Confirm the exact included probes, batteries and accessories before ordering

In Stock & Available to Order

Fluke 566-2 Infrared & Contact Thermometer is marked in stock based on the supplied inventory information. Actual product and retail packaging photographs are available for exact-model identification. With its -35°C to 750°C infrared range, 35:1 distance-to-spot ratio and Type K contact temperature input, the Fluke 566-2 supports industrial temperature measurement and maintenance requirements. Please confirm availability, required probe accessories, instrument condition, calibration requirements and dispatch arrangements before ordering.

IN STOCK

Fluke 566-2 Infrared & Contact Thermometer

Contact us for exact-model confirmation, multiple units and industrial measurement equipment sourcing. Please verify temperature range, measurement requirements and included accessories before ordering.
