FESTO VUVG-B10-T32C-AZT-F-1P3 566487 Solenoid Valve
2x3/2-Way Normally Closed | 24V DC | 150-170 l/min | 1.5-10 bar
| Specification |
Verified Product Data |
| Manufacturer |
FESTO |
| Catalog Number |
VUVG-B10-T32C-AZT-F-1P3 |
| Part Number |
566487 |
| Product Family |
VUVG |
| Product Type |
Pneumatic Solenoid Valve |
| Valve Function |
2x3/2-way, Normally Closed, Monostable |
| Actuation Type |
Electrical |
| Valve Size |
10 mm |
| Nominal Size |
2.7 mm |
| Standard Nominal Flow Rate |
150-170 l/min |
| Pneumatic Working Port |
Flange |
| Operating Voltage |
24V DC |
| Operating Pressure |
1.5-10 bar |
| Structural Design |
Piston Gate Valve |
| Reset Method |
Pneumatic Spring |
| Type of Piloting |
Pilot-actuated |
| Pilot Air Supply |
External |
| Pilot Pressure |
1.5-8 bar |
| Sealing Principle |
Soft |
| Valve Lap |
Overlap |
| Exhaust Air Function |
Can Be Throttled |
| Mounting Position |
Any |
| Manual Override |
Detenting / Non-detenting / Concealed |
| Suitability for Vacuum |
No |
| Switching Time - ON |
6 ms |
| Switching Time - OFF |
15 ms |
| Duty Cycle |
100% |
| Coil Characteristics |
24V DC, 1.0 W |
| High-current Phase |
1.0 W |
| Low-current Phase |
0.3 W |
| Permissible Voltage Fluctuation |
±10% |
| Degree of Protection |
IP40; IP65 with Appropriate Plug Socket |
| Electrical Connection |
Via Electrical Sub-base |
| Mounting Type |
On Manifold Rail |
| Operating Medium |
Compressed Air per ISO 8573-1:2010 [7:4:4] |
| Pilot Medium |
Compressed Air per ISO 8573-1:2010 [7:4:4] |
| Lubricated Operation |
Possible; Continued Lubrication Required Thereafter |
| Ambient Temperature |
-5°C to +60°C |
| Medium Temperature |
-5°C to +60°C |
| Temperature Without Holding-current Reduction |
-5°C to +50°C |
| Corrosion Resistance Class |
CRC 2 - Moderate Corrosion Stress |
| LABS (PWIS) Conformity |
VDMA24364-B1/B2-L |
| Cleanroom Suitability |
Class 5 according to ISO 14644-1 |
| Product Weight |
55 g |
| Housing Material |
Wrought Aluminium Alloy |
| Seal Materials |
HNBR / NBR |
| Materials Compliance |
RoHS-compliant |
| Packaging Quantity |
1 Piece - Actual Packaging Label |
| Country of Origin |
Made in Germany - Actual Packaging Label |
Product Overview

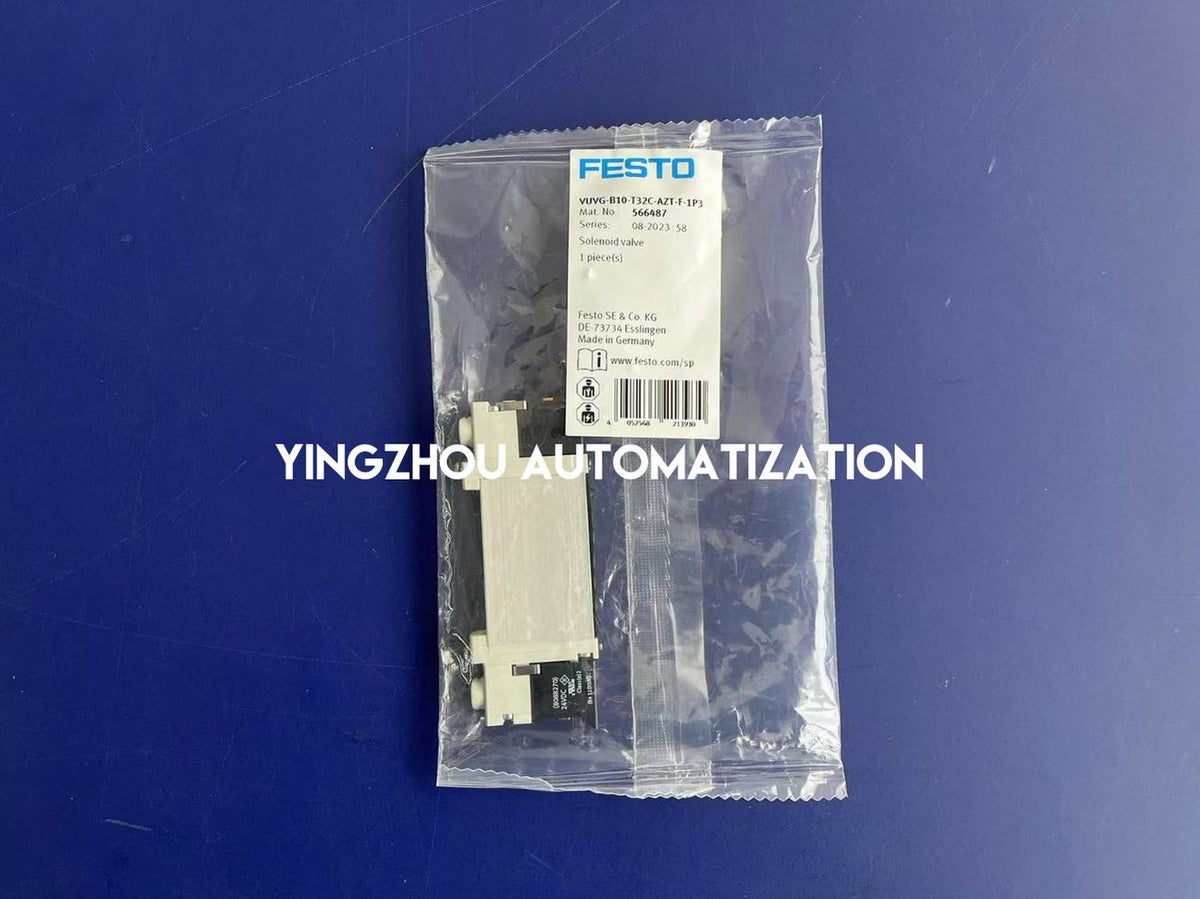

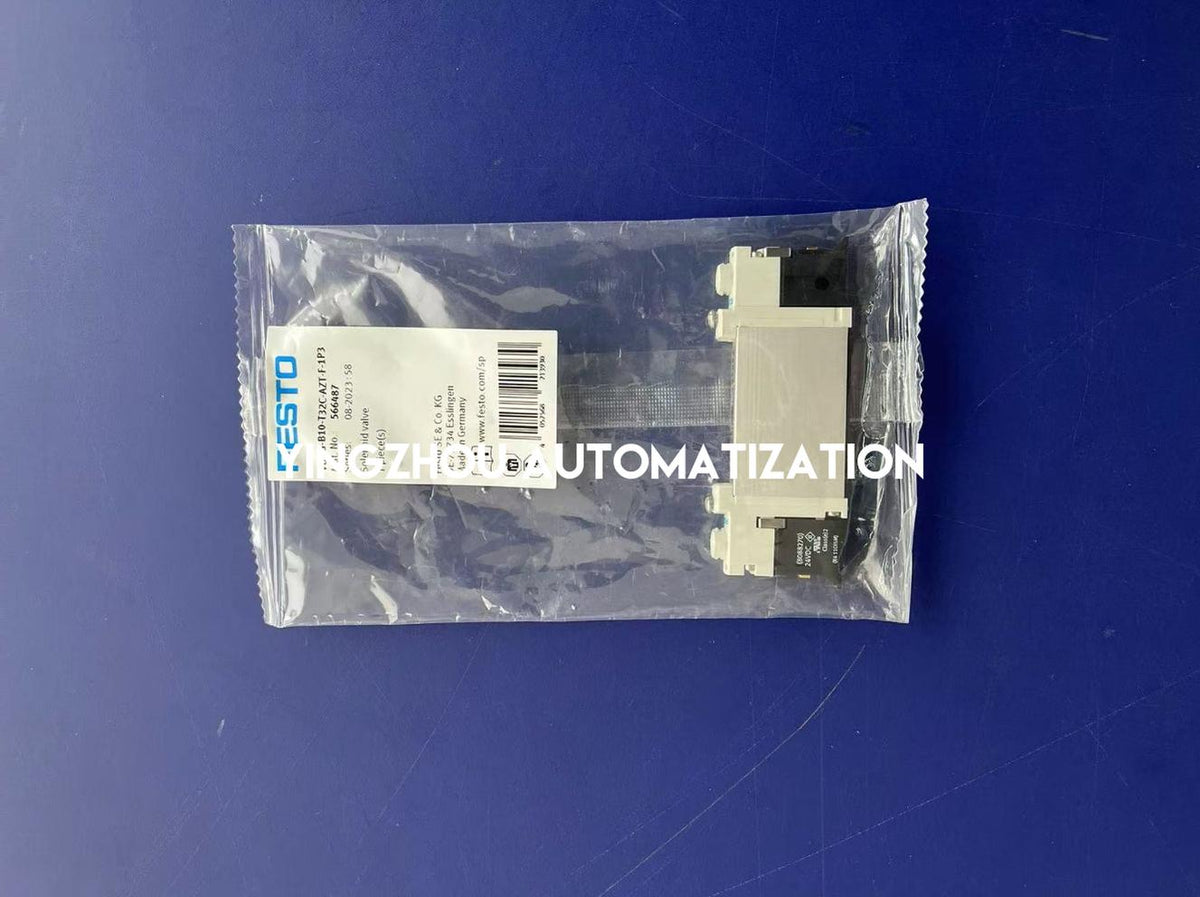

The FESTO VUVG-B10-T32C-AZT-F-1P3, manufacturer part number 566487, is a dual 3/2-way normally closed monostable pneumatic solenoid valve from the FESTO VUVG series. It incorporates two normally closed valve functions in a compact assembly. The valve features 24V DC electrical actuation, pneumatic spring reset and an external pilot air supply. The manufacturer specifies a 10 mm valve size, a standard nominal flow rate of 150-170 l/min and an operating pressure range of 1.5 to 10 bar. External pilot pressure is specified at 1.5 to 8 bar. The valve uses a flange-type pneumatic working interface and connects electrically via an appropriate sub-base. Its specified switching times are 6 ms ON and 15 ms OFF, with a nominal coil rating of 24V DC, 1.0 W. The housing is made of wrought aluminium alloy with HNBR/NBR seals, and the manufacturer specifies a product weight of 55 g. The supplied actual photograph shows original FESTO packaging labeled VUVG-B10-T32C-AZT-F-1P3, material number 566487, with a partially visible valve inside. The individual valve marking, electrical sub-base and other accessories remain subject to confirmation.
Key Product Features
-
FESTO VUVG Solenoid Valve — Manufacturer catalog model VUVG-B10-T32C-AZT-F-1P3, part number 566487.
-
Dual 3/2-way Normally Closed Function — Two normally closed monostable directional valve functions.
-
24V DC Electrical Actuation — Manufacturer-specified nominal voltage with ±10% tolerance.
-
150-170 l/min Nominal Flow — Standardized flow rating according to DIN 1343.
-
1.5-10 bar Operating Pressure — External pilot air supply with 1.5-8 bar pilot pressure.
-
Pneumatic Spring Reset — Pilot-actuated directional control configuration.
-
Fast Switching Response — Manufacturer-specified 6 ms ON and 15 ms OFF switching times.
Actual Product Verification

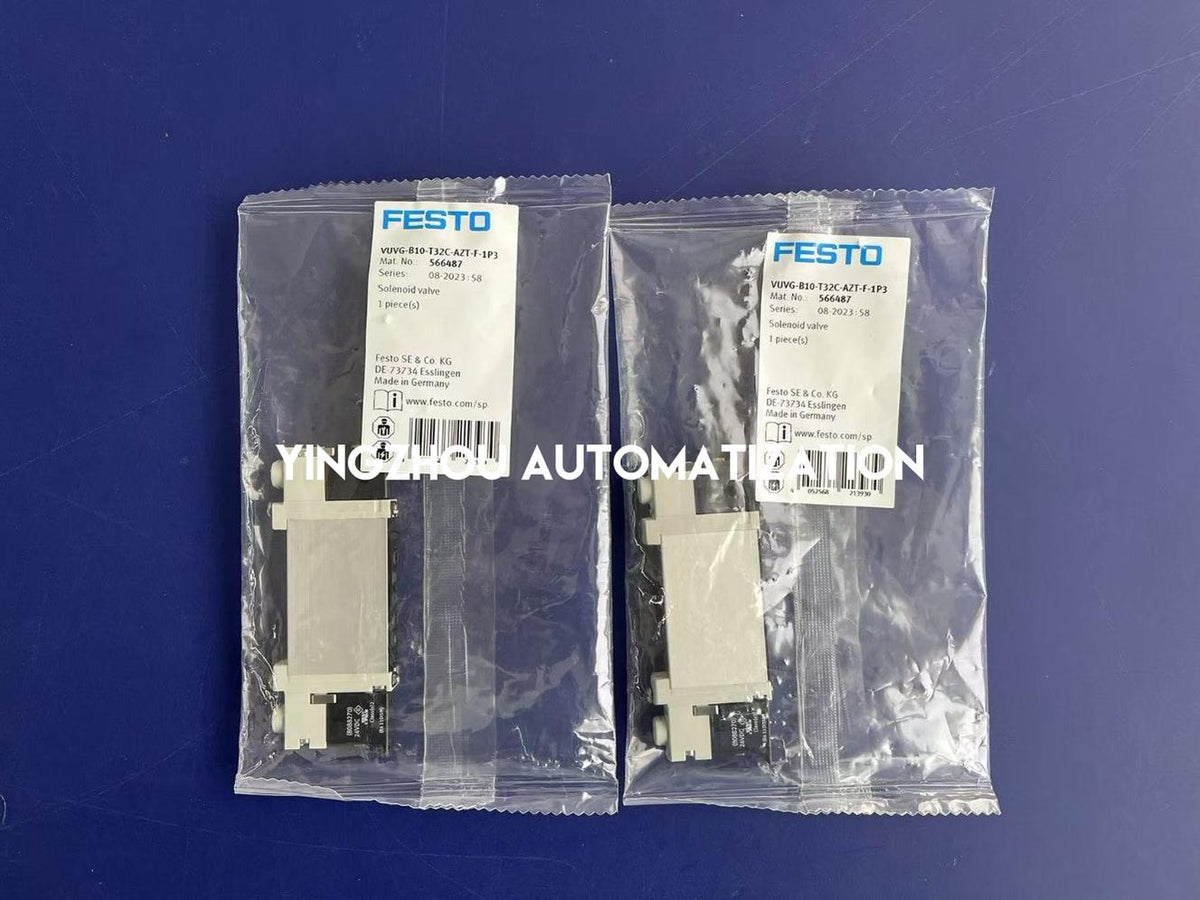

✓ Actual product and packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: VUVG-B10-T32C-AZT-F-1P3
✓ Packaging material number: 566487
✓ Packaging series marking: 08-2023:58
✓ Packaging product description: Solenoid Valve
✓ Packaging quantity: 1 Piece
✓ Packaging country-of-origin marking: Made in Germany

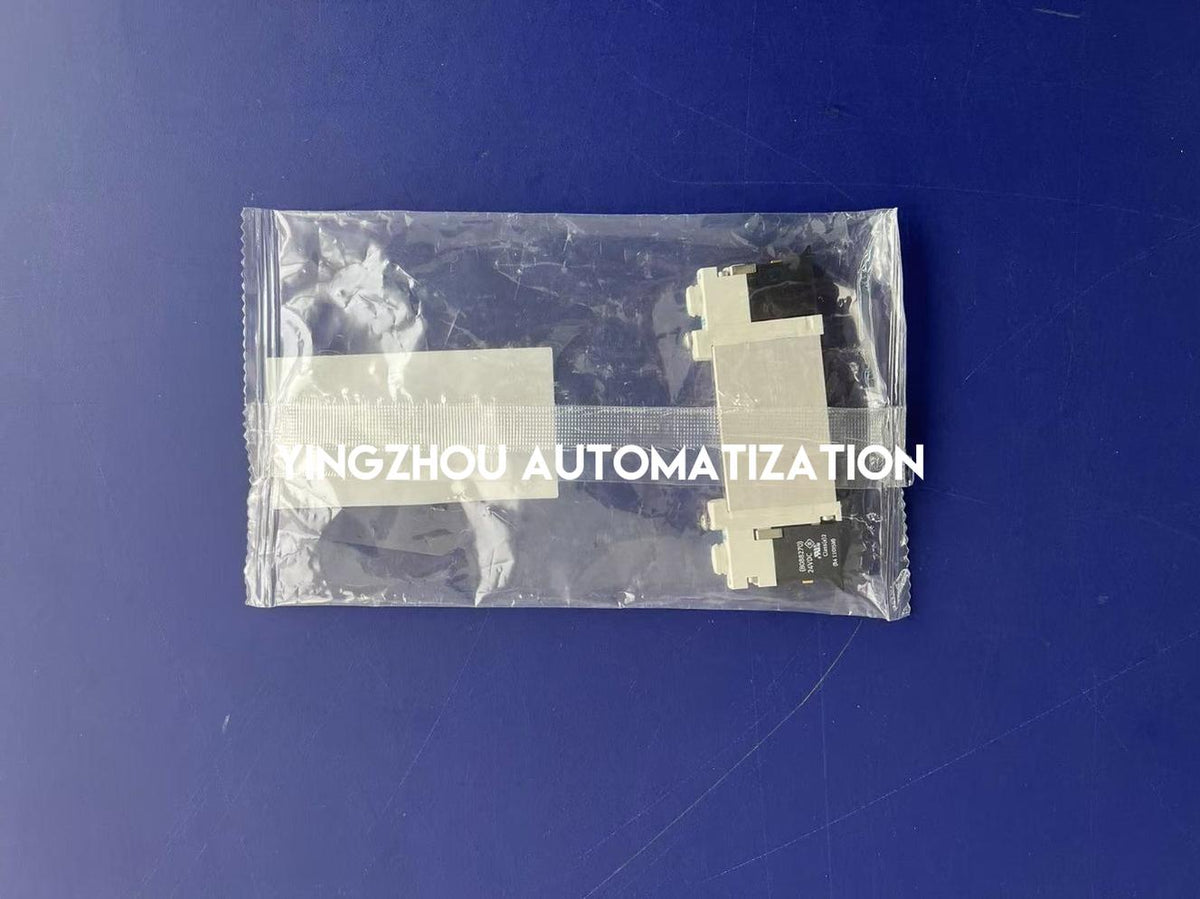

✓ Partially visible valve construction is consistent with manufacturer product imagery
In Stock & Available to Order
FESTO VUVG-B10-T32C-AZT-F-1P3 566487 is marked in stock based on the supplied inventory information. This dual 3/2-way normally closed pneumatic solenoid valve is available for industrial automation procurement, pneumatic equipment maintenance and exact-model replacement inquiries. The actual packaging photograph confirms the requested manufacturer catalog number and part number, with one piece indicated on the package. Please verify the required quantity, two normally closed valve functions, 24V DC electrical supply, external pilot air requirements, compatible manifold rail, electrical sub-base and supplied accessories before completing an order.
IN STOCK
FESTO VUVG-B10-T32C-AZT-F-1P3 566487
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the dual 3/2-way normally closed configuration, 24V DC voltage, external pilot air supply and compatible electrical and pneumatic mounting accessories before ordering.
