FESTO VMPA2-M1H-M-PI 537952 5/2-Way 24V DC Solenoid Valve 20mm 670 L/min

Name: FESTO VMPA2-M1H-M-PI 537952 5/2-Way 24V DC Solenoid Valve 20mm 670 L/min
Brand: FESTO
SKU: 537952
Price: 61.99 USD
Availability: InStock

FESTO VMPA2-M1H-M-PI 537952 5/2-Way 24V DC Solenoid Valve 20mm 670 L/min

$61.99 USD

Obral Habis

Model Number VMPA2-M1H-M-PI

Varian produk

Jumlah

YingZhou Industrial Automation | Product Information

FESTO VMPA2-M1H-M-PI 537952 Solenoid Valve

5/2-Way Monostable | 24V DC | 670 l/min | 20mm Valve | IP65

✓ IN STOCK & AVAILABLE TO ORDER | Actual Product Photos | Model and Part Number Verified

Specification	Verified Product Data
Manufacturer	FESTO
Catalog Number	VMPA2-M1H-M-PI
Part Number	537952
Product Family	VMPA2
Product Type	Pneumatic Solenoid Valve
Valve Function	5/2-way, Monostable
Type of Actuation	Electrical
Valve Size	20 mm
Standard Nominal Flow Rate	670 l/min
Standard Nominal Flow with QS-8	670 l/min
Standard Nominal Flow with QS-10	870 l/min
Operating Voltage	24V DC
Operating Pressure	-0.9 to 10 bar
Structural Design	Piston Gate Valve
Reset Method	Pneumatic Spring
Type of Piloting	Pilot-actuated
Pilot Pressure	3-8 bar
Sealing Principle	Soft
Flow Direction	Reversible
Valve Lap	Overlap
Suitability for Vacuum	Yes
Manual Override	Detenting / Non-detenting
Signal Status Display	Yes
Switching Time - ON	15 ms
Switching Time - OFF	28 ms
Max. Positive Test Pulse at Signal 0	400 microseconds
Max. Negative Test Pulse at Signal 1	900 microseconds
Permissible Voltage Fluctuation	+/-25%
Degree of Protection	IP65 to IEC 60529
Mounting Position	Any
Mounting Type	With Through-hole
Max. Valve Mounting Torque	0.65 Nm
Operating Medium	Compressed Air per ISO 8573-1:2010 [7:4:4]
Lubricated Operation	Possible; Continued Lubrication Required Thereafter
Ambient Temperature	-5°C to +50°C
Medium Temperature	-5°C to +50°C
Storage Temperature	-20°C to +40°C
Relative Humidity	Maximum 90% at 40°C
Corrosion Resistance Class	CRC 1 - Low Corrosion Stress
LABS (PWIS) Conformity	VDMA24364-B1/B2-L
Product Weight	100 g
Housing Material	Die-cast Aluminium
Seal Material	NBR
Materials Compliance	RoHS-compliant
Approval	cULus Recognized (OL)
Packaging Quantity	1 Piece - Actual Packaging Label
Country of Origin	Made in China - Actual Packaging Label

Product Overview

The FESTO VMPA2-M1H-M-PI, manufacturer part number 537952, is a 5/2-way monostable pneumatic solenoid valve from the FESTO VMPA2 series. It features 24V DC electrical actuation, pneumatic spring reset and a 20 mm valve size. The manufacturer specifies a 670 l/min standard nominal flow rate, with 870 l/min listed under the specified QS-10 connection condition. The operating pressure range is -0.9 to 10 bar, with a required pilot pressure of 3 to 8 bar. The valve supports reversible flow and vacuum operation under the manufacturer's stated conditions. Switching times are 15 ms ON and 28 ms OFF, with a nominal 24V DC operating supply and a permissible voltage variation of +/-25%. The valve features an IP65 protection rating to IEC 60529, subject to correct installation. The housing is constructed from die-cast aluminium with NBR seals, and the specified product weight is 100 g. The supplied actual photographs show a FESTO valve body marked 537952 and original packaging labeled VMPA2-M1H-M-PI, material number 537952. Please confirm electrical connection, valve terminal compatibility and supplied mounting accessories before ordering.

Key Product Features

FESTO VMPA2 Solenoid Valve — Manufacturer model VMPA2-M1H-M-PI, part number 537952.
5/2-way Monostable Function — Electrically actuated directional valve with pneumatic spring reset.
24V DC Electrical Actuation — Manufacturer-rated voltage with +/-25% permissible fluctuation.
670 l/min Nominal Flow — Standard nominal flow, with 870 l/min specified for the QS-10 condition.
-0.9 to 10 bar Operating Pressure — Pilot-actuated valve with 3-8 bar pilot pressure.
Pneumatic Spring Reset — Manufacturer-specified monostable resetting mechanism.
IP65 Protection and Fast Switching — Manufacturer-rated IP65 with 15 ms ON and 28 ms OFF switching times.

Actual Product Verification

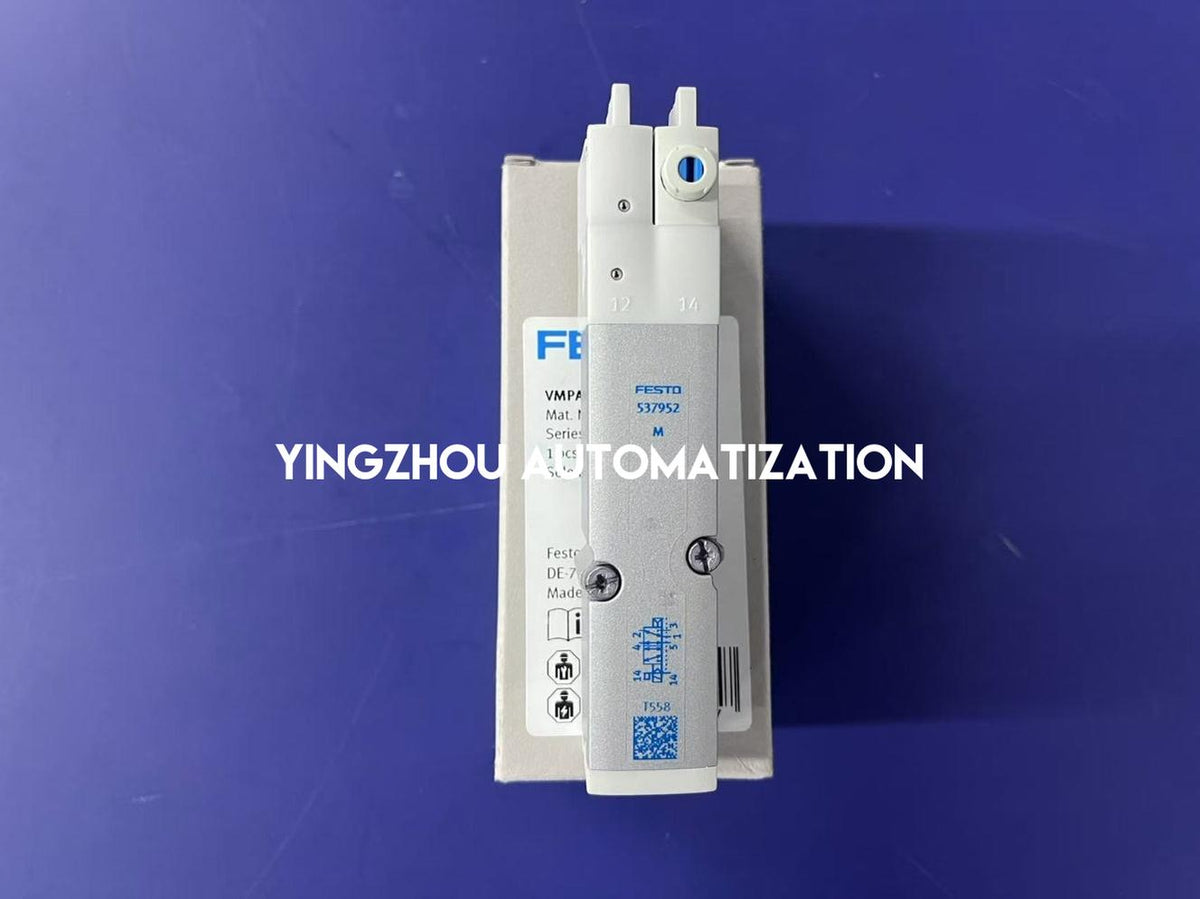

✓ Actual valve body photograph supplied

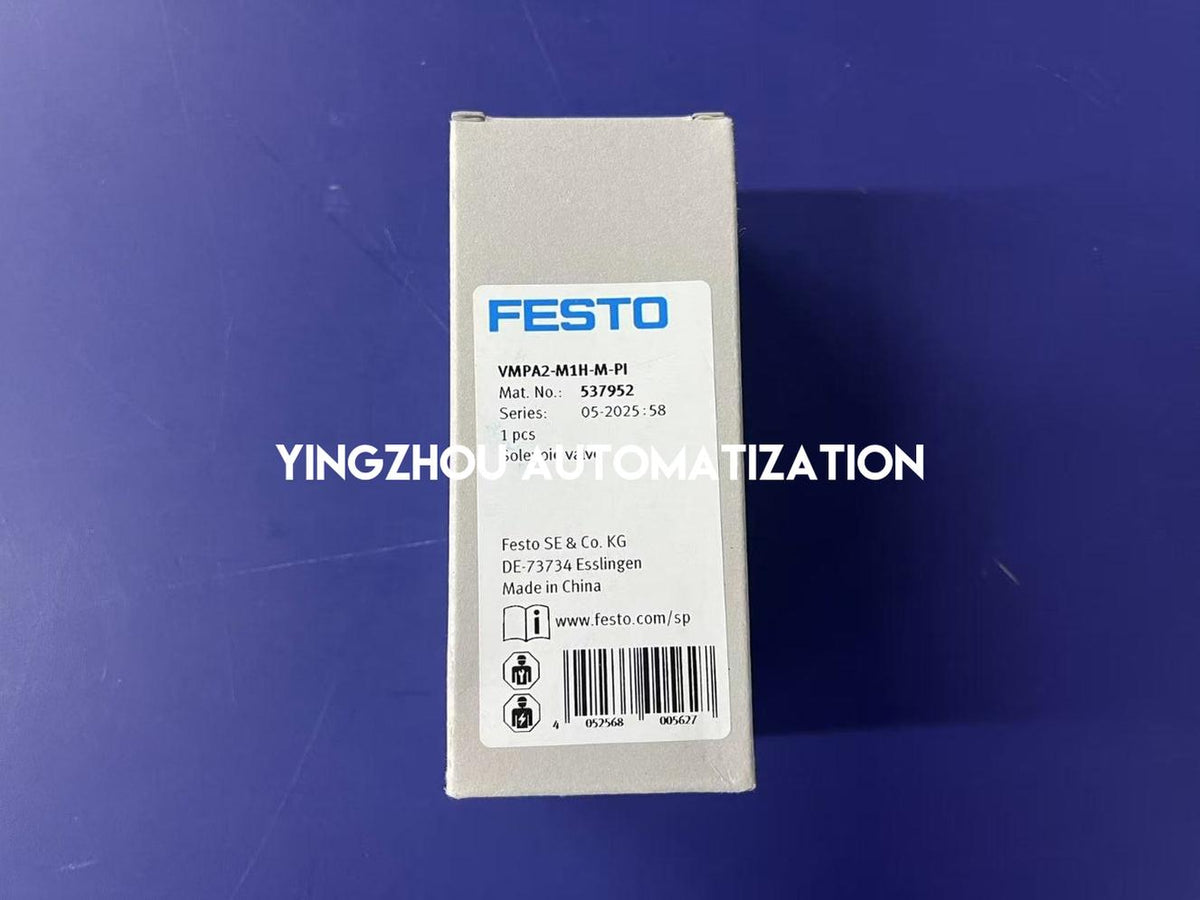

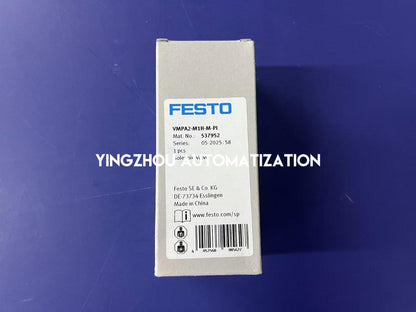

✓ Actual manufacturer packaging photograph supplied

✓ Packaging manufacturer: FESTO

✓ Packaging catalog number: VMPA2-M1H-M-PI

✓ Packaging material number: 537952

✓ Valve body material number: 537952

✓ Visible valve code: M

✓ Visible pneumatic port markings: 12 / 14

✓ Packaging series marking: 05-2025:58

✓ Packaging description: Solenoid Valve

✓ Packaging quantity: 1 Piece

✓ Packaging country-of-origin marking: Made in China

In Stock & Available to Order

FESTO VMPA2-M1H-M-PI 537952 is marked in stock based on the supplied inventory information. This 5/2-way monostable pneumatic solenoid valve is offered for industrial automation procurement, pneumatic equipment maintenance and exact-model replacement requirements. The actual valve body and original packaging photographs confirm the matching manufacturer part number, with one piece indicated on the packaging. Please verify the required quantity, 24V DC operating voltage, 5/2-way monostable valve function, pilot pressure, compatible MPA valve terminal and any electrical or mounting accessories before completing an order.

IN STOCK

FESTO VMPA2-M1H-M-PI 537952

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 5/2-way monostable function, 24V DC operating voltage, pneumatic pilot requirements and valve terminal compatibility before ordering.
