FESTO PUN-H-16X2,5-BL 197388 Blue Polyurethane Pneumatic Tubing 16mm OD 11mm ID

FESTO PUN-H-16X2,5-BL 197388 Blue Polyurethane Pneumatic Tubing 16mm OD 11mm ID

$2.49 USD
$2.49 USD
Obral Habis
Model Number
YingZhou Industrial Automation | Product Information

FESTO PUN-H-16X2,5-BL 197388 Pneumatic Tubing

16mm OD | 11mm ID | Blue TPE-U (PU) | 50m Reel Packaging
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number PUN-H-16X2,5-BL
Part Number 197388
Product Family PUN-H
Product Type Plastic Pneumatic Tubing
Outside Diameter 16 mm
Inside Diameter 11 mm
Nominal Wall Thickness 2.5 mm
Tubing Material TPE-U (PU)
Material Type Ether-based Polyurethane
Color Blue
Flow-relevant Bending Radius 88 mm
Minimum Bending Radius 38 mm
Tubing Characteristics Suitable for Energy Chains
Operating Pressure - Entire Temperature Range -0.95 to 6 bar
Temperature-dependent Operating Pressure -0.95 to 10 bar, Subject to Temperature
Water Pressure Note Maximum 3 bar at 0-60°C, Subject to Manufacturer Pressure-Temperature Diagram
Operating Medium Compressed Air per ISO 8573-1:2010 [7:-:-]
Additional Operating Medium Water, Liquid and Ice-free
Ambient Temperature -35°C to +60°C
Product Weight per Meter 0.123 kg/m
Approximate 50m Tubing Weight 6.15 kg, Excluding Packaging - Calculated
Pneumatic Connection Push-in Fittings for 16mm OD Tubing
Fitting Restriction Not Suitable for CN and PK Push-in Fittings
Shore Hardness D 52 +/-3
Material Fire Test UL94 HB
Certification TÜV
LABS (PWIS) Conformity VDMA24364-B2-L
Li-ion Battery Production Suitability F1a - Subject to Manufacturer Restrictions
Cleanroom Suitability No Meaningful ISO 14644-1 Evaluation for Statically Installed Element
Food Industry Suitability Refer to Manufacturer Supplementary Material Information
Materials Compliance RoHS-compliant
Manufacturer GTIN 4052568045173
Packaging Length Shown 50 m - Actual Packaging Label
Country of Origin Made in China - Actual Packaging Label

Product Overview

The FESTO PUN-H-16X2,5-BL, manufacturer part number 197388, is a blue polyurethane pneumatic tubing product from the FESTO PUN-H series. The manufacturer specifies a 16 mm outside diameter, an 11 mm inside diameter and a nominal 2.5 mm wall thickness. The tubing is manufactured from ether-based TPE-U (PU) material and is suitable for flexible pneumatic connections and applications involving energy chains. It has a minimum bending radius of 38 mm and a flow-relevant bending radius of 88 mm. The manufacturer specifies an operating pressure range of -0.95 to 6 bar across the entire temperature range, with temperature-dependent pressure ratings up to 10 bar under the applicable conditions. The ambient temperature range is -35°C to +60°C. The tubing is designed for compressed air and may be used with liquid, ice-free water subject to the manufacturer's requirements. Its specified weight is 0.123 kg per meter. The supplied actual photographs show a blue FESTO tubing coil and original packaging labeled PUN-H-16X2,5-BL, material number 197388, with a 50 m packaging length marking. Please confirm the required sales unit and order length before purchasing.

Key Product Features

  • FESTO PUN-H Pneumatic Tubing — Manufacturer model PUN-H-16X2,5-BL, part number 197388.
  • 16mm Outside and 11mm Inside Diameter — Manufacturer-specified pneumatic tube dimensions.
  • Ether-based Polyurethane Material — Flexible blue TPE-U (PU) tubing construction.
  • 38mm Minimum Bending Radius — Flow-relevant bending radius of 88mm.
  • Pressure and Temperature Performance — Up to 6 bar across the entire specified temperature range, with temperature-dependent ratings up to 10 bar.
  • -35°C to +60°C Ambient Range — Manufacturer-specified environmental temperature limits.
  • Suitable for Energy Chains — Manufacturer-confirmed characteristic for flexible pneumatic routing.

Actual Product Verification

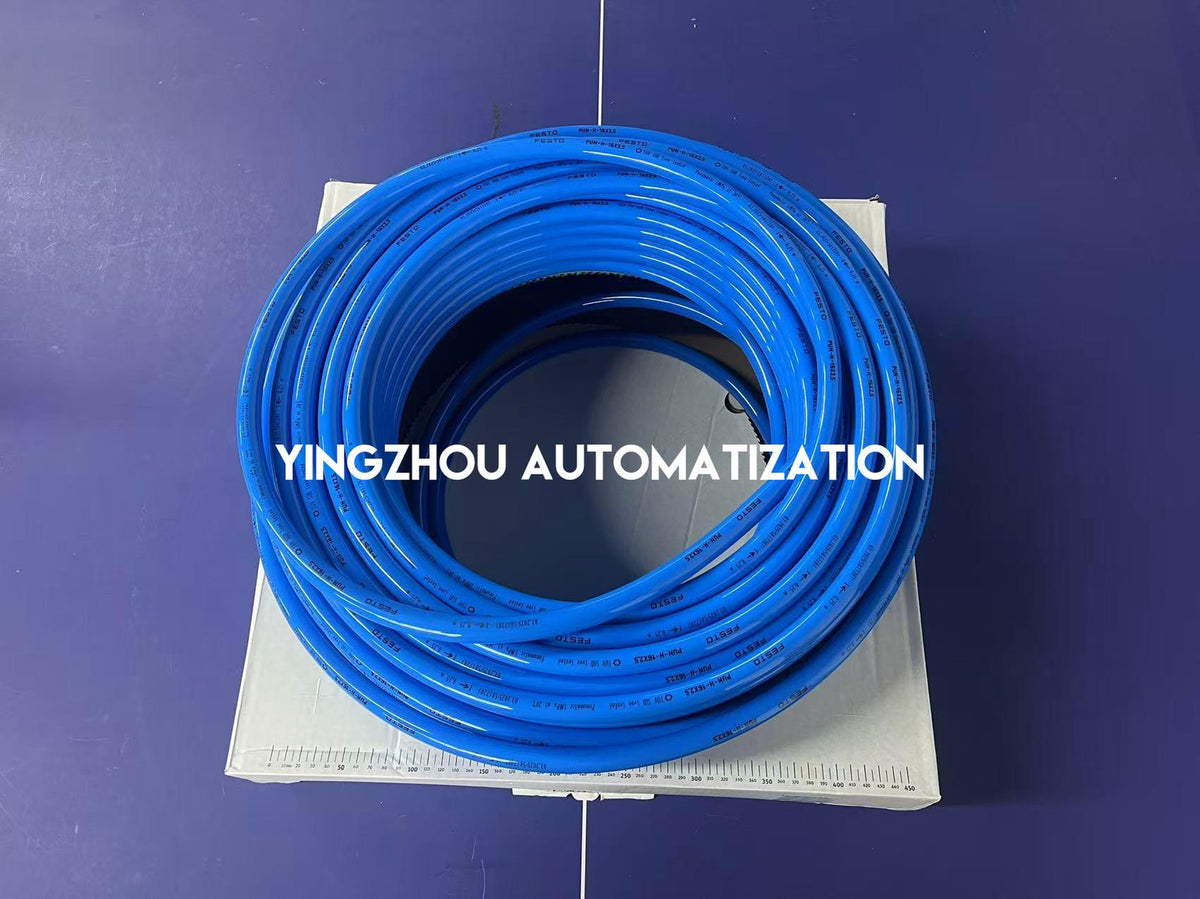

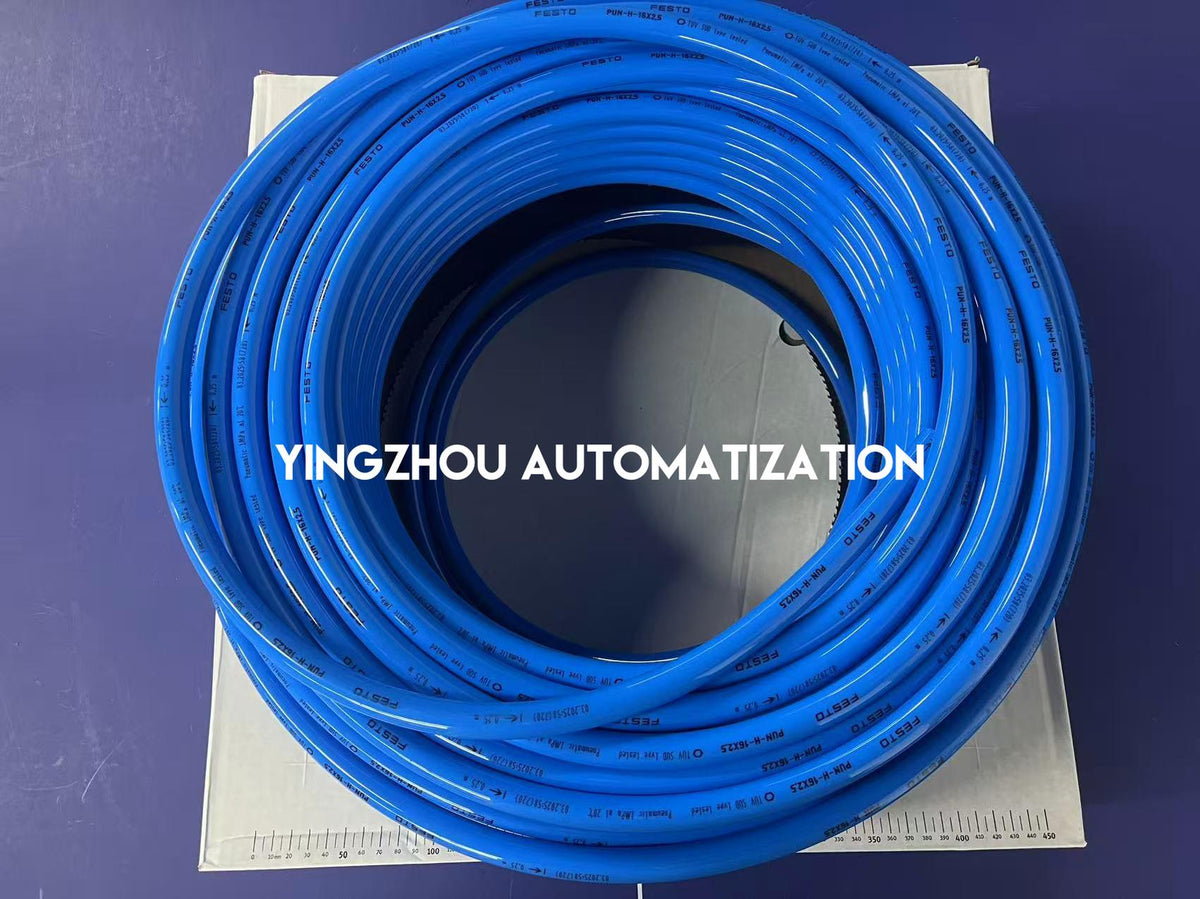

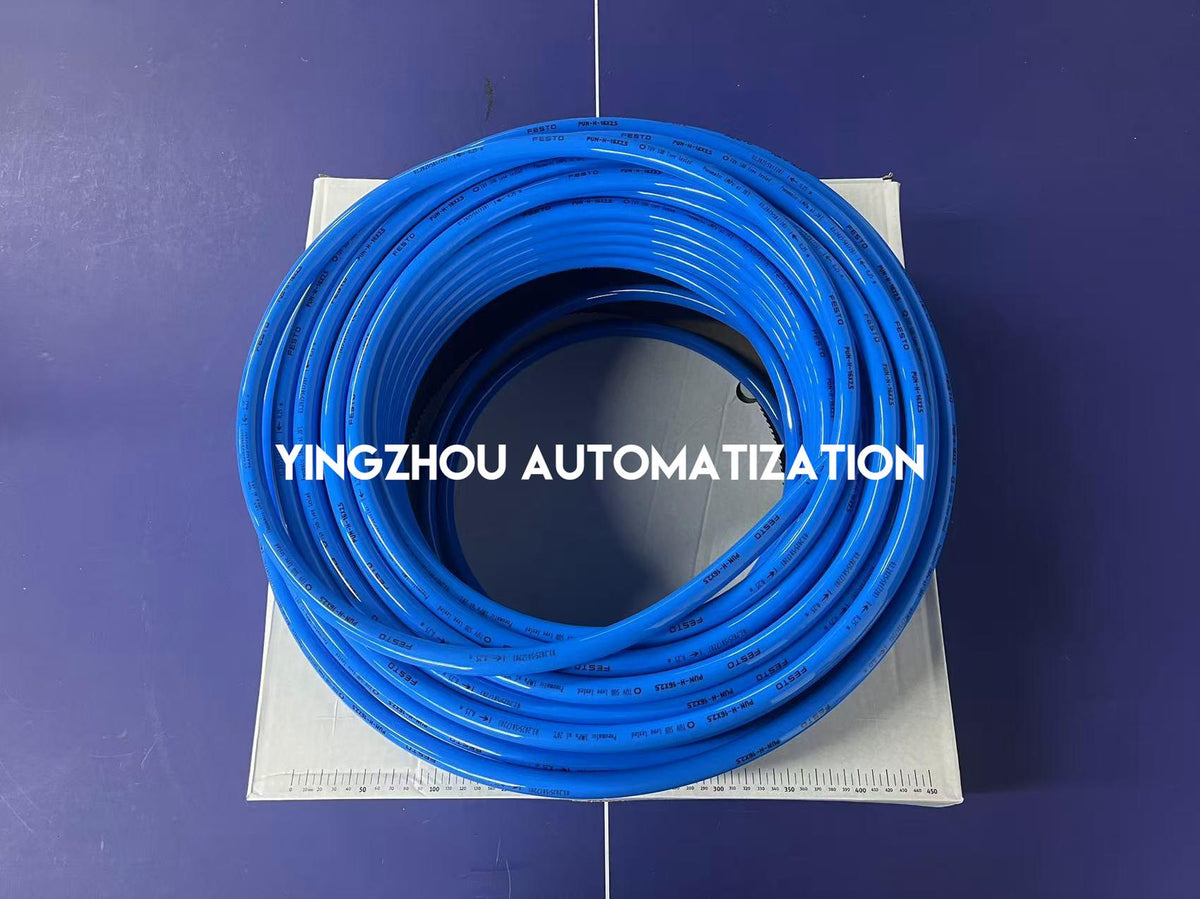

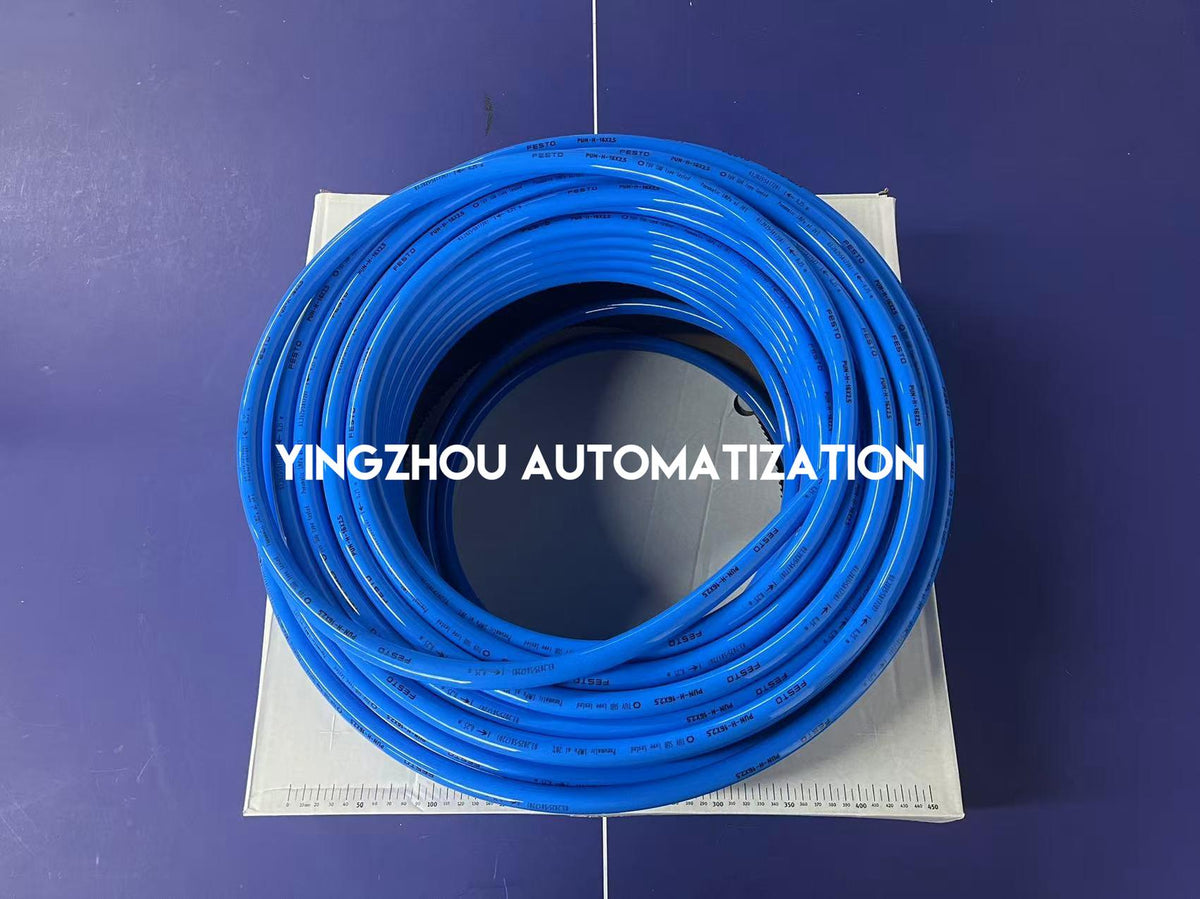

✓ Actual blue pneumatic tubing coil photograph supplied

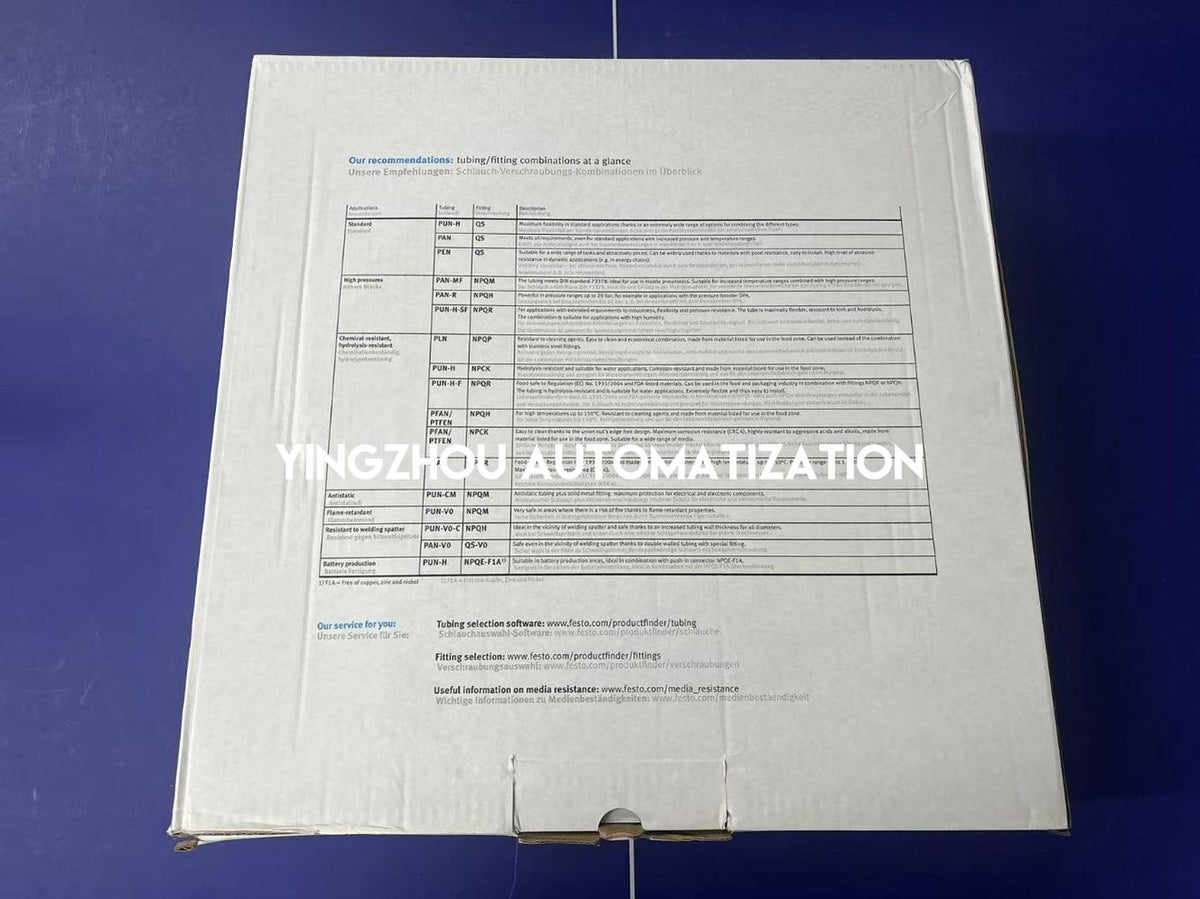

✓ Actual manufacturer packaging photograph supplied

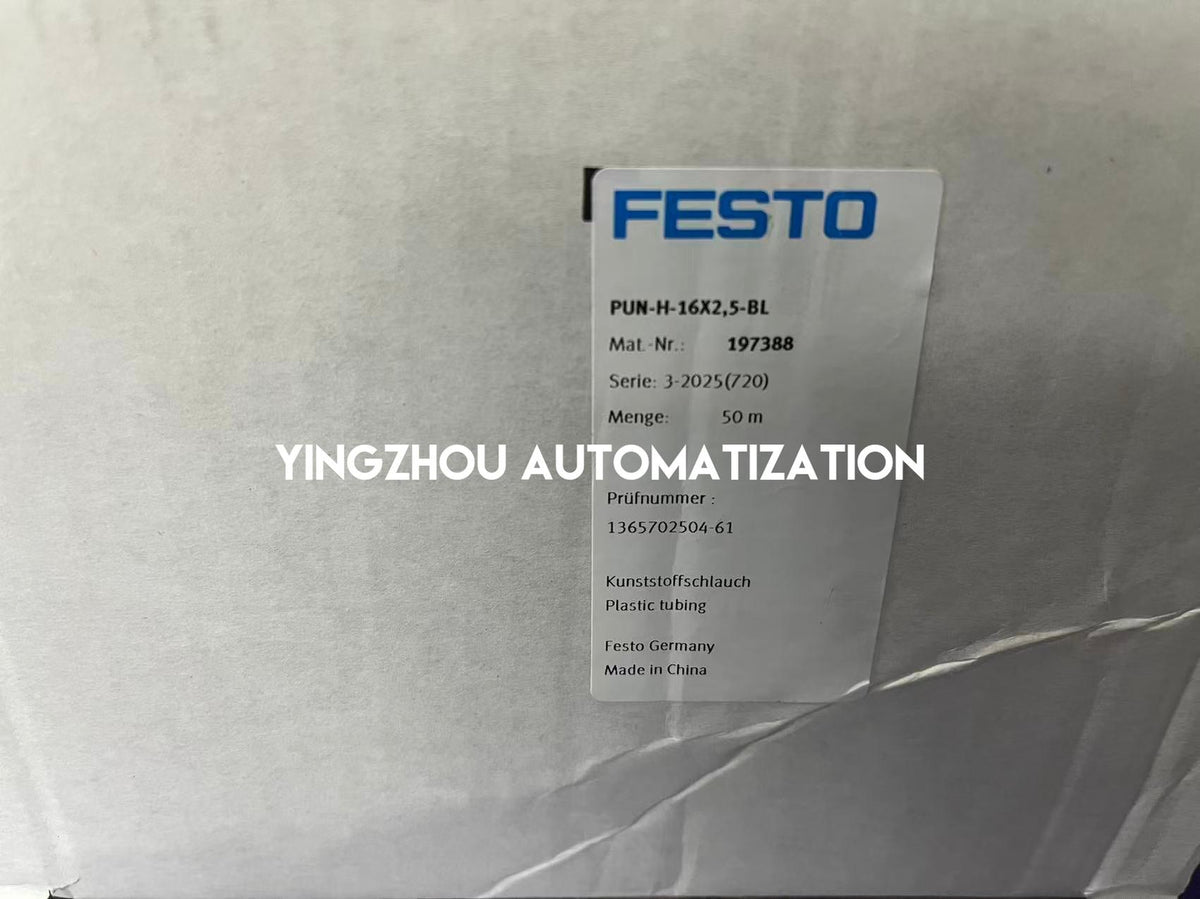

✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: PUN-H-16X2,5-BL
✓ Packaging material number: 197388
✓ Packaging series marking: 3-2025(720)
✓ Packaging description: Plastic Tubing
✓ Packaging length marking: 50 m
✓ Actual tubing color: Blue

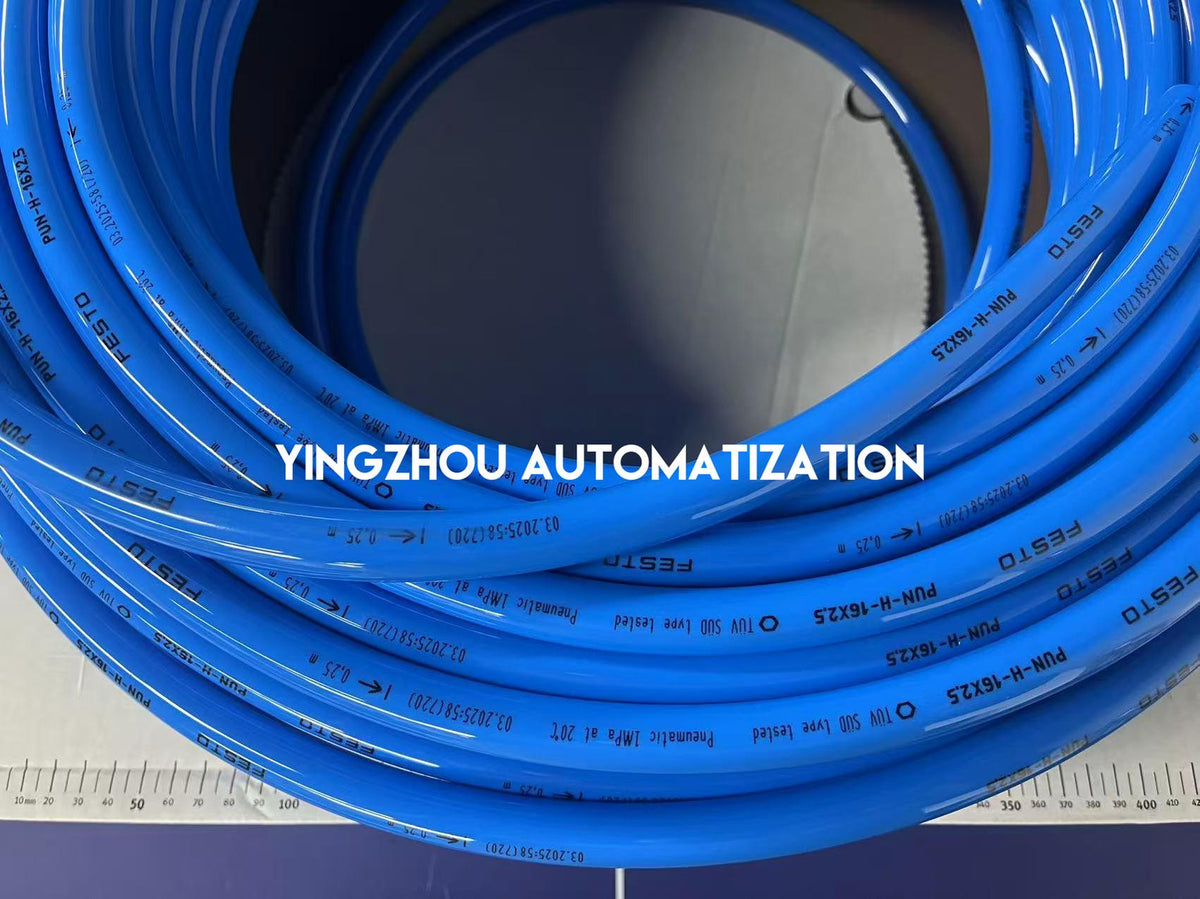

✓ Tubing model marking: PUN-H-16X2,5 - Partially Visible
✓ Packaging country-of-origin marking: Made in China
✓ Packaging model and material number match the requested product

In Stock & Available to Order

FESTO PUN-H-16X2,5-BL 197388 is marked in stock based on the supplied inventory information. This blue polyurethane pneumatic tubing is available for industrial compressed-air connections, pneumatic equipment maintenance and automation sourcing. Actual tubing and packaging photographs show the original FESTO product and a carton marked 50 m. Please confirm the required order length, whether supply is by the meter or complete reel, the 16 mm outside diameter, compatible push-in fittings and operating pressure requirements before completing an order. CN and PK push-in fittings are not suitable according to the manufacturer. Individual cut lengths remain subject to confirmation.

IN STOCK

FESTO PUN-H-16X2,5-BL 197388

Contact us for exact-model verification, order quantities and project sourcing. Please confirm the required tubing length, 16mm outside diameter, compatible pneumatic fittings and whether a complete 50m reel or cut length is needed before ordering.
