FESTO MFH-3-1/4-S 7959 3/2-Way Normally Closed Solenoid Valve G1/4 800 L/min

FESTO MFH-3-1/4-S 7959 3/2-Way Normally Closed Solenoid Valve G1/4 800 L/min

$52.99 USD
$52.99 USD
Obral Habis
Model Number
YingZhou Industrial Automation | Product Information

FESTO MFH-3-1/4-S 7959 Solenoid Valve

3/2-Way Normally Closed | G1/4 | 800 L/min | External Pilot
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Model and Part Number Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number MFH-3-1/4-S
Part Number 7959
Product Type Pneumatic Solenoid Valve
Valve Function 3/2-Way, Normally Closed, Monostable
Actuation Type Electrical
Reset Method Mechanical Spring
Valve Design Poppet Seat
Pilot Type Pilot-Operated
Pilot Air Supply External
Standard Nominal Flow Rate 800 L/min
Flow Reference DIN 1343
Operating Pressure -0.095 to 1 MPa / -0.95 to 10 bar
Pilot Pressure 0.1 to 0.8 MPa / 1 to 8 bar
Operating Voltage Via solenoid coil; coil ordered separately
Protection Rating IP65
Nominal Size 7 mm
Construction Width 30.5 mm
Grid Dimension 32 mm
Exhaust-Air Function Can Be Throttled
Sealing Principle Soft
Mounting Position Any
Manual Override Detenting
Flow Direction Reversible
Switching Time - On 10 ms
Switching Time - Off 29 ms
Operating Medium Compressed Air, ISO 8573-1:2010 [7:4:4]
Media Temperature -10°C to +60°C
Ambient Temperature -5°C to +40°C
Storage Temperature -20°C to +60°C
Corrosion Resistance Class CRC 1
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Product Weight 320 g
Mounting Type Manifold Rail or Through-Hole
Pilot Air Port 12 M5
Pilot Exhaust Port 82 M5
Pneumatic Connection, Port 1 G1/4
Pneumatic Connection, Port 2 G1/4
Pneumatic Connection, Port 3 G1/4
Housing Material Die-Cast Aluminium
Seal Material NBR
RoHS Compliance Compliant
Packaging Series 07-2025:23 - Actual Packaging Label
Packaging Quantity 1 Piece - Actual Packaging Label
Country of Origin Made in India - Actual Packaging Label

Product Overview

The FESTO MFH-3-1/4-S, manufacturer part number 7959, is an electrically actuated, pilot-operated pneumatic solenoid valve featuring a 3/2-way normally closed, monostable function and mechanical spring return. Its manufacturer-specified standard nominal flow rate is 800 L/min, standardized according to DIN 1343. The valve has G1/4 pneumatic connections on ports 1, 2 and 3, with separate M5 pilot air and pilot exhaust connections. The main operating pressure range is -0.95 to 10 bar, while the required external pilot pressure is 1 to 8 bar. The specified ambient temperature range is -5°C to +40°C, and the media temperature range is -10°C to +60°C. The valve features a die-cast aluminium housing, NBR seals and a manufacturer-specified product weight of 320 g. Manual override is detenting, and the valve provides a reversible flow direction. The manufacturer specifies IP65 protection and a soft-sealing poppet-seat design. The operating voltage depends on a compatible solenoid coil that must be ordered separately. The supplied actual product and packaging photographs show matching FESTO model MFH-3-1/4-S and material number 7959. The packaging label identifies the product as a solenoid valve and states Made in India. Before ordering, please confirm the pneumatic function, external pilot supply, pressure conditions, coil requirements and installation accessories.

Key Product Features

  • FESTO MFH Series Solenoid Valve — Exact model MFH-3-1/4-S, part number 7959.
  • 3/2-Way Normally Closed — Monostable pneumatic directional control with spring return.
  • External Pilot Supply — Separate 1 to 8 bar pilot-air pressure range.
  • 800 L/min Nominal Flow — Standardized to DIN 1343.
  • G1/4 Pneumatic Ports — Working connections on ports 1, 2 and 3.
  • -0.95 to 10 Bar Operating Pressure — Manufacturer-specified main valve pressure range.
  • IP65 Protection — Manufacturer-specified valve rating.
  • Die-Cast Aluminium Housing — NBR seals and a 320 g product weight.

Actual Product Verification

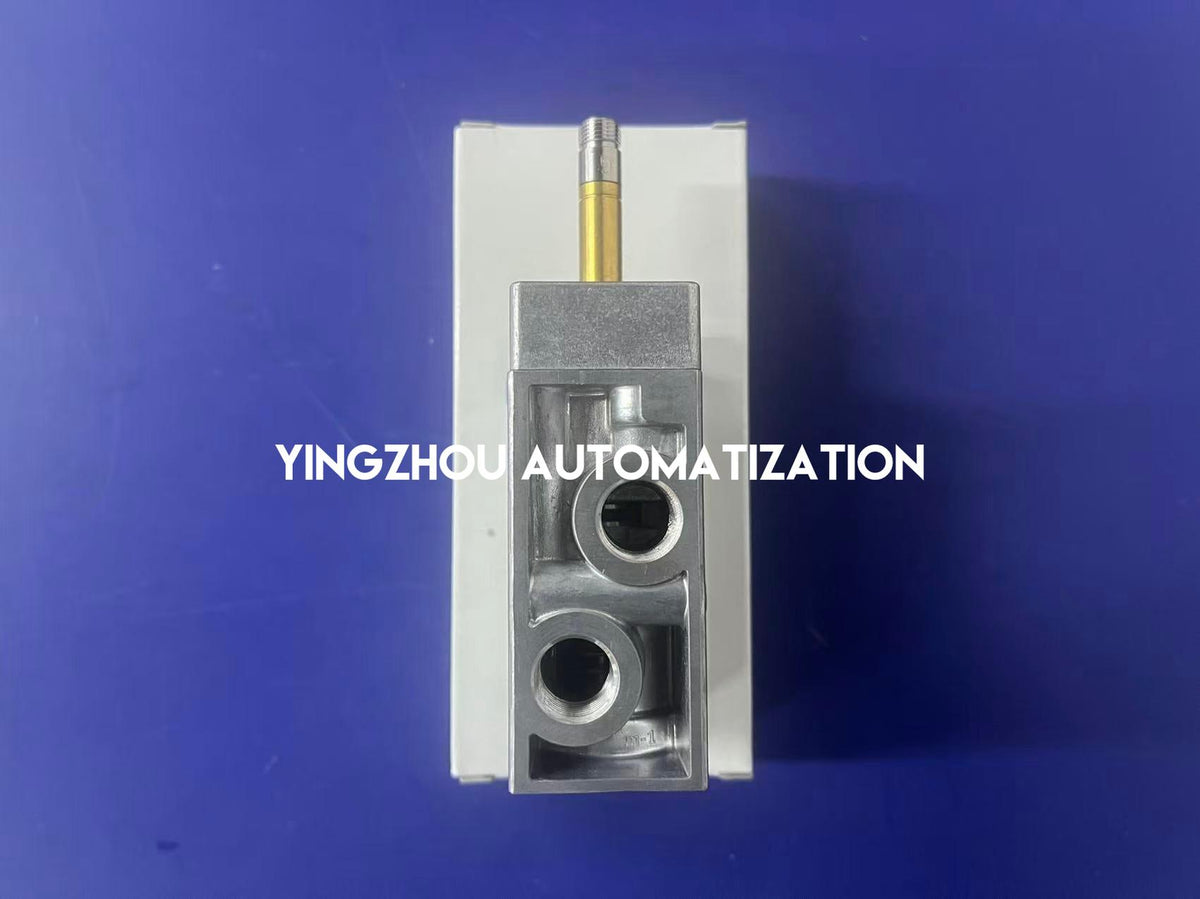

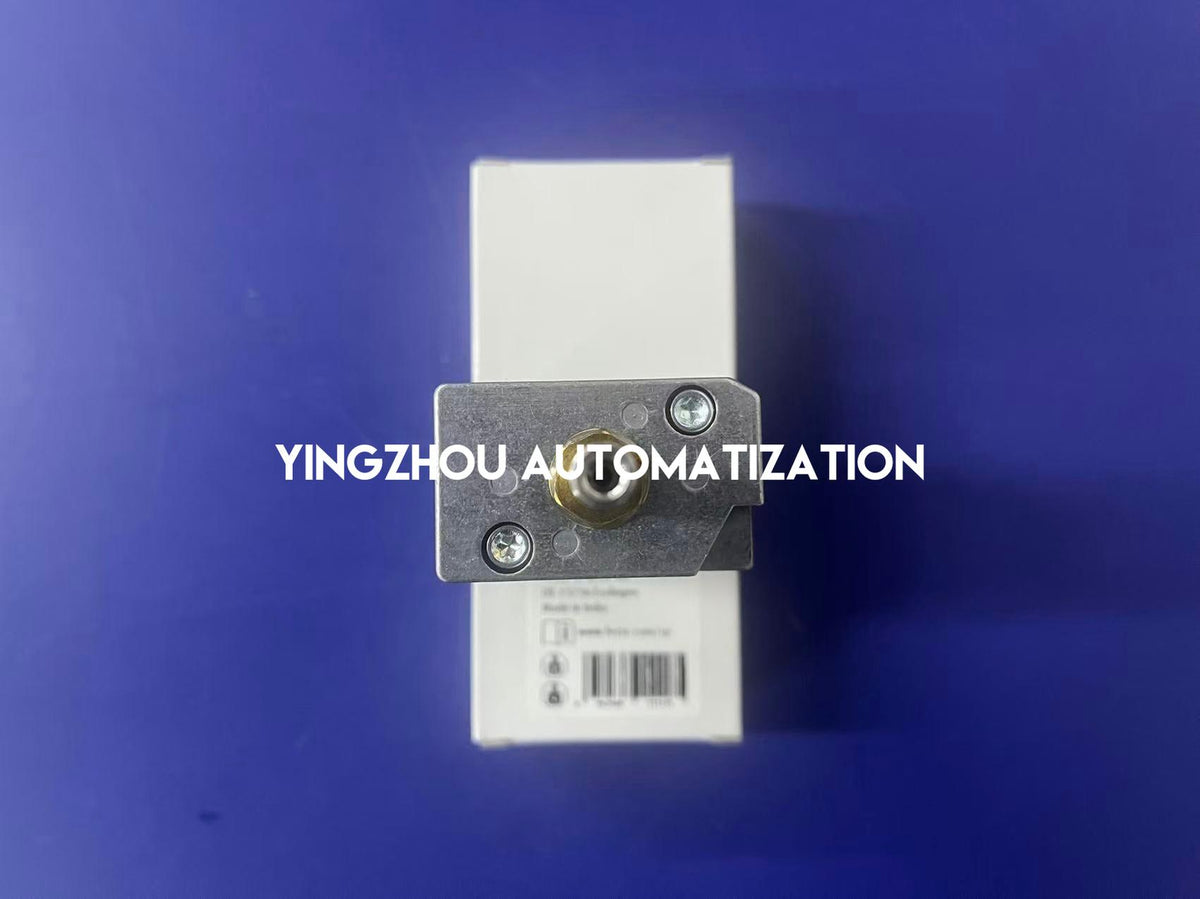

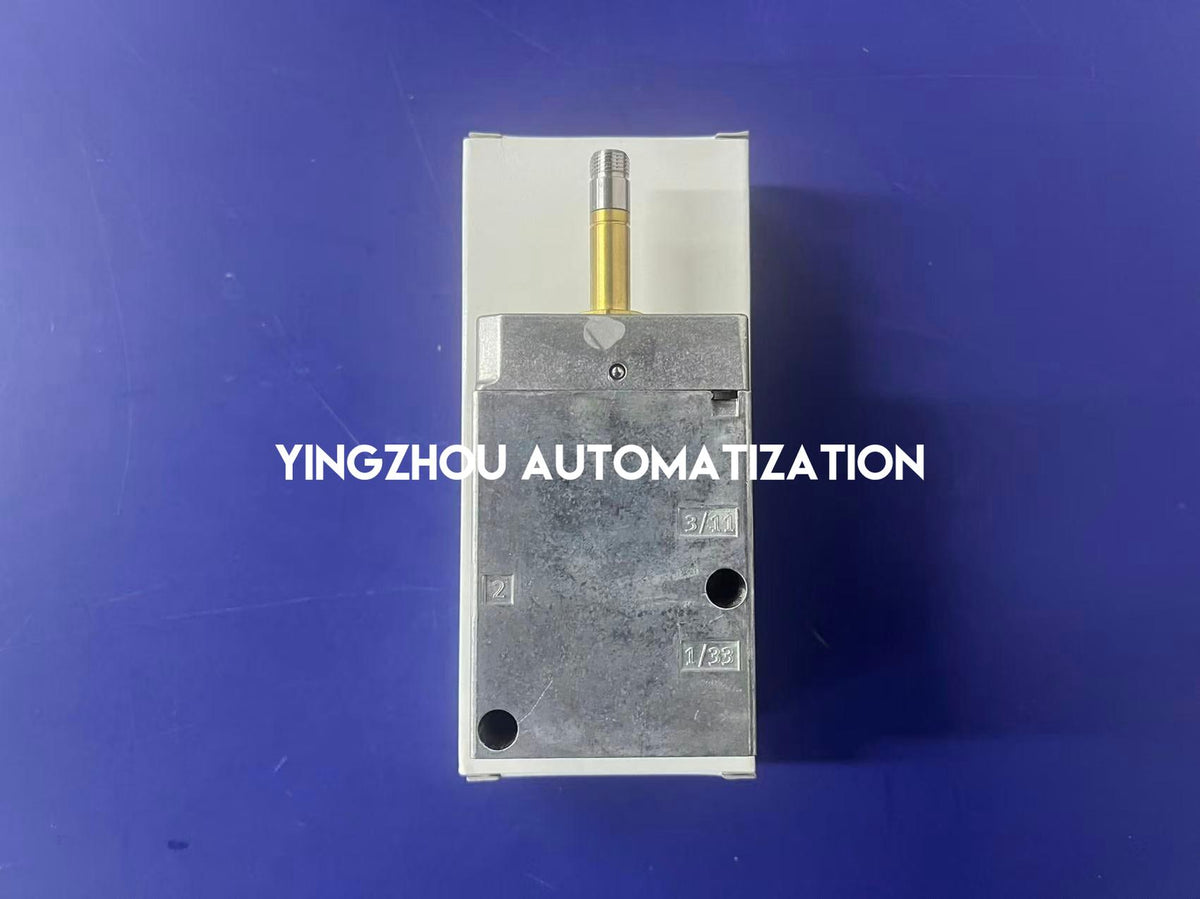

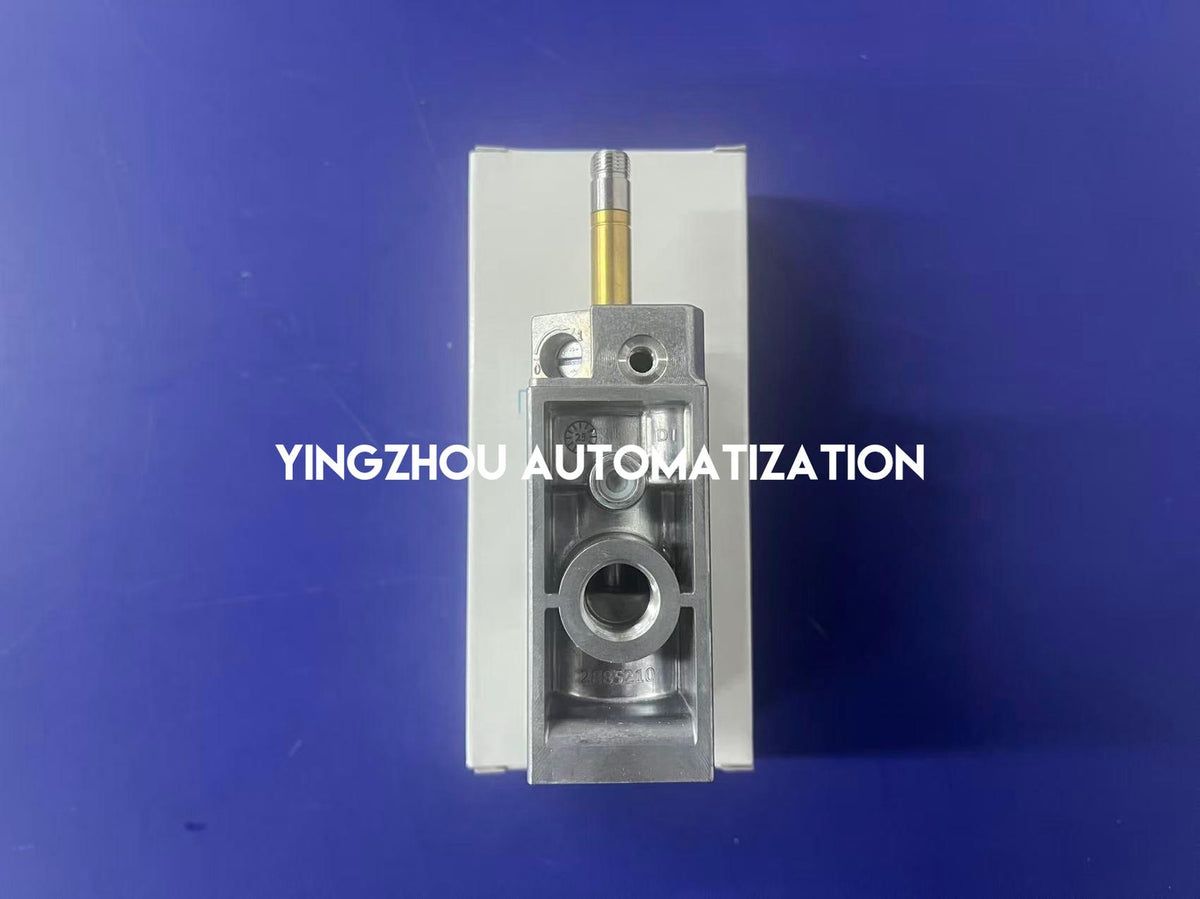

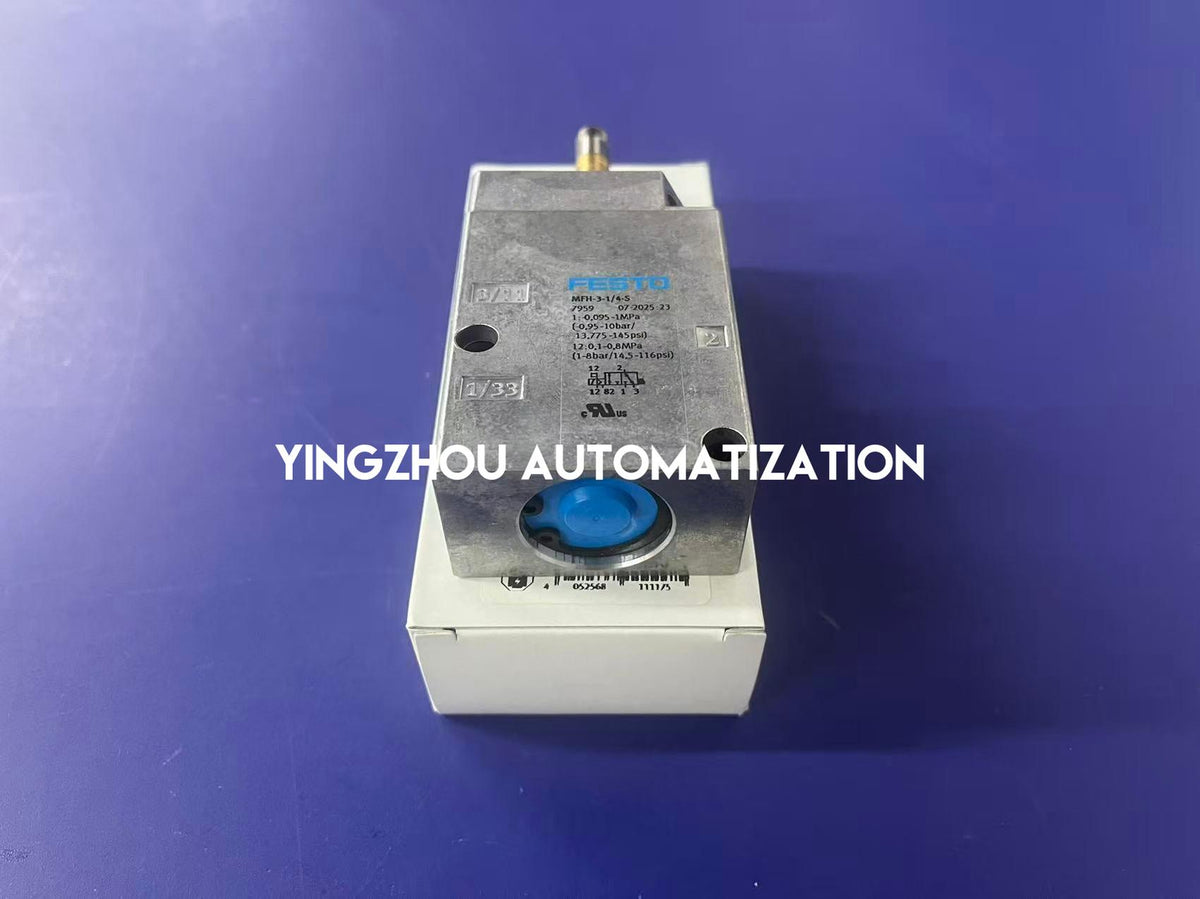

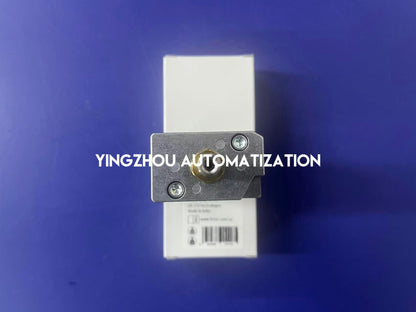

✓ Actual FESTO product photograph supplied

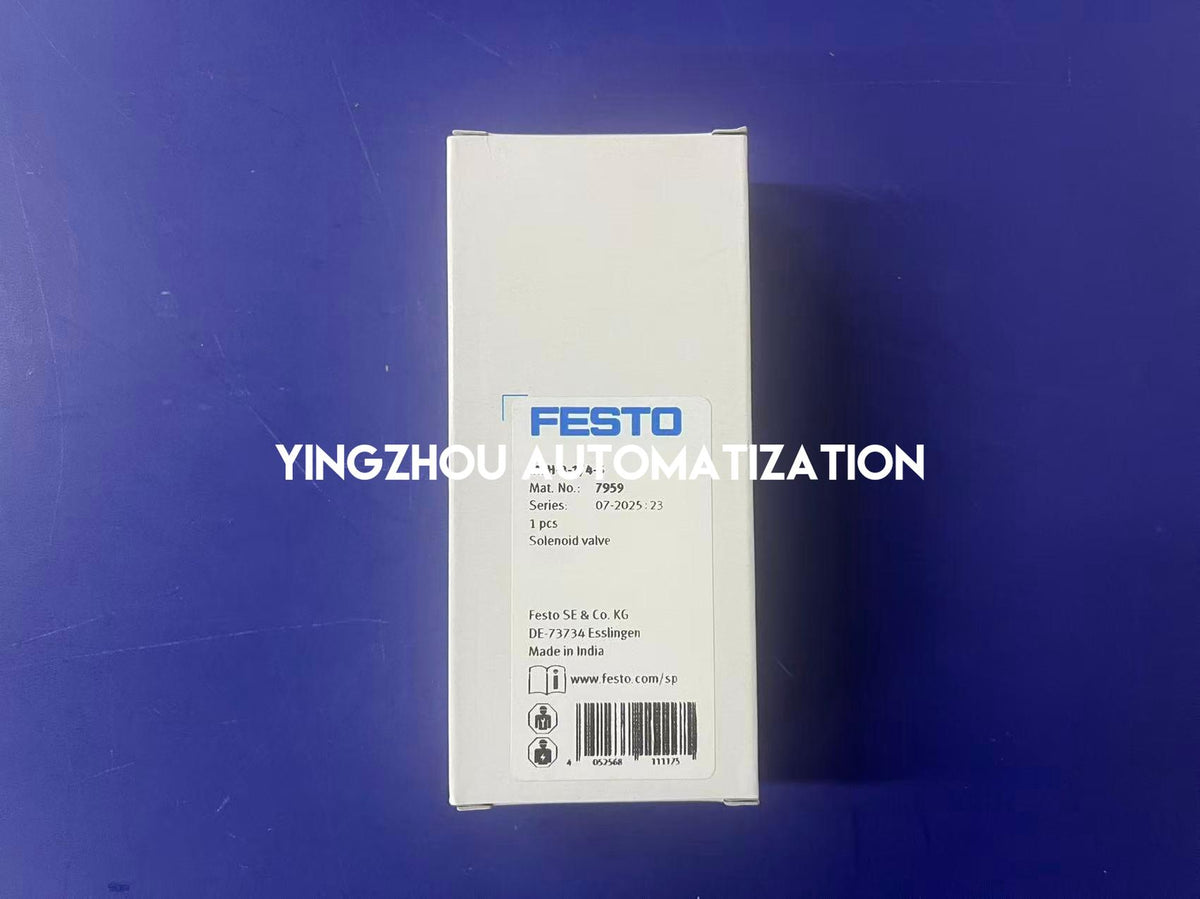

✓ Actual manufacturer packaging photograph supplied

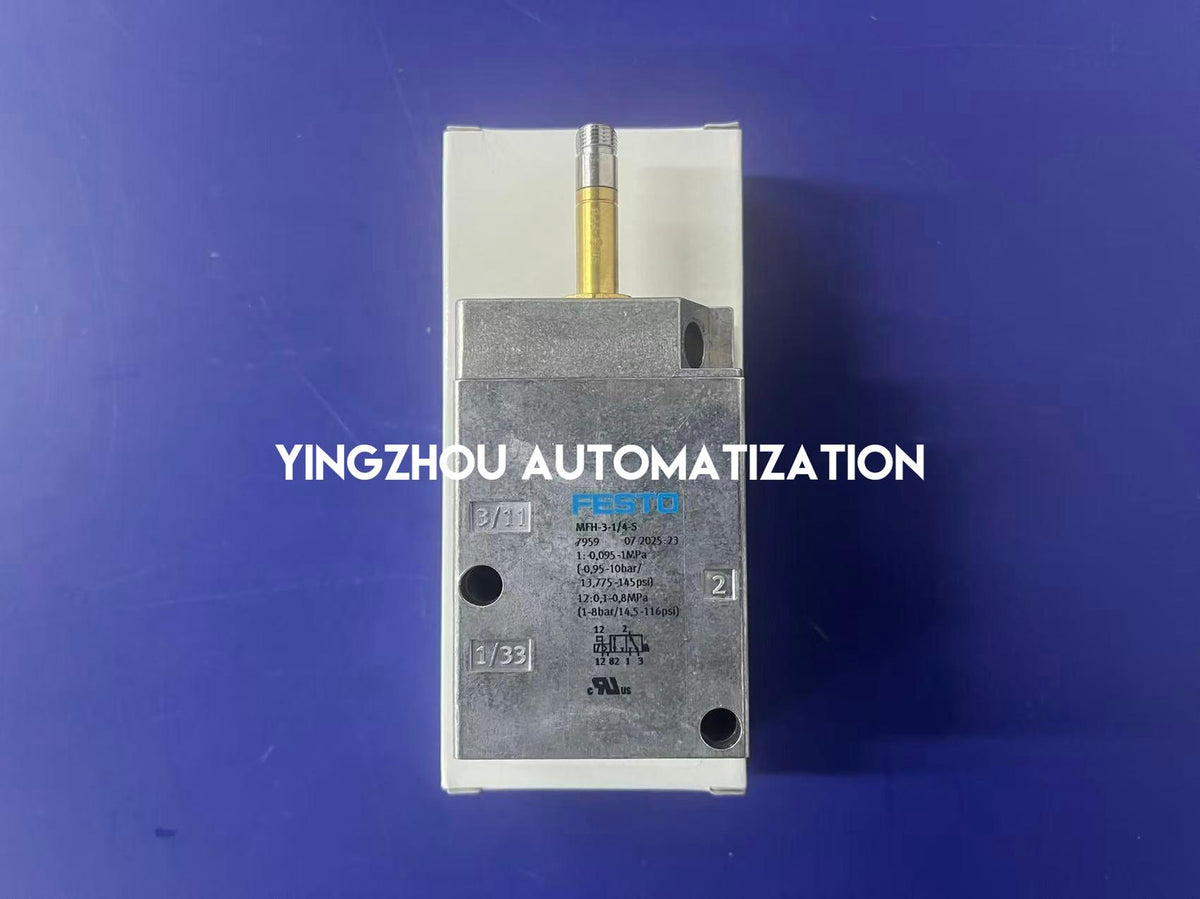

✓ Product body manufacturer: FESTO
✓ Product body model: MFH-3-1/4-S
✓ Product body material number: 7959
✓ Main operating pressure marking: -0.95 to 10 bar
✓ Pilot pressure marking: 1 to 8 bar
✓ Pneumatic valve symbol visible on product body
✓ Packaging model: MFH-3-1/4-S
✓ Packaging part number: 7959
✓ Packaging series: 07-2025:23
✓ Packaging description: Solenoid Valve
✓ Packaging quantity: 1 Piece
✓ Country-of-origin marking: Made in India
✓ Product body and packaging identifiers match
✓ Solenoid coil must be ordered separately
✓ Electrical switching and pneumatic leakage tests not performed

In Stock & Available to Order

FESTO MFH-3-1/4-S 7959 is marked in stock based on the supplied inventory information. This 3/2-way normally closed, externally piloted pneumatic solenoid valve is intended for compatible industrial pneumatic directional-control systems and exact-model replacement sourcing. The actual product nameplate and manufacturer packaging both show matching model and material numbers. Before ordering, please verify the G1/4 pneumatic connections, -0.95 to 10 bar main operating pressure, 1 to 8 bar external pilot pressure and the required solenoid coil configuration. The coil must be ordered separately, so the applicable voltage and accessories should be confirmed before purchase.

IN STOCK

FESTO MFH-3-1/4-S 7959

Contact us for exact-model verification, bulk quantities and project sourcing. Please confirm the external pilot-air requirements, pneumatic connections and compatible solenoid coil before ordering.
