FESTO CPV10-M1H-5LS-M7 161414 5/2-Way Monostable Solenoid Valve 24V DC 400 L/min M7

FESTO CPV10-M1H-5LS-M7 161414 5/2-Way Monostable Solenoid Valve 24V DC 400 L/min M7

$69.99 USD
$69.99 USD
Obral Habis
Model Number
YingZhou Industrial Automation | Product Information

FESTO CPV10-M1H-5LS-M7 161414 Solenoid Valve

5/2-way Monostable | 24V DC | 400 L/min | M7 Working Ports
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Packaging Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer FESTO
Catalog Number CPV10-M1H-5LS-M7
Part Number 161414
Product Family CPV10
Product Type Pneumatic Solenoid Valve
Valve Function 5/2-way, Monostable
Actuation Type Electrical
Valve Size 10 mm
Normal Nominal Flow Rate 400 L/min - DIN 1343
Pneumatic Working Ports M7
Operating Voltage 24 V DC
Operating Pressure -0.09 to 1 MPa / -0.9 to 10 bar
Structural Design Piston Gate Valve
Reset Method Pneumatic Spring
Degree of Protection IP65
Nominal Width 4 mm
Exhaust Air Function Cannot Be Throttled
Sealing Principle Soft Seal
Mounting Position Any
Manual Override Detenting / Non-detenting
Type of Control Pilot-operated
Pilot Air Supply External / Internal
Flow Direction Non-reversible
Valve Lap Positive Overlap
Pilot Pressure 0.3-0.8 MPa / 3-8 bar
b-value 0.4
C Value 1.6 L/(s·bar)
Switch-off Time 27 ms
Switch-on Time 17 ms
Duty Cycle 100% With Holding Current Reduction
Electrical Power Consumption 0.46 W
Maximum Positive Test Pulse at 0 Signal 1400 µs
Maximum Negative Test Pulse at 1 Signal 700 µs
Operating Medium Compressed Air per ISO 8573-1:2010 [7:4:4]
Lubricated Operation Possible; Continued Lubrication Required Thereafter
Corrosion Resistance Class CRC 2 - Moderate Corrosion Stress
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Storage Temperature -20°C to +40°C
Medium Temperature -5°C to +50°C
Ambient Temperature -5°C to +50°C
Product Weight 70 g
Mounting Type With Through-hole
Pilot Air Port 12/14 Common Connection
Pilot Exhaust Port 82/84 Common Connection
Pneumatic Connection 1 Common Connection
Pneumatic Connection 11 Common Connection
Pneumatic Connection 2 M7
Pneumatic Connection 3/5 Combined Common Connection
Pneumatic Connection 4 M7
Seals Material HNBR / NBR
Housing Materials Die-cast Aluminium / Brass / POM / PPS / Steel
Materials Compliance RoHS-compliant
Manufacturer GTIN 4052568012380
Packaging Series 04-2025:02 - Actual Packaging Label
Packaging Quantity 1 Piece - Actual Packaging Label
Country of Origin Made in Germany - Actual Packaging Label

Product Overview

The FESTO CPV10-M1H-5LS-M7, manufacturer part number 161414, is an electrically actuated 5/2-way monostable pneumatic solenoid valve from the FESTO CPV10 range. The valve operates at 24 V DC and features a pilot-operated piston gate design with pneumatic spring reset. Its manufacturer-specified standard nominal flow rate is 400 L/min, normalized according to DIN 1343. This model features a 10 mm valve size, 4 mm nominal width and M7 pneumatic working connections at ports 2 and 4, while other supply, pilot and exhaust ports are specified as common connections. The operating pressure range is -0.9 to 10 bar, with a separate 3 to 8 bar pilot-pressure range. The valve provides IP65 protection and supports detenting and non-detenting manual override. Manufacturer-specified switching times are 17 ms for switching on and 27 ms for switching off, with a specified electrical power consumption of 0.46 W. A 100% duty cycle is specified in combination with holding current reduction. The ambient and operating-medium temperature ranges are -5°C to +50°C. Its specified product weight is 70 g. The supplied actual photograph shows FESTO packaging labeled CPV10-M1H-5LS-M7, material number 161414 and Made in Germany. The internal valve body has not been inspected in the supplied photograph. Please confirm electrical connectivity, pneumatic port arrangement and valve terminal configuration before purchasing.

Key Product Features

  • FESTO CPV10 Solenoid Valve — Manufacturer model CPV10-M1H-5LS-M7, part number 161414.
  • 5/2-way Monostable Function — Electrically actuated directional valve with pneumatic spring reset.
  • 24V DC Operating Voltage — Manufacturer-specified voltage with 0.46W power consumption.
  • 400 L/min Nominal Flow — Standard nominal flow rate normalized according to DIN 1343.
  • M7 Pneumatic Working Ports — M7 connections at ports 2 and 4; common supply and exhaust connections.
  • IP65 Protection — Manufacturer-rated protection with a CRC 2 corrosion resistance classification.
  • Fast Switching Response — 17ms switch-on and 27ms switch-off times under manufacturer-defined conditions.

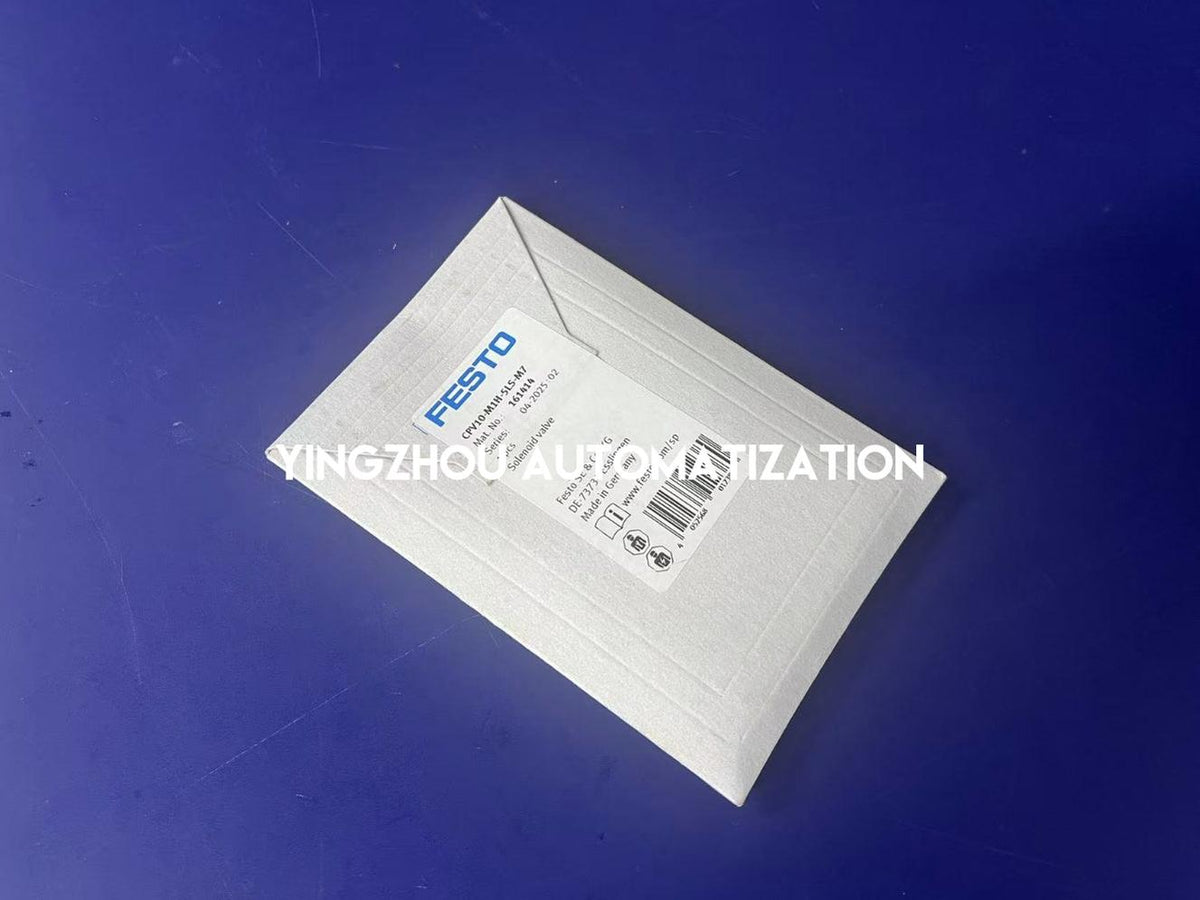

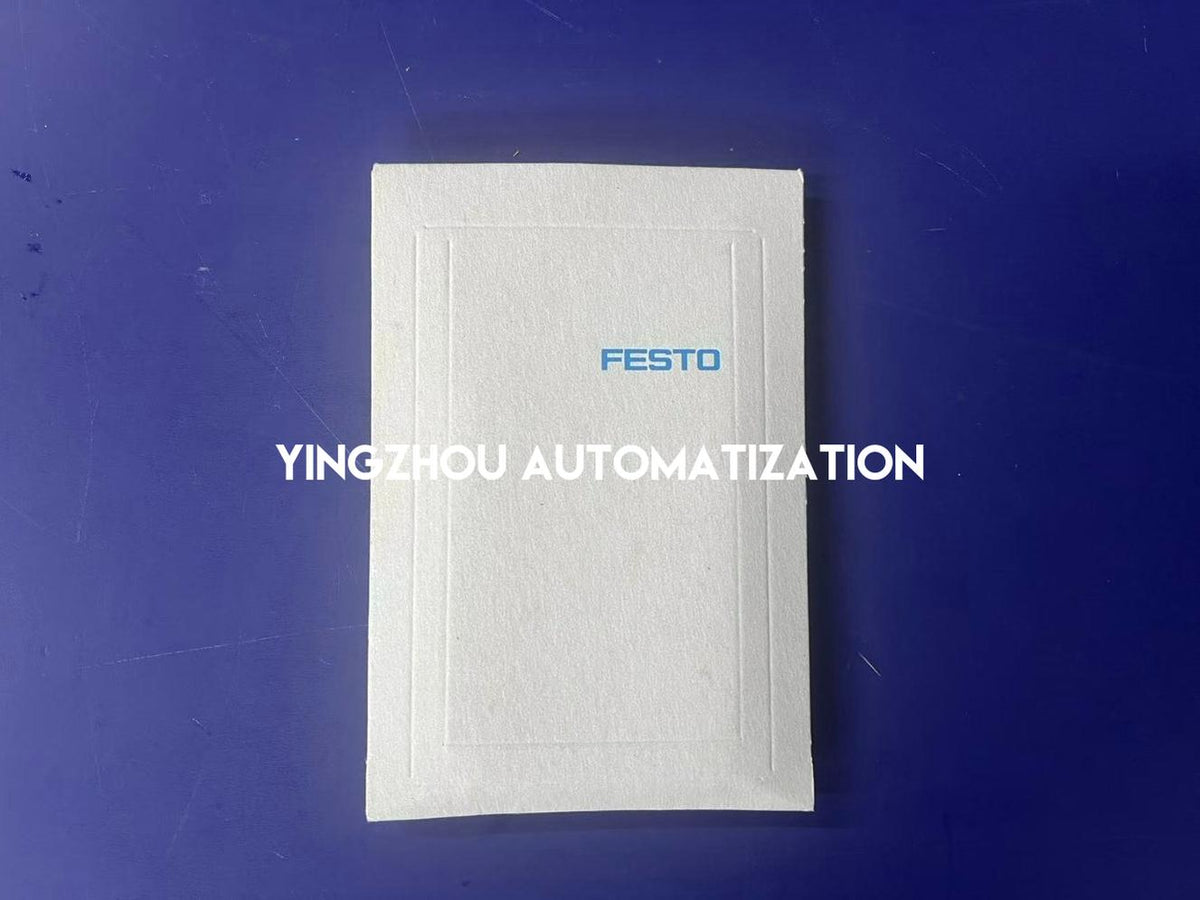

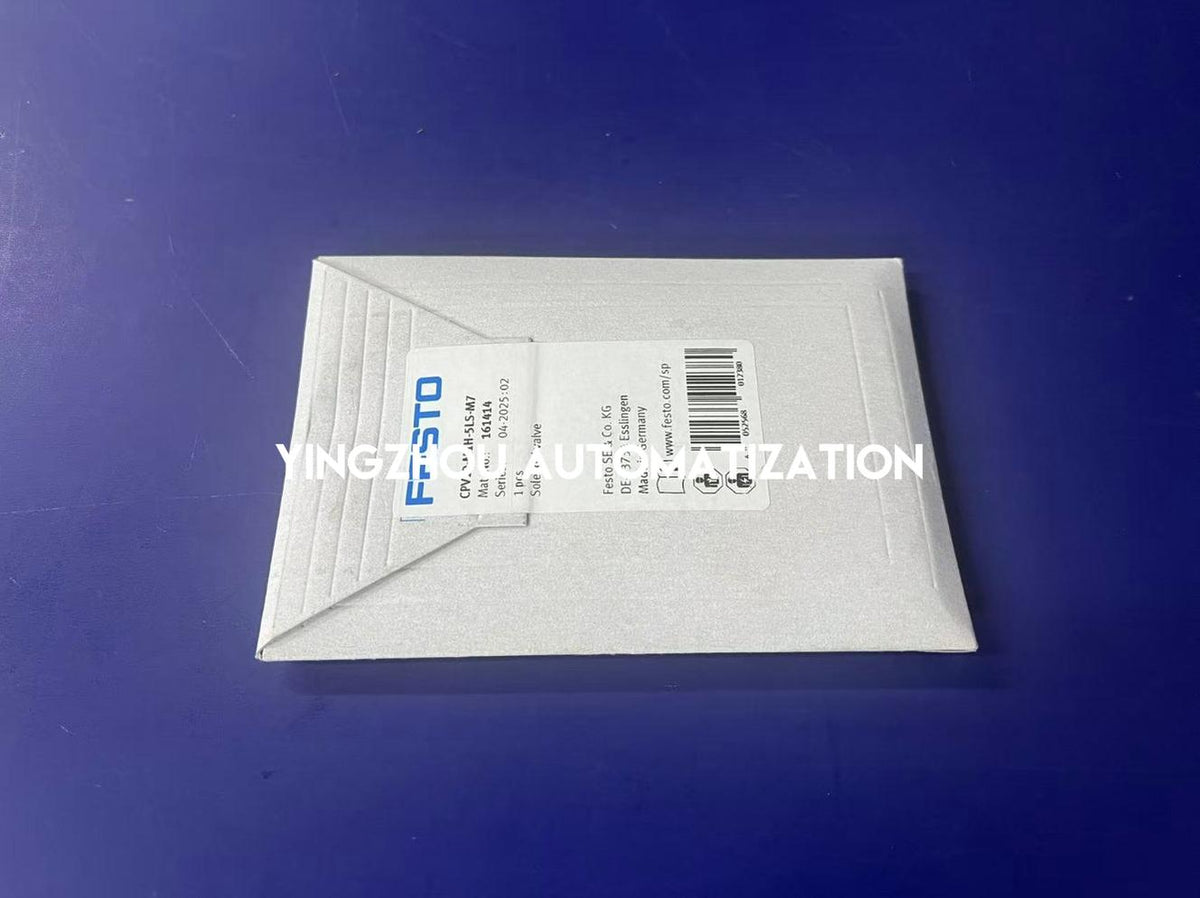

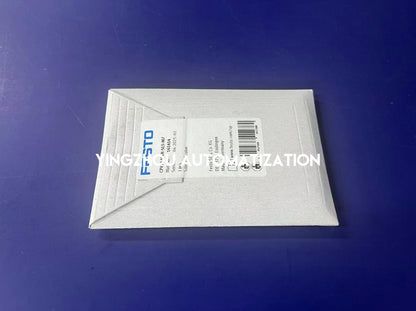

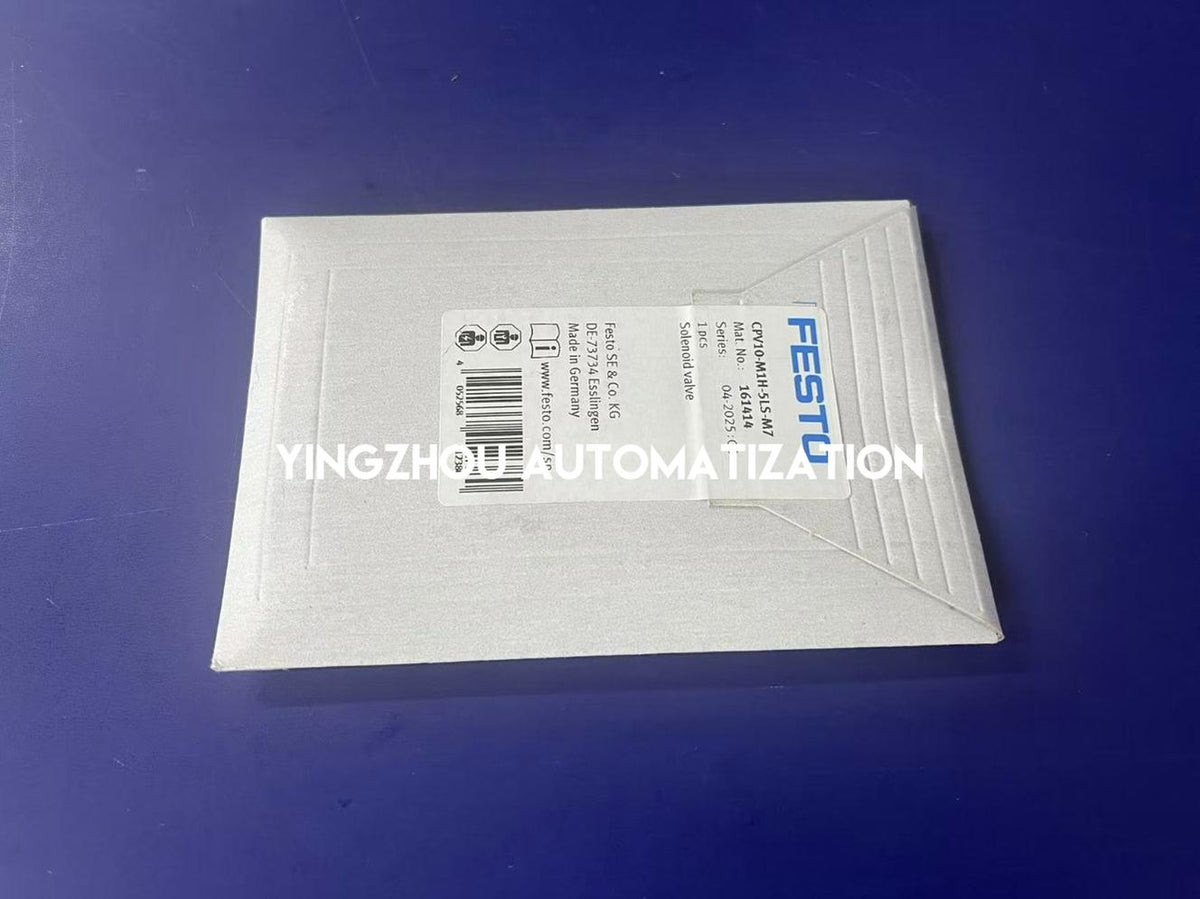

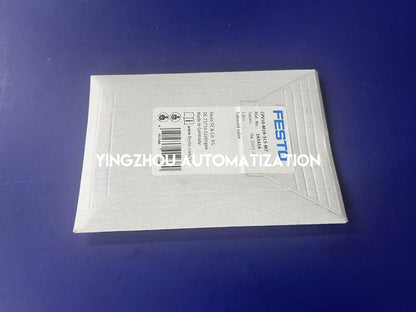

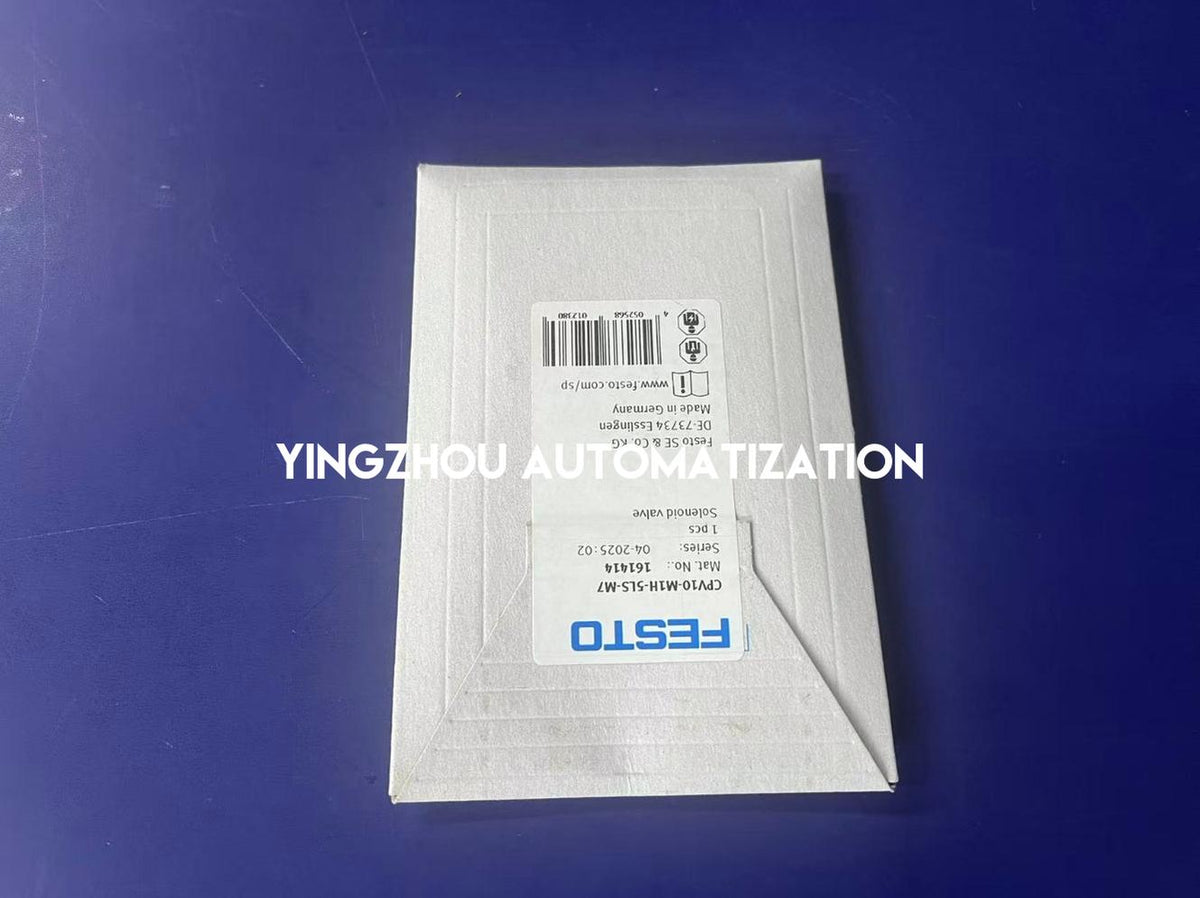

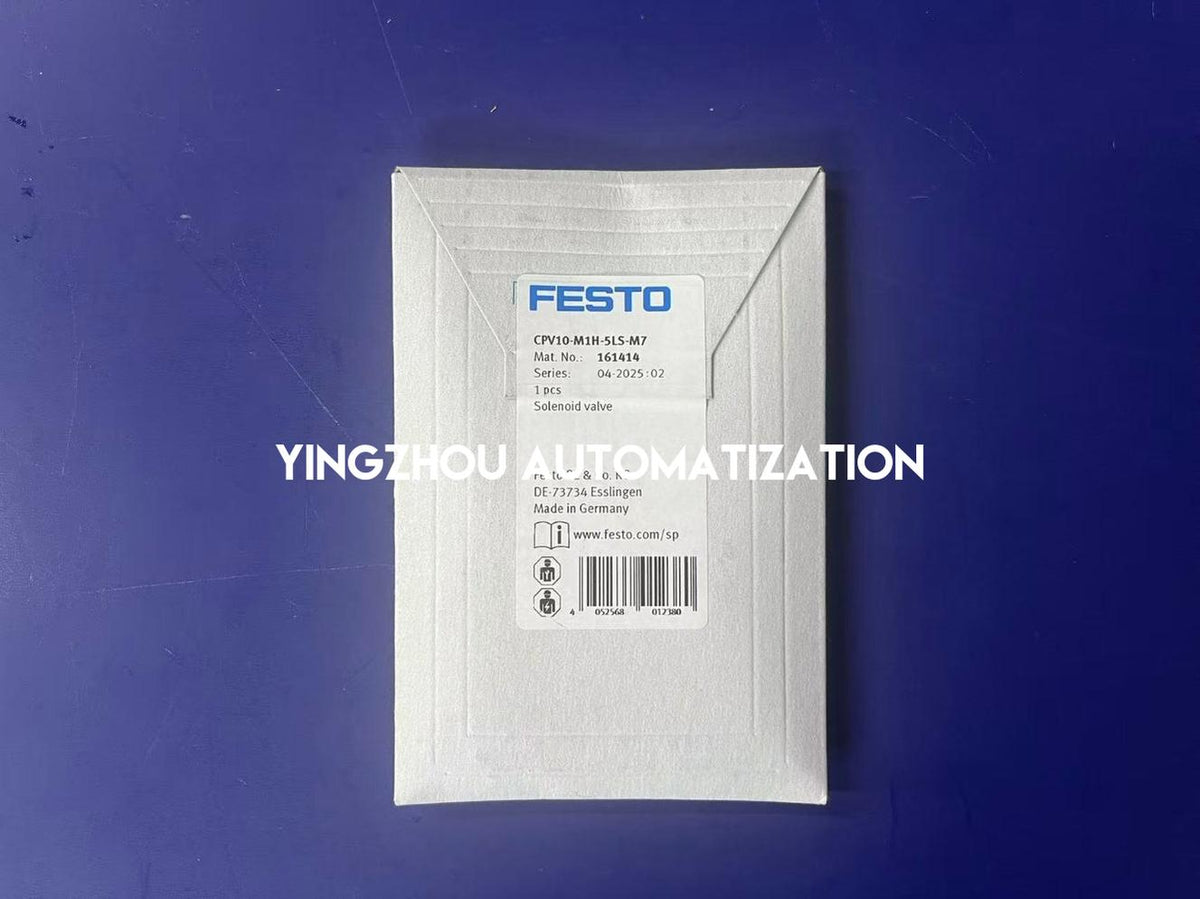

Actual Product Verification

✓ Actual manufacturer packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging catalog number: CPV10-M1H-5LS-M7
✓ Packaging material number: 161414
✓ Packaging series marking: 04-2025:02
✓ Packaging description: Solenoid Valve
✓ Packaging quantity marking: 1 Piece
✓ Packaging country-of-origin marking: Made in Germany
✓ Exact packaging model and part number match the requested product
✓ Manufacturer-verified valve function: 5/2-way Monostable
✓ Manufacturer-verified operating voltage: 24 V DC
✓ Internal valve body and its nameplate not independently inspected
✓ Electrical and pneumatic functional testing not performed
✓ Separate valve terminal and electrical accessories not confirmed as included

In Stock & Available to Order

FESTO CPV10-M1H-5LS-M7 161414 is marked in stock based on the supplied inventory information. This 5/2-way monostable solenoid valve is offered for industrial pneumatic control equipment, automation maintenance and exact-model replacement sourcing. The supplied actual photograph confirms the FESTO packaging label with the correct catalog model and material number. Before ordering, please verify the 24 V DC supply, M7 pneumatic working ports, 5/2-way valve function, required pilot-air configuration and compatibility with the intended CPV valve terminal. Separate electrical connection components, valve terminal accessories and other installation hardware are not confirmed as included.

IN STOCK

FESTO CPV10-M1H-5LS-M7 161414

Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 24V DC supply, 5/2-way monostable valve function, M7 working ports and pneumatic terminal compatibility before ordering.
