FESTO AEN-40-10-I-P-A-M6-K5 536419 Compact Cylinder
Single-acting | 40mm Bore | 10mm Stroke | M6 Thread | ISO 21287
| Specification |
Verified Product Data |
| Manufacturer |
FESTO |
| Catalog Number |
AEN-40-10-I-P-A-M6-K5 |
| Part Number |
536419 |
| Product Family |
AEN |
| Product Type |
Single-acting Compact Pneumatic Cylinder |
| Conforms to Standard |
ISO 21287 |
| Piston Diameter |
40 mm |
| Stroke |
10 mm - Exact Model Configuration |
| Mode of Operation |
Single-acting, Pushing Configuration |
| Piston Rod Thread Type |
Female Thread |
| Piston Rod Thread |
M6 - Special K5 Configuration |
| Cushioning |
Elastic Cushioning Rings / Plates at Both Ends |
| Position Detection |
Via Proximity Switch |
| Proximity Switch Included |
Not Confirmed |
| Operating Pressure |
1-10 bar |
| Maximum Pressure Marking |
1 MPa / 145 psi - Actual Nameplate |
| Pneumatic Connection |
G1/8 |
| Mounting Position |
Any |
| Mounting Options |
Through-hole / Female Thread / Accessories |
| Design |
Piston, Piston Rod, Profile Barrel |
| Operating Medium |
Compressed Air per ISO 8573-1:2010 [7:4:4] |
| Lubricated Operation |
Possible; Continued Lubrication Required Thereafter |
| Corrosion Resistance Class |
CRC 2 - Moderate Corrosion Stress |
| LABS (PWIS) Conformity |
VDMA24364-B1/B2-L |
| Theoretical Advance Force at 6 bar |
676 N - Manufacturer Family Datasheet |
| Theoretical Return Force at 6 bar |
606 N - Manufacturer Family Datasheet |
| Cover Material |
Anodised Wrought Aluminium Alloy |
| Piston Rod Material |
High-alloy Steel |
| Cylinder Barrel Material |
Smooth-anodised Wrought Aluminium Alloy |
| Collar Screw Material |
Steel |
| Materials Compliance |
RoHS-compliant |
| Ambient Temperature |
Exact Configured Range Not Independently Confirmed |
| Product Weight |
Exact Configuration Weight Not Confirmed |
| Mounting Accessories Included |
Not Confirmed |
| Country of Origin |
Made in China - Actual Nameplate |
Product Overview
The FESTO AEN-40-10-I-P-A-M6-K5, manufacturer module part number 536419, is a single-acting compact pneumatic cylinder from the FESTO AEN series, designed according to ISO 21287. This configuration features a 40 mm piston diameter, a 10 mm stroke and a special M6 female piston rod thread. The cylinder is designed for compact pneumatic linear movement and features elastic cushioning rings or plates at both ends. Position detection is supported via a compatible proximity switch, which is not confirmed as included. The manufacturer specifies an operating pressure of 1 to 10 bar and a G1/8 pneumatic connection. The cylinder uses an aluminium alloy profile barrel and covers, with a high-alloy steel piston rod. It has a CRC 2 corrosion resistance classification and conforms to VDMA24364-B1/B2-L for LABS (PWIS). The supplied actual product photograph shows the FESTO compact cylinder marked AEN-40-10-I-P-A-M6-K5 and 536419, with a maximum pressure marking of 1 MPa (145 psi). Confirm the required mounting accessories, position sensor and exact installation requirements before ordering.
Key Product Features
-
FESTO AEN Compact Cylinder — Exact model AEN-40-10-I-P-A-M6-K5, manufacturer part number 536419.
-
Single-acting Pneumatic Design — Compact cylinder conforming to ISO 21287.
-
40mm Bore and 10mm Stroke — Manufacturer-supported pneumatic cylinder configuration.
-
M6 Female Piston Rod Thread — Special K5 threaded piston rod configuration.
-
1-10 bar Operating Pressure — Manufacturer-specified pneumatic pressure range.
-
G1/8 Pneumatic Connection — Connection specification for the FESTO AEN-40 cylinder family.
-
Elastic Cushioning and Position Detection — Cushioning at both ends and provision for compatible proximity-switch sensing.
Actual Product Verification

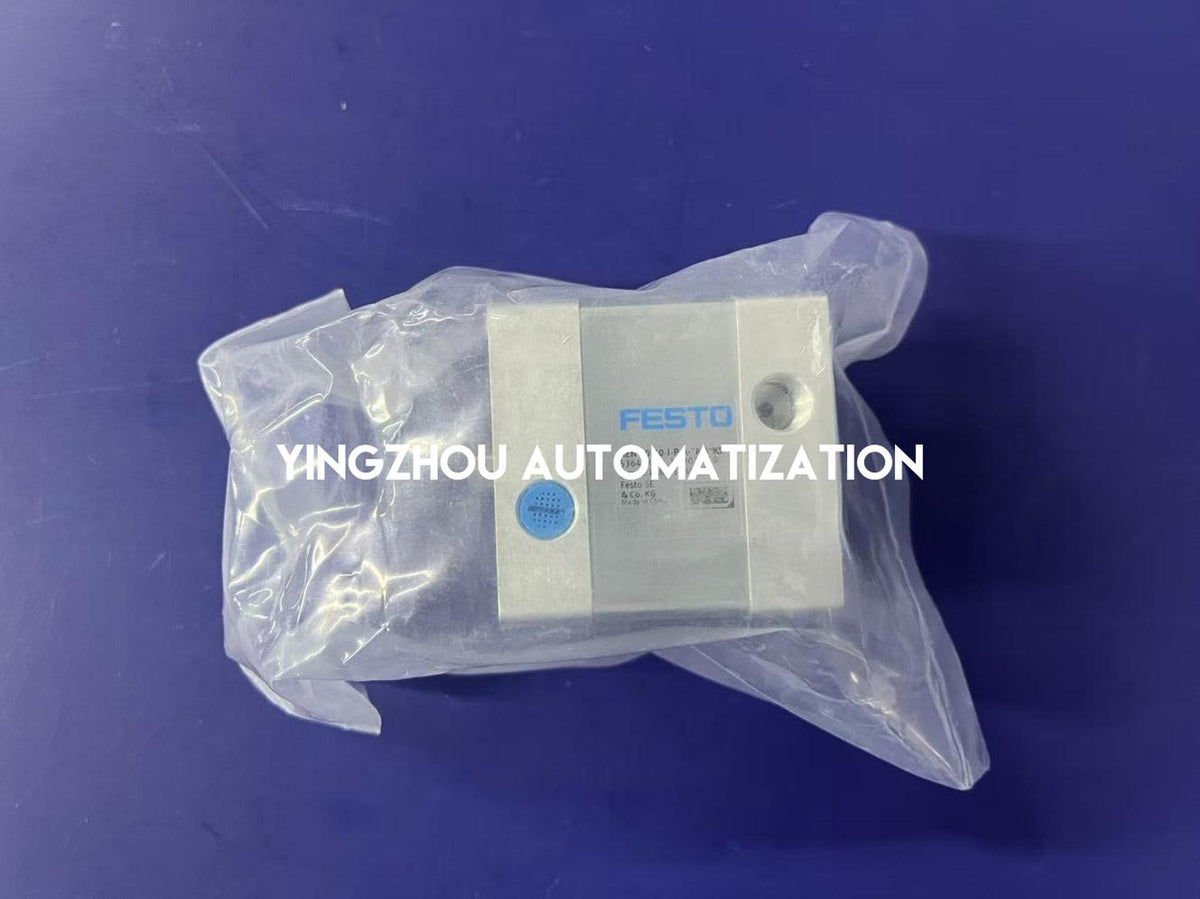

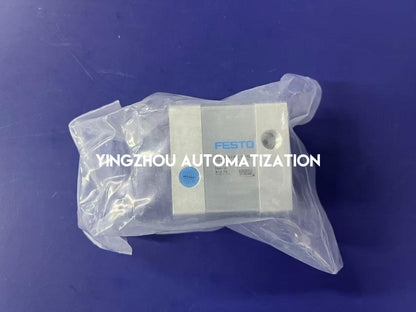

✓ Actual pneumatic cylinder photograph supplied
✓ Cylinder manufacturer marking: FESTO
✓ Cylinder catalog number: AEN-40-10-I-P-A-M6-K5
✓ Cylinder material number: 536419
✓ Visible maximum pressure marking: 1 MPa (145 psi)
✓ Actual compact cylinder body and pneumatic ports visible
✓ Protective plastic packaging visible
✓ Cylinder country-of-origin marking: Made in China
✓ Requested model and material number match the photographed nameplate
In Stock & Available to Order
FESTO AEN-40-10-I-P-A-M6-K5 536419 is marked in stock based on the supplied inventory information. This single-acting compact pneumatic cylinder is available for industrial automation procurement, pneumatic machinery maintenance and exact-model replacement requirements. The actual cylinder nameplate photograph confirms the requested full model and manufacturer part number. Please verify the 40 mm bore, 10 mm stroke, M6 female piston rod thread, G1/8 pneumatic connection, required position sensor and mounting accessories before completing an order. Sensors and separate mounting hardware are not confirmed as included.
IN STOCK
FESTO AEN-40-10-I-P-A-M6-K5 536419
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the single-acting cylinder configuration, 40mm bore, 10mm stroke, M6 female thread and required installation accessories before ordering.
Request Bulk Pricing
