Delta ASD-B3-4543-M ASDA-B3 4.5kW 400V Three-Phase CANopen AC Servo Drive

Name: Delta ASD-B3-4543-M ASDA-B3 4.5kW 400V Three-Phase CANopen AC Servo Drive
Brand: Delta
SKU: ASD-B3-4543-M
Price: 371.99 USD
Availability: InStock

Delta ASD-B3-4543-M ASDA-B3 4.5kW 400V Three-Phase CANopen AC Servo Drive

$371.99 USD

Obral Habis

Model Number ASD-B3-4543-M

Varian produk

Jumlah

YingZhou Industrial Automation | Product Information

Delta ASD-B3-4543-M ASDA-B3 CANopen AC Servo Drive

4.5 kW | 400 V Class | Three-Phase 380-440 VAC | CANopen CN3 | 13.3 A

✓ IN STOCK & READY TO ORDER | Brand New Original | 1-Year Seller Warranty

Specification	Product Data
Brand	Delta Electronics
Exact Model	ASD-B3-4543-M
Product Series	ASDA-B3
Product Type	Single-Axis AC Servo Drive
Rated Motor Capacity	4.5 kW / 4500 W
Voltage Class	400 V Class
Main Circuit Input Phase	Three-Phase
Main Circuit Rated Voltage	400 VAC
Permissible Input Voltage	Three-Phase 380-440 VAC, -10% to +10%
Input Frequency	50/60 Hz
Rated Input Current	12 A
Inrush Current	37.72 Arms
Control Circuit Rated Voltage	Single-Phase 400 VAC
Control Circuit Voltage Range	380-400 VAC, -10% to +10%
Continuous Output Current	13.3 Arms
Maximum Instantaneous Output Current	35.35 Arms
Nameplate Output	220 V, 0-500 Hz, 13.3 A
Power Loss	185 W
Communication	CANopen
CANopen Communication Connector	CN3
PC Communication	Mini USB
RS-485 Modbus Communication	Not Supported on B3-M
DMCNET Communication	Not Supported on B3-M
EtherCAT Communication	Not Supported on B3-M
PROFINET Communication	Not Supported on B3-M
External Pulse Train Input	Not Supported on B3-M
Internal Positioning	PR Mode Supported
Analog Voltage Control	Supported
Analog Command Voltage Range	0 to +/-10 VDC
Digital Inputs	4
Digital Outputs	2
Motor Encoder Interface	CN2
Drive Resolution	24-bit
Main Circuit Control	SVPWM
Tuning Modes	Auto / Manual
Speed Loop Bandwidth	Up to 3.1 kHz
Built-In Regenerative Resistor	35 Ohm, 100 W
Minimum Allowable External Resistance	35 Ohm
Cooling Method	Fan Cooling
Hardware Safe Torque Off	Not Supported on B3-M
Hardware Dynamic Brake	Not Supported on B3-M
Operating Temperature	0 to +55 degrees C
Cooling Requirement Above 45 degrees C	Forced Cooling Required
Storage Temperature	-20 to +65 degrees C
Operating Humidity	0-90% RH, Non-Condensing
Protection Rating	IP20

Product Overview

The Delta ASD-B3-4543-M is a 4.5 kW single-axis AC servo drive from Delta's ASDA-B3 Series. Designed for 400 V class industrial power systems, this model supports three-phase 380-440 VAC input and provides CANopen communication through CN3. The B3-M configuration supports internal PR positioning, analog voltage control and programmable digital I/O. It features 24-bit drive resolution, high-response servo control and a built-in 35 Ohm, 100 W regenerative resistor. RS-485 Modbus, DMCNET, EtherCAT and external pulse train input are not supported on this B3-M model.

Key Product Features

4.5 kW Rated Servo Capacity for compatible industrial AC servo motor systems
400 V Class Three-Phase Input supporting 380-440 VAC industrial power systems
CANopen Communication through the CN3 fieldbus interface
Internal PR Positioning for supported parameter-based motion sequences
Analog Voltage Control for applicable speed and torque control functions
4 Digital Inputs and 2 Digital Outputs for configurable machine control signals
24-bit Drive Resolution for high-resolution servo control
Speed Loop Bandwidth Up to 3.1 kHz for high-response motion applications
Fan Cooling for the 4.5 kW drive configuration
Built-In Regenerative Resistor rated at 35 Ohm and 100 W

Actual Product Verification

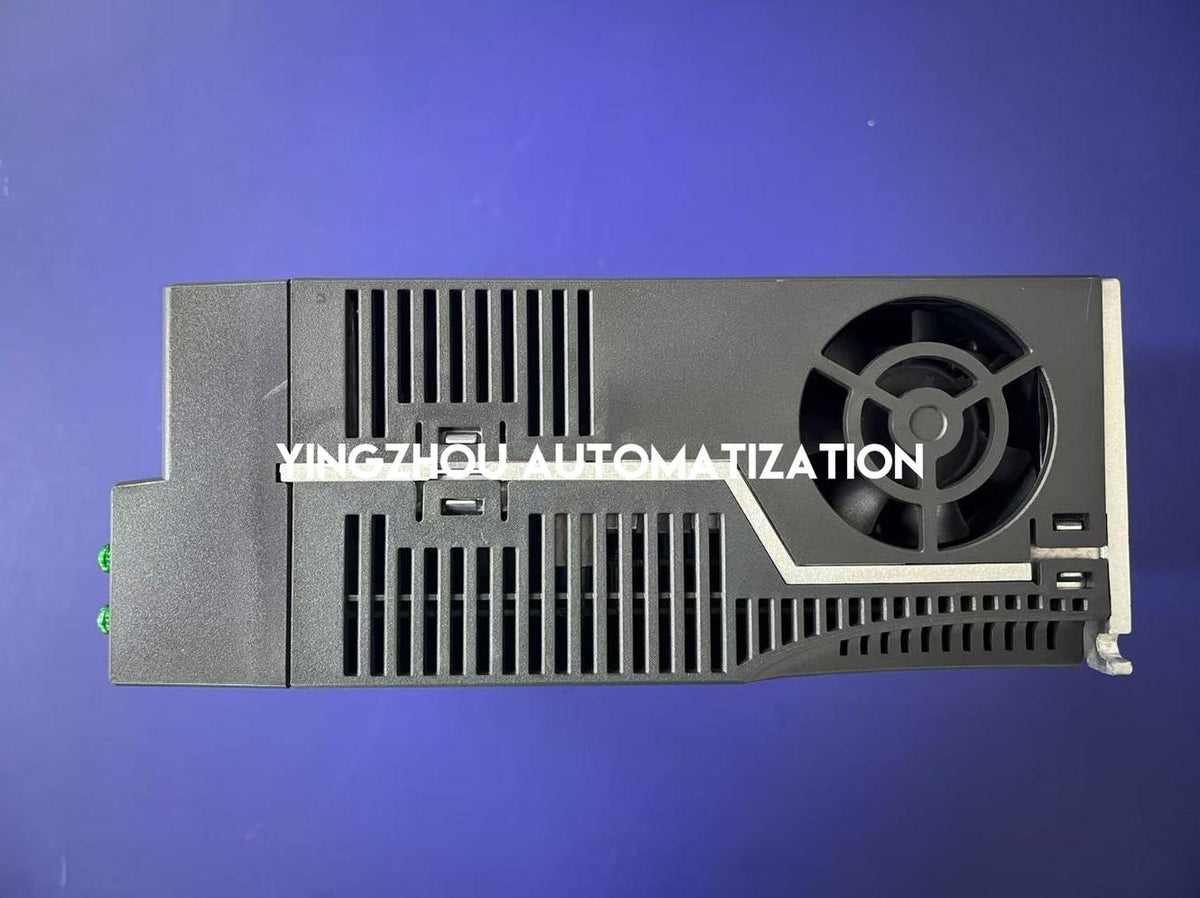

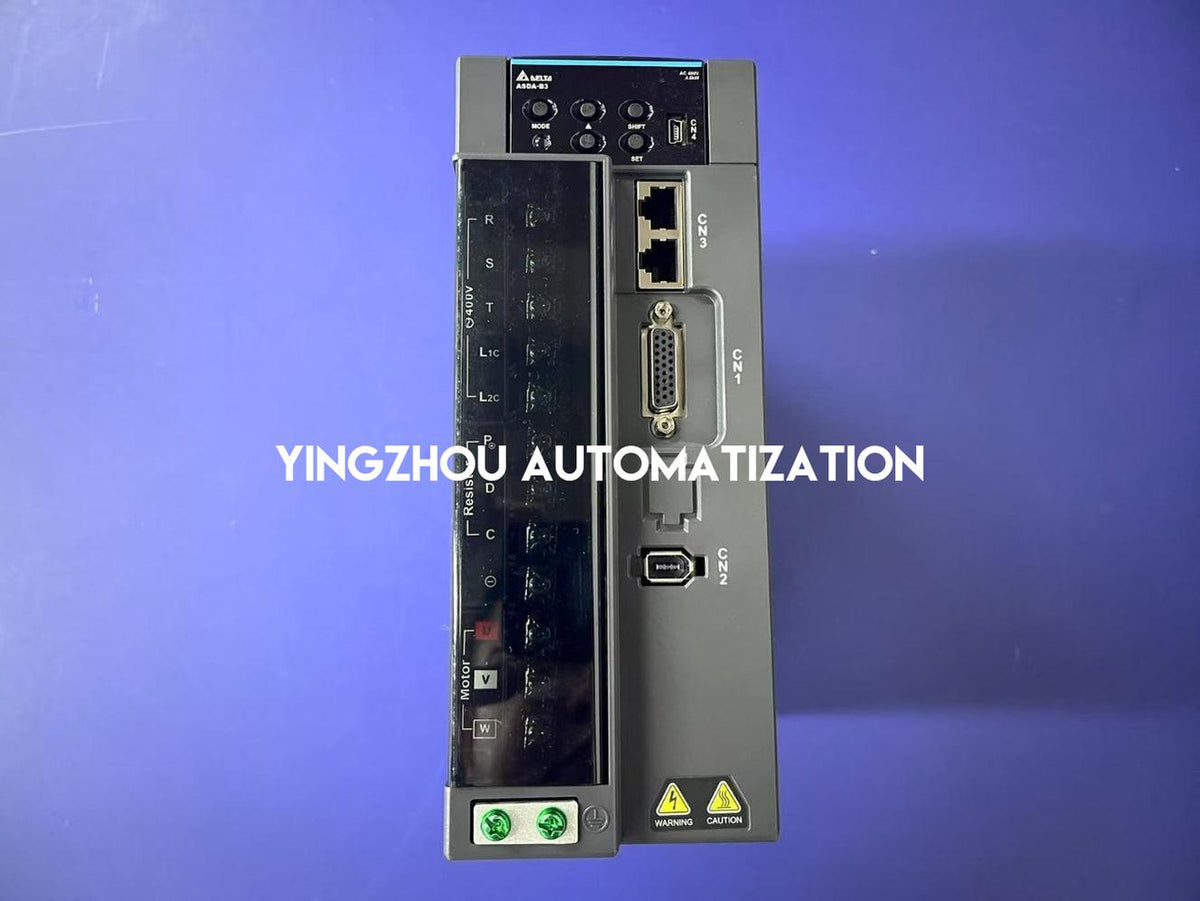

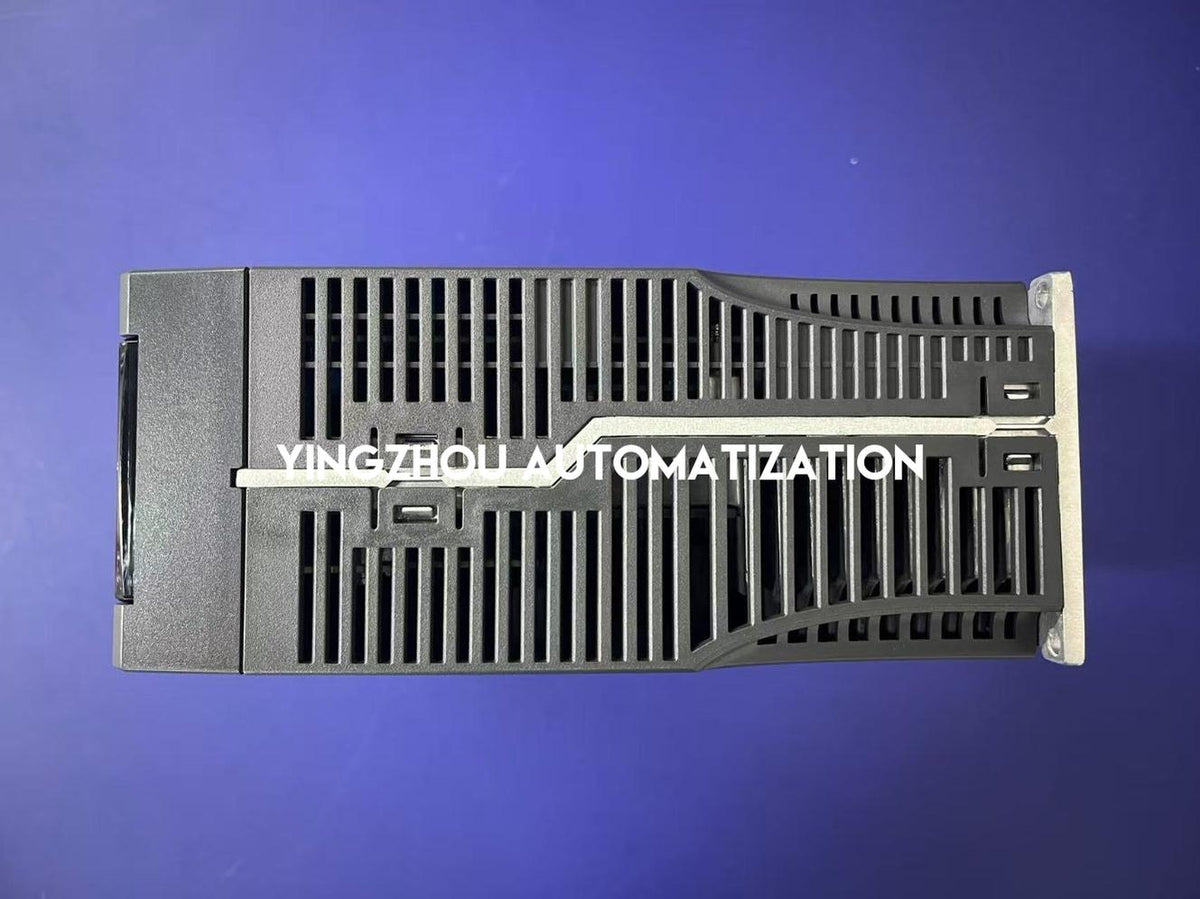

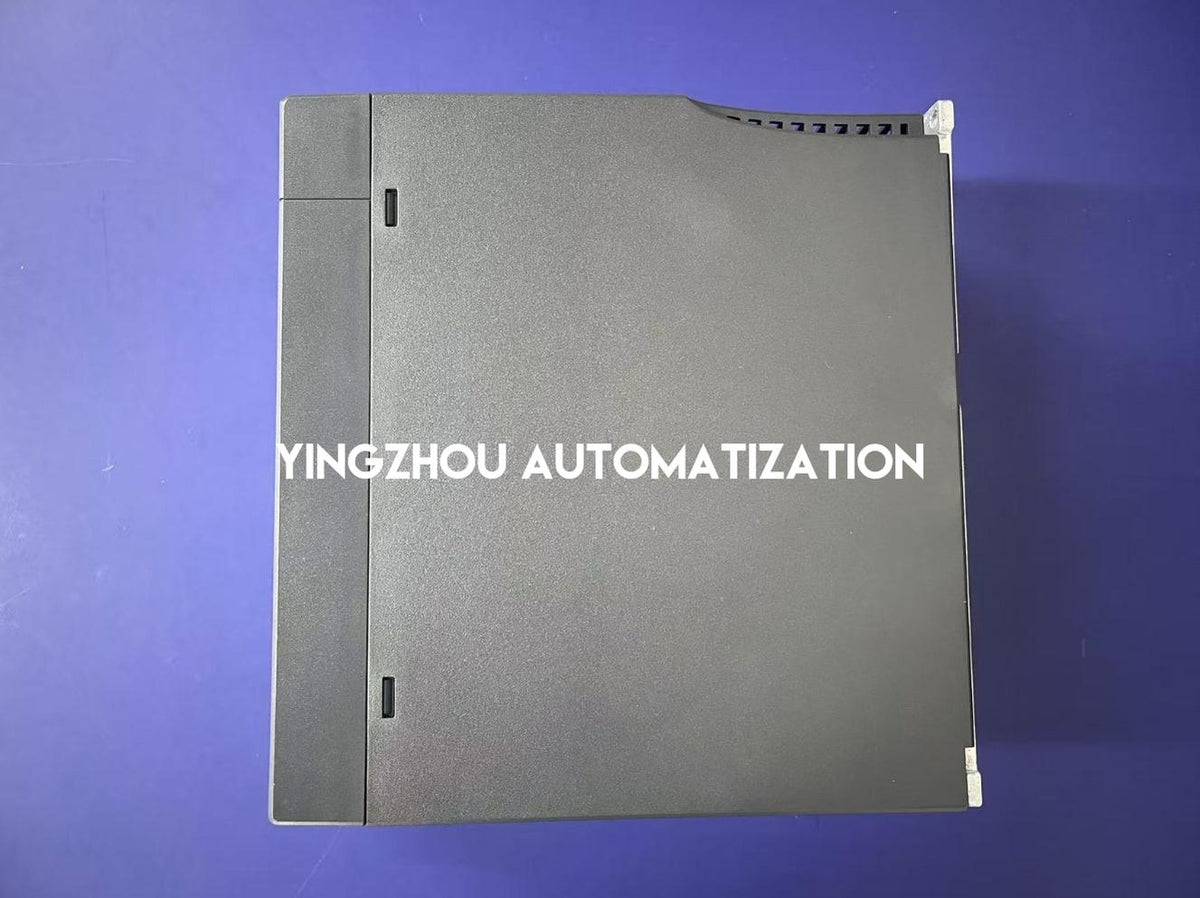

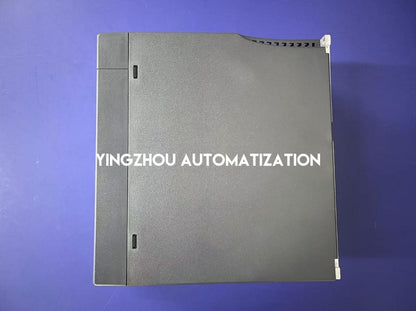

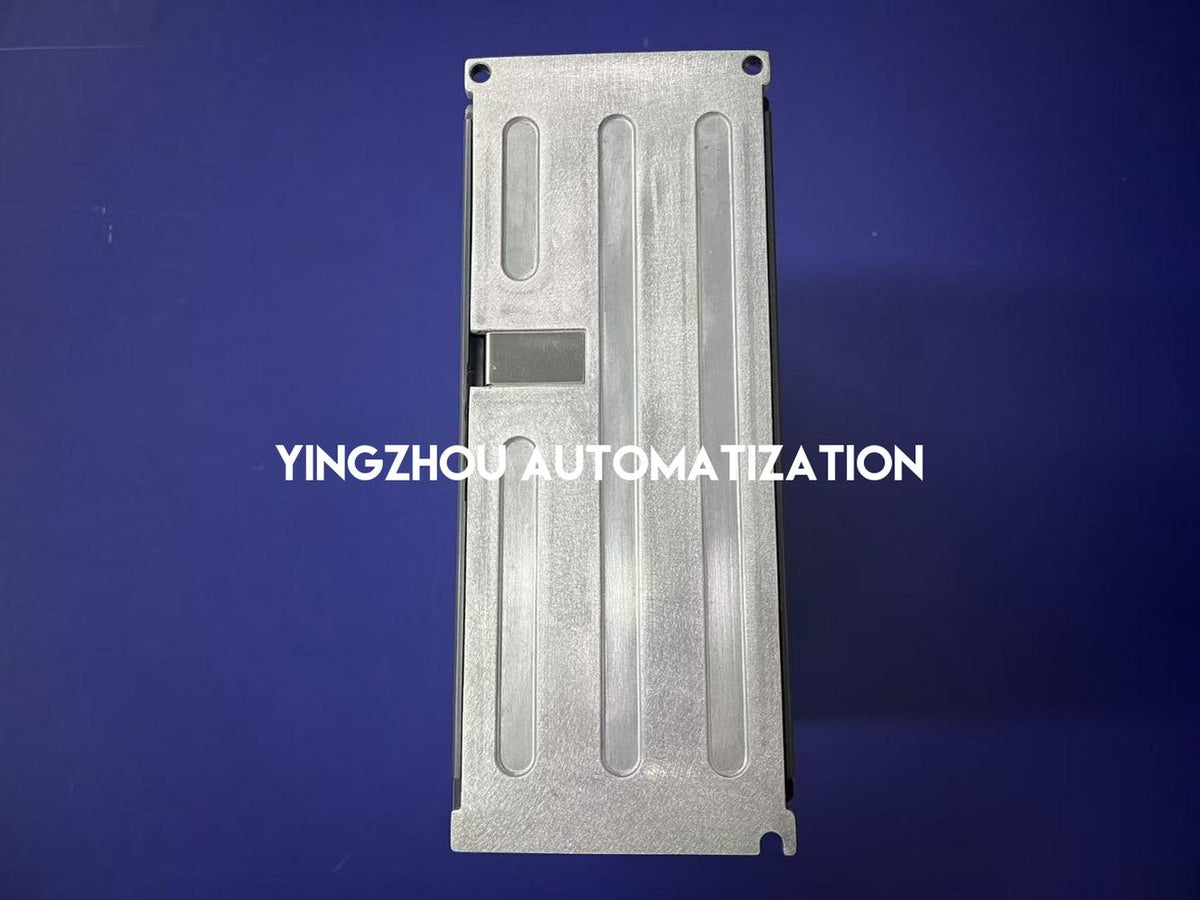

✓ Actual product photos

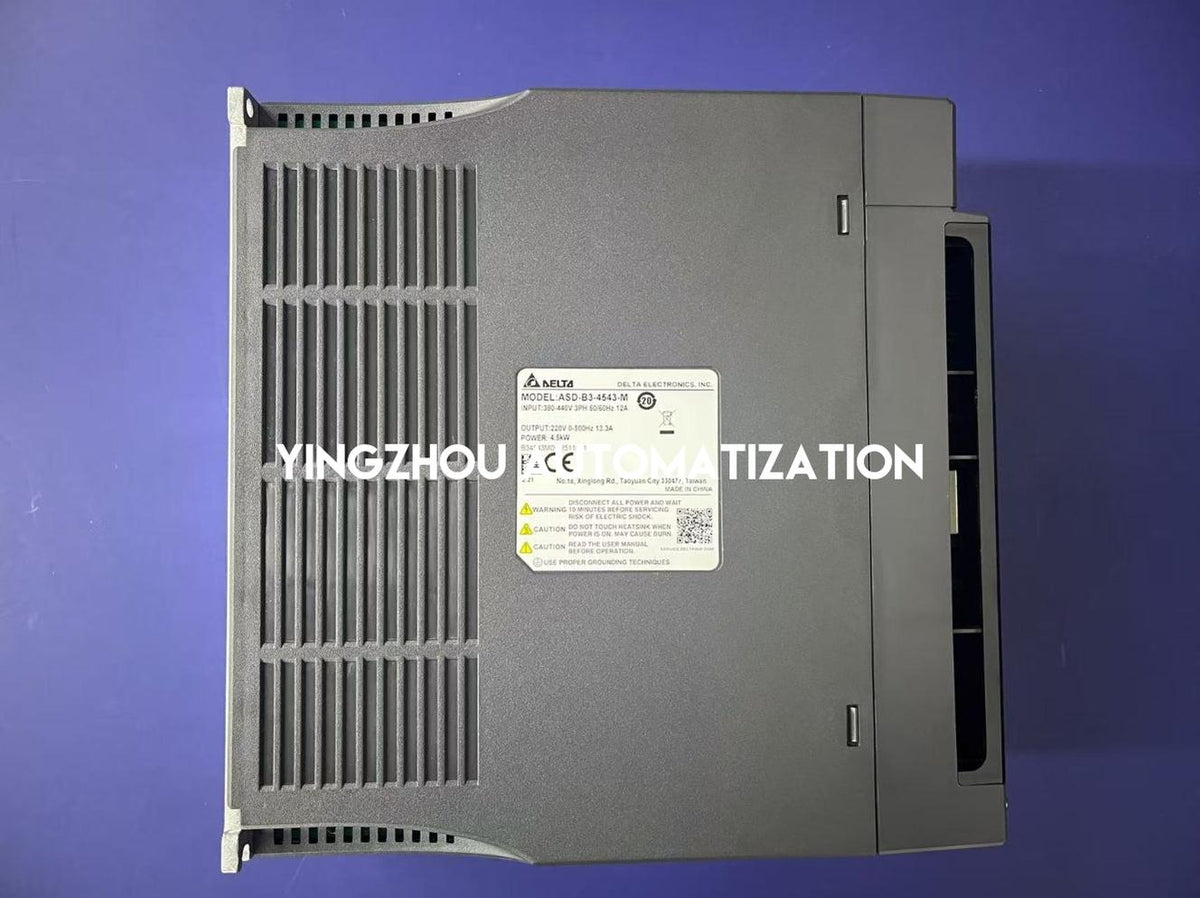

✓ Model/nameplate visible

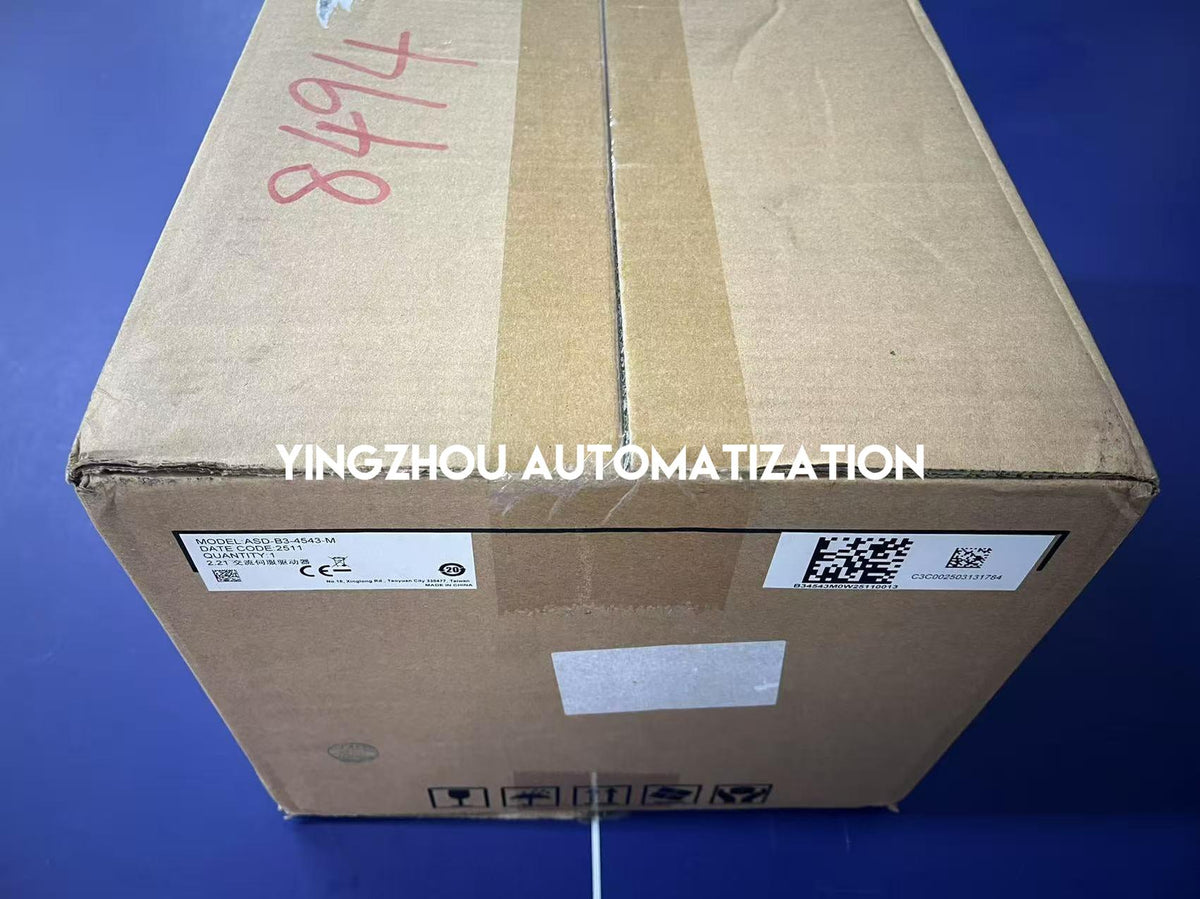

✓ Packaging shown

✓ Device and carton labels match exact model ASD-B3-4543-M

✓ Actual nameplate confirms 4.5 kW, three-phase 380-440 VAC, 12 A input and 13.3 A output

✓ Verify exact model before ordering

In Stock & Ready to Order

Delta ASD-B3-4543-M is currently in stock. Actual product photos, the visible model nameplate and the matching carton model label are available for verification. Contact us for project pricing, quantity requirements and shipping arrangements.
