| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
131L9798 |
| Exact Type Code |
FC-101P5K5T2E20H4XXCXXXSXXXXAXBXCXXXXDX |
| Series |
VLT® HVAC Basic Drive FC 101 |
| Product Type |
Variable Frequency Drive (VFD) |
| Rated Motor Power |
5.5 kW |
| Horsepower |
7.5 HP |
| Input Phase |
3-Phase AC (Three-Phase Input) |
| Input Voltage |
3 × 200–240 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
21.0 / 18.0 A (unit nameplate rating) |
| Output Phase |
3-Phase AC (Three-Phase Output) |
| Output Voltage |
3 × 0–Vin (0 to input voltage) |
| Output Frequency |
0–400 Hz |
| Output Current |
22.0 A continuous @ 40°C ambient |
| Output Current @ 50°C |
19.8 A continuous (unit nameplate rating) |
| Enclosure Protection |
IP20 (Chassis) |
| Frame Size |
H4 |
| Ambient Temperature Rating |
40°C / 50°C (separate continuous output current ratings) |
| Efficiency Classification Shown |
IE2 (unit nameplate marking) |
| Efficiency Loss Indication |
3.2% (unit nameplate marking) |
| Country of Manufacture Shown |
China |
Product Overview
The Danfoss 131L9798 is a VLT® HVAC Basic Drive FC 101
variable frequency drive identified by the exact configuration code
FC-101P5K5T2E20H4XXCXXXSXXXXAXBXCXXXXDX. This unit is rated for
5.5 kW / 7.5 HP and features a 3-phase 200–240 VAC
input with 3-phase variable-voltage output from 0–400 Hz. It has an
IP20 / H4 chassis and provides 22.0 A continuous output
current at 40°C or 19.8 A at 50°C ambient temperature.
The FC 101 family is designed for HVAC fan, pump and compressor motor control.
Key Product Features
-
5.5 kW / 7.5 HP HVAC Basic Drive FC 101
-
3 × 200–240 VAC three-phase input; 3 × 0–Vin three-phase output
-
IP20 chassis with H4 frame size
-
22.0 A at 40°C continuous output current
-
19.8 A at 50°C continuous output current
-
0–400 Hz output frequency range
-
VLT® HVAC Basic Drive FC 101 for HVAC motor-speed control
Actual Product Verification
✓

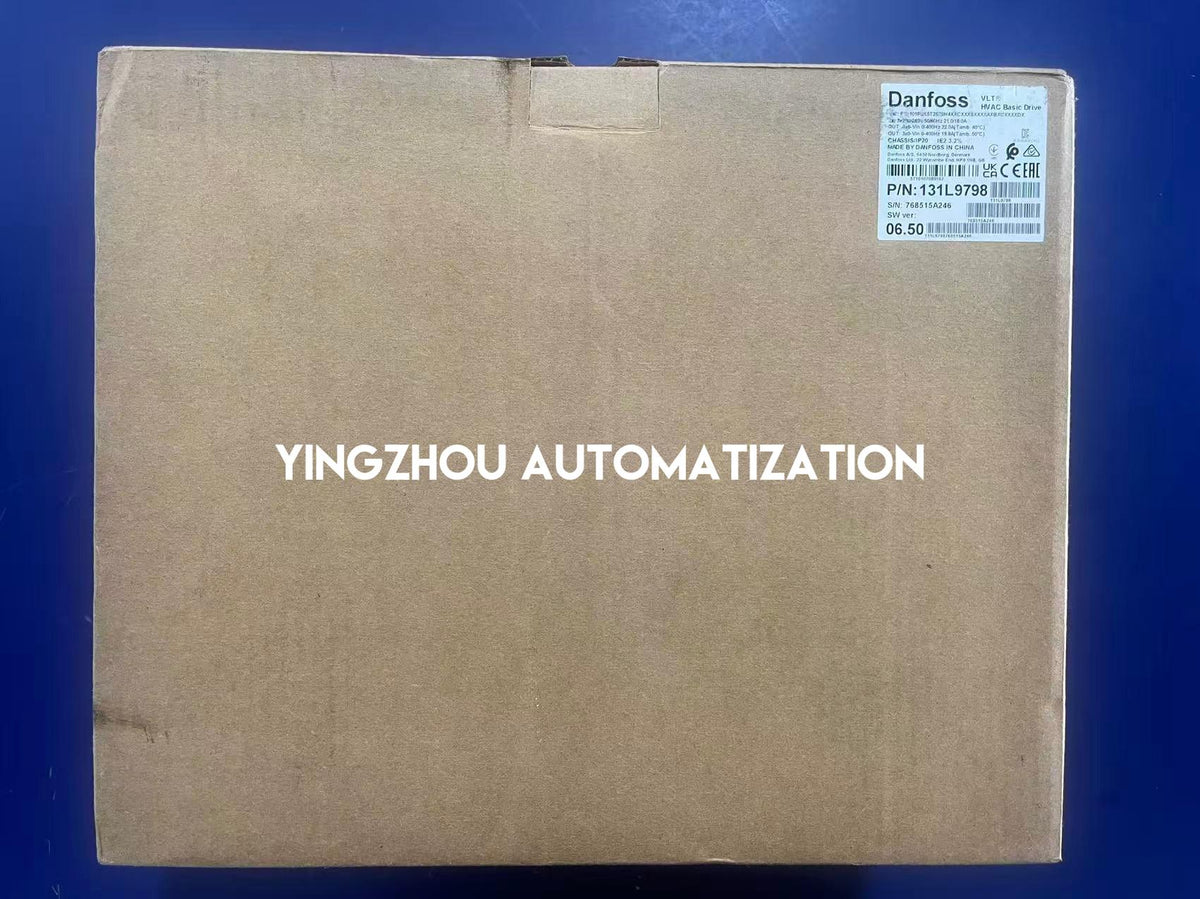

Actual unit nameplate and packaging photographs provided
✓
Unit nameplate and packaging label both show part number 131L9798
✓

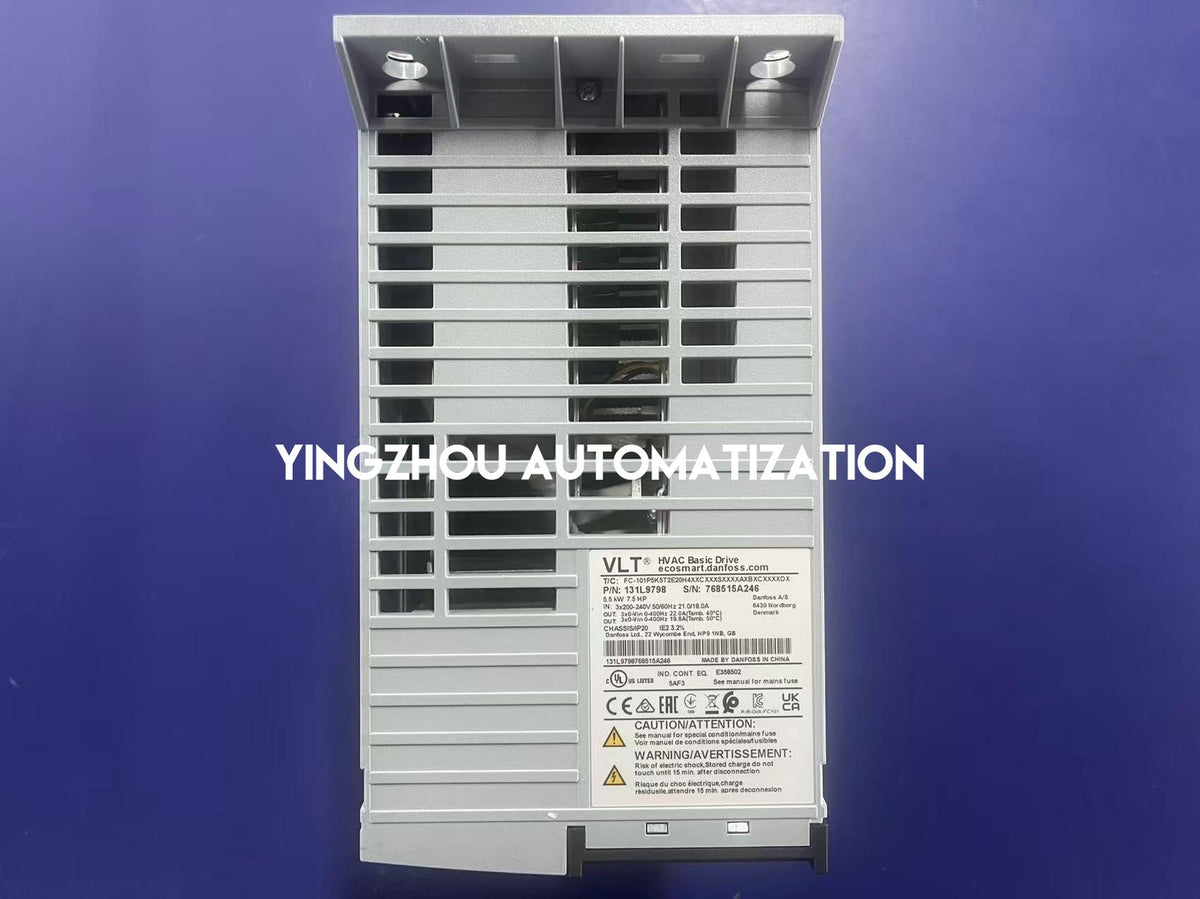

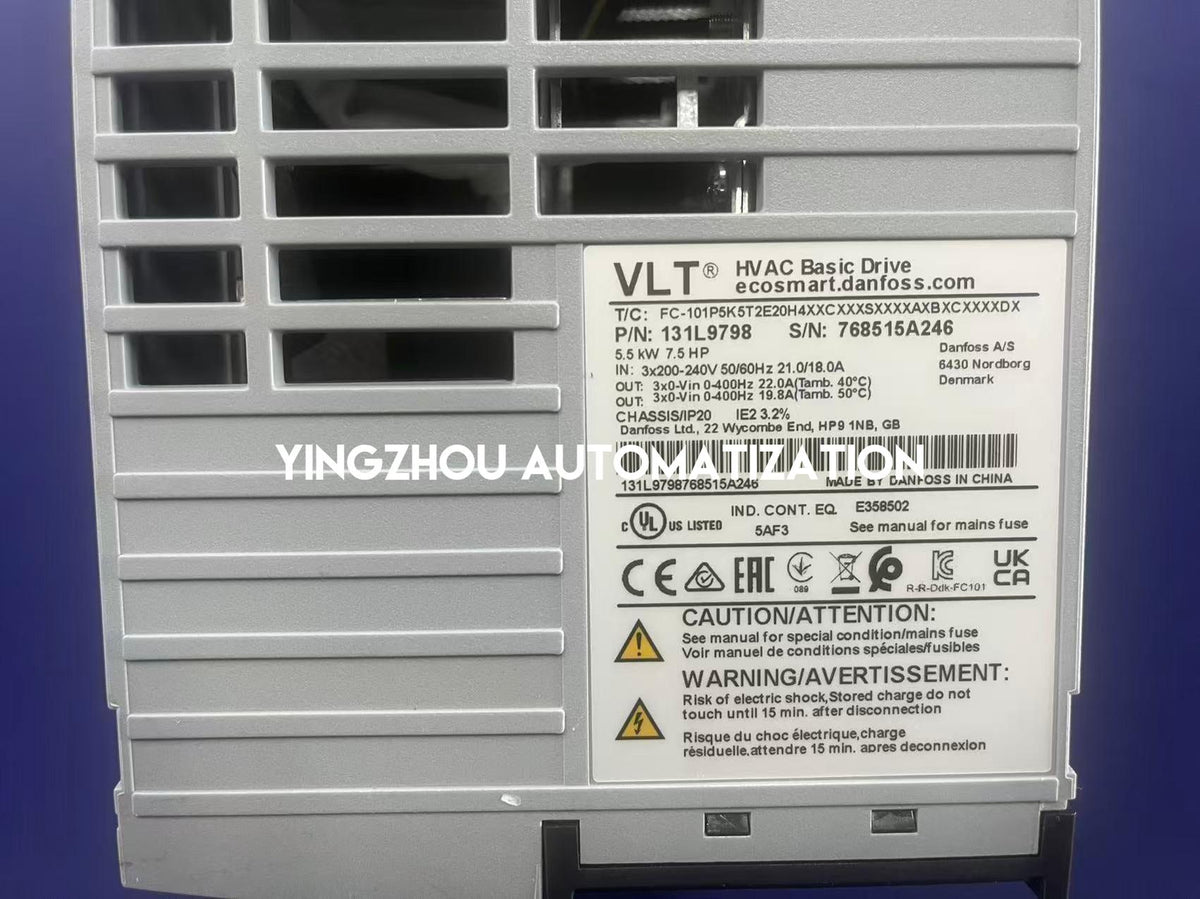

Full type code and electrical ratings visible on the actual unit nameplate
✓
Verify exact part number 131L9798 before ordering
Available to Order — Estimated Delivery 3–4 Weeks
Danfoss 131L9798 is available to order with an
estimated delivery time of 3–4 weeks.
Please confirm the final delivery schedule at order placement.
3–4 WEEKS
Danfoss 131L9798
Order online or contact us for project and quantity pricing. Estimated delivery: 3–4 weeks.
Request Project Pricing
