Danfoss 131N7383 VLT® AutomationDrive FC 302 0.75 kW PROFINET VFD
3-Phase 380–500 VAC | 0.75 kW / 1 HP | IP20 / Chassis | PROFINET MCA 120
| Specification |
Product Data |
| Brand |
Danfoss |
| Part Number |
131N7383 |
| Exact Type Code |
FC-302PK75T5E20H1XGXXXXSXXXXALBXCXXXXDX |
| Product Series |
VLT® AutomationDrive FC 302 |
| Product Type |
Variable Frequency Drive (VFD) |
| Motor Rating — HO |
0.75 kW / 1 HP |
| Motor Rating — NO |
0.75 kW / 1 HP |
| Input Supply |
3-phase, 380–500 VAC |
| Input Frequency |
50/60 Hz |
| Input Current — HO |
2.2 A (≤440 V) / 1.9 A (>440 V), per nameplate notation |
| Input Current — NO |
2.2 A (≤440 V) / 1.9 A (>440 V), per nameplate notation |
| Output Voltage |
3 × 0–Vin |
| Output Frequency |
0–590 Hz |
| Output Current — HO |
2.4 A (≤440 V) / 2.1 A (>440 V), per nameplate notation |
| Output Current — NO |
2.4 A (≤440 V) / 2.1 A (>440 V), per nameplate notation |
| Enclosure |
Open Type / IP20 / Chassis |
| Frame Size |
A2 |
| RFI Filter |
H1 — Class A1/B (C1), according to Danfoss type-code guide |
| Local Control Panel |
G — Graphical Local Control Panel (LCP 102), according to Danfoss type-code guide |
| Fieldbus Option |
AL — VLT® PROFINET MCA 120, according to Danfoss type-code guide |
| Ambient Temperature on Label |
50°C / 122°F |
| Software Version on Label |
09.72 |
| Country of Manufacture on Label |
China |
Product Overview
The Danfoss 131N7383 is a VLT® AutomationDrive FC 302 variable frequency drive with the exact type code FC-302PK75T5E20H1XGXXXXSXXXXALBXCXXXXDX. The supplied nameplate identifies a 3-phase 380–500 VAC, 50/60 Hz input and a 0.75 kW / 1 HP motor rating for both high-overload (HO) and normal-overload (NO) duty. The label states an output frequency range of 0–590 Hz, an Open Type / IP20 enclosure, and an A2 frame. Danfoss' official type-code guide maps the AL option to the VLT® PROFINET MCA 120 fieldbus option and the G code to a graphical LCP 102. Confirm drive selection against the motor nameplate, network requirements and installation conditions before ordering.
Key Product Features
-
VLT® AutomationDrive FC 302 — Danfoss variable frequency drive platform.
-
0.75 kW / 1 HP Rating — High-overload and normal-overload ratings are both shown on the product label.
-
3-Phase 380–500 VAC Supply — T5 voltage code confirmed by the Danfoss type-code guide.
-
PROFINET MCA 120 Fieldbus Option — AL option identified by the official Danfoss type-code guide.
-

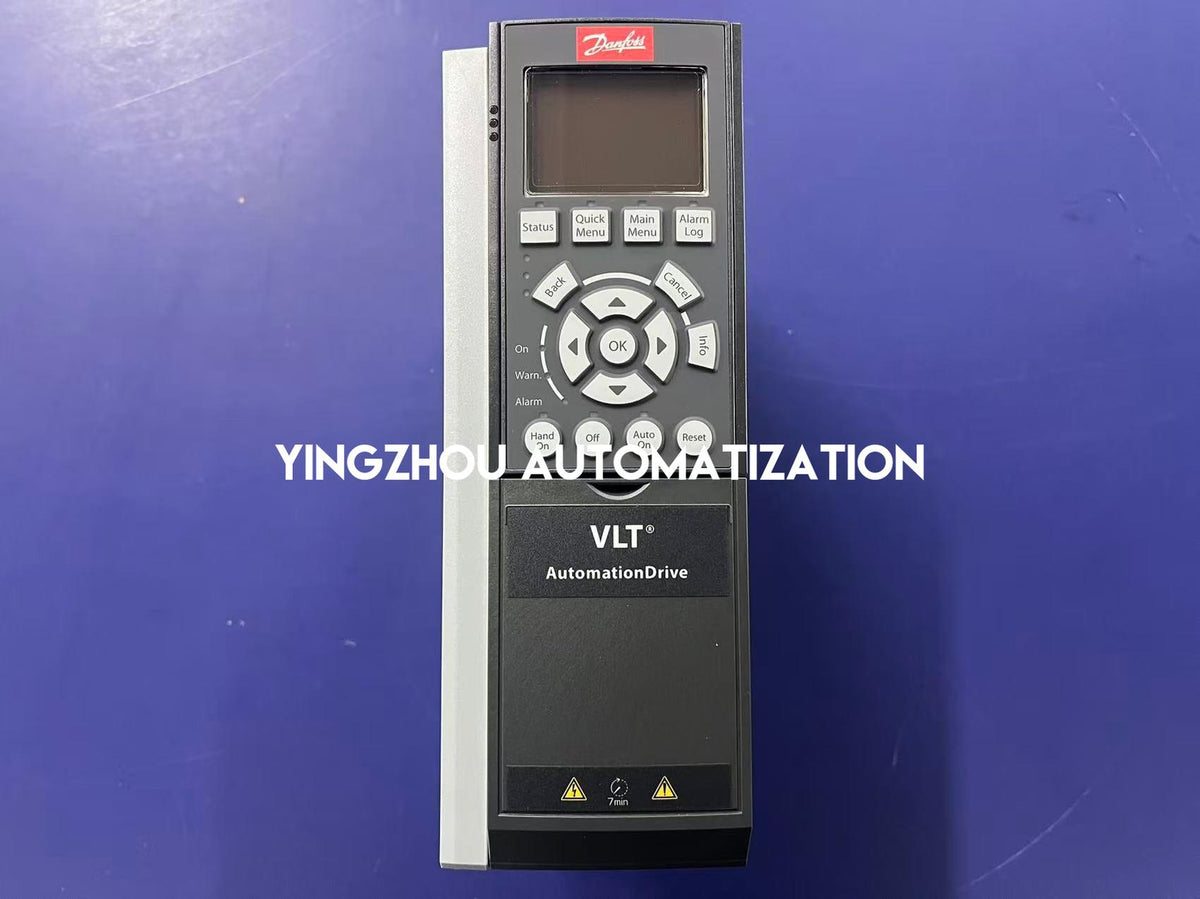

Graphical LCP 102 — G option identified by the official Danfoss type-code guide.
-
0–590 Hz Output Frequency — Range printed on the supplied product label.
-
Open Type / IP20, A2 Frame — Enclosure and frame markings visible on the product label.
Actual Product Verification

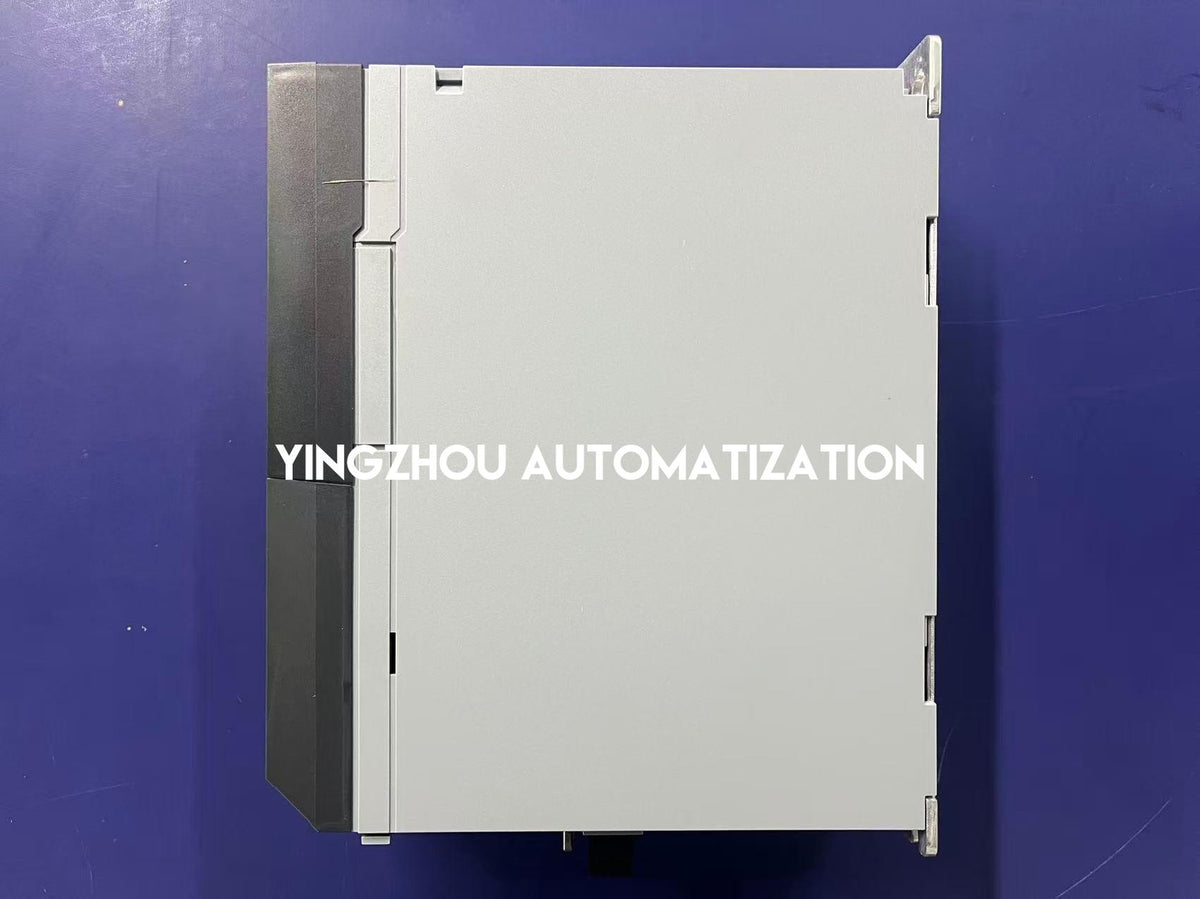

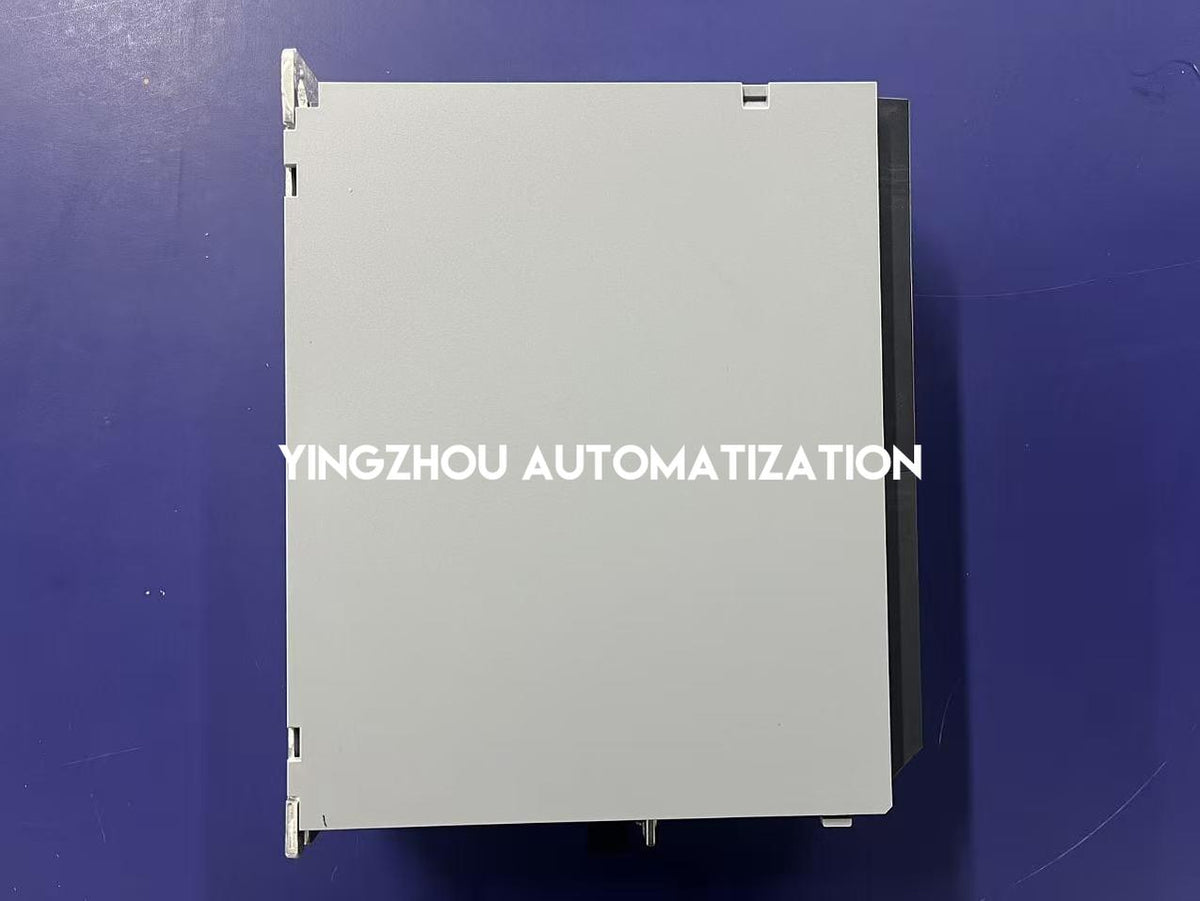

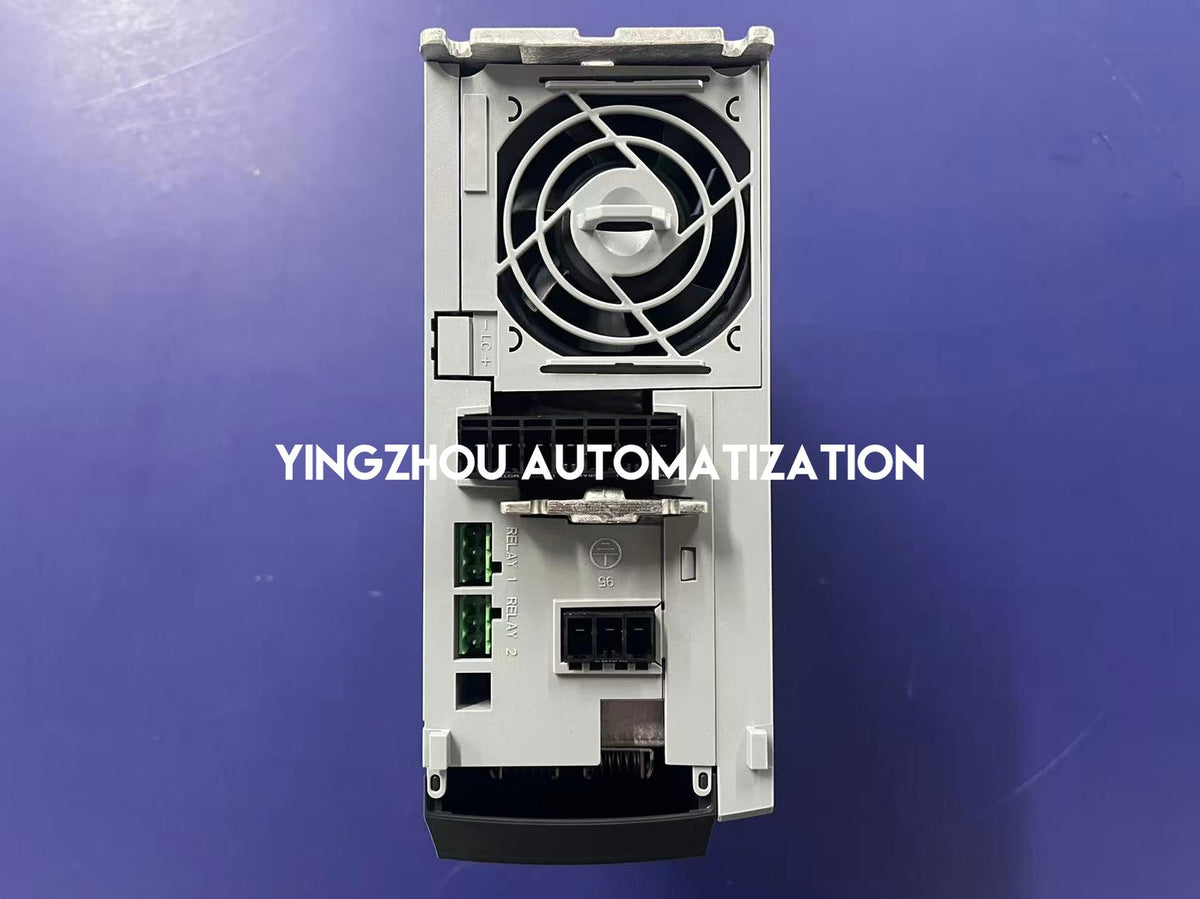

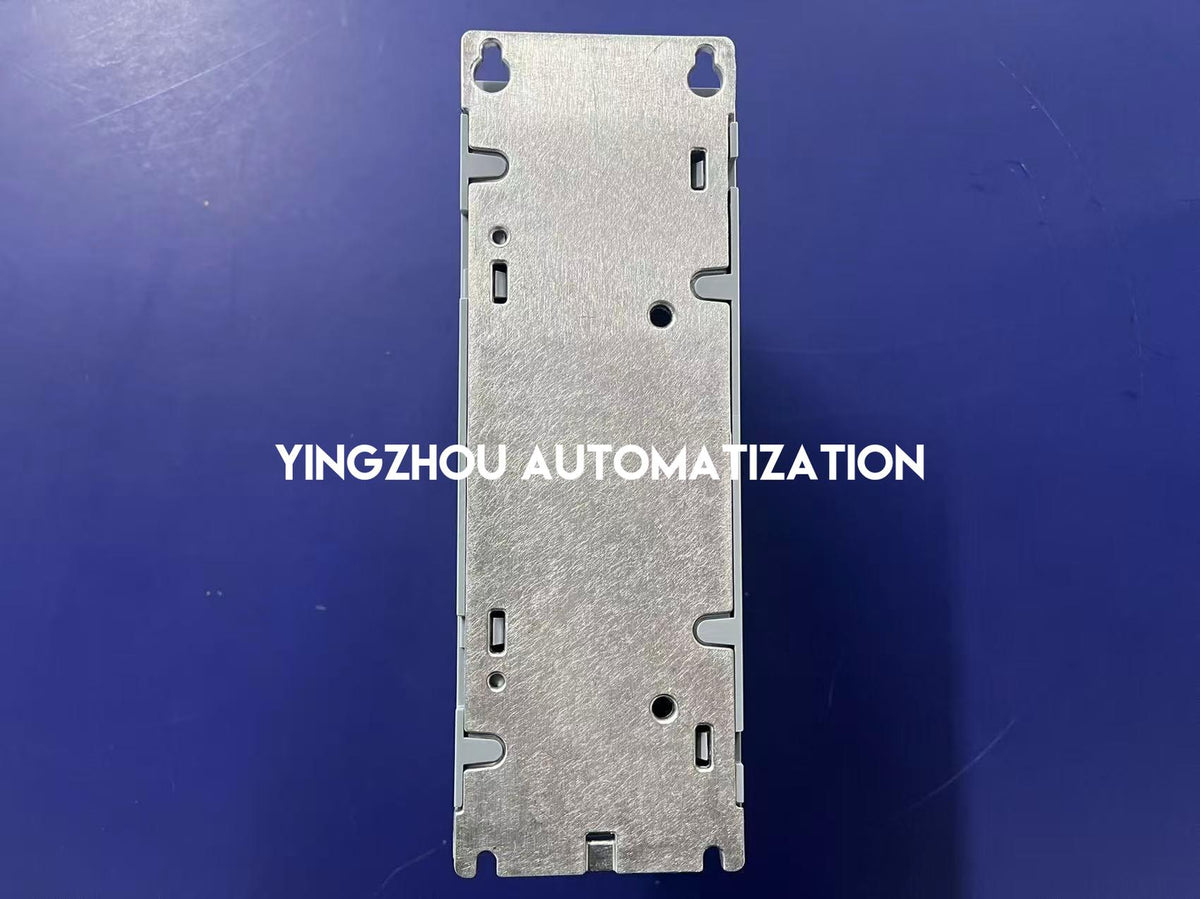

✓ Actual product photos supplied

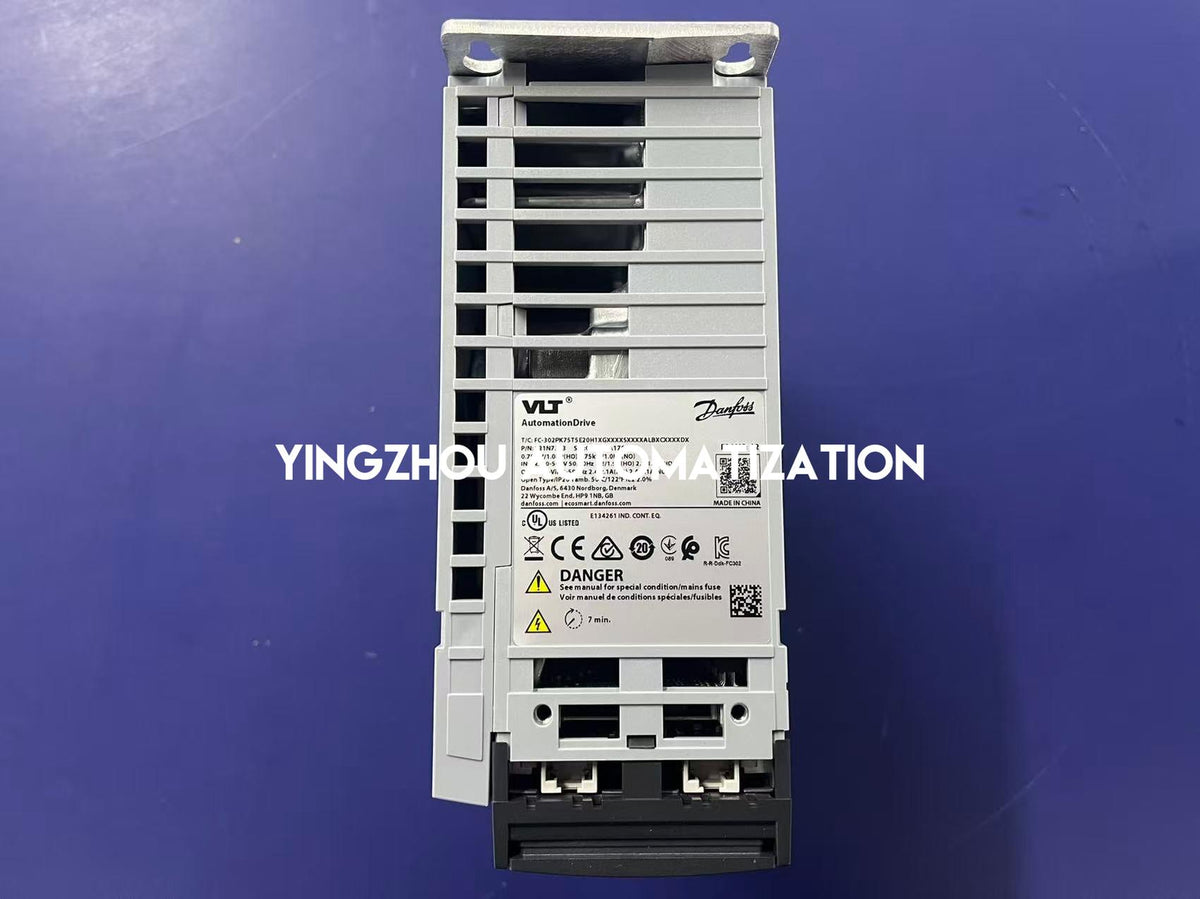

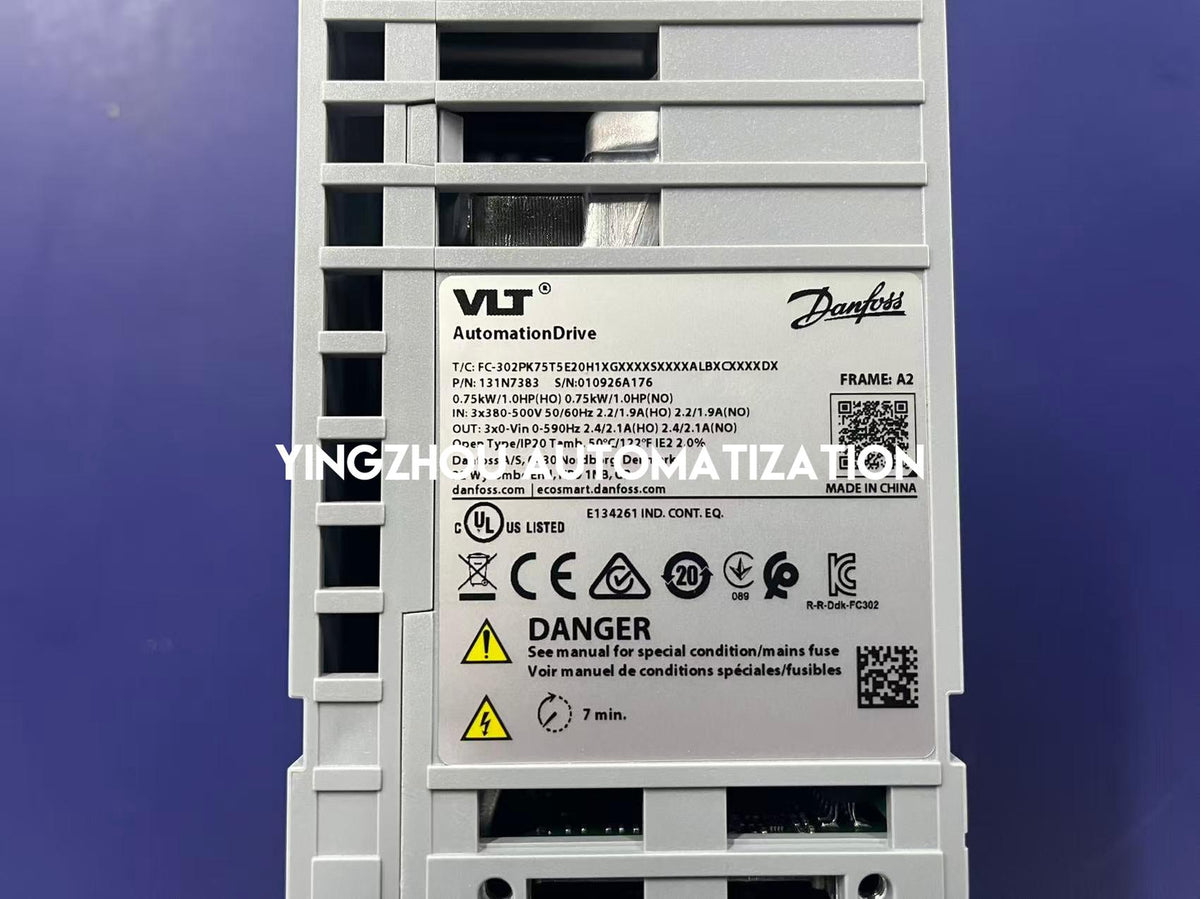

✓ Product nameplate visible in the supplied drive photo

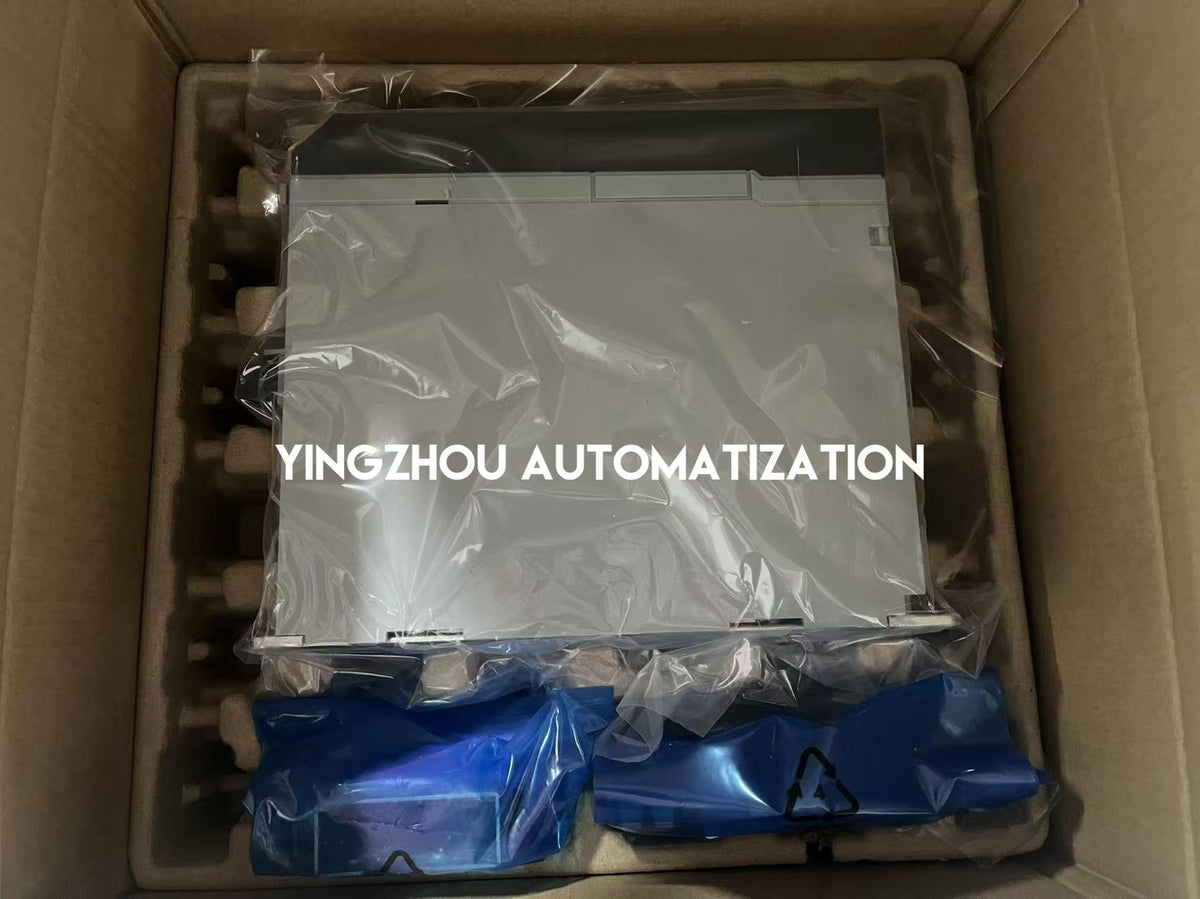

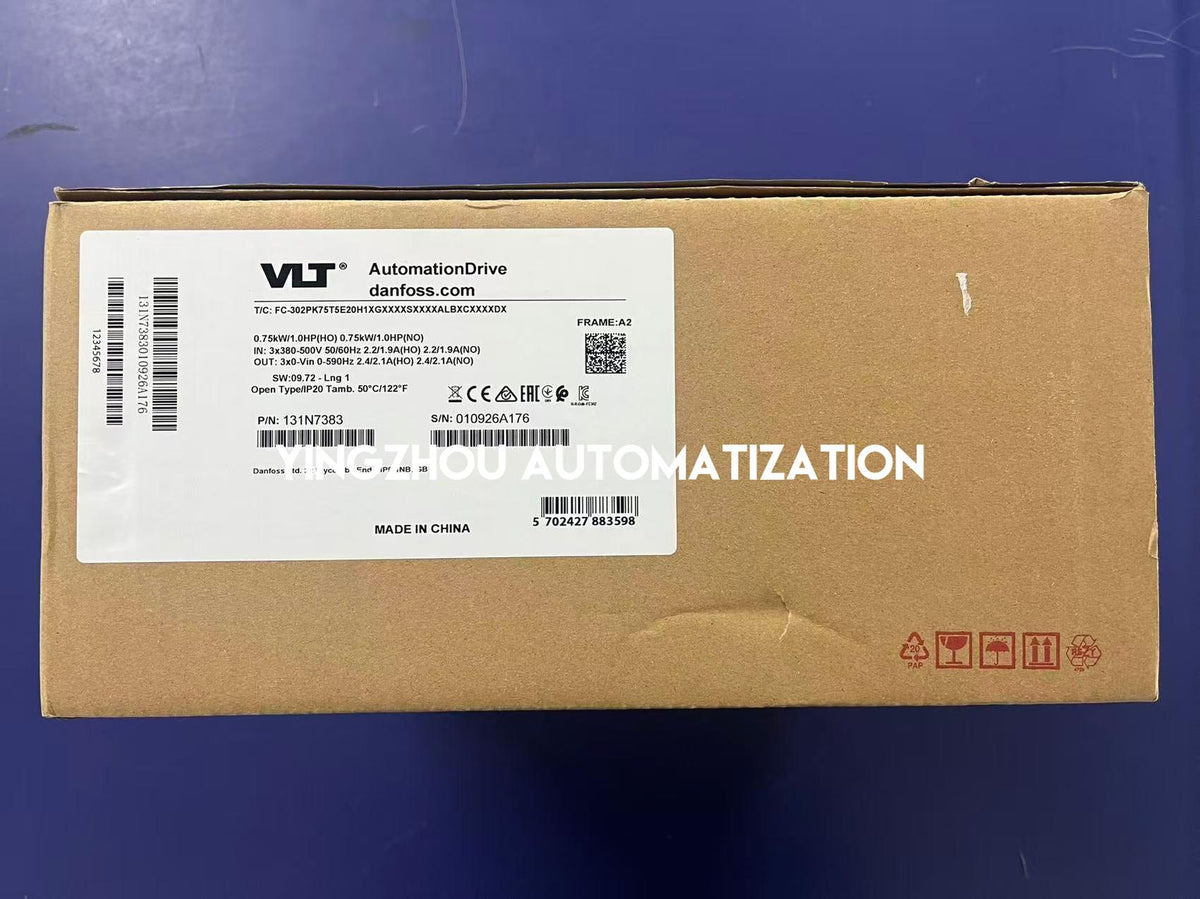

✓ Packaging label shown in the supplied box photo
✓ Verify exact model 131N7383 and configuration before ordering
Available to Order — Estimated Delivery 3–4 Weeks
Danfoss 131N7383 is available to order with an estimated delivery time of 3–4 weeks, based on the supplied commercial information. Please reconfirm the final delivery schedule when placing the order.
ESTIMATED DELIVERY 3–4 WEEKS
Danfoss 131N7383 VLT® AutomationDrive FC 302
Contact us for quantity and project pricing. Confirm the required motor rating and PROFINET configuration before ordering.
