YingZhou Industrial Automation | Product Information

Aventics R412007211 AS3-FRE Filter Pressure Regulator

G1/2 | 5 µm | 5100 L/min | 1.5-16 Bar | 0.5-8 Bar Regulation
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Part Number Verified
Specification Verified Product Data
Manufacturer AVENTICS / Emerson
Part Number R412007211
Product Series AS3-FRE
Product Type Filter Pressure Regulator
Full Type Code AS3-FRE-G012-GAU-080-PBP-AC-05.00
Pneumatic Connection G 1/2
Nominal Flow Qn 5100 L/min
Filter Porosity 5 µm
Working Pressure 1.5-16 bar
Pressure Regulation Range 0.5-8 bar
Pressure Gauge Included
Condensate Drain Fully Automatic, Closed Without Pressure
Reservoir Polycarbonate with PA Protective Guard
Regulator Type Diaphragm-Type Pressure Regulator
Regulator Function With Relieving Air Exhaust
Filter Element Replaceable
Filter Reservoir Volume 49 cm³
Ambient Temperature -10°C to +50°C
Operating Medium Compressed Air / Neutral Gases
Pressure Supply Single
Mounting Orientation Vertical
Lock Type For Padlocks
Modular Assembly Can Be Assembled into Blocks
Product Weight 0.707 kg
Availability IN STOCK

Product Overview

The AVENTICS R412007211 is an industrial pneumatic filter pressure regulator from the AS3-FRE series, designed for compressed air preparation and pressure regulation. Its full manufacturer configuration is AS3-FRE-G012-GAU-080-PBP-AC-05.00. This combined filter and pressure regulator features a G1/2 pneumatic connection, 5 µm filtration and a 5100 L/min nominal flow rating. It operates within a 1.5-16 bar working pressure range and provides adjustable secondary pressure from 0.5 to 8 bar. The diaphragm-type regulator includes a relieving air exhaust function, a pressure gauge and a fully automatic condensate drain that is closed without pressure. The polycarbonate filter reservoir is equipped with a protective guard, and the replaceable filter element supports maintenance requirements. The modular AS3 design allows integration with compatible air preparation components. Actual photographs show the equipment and packaging marked R412007211, confirming the exact part number.

Key Product Features

  • AVENTICS AS3-FRE Series — Combined pneumatic air filtration and pressure regulation.
  • Exact Part Number R412007211 — Manufacturer configuration AS3-FRE-G012-GAU-080-PBP-AC-05.00.
  • G1/2 Pneumatic Connection — Threaded connection for compatible compressed air installations.
  • 5 µm Filter Element — Replaceable filter element for compressed air filtration.
  • 5100 L/min Nominal Flow — Manufacturer-specified nominal airflow capacity.
  • 1.5-16 Bar Working Pressure — Suitable for pneumatic systems within the specified supply pressure range.
  • 0.5-8 Bar Pressure Regulation — Adjustable pressure setting with a diaphragm-type regulator.
  • Automatic Condensate Drain — Fully automatic drain, closed without pressure.
  • Pressure Gauge Included — Enables visual monitoring of regulated pressure.
  • Protected Polycarbonate Reservoir — Filter bowl with a protective guard.
  • Modular AS3 Construction — Compatible with suitable modular air preparation assemblies.
  • Actual Product Photography — Equipment and packaging part numbers match R412007211.

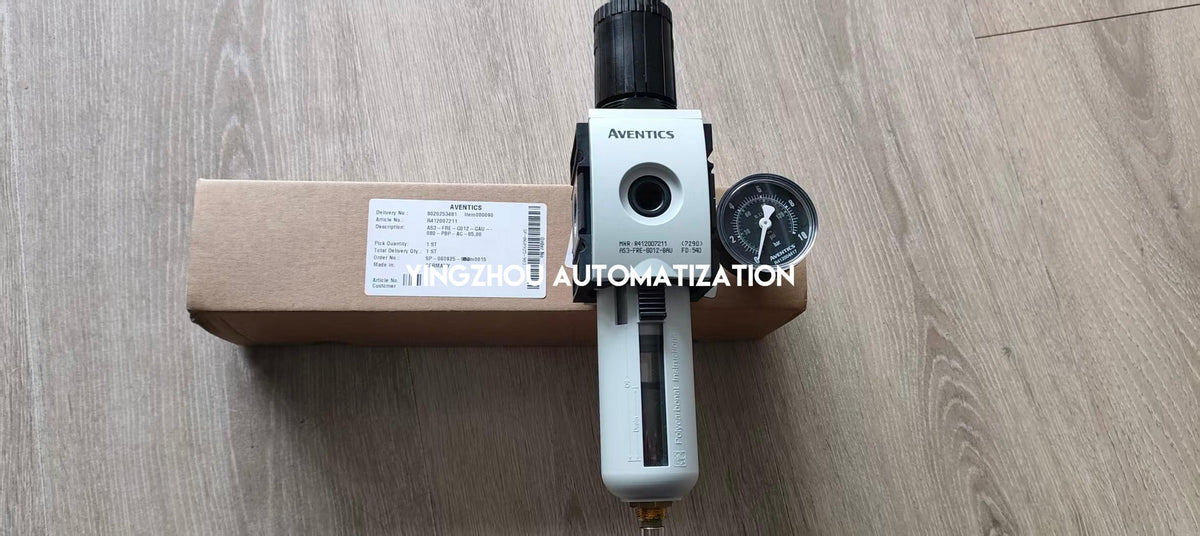

Actual Product Verification

✓ Actual equipment and carton photographs supplied
✓ Manufacturer marking: AVENTICS
✓ Equipment nameplate part number: R412007211
✓ Packaging part number: R412007211
✓ Manufacturer type code: AS3-FRE-G012-GAU-080-PBP-AC-05.00
✓ Product series: AS3-FRE
✓ Visible pressure gauge, regulator knob and filter reservoir
✓ Carton label indicates Qty: 1 and Made in Germany
✓ Equipment and packaging exact part numbers match
✓ Functional condition, drain and pressure regulation to be confirmed before dispatch

In Stock & Available to Order

Aventics R412007211 AS3-FRE Filter Pressure Regulator is marked IN STOCK based on the supplied inventory information. The actual equipment and packaging photographs identify the same manufacturer part number. This pneumatic air preparation component combines 5 µm filtration with adjustable pressure regulation from 0.5 to 8 bar, a G1/2 connection and a pressure gauge. Please verify the exact pressure range, connection requirements, condensate drain configuration, available quantity and shipping arrangements before ordering. YINGZHOU supports industrial replacement orders and multi-brand component procurement.
