Aventics R412007209 AS3-FRE G1/2 Filter Pressure Regulator 5μm 0.5–8 Bar

Aventics R412007209 AS3-FRE G1/2 Filter Pressure Regulator 5μm 0.5–8 Bar

$85.99 USD
$85.99 USD
Obral Habis
Model Number
YingZhou Industrial Automation | Product Information

Aventics R412007209 AS3-FRE Filter Pressure Regulator

G1/2 Port | 5μm Filtration | 5100 L/min | 0.5–8 Bar Pressure Adjustment
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified
Specification Verified Product Data
Manufacturer AVENTICS / Emerson
Material Number R412007209
Type Code AS3-FRE-G012-GAU-080-PBP-HO-05.00
Product Type Pneumatic Filter Pressure Regulator
Product Series AS3-FRE
Connection Port G 1/2
Filter Porosity 5 μm
Nominal Flow Qn 5100 L/min
Working Pressure 1.5–16 bar
Pressure Adjustment Range 0.5–8 bar
Ambient Temperature −10 to +50°C
Operating Medium Compressed Air, Neutral Gases
Regulator Type Diaphragm-Type Pressure Regulator
Regulator Function With Relieving Air Exhaust
Condensate Drain Semi-Automatic, Open Without Pressure
Filter Reservoir Polycarbonate, 49 cm³
Protective Guard Polyamide
Filter Element Exchangeable
Pressure Gauge Included, Supplied Separately
Mounting Orientation Vertical
Approximate Weight 0.658 kg
Availability IN STOCK

Product Overview

The AVENTICS R412007209 is an AS3-FRE series pneumatic filter pressure regulator designed for compressed air preparation and regulated air supply in industrial pneumatic systems. This filter regulator combines a 5 μm replaceable filter element with a diaphragm-type pressure regulator, allowing compressed air filtration and downstream pressure adjustment within one compact assembly. The product features G 1/2 threaded ports, a manufacturer-rated nominal flow of 5100 L/min, a working pressure range of 1.5–16 bar, and an adjustable pressure range of 0.5–8 bar. The unit uses a polycarbonate filter reservoir with a polyamide protective guard, a semi-automatic condensate drain, and a separately supplied pressure gauge. Actual product photographs show the AVENTICS-branded unit, the material marking R412007209, and the associated original packaging. The product is offered as an individual pneumatic filter pressure regulator assembly.

Key Product Features

  • Exact AVENTICS Material Number — R412007209, AS3-FRE series filter pressure regulator.
  • Integrated Air Preparation — Combines compressed air filtration and downstream pressure regulation.
  • G 1/2 Pneumatic Ports — Threaded air connections for compatible pneumatic installations.
  • 5 μm Filtration — Exchangeable filter element for particulate removal.
  • 5100 L/min Nominal Flow — Manufacturer-rated nominal flow under specified test conditions.
  • 0.5–8 Bar Adjustment — Adjustable secondary pressure for pneumatic air supply control.
  • 1.5–16 Bar Working Pressure — Manufacturer-specified operating range.
  • Semi-Automatic Drain — Condensate drainage system with polycarbonate reservoir.
  • Pressure Gauge Included — Separately supplied gauge for local pressure indication.
  • Actual Product Photography — Unit and package markings photographed for model confirmation.

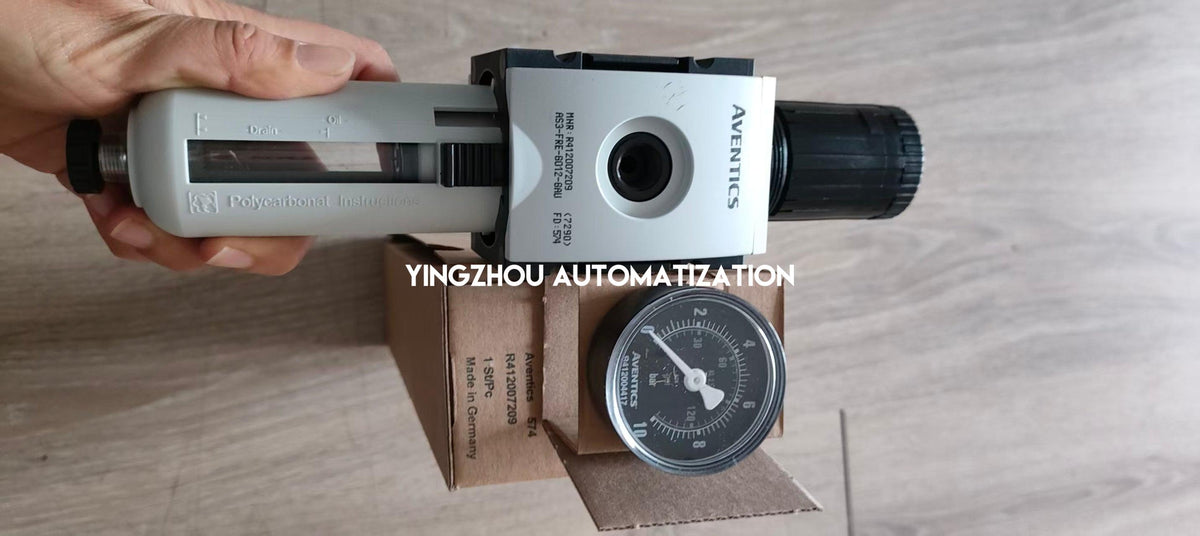

Actual Product Verification

✓ Actual AVENTICS filter regulator photographed
✓ Unit manufacturer marking: AVENTICS
✓ Unit material number: R412007209
✓ Manufacturer series: AS3-FRE
✓ Original package material number: R412007209
✓ Polycarbonate filter reservoir visible in the product photographs
✓ Pressure gauge visible in the actual product photographs
✓ Manufacturer data confirms G 1/2 ports, 5 μm filtration and 0.5–8 bar adjustment
✓ Exact material number matches the submitted inventory information
✓ Check all accessories and inspect the complete unit before dispatch

In Stock & Available to Order

The AVENTICS R412007209 AS3-FRE Filter Pressure Regulator is marked IN STOCK based on the supplied inventory information. Actual product photographs are available for model and packaging identification. Featuring G 1/2 connections, 5 μm filtration, a 5100 L/min nominal flow and 0.5–8 bar pressure adjustment, this unit supports compressed air preparation and pneumatic maintenance applications. Contact YINGZHOU to confirm order quantity, configuration, included accessories and international shipping arrangements before purchase.

IN STOCK

Aventics R412007209 AS3-FRE Filter Pressure Regulator

Contact us for exact-part verification, bulk orders and industrial pneumatic component sourcing. Confirm your required port size, pressure range and installation requirements before ordering.

Request Bulk Pricing
