Aventics 5811170650 Series 581 5/2 Solenoid Valve 24V DC ISO 1 1400 L/min

Aventics 5811170650 Series 581 5/2 Solenoid Valve 24V DC ISO 1 1400 L/min

$111.99 USD
$111.99 USD
Obral Habis
Model Number
YingZhou Industrial Automation | Product Information

Aventics 5811170650 Series 581 5/2 Pneumatic Solenoid Valve

24V DC | ISO 1 | 1400 L/min | 3–10 Bar | Spring Return
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model Verified
Specification Verified Product Data
Brand Aventics
Manufacturer Emerson
Part Number 5811170650
Product Series Series 581
Product Type Pneumatic Directional Control Valve
Valve Configuration 5/2-Way
Switching Principle Single Solenoid, Spring Return
Actuation Electrical
Operating Voltage 24V DC
Voltage Tolerance -10% / +10%
Nominal Power Consumption 2W (Manufacturer Catalog)
Nominal Flow Qn 1400 L/min
Working Pressure 3 to 10 bar
Control Pressure 3 to 10 bar
Pilot Operation Internal Pilot
Standard ISO 5599-1
Frame Size ISO 1
Valve Type Spool Valve
Sealing Principle Soft Seal
Connection Type ISO Base Plate Connection
Electrical Connector EN 175301-803, Form A
Pilot Exhaust M5
Flow Conductance C 5.2 L/(s·bar)
Ambient Temperature -15°C to +50°C
Medium Temperature -15°C to +50°C
Operating Medium Compressed Air
Protection Rating IP65 with Appropriate Connection
Duty Cycle 100%
Weight 0.35 kg
Housing Material Aluminum
Seal Material NBR
Country of Origin Hungary (Actual Product Label)
Availability IN STOCK

Product Overview

The Aventics 5811170650 is a Series 581 ISO Size 1 pneumatic directional control valve manufactured under Emerson's Aventics product range. This 5/2-way electrically actuated spool valve uses a 24V DC single solenoid with internal pilot operation and spring return. Designed for industrial compressed-air control systems, it offers a nominal flow capacity of 1400 L/min and a working pressure range of 3 to 10 bar. The valve features an ISO 5599-1 standardized base-plate interface, an EN 175301-803 Form A electrical connection and soft-seal construction. It is designed for compatible pneumatic valve installations where controlled switching between two operating positions is required. The actual product photo shows the valve assembly with a matching Aventics identification label for part number 5811170650.

Key Product Features

  • AVENTICS Series 581 — Industrial pneumatic directional control valve.
  • Exact Model 5811170650 — Manufacturer part number identified on actual product labeling.
  • 5/2-Way Directional Control — Five-port, two-position pneumatic switching.
  • 24V DC Single Solenoid — Electrical actuation with spring-return operation.
  • 1400 L/min Nominal Flow — Manufacturer-specified airflow capacity.
  • 3–10 Bar Working Pressure — Specified compressed-air operating pressure range.
  • ISO 5599-1 Size 1 — Standardized valve mounting interface.
  • Internal Pilot Operation — Pilot-actuated pneumatic switching design.
  • EN 175301-803 Form A Connector — Defined electrical connection format.
  • Soft-Seal Spool Design — Manufacturer-specified sealing and valve construction.
  • Actual Product Photography — Valve assembly and matching model label shown.
  • In Stock — Available for industrial pneumatic maintenance and sourcing.

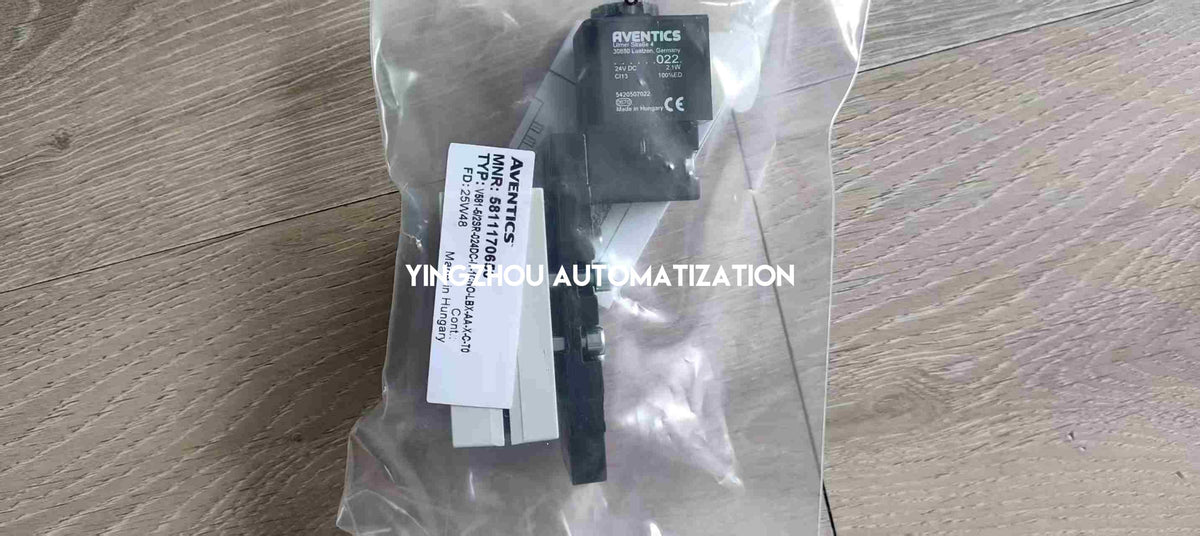

Actual Product Verification

✓ Actual physical valve assembly photographed
✓ Brand marking: AVENTICS
✓ Part number: 5811170650
✓ Product type code: V581-5/2SR-024DC-I1-1CNO-LBX-AA-X-C-T0
✓ Coil voltage label: 24V DC
✓ Country of origin: Made in Hungary
✓ Matching identification label supplied with actual product photo
✓ Manufacturer specifications independently referenced
✓ Functional operation and leakage testing have not been independently verified
✓ Nominal power is listed as 2W in the manufacturer catalog; the photographed coil marking requires separate confirmation

In Stock & Available to Order

The Aventics 5811170650 Series 581 5/2 Pneumatic Directional Valve is listed as IN STOCK according to the supplied inventory information. Actual photos of the valve and its identification label are available for pre-order review. For replacement applications, please confirm the exact 5811170650 part number, 24V DC operating voltage, ISO Size 1 mounting interface, electrical connection and required pressure range before purchasing. Our team can assist with model confirmation, multiple-unit inquiries and international shipping arrangements.

IN STOCK

Aventics 5811170650 Series 581 Solenoid Valve

Need this 24V DC ISO 1 pneumatic directional valve? Contact us for exact-model confirmation, multiple-unit pricing and industrial automation sourcing support.
