Allen-Bradley 20BD5P0A3AYNACC1 PowerFlex 700 AC Drive
| Specification | Verified Product Data |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 20BD5P0A3AYNACC1 |
| Product Family | PowerFlex 700 |
| Product Type | AC Variable Frequency Drive |
| Normal Duty Power @ 480V | 3 HP |
| Heavy Duty Power @ 480V | 2 HP |
| Nominal Input Voltage | 480V AC, 3-Phase |
| Voltage Class | 380–480V AC |
| Drive Operating Voltage Range | 342–528V AC |
| Mains Frequency | 60 Hz Nominal |
| Continuous Output Current @ 480V | 5 A |
| 1-Minute Overload Current | 5.5 A |
| 3-Second Overload Current | 7.5 A |
| Rated Motor Voltage | 460V AC at 480V Input |
| Maximum Output Frequency | 420 Hz |
| Frame Size | 0 |
| Enclosure Rating | IP20 / NEMA/UL Type 1 |
| Control Configuration | Vector Control with 24V DC I/O |
| Operator Interface | LCD Display, Full Numeric Keypad |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| EMC Filter | Included with Common-Mode Choke |
| Internal Communication Module | ControlNet Coaxial |
| Feedback Option | Standard Encoder |
| Encoder Type | Incremental, Dual Channel |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 3 |
| Carrier Frequency | 2 / 4 / 8 / 10 kHz Configurable |
| Rated Efficiency | 97.5% at Rated Current |
| Displacement Power Factor | 0.98 |
| Input Power Rating | 3.2 kVA @ 480V, 3-Phase |
| Maximum Altitude Without Derating | 1000 m |
| Operating Humidity | 5–95%, Non-Condensing |
| Approximate Height | 336 mm |
| Approximate Width | 110 mm |
| Approximate Depth | 200 mm |
| Approximate Drive and Packaging Weight | 8.16 kg |
| Photographed Packaging Series | Series B |
| Photographed Packaging Firmware | 10.004 |
| Photographed Packaging Origin | Mexico |
| Packaging Date Marking | 2023/06/02 — Manufacturing History Requires Verification |
| Manufacturer Lifecycle | Discontinued June 01, 2023 |
Product Overview

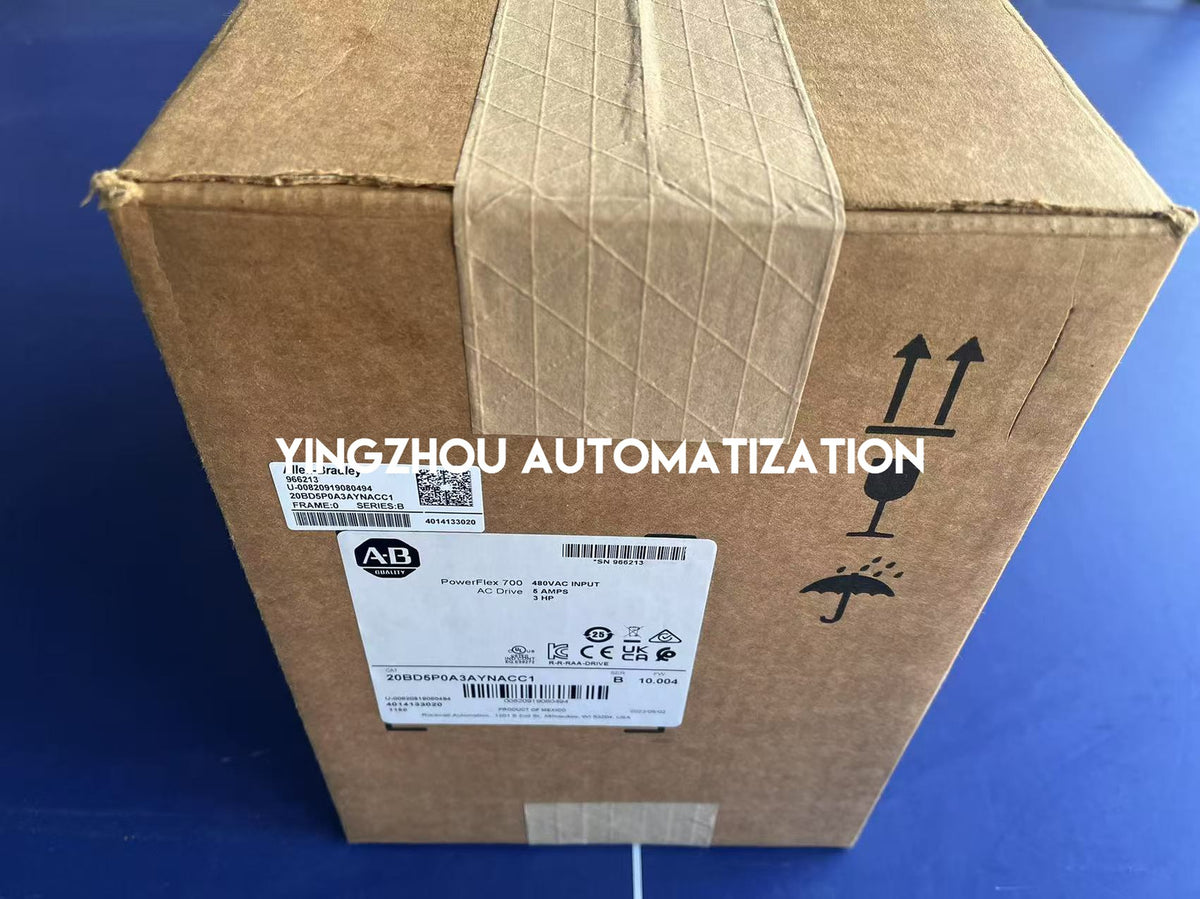

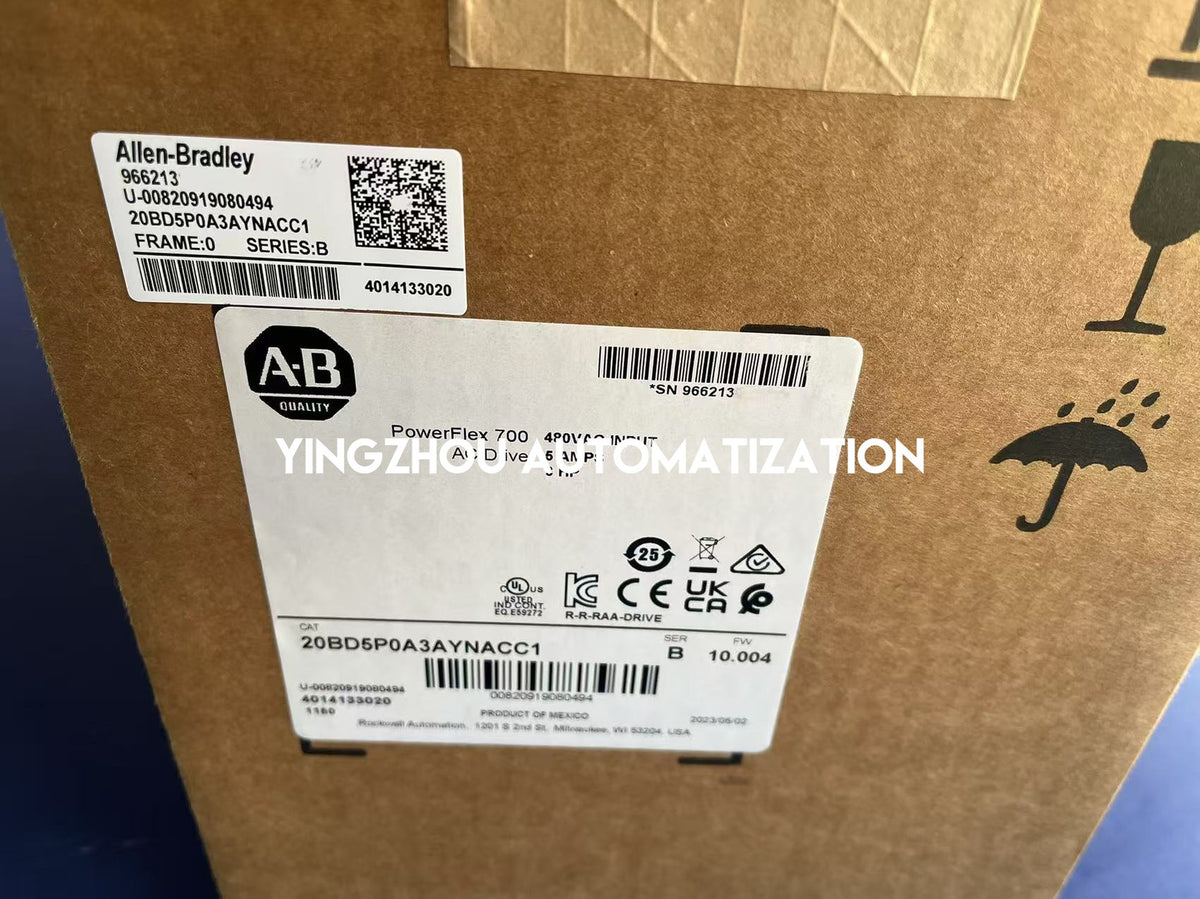

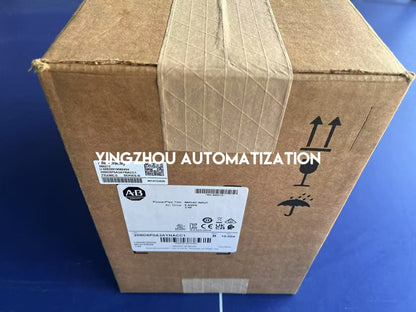

The Allen-Bradley 20BD5P0A3AYNACC1 is a PowerFlex 700 adjustable-frequency AC drive manufactured by Rockwell Automation. It is rated for 3 HP normal duty and 2 HP heavy duty at 480V, with 5 A continuous output current. This Frame 0 drive features an IP20 / NEMA/UL Type 1 enclosure, vector control with 24V DC I/O, an installed brake IGBT and an EMC filter with common-mode choke. The exact 20BD5P0A3AYNACC1 catalog configuration specifies an LCD display with full numeric keypad, ControlNet coaxial communication and standard encoder feedback. These features distinguish it from similar PowerFlex 700 catalog numbers with blank HIM covers, alternative communication modules or no encoder option. Rockwell Automation lists this exact catalog number as discontinued on June 1, 2023. The supplied actual packaging photograph identifies 20BD5P0A3AYNACC1, Series B, firmware 10.004, Frame 0 and a date marking of 2023/06/02. This date marking is one day later than the manufacturer-listed discontinuation date and requires clarification. The physical drive nameplate, installed HIM, communication module and feedback hardware have not been independently verified. Please confirm the exact unit, manufacturing history, option modules and installation requirements before ordering.
Key Product Features
- PowerFlex 700 AC Drive — Allen-Bradley Bulletin 20B adjustable-frequency drive.
- 3 HP Normal Duty @ 480V — Rated for 3 HP normal-duty and 2 HP heavy-duty operation.
- 5 A Continuous Output — With 5.5 A one-minute and 7.5 A three-second overload ratings.
- Frame 0 IP20 Enclosure — NEMA/UL Type 1 construction for industrial installations.
- Vector Control with 24V DC I/O — Manufacturer-specified motor control configuration.
- ControlNet Communication and Encoder Feedback — Exact catalog configuration includes ControlNet coaxial and standard encoder feedback.
- LCD HIM and Integrated Brake IGBT — Full numeric LCD keypad and internal braking transistor without an internal brake resistor.
Actual Product Verification
In Stock & Available to Order
Allen-Bradley 20BD5P0A3AYNACC1 is marked in stock based on the supplied inventory information. This manufacturer-discontinued PowerFlex 700 drive is offered for exact-model industrial replacement and procurement requirements. The supplied photograph verifies the carton identification labels, but the physical drive nameplate, installed LCD HIM, ControlNet module, encoder feedback option and functional testing have not been independently verified. The packaging date also requires clarification against manufacturer lifecycle records. Please confirm the actual supplied unit, configuration, product history, quantity and dispatch arrangements before completing an order.
Allen-Bradley 20BD5P0A3AYNACC1
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 480V three-phase supply, 5A rating, LCD HIM, ControlNet communication, encoder feedback, product history and installation requirements before ordering.
