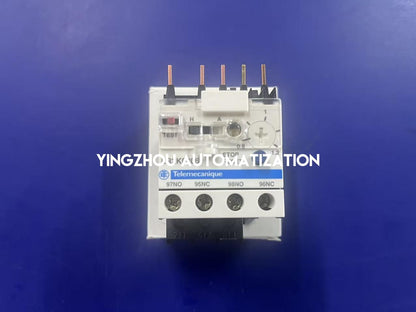

Telemecanique LR2K0306 TeSys K 0.8–1.2A Thermal Overload Relay

Telemecanique LR2K0306 TeSys K 0.8–1.2A Thermal Overload Relay

$27.99 USD
$27.99 USD
En vente Épuisé
Model Number
YingZhou Industrial Automation | Product Information

Telemecanique LR2K0306 TeSys K Thermal Overload Relay

0.8–1.2A | Class 10A | Motor Protection | 1NO + 1NC
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Exact Model LR2K0306
Specification Verified Product Data
Manufacturer Schneider Electric
Brand on Product Telemecanique
Catalog Number LR2K0306
Product Family TeSys K / TeSys LRK
Device Short Name LR2K
Product Type Differential Thermal Overload Relay
Application Motor Protection
Thermal Setting Range 0.8–1.2A
Tripping Class Class 10A, IEC 60947-4-1
Phase Failure Sensitivity Yes, IEC 60947-4-1
Auxiliary Contacts 1 NO + 1 NC
Conventional Free-Air Thermal Current 6A, signalling circuit
Rated Impulse Withstand Voltage 6kV
Power Dissipation per Pole 2W
Network Frequency ≤400Hz
Dimensions (H × W × D) 58 × 45 × 65mm
Net Weight 0.145kg
Reset / Test Manual/automatic reset selection; test and reset controls
Mounting Direct mounting on compatible TeSys K contactors; separate mounting requires specified accessories
Motor Rating Reference 0.25–0.37kW at 400V, per manufacturer product information

Product Overview

The Telemecanique LR2K0306 is a TeSys K differential thermal overload relay manufactured by Schneider Electric. Designed for motor protection, it provides an adjustable thermal setting range of 0.8–1.2A and a Class 10A tripping characteristic. The relay features phase failure sensitivity, one normally open and one normally closed auxiliary contact, and manual/automatic reset selection with test and reset controls. It is designed for integration with compatible TeSys K contactors or separate mounting with the specified accessories. Verify the motor's nameplate current, contactor compatibility and required mounting arrangement before installation. Product availability may vary by market because some regional Schneider Electric listings identify this reference as discontinued.

Key Product Features

  • TeSys K Motor Protection — Differential thermal overload relay for motor protection applications.
  • 0.8–1.2A Adjustment Range — Adjustable thermal setting for matching the motor's rated current.
  • Class 10A Tripping — Manufacturer-specified overload tripping class.
  • Phase Failure Sensitivity — Protection characteristic for phase failure and load imbalance.
  • 1NO + 1NC Auxiliary Contacts — Supports trip-status signalling.
  • Test and Reset Controls — Manual/automatic reset selection and test functionality.
  • Compact Installation — 45mm width for compatible TeSys K control assemblies.

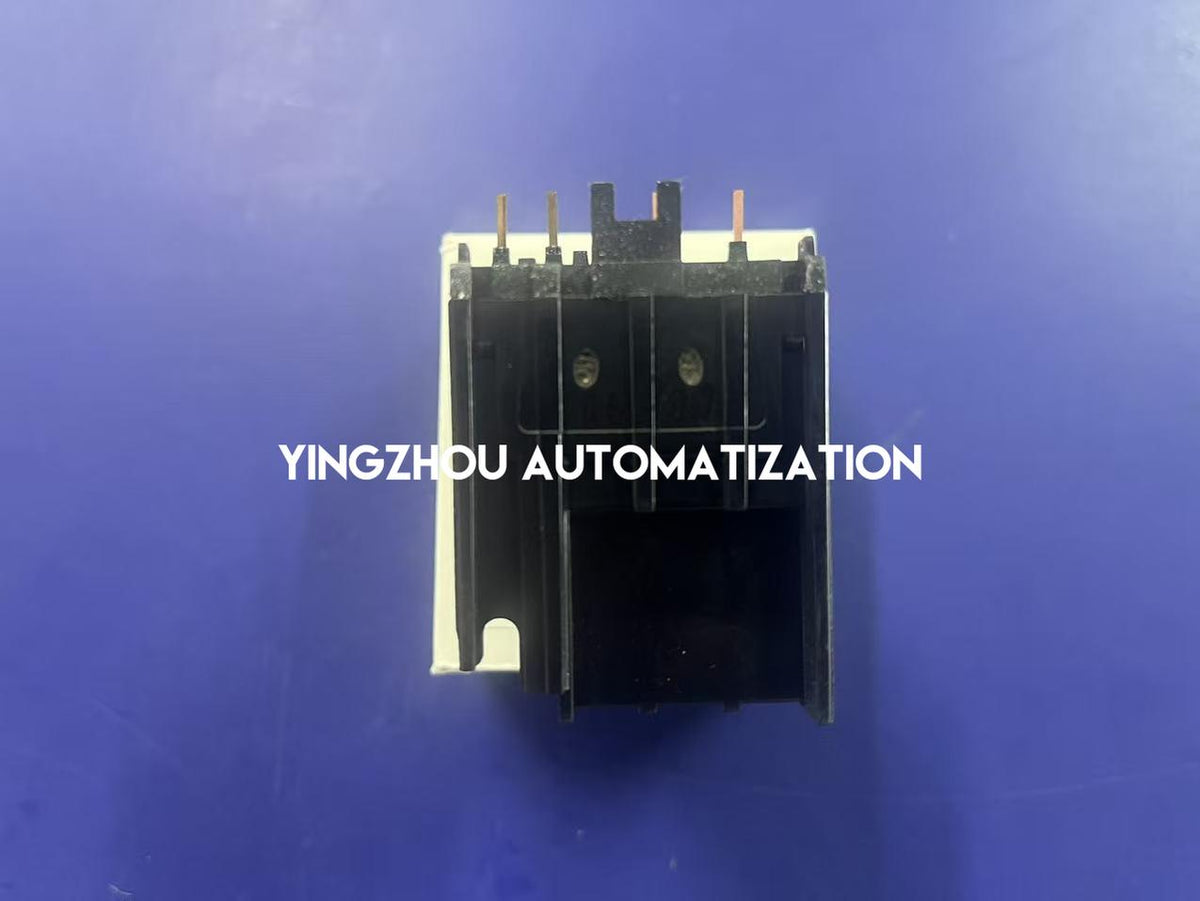

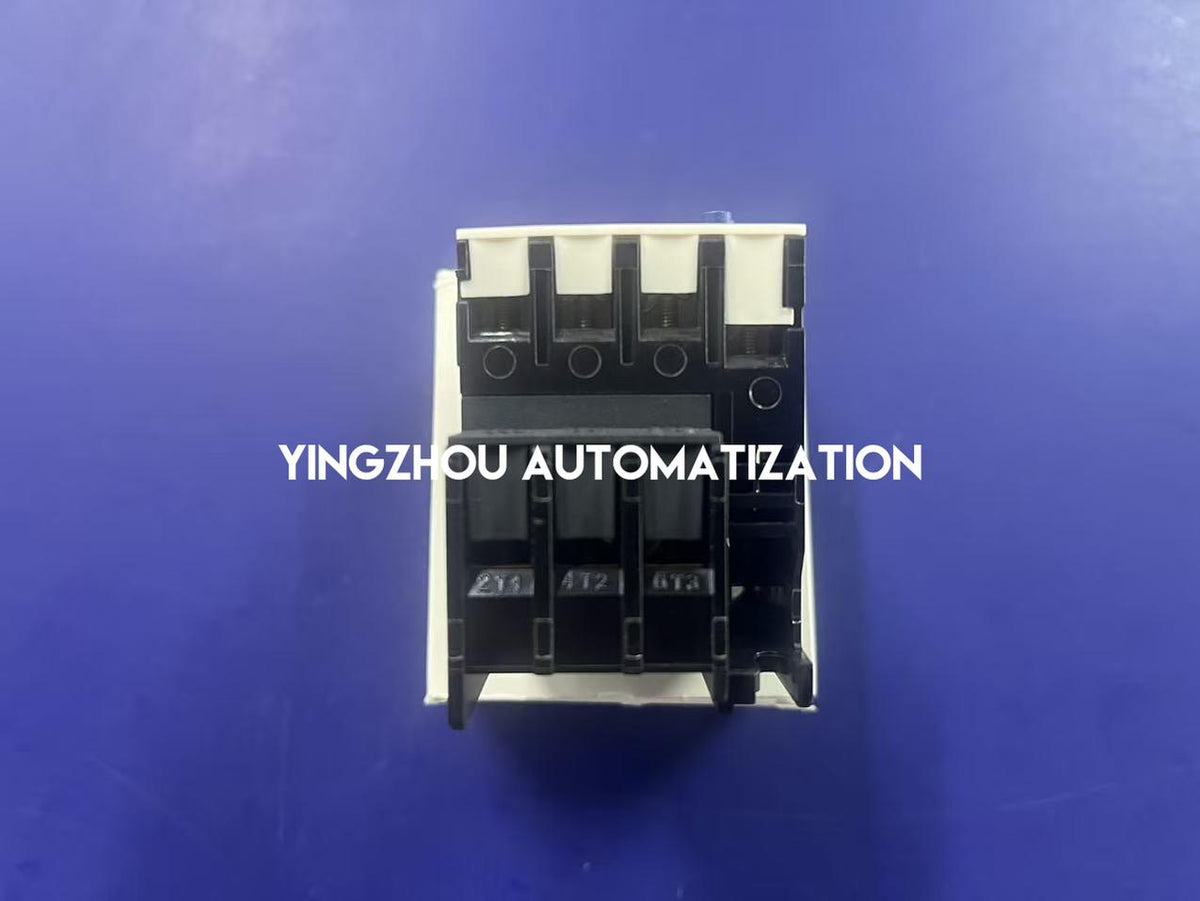

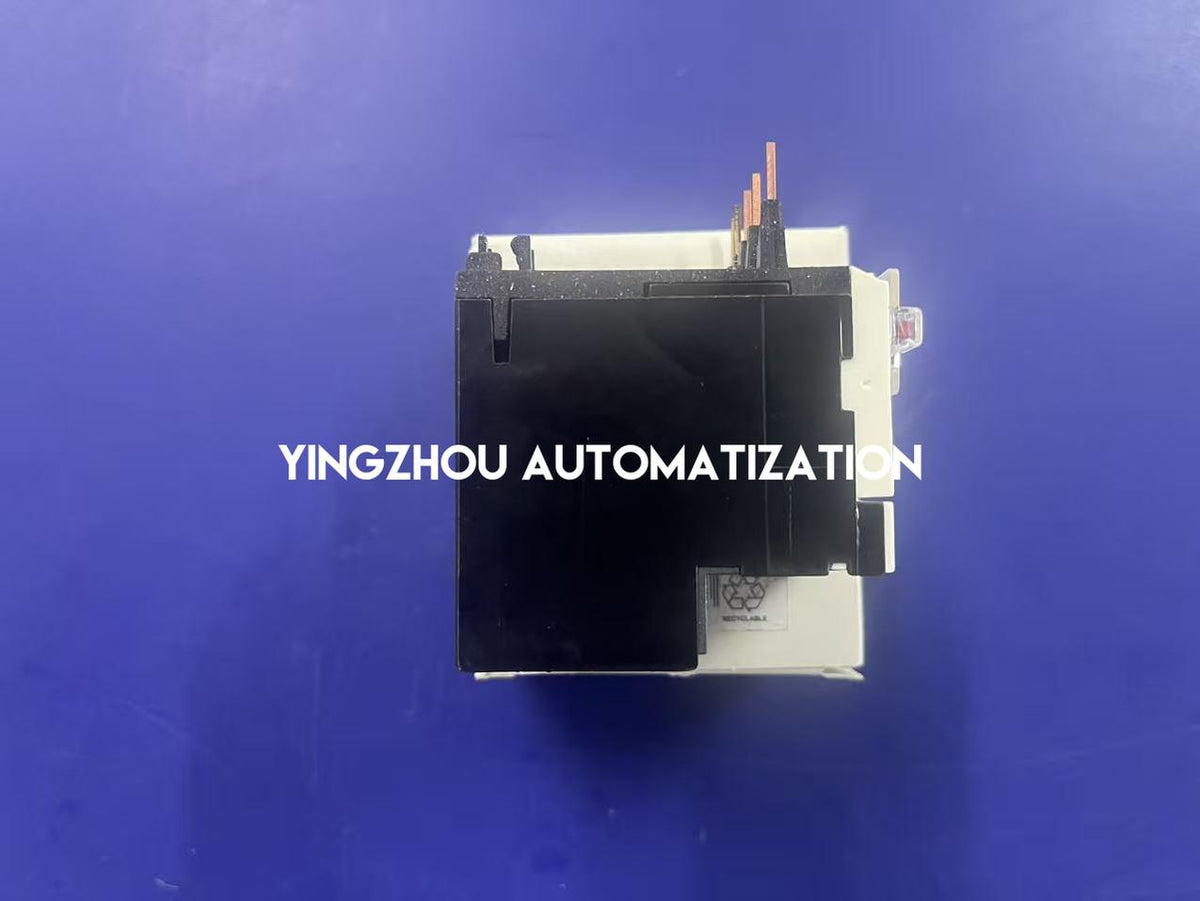

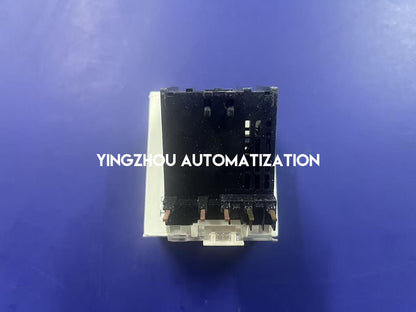

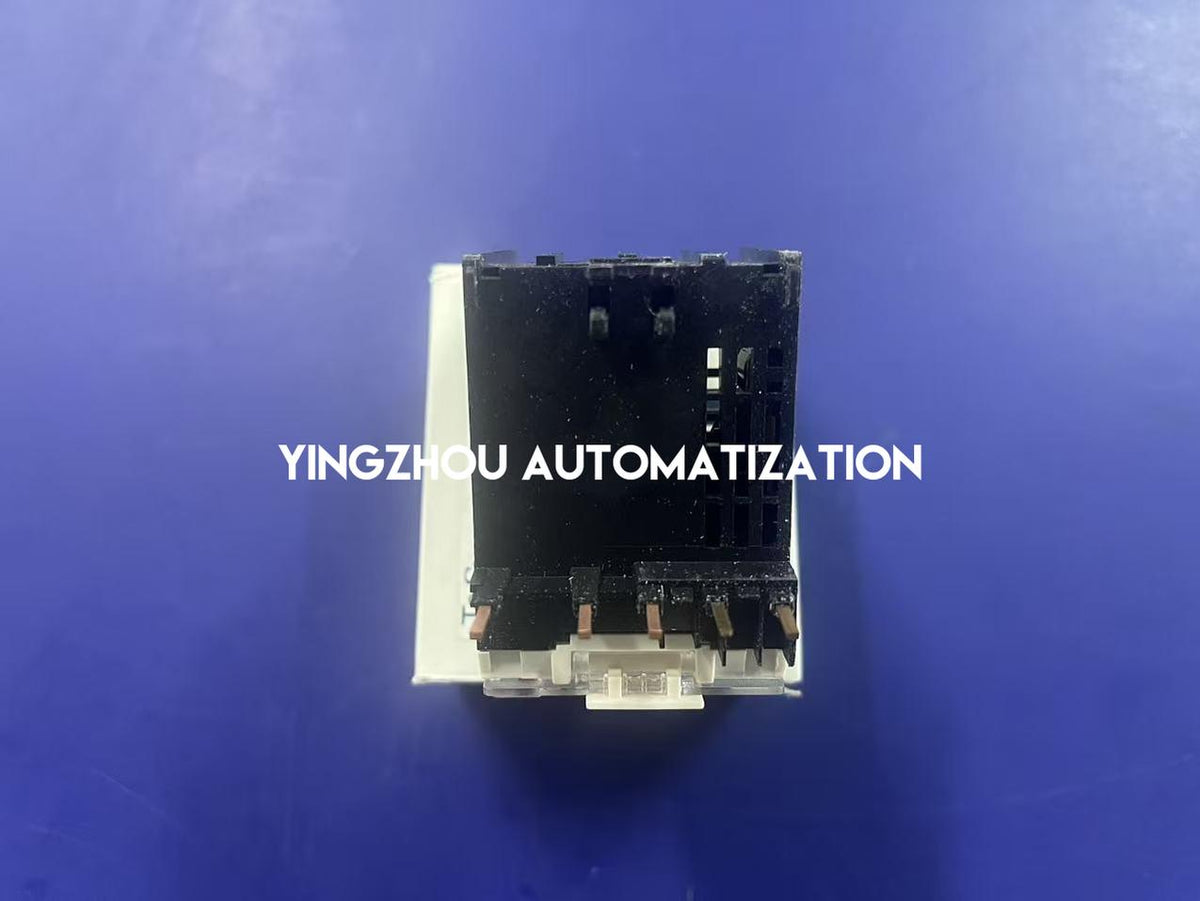

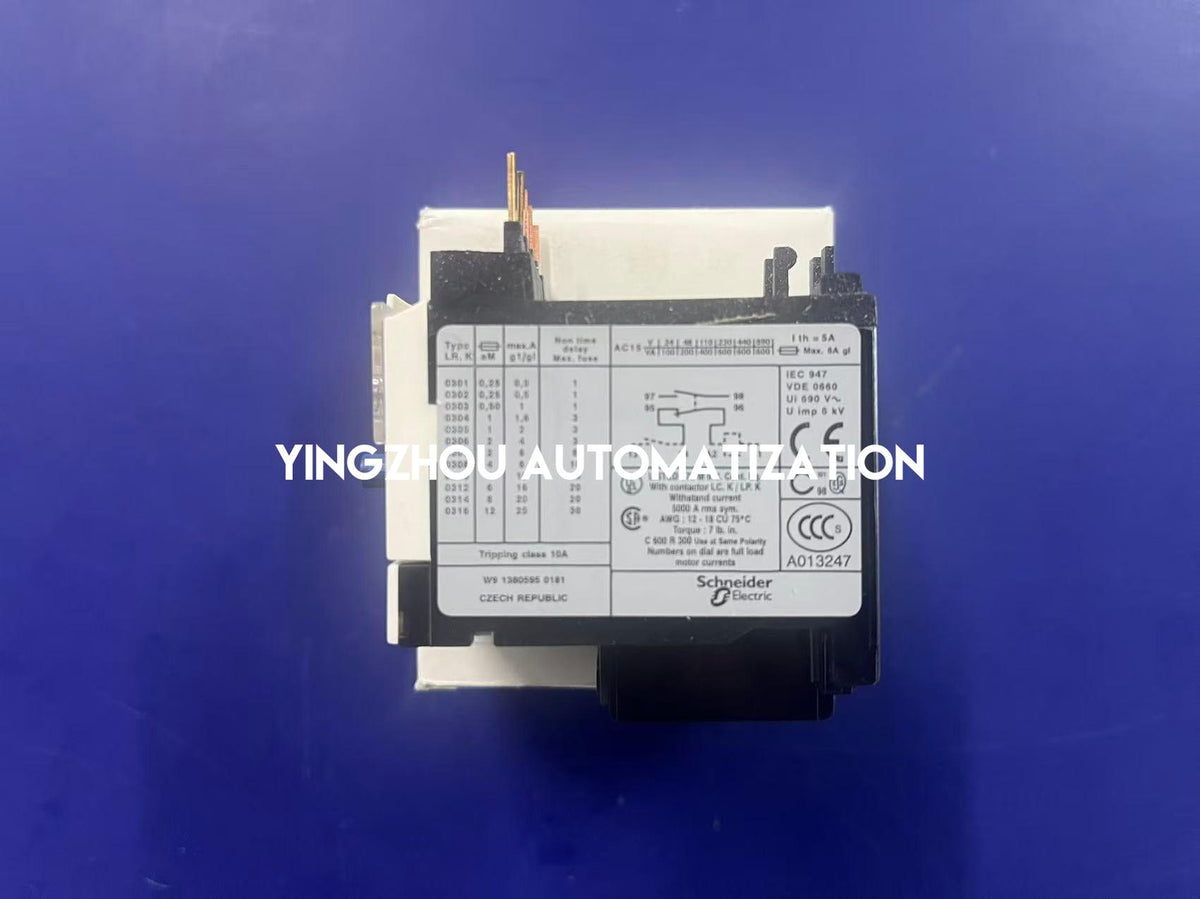

Actual Product Verification

✓ Actual packaging and relay photographs supplied

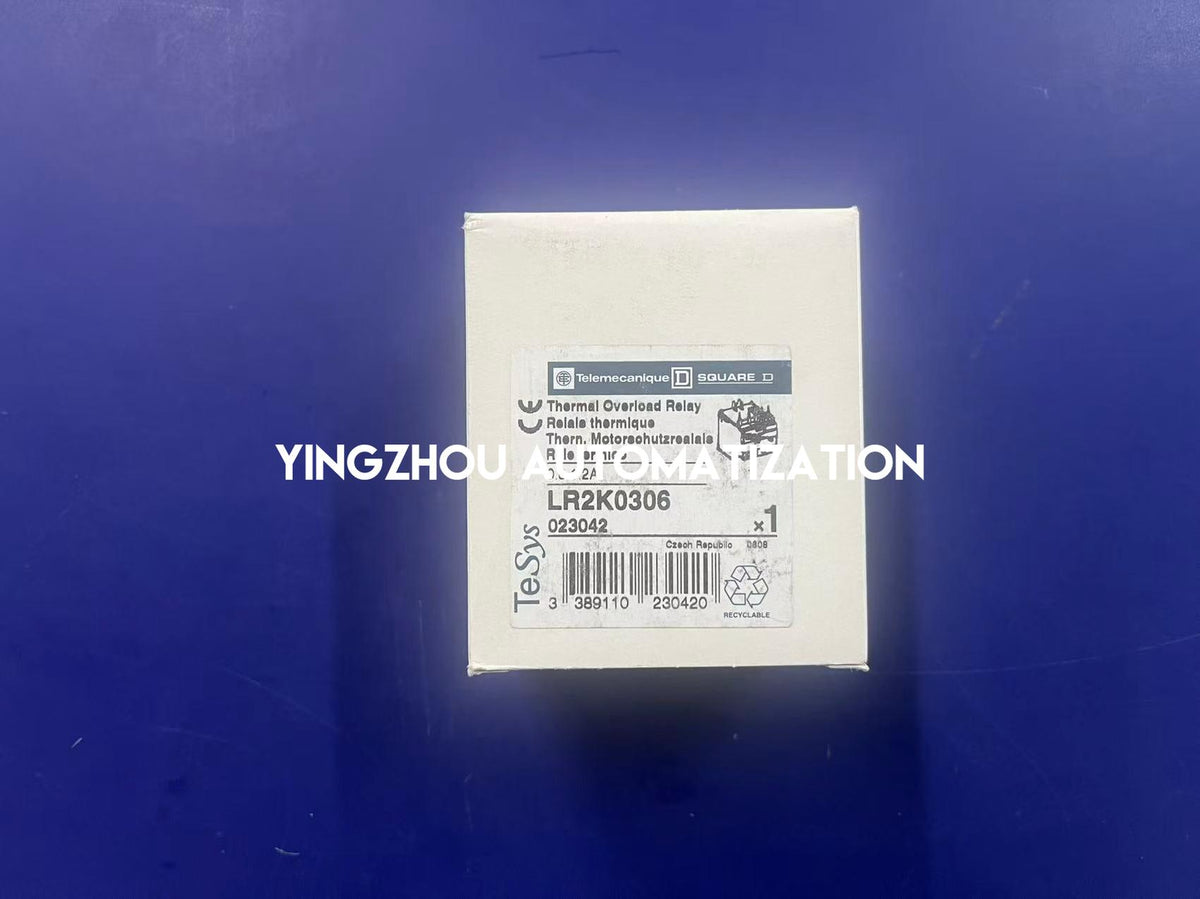

✓ Packaging model: LR2K0306

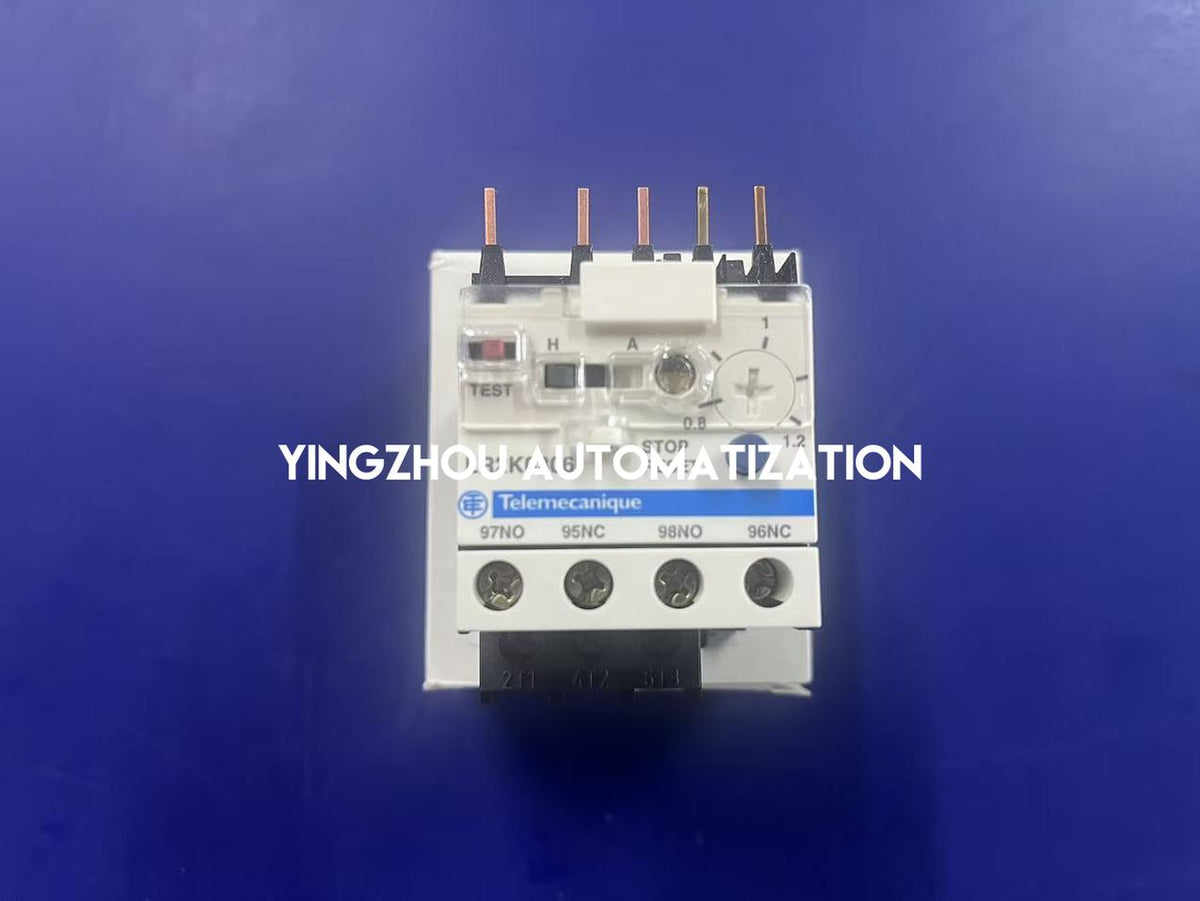

✓ Relay body model: LR2K0306
✓ Current adjustment scale: 0.8–1.2A
✓ Packaging and relay body model identification match
✓ Exact model photo verification: PASS
✓ Electrical functionality and operating condition have not been independently tested

In Stock & Available to Order

Telemecanique LR2K0306 is listed as in stock based on the supplied inventory information. The supplied packaging and relay body both identify the requested model. As manufacturer availability may differ by region, please confirm stock allocation, product condition, compatible contactor and dispatch arrangements with YINGZHOU before ordering.
