Schneider ATV930D75N4 Altivar Process ATV930 Variable Speed Drive
75 kW / 100 HP (ND) | 380–480 VAC 3-Phase | 145 A (ND) | IP21
| Specification |
Product Data |
| Brand |
Schneider Electric |
| Exact Model |
ATV930D75N4 |
| Series |
Altivar Process ATV900 / ATV930 |
| Product Type |
Variable Speed Drive |
| Motor Power (Normal Duty) |
75 kW / 100 HP |
| Motor Power (Heavy Duty) |
55 kW / 75 HP |
| Rated Supply Voltage |
3-Phase 380–480 VAC |
| Supply Frequency |
50/60 Hz |
| Continuous Output Current (ND) |
145 A at 2.5 kHz |
| Continuous Output Current (HD) |
106 A at 2.5 kHz |
| Input Current (ND) |
131.3 A at 380 V / 112.7 A at 480 V |
| Input Current (HD) |
98.9 A at 380 V / 86.9 A at 480 V |
| Maximum Output Frequency |
599 Hz |
| Nominal Switching Frequency |
2.5 kHz |
| Communication Protocols |
Modbus TCP / Modbus Serial / EtherNet/IP |
| Braking Chopper |
Integrated |
| EMC Filter |
Integrated |
| Protection Rating |
IP21 |
| Cooling |
Forced Convection |
| Dimensions |
290 × 922 × 325.5 mm (W × H × D) |
| Product Weight |
59 kg |
Product Overview
The Schneider Electric ATV930D75N4 is a
variable speed drive from the
Altivar Process ATV900 Series.
Designed for three-phase 380–480 VAC
industrial power systems, it supports
75 kW / 100 HP in Normal Duty
and 55 kW / 75 HP in Heavy Duty.
The drive provides 145 A Normal Duty
and 106 A Heavy Duty continuous output
current at 2.5 kHz. It features an integrated braking
chopper, industrial Ethernet communication and
an IP21 protection rating
for industrial motor control applications.
Key Product Features
-
75 kW / 100 HP Normal Duty motor rating
-
55 kW / 75 HP Heavy Duty motor rating
-
Three-phase 380–480 VAC rated supply voltage
-
145 A ND / 106 A HD continuous output at 2.5 kHz
-
Integrated braking chopper for braking resistor applications
-
Modbus TCP / Modbus Serial / EtherNet/IP connectivity
-
IP21 protection with forced-convection cooling
Actual Product Verification
✓

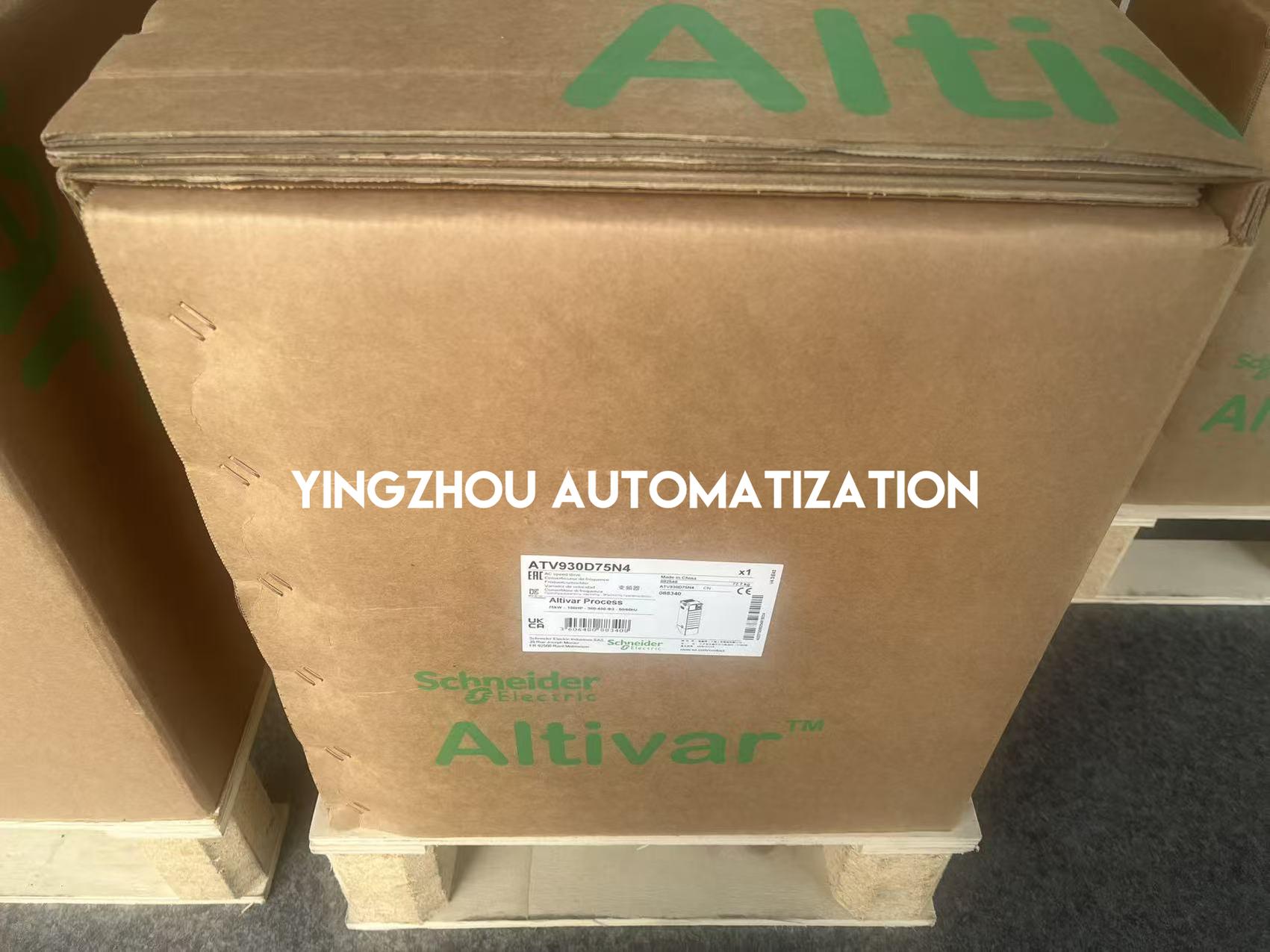

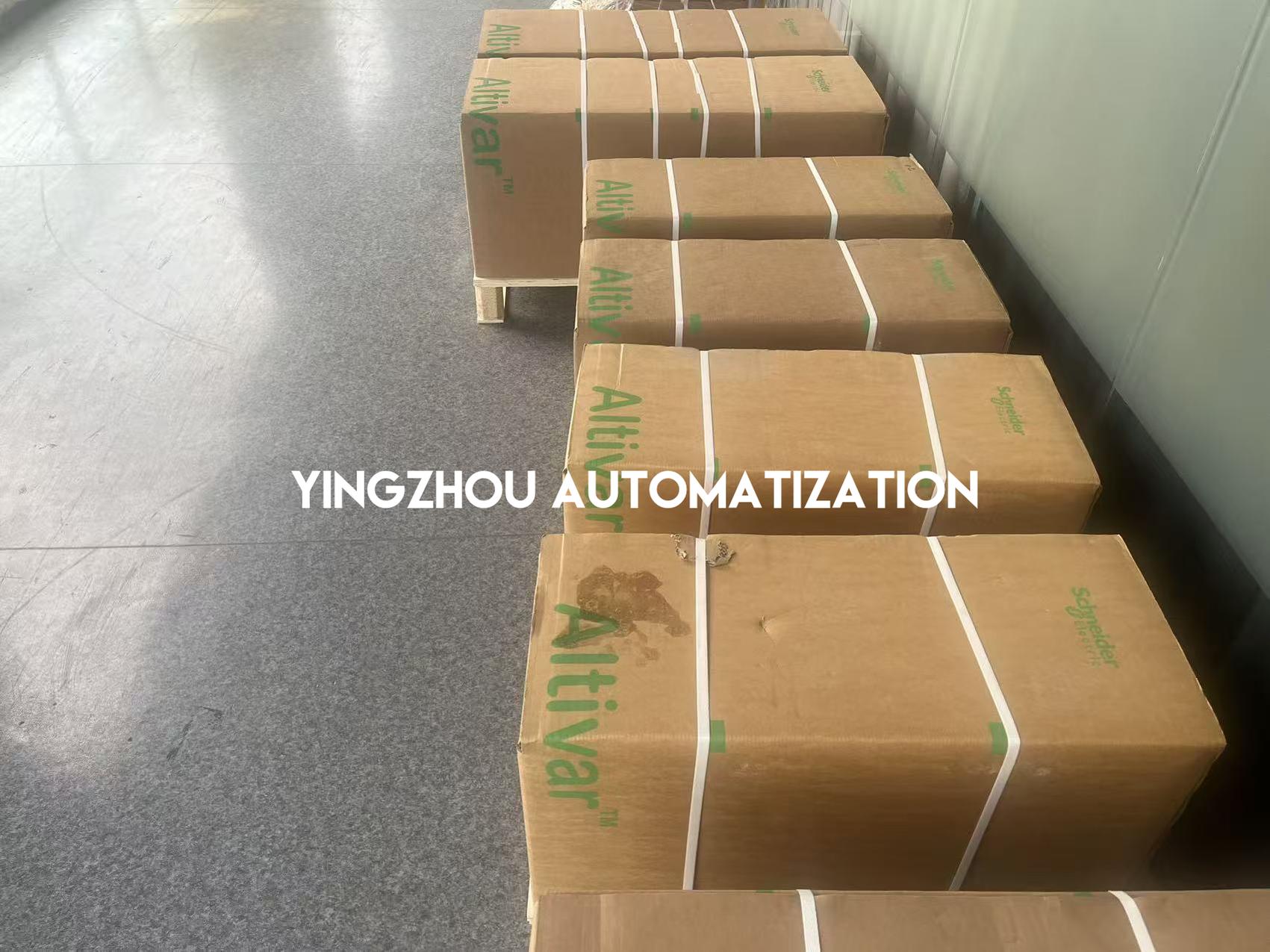

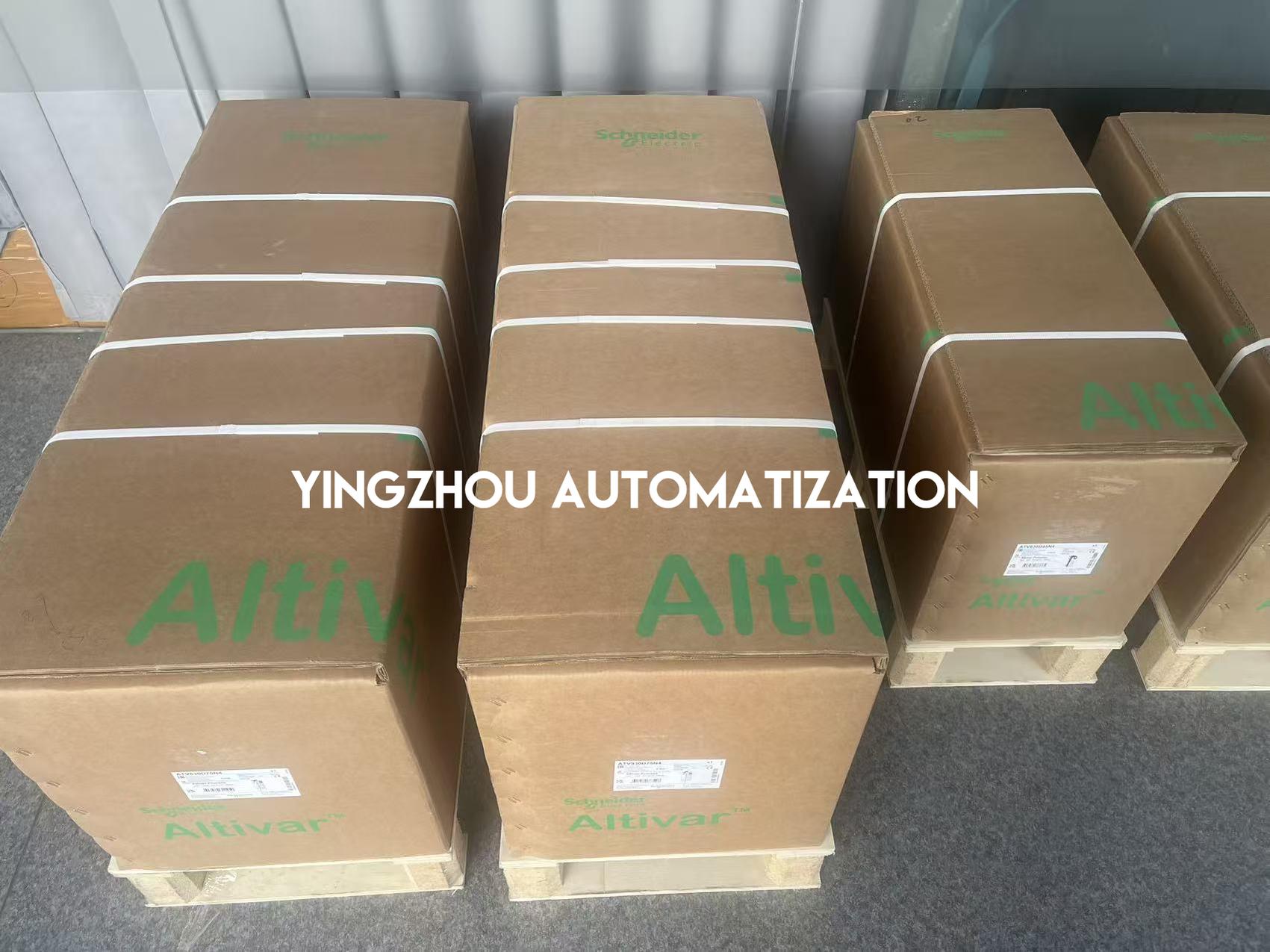

Actual packaging photos
✓

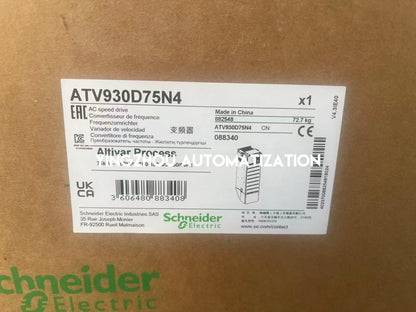

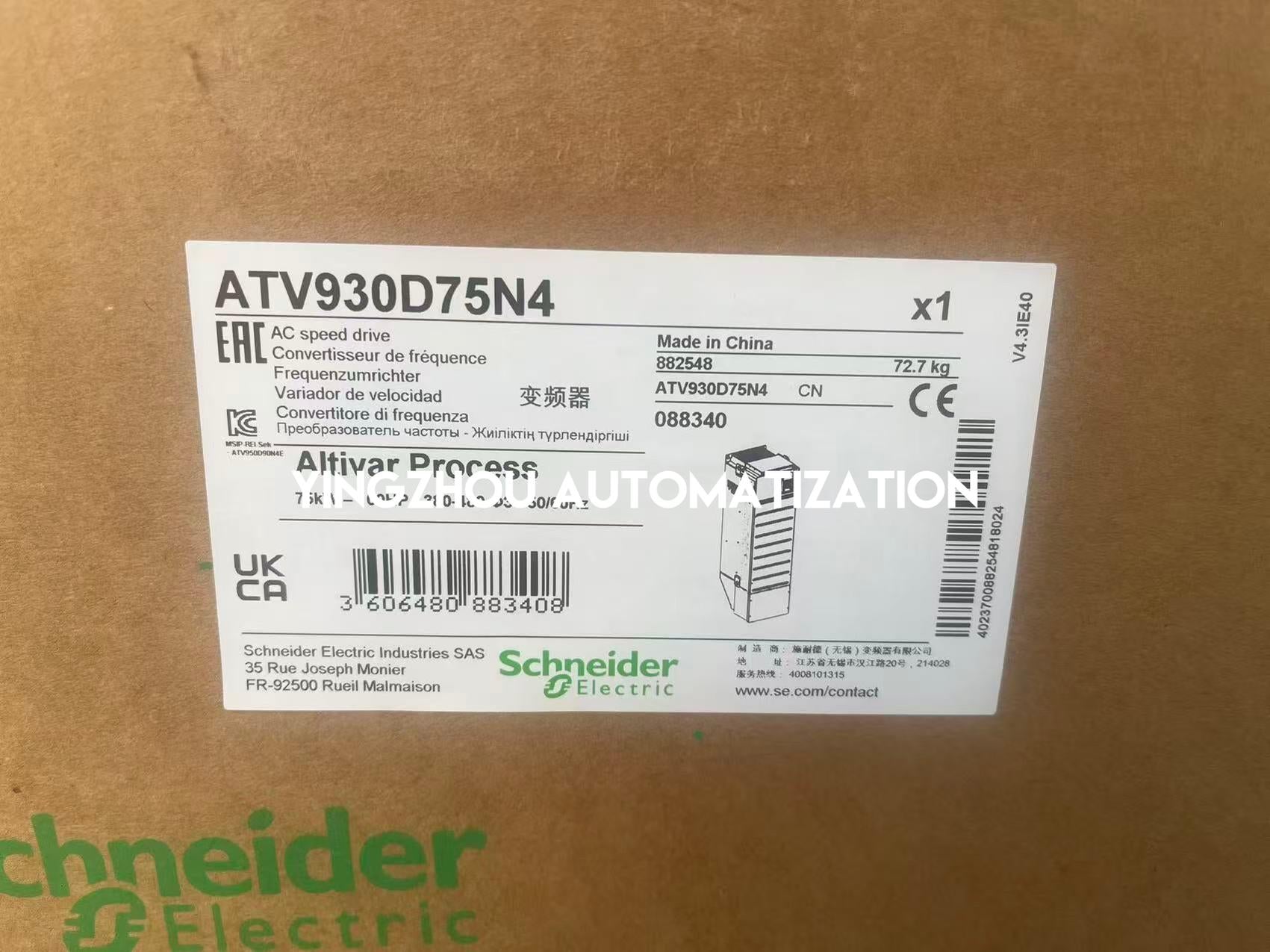

ATV930D75N4 model label visible on packaging
✓
Schneider Electric branded packaging shown
✓
Verify exact model ATV930D75N4 before ordering
In Stock & Ready to Order
Schneider Electric ATV930D75N4 is currently
in stock. Actual model-labeled packaging photos are
provided for buyer verification.
