FESTO VUVS-L20-M32C-MD-G18-F7-1C1 575274 24V DC 3/2-Way NC Solenoid Valve G1/8 700 L/min

FESTO VUVS-L20-M32C-MD-G18-F7-1C1 575274 24V DC 3/2-Way NC Solenoid Valve G1/8 700 L/min

$28.99 USD
$28.99 USD
En vente Épuisé
Model Number
YingZhou Industrial Automation | Product Information

FESTO VUVS-L20-M32C-MD-G18-F7-1C1 575274 Solenoid Valve

24V DC | 3/2-Way Normally Closed | G1/8 | 700 L/min
✓ IN STOCK & AVAILABLE TO ORDER  |  Actual Product Photos  |  Packaging Model Verified
Specification Verified Product Data
Manufacturer FESTO
Exact Model VUVS-L20-M32C-MD-G18-F7-1C1
Part Number 575274
Product Type Pneumatic Solenoid Valve
Valve Function 3/2-Way, Normally Closed, Monostable
Actuation Electrical
Operating Voltage 24V DC
Voltage Tolerance ±10%
Coil Power 2.6 W
Valve Size 21 mm
Nominal Size 5.7 mm
Standard Nominal Flow Rate 700 L/min — DIN 1343
Operating Pressure 0.25–1 MPa / 2.5–10 bar
Working Port 1 G1/8
Working Port 2 G1/8
Working Port 3 G1/8
Valve Design Piston Gate Valve
Reset Method Mechanical Spring
Pilot Type Pilot-Actuated
Pilot Air Supply Internal
Pilot Exhaust Port 82 M5
Flow Direction Non-Reversible
Sealing Principle Soft
Manual Override Detenting / Non-Detenting
Switching Time — ON 14 ms
Switching Time — OFF 32 ms
Duty Cycle 100%
Protection Rating IP65 with Plug Socket, IEC 60529
Electrical Connection Type C, EN 175301-803
Operating Medium Compressed Air to ISO 8573-1:2010 [7:4:4]
Ambient Temperature -10°C to +60°C
Media Temperature -10°C to +60°C
Mounting Position Any
Mounting Type Manifold Rail / Through-Hole
Corrosion Resistance Class CRC 2
Cleanroom Class ISO 14644-1 Class 6
LABS (PWIS) Conformity VDMA24364-B1/B2-L
Housing Material Painted Die-Cast Aluminium
Piston Slide Material Wrought Aluminium Alloy
Seal Materials HNBR / NBR
Product Weight 170 g
Packaging Model VUVS-L20-M32C-MD-G18-F7-1C1
Packaging Part Number 575274
Packaging Series 11-2024:58 — Actual Packaging
Country of Origin Made in China — Actual Packaging

Product Overview

The FESTO VUVS-L20-M32C-MD-G18-F7-1C1, manufacturer part number 575274, is a 24V DC electrically actuated pneumatic solenoid valve with a 3/2-way normally closed, monostable function. This valve uses internal pilot-air supply, a piston gate design and mechanical spring return. According to the manufacturer, the standard nominal flow rate is 700 L/min to DIN 1343, the pneumatic working ports are G1/8, and the specified operating pressure range is 2.5 to 10 bar. The coil characteristic is 24V DC, 2.6 W, with a voltage tolerance of ±10%. The specified ON switching time is 14 ms and OFF switching time is 32 ms. An IP65 protection rating applies with the specified plug socket. The valve uses a painted die-cast aluminium housing, HNBR/NBR seals and a Type C electrical connection according to EN 175301-803. Actual supplied packaging identifies the exact model and part number and is marked Made in China. Before ordering, verify the required pneumatic function, pressure, electrical connector, supply voltage and installation arrangement. Connector and cable inclusion should be confirmed separately.

Key Product Features

  • FESTO VUVS-L20 Solenoid Valve — Exact model VUVS-L20-M32C-MD-G18-F7-1C1, part number 575274.
  • 24V DC Electrical Operation — Manufacturer-specified supply voltage and 2.6 W coil characteristic.
  • 3/2-Way Normally Closed — Monostable directional-control function.
  • Mechanical Spring Return — Internal pilot-actuated design with mechanical reset.
  • 700 L/min Nominal Flow — Standardized according to DIN 1343.
  • G1/8 Pneumatic Ports — Manufacturer-specified working connections.
  • 2.5–10 Bar Operating Pressure — Manufacturer-specified pressure range.
  • IP65 with Plug Socket — Conditional protection rating according to IEC 60529.

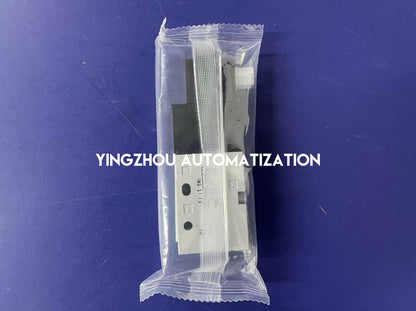

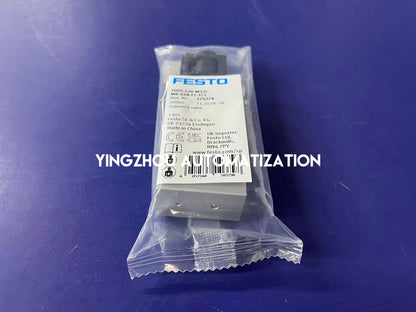

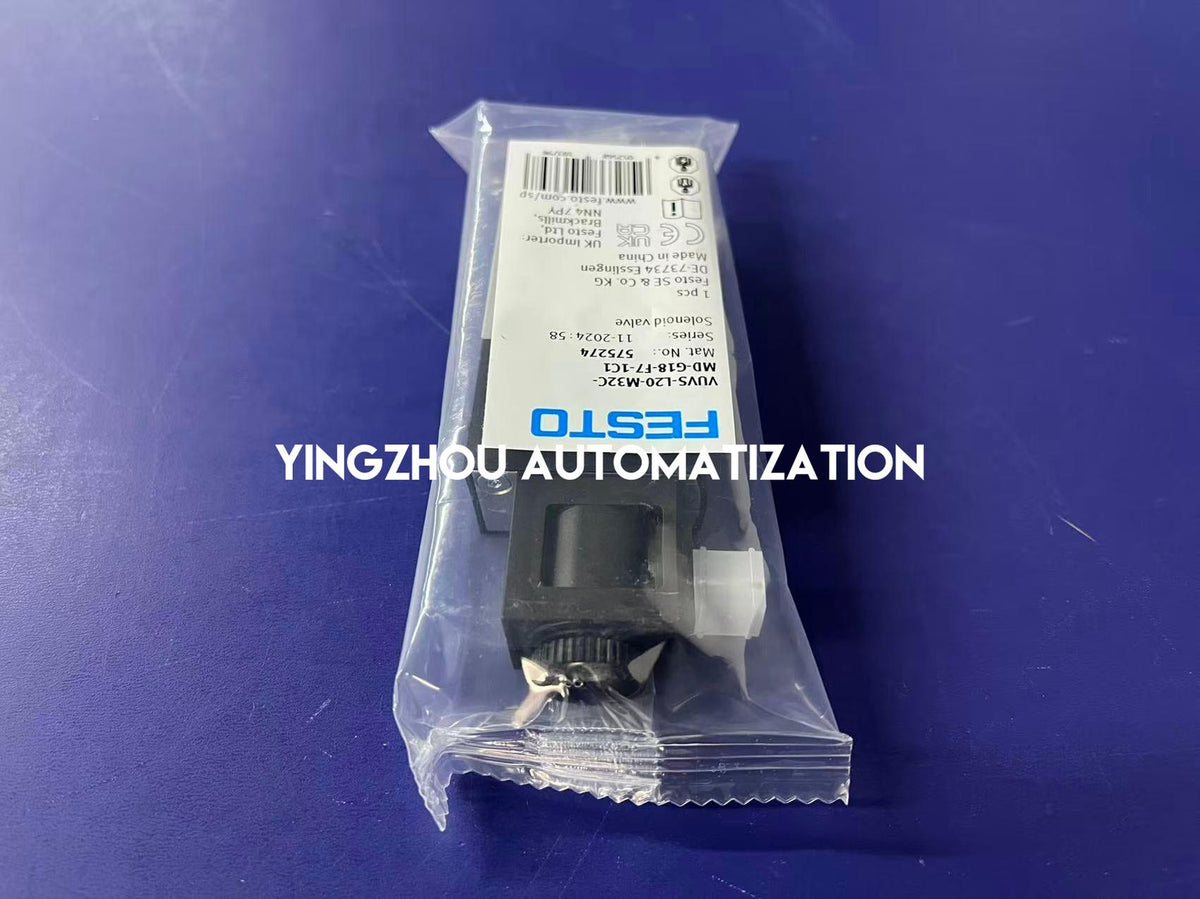

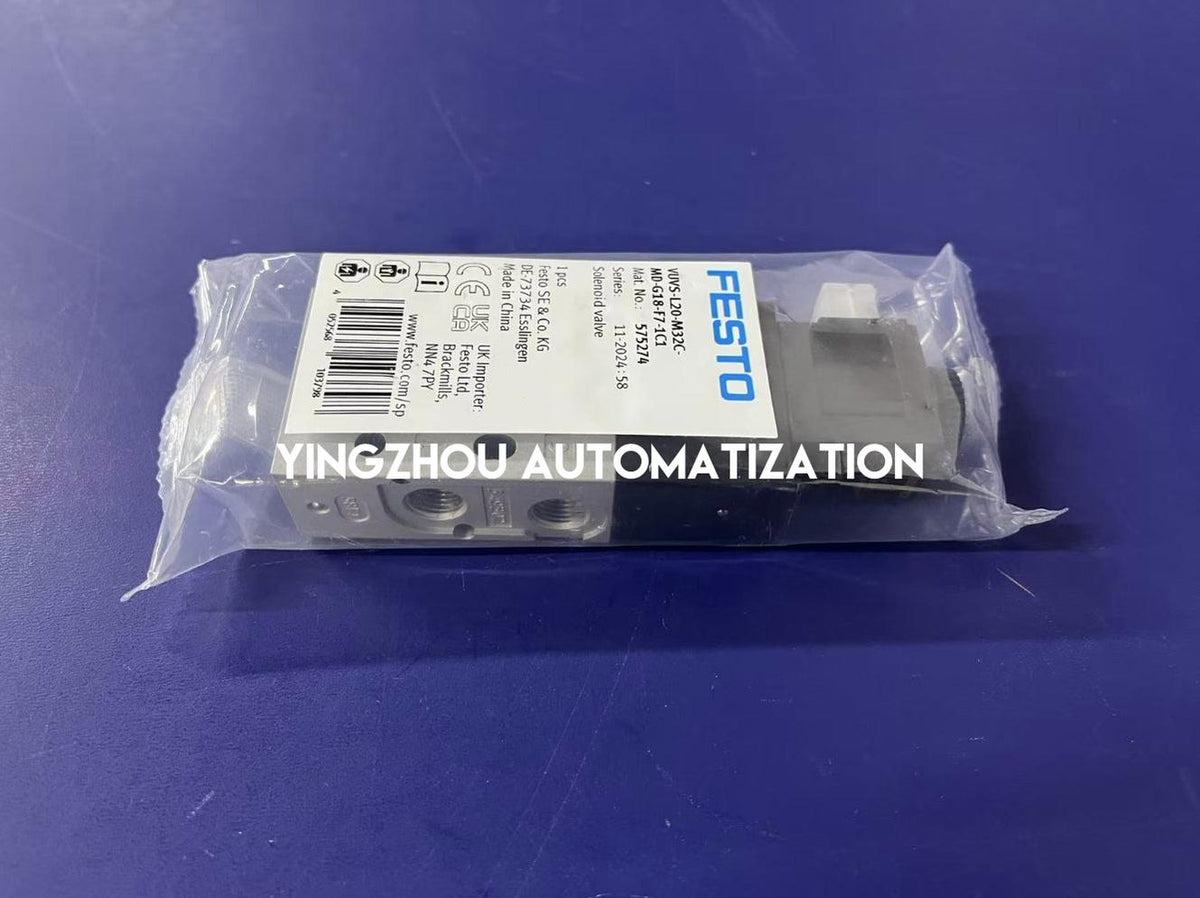

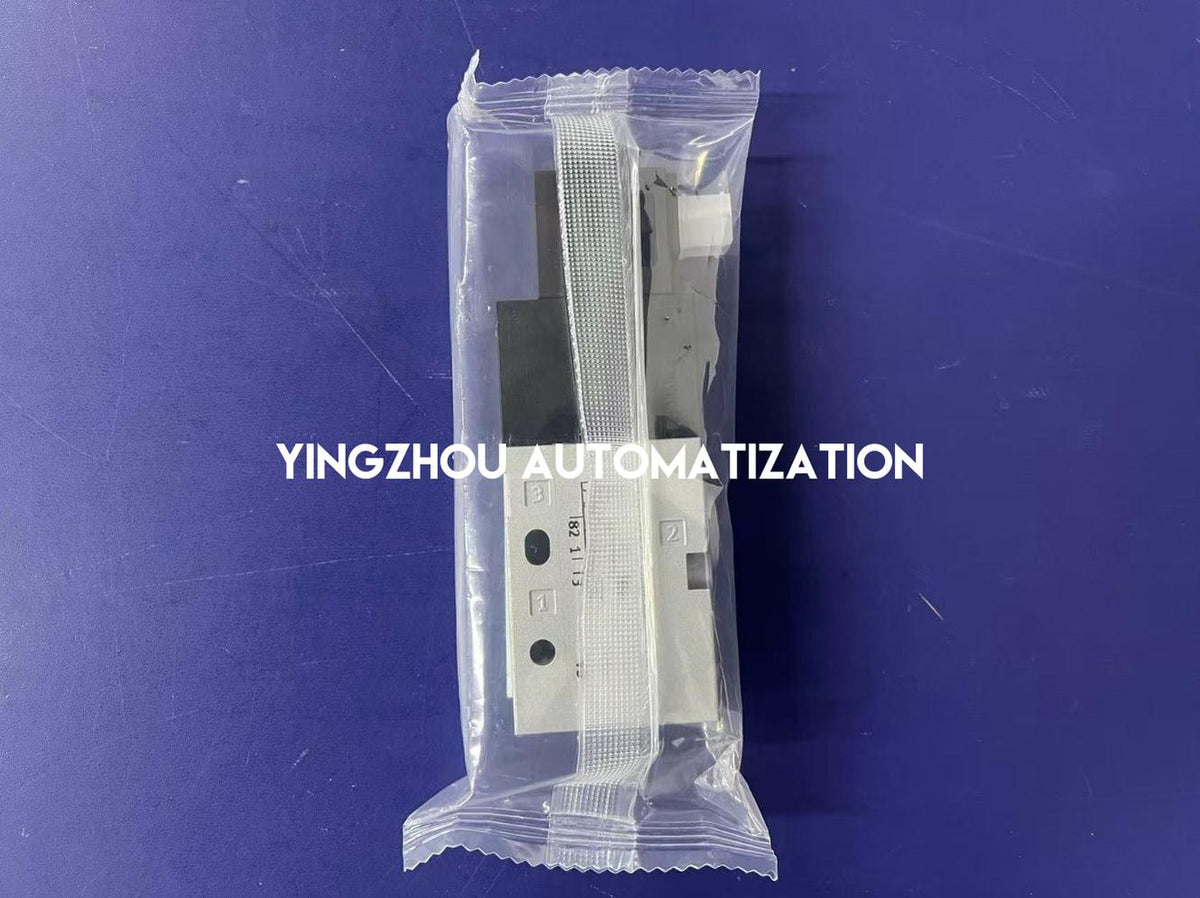

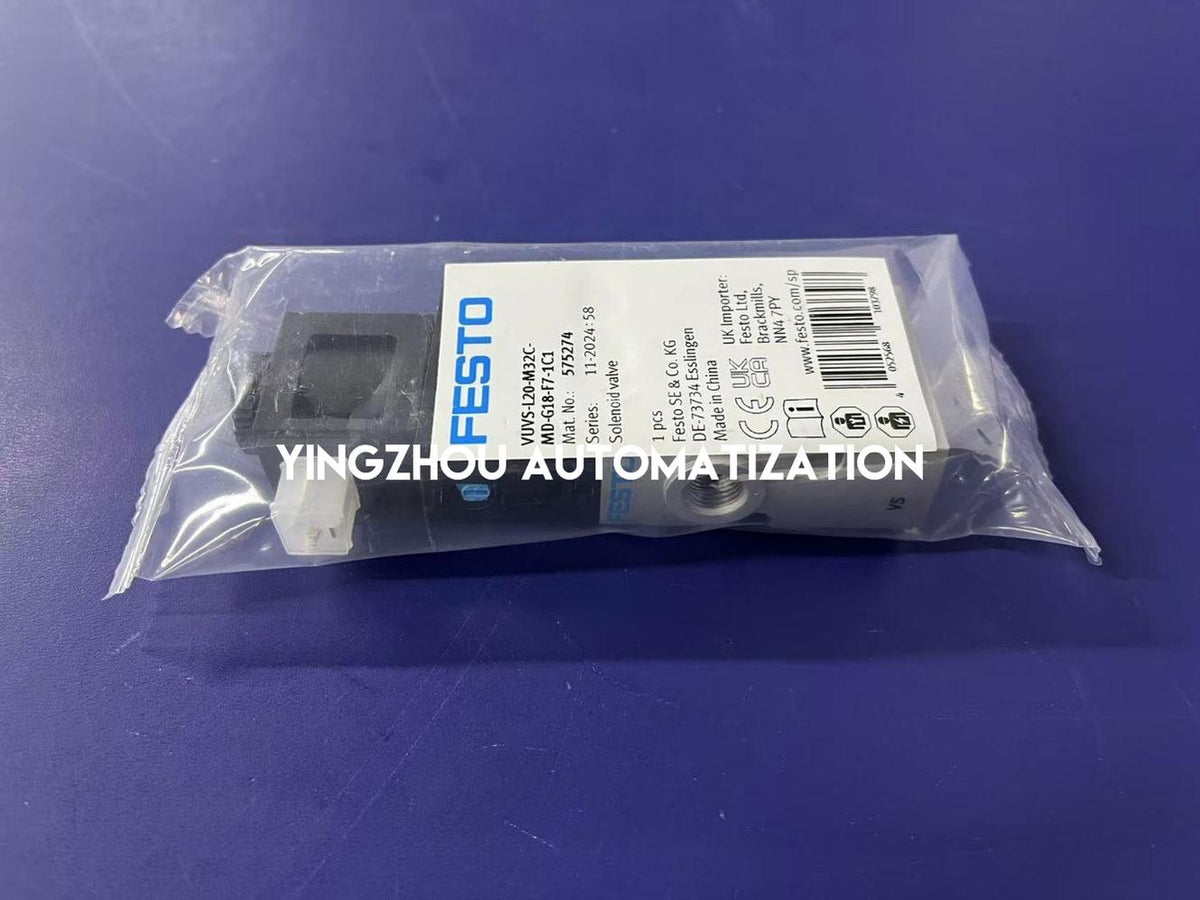

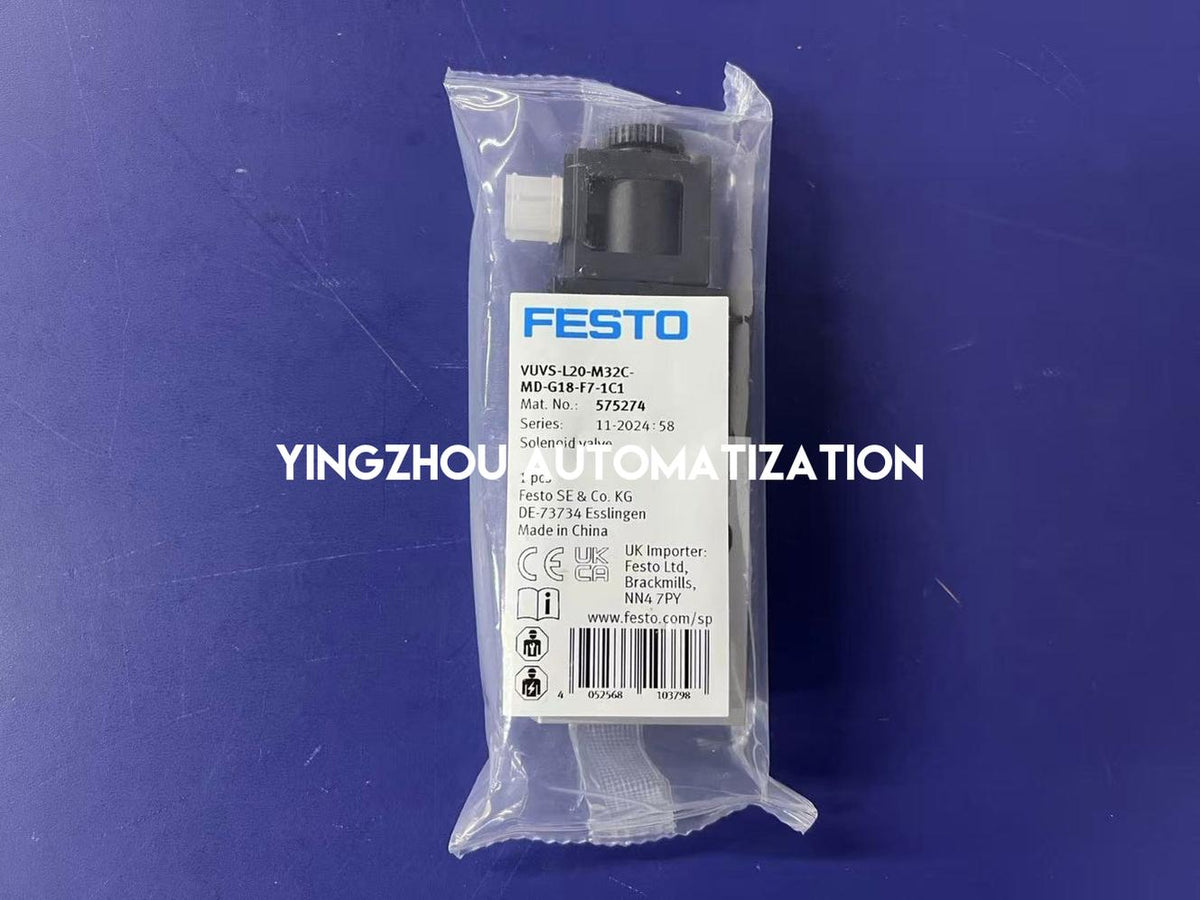

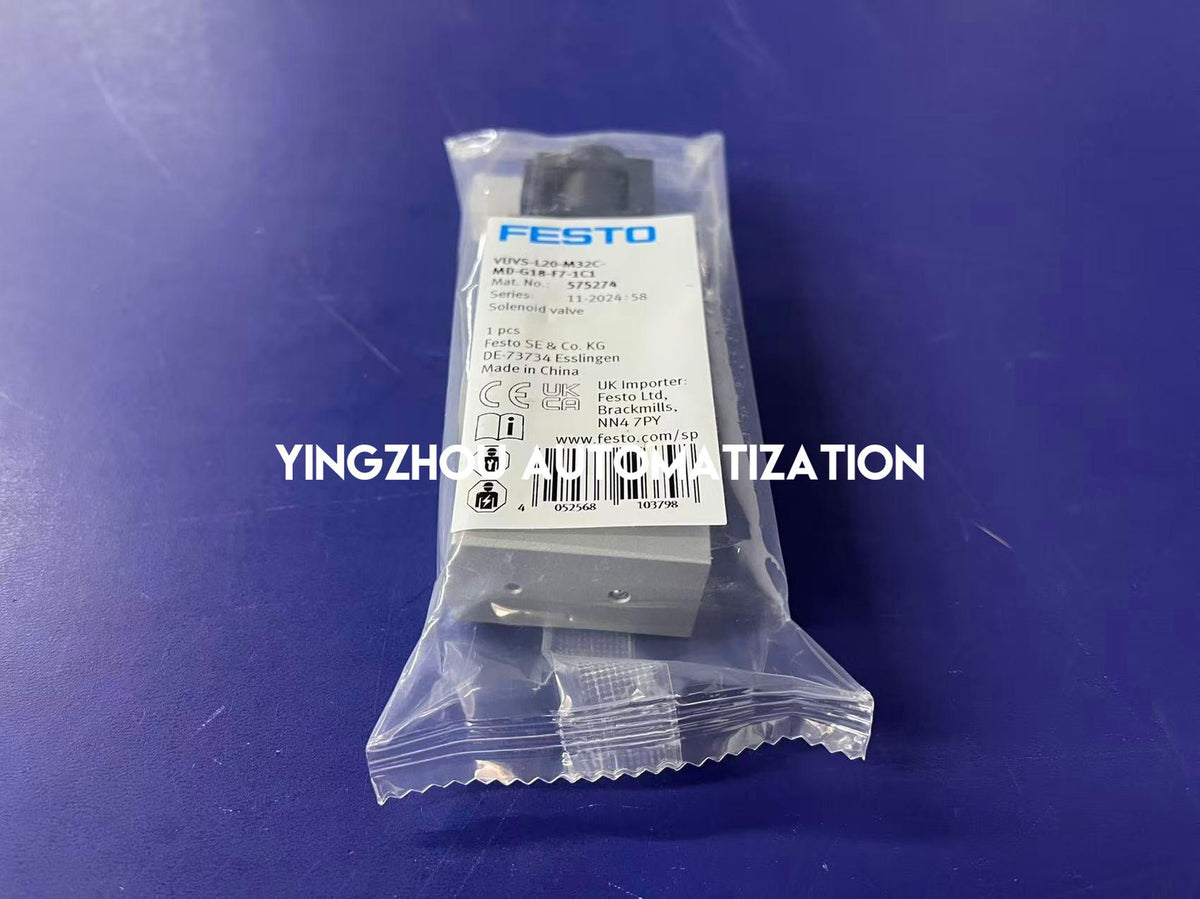

Actual Product Verification

✓ Actual FESTO product and packaging photograph supplied
✓ Packaging manufacturer: FESTO
✓ Packaging exact model: VUVS-L20-M32C-MD-G18-F7-1C1
✓ Packaging part number: 575274
✓ Packaging description: Solenoid Valve
✓ Packaging series marking: 11-2024:58
✓ Packaging quantity: 1 Piece
✓ Country-of-origin marking: Made in China
✓ Official manufacturer data matches the complete model and material number
✓ Product body identification is partly obscured by packaging
✓ Connector and cable inclusion not independently confirmed
✓ Electrical switching and pneumatic leakage tests not performed

In Stock & Available to Order

FESTO VUVS-L20-M32C-MD-G18-F7-1C1 575274 is marked in stock based on the supplied inventory information. This 24V DC, 3/2-way normally closed pneumatic solenoid valve features mechanical spring return, internal pilot-air supply, G1/8 working ports and a 700 L/min nominal flow rate. The official operating pressure range is 2.5–10 bar. The product packaging shows the exact model and part number. Before ordering, please confirm the required valve function, power supply, pneumatic connections and electrical connector requirements. The IP65 rating requires the appropriate plug-socket arrangement.

IN STOCK

FESTO VUVS-L20-M32C-MD-G18-F7-1C1 575274

Contact us for exact-model verification, multiple units and pneumatic component sourcing. Please confirm 24V DC supply, G1/8 ports, operating pressure and electrical connector requirements before ordering.
