ABB 1SFL487002R1311 AF190-30-11-13 AC Contactor
3P | 190A AC-3 | 275A AC-1 | 90kW at 400V | 100–250V AC/DC Coil
| Specification |
Product Data |
| Brand |
ABB |
| Exact Order Code |
1SFL487002R1311 |
| Exact Model |
AF190-30-11-13 |
| Product Range |
AF Contactors |
| Product Series |
AF190 |
| Product Type |
AC Electromagnetic Contactor |
| Number of Main Poles |
3P / 3 Poles |
| Main Contact Configuration |
3 Normally Open (3 NO) |
| Auxiliary Contacts |
1 NO + 1 NC |
| Rated Current (AC-1) |
275 A at 690 V, 40°C |
| AC-1 Current at 690 V / 55°C |
250 A |
| AC-1 Current at 690 V / 70°C |
200 A |
| AC-1 Current at 1000 V / 40°C |
250 A |
| AC-1 Current at 1000 V / 55°C |
225 A |
| Rated Current (AC-3) |
190 A at 380/400 V, 55°C |
| AC-3 Current at 220–240 V |
190 A at 55°C |
| AC-3 Current at 415 V |
190 A at 55°C |
| AC-3 Current at 440 V |
190 A at 55°C |
| AC-3 Current at 690 V |
135 A at 55°C |
| AC-3 Current at 1000 V |
85 A at 55°C |
| Motor Power at 220–240 V |
55 kW (AC-3) |
| Motor Power at 380/400 V |
90 kW (AC-3) |
| Motor Power at 415 V |
90 kW (AC-3) |
| Motor Power at 440 V |
110 kW (AC-3) |
| Motor Power at 690 V |
132 kW (AC-3) |
| Control Coil Voltage |
100–250 V AC/DC |
| AC Control Frequency |
50/60 Hz |
| Electronic Coil Type |
ABB AF Electronic Coil |
| Rated Main Circuit Voltage |
Up to 1000 V AC (IEC) |
| Rated Insulation Voltage (Ui) |
1000 V (IEC) |
| Rated Impulse Withstand Voltage (Uimp) |
8 kV |
| Conventional Free-Air Thermal Current |
275 A at 40°C |
| Rated Making Capacity (AC-3) |
10 × Ie AC-3 |
| Rated Breaking Capacity (AC-3) |
8 × Ie AC-3 |
| Short-Time Withstand Current |
1900 A / 1 s (40°C) |
| Mechanical Durability |
5 Million Cycles |
| Maximum Mechanical Switching Frequency |
300 Cycles/Hour |

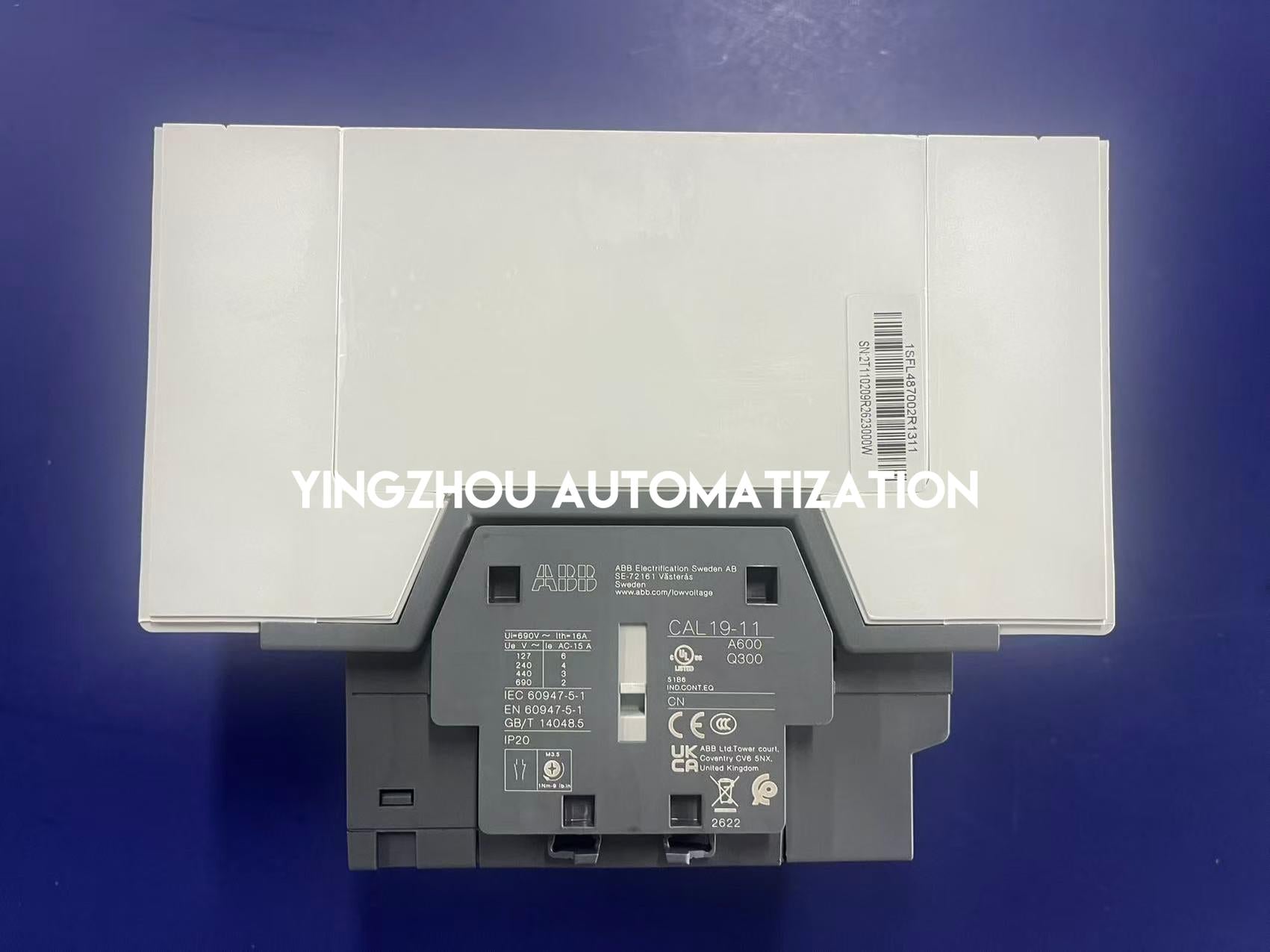

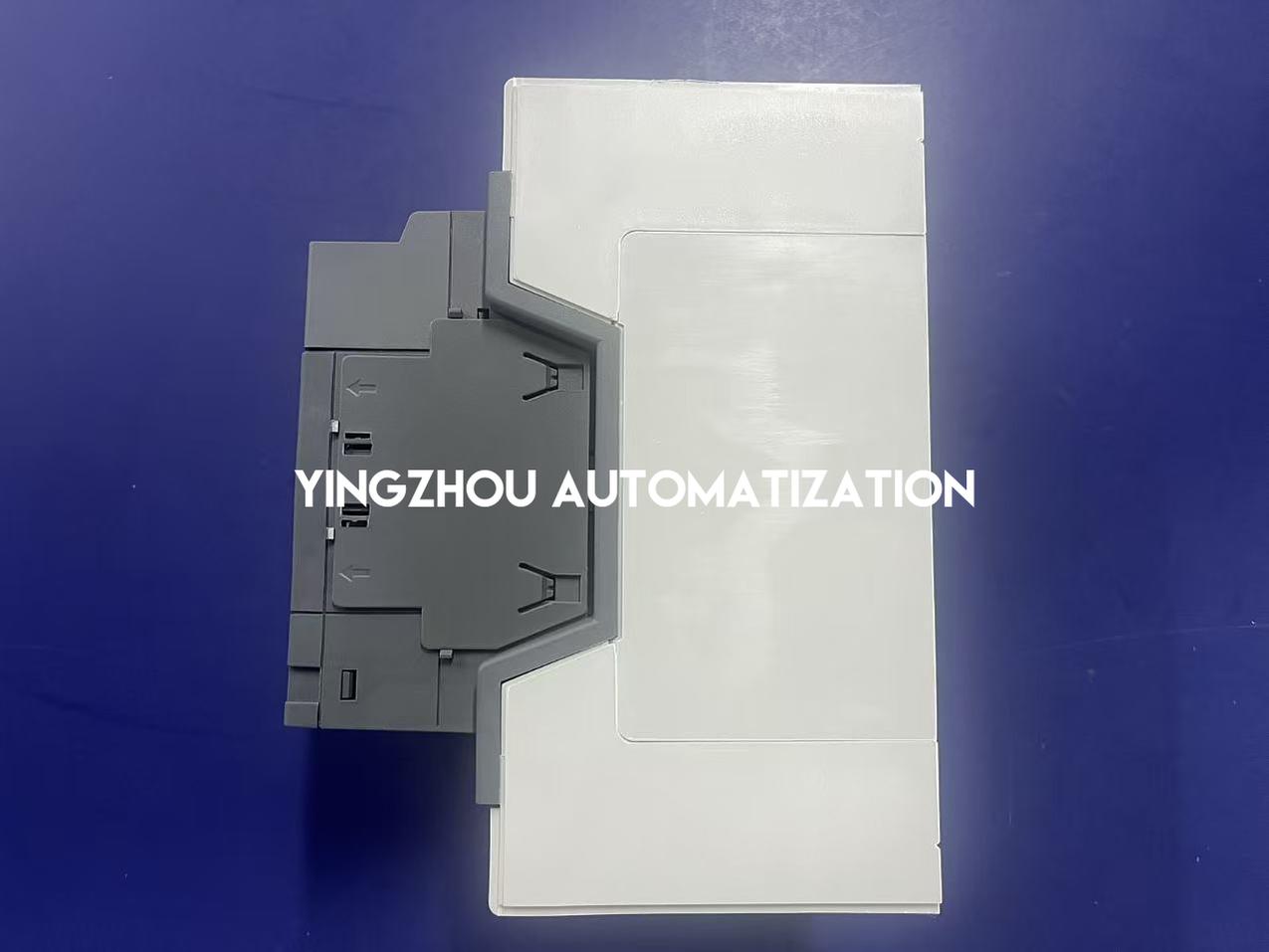

| Auxiliary Contact Block Marking |
CAL19-11 (Actual Photo) |

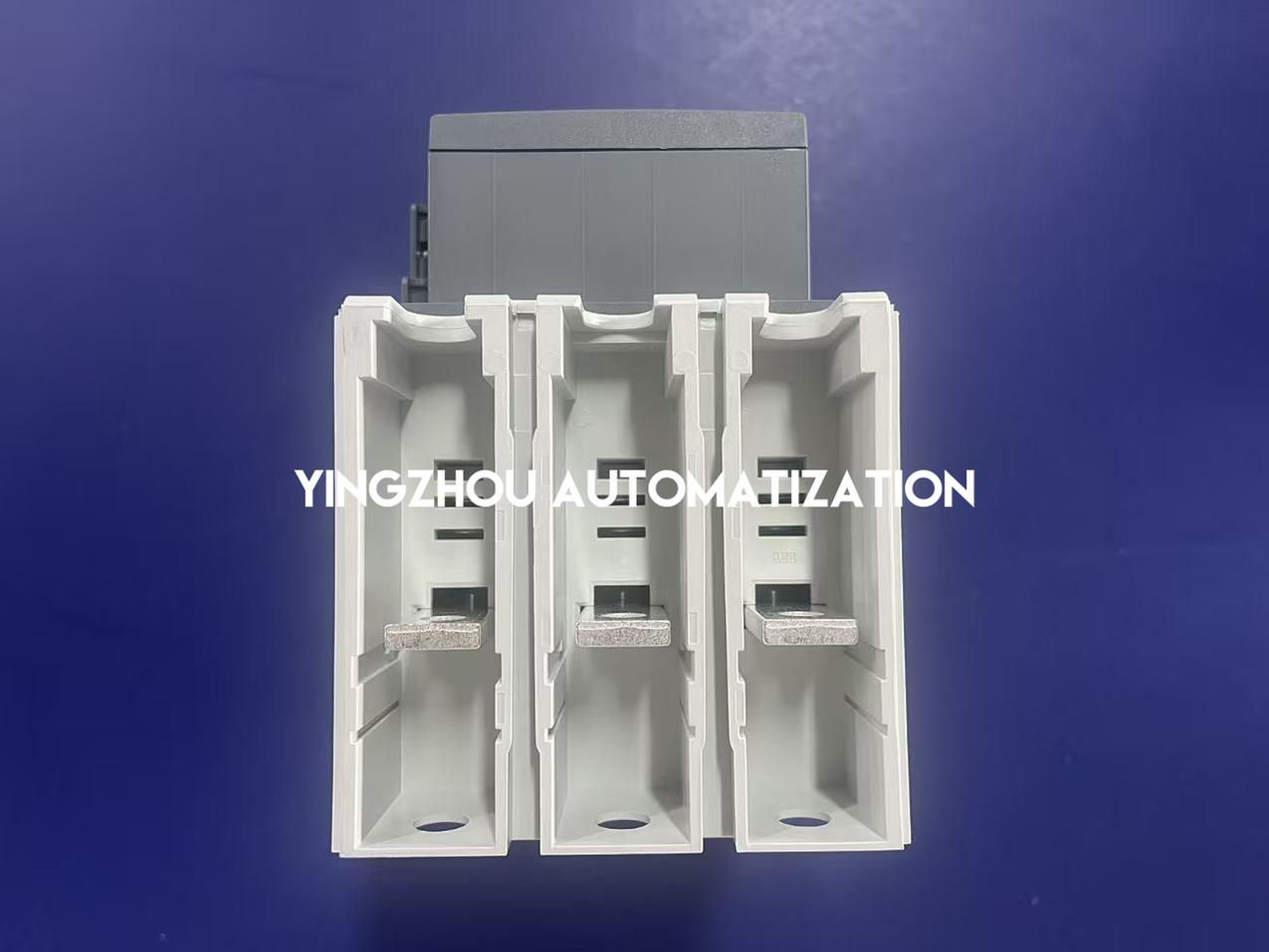

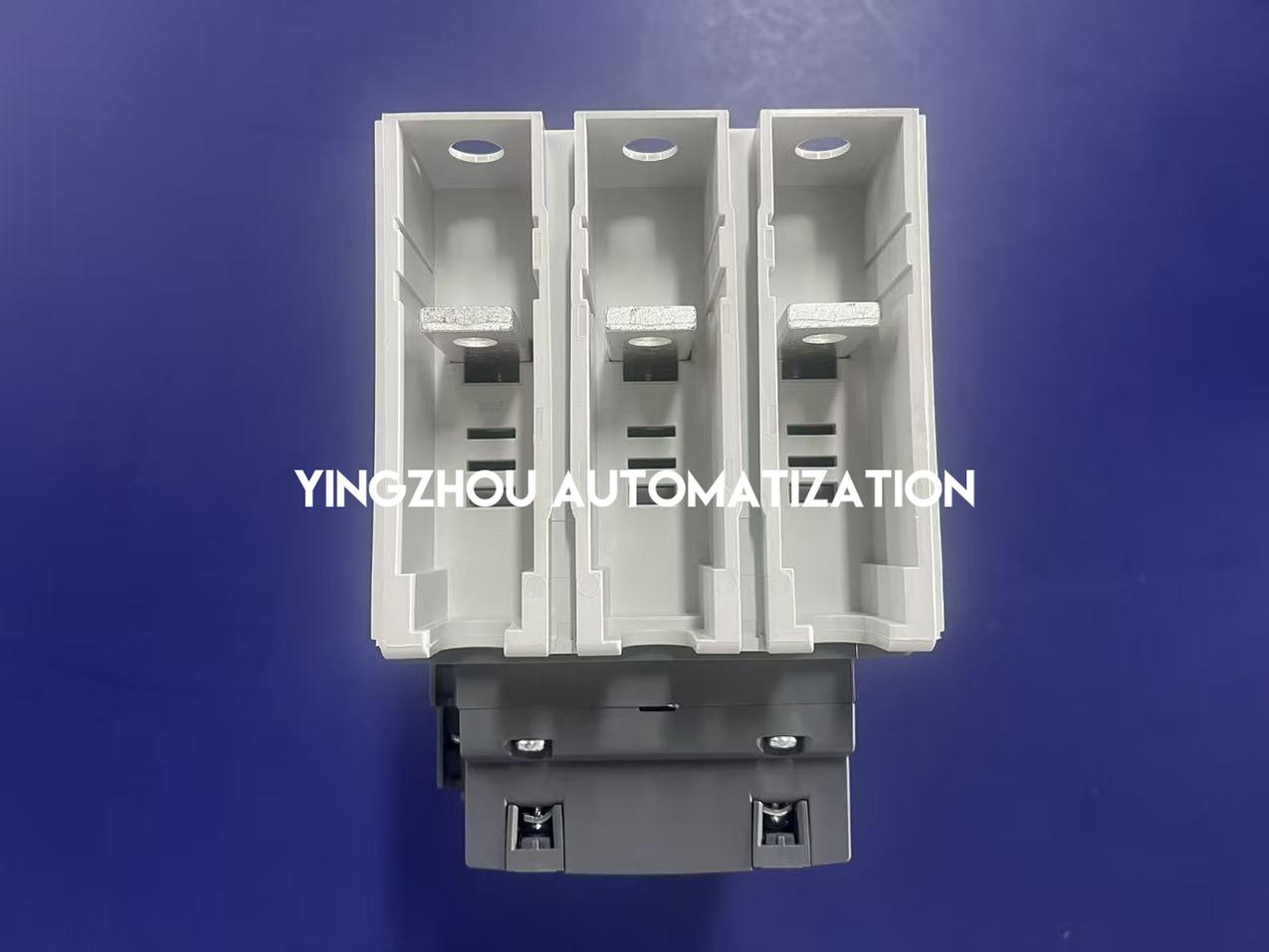

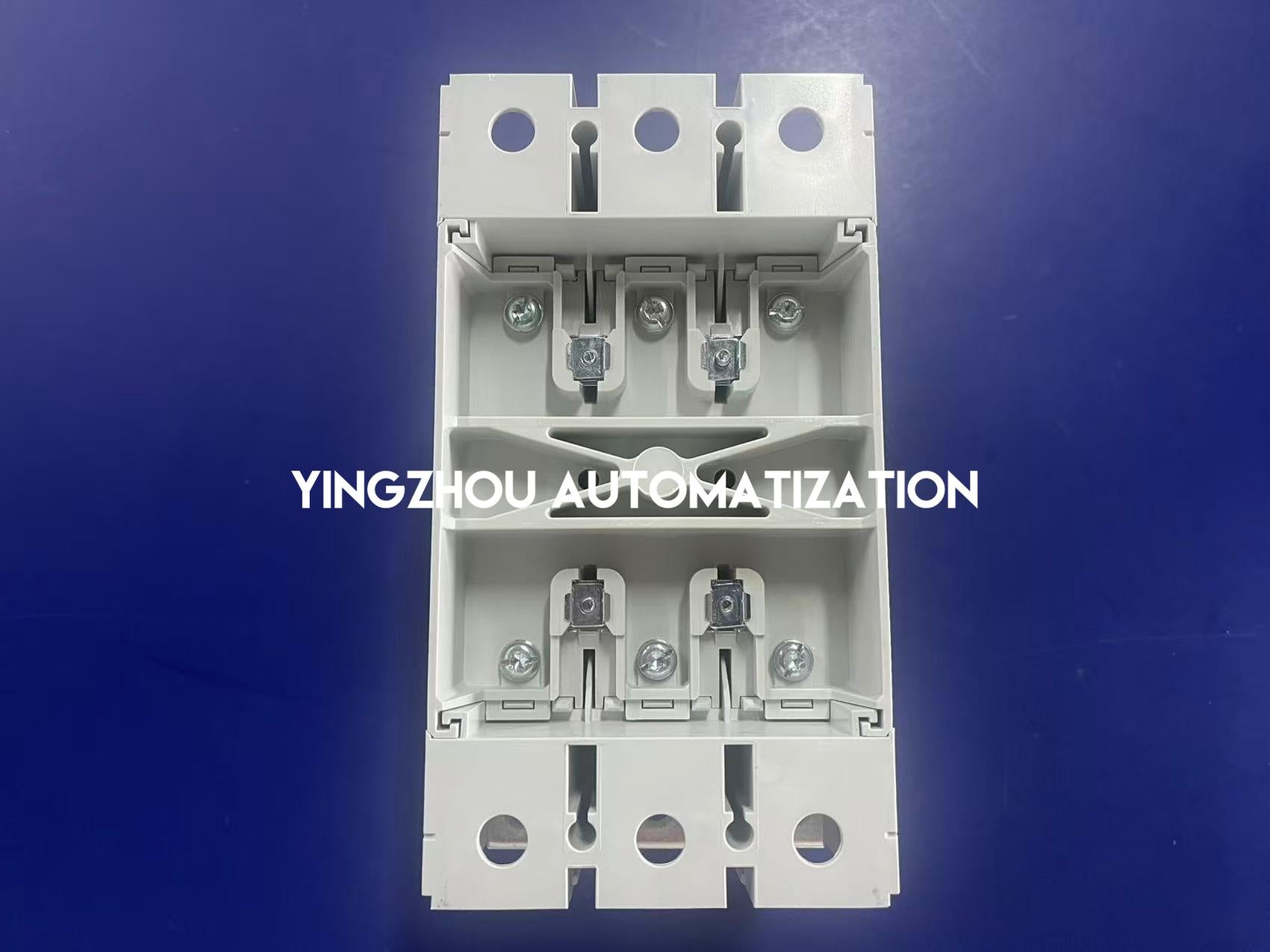

| Main Terminal Type |
Bars |
| Protection — Coil Terminals |
IP20 |
| Protection — Main Terminals |
IP00 |
| Dimensions (W × H × D) |
105 × 196 × 152 mm |
| Product Net Weight |
2.4 kg |
| Applicable Standard |
IEC/EN 60947-4-1 |
| Country of Manufacture |
China (Photo Verified) |
Product Overview
The ABB 1SFL487002R1311,
model AF190-30-11-13,
is a three-pole AC electromagnetic contactor
from the ABB AF Series.
It features three normally open main contacts,
a 190 A AC-3 rated operational current
at 380/400 V and 55°C, and a
275 A AC-1 rated operational current
at 690 V and 40°C.
The contactor is rated for
90 kW motor power at 380/400 V
under AC-3 conditions.
It uses a 100–250 V AC/DC electronic control coil
and includes 1 NO + 1 NC auxiliary contacts
for industrial motor control and power switching applications.
Key Product Features
-
190 A AC-3 rated operational current at 380/400 V and 55°C
-
275 A AC-1 rated operational current at 690 V and 40°C
-
90 kW at 400 V motor power rating under AC-3
-
100–250 V AC/DC electronic control coil
-
3 normally open main contacts for three-phase switching
-
1 NO + 1 NC auxiliary contacts for control circuit connections
-
1000 V IEC insulation rating and 8 kV impulse withstand voltage

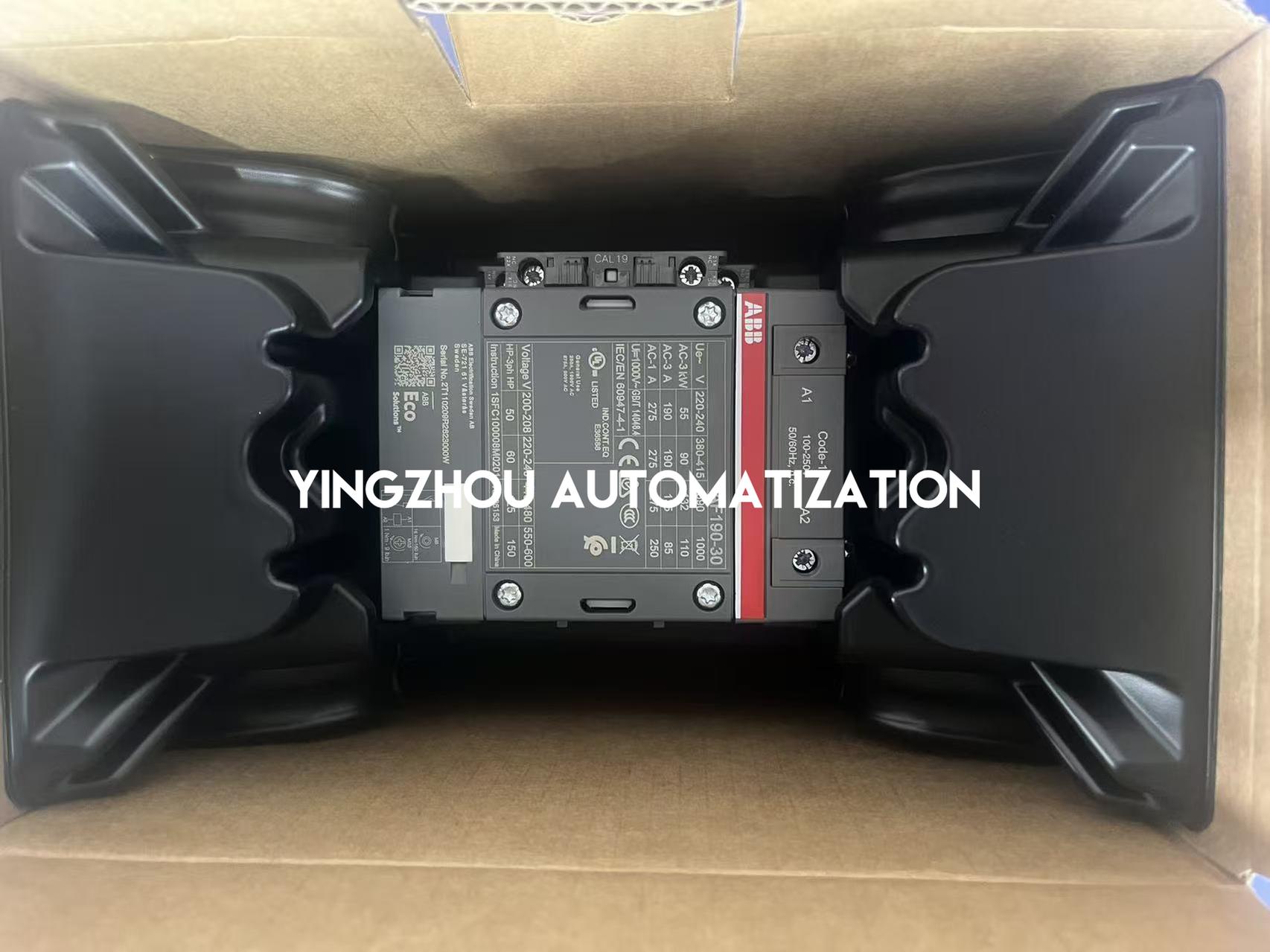

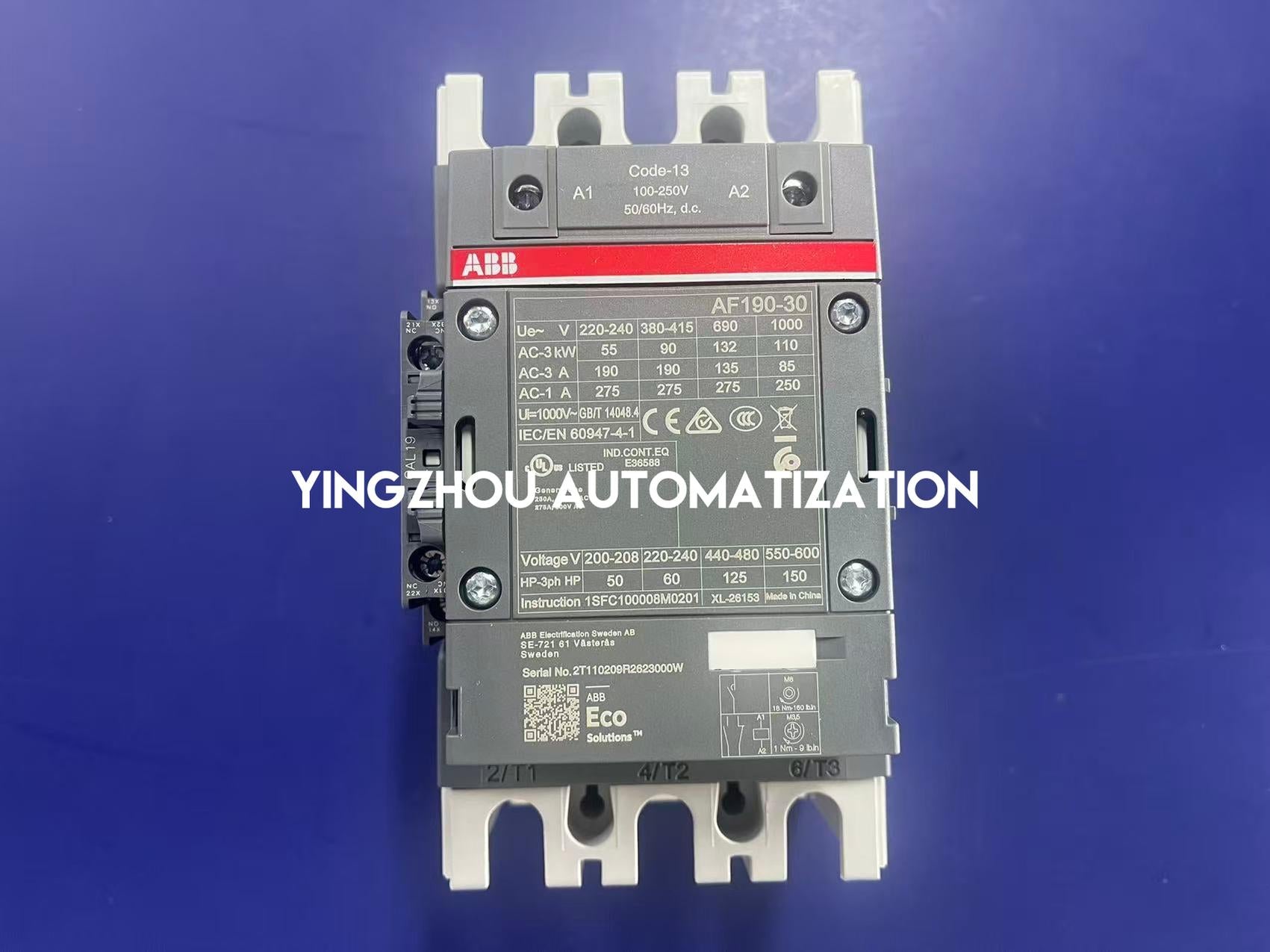

Actual Product Verification
✓
Actual product photos
✓
Model/nameplate visible
✓
Packaging shown
✓
Verify exact model AF190-30-11-13
and order code 1SFL487002R1311 before ordering
In Stock & Ready to Order
ABB 1SFL487002R1311,
model AF190-30-11-13,
is currently in stock.
Actual product photos, contactor nameplate details
and original packaging are available for
exact-model verification.
Please confirm the required
three-pole configuration, 190 A AC-3
motor rating, 275 A AC-1 rating,
control coil voltage, auxiliary contact
arrangement and motor load conditions
before ordering.
