Schneider NSC100S3060N Osmart 60A 3P 18kA 380V Thermal Magnetic MCCB
Schneider NSC100S3060N Osmart 60A 3P 18kA 380V Thermal Magnetic MCCB
No se pudo cargar la disponibilidad de retiro
Schneider NSC100S3060N Osmart NSC Circuit Breaker
| Specification | Verified Product Data |
|---|---|
| Manufacturer | Schneider Electric |
| Catalog Number | NSC100S3060N |
| Product Family | Osmart NSC |
| Device Short Name | NSC100S |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Device Application | Electrical Distribution Protection |
| Frame Rated Current | 100 A |
| Rated Current (In) | 60 A |
| Number of Poles | 3P (Three Pole) |
| Protected Poles | 3D |
| Trip Unit Name | TM60D |
| Trip Unit Technology | Thermal-Magnetic |
| Protection Functions | Overload and Short Circuit |
| Network Type | AC |
| Network Frequency | 50/60 Hz |
| Breaking Capacity Icu @ 220/240V AC | 25 kA |
| Breaking Capacity Icu @ 380V AC | 18 kA |
| Breaking Capacity Icu @ 400V AC | 15 kA |
| Service Breaking Capacity Ratio | Ics = 50% of Icu (NSC100S Catalog Specification) |
| Rated Insulation Voltage (Ui) | 690 V (NSC Series Catalog) |
| Rated Impulse Withstand Voltage | 6 kV (NSC Series Catalog) |
| Mounting Type | Fixed |
| Mounting Support | Backplate |
| Upper Power Connection | Front |
| Lower Power Connection | Front |
| Operating Mechanism | Manual Toggle |
| Applicable Standard | GB/T 14048.2 / IEC 60947-2 Family |
| Packaging Quantity | 1 Piece |
| Packaging Barcode | 3606489430634 |
Product Overview

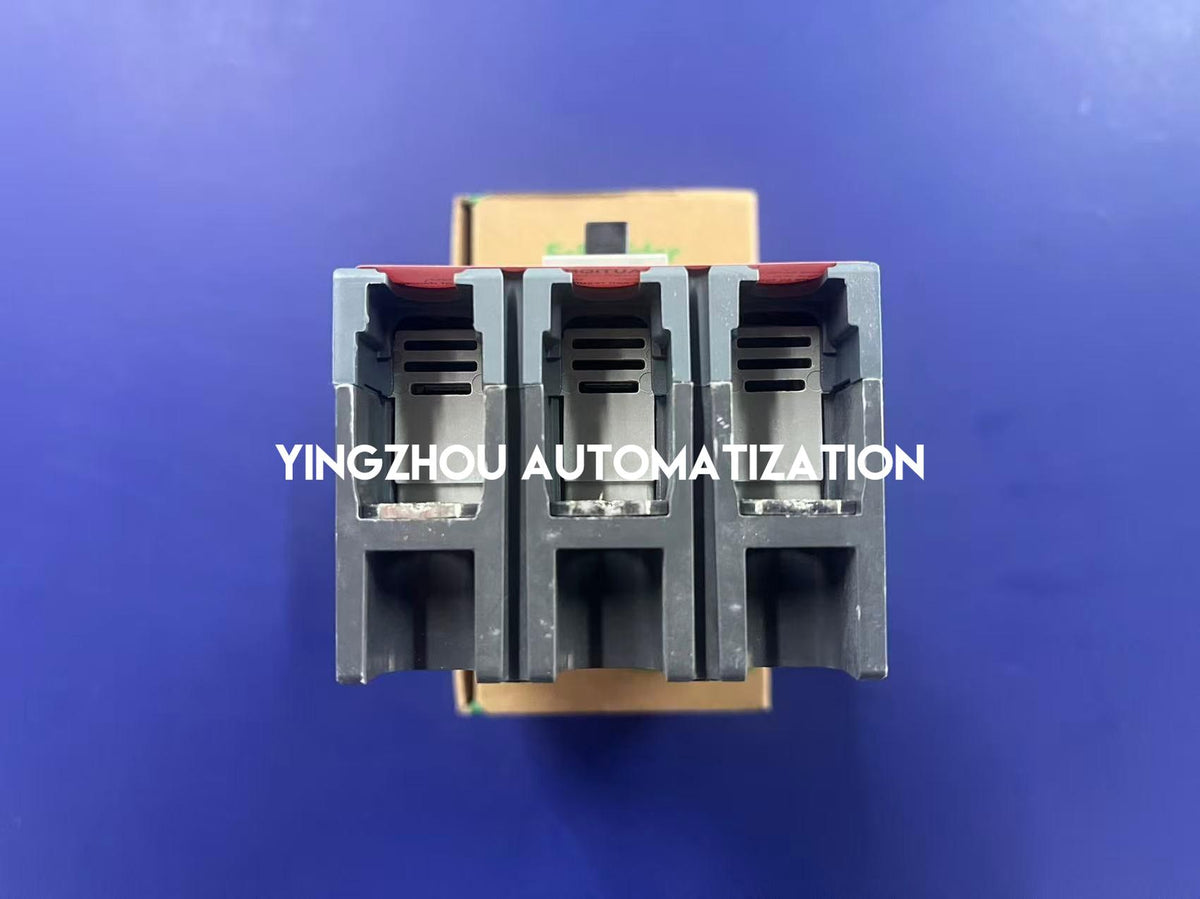

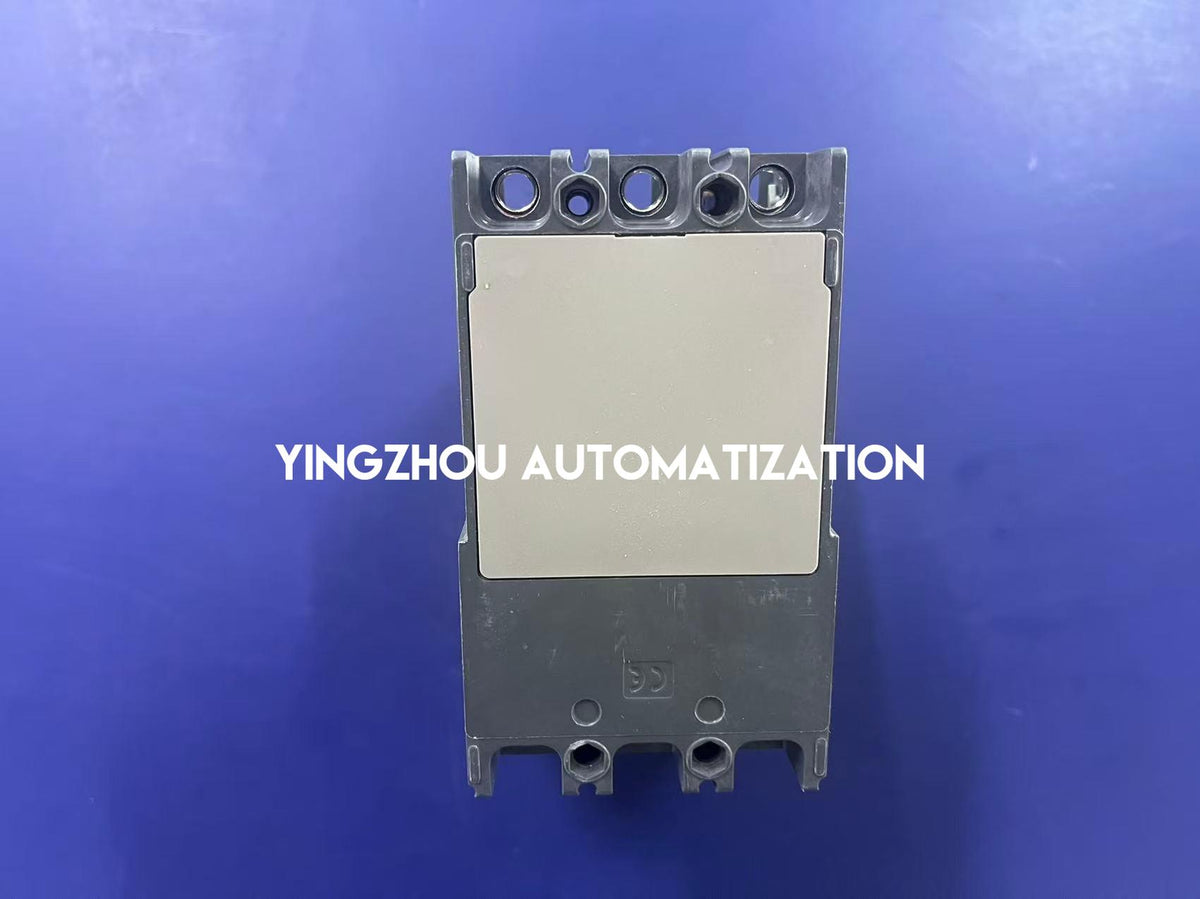

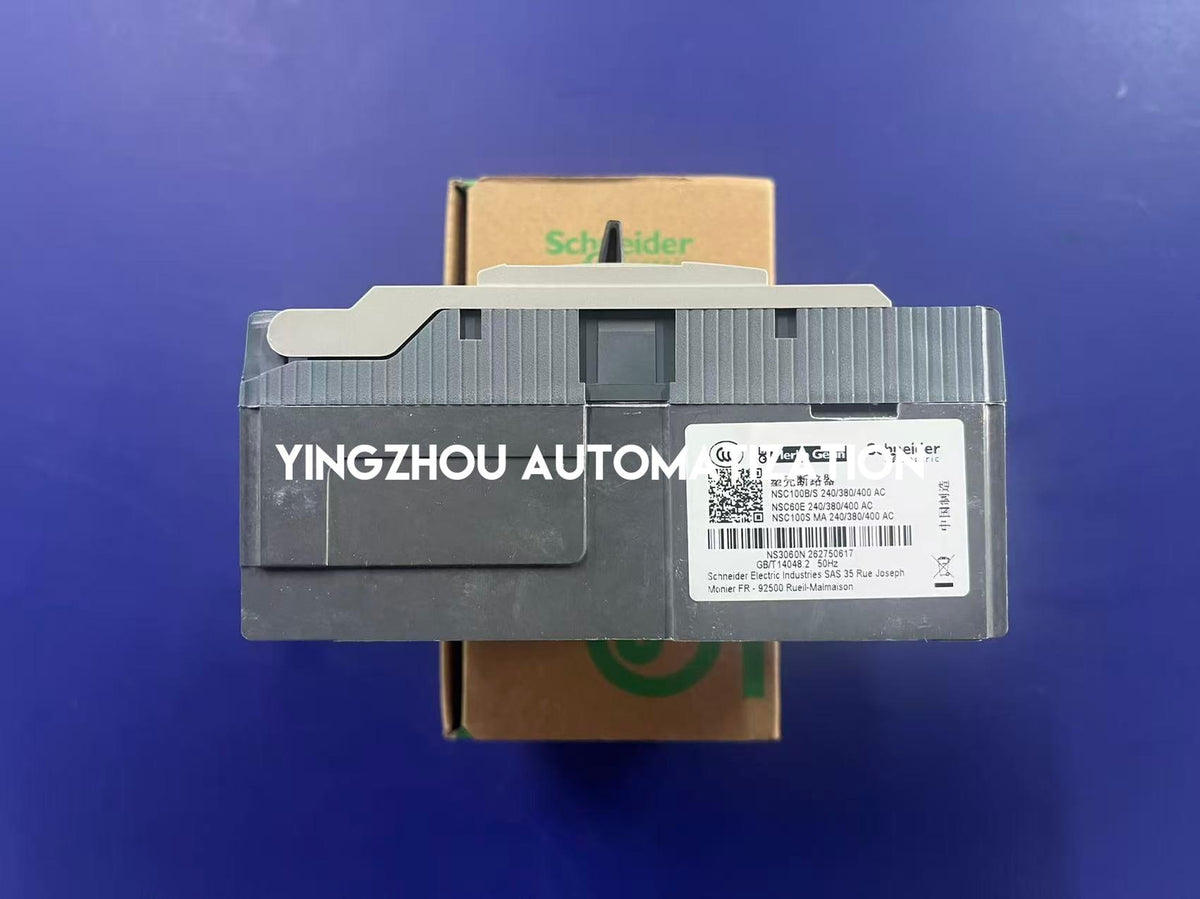

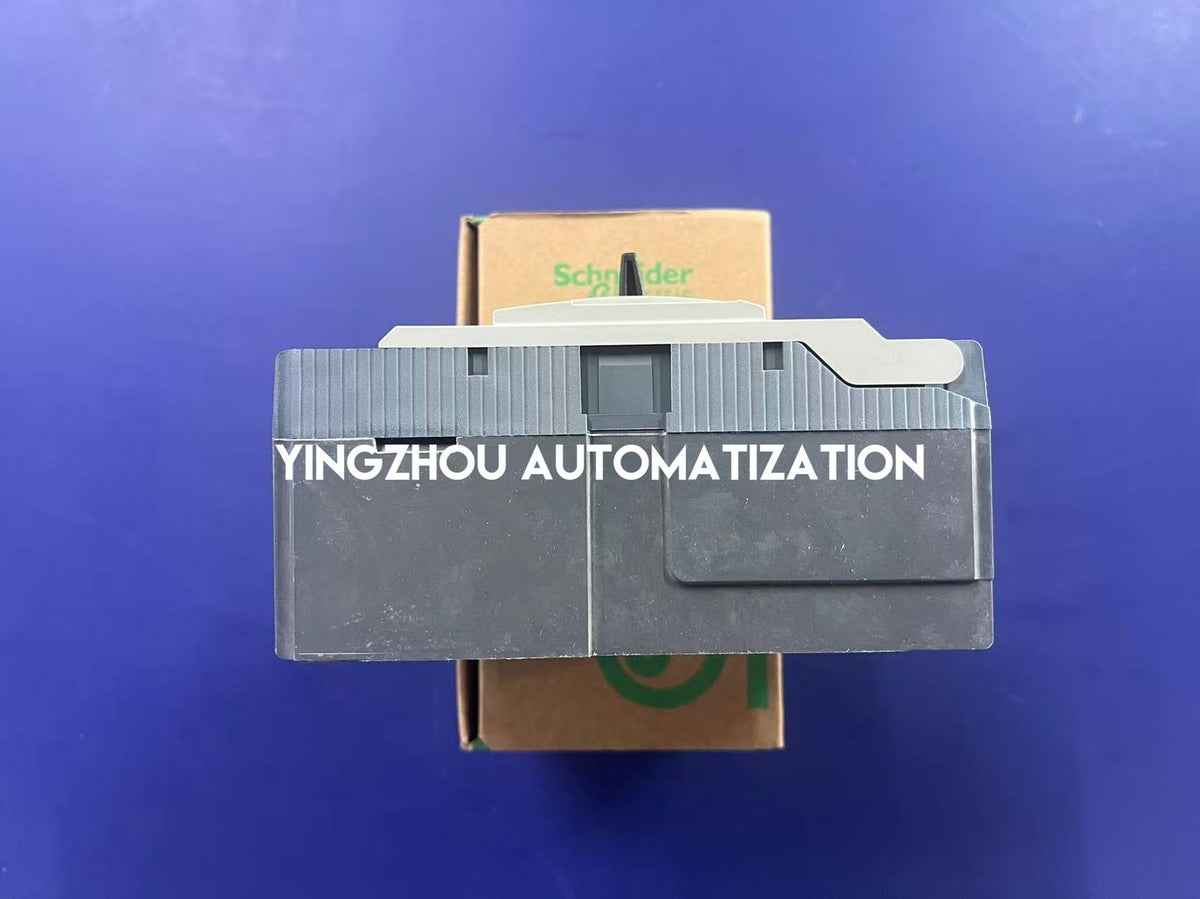

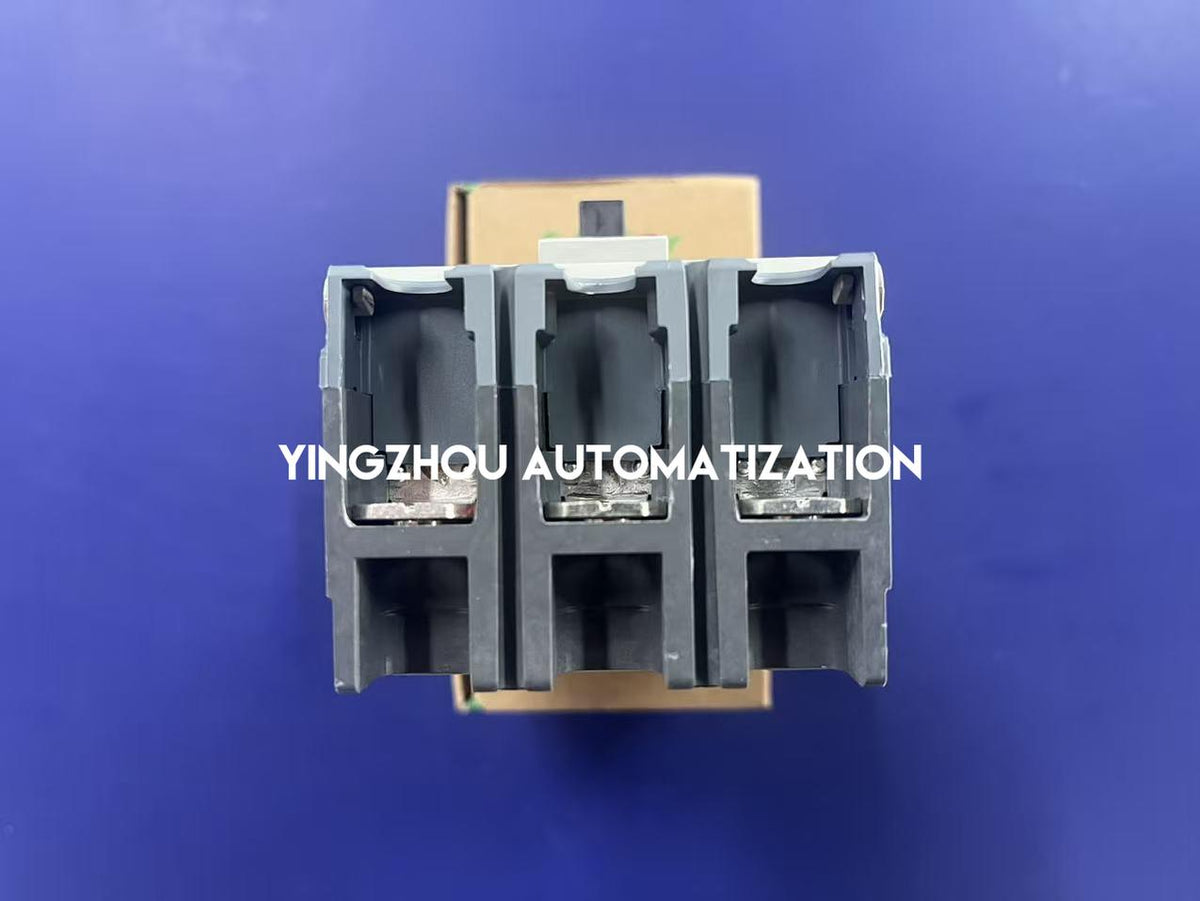

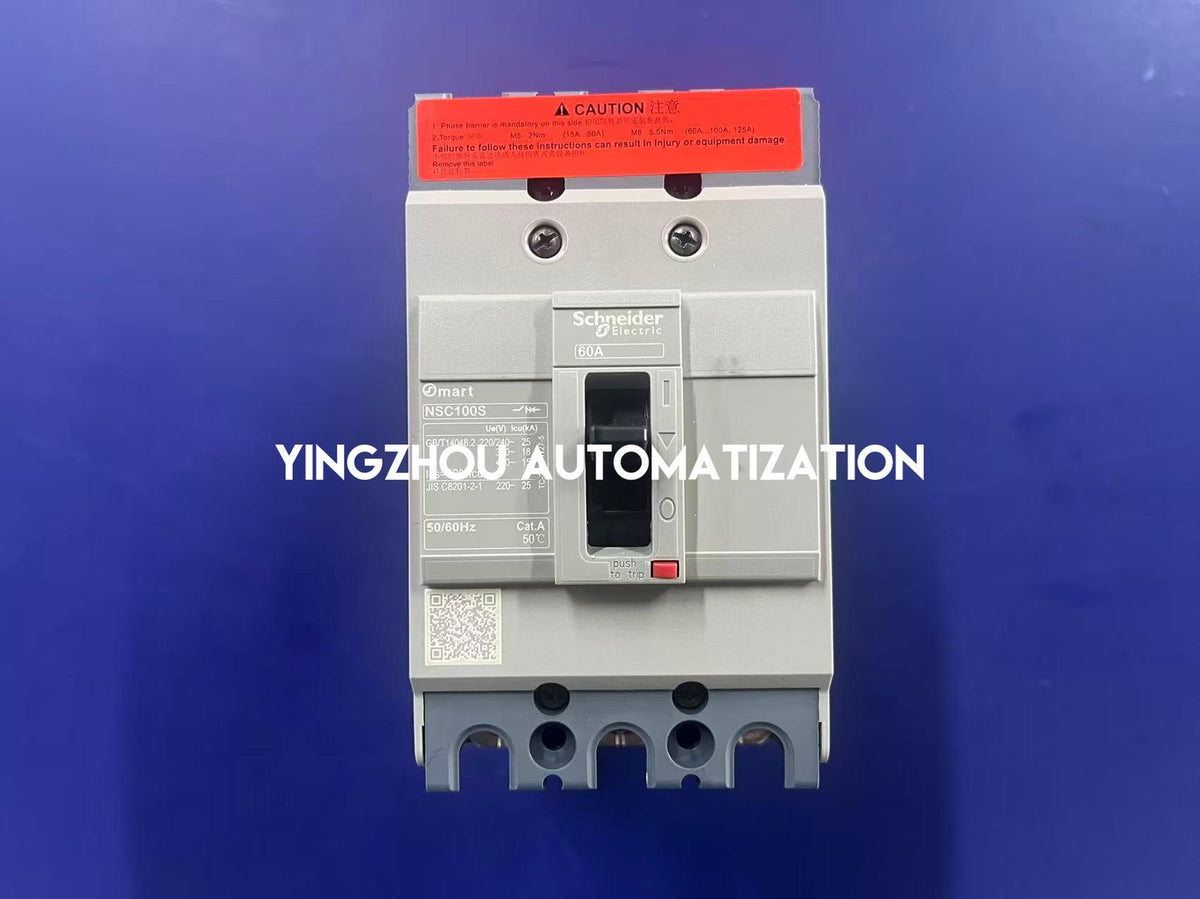

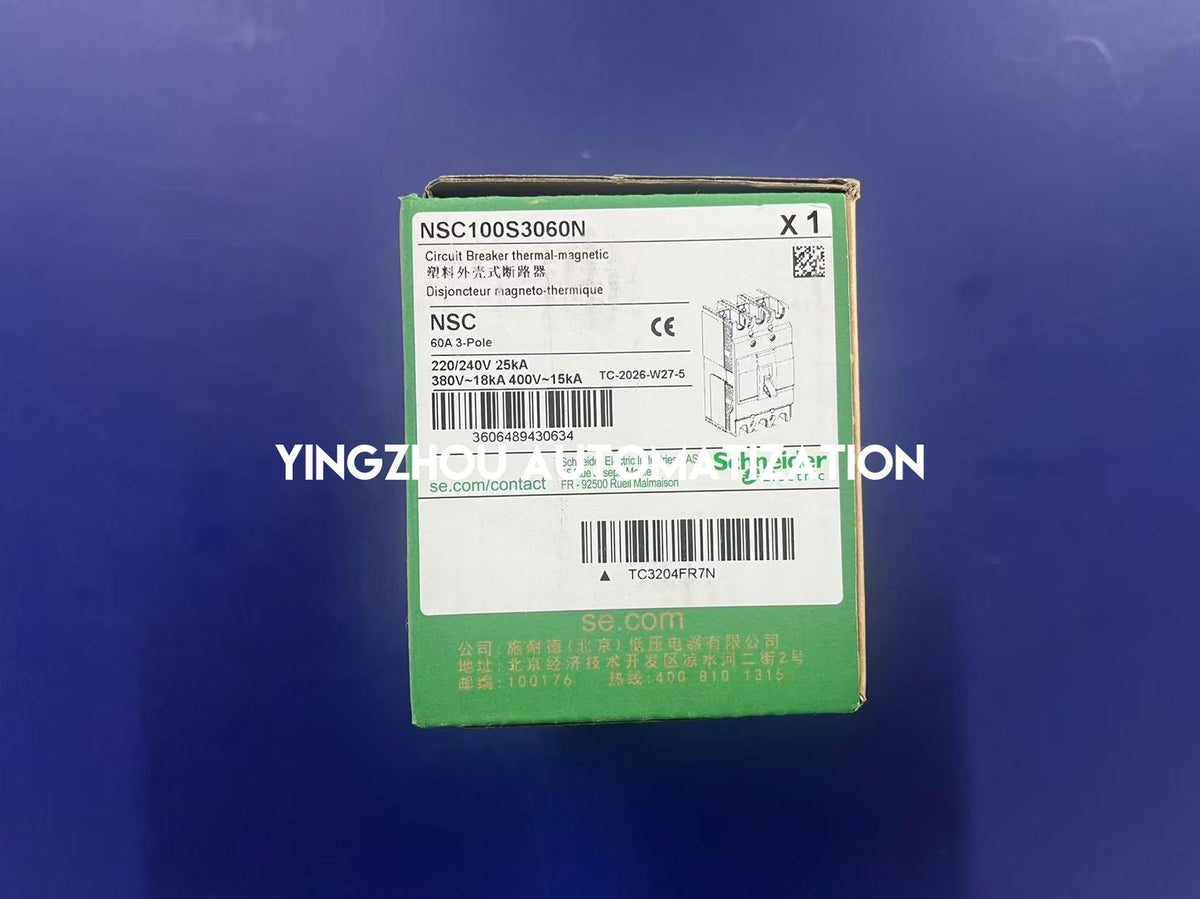

The Schneider Electric NSC100S3060N is an Osmart NSC100S molded case circuit breaker (MCCB) designed for electrical distribution protection. It is a three-pole, three-protected-pole (3P/3D) circuit breaker equipped with a TM60D thermal-magnetic trip unit. The breaker has a 60 A rated current within a 100 A frame class and provides overload and short-circuit protection. Its rated ultimate short-circuit breaking capacity (Icu) depends on the circuit operating voltage: 25 kA at 220/240 V AC, 18 kA at 380 V AC and 15 kA at 400 V AC, according to the supplied exact-model packaging. These values are not interchangeable and must be matched to the installation voltage and prospective fault current. The NSC100S family has a manufacturer-catalog service breaking capacity ratio of Ics = 50% of Icu. The circuit breaker is designed for fixed mounting with front electrical connections. Actual photographs show an original carton marked NSC100S3060N and an ABB-independent Schneider Electric breaker housing bearing Schneider Electric / Merlin Gerin branding and NSC family information. The full unit catalog number is not clearly visible in the photographs, so exact-unit identification should be confirmed before shipment.
Key Product Features
- Osmart NSC100S Circuit Breaker — Schneider Electric molded case circuit breaker for electrical distribution applications.
- 60 A Rated Current — TM60D thermal-magnetic trip configuration in a 100 A frame class.
- 3P / 3D Configuration — Three-pole construction with three protected poles.
- 18 kA Breaking Capacity at 380 V AC — Rated Icu for the specified voltage condition.
- 15 kA Breaking Capacity at 400 V AC — Separately specified ultimate breaking capacity for 400 V systems.
- 25 kA Breaking Capacity at 220/240 V AC — Ultimate short-circuit breaking capacity under the specified voltage conditions.
- Thermal-Magnetic Protection — Overload and short-circuit protective functions.
- Fixed Installation — Backplate mounting with front electrical connections.
- Exact-Model Packaging Verification — Supplied carton identifies NSC100S3060N and the rated voltage-dependent breaking capacities.
Actual Product Verification
In Stock & Available to Order
Schneider Electric NSC100S3060N is marked in stock based on YINGZHOU inventory information. Actual circuit breaker and packaging photographs are available for procurement verification. This Osmart NSC100S thermal-magnetic MCCB is specified for 60 A operation with a 3P/3D configuration and a TM60D trip unit. Its short-circuit breaking capacity varies with the application voltage, including 18 kA at 380 V AC and 15 kA at 400 V AC. For electrical maintenance, distribution panel replacement, bulk purchasing or project sourcing, please confirm the exact unit marking, installation voltage, prospective fault current, quantity and dispatch arrangements before ordering.
Schneider NSC100S3060N
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 60A TM60D trip rating, 3P/3D configuration, voltage-dependent breaking capacity and installation requirements before ordering.
