Danfoss 131B0077 VLT AutomationDrive FC 302
1.5kW / 2HP | 3-Phase 380-500V | IP20 | A2 Frame
Product Overview
The Danfoss 131B0077
is a VLT AutomationDrive FC 302
AC variable frequency drive designed for
industrial motor speed control and
variable-speed automation applications.
The exact configuration
FC-302P1K5T5E20H2XGXXXXSXXXXAXBXCXXXXDX
identifies a
1.5kW (2HP)
drive with a
three-phase 380-500V AC
mains input.
This configuration uses an
IP20 chassis enclosure
in frame size A2,
intended for suitable industrial
control cabinet installation.
The manufacturer's H2 configuration
specifies an
RFI filter, Class A2 (C3).
The drive is configured without a
brake IGBT and without an additional
A-slot fieldbus option.

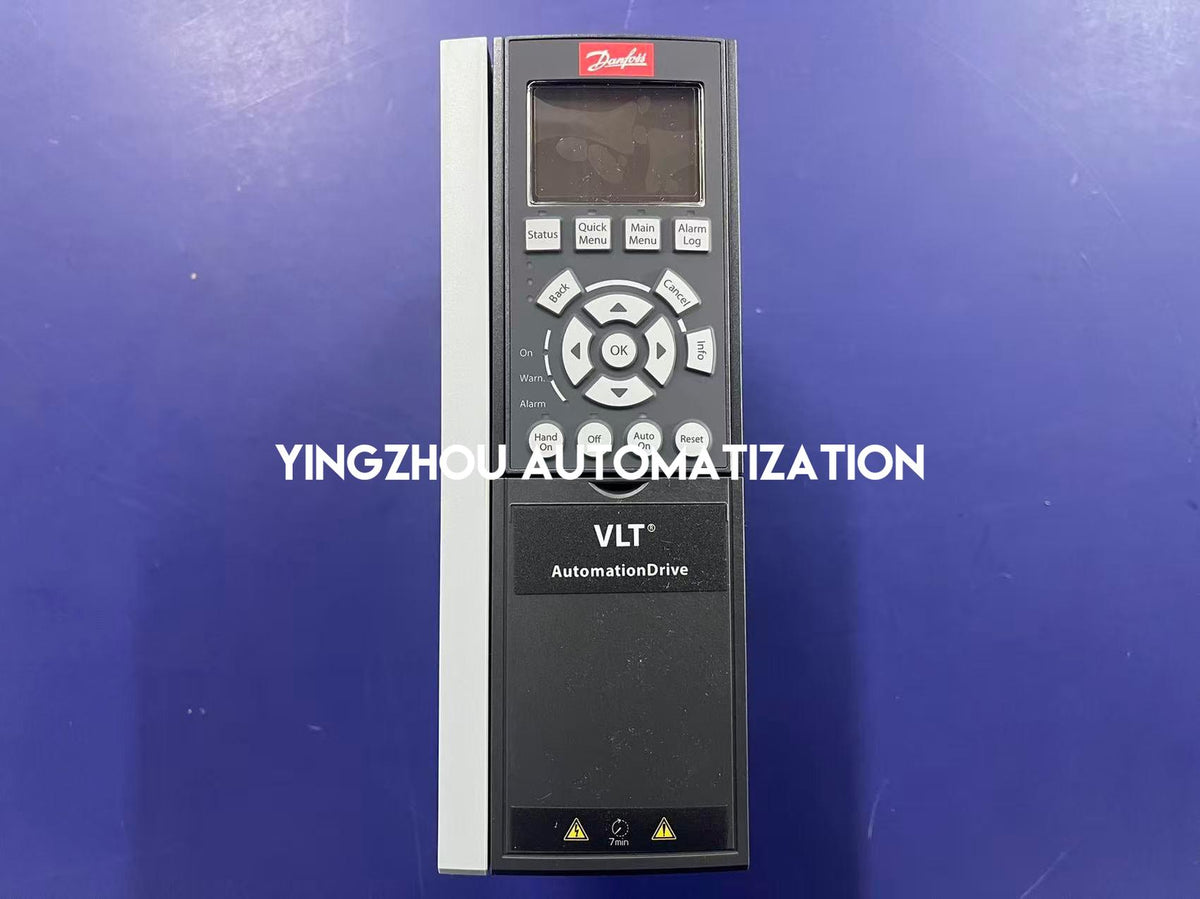

Its graphical LCP configuration code
is G,
corresponding to the Danfoss
LCP 102.
The physical inclusion of the control
panel should be confirmed before shipment.
The manufacturer rating data specifies
4.1A continuous output current
at 380-440V and
3.4A
at 441-500V.

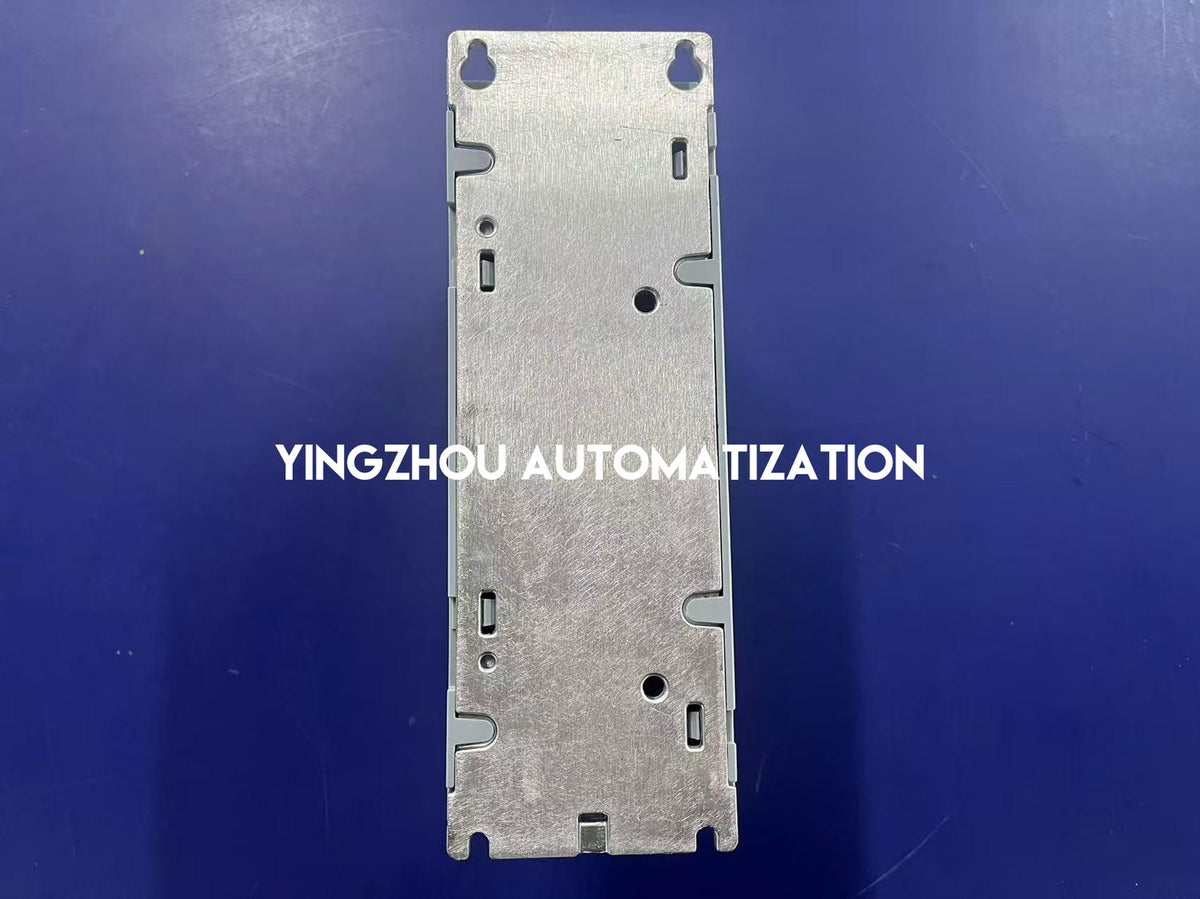

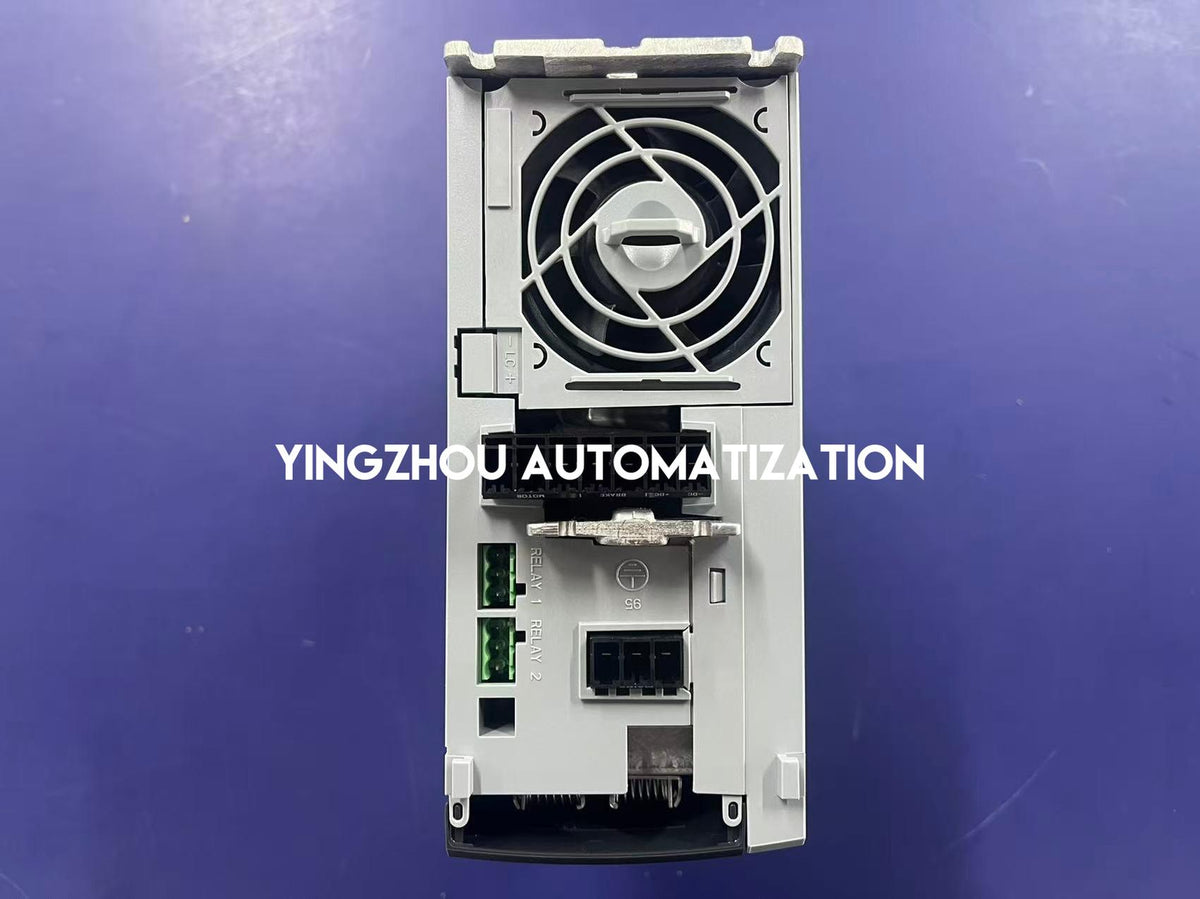

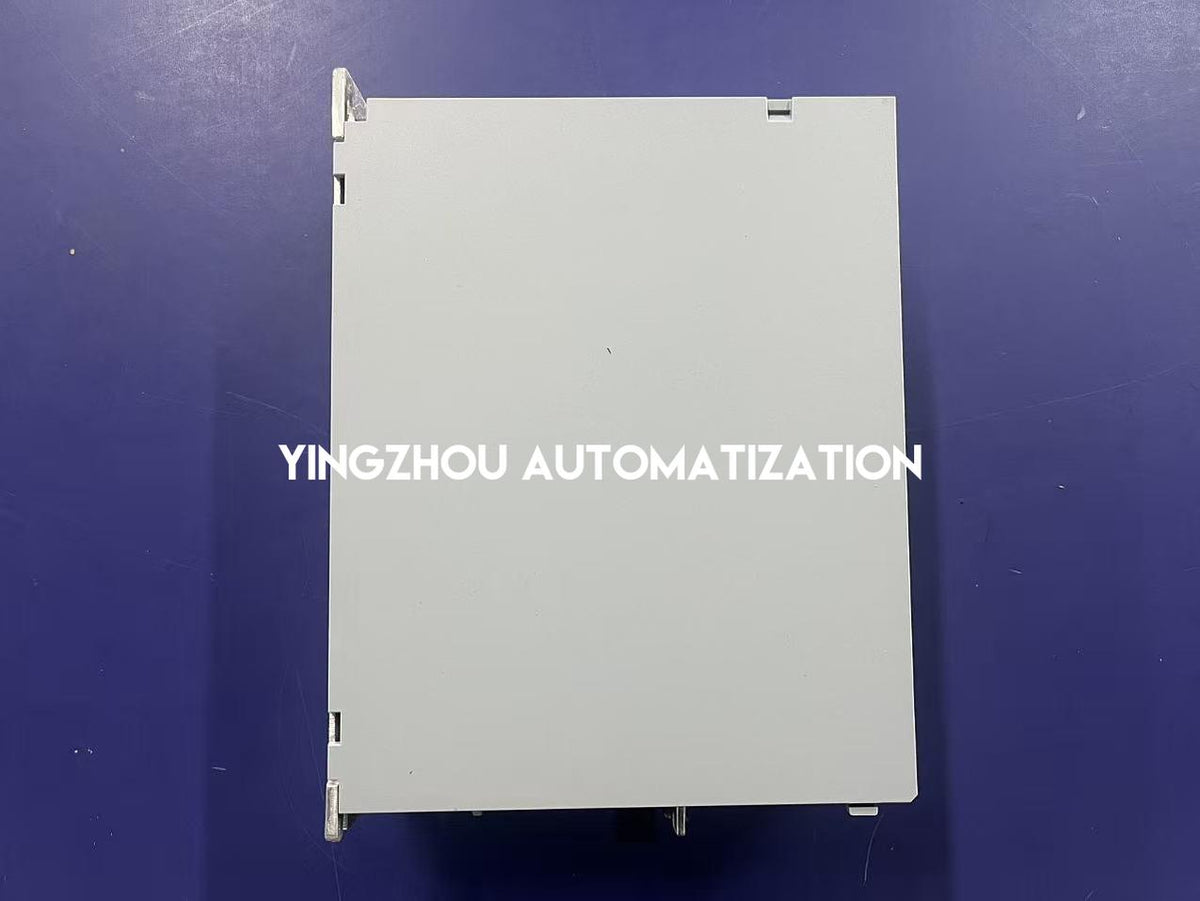

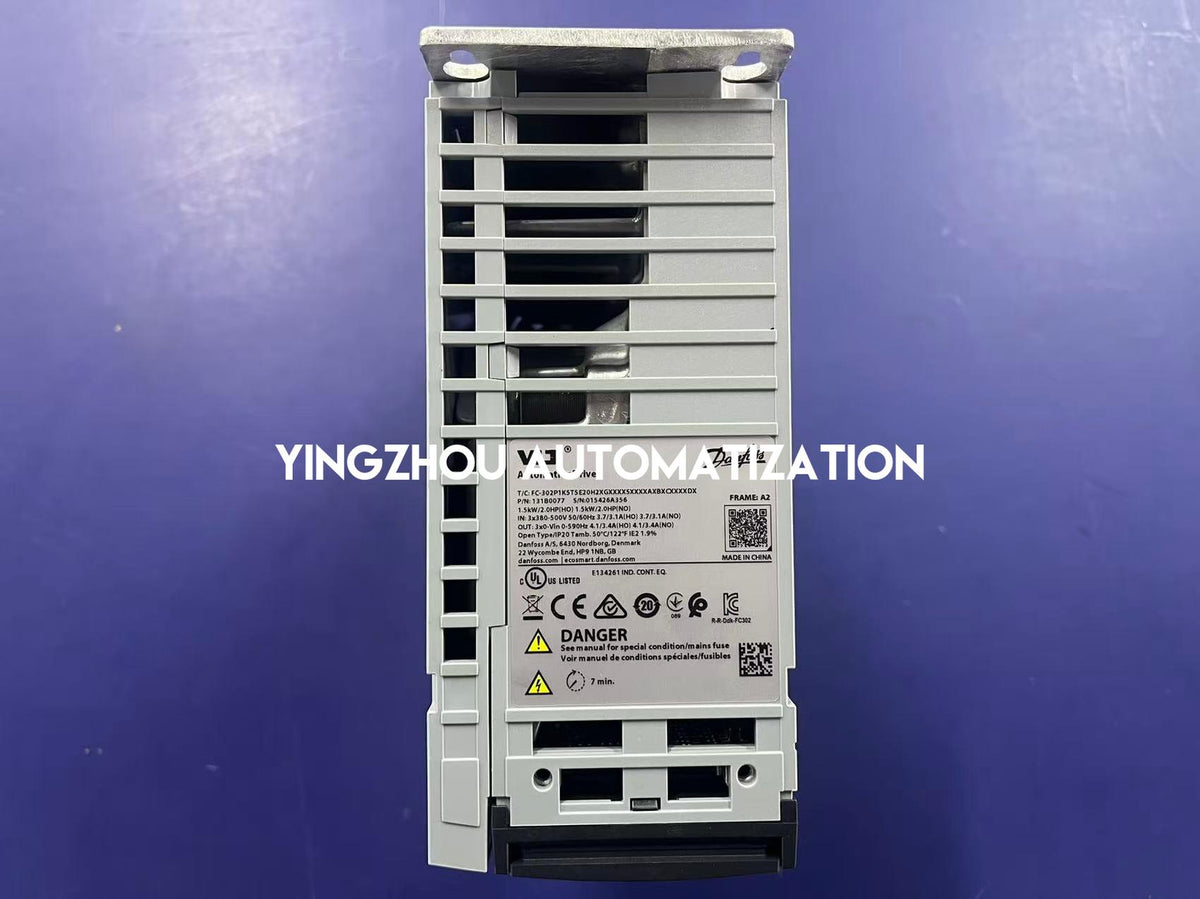

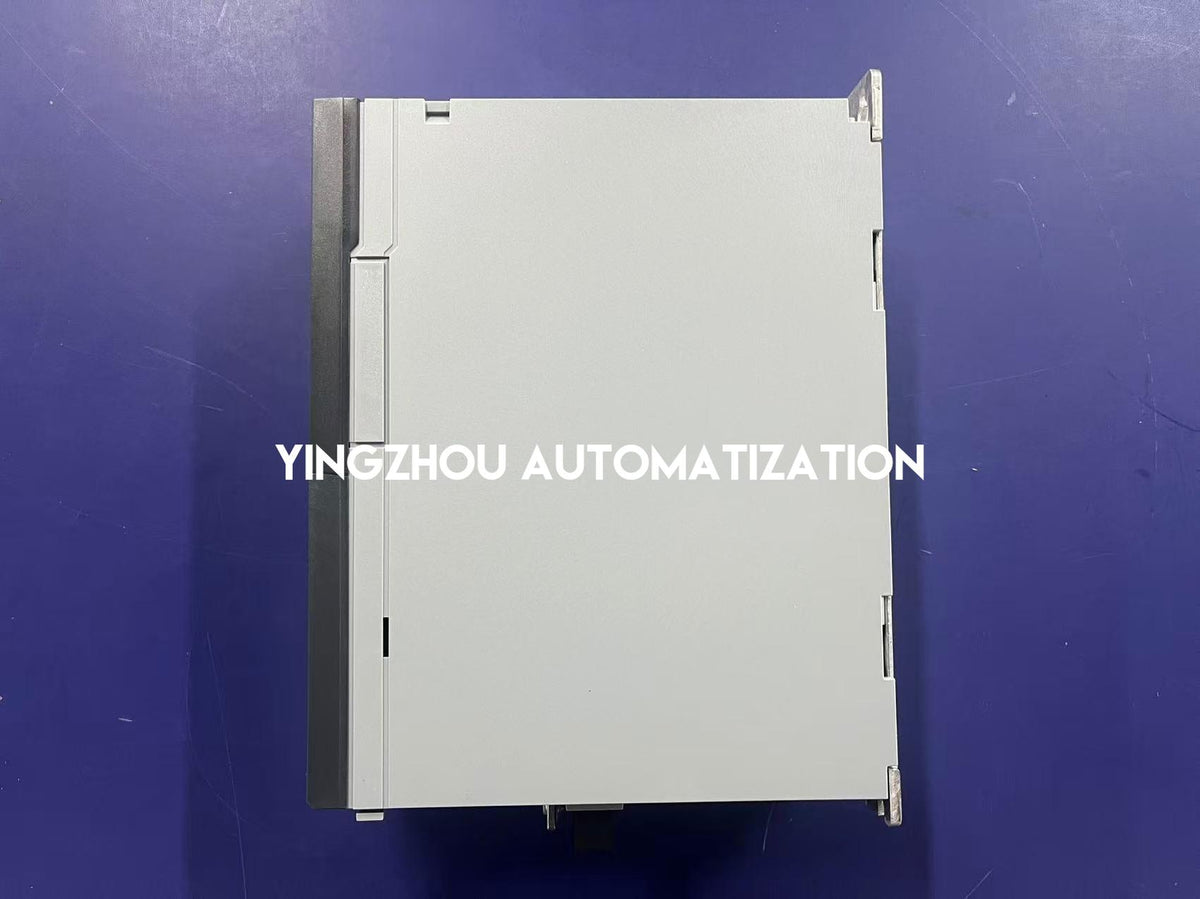

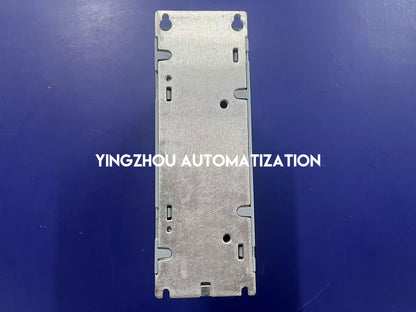

The actual product photographs clearly
show the drive housing and Danfoss
nameplate with part number
131B0077,
rated motor power, voltage, frame size
and full type code.
Before purchasing, please confirm
the complete type code,
required drive configuration,
electrical ratings and control accessories.
Key Product Features
-
Danfoss VLT AutomationDrive FC 302
industrial AC frequency converter
-
1.5kW / 2HP rated power
for the exact P1K5 drive configuration
-
Three-phase 380-500V AC input
with 50/60Hz nameplate rating
-
IP20 chassis design
with compact A2 enclosure size
-
H2 RFI filter configuration
defined as Class A2 (C3)
-
Verified output ratings
of 4.1A / 3.4A according to mains voltage range
-
Exact manufacturer identification
with full type code and part number
-
In stock with actual product photos
showing the housing and identification label
Actual Product Verification
✓
Actual Danfoss FC 302 drive photographs
✓
Manufacturer part number
131B0077
visible on the identification label
✓
Full type code visible for
exact-configuration verification
✓
Nameplate shows 1.5kW,
three-phase 380-500V and IP20
✓

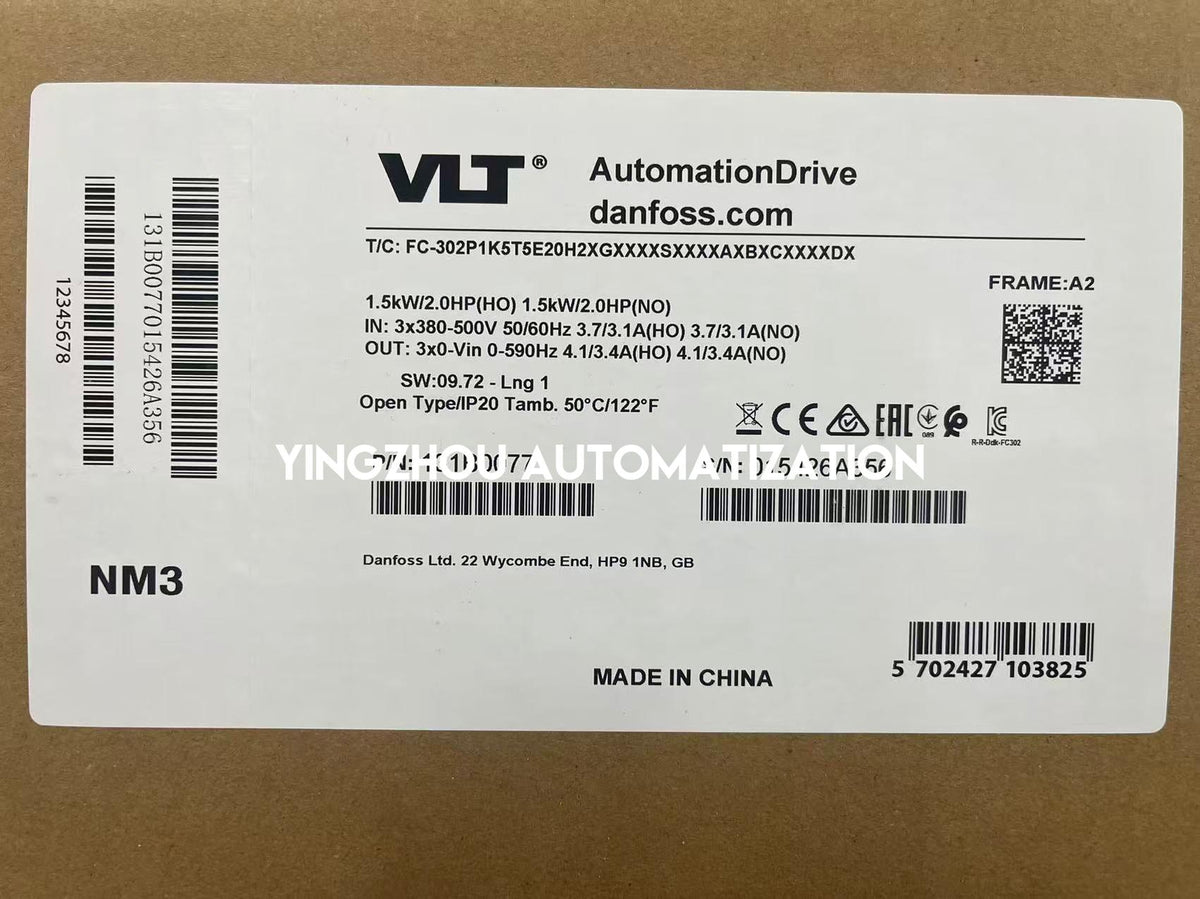

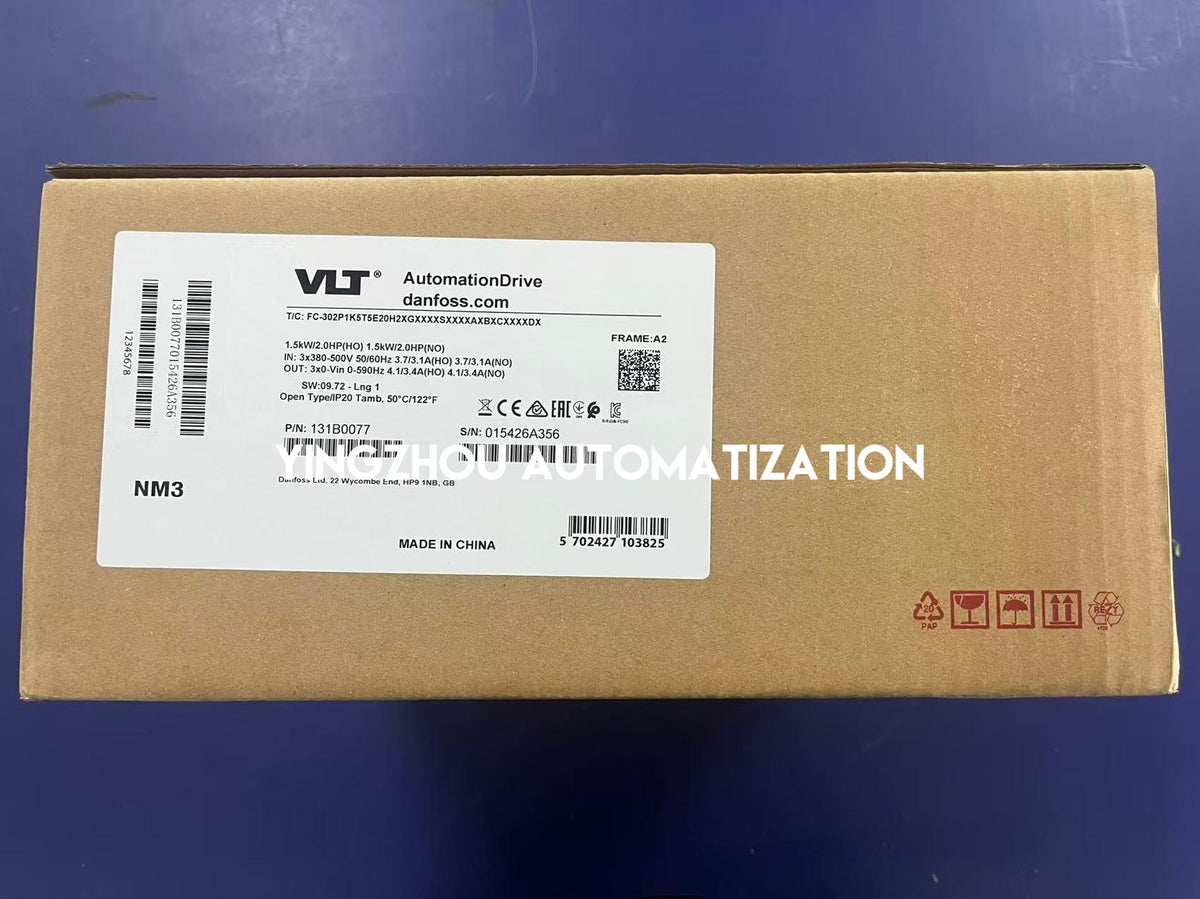

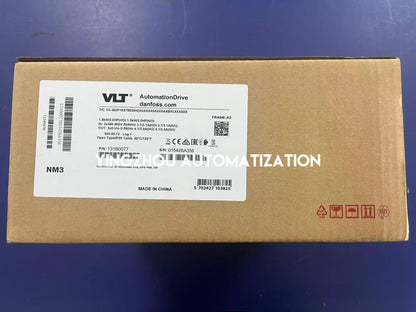

Drive housing and packaging label
photographed
✓
Confirm physical LCP panel,
accessories and exact configuration
before ordering
In Stock - Available for Order
Danfoss 131B0077
VLT AutomationDrive
FC 302 1.5kW
frequency converter is currently
IN STOCK.
YINGZHOU supports individual orders,
replacement drive sourcing,
bulk purchasing enquiries and
consolidated industrial automation
component procurement.
This listing refers specifically to
part number 131B0077
and the complete type code stated above.
Different FC 302 configurations may
contain different EMC filters,
braking arrangements,
local control panels
and fieldbus options.
Please confirm the model,
electrical requirements,
required quantity,
control accessories and
destination country before ordering.
Contact our sales team for current
stock confirmation, order preparation
and international shipping arrangements.
