ABB S201-C6 S200 6A 1P C Curve 6kA 230/400V Miniature Circuit Breaker
ABB S201-C6 S200 6A 1P C Curve 6kA 230/400V Miniature Circuit Breaker
No se pudo cargar la disponibilidad de retiro
ABB S201-C6 S200 Miniature Circuit Breaker
| Specification | Verified Product Data |
|---|---|
| Manufacturer | ABB STOTZ-KONTAKT GmbH |
| Catalog Number | S201-C6 |
| Manufacturer Order Code | 2CDS251001R0064 |
| Product Family | System pro M compact S200 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Number of Poles | 1P (Single Pole) |
| Number of Protected Poles | 1 |
| Rated Current | 6 A |
| Tripping Characteristic | C Curve |
| Rated Voltage Marking | 230/400 V AC |
| Rated Operational Voltage (IEC 60898-1) | 230 V AC (ABB 2026 datasheet) |
| Rated Frequency | 50/60 Hz |
| Short-Circuit Capacity (Icn) | 6 kA at 230/400V AC (IEC/EN 60898-1) |
| Ultimate Breaking Capacity (Icu) @ 133V | 20 kA (IEC/EN 60947-2) |
| Service Breaking Capacity (Ics) @ 133V | 15 kA (IEC/EN 60947-2) |
| Ultimate Breaking Capacity (Icu) @ 230V | 10 kA (IEC/EN 60947-2) |
| Service Breaking Capacity (Ics) @ 230V | 7.5 kA (IEC/EN 60947-2) |
| Rated Insulation Voltage | 440 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Overvoltage Category | III |
| Energy Limiting Class | 3 |
| Mounting Type | DIN Rail (35mm) |
| Protection Mechanism | Thermal-Magnetic |
| Protection Functions | Overload and Short Circuit |
| Degree of Protection | IP20 |
| Tightening Torque | 2.8 N·m |
| Dimensions (H x D x W) | 88 x 69 x 17.5 mm |
| Width in Modules | 1 |
| Operating Temperature | -25°C to +55°C |
| Electrical Endurance | 20,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Power Loss per Pole | 2 W |
| Wire Stripping Length | 12.5 mm |
| Terminal Type | Screw Terminals |
| Applicable Standards | IEC/EN 60898-1, IEC/EN 60947-2 |
| Country of Manufacture | China (actual rear marking) |
| EAN | 4016779464000 |
Product Overview
The ABB S201-C6, manufacturer order code 2CDS251001R0064, is a System pro M compact S200 miniature circuit breaker designed for overload and short-circuit protection in electrical distribution circuits. This single-pole (1P) MCB has a 6 A rated current, C-curve tripping characteristic, and 230/400 V AC product marking. The 2026 ABB product datasheet specifies 230 V AC rated operational voltage under IEC/EN 60898-1; applications must follow the manufacturer's relevant voltage and installation ratings. Its rated short-circuit capacity is 6 kA (Icn) under IEC/EN 60898-1. Under IEC/EN 60947-2, the ultimate breaking capacity (Icu) is 10 kA at 230 V AC, with a service breaking capacity (Ics) of 7.5 kA at 230 V AC. These ratings refer to different standards and test conditions. The ABB S200 series uses thermal-magnetic protection, combining delayed thermal overload tripping and electromagnetic short-circuit tripping. Designed for DIN rail mounting, the breaker has a compact 17.5 mm single-pole width and an IP20 degree of protection. Actual front and rear product photographs confirm the S201-C6 model and 2CDS251001R0064 manufacturer order code.
Key Product Features
- ABB S200 Circuit Breaker — System pro M compact miniature circuit breaker.
- 6 A Rated Current — Single-pole MCB with one protected pole.
- C-Curve Tripping — Thermal-magnetic overload and short-circuit protection.
- 6 kA Breaking Capacity — Rated Icn under IEC/EN 60898-1.
- 10 kA Icu at 230 V AC — Ultimate breaking capacity under IEC/EN 60947-2.
- 230/400 V AC Product Marking — Verify the applicable rated operational voltage for the installation standard.
- Thermal-Magnetic Protection — Separate thermal and electromagnetic tripping mechanisms.
- DIN Rail Mounting — Compact 17.5 mm single-pole width for modular distribution assemblies.

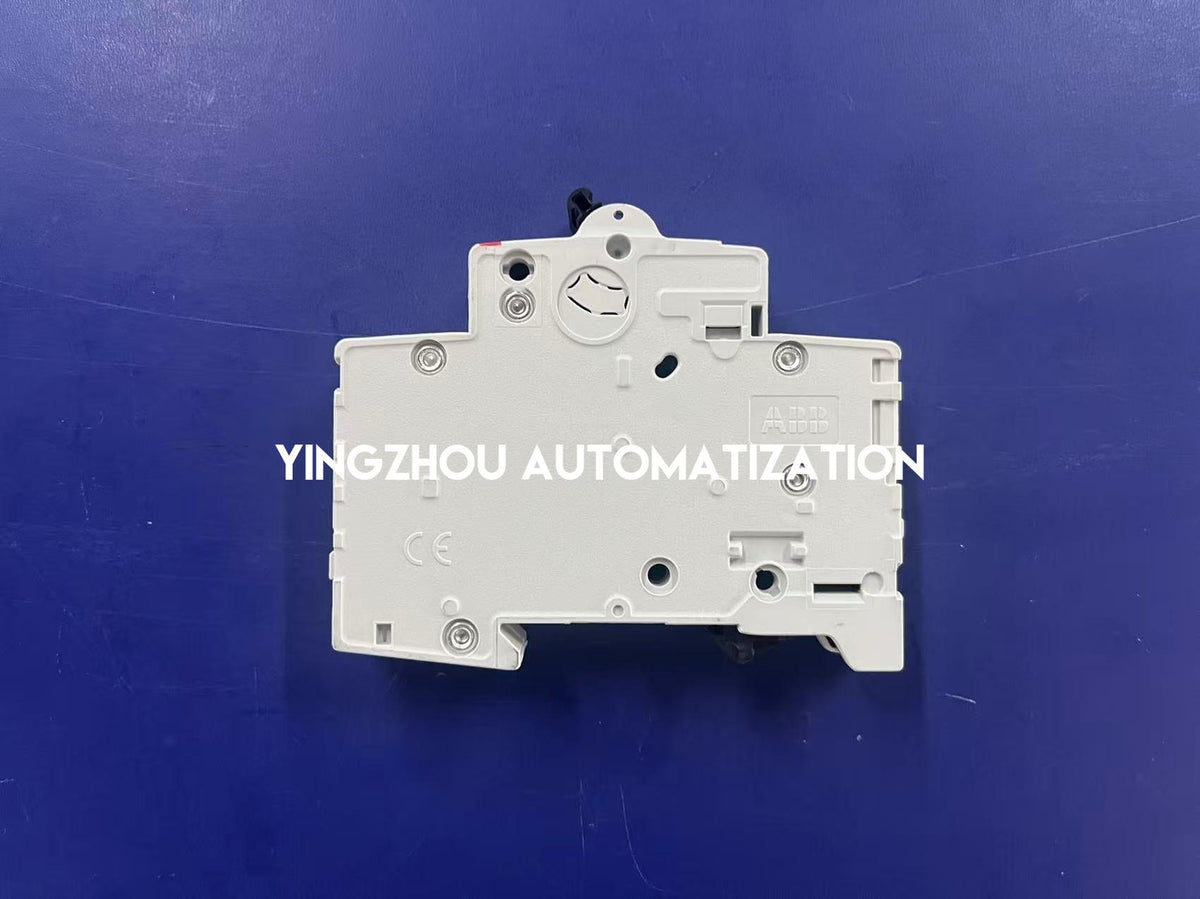

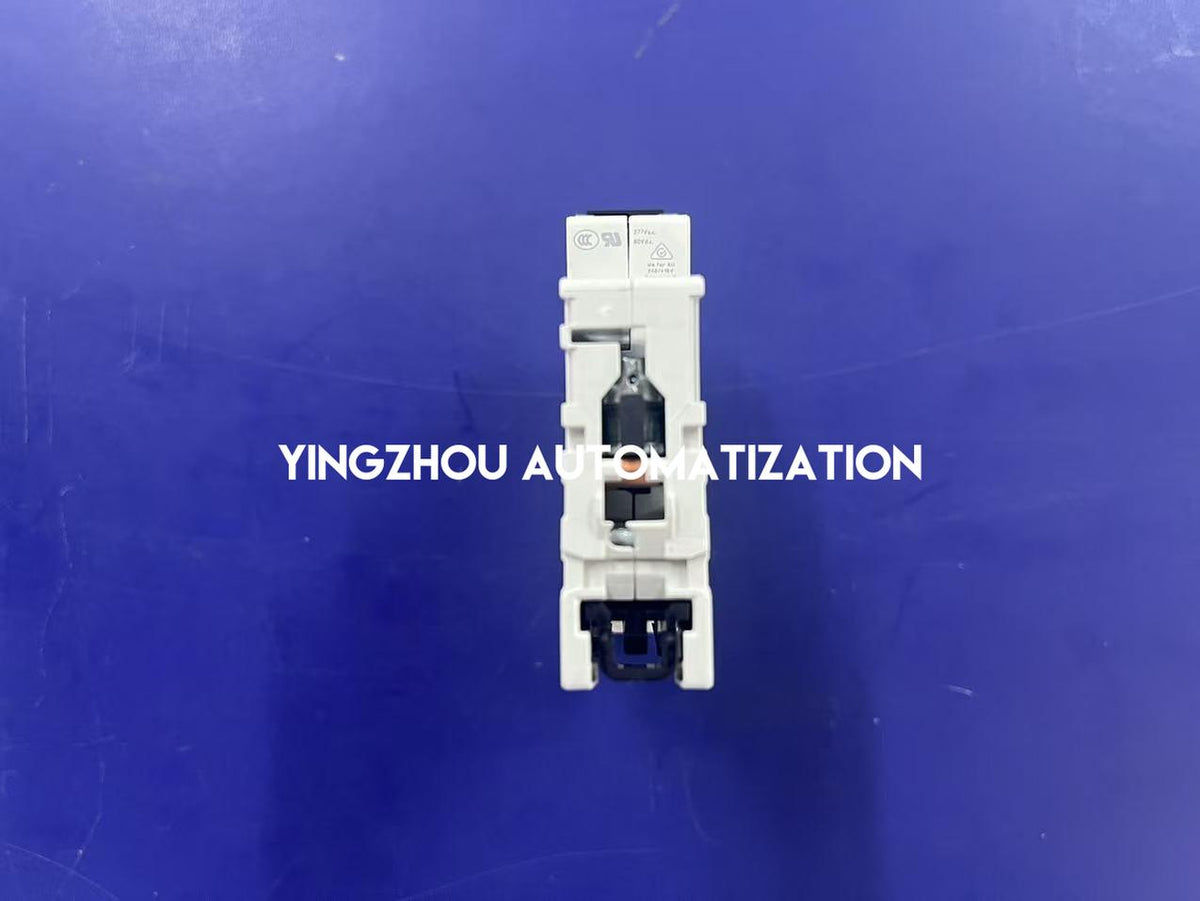

Actual Product Verification
In Stock & Available to Order
ABB S201-C6, order code 2CDS251001R0064, is marked in stock based on YINGZHOU inventory information. Actual front and rear product photographs are available for exact-model verification. This is a 6 A, single-pole, C-curve miniature circuit breaker with a 6 kA rated short-circuit capacity under IEC/EN 60898-1. For industrial electrical maintenance, replacement orders, bulk purchasing or multi-brand sourcing, please confirm the rated current, pole configuration, circuit voltage, required breaking capacity, quantity and dispatch arrangements before ordering.
ABB S201-C6
Contact us for exact-model verification, multiple units and project sourcing. Please confirm the 6A rated current, single-pole C-curve configuration, 6kA breaking capacity and installation requirements before ordering.
